Park Tool BKD-1 Hydraulic Brake Bleed Kit - DOT



Does the job without leaking, but bleeding expensive...
Everything you need (apart from fluid)
Very handy syringe holder
Carry case with spares
Plastic not glass syringes

At every product is thoroughly tested for as long as it takes to get a proper insight into how well it works. Our reviewers are experienced cyclists that we trust to be objective. While we strive to ensure that opinions expressed are backed up by facts, reviews are by their nature an informed opinion, not a definitive verdict. We don't intentionally try to break anything (except locks) but we do try to look for weak points in any design. The overall score is not just an average of the other scores: it reflects both a product's function and value – with value determined by how a product compares with items of similar spec, quality, and price.

What the scores mean

Good scores are more common than bad, because fortunately good products are more common than bad.

  • Exceptional
  • Excellent
  • Very Good
  • Good
  • Quite good
  • Average
  • Not so good
  • Poor
  • Bad
  • Appalling

The Park Tool BKD-1 Hydraulic Brake Bleed Kit is an all-in-one answer to bleeding pretty much any DOT fluid brake, including today's SRAM 'Bleeding Edge' brakes. Paired with Park Tool's excellent how-to videos, it should do any mechanic right. It's very expensive for what it is, though.

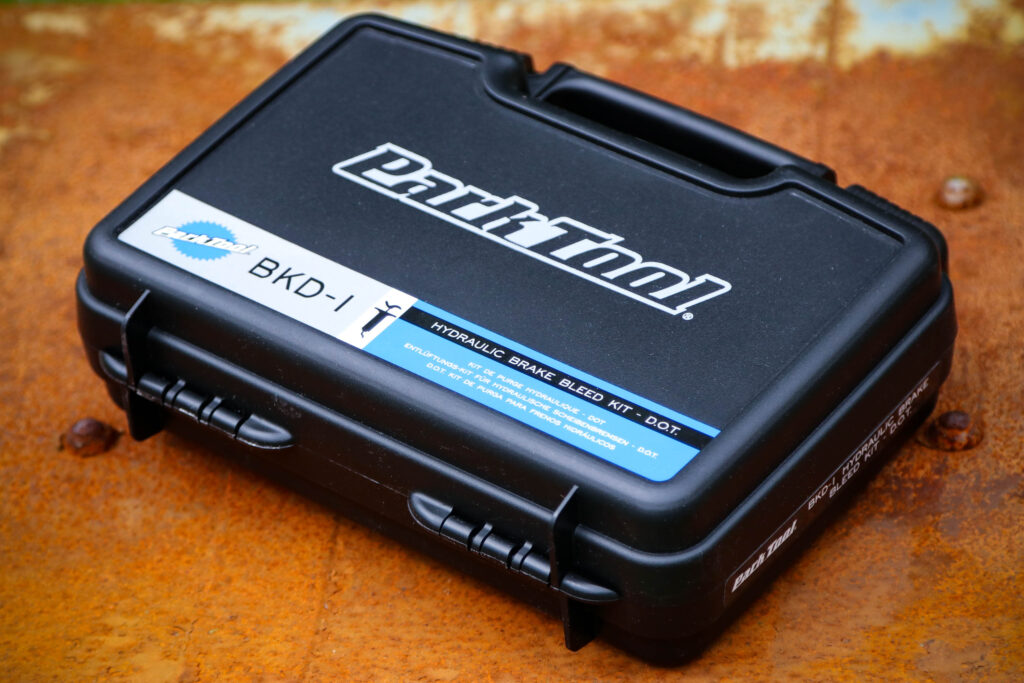

What Park Tool is charging a pretty hefty premium for here is all the bits to suit the popular DOT brands, the handy syringe holder, and a case. You also get Park Tool's Lifetime warranty, of course, and spares availability.

> Find your nearest dealer here

> Buy this online here

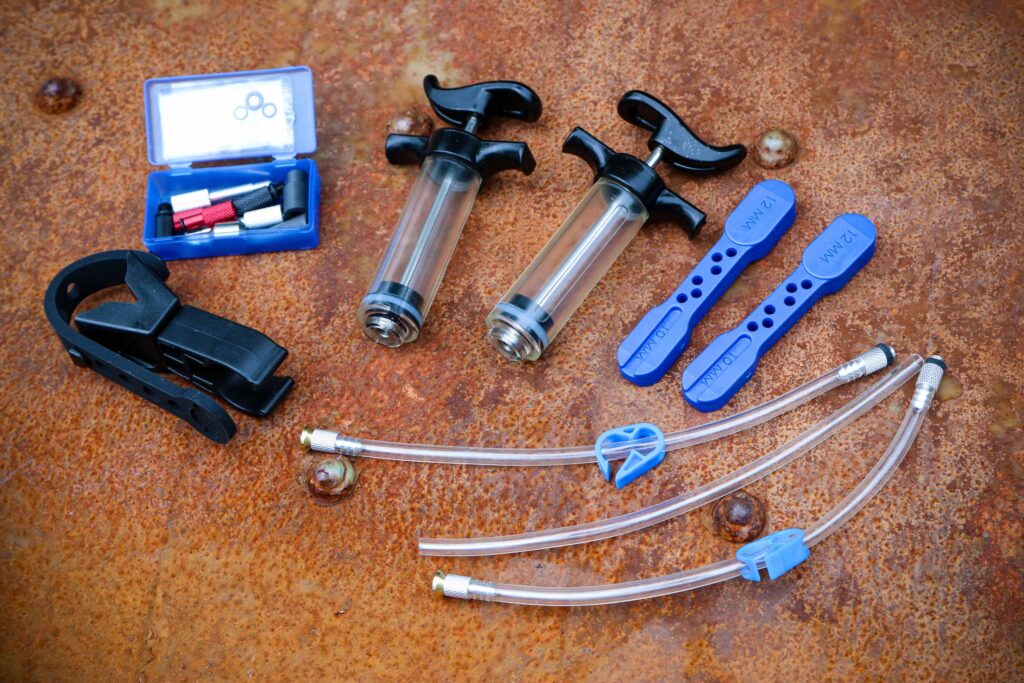

In the box are two plastic syringes with shaped plunger heads and two-fingered handles, and thickly-threaded hose fixings. There are two really supple 8in hoses, with machined and sealed fittings to fit colour-coded adapters for SRAM, SRAM Bleeding Edge, Hayes, and a universal M6 thread adapter. Inside the robust box lid is a sticker to remind you which adapter is which.

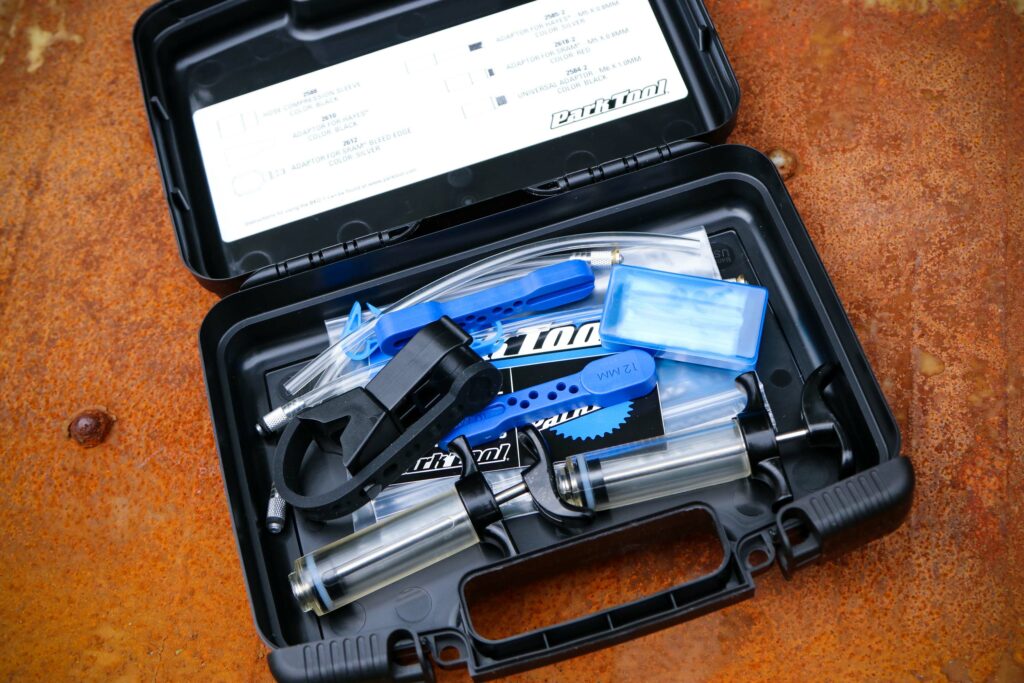

2020 Park Tool DOT Bleed Kit BKD-1 - box open.jpg

The SRAM Bleeding Edge adapter is large enough to turn with your fingers once attached to the bleed port, facilitating its tool-free port opening/closing. There are a few other bits too, including a compression sleeve to clamp the hose onto a bleed port.

There are two bleed blocks, to cater to twin-piston callipers. The blocks have 10 and 12mm thick ends, again covering various calliper dimensions, and holes for pad-retaining pins or zip-ties to keep them in place while bleeding.

Finally, the syringe holder is a nifty bit of kit, a 'third hand' to hold a syringe at the bar, fork or frame. It can fit at any angle, freeing you to wrangle the other end without having one syringe dangling, which would likely allow bubbles to escape or cause stress on the couplings. It holds syringes firmly, can be rotated easily and the rubber fixing strap is thick and strong.

In use

Park Tool has, as usual, made some excellent videos to accompany the BKD-1 set. The instruction video is very clear, but doesn't (at the time of writing) include the process for non-Bleeding Edge road levers. Fortunately SRAM's own video is very clear, and includes the rather important 'fluid degassing' step, which is easily done with the Park Tool kit.

The adapters all thread snugly with no leaks, and the syringe holder does the job perfectly. The syringe action is smooth, and even exerting quite strong vacuum pressure to draw out bubbles sees no leakage around the plunger. The ergonomic handle makes a one-handed vacuum pull easy to modulate, so you can get things done perfectly.

> Everything you need to know about disc brakes

You need to be careful not to roll the O-rings off the end of the adaptors, as they come off easily and are very, very small. Fortunately, spares of each O-ring/adaptor gasket are included.

> 8 reasons not to get disc brakes…

Each syringe is labelled as DOT – handy if you also have or plan to get the matching Mineral Oil kit (same price) because they look exactly the same apart from the adapters (cross-contamination is a no-no as you could knacker an entire set of seals and/or yourself when a seal fails). DOT fluid is glycol-based and harsh enough to strip paint off metal, whereas mineral oil is petroleum-based and safe enough to use in cosmetics. DOT fluid will destroy anything but EPDM rubber seals.


The only real fly in the fluid is that £100 really is a lot for two plastic syringes, some bits and a box. If you're prepared to wait for it to ship from China, generic kits like this one will do pretty much everything the BKD-1 does for £20.

Even UK-sourced kits such as this mineral oil EZmtb Bleed Kit can be had for around £24, while this Clarks Universal Bleed Kit is £35.


The Park Tool BKD-1 is a very good kit that promises years of use with DOT brakes of almost every kind, but it's arguably not quite as premium as its price suggests: metal and glass syringes and at least a token amount of brake fluid would certainly sweeten the deal.

If you're expecting to make heavy use of your kit and the price works for you, the Park Tool BKD-1 promises great performance, strong manufacturer backup and a certain peace of mind. For just one or two bikes at home, though, this is overkill.


Does the job without leaking, but bleeding expensive...

If you're thinking of buying this product using a cashback deal why not use the Top Cashback page and get some top cashback while helping to support your favourite independent cycling website test report

Make and model: Park Tool BKD-1 Hydraulic Brake Bleed Kit - DOT

Size tested: n/a

Tell us what the product is for and who it's aimed at. What do the manufacturers say about it? How does that compare to your own feelings about it?

Park Tool says:

The BKD-1 Hydraulic Brake Bleed Kit will bleed most models of DOT fluid based hydraulic brakes. Hydraulic systems need bleeding to remove any air bubbles and to inject new, clean fluid.

Tell us some more about the technical aspects of the product?

From Park Tool:

Designed and built for home use and the rigors of daily commercial use

Includes two syringes, hoses with shutoff clips, multi-size bleed blocks and a unique attachable syringe mount

Housed in a rugged reusable case

Machined stainless steel and 7075 aluminum fittings to service SRAM®, Hayes®, Formula®, Hope® and other brands of DOT fluid based hydraulic brake systems

Replacement parts available

Brake fluid not included

Rate the product for quality of construction:

The plastic syringes do feel a bit of a letdown for the cash.

Rate the product for performance:

Can't fault it: does the job without leaking.

Rate the product for durability:

Feels durable enough.

Rate the product for comfort (if applicable)

The ergonomic syringe levers and syringe holder make 'comfort' a thing.

Rate the product for value:

This is where Park Tool really suffers – this seems a shedload of cash to be paying.

Tell us how the product performed overall when used for its designed purpose

Well enough – the syringe holder and supple hoses making for a faff-free procedure.

Tell us what you particularly liked about the product

The syringe holder, it's a great benefit.

Tell us what you particularly disliked about the product

For the price, glass syringes would be nice. Plastic does feel like a letdown.

How does the price compare to that of similar products in the market, including ones recently tested on

It's massively expensive. You can get pretty much the same functionality for a lot less.

Did you enjoy using the product? Yes

Would you consider buying the product? Yes-ish.

Would you recommend the product to a friend? Yes, but they'd need to understand they are paying a lot.

Use this box to explain your overall score

Whilst the basic functionality is easily matched by kits at a third the price, Park Tool wins back some ground with the syringe holder, included spares and warranty. That said, the premium is still significant – it's a good kit, then, if poor value.

Overall rating: 7/10

About the tester

Age: 46  Height: 183cm  Weight: 72kg

I usually ride: Merida Ride 5000 Disc  My best bike is: Velocite Selene

I've been riding for: Over 20 years  I ride: A few times a week  I would class myself as: Expert

I regularly do the following types of riding: cyclo cross, club rides, general fitness riding, mtb, Dutch bike pootling.

Living in the Highlands, Mike is constantly finding innovative and usually cold/wet ways to accelerate the degradation of cycling kit. At his happiest in a warm workshop holding an anodised tool of high repute, Mike's been taking bikes apart and (mostly) putting them back together for forty years. With a day job in global IT (he's not completely sure what that means either) and having run a boutique cycle service business on the side for a decade, bikes are his escape into the practical and life-changing for his customers.
