Abbey Bike Tools Hanger Alignment Gauge Tool



The last word in derailleur alignment precision: a tool you'll love for life

At every product is thoroughly tested for as long as it takes to get a proper insight into how well it works. Our reviewers are experienced cyclists that we trust to be objective. While we strive to ensure that opinions expressed are backed up by facts, reviews are by their nature an informed opinion, not a definitive verdict. We don't intentionally try to break anything (except locks) but we do try to look for weak points in any design. The overall score is not just an average of the other scores: it reflects both a product's function and value – with value determined by how a product compares with items of similar spec, quality, and price.

What the scores mean

Good scores are more common than bad, because fortunately good products are more common than bad.

  • Exceptional
  • Excellent
  • Very Good
  • Good
  • Quite good
  • Average
  • Not so good
  • Poor
  • Bad
  • Appalling

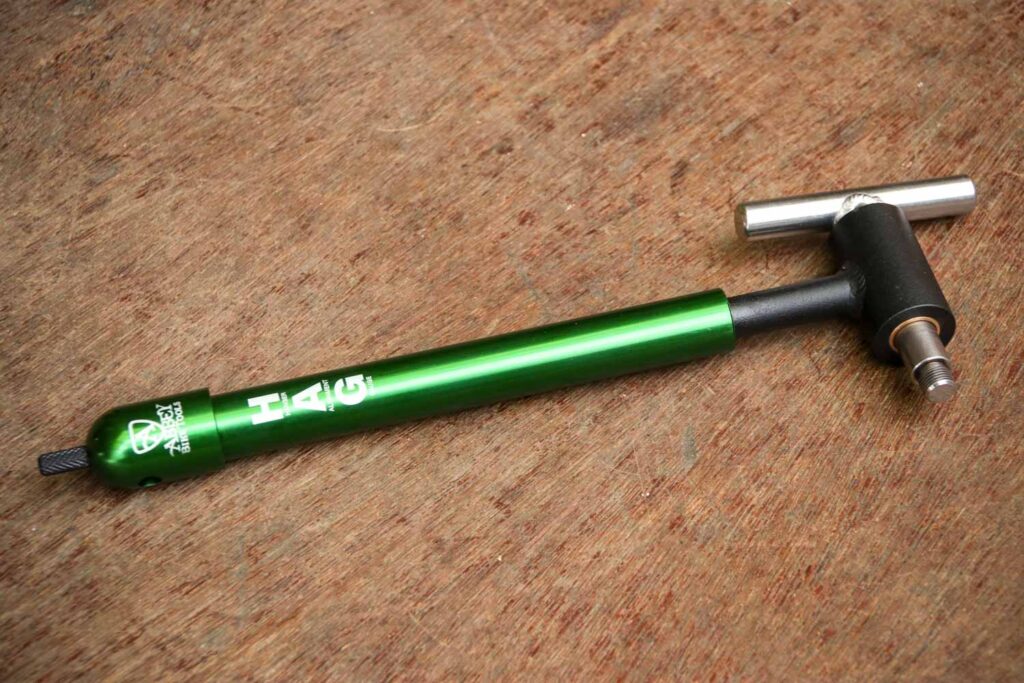

The Abbey Bike Tools Hanger Alignment Gauge (HAG) is a stupendously accurate (and commensurately expensive) way to ensure your rear mech is given the best possible chance of achieving shifting nirvana. Relatively small, light and rebuildable, it really is 'The last hanger tool you'll ever have to buy'.

  • Pros: NASA-grade accuracy, light, compact, rebuildable, used by the pros
  • Cons: Price, practice needed to perfect measurement, won't do 20in or smaller wheels, you won't want to put it in your toolbox and it's likely to get nicked from a shadowboard

The motto of Abbey Bike Tools is 'Precision is our religion'. Owned and operated by Jason 'The Friar' Quade, the Abbey name stems from a love of the spiritual home of cycling, Belgium, and its indescribably good beers. Bend, Oregon is where Abbey started in 2010 and is still based today.

> Buy this online here

Let's get something out of the way first: the price. It's One Hundred And Seventy British Pounds, for something with five parts that is ostensibly a stick to bend your derailleur hanger with. Those of a nature that upon reading such a description find their pulses racing with indignation can turn to the latest Aldi catalogue, I'm sure there's a bike tool special buy due any day now. This will not be the review for you.

Let's set the scene for the HAG, because beginnings are very delicate times. The ethos of Abbey Bike Tools reads thus:

'We design new tools without concern for the final price. This doesn't mean we aim to build expensive tools. Rather, we aren't willing to cut corners in the name of price. This is the reason that we have such a loyal following among professional race mechanics across all disciplines and around the world. When time matters and results pay the bills there's only one tool company that you want in your hand, sponsors be damned'.

And just as pro teams will use tyres from non-sponsors with logos Magic-Marker'd out, pro mechanics will use whatever they think will do the job best – 'sponsors be damned'. In many drivetrain cases, that tool is the HAG – but not just any HAG. From time to time The Friar goes all-out with a titanium version – it's 160 hand luggage-friendly grams lighter than the steel version and costs $325, with custom engraving and, one assumes, its own green velvet cushion included.

But we digress.

Small is good

Physically the HAG is smaller than any other hanger tool – for good reason. This is a pro tool, designed to be carried in toolboxes onto planes by pro mechanics. So every gram and millimetre is critical, as is the ability to rebuild if worn or damaged. As the measurement point is at the end of the arm, there's an inherent limitation to the size of wheel you can measure, in this case nothing smaller than 24in. But hey – this is a pro tool and the use case isn't truing Bromptons or kids' bikes.

A good frame of reference at this point would be the alternative, and that's really the £63 Park Tool DAG-2.2. Since reviewing the 2.2 a few years back, I've owned one and used it hundreds of times on my own and customers' bikes. As reviewed, it's fine – I stand by my assertion that it will meet the needs of all but the pickiest of home mechanics. As I highlighted in the review, you need to shift the measuring arm out of the way and use the rubber gauge every time – which, as you'll see, is a step and possible inaccuracy the HAG does away with.

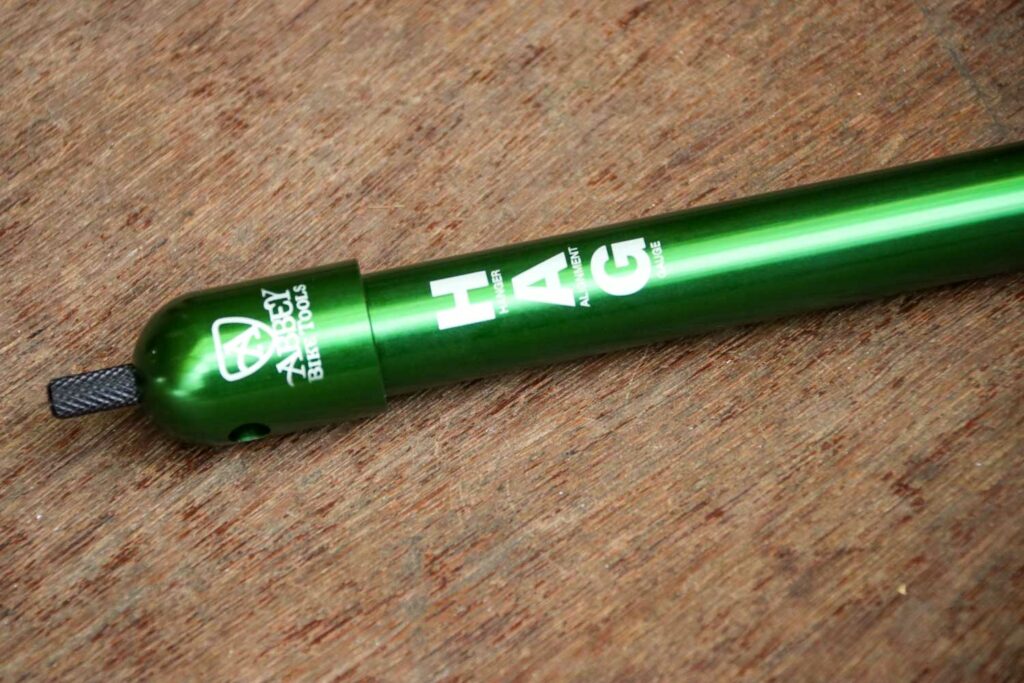

Abbey Bike Tools Hanger Alignment Gauge Tool 3.jpg

The premise of the HAG, as with any hanger tool, is thus: remove mech, screw tool into hanger, spin wheel so valve is at 12, 3, 6 and 9 o-clock as viewed from the drive side, and check at each point that the 'gauge' rod is just touching the valve. That's it.

When you find that at 180-degree opposite points the gauge reads closer or further away, you use the arm of the tool to carefully bend the hanger, so that on a repeat of measuring everything's equidistant. This may well take three or four goes to get it just right, necessitating repeated movement of the gauge as needed. Once done in, say, the vertical plane, repeat for the horizontal. Then check that the subsequent adjustment didn't muck up the first one – so as you can sense, there's a fair bit of back-and-forth.

Chainstays, seatstays, racks and mudguards complicate this process by getting in the way, necessitating a fair bit of faff if the measuring rod needs sliding and locking – as the DAG-2.2 does. And if you knock the little rubber ring gauge, start all over.

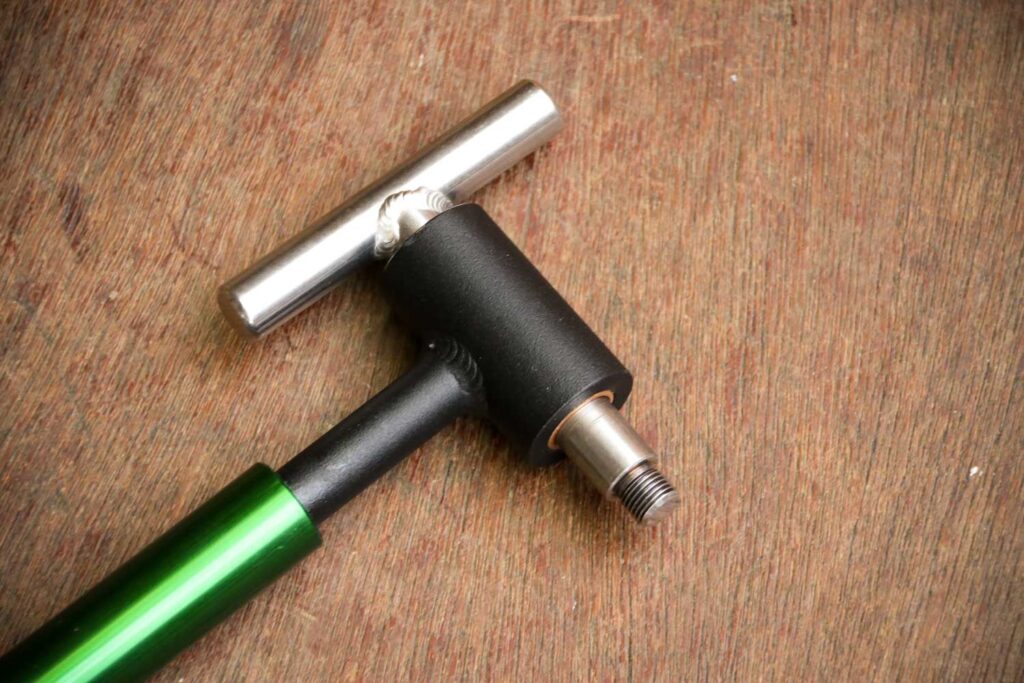

The part of the HAG that screws into the hanger is functionally the same as the DAG-2.2, but the execution is exquisite. The first turn of the T-handle inside its replaceable brass bushing tells your fingers that this is special – the threads engage with a silken action that I've rarely felt on any tool, bike or otherwise. The precision is such that when tight, the T-handle stops dead – no play, no ability to force it further belying a slightly sub-perfect thread cut.

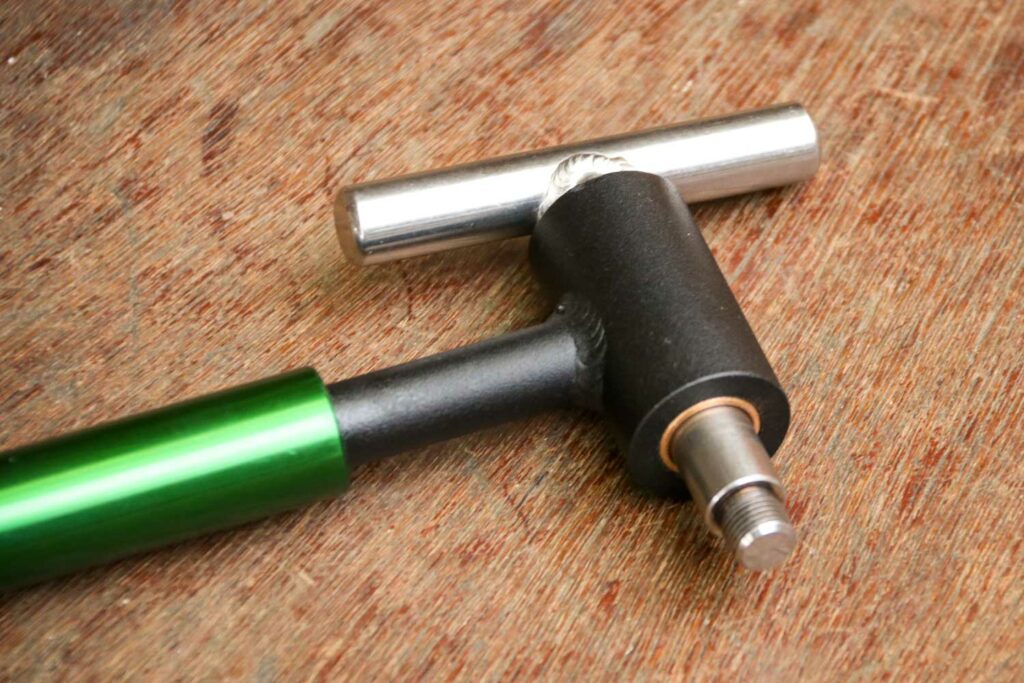

Abbey Bike Tools Hanger Alignment Gauge Tool 2.jpg

Once screwed in place the HAG is free to spin on the hanger, and the measuring begins. The green alloy body can slide in and out and rotate freely. At its head is a threaded cap, with the actual measuring rod stored inside. The rod is removed, and inserted at 90 degrees through the cap. The body then screws further into the cap, locking the measuring rod in place, and allowing the whole setup to move in and out and spin.


This is the genius of the HAG – once you've set the first measurement, it is very quick and one-handed to spin and shift the tool around the stays to measure further points while the other hand rotates and holds the tyre. If an adjustment is needed, the rod can be easily shifted and resecured, which is a two-handed operation.

My only gripe – if you can call it that – with the HAG is that if you let it swing down and let go, then sometimes over a dozen or so seconds the body will slide off the bit that's threaded to the bike and end up on the floor. Does it need some sort of stop, or should the expectation be that if you've invested £170 in such a tool you are 100 per cent focused on its use and care? Either way, the fact that it takes that long to slide apart gives you a hint at the tolerances (down to 0.0063mm) the parts are machined to.

The Shimano derailleur hanger specification allows for less than +/- 4mm deviation as measured at the rim. Your rear mech's top jockey wheel feeds the chain onto your sprocket at a radius of between 30 and 50mm from the mech hanger (as viewed from the side), depending on what gear you're in. So that 4mm maximum hanger deviation spec at the rim 300mm away translates into a possible 0.4-0.8mm departure from vertical at the jockey wheel.

This might sound like a tiny amount, but if you have an 11-speed cassette, the clearance between the chain’s outer plates and the neighbouring sprockets' teeth either side is about 0.13mm. So you can see how a jockey wheel out of place by 0.4-0.8mm when your chain only clears the neighbouring sprockets by 0.13mm can lead to shifting problems. The issue being, the error of 0.4mm in your smallest sprocket is amplified to 0.8mm at your largest sprocket as you shift across.

This is why, if your hanger is bent, you can index the smaller sprockets fine but the shifting goes to pot as you move up the cassette. Jockey wheels have side-to-side play built into them to try to accommodate these tight tolerances, but if the hanger's bent the increasingly-wider gap can't be taken up.

At 90rpm in a 50T chainring your chain is contacting new sprocket teeth off the derailleur jockey wheel at a rate of about 75 links per second. And you're likely putting 200 watts plus through it, if you're going for it. Frankly I'm amazed bicycles work at all, but again I digress.

Measuring the valve gap on my good bike with the DAG-2.2 I got about 2mm, which was pretty good I thought. Historically if it were that close I usually stopped there. Measured with the HAG, the gap was 1.5mm – but with no reference ring like on the 2.2 I had to use a feeler gauge to confirm.

Aside from measurement, the other role of the HAG is brute force bending, to adjust the hanger. With zero play in the body or thread, this felt tighter and more controlled than with the DAG-2.2, meaning adjustments were made quicker and with less to-and-fro and repeated bending likely to lead to a stress fracture in the future.

After a bit of fettling I was able to get the variance down to about 1.15mm difference between the HAG and DAG-2.2. But there the DAG-2.2 ran up against its inherent lack of precision – in addition to the 1mm or so of play in the main bushing, spinning between measurement points the DAG-2.2 wouldn't true completely, leading me to suspect something in the geometry of the threaded section was out, thereby condemning it to forever swing in an arc out of true with the wheel itself.

Using the HAG, my hanger aligned perfectly, referencing all the way around the wheel. And I mean perfectly – like, no space for any of my automotive feeler gauges to fit betwixt rod and valve. I got to slowly spinning the body back and forth with the rod merely scraping the valve stem, more barely-audible than tactile, to confirm the contact.


The proof's out there on the road, and the HAG's work gave me a sound from the Shimano Ultegra groupset I've never heard before, but easily detected on new smooth tarmac – I can only describe it as 'purring'. After you've put many thousands of miles into a bike you become acutely attuned to changes in sound and feel, and that's what I picked up after aligning things with the HAG – the experience of shifting and pedalling was notably quieter and slicker.

I had the same experience aligning my turbo trainer bike's Microshift 11-speed groupset: quieter, tighter, across the whole cassette.

For what it's worth…

Now £170 is indeed a pretty penny to spend for 'tighter' and 'quieter', and here's the nub of the HAG-vs-DAG debate: is it *worth* an extra £110? As with so many things bike, that depends entirely on your optics – where you sit re budget, precision, size, weight, performance, design and so on. If you're on a limited budget and need to get your bike functional, the DAG-2.2 will do the job just fine, and more power to you.

> Beginner's guide to bike tools

I asked Mark Legg, pro mechanic and husband of cyclo-cross star Katie Compton, for his thoughts on the HAG: 'I've bought two of them. One for the US and one for Belgium. Functionally they are fantastic to use. I often keep one in my pit bag for CX. I love the craftsmanship of the HAG. Definitely a must have tool to own for the races or the workshop.'

So yes, you can get close to perfect for one third the cash. But if you're working at the pointy end of cycle racing, frequently bend bikes while travelling, are after a psychological boost from knowing your ride is as tight as it can be, or maybe you're just a fan of exquisite engineering and the beauty of a near-perfect tool, the Abbey Bike Tools HAG might be one for your Significant Birthday wish list.


The last word in derailleur alignment precision: a tool you'll love for life

If you're thinking of buying this product using a cashback deal why not use the Top Cashback page and get some top cashback while helping to support your favourite independent cycling website test report

Make and model: Abbey Bike Tools Hanger Alignment Gauge Tool

Size tested: One

Tell us what the product is for and who it's aimed at. What do the manufacturers say about it? How does that compare to your own feelings about it?

It's for someone who wants and will appreciate their bike running as smoothly as possible.

Abbey Bike Tools says:

The HAG is the last hanger tool you'll ever have to buy.

Why you need one

The derailleur hanger is the foundation for the modern drive train to work properly. With modern bikes getting as many as 12 cogs in the space that we use to put 8 it's never been more important to make sure the hanger is perfectly straight. Sadly many of the current tools just aren't capable of achieving this kind of precision.

What makes the HAG the best

We went through extra steps to make this tool half precision measuring instrument and half pry bar.

Tell us some more about the technical aspects of the product?

From Abbey Bike Tools:

Tolerances as tight as a quarter of a thousandth of an inch (.0063mm) in some critical dimensions of this tool.

Ability to lock in the feeler so you don't have to second guess your measurement after bumping it on the tire.

Top half of tool will rotate out of the way of fender stays and frame tubes.

Feeler gauge stick stores inside the top half of the tool, very handy for the traveling mechanic.

T bolt extends past the tool for access to those problematic hangers found on some modern full suspension bikes.

Compact at just under 11" ( 28cm).

Re-buildable. While ideally your HAG should be sent back for a rebuild, it is possible to do them in the field by replacing the brass bushing in the T-Bolt.

Compatible with the three most common wheel sizes, 26, 27.5/650B and 700/29)

Rate the product for quality of construction:

Just... wow.

Rate the product for performance:

It's perfect.

Rate the product for durability:

This will become a family heirloom, it's that well made.

Rate the product for weight (if applicable)

Compared to the competition, it's a home run.

Rate the product for value:

This has to be the only place you could mark the HAG down, and is utterly dependent on your perspective.

Tell us how the product performed overall when used for its designed purpose

Flawlessly, beautifully, perfectly... we're gonna need a bigger bucket of superlatives.

Tell us what you particularly liked about the product

Everything. The vibe.

Tell us what you particularly disliked about the product

Only the falling-apart bit, if that could be fixed. But really that's a very minor gripe.

How does the price compare to that of similar products in the market, including ones recently tested on

Compared with the Park Tool DAG-2.2, yes it's off the charts expensive. But that's to miss the whole point of a pro tool, which the DAG-2.2 ain't.

Did you enjoy using the product? Yes

Would you consider buying the product? Yes, but don't tell my wife.

Would you recommend the product to a friend? Yes

Use this box to explain your overall score

I can only mark the HAG down on price. That's it. Functionally, it's perfect.

Overall rating: 9/10
