Verdict:
Good magnetic retention system for using your smartphone as your bike computer
Weight:
121g

The F3 Cycling FormMount Phone is a neat way of fixing your smartphone to your bike, and it's reasonably well executed with some extra features that you don't get elsewhere.

  • Pros: Easy to fit, holds your phone securely, you can use it to shoot video
  • Cons: A bit bulky, lanyard doesn't work very well

This is a magnetic mount. There'll be people at this point who will be thinking, 'I'm out. There's no way I'm attaching my phone to the bike with magnets.' That's a reasonable position, generally speaking. But these magnets are fierce. Seriously, I'd be more worried about the 3M adhesive failing to hold the mount onto my phone case than I would about the magnets giving way.

> Find your nearest dealer here

> Buy this online here

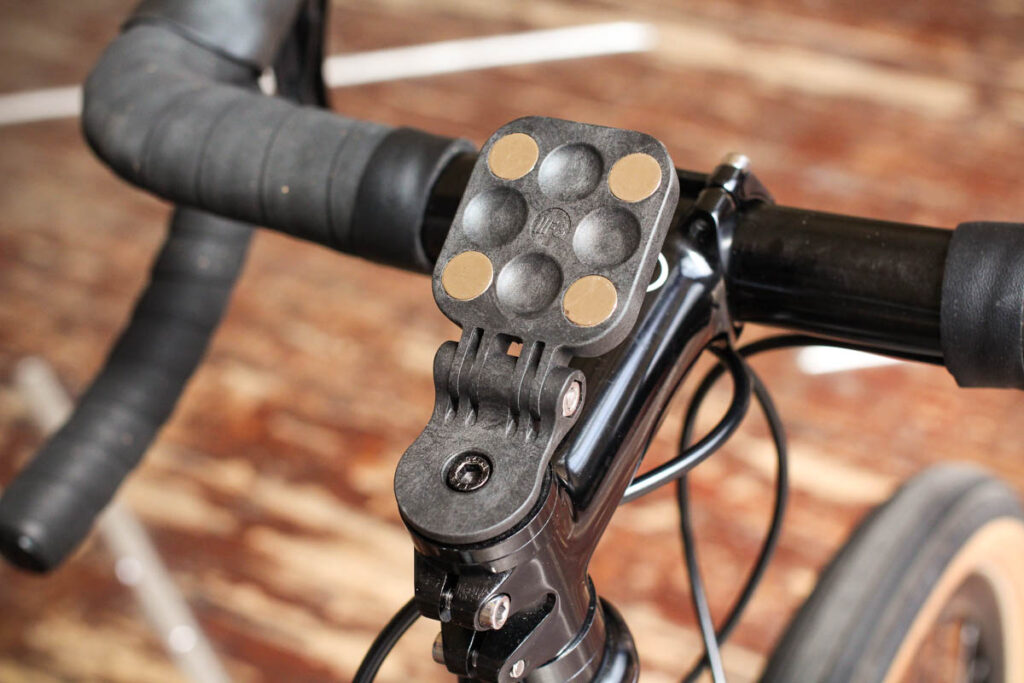

There are four of them, which grab the steel mounting plate. The bike mount itself has four recesses which mate up with four bumps on the mounting plate to keep the phone secure laterally, and also make sure it's not at an angle. That works pretty well, although the fit isn't exact so there's a few degrees of movement available.

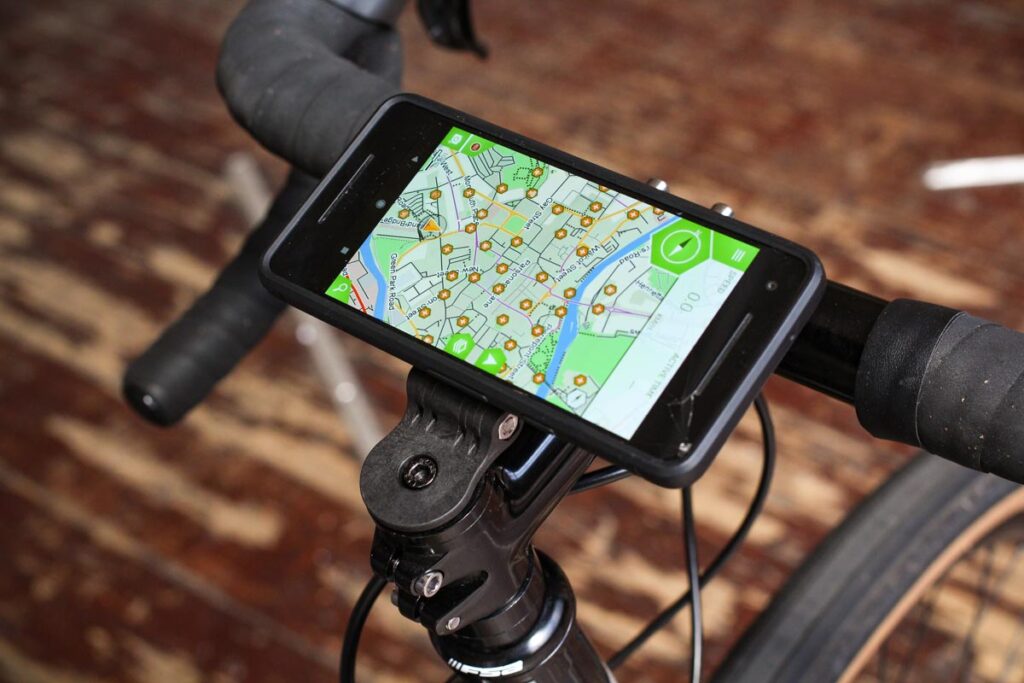

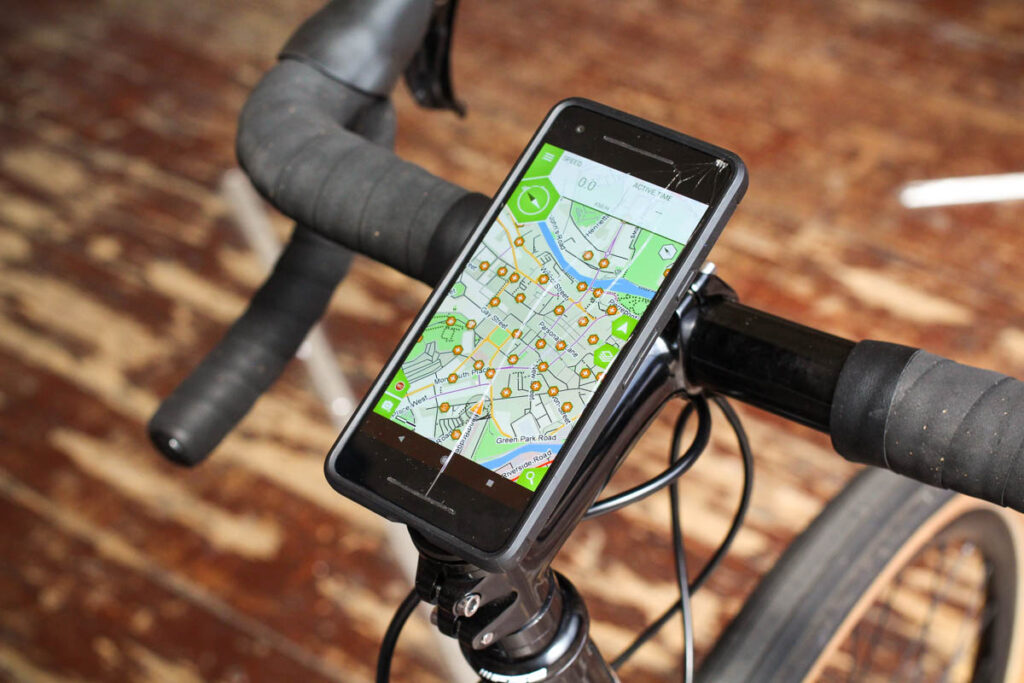

The design also means you can fit your smartphone in portrait or landscape orientation, and switch from one to the other mid-ride.


Once it's on there it stays there. It's sufficiently secure that you need a certain technique to get it off, twisting and sliding it off the mount instead of trying to pull it away from the bars. I can't imagine any sort of impact that would free it from the magnets that wouldn't also wreck you or your bike. When you put it back it generally snaps into place, although sometimes it needs a bit of persuasion and it can sit with the bumps proud of the recesses, which isn't so secure.

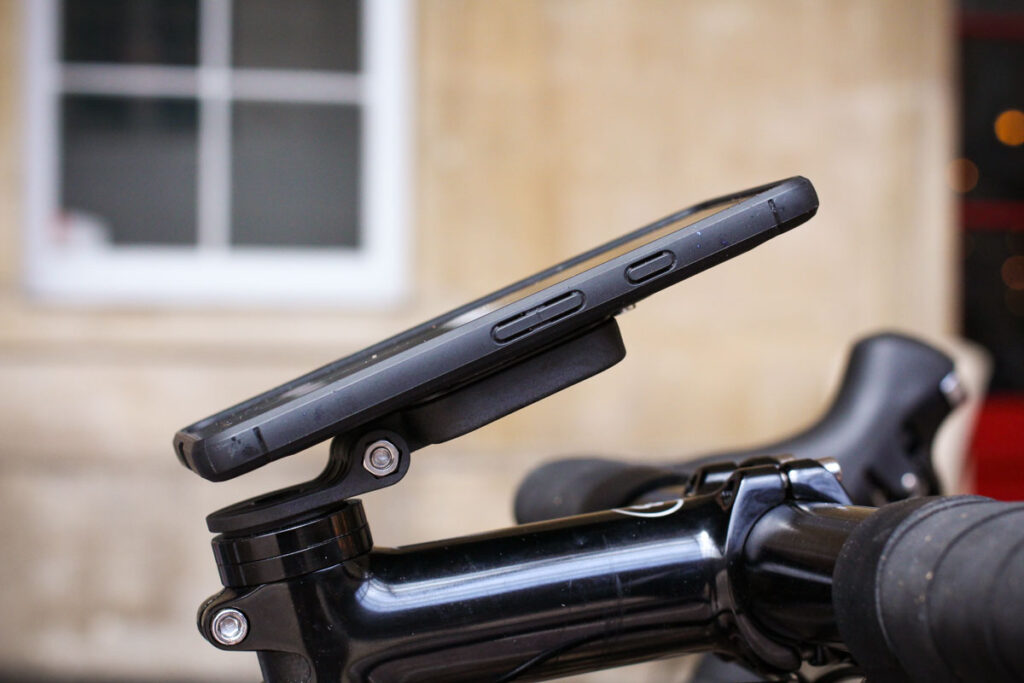

The bike mount replaces your headset top cap, so your phone sits over the top of your stem. It's a good location for it, although personally I prefer fitting my phone on an out-front mount as it's a bit easier to see. F3 Cycling also suggests that you can use the mount as an iPad mount for indoor training; you could, but that close to the bar it's always going to be in danger of getting sweaty when you're working hard.

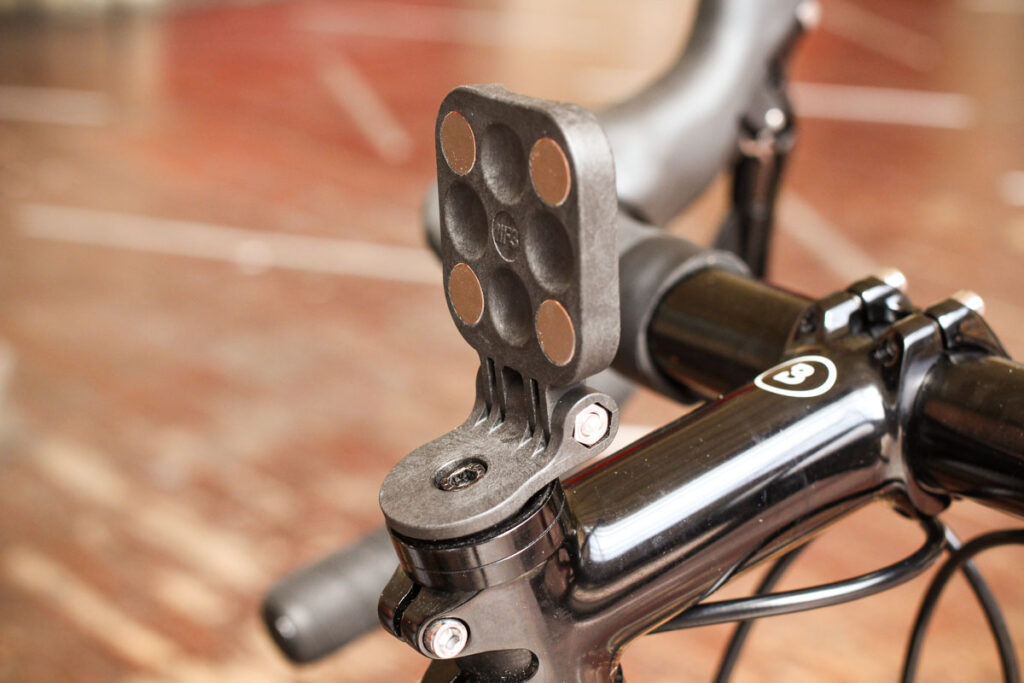

The mount has a hinge which allows you to angle the phone to your preference. I mostly had it flat against the stem, although I did find that with the phone in landscape mode you could flip the mount right up and then use your phone as a bar-mounted video camera or to take still photos, which was a useful extra feature.

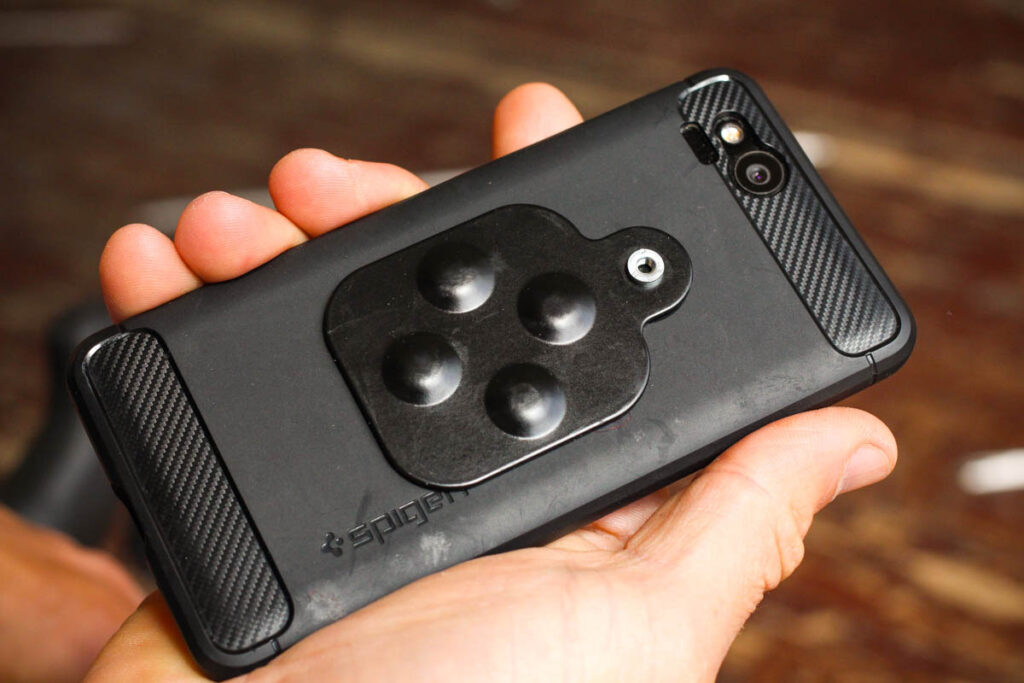

It's possible to stick the phone plate directly onto your smartphone. You're unlikely to want to, though, so factor in an extra tenner for a decent phone case (I'm using this Spigen case which is excellent) and you can take the mount on and off as you need it then.

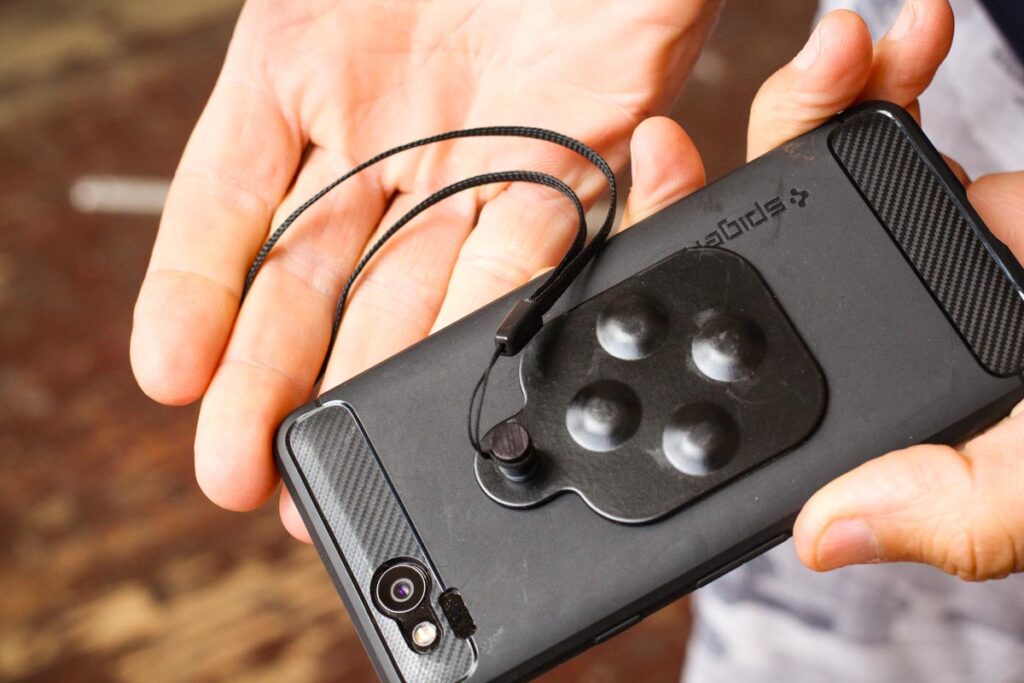

With my phone (a Google Pixel 2), the mounting plate obscures the fingerprint sensor on the back of the phone. The bit that obscures it is the mounting point for the included lanyard. Ostensibly that's for an extra level of security should your phone break its moorings, but it's in a tricky position and not useful for actually keeping the phone safe when you take it off the mount as you can't loop it over your hand beforehand. After smashing the screen on my Pixel 2 (as you can see in the pics) I added a lanyard to my riding case so I can loop it over my hand if I'm holding the phone to take pics or check my route, but you can't do that with the F3 one and it also sticks out of the back of the case when you take it off the bike so it wobbles about on surfaces.


At £49.99 it isn't cheap, especially compared with something like the Quad Lock Universal Mount which is less (around £30) and offers an out-front option. Or, indeed, doing what I've done which is buying a 3D-printed Garmin plate for a fiver and sticking it onto my phone case with Araldite.

> Money-saving tips for cyclists

Overall, it's a pretty good system. The F3 mount feels more secure than either of the cheaper options mentioned above. The lack of an out-front option is a shame, but the ability to shoot pics and video from your phone is a bonus. The lanyard is a weak point of the design, but really it's belt and braces and I'd still recommend this as an option if you're keen to use your phone as your bike computer.

Verdict

Good magnetic retention system for using your smartphone as your bike computer

If you're thinking of buying this product using a cashback deal why not use the road.cc Top Cashback page and get some top cashback while helping to support your favourite independent cycling website

road.cc test report

Make and model: F3 Cycling FormMount Phone

Size tested: n/a

Tell us what the product is for and who it's aimed at. What do the manufacturers say about it? How does that compare to your own feelings about it?

F3 Cycling says, "Whether you're roaming around the block, city or mountain, FormMount Phone is the perfect phone-on-the-go solution. A strap-free interface uses 4 neodymium magnets to create incredibly strong docking while the twist & lift design provides an effortless release. With angling adjustability, 2 mounting positions and portrait/landscape docking, it's hands down the most multi-functional, user-friendly phone mount on 2 wheels."

Tell us some more about the technical aspects of the product?

F3 Cycling lists this information:

Compatible with any 1 1/8 steerer tube bicycle with bolt on stem. Remove stem cap, replace with SCPM using bolt provided. Large devices are for indoor training only.

Phone case surface should be plastic or metal without texture. A hard and smooth surface is needed for maximum case plate bonding.

Rate the product for quality of construction:

8/10

Nicely made.

Rate the product for performance:

8/10

Really strong magnets, useful range of phone positions. Lanyard not great.

Rate the product for durability:

8/10

3M a possible weak point for a heavier phone or a case that doesn't bond well, but the mount and plate are built to last.

Rate the product for weight (if applicable)

6/10

It's certainly not the lightest way of fixing your phone to your bike.

Rate the product for value:

5/10

Quite expensive considering the other options.

Tell us how the product performed overall when used for its designed purpose

Pretty well.

Tell us what you particularly liked about the product

Easy to use, secure, ability to shoot video from your phone.

Tell us what you particularly disliked about the product

Lanyard position, cost.

How does the price compare to that of similar products in the market, including ones recently tested on road.cc?

More expensive than a Quadlock and a lot more than gluing a Garmin mount to your phone case, but feels more secure than either.

Did you enjoy using the product? Yes

Would you consider buying the product? Maybe

Would you recommend the product to a friend? Yes, depending on their needs.

Use this box to explain your overall score

It's a good system and the mount is a very secure one. It's not without its flaws, though, and it's quite expensive.

Overall rating: 7/10

About the tester

Age: 45  Height: 189cm  Weight: 92kg

I usually ride: whatever I'm testing...  My best bike is: Kinesis Tripster ATR, Merida Scultura

I've been riding for: Over 20 years  I ride: Every day  I would class myself as: Experienced

I regularly do the following types of riding: road racing, time trialling, cyclo-cross, commuting, touring, club rides, sportives, general fitness riding, fixed/singlespeed, mountain biking, Mountain Bike Bog Snorkelling, track

Dave is a founding father of road.cc and responsible for kicking the server when it breaks. In a previous life he was a graphic designer but he's also a three-time Mountain Bike Bog Snorkelling world champion, and remains unbeaten through the bog. Dave rides all sorts of bikes but tends to prefer metal ones. He's getting old is why.

2 comments

Avatar
Crashboy [78 posts] 2 months ago
0 likes

Can someone correct or confirm my schoolboy physics with regards to magnets and electric fields and all that ...

Won't putting strong magnets near a digital device mess with or corrupt the storage/ signal/ GPS / Gyrometer etc over a reasonable length of time or is the the current etc not sufficient to generate an electromagnetic field of enough strength - or have I got it totally wrong and solid state digital devices don't suffer from this effect?

Avatar
janusz0 [214 posts] 2 months ago
0 likes
Crashboy wrote:

Can someone correct or confirm my schoolboy physics with regards to magnets and electric fields and all that ...

Won't putting strong magnets near a digital device mess with or corrupt the storage/ signal/ GPS / Gyrometer etc over a reasonable length of time or is the the current etc not sufficient to generate an electromagnetic field of enough strength - or have I got it totally wrong and solid state digital devices don't suffer from this effect?

For a start, the magnetic field is mostly confined between the poles of the magnets and the steel plate.  Anyway, the magnets aren't moving relative to the circuits in the 'phone, so they won't induce currents to flow.  The bad news is that the compasses, accelerometers and "gyroscopes" will be affected. That shouldn't matter to cycling apps because the "GPS" will calculate the heading as long as the phone is moving.

BTW, isn't the lanyard there to secure the 'phone to the bicycle in case you remove the 'phone clumsily and lose your grip?
