Mythos Elix Stem



High-end price with the looks and technology to match, even if it doesn't outperform traditional offerings
Impressive stiffness
Interesting looks
Price is prohibitive for most
No noticeable weight saving over standard stems

At every product is thoroughly tested for as long as it takes to get a proper insight into how well it works. Our reviewers are experienced cyclists that we trust to be objective. While we strive to ensure that opinions expressed are backed up by facts, reviews are by their nature an informed opinion, not a definitive verdict. We don't intentionally try to break anything (except locks) but we do try to look for weak points in any design. The overall score is not just an average of the other scores: it reflects both a product's function and value – with value determined by how a product compares with items of similar spec, quality, and price.

What the scores mean

Good scores are more common than bad, because fortunately good products are more common than bad.

  • Exceptional
  • Excellent
  • Very Good
  • Good
  • Quite good
  • Average
  • Not so good
  • Poor
  • Bad
  • Appalling

The Mythos Elix stem may look quirky, but it certainly has all of the stiffness and strength required to do the job. At a cool £500 it's not going to suit everyone's budget, but this technology doesn't come cheap – so if you want a show-stopping component for your bike, you're going to need to fork out for it.

Before we all kick off about the price, let's get the Elix in context – or for what I take it to be, at least. It's a showcase for the type of engineering, manufacturing and development that is possible. It's highlighting what we can do... not necessarily what we need to do.

The Elix isn't machined, cast or created from any of the usual methods. Instead, it has been 'printed'.

> Buy now: Mythos Elix Stem from Mythos for £500

You may have heard of 3D printing. Instead of machining material away like a CNC mill does, it's an additive process where products are built up in layers, line by line. The printers can build extremely complex shapes this way from 3D models created in CAD (computer aided design) software – including shapes that are potentially impossible to cast or mill in one piece otherwise.

3D printed plastic is common, but the Elix stem is metal. Mythos uses SLM Additive Manufacturing, with SLM standing for Selective Laser Melting, which involves accurately fusing metallic powders to create the layers.

The metal in question is Scalmalloy, an alloy created by Airbus, and it's a mix of zirconium, manganese, aluminium, magnesium and scandium. It's considered one of the strongest aluminium alloys suitable for additive manufacture, and it's also extremely expensive.

I spent quite a few years as a draughtsman for an engineering company, and my main role was creating 3D prototypes of new products via an in-house 3D printer. From this I know the actual printing process isn't necessarily quick, at all – something which only adds to the overall price.

Yes, but is it good?

In terms of performance the Elix can't be faulted. Then again, most stems can't really be faulted, regardless of cost...

The lattice design here gives the look of a lot less material than usual, but Mythos says it's actually 15% stiffer under torsion than an equivalent alloy stem, while matching its bending stiffness for comfort.

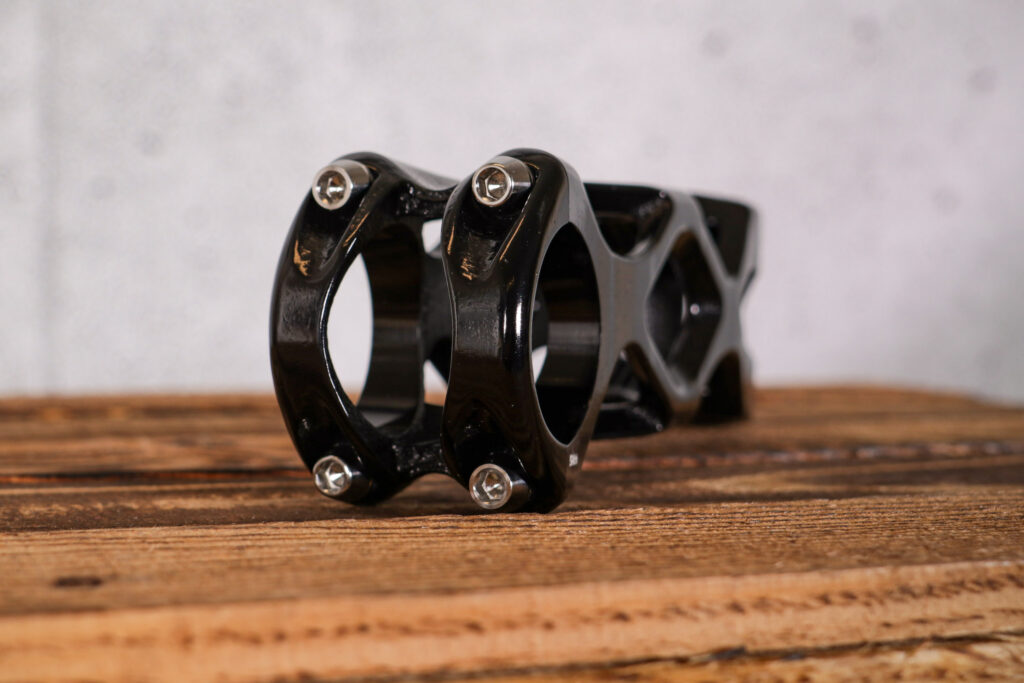

2022 MYTHOS ELIX Stem - front.jpg

To be honest, away from a jig that is hard to judge, but hard efforts out of the saddle pushing down hard on either side of the handlebar showed no flex, and it coped with fast paced gravel rides too. If you are a larger or powerful rider (or both) you won't be left wanting.

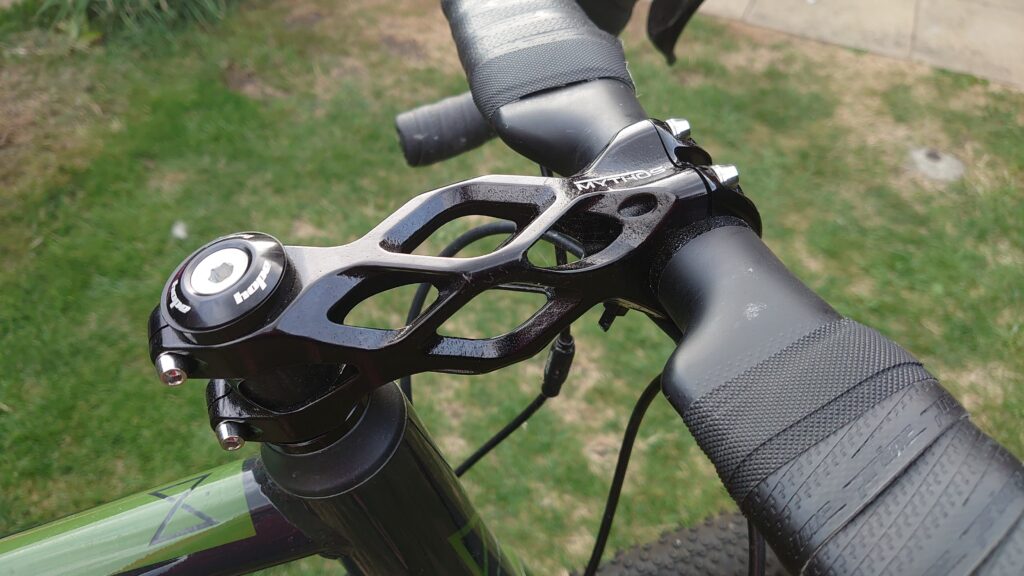

2022 MYTHOS ELIX Stem Fitted 1.JPG

Mythos is also keen to point out the Elix design has gone through fatigue testing to ISO 4210-5, with each stem having full traceability through its manufacture.

> How to choose the best stem length

Weight-wise the 120mm stem here tips our scales at 170g, which is light enough but not exactly groundbreaking. For example, the £285.99 carbon fibre Zipp SL Sprint stem is 173g in its 110mm guise (read our review here), and the £54.99 aluminium Easton EA70 is just 140g for a 100mm (review here).

Schmolke's TLO carbon stem is said to be just 81g in a 100mm length. That costs between €498.99 and €645 though (it depends on your chosen colour scheme and internal routing option) – which, at the time of writing, was £424-£548.

The Elix is available in three colours – silver, gloss black or denim black – and lengths of 100mm to 130mm in 10mm increments. They all have a +/-8 degree angle.


So that's the deal. It isn't really lighter than any other stem on the market, and in the real world it's not noticeably stiffer than many either. However, it doesn't disappoint in terms of performance, and the quality is excellent with smooth finishes throughout and super tight tolerances.

It's a niche product created in small quantities, and with that comes a high price tag. If you can justify the cost and like the looks, you won't regret the investment.


High-end price with the looks and technology to match, even if it doesn't outperform traditional offerings

If you're thinking of buying this product using a cashback deal why not use the Top Cashback page and get some top cashback while helping to support your favourite independent cycling website test report

Make and model: Mythos Elix Stem

Size tested: 120 mm

Tell us what the product is for and who it's aimed at. What do the manufacturers say about it? How does that compare to your own feelings about it?

Mythos says, "Made in Scalmalloy using state-of-the-art SLM Additive Manufacturing, a material and a manufacturing process typically reserved for the very top level of the aerospace and motorsport industries, the MYTHOS ELIX stem is the first in a line of cycling products like no other.

Having been designed specifically around the most extreme load-paths experienced by a stem, the Elix stem is 15% stiffer in torsion than an equivalent alloy stem while maintaining the same bending stiffness, so you can put more power down when you need to and still stay comfy on the rough stuff."

It's a cool looking stem exploiting the materials and manufacturing processes available today.

Tell us some more about the technical aspects of the product?

Mythos lists:

Lengths: 100-130mm

Angle: +/- 8 degrees

Weight: From 150g (Including hardware)

Stack height: 45mm

Clamp Diameter: 31.8mm

Material: Scalmalloy

Hardware: Titanium M5x0.8 x 16 mm

Compatible with FSA ACR Integrated Cockpit System

Designed and manufactured in Great Britain by METRON Advanced Equipment

Tested using the fatigue test methods outlined in ISO 4210-5

Rate the product for quality of construction:
Rate the product for performance:
Rate the product for durability:
Rate the product for weight (if applicable)
Rate the product for comfort (if applicable)
Rate the product for value:

Tell us how the product performed overall when used for its designed purpose

It offers great stiffness and the tolerances are tight.

Tell us what you particularly liked about the product

It looks cool.

Tell us what you particularly disliked about the product

No obvious real world advantages over a standard stem design.

How does the price compare to that of similar products in the market, including ones recently tested on

This is probably the most expensive stem on the market, and nothing else is really created in the same way, so it's difficult to compare. For the extra money you aren't really saving any weight over even the cheapest of stems, though.

Did you enjoy using the product? Yes

Would you consider buying the product? Yes, if I was building my ultimate dream bike.

Would you recommend the product to a friend? Yes

Use this box to explain your overall score

The cost is high but the Elix is a showcase of what can be done with the latest technology. Performance-wise it offers great stiffness, and it's finished to a very high quality.

Overall rating: 7/10
