Verdict:
A fast machine with sorted geometry, but its firm ride won't appeal to all
Weight:
8,780g

The Reacto Disc 4000 is Merida's lowest priced aero road bike with hydraulic braking, and as a package it offers pretty decent value for money. It's a fast bike and handles sweetly through the bends, but some might prefer a little more feedback from the frame and fork.

  • Pros: A quick bike for tapping out the miles, balanced handling
  • Cons: Overly firm ride, wheels don't benefit the aero attributes of the frame

The ride

At the same time as testing the Reacto I was also riding the Scultura Disc 200, Merida's alloy framed non-aero road bike, and I was massively impressed with the comfort of the frame. There was little in the way of road buzz, and harshness certainly wasn't evident.

> Find your nearest dealer here

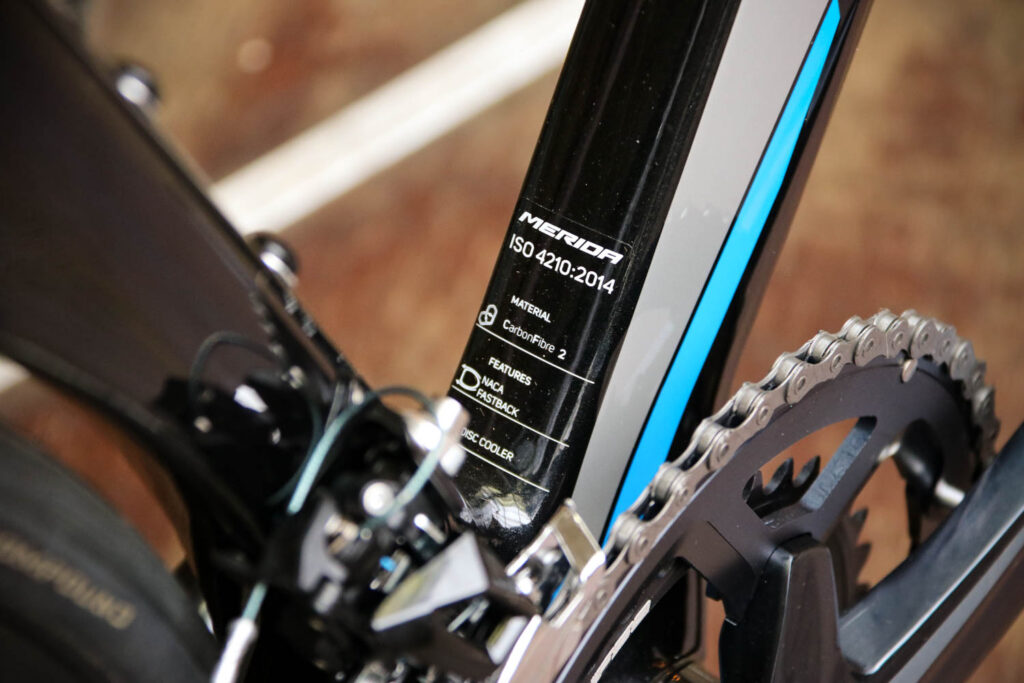

Unfortunately, I found the Reacto 4000 to be the opposite. Whether that is down to the oversized aero tubing, the carbon choice or a bit of both, it has a pretty uncompromising frameset. You feel everything from the road as it travels up through the bike, but not in a good way.

Merida Reacto Disc 4000 - frame detail.jpg

I like a frame that tells me exactly what is going on with the tyres beneath you – the slightest change in traction or road surface, for instance. A good frame of any material can do this, taking out the harshness and shrill vibration but keeping the important information coming through.

The Reacto lets all of the chatter through, but in a kind of muted way that takes the edge off, leaving you just that fraction of a second behind as you carve your way through the bends.

Merida Reacto Disc 4000 riding-3.jpg

I'm not saying the Reacto is uncomfortable to ride – I was still completing three and four-hour rides, and while I knew I'd been on it I wasn't exactly bruised and battered – I was just expecting more from the frame itself, I suppose.

Merida's aero seatpost design does take some of the sting out of its tail, thanks to the notched-out area underneath the clamp that promotes some flex beneath the saddle. A silicone rubber cover fills the gap to maintain the aerodynamics.

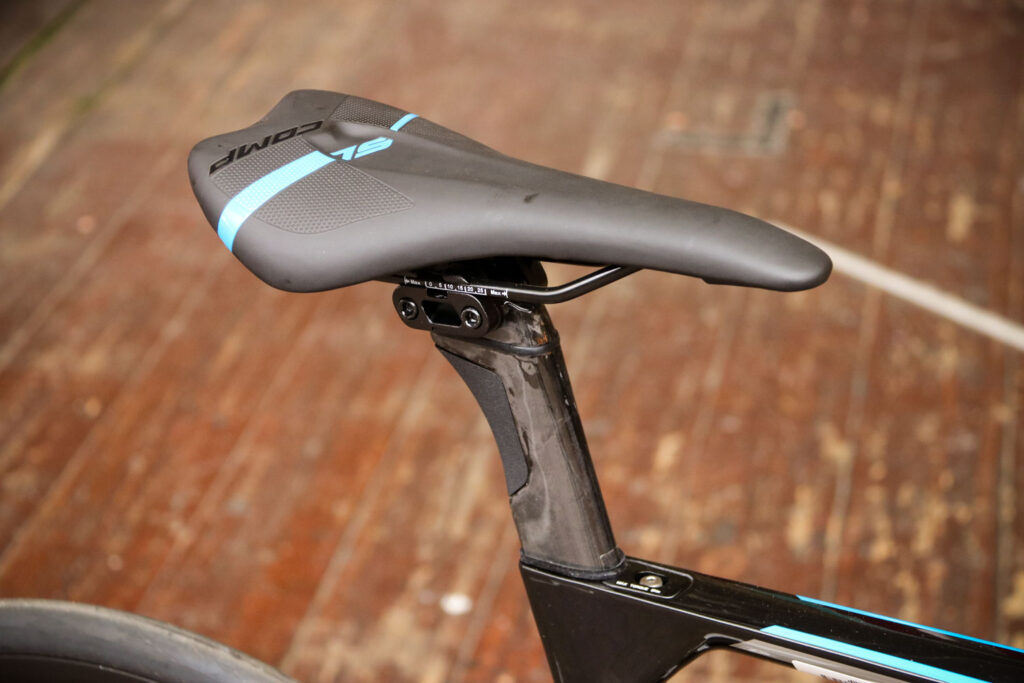

Merida Reacto Disc 4000 - saddle and post.jpg

The Reacto can't half cover some distance at speed, mind, and if you change the standard wheels for something with a deeper rim to exploit the aero design of the frame and fork you can really feel the benefits above about 25mph.

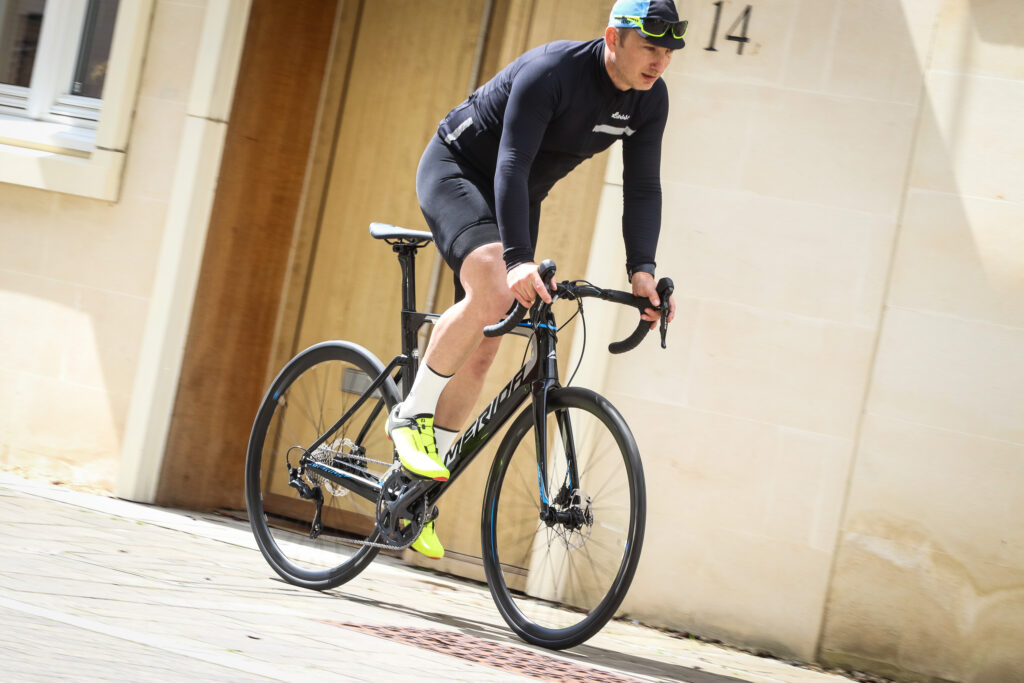

Merida Reacto Disc 4000 riding-2.jpg

The CF2 frame used for the 4000 is more relaxed in geometry than the CF4 of the higher end models like the Reacto Disc Team-E tested by Mat, and sits somewhere in between a full race bike and a more relaxed endurance setup. This means you don't need to be super-flexible to get down on the drops and power along into the wind.

> Your guide to Merida's 2019 road bike range

With a 73-degree head angle for this M/L size and a 73.5-degree seat angle, the Reacto is reasonably aggressive, plus by managing to keep the wheelbase at 995mm it's pretty nimble too.

The steering is quick enough to be exciting without entering into the territory of twitchiness, and it is a competent descender, responding well to small tweaks in body weight and position as you change direction on the technical sections.

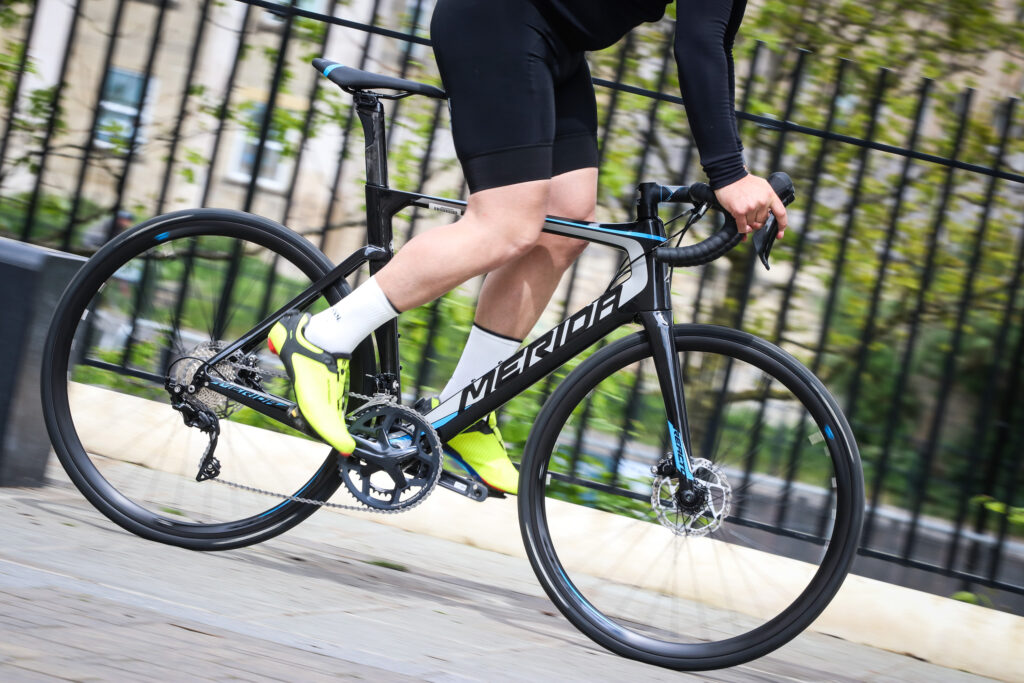

Merida Reacto Disc 4000 riding-5.jpg

At 8.78kg (19.35lb) it's not exactly that light a bike, which does blunt the acceleration and climbing a touch. A lot of this could be rectified by upgrading the standard heavy wheels and tyres further down the line, which makes a big difference.

If the weight is holding you back from setting KOMs on your local hills, it won't be hampered further by a lack of stiffness at the tapered head tube or massive BB386 bottom bracket junction.

Merida Reacto Disc 4000 riding-4.jpg

Frame and fork

A model in this size has a claimed frame weight of just 1,050g according to Merida, which is impressive for an aero design that incorporates disc brakes.

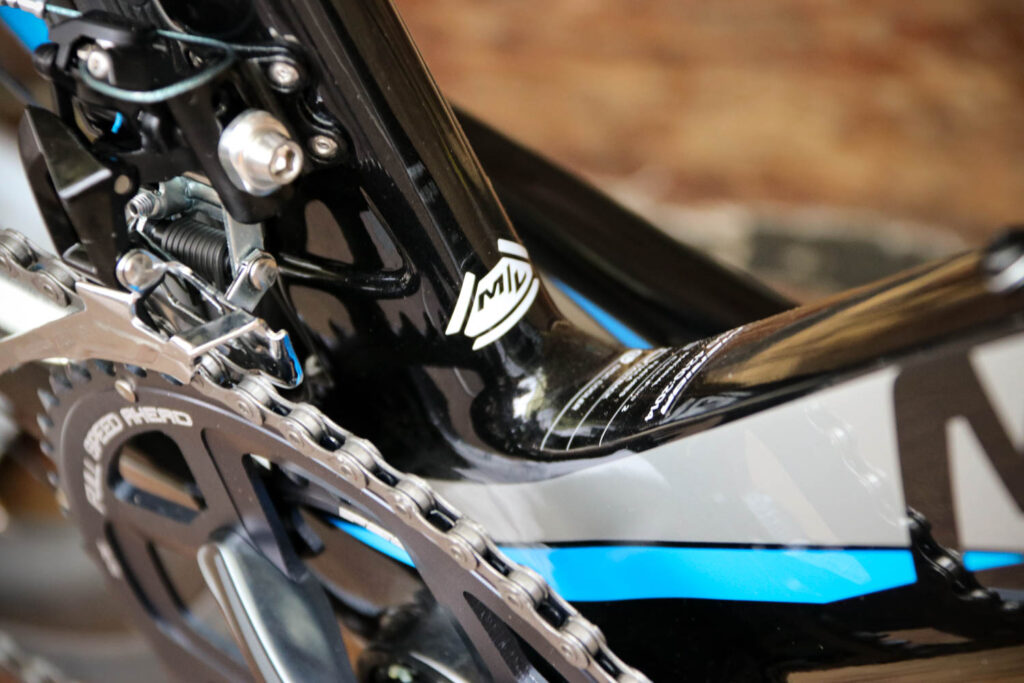

Merida Reacto Disc 4000 - frame size.jpg

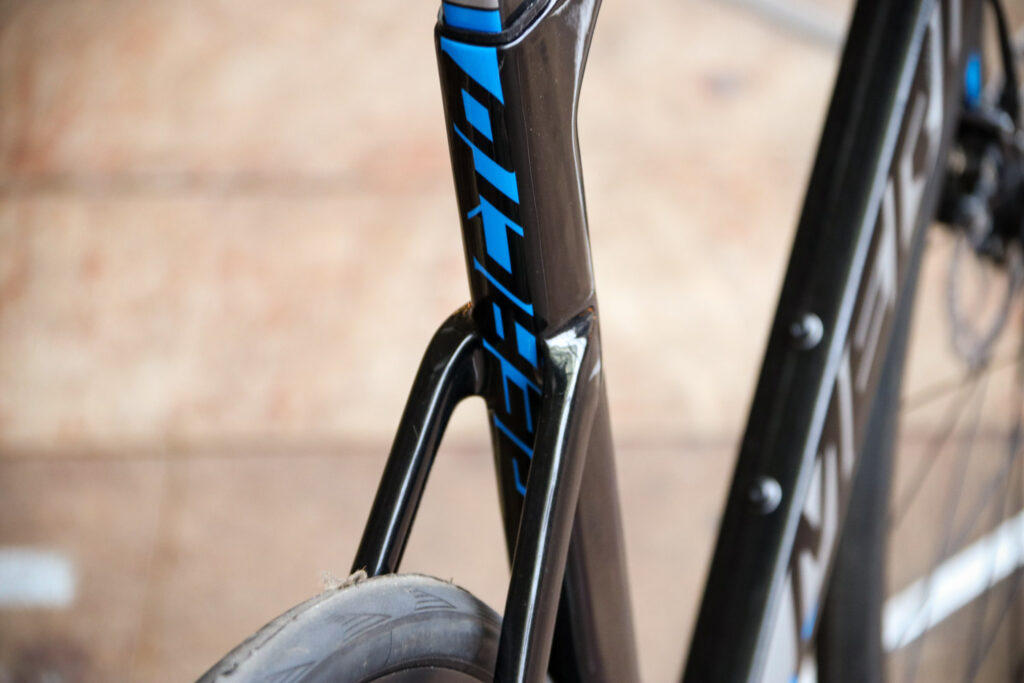

The aero tubing has been based on the NACA (National Advisory Committee for Aeronautics) teardrop profile where the rear end is squared off. The claims are that the air travels around the tube as if the missing teardrop is still there, in turn saving material and weight.

Merida Reacto Disc 4000 - seat stays.jpg

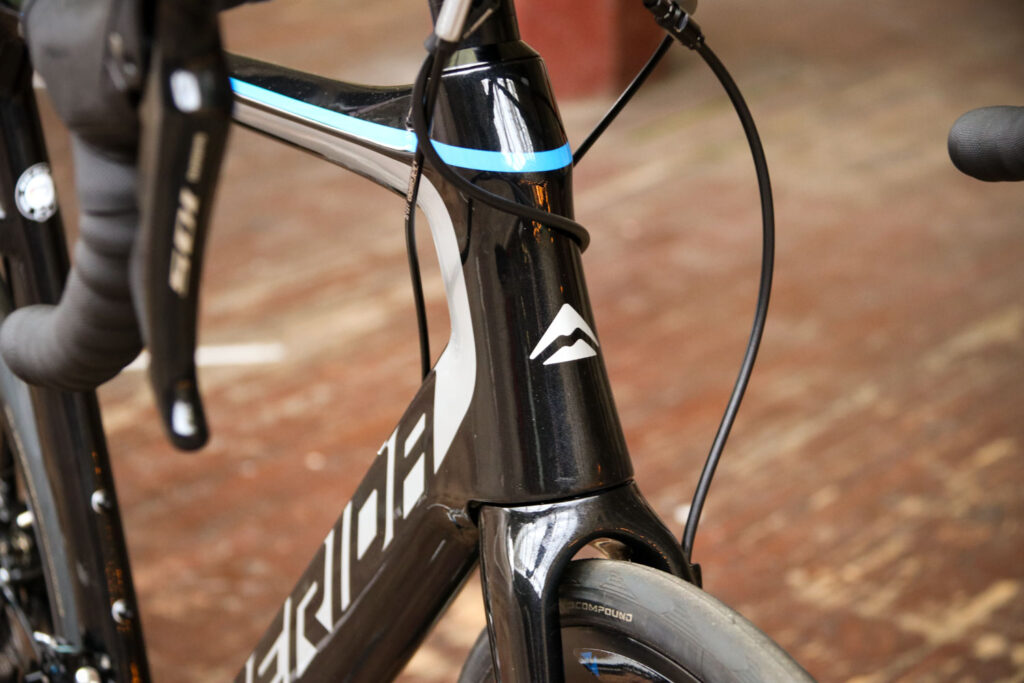

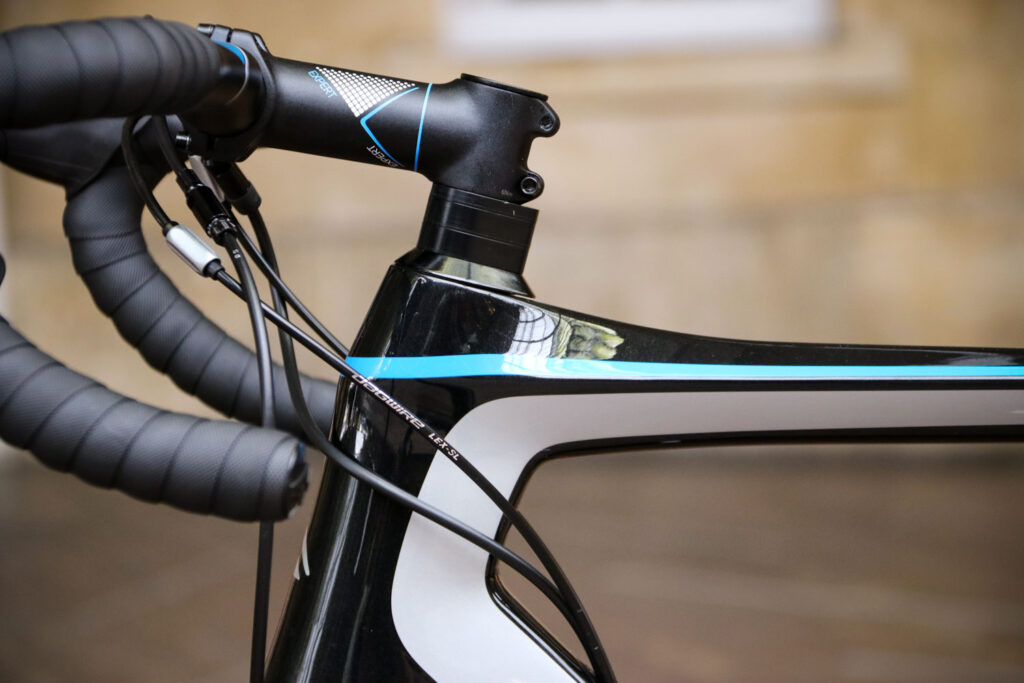

Up front, the tapered head tube has a 1 1/8in upper bearing expanding to a 1 1/4in at the bottom for increased stiffness under steering loads and heavy braking forces, helped by the 12mm thru-axle wheel retainment found on both the frame and fork.

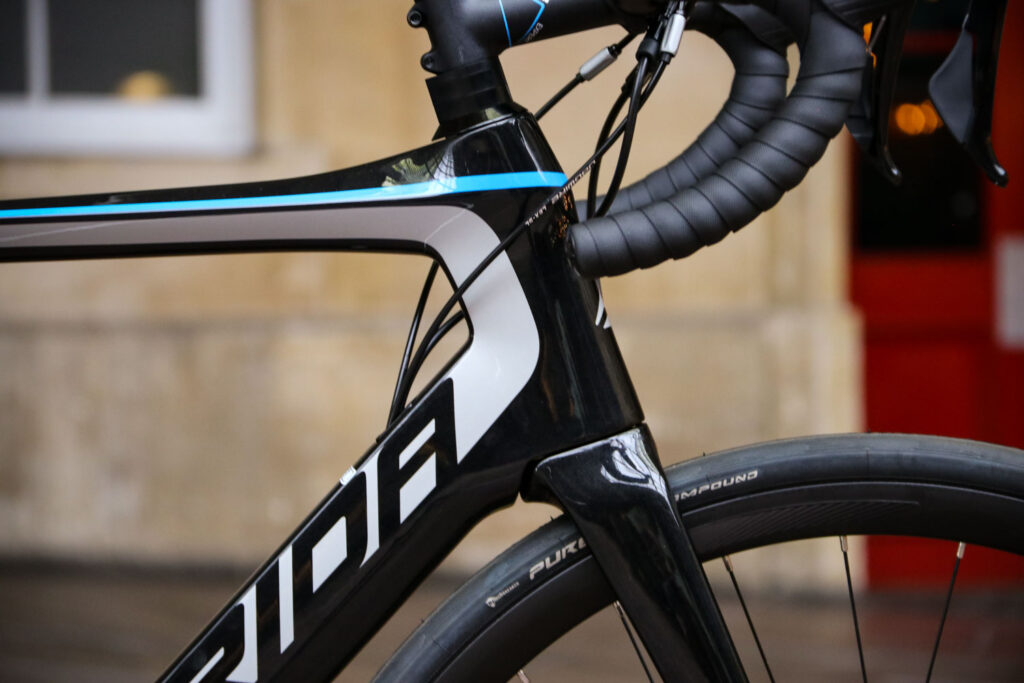

Merida Reacto Disc 4000 - head tube.jpg

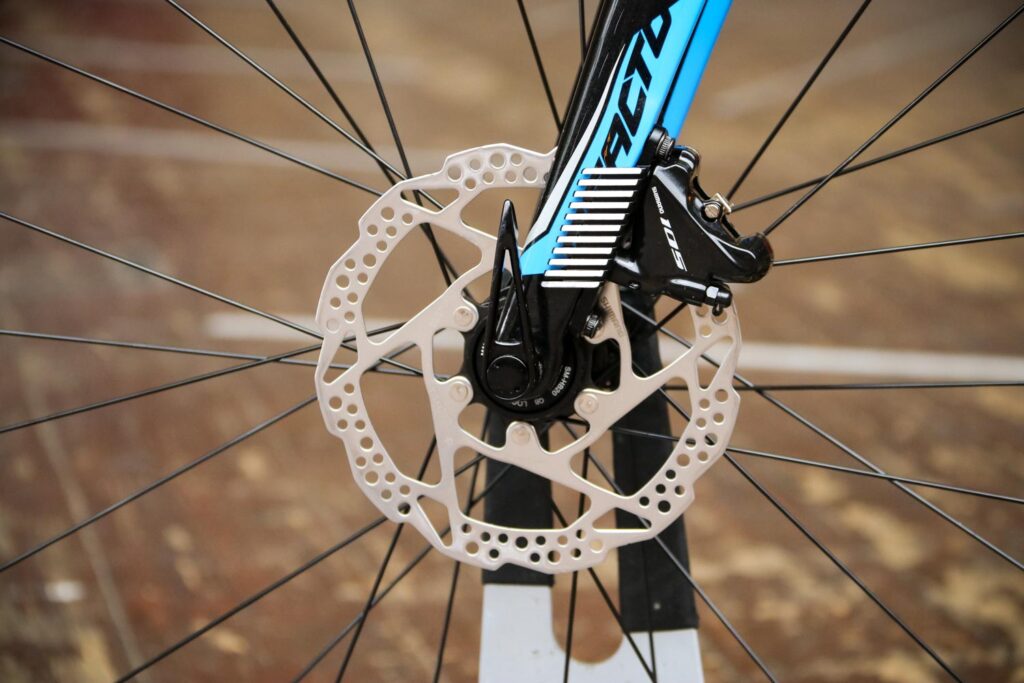

Something else you'll find at the (flat mount) brake mounts are Merida's disc coolers: finned pieces of alloy designed to take the heat away from the rotors and surrounding area, reducing heat build-up by a claimed 35%.

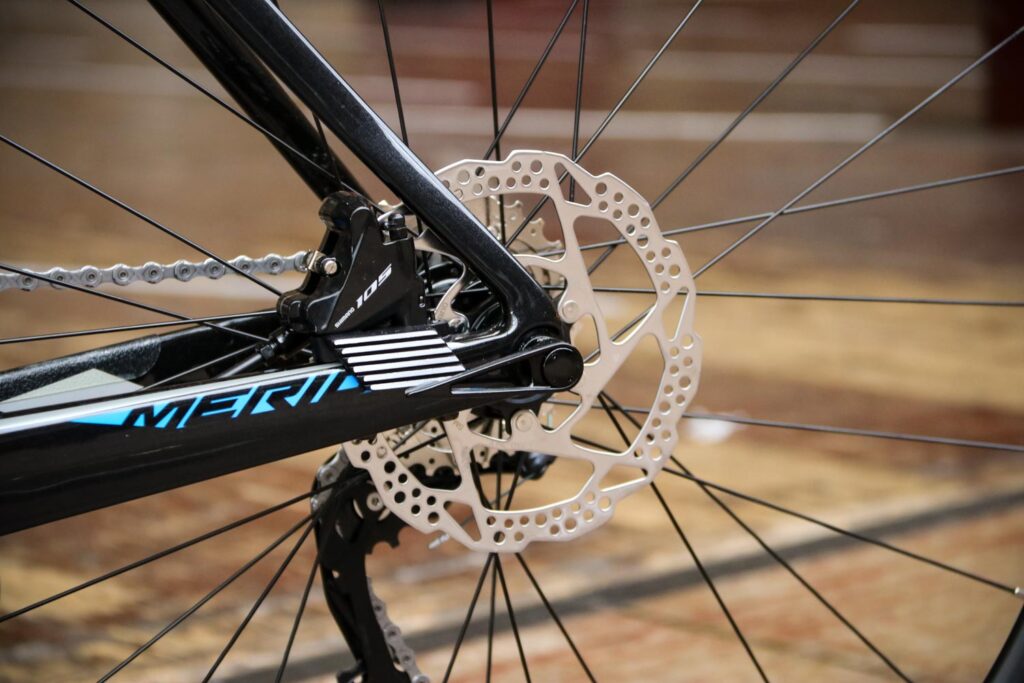

Merida Reacto Disc 4000 - rear disc brake.jpg

It's not something I'd say is massively needed here in the UK as our descents aren't really long enough to generate dangerous levels of heat, but if you are in the mountains they may come into play, especially if you like to drag the brakes.

Merida Reacto Disc 4000 - front disc brake.jpg

At the bottom bracket Merida has gone for a BB386 setup, which allows the use of a wider 86mm bottom bracket shell than a 68mm one found on standard frames, by incorporating the press-fit bearings into the frame. This allows a larger surface area to mate a wider seat tube and down tube, giving more stiffness. It's also designed for 30mm-axle chainsets.

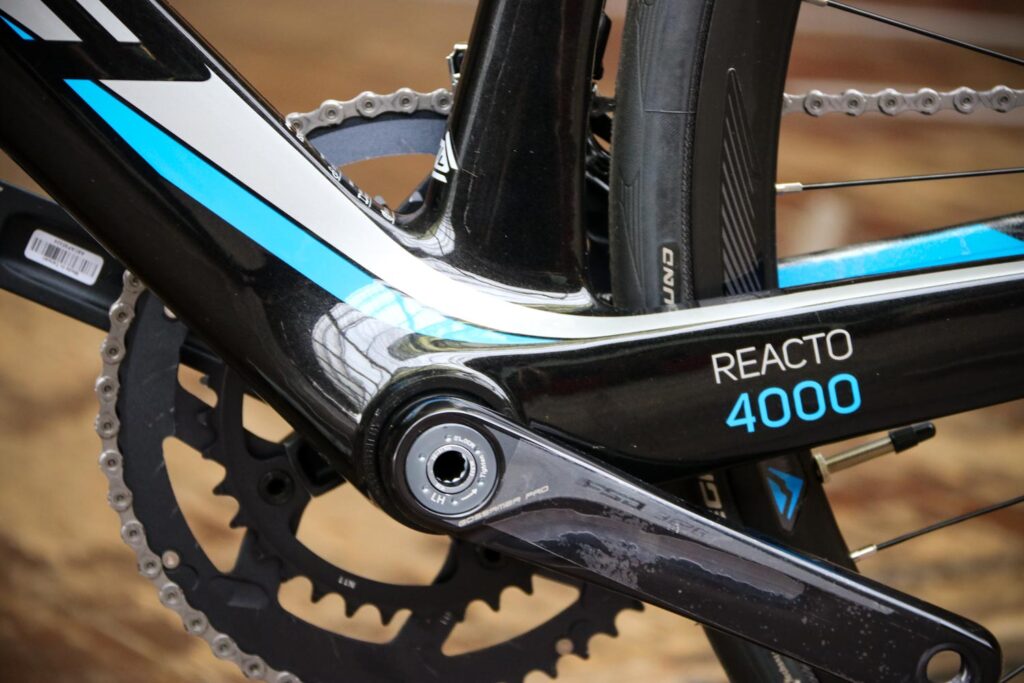

Merida Reacto Disc 4000 - bottom bracket.jpg

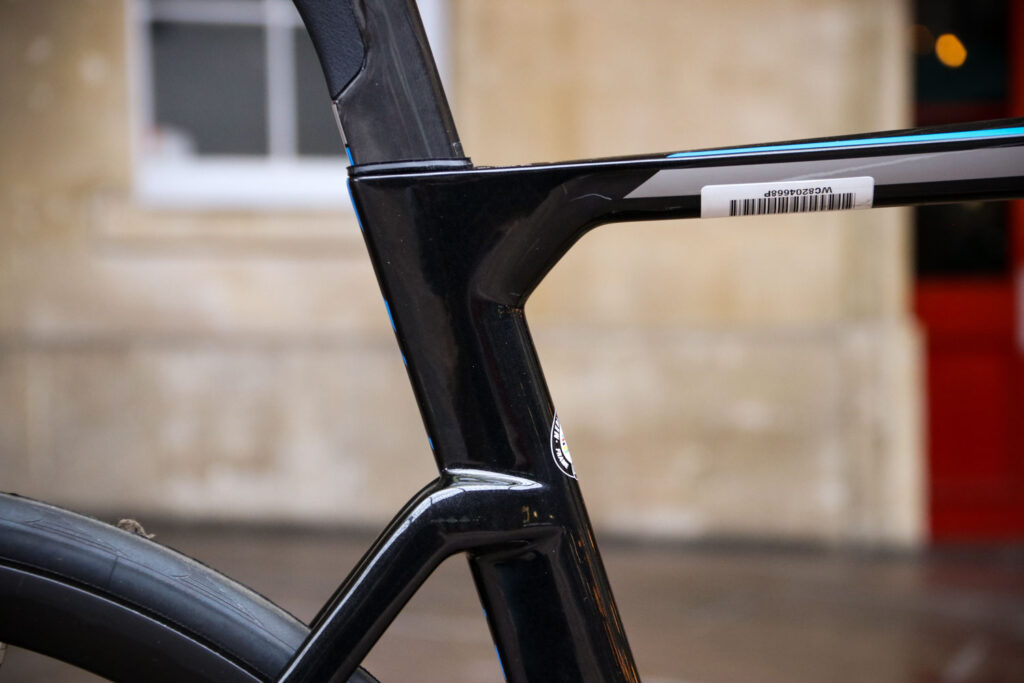

Completing the stiff rear triangle, Merida has dropped the seatstays low as well.

Merida Reacto Disc 4000 - seat tube junction.jpg

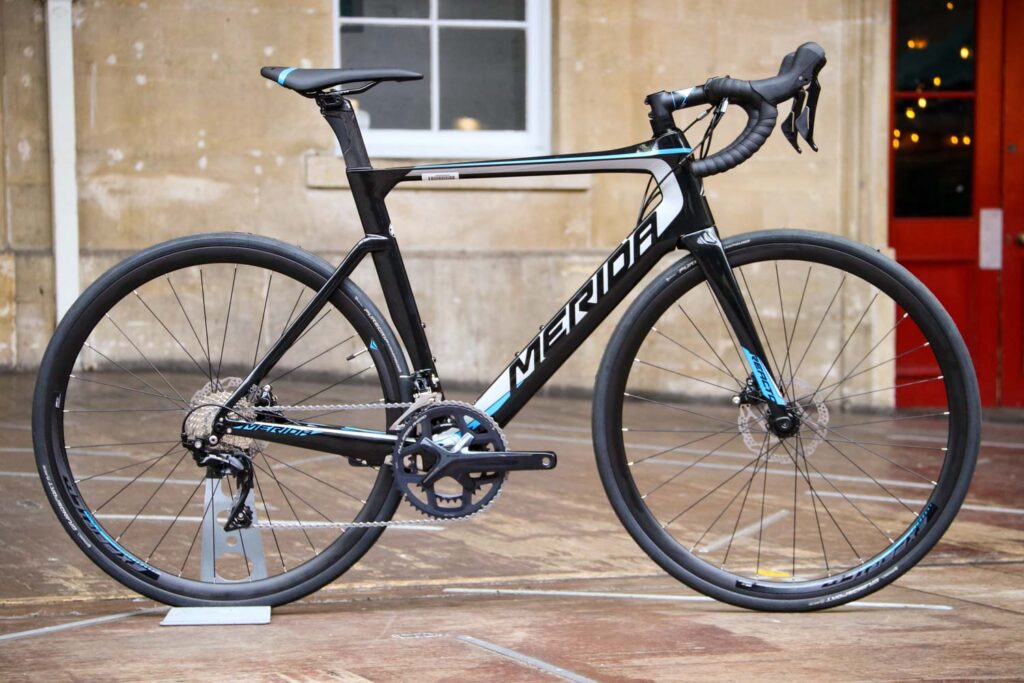

The overall finish of the frame and fork is great and it certainly feels a solid build. It looks the business too, with all of those chunky and aggressive tube profiles going on.

Merida Reacto Disc 4000.jpg

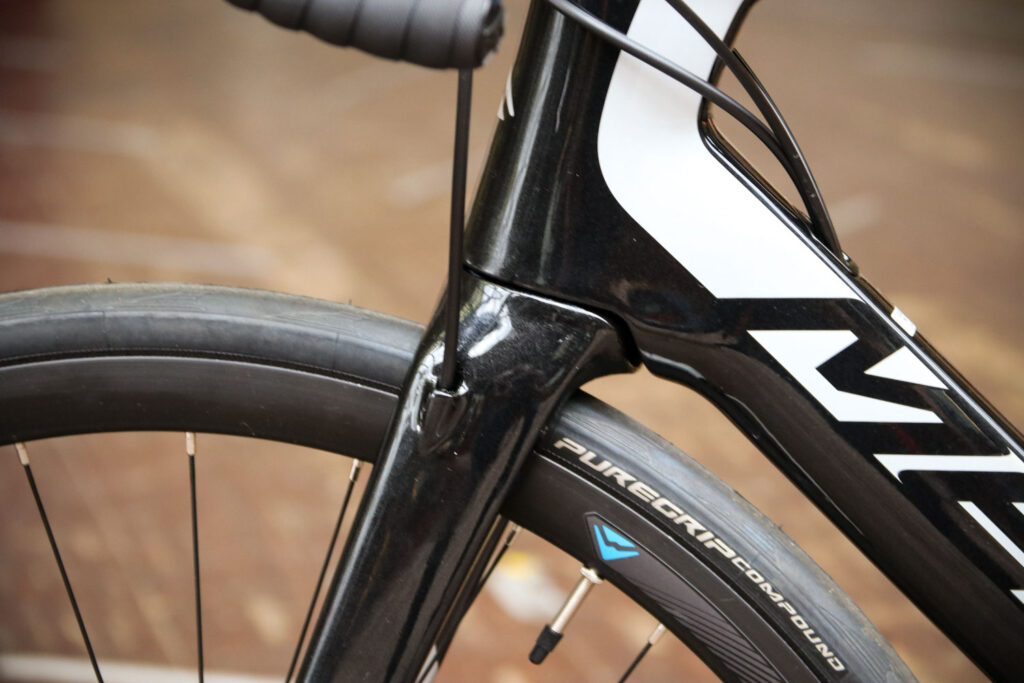

For a clean look you get full internal cable routing, and I'm happy to report that, as stiff as the frame is, there are no irritating rattles coming from the cables pinging against the inside of the tubing.

Merida Reacto Disc 4000 - cable route.jpg

For a carbon frame it's good to see a decent spread of sizes, too: six in total, ranging from a 520mm top tube through to a 590mm.

Finishing kit

The majority of the groupset is taken care of by Shimano's excellent new R7000 setup paired with the same group's R7020 hydraulic brake levers/shifters and callipers.

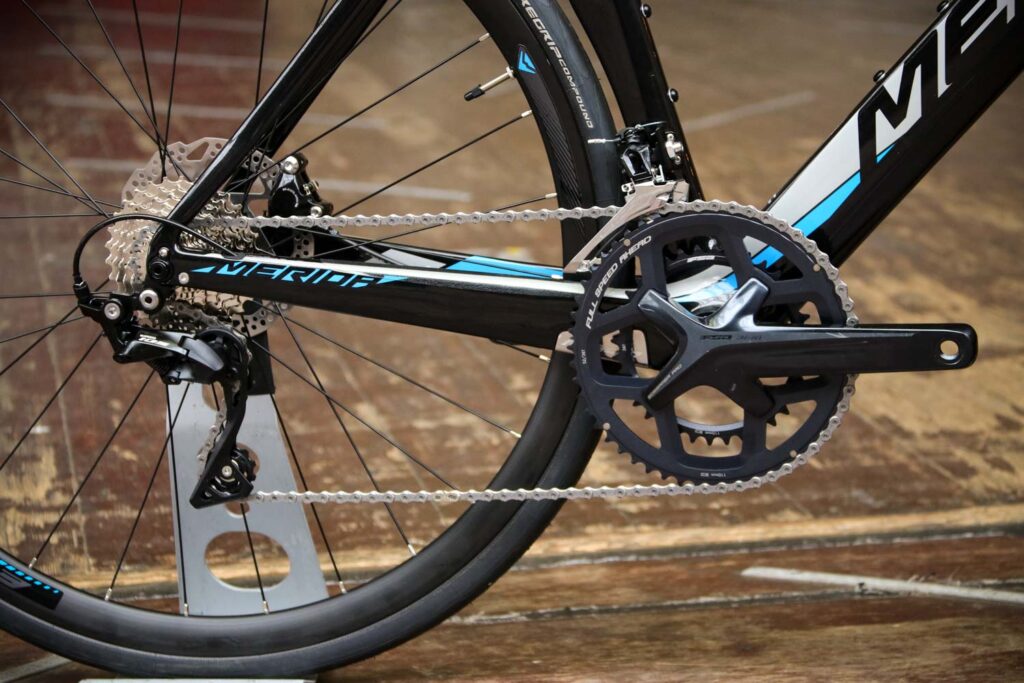

Merida Reacto Disc 4000 - drivetrain.jpg

As you can tell if you read those reviews, it is a stunning groupset, arguably offering the best bang for buck out there on the market. The shifting is precise and quick up and down the cassette or chainrings, and the braking from the newly shaped, group-specific levers offers great feedback and modulation.

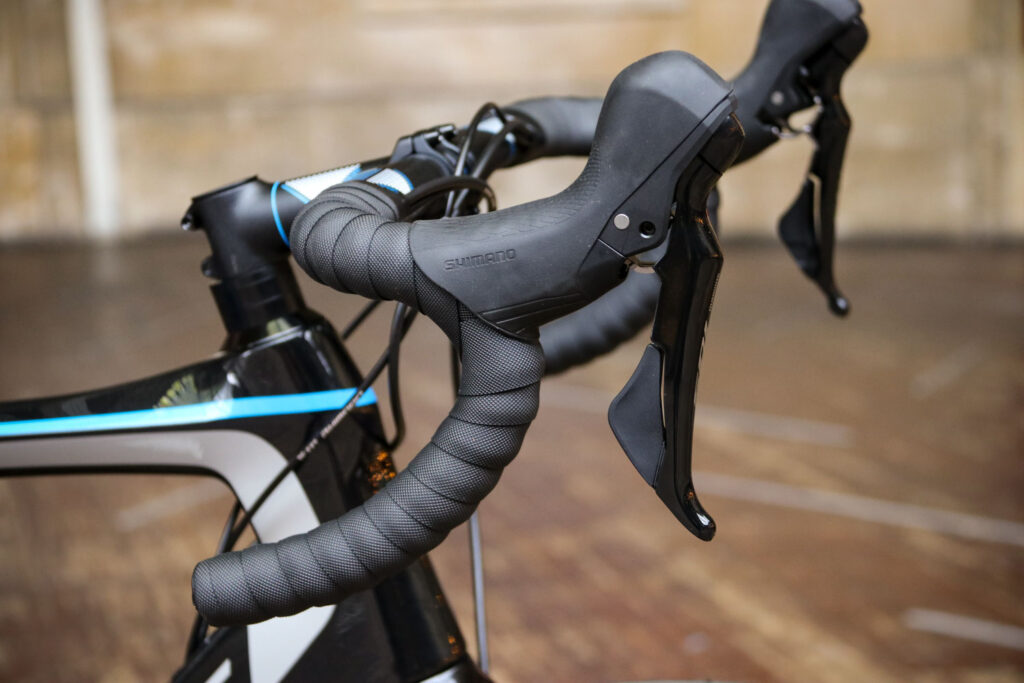

Merida Reacto Disc 4000 - bar and shifter.jpg

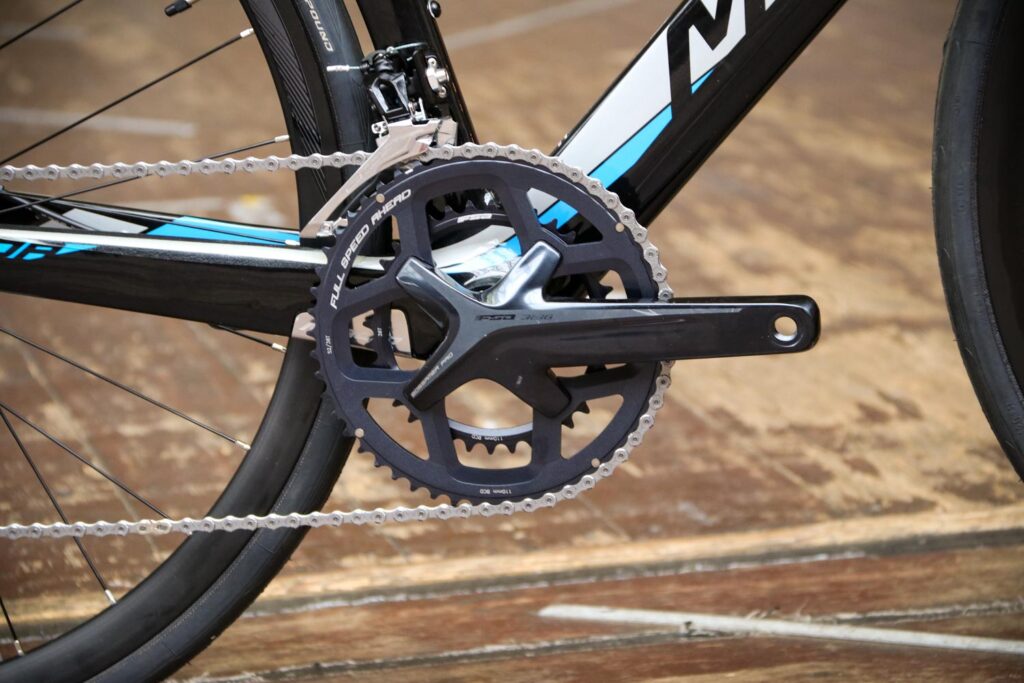

To break things up a little Merida has specced an FSA Gossamer Pro chainset that is BB386 specific. With chainrings of 52/36, known as a semi-compact, it has the right sort of gearing ratios to suit this style of bike.

Merida Reacto Disc 4000 - crank.jpg

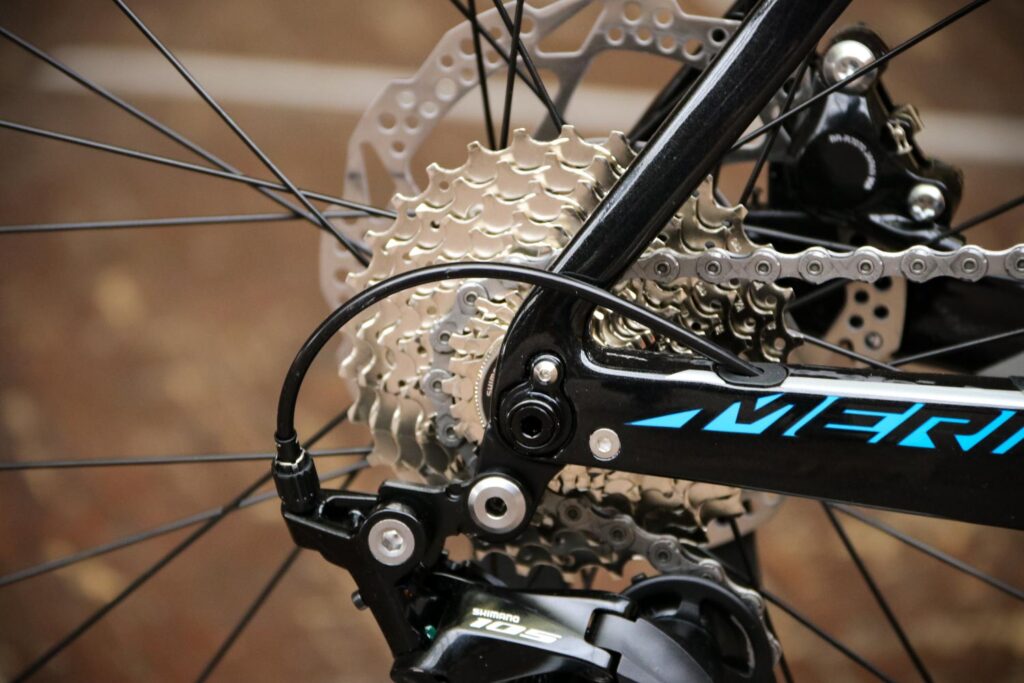

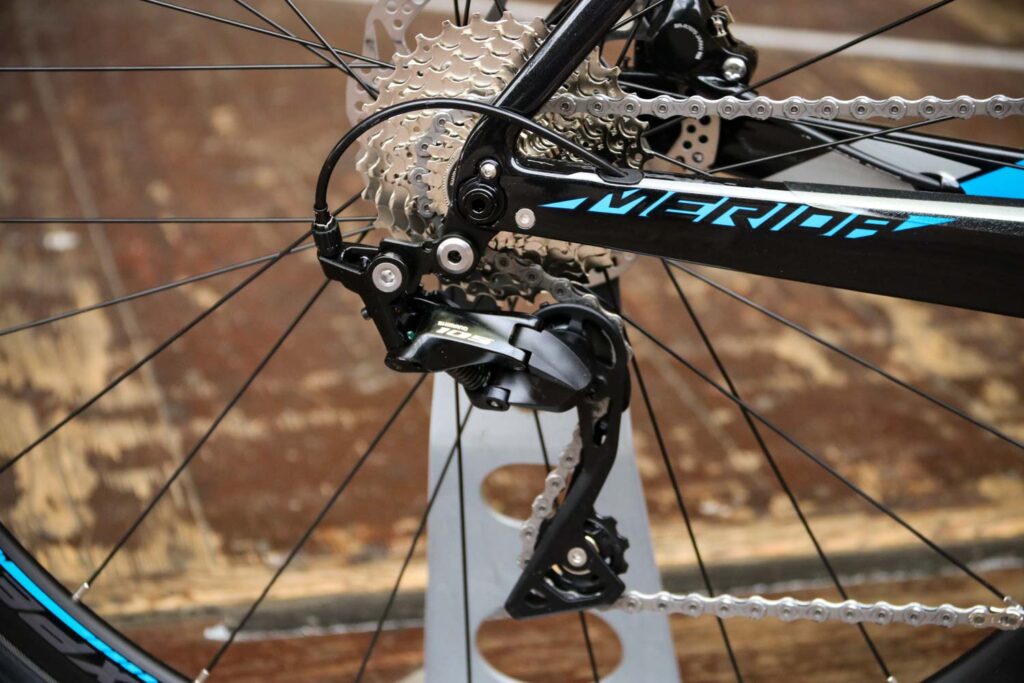

Merida has fitted a long cage rear mech which allows the use of its chosen 11-30 cassette, but you could go for lower gearing at the back without needing to change anything other than the sprockets.

Merida Reacto Disc 4000 - cassette.jpg

Everything else bar the tyres is Merida branded and it is all decent enough kit, if not overly exciting on a two-grand bike.

Merida Reacto Disc 4000 - stem.jpg

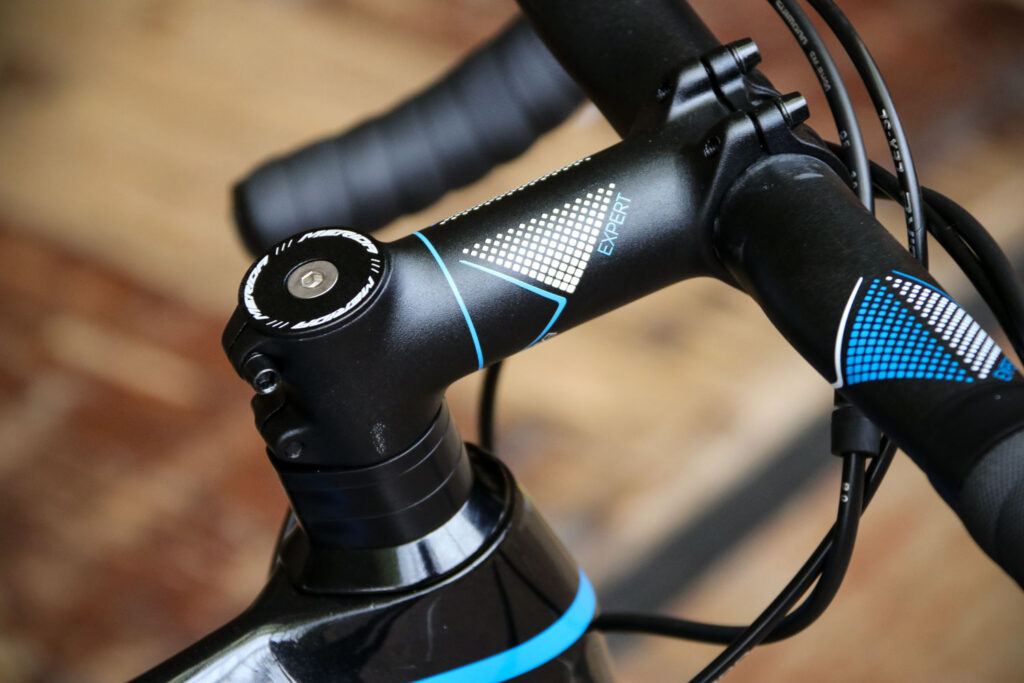

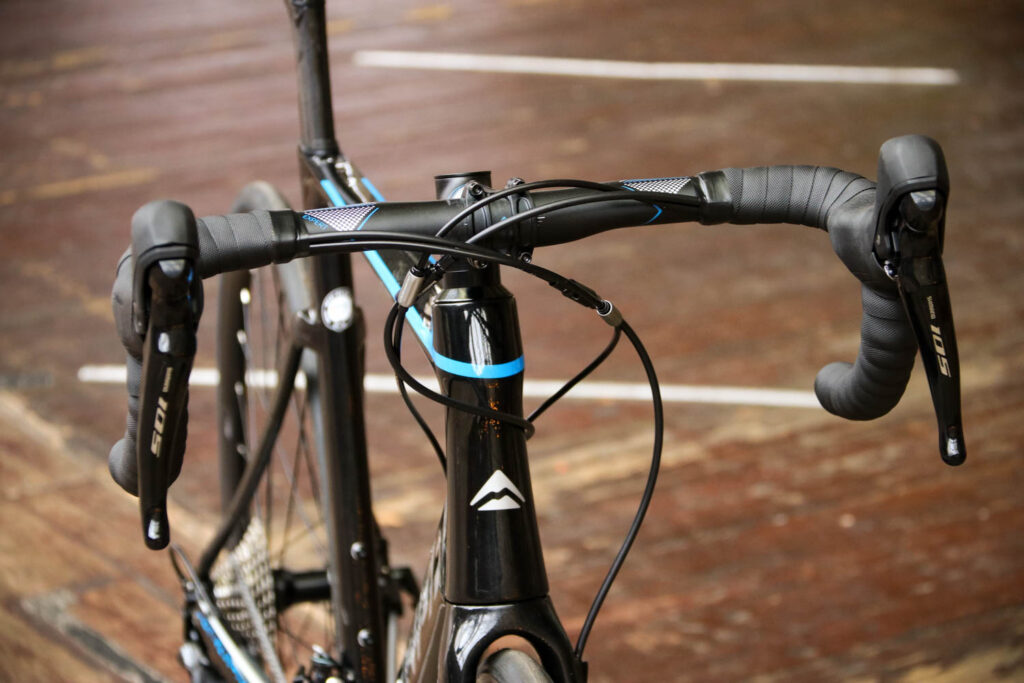

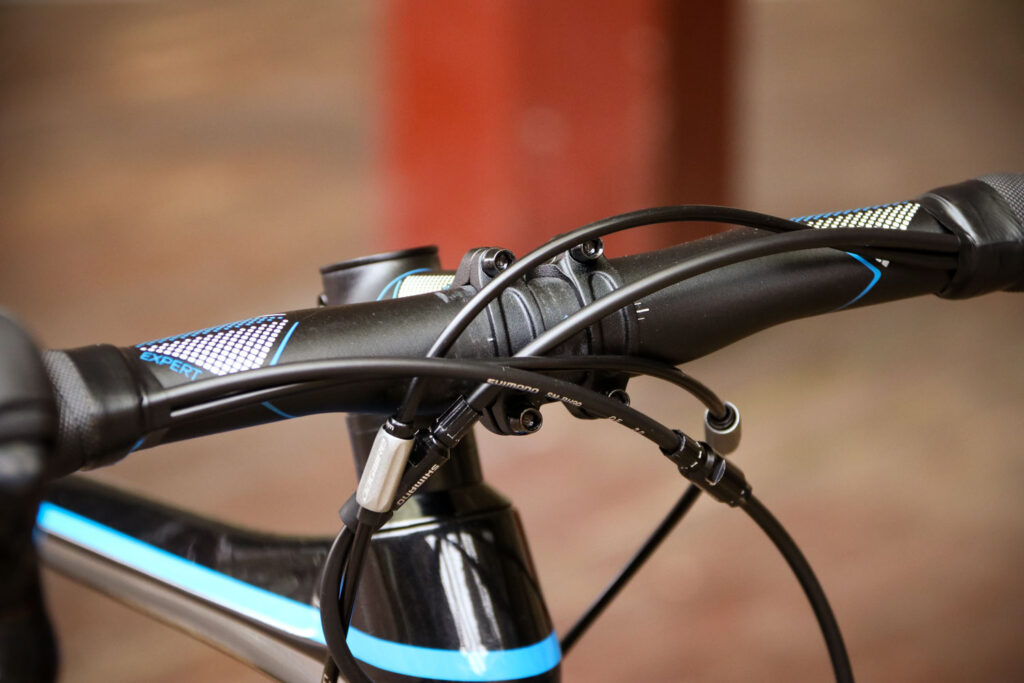

Starting at the front you get an alloy Expert handlebar and stem. The bar has a compact design so there are plenty of usable hand positions without getting into too extreme a riding position. Both components offer plenty of stiffness.

Merida Reacto Disc 4000 - bars.jpg

I've mentioned the Merida Expert CW seatpost already, with its little notch design for promoting flex while still maintaining its aero shape. The post is made out of carbon fibre and comes with a 15mm setback, and you'll find an own brand Comp SL saddle attached to the top.

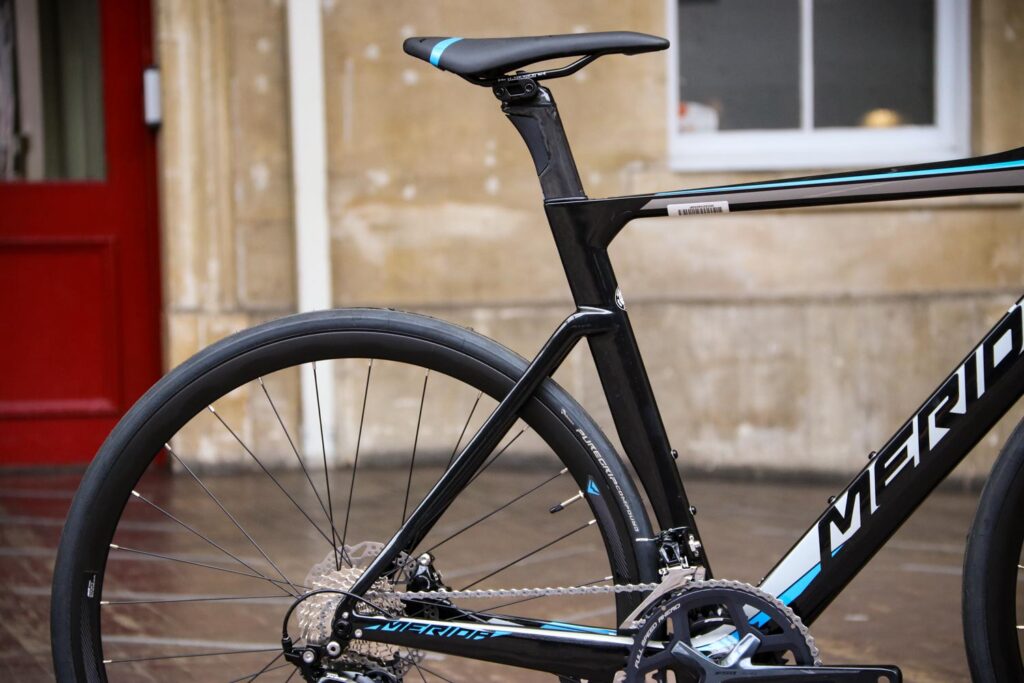

Merida Reacto Disc 4000 - rear.jpg

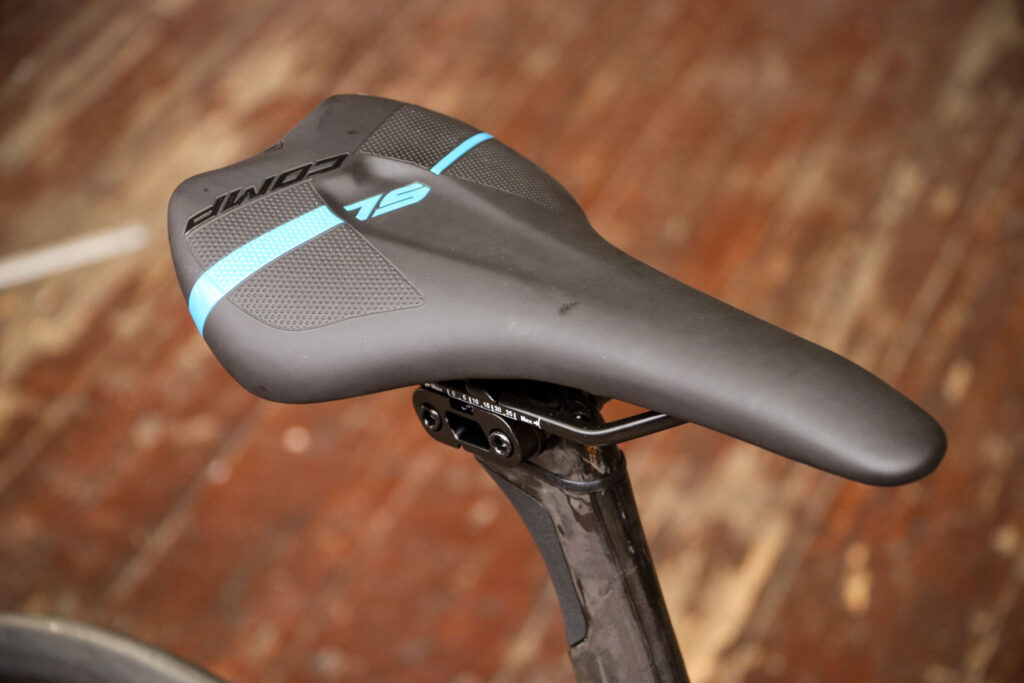

It's a pretty comfortable seat, providing a decent balance of firm padding and enough give to take the edge off the frame's characteristics. I wouldn't be in a hurry to change it.

Merida Reacto Disc 4000 - saddle.jpg

Wheels and tyres

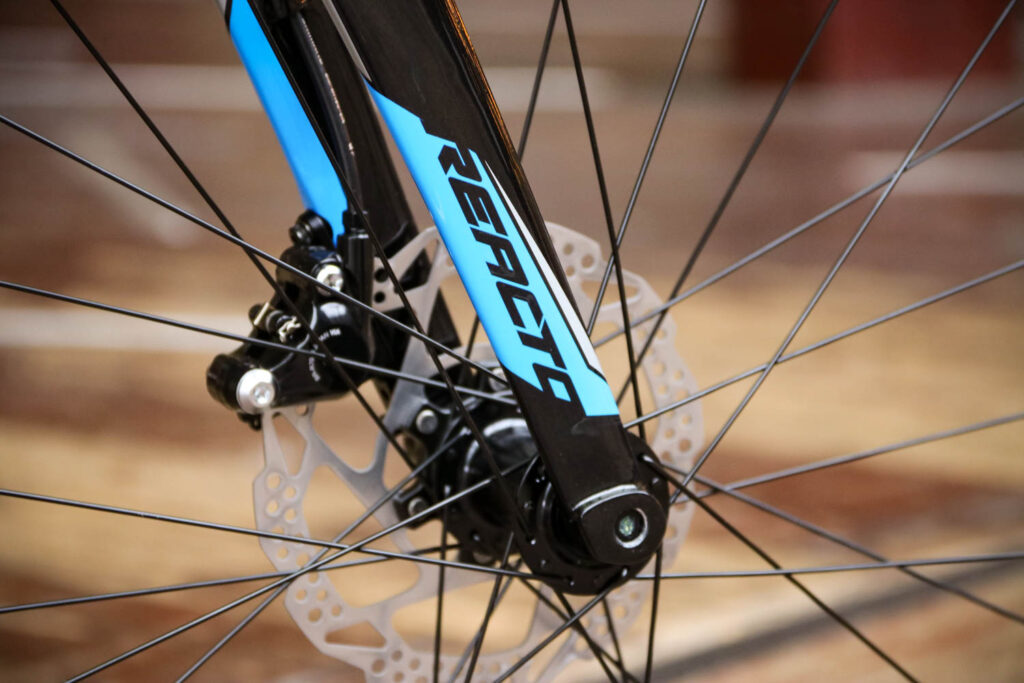

Merida's own wheels, using Merida rims and hubs, do a sound job. I've mentioned that they are weighty but they stayed true throughout the test period and that was after I whacked a rock on a 45mph descent with the rear.

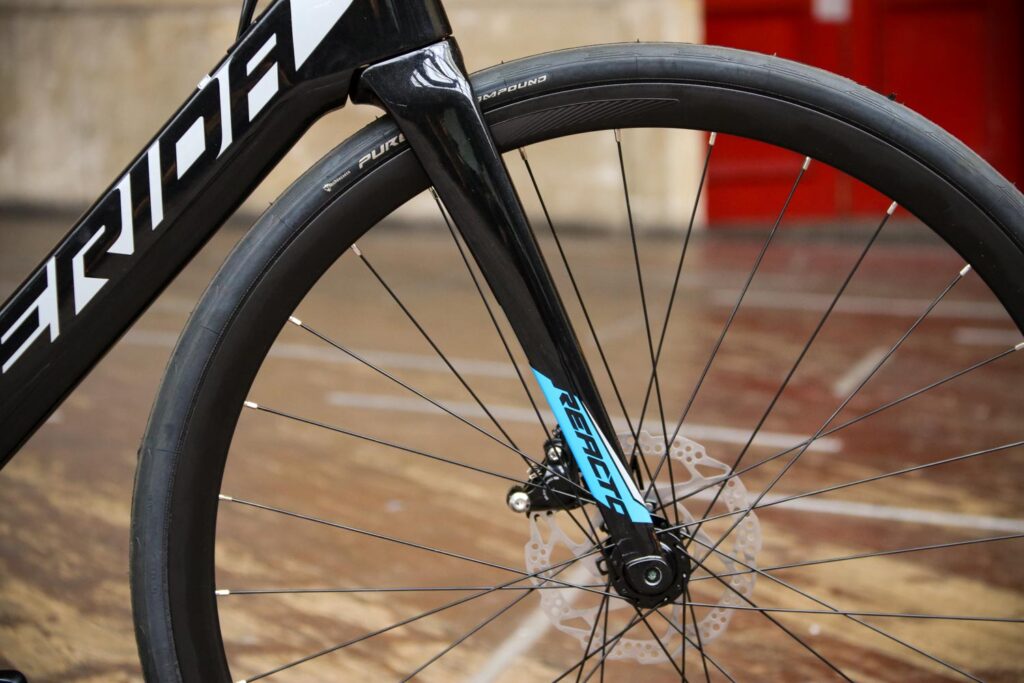

Merida Reacto Disc 4000 - fork.jpg

Judging by the clout and the noise it made before I managed to stop the bike, I was expecting some serious damage to the rim but not even a buckle or a scratch, just a pinch punctured tube.

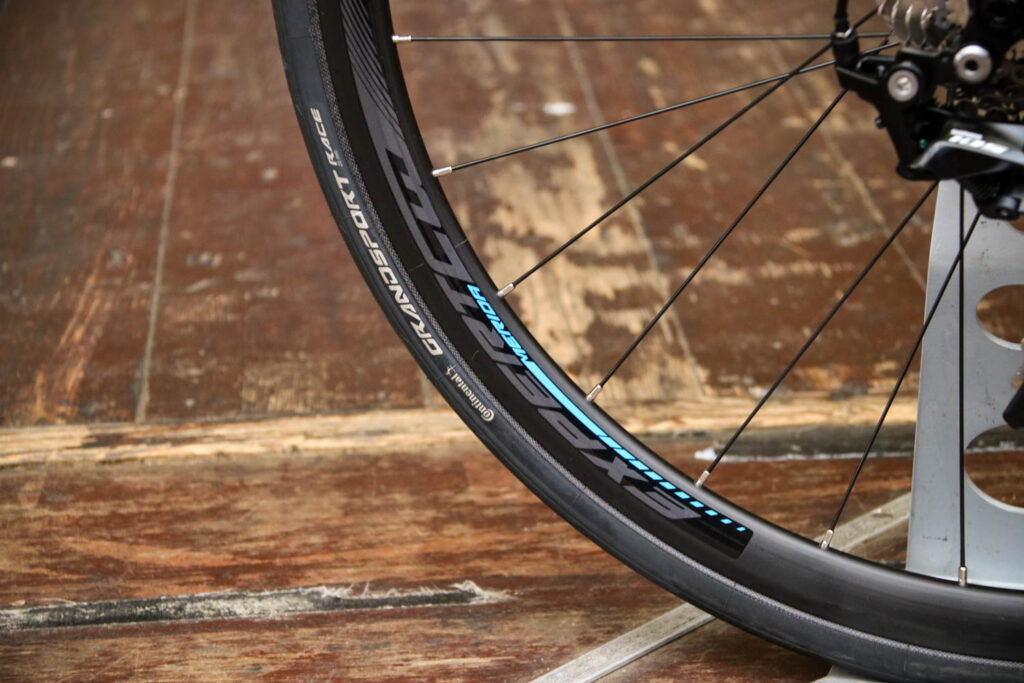

Merida Reacto Disc 4000 - rim.jpg

Continental's Grand Sport Race tyres in a 25mm width are good mid-range offerings that provide adequate grip, rolling resistance and puncture protection without sacrificing anything to a huge degree. As with the wheels, if performance is your thing then an upgrade will make a massive difference.

Merida Reacto Disc 4000 - tyre.jpg

Value

You can find a build of this sort of spec on a carbon fibre, disc-equipped race bike from around £1,300 – something like the Merlin Cordite Disc which has the same 105 groupset, average wheels and quite a firm ride like the Reacto.

There is a lot more going on with the frame and fork design on the Merida, though, and it's that level of R&D that is reflected in the price of £2,000.

> Buyer's Guide: 18 of the best aero road bikes

A similarly themed Tifosi SS26 Disc aero endurance bike decked out in Campagnolo Potenza will set you back £2,499.99 and it's a very similar weight to at 8.7kg.

Not quite an aero bike, but the Lapierre Pulsium SL 500 Disc has its own clever development tricks incorporated in its frameset, and with a 105 hydraulic groupset it costs £2,199, showing that the Merida Reacto 4000 isn't a million miles away with its pricing.

Conclusion

Overall, I like the Reacto for the way it just gets on with the job of covering miles quickly and offering a confident ride and handling ready to be exploited. As a rider, though, I just crave a little more involvement from the frame in terms of feedback from the road.

Verdict

A fast machine with sorted geometry, but its firm ride won't appeal to all

If you're thinking of buying this product using a cashback deal why not use the road.cc Top Cashback page and get some top cashback while helping to support your favourite independent cycling website

road.cc test report

Make and model: Merida Reacto Disc 4000

Size tested: M/L

About the bike

List the components used to build up the bike.

Merida lists:

FRAME REACTO CF2 DISC

FORK MERIDA REACTO CF2 DISC

HUBS MERIDA QR48N 12-100 / MERIDA QR48 12-142

TYRES Continental Grand Sport Race

SHIFTERS Shimano 105 disc

FRONT DERAILLEUR Shimano 105

REAR DERAILLEUR Shimano 105

CASSETTE Shimano CS-R7000

BRAKE LEVER Shimano 105 R7000

BRAKES Shimano 105

ROTORS Shimano RT54

BOTTOM BRACKET FSA 386-BB30 PF6000 [FSA FC]

CHAIN KMC X11-1

HEADSET MERIDA REACTO Neck

HANDLEBAR MERIDA Expert CW

STEM LENGTH MERIDA Expert CC

SADDLE MERIDA Comp SL

SEAT POST MERIDA Expert CW

SEAT CLAMP MERIDA REACTO Aero

GRIP MERIDA Road Expert

Tell us what the bike is for and who it's aimed at. What do the manufacturers say about it? How does that compare to your own feelings about the bike?

The Reacto is Merida's aero race bike range, with this 4000 model using the slightly less aggressive CF2 frame geometry rather than the race-inspired CF4 found on the top models.

I found the 4000 to deliver well on its aerodynamic claims – it's a quick bike to ride.

Where does this model sit in the range? Tell us briefly about the cheaper options and the more expensive options

This model is the entry level into Reacto disc brake ownership, while the more expensive 5000 model comes in both rim and disc brake options. The range tops out with the Disc Team-E at £8,250.

Frame and fork

Overall rating for frame and fork

8/10

Tell us about the build quality and finish of the frame and fork?

Well made and finished, you can feel the quality.

Tell us about the materials used in the frame and fork?

Merida doesn't give away many details about the grades used in its construction, but both the frame and fork are full carbon fibre.

Tell us about the geometry of the frame and fork?

The Reactos that use the CF2 frame and fork have a slightly taller front end and shorter top tube than the top end models, which means they sit somewhere between the geometry of a race bike and an endurance machine.

Full details can be found here.

How was the bike in terms of height and reach? How did it compare to other bikes of the same stated size?

This M/L size has a reach of 390mm and a stack of 575mm giving a position that is racy without being too aggressive.

Riding the bike

Was the bike comfortable to ride? Tell us how you felt about the ride quality.

It is right on the boundary of what I could live with, having a very firm frame.

Did the bike feel stiff in the right places? Did any part of the bike feel too stiff or too flexible?

The frame is very stiff throughout.

How did the bike transfer power? Did it feel efficient?

Efficiently, especially when climbing or sprinting.

Was there any toe-clip overlap with the front wheel? If so was it a problem?

No.

How would you describe the steering? Was it lively neutral or unresponsive? The slightly quick side of neutral.

Tell us some more about the handling. How did the bike feel overall? Did it do particular things well or badly?

You don't get quite as much feedback from the frame and fork as you do on some bikes and this takes the edge off the handling a bit.

Which components had the most effect (good or bad) on the bike's comfort? would you recommend any changes?

The seatpost helps.

Which components had the most effect (good or bad) on the bike's stiffness? would you recommend any changes?

The area around the BB is very stiff thanks to the BB386 and 30mm spindle on the crankset.

Which components had the most effect (good or bad) on the bike's efficiency? would you recommend any changes?

Lighter wheels really improve performance.

Rate the bike for efficiency of power transfer:

8/10
Rate the bike for acceleration:

8/10
Rate the bike for sprinting:

7/10
Rate the bike for high speed stability:

8/10
Rate the bike for cruising speed stability:

8/10
Rate the bike for low speed stability:

8/10
Rate the bike for flat cornering:

8/10
Rate the bike for cornering on descents:

7/10
Rate the bike for climbing:

7/10

The drivetrain

Rate the drivetrain for performance:

9/10
Rate the drivetrain for durability:

8/10
Rate the drivetrain for weight:

8/10
Rate the drivetrain for value:

6/10

Tell us some more about the drivetrain. Anything you particularly did or didn't like? Any components which didn't work well together?

It all works well as a package; the components are what I'd expect for the money and quality of the frame.

Wheels and tyres

Rate the wheels for performance:

6/10
Rate the wheels for durability:

8/10
Rate the wheels for weight:

6/10
Rate the wheels for comfort:

7/10
Rate the wheels for value:

6/10

Tell us some more about the wheels.Did they work well in the conditions you encountered? Would you change the wheels? If so what for?

The own brand wheels are tough and roll okay but are a bit weighty.

Rate the tyres for performance:

7/10
Rate the tyres for durability:

8/10
Rate the tyres for weight:

7/10
Rate the tyres for comfort:

7/10
Rate the tyres for value:

6/10

Tell us some more about the tyres. Did they work well in the conditions you encountered? Would you change the tyres? If so what for?

Solid all-round tyres from Continental. An upgrade would help later down the line but it's no rush.

Controls

Rate the controls for performance:

7/10
Rate the controls for durability:

8/10
Rate the controls for weight:

7/10
Rate the controls for comfort:

7/10
Rate the controls for value:

6/10

Tell us some more about the controls. Any particularly good or bad components? How would the controls work for larger or smaller riders?

Simple stuff up front that does the job, and the seatpost benefits comfort.

Your summary

Did you enjoy riding the bike? Yes and no...

Would you consider buying the bike? No, the ride feedback isn't as sharp as I like.

Would you recommend the bike to a friend? Yes

How does the price compare to that of similar bikes in the market, including ones recently tested on road.cc?

For the level of quality and components it is in the right ball park against other aero bikes.

Rate the bike overall for performance:

7/10
Rate the bike overall for value:

6/10

Use this box to explain your overall score

As a package the Reacto 4000 delivers a lot; it's a quick bike, but it's also very firm – don't expect too much in the way of feedback.

Overall rating: 7/10
