TECH NEWS
Is SRAM developing a cyclocross 1x11 groupset?

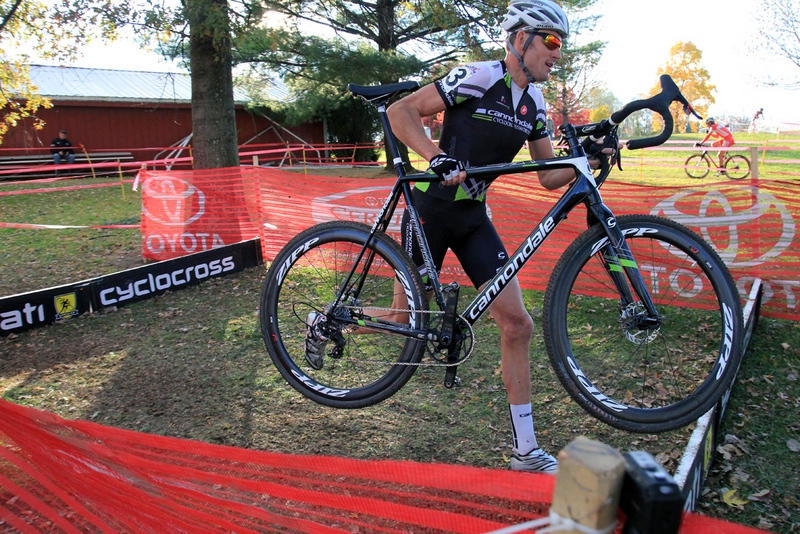

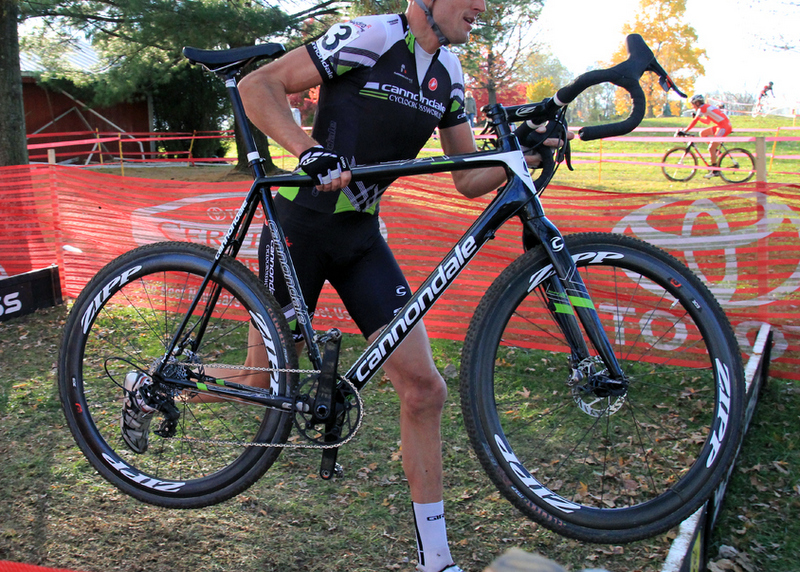

A couple of years ago, SRAM launched a new 1x11 mountain bike groupset. It binned the front mech and used a single chainring combined with a huge range 11-tooth cassette. From this photo of US cyclocross racer Ryan Trebon, it looks like they’ve adapting it for the cyclocross market.
SRAM hasn’t revealed any official information on this groupset yet so we don’t exactly have many details to share with you. We do know SRAM likes to use its sponsored racers to test new developments; we first spotted its hydro disc brakes on a US cyclocross racing bikes back along. However, we know plenty about the mountain bike version this new groupset is based on, and it doesn’t look from the photos to stray too far from it.

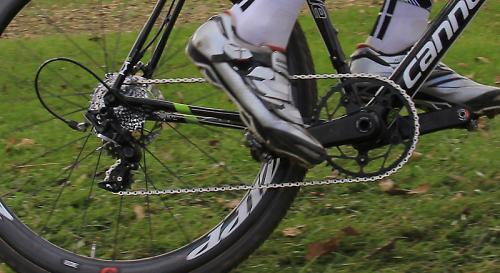

The really interesting aspect about the new groupset is the lack of a front mech or chainguide. SRAM developed a chainring with alternating wide and narrow teeth that fit inside a chain with corresponding alternating inner and outer links. This essentially means the chain fits more securely on the chainring than a regular setup. Meanwhile, the rear derailleur has an internal roller bearing clutch that increases tension on the chain, and stops it bouncing around - which can lead to derailed chains. It's been well proven with many top flight mountain bike world cup and enduro victories to its name already.
The groupset offers a simplicity of shifting - you only have the rear shifter to play with - and much less chance of the chain dropping over rough terrain. I’ve ridden the mountain bike groupset and it does work astonishing well. Shifting is quick and precise and there’s no shortage of ratios at either end of the cassette. It does look like Ryan has been using a regular RED road cassette, probably an 11-26, but we image there'll be a greater selection if, when, it comes to market.
This sort of groupset, with all its benefits, is ideal for cyclocross racing. But we reckon it's ideal too for the new breed of versatile utility cyclocross bikes that are becoming more popular.
Thanks to Bikerumour of use of the photos.
David worked on the road.cc tech team from 2012-2020. Previously he was editor of Bikemagic.com and before that staff writer at RCUK. He's a seasoned cyclist of all disciplines, from road to mountain biking, touring to cyclo-cross, he only wishes he had time to ride them all. He's mildly competitive, though he'll never admit it, and is a frequent road racer but is too lazy to do really well. He currently resides in the Cotswolds, and you can now find him over on his own YouTube channel David Arthur - Just Ride Bikes.
Latest Comments
- David9694 1 sec ago
Motorists mystified after being fined £100 for 'parking' in retail park at times their cars weren't even there...
- PTC 21 min 51 sec ago
Welcome to my world! My second winter using a gravel bike adapted for the road. An aluminium Orbea, now with Shimano's 1x 12-speed 45-10 cassette...
- Geoff Ingram 22 min 21 sec ago
I fancied a wheelset at 50% off, but when they realised I was in Spain the discount was only 18% and so no longer attractive or even competetive....
- planetjanet 53 min 31 sec ago
The cycling industry, in bed with daft cycling 'journalists', forever pushing more and more fancy, ridiculous, overpriced bikes and kit HAVE KILLED...
- galibiervelo 54 min 43 sec ago
I have the 2021 Allez sprint and love it. Super race bike just under 8kg with some carbon hoops. I broke one carbon frame and another carbon frame...
- Secret_squirrel 1 hour 5 min ago
Rubbish. Roads can be design or modified in a way that creates blindspots or uneccessary conflicts.
- David9694 1 hour 31 min ago
Picture shows aftermath of crash which saw car go through Spalding pub wall...
- wtjs 2 hours 20 min ago
When we are on patrol in the area we will keep an eye out ...so that we can look the other way/ turn a blind eye more efficiently
- Destroyer666 2 hours 31 min ago
Vittoria can top the win list with my "dumbest cycling product of the year" award.
Add new comment
17 comments
with 13-speed rear mechs having been spotted in the wild, could we road racing set ups, especially for flatter races, stages, terrain, got to single chain ring?
Tell me more!
Stuff cyclo cross, I want this on my commute bike, since the front chain ring is quite large I assume top speed would be good. I dont spend much time using the lower gears anyway
A 1x11 system seems like it would be pretty useful to me especially with a wide range cassette. I mean it wouldn't revolutionize anything but it does seem like a solid option at worst an most likely an improvement over 2x11 for cyclocross
Solution to a problem that isn't really there.
But it will sell so good luck to them.
Admire your open-minded approach there
"the rear derailleur has an internal roller bearing clutch that increases tension on the chain, and stops it bouncing around "
Can't wait for that to fail part way through a race....
it won't. They've been used in mountain biking for the past couple of years and they've been just fine, so can't see any reason why the CX version won't be just as reliable.
I run an Alfine 11 hub on my commuter,a Kinesis pro6 with bb7's and a hub dynamo. It heavy and i am considerably slower, some 3-4 on average on it than my slpro planet x. That might be in part about the stop start nature of london cycling and not building up momentum but i am sure wheels and hub make a huge difference. I like not having a front derailleur though and had begun researching swapping out the hub for an equivalent 10 spd or 11 spd alternative so this sounds great.
Excuse the ignorant MTB'r but couldn't you just run a 10spd MTB cassette with a 11-36 ratios and a clutch rear mech and one of the any number of aftermarket thick-n-thin chainrings that are already out there to get nearly the same effect?
I have a 1x10 mtb and the enviable thing about the sram xx1 is that 42t cassette.
In this case though, with a lower range being used anyway, a wolf tooth chainring and normal 10sp setup would be fine.
"Excuse the ignorant MTB'r but couldn't you just run a 10spd MTB cassette with a 11-36 ratios and a clutch rear mech and one of the any number of aftermarket thick-n-thin chainrings that are already out there to get nearly the same effect?"
Yup, I run an X0 rear mech with a Force crank running 38/46 rings, and a mate runs the X0 rear and XO crank with a single ring.
Yes I'm sure you could, though can't say for certain without actually trying it. That isn't what SRAM is developing here though is it
Absolute Black make a SRAM style single chainring for converting Shimano 10 speed to single chain ring configuration.
http://absoluteblack.cc/cx-rings.html
But the clutch mechanism in the SRAM system looks a good enhancement.
38 chain ring with an 11 speed 11-28 ish range is perfect for cyclo-cross, and versatile, covers most other riding on and off the road.
I have thought the same for a while. Multiple national champ cyclo-crossers Isla Rowntree and Louise Robinson have been racing on a single chainring for years, you don't need a special SRAM one.
Typical - just after a spent a small fortune on a carbon forks for my crosser UCI legalised disc brakes. I've just upgraded my drivetrain only to learn that SRAM are developing a CX version of 1X11
whats your next upgrade I can see a pattern emerging ?
