Bike Check: Legor Cicli’s 650b steel all-road bike

The WTUA gravel bike combines 650b wheels with a steel frame

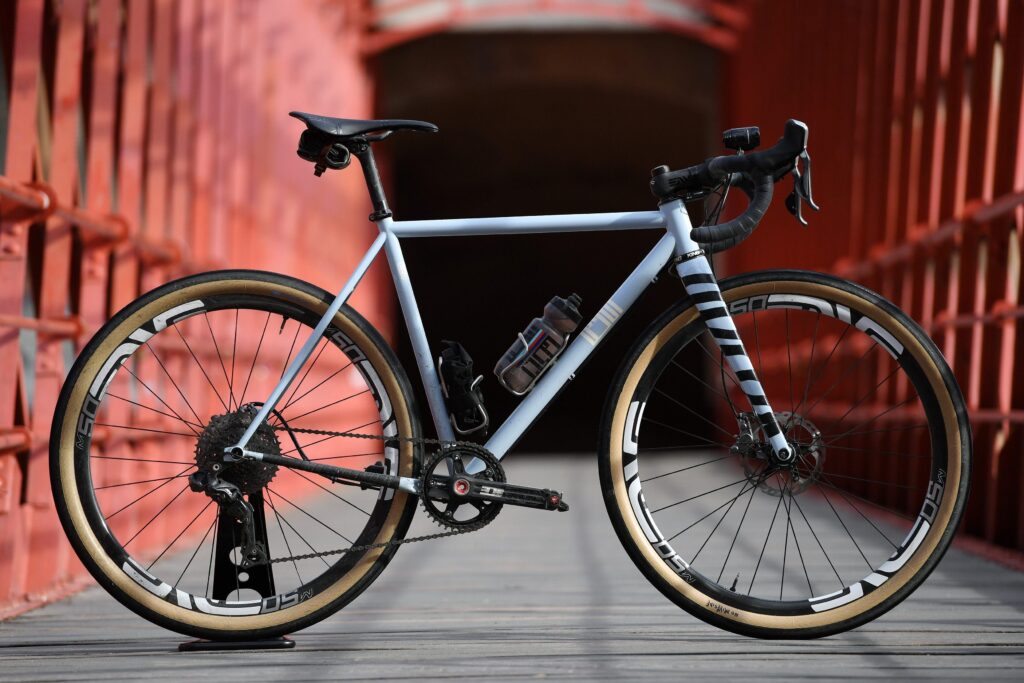

This, the WTUA gravel, is the latest model from Legor Cicli, the work of an Italian framebuilder living in Barcelona and featuring 650b tyres on a steel frame.

I met Mattia Paganotti, the Italian behind the brand in Girona at an Enve press launch recently. He had brought his latest creation along with him. So, naturally, I took the opportunity to take a closer look at the bike and chat with him to find out more.

Mattia began working under the guidance of Italian framebuilder Gino Lissignoli in exchange for fixing his lathe. He then worked with Zullo for two years and became friends with Dario Pegoretti who taught him more, before going into business first making frames for Crema Cycles and then turning out his own brand Legor Cicli. He makes about 60 to 70 frames a year and the one pictured above is a brand new model.

Legor Cicli 650b 3.jpg

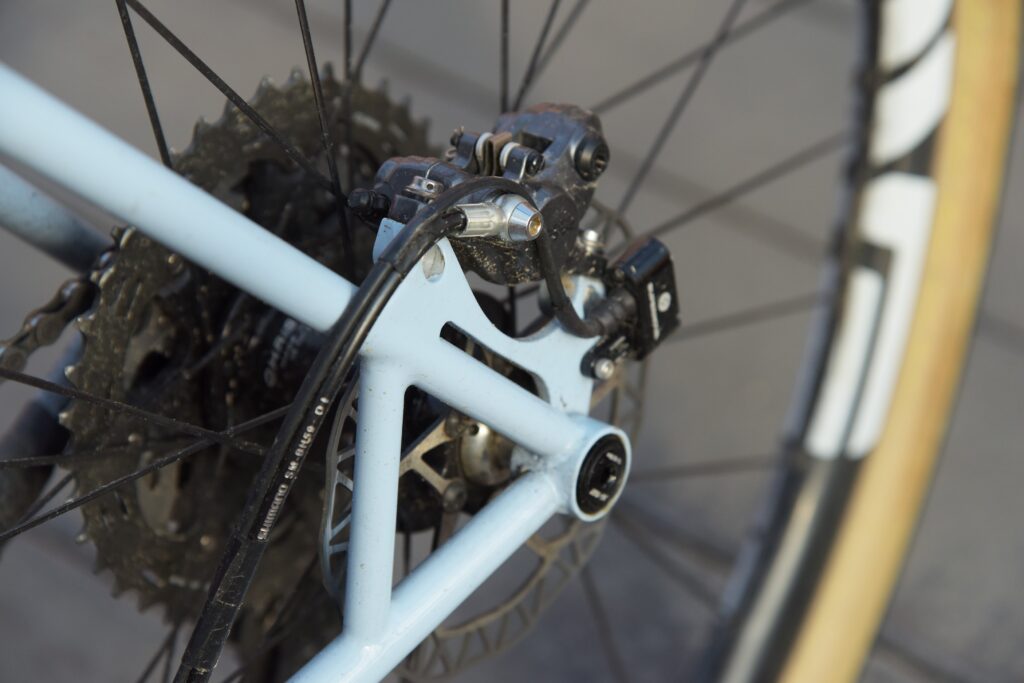

It's called the WTUA gravel and is built using Columbus Spirit tubing with lots of straight lines and clean welds. There are some nice details, a T47 bottom bracket, externally routed cables and oversized tube diameters. Because of the stiffness of the carbon wheels and thru-axles, he tells us he can use a 28.6mm seat tube because it offers a bit more flex which helps with the handling and grip. Out back there’s a thru-axle and the disc brake is mounted on top of the seat stay.

Legor Cicli 650b 7.jpg

The bike has been designed around 650b wheels, the hot trend in adventure and gravel biking this year. Clearance is ample for up to 2.2in tyres, and it’s fitted with Compass Switchback Hill 650b x 48mm tyres. The tyres, he tells us, are fast on the road and there’s grip on the gravel, and they’re comfortable as well. He says this bike has changed his idea about gravel bikes.

- Is 650b the future for road bikes? investigates

Legor Cicli 650b 4.jpg

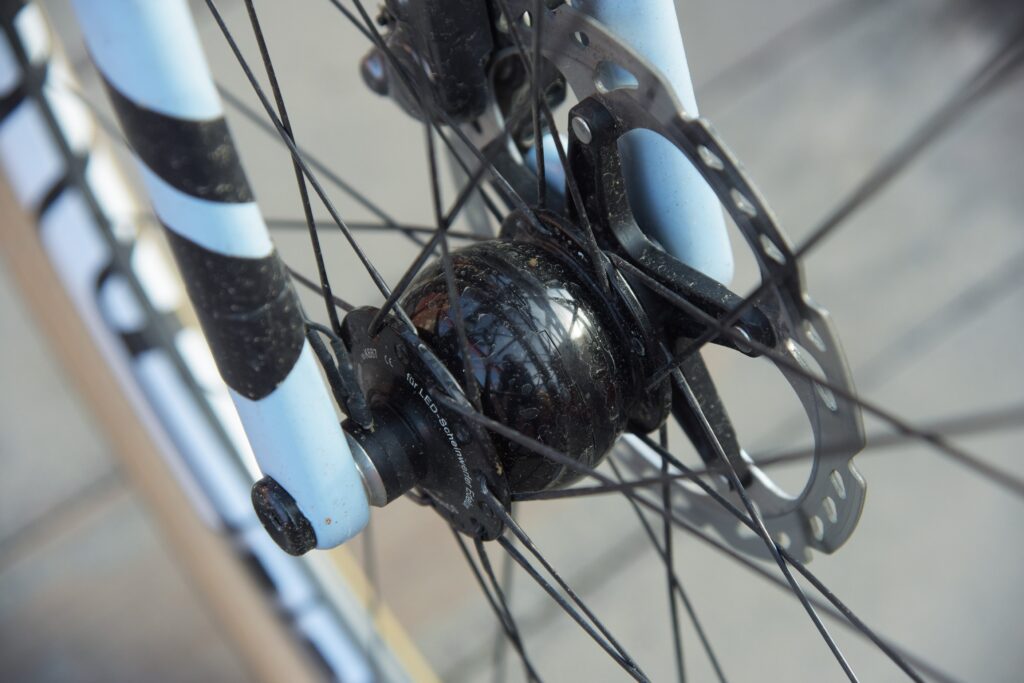

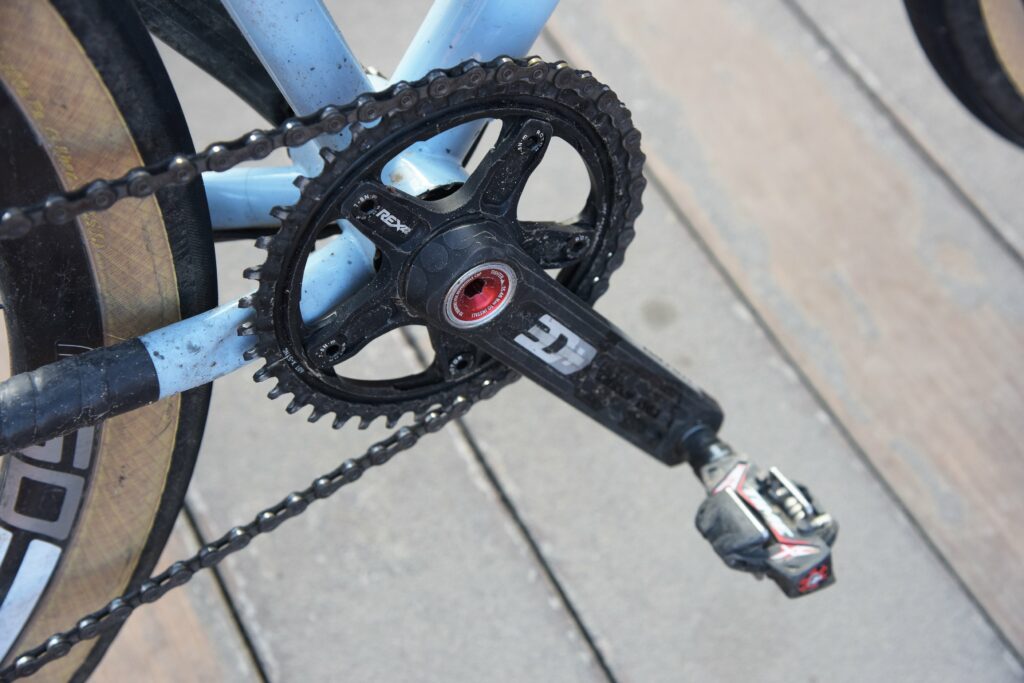

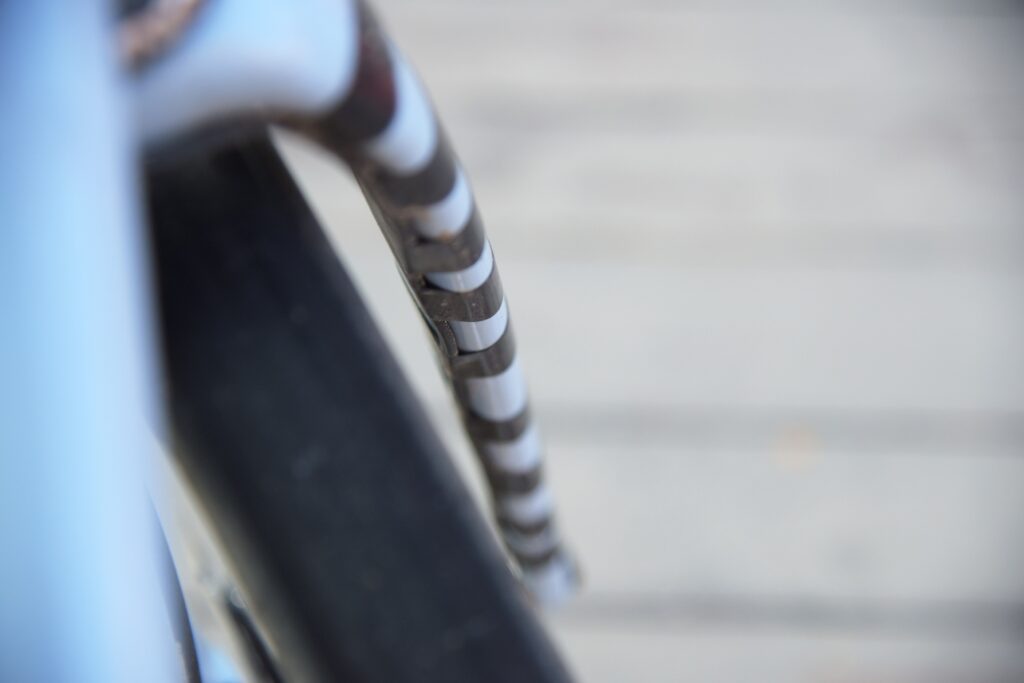

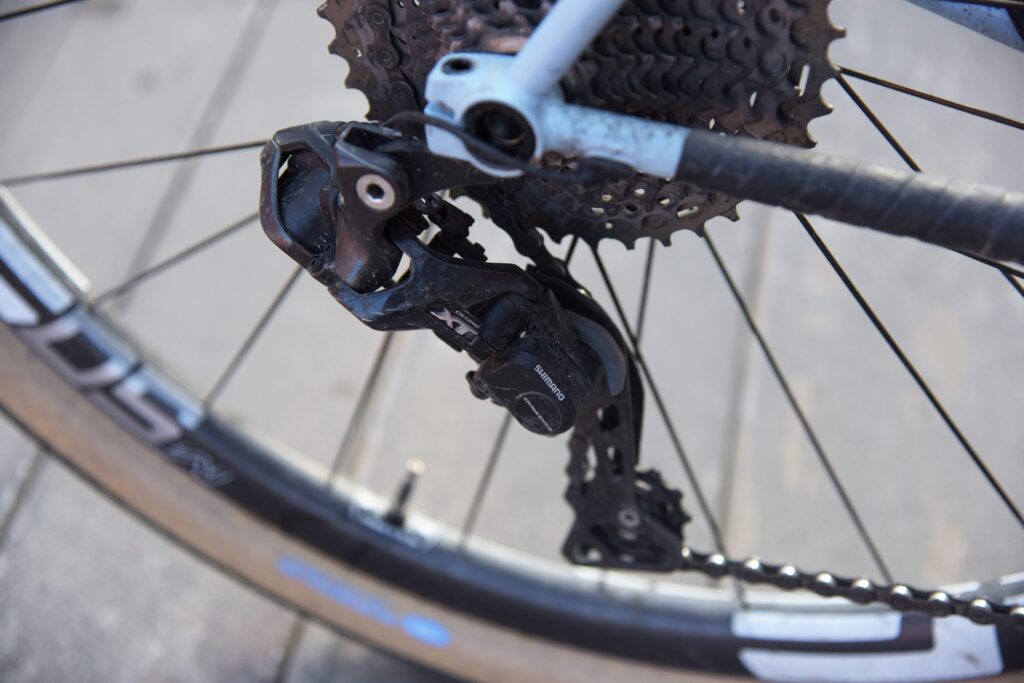

An Enve carbon fork slots into the head tube and there's a dynamo front hub powering the front and rear lights, with the cable connecting the lights to the hub taped to the fork blade. He's even managed to make a feature out of the electrical tape securing the cable in place. A Rotor single ring chainset pairs with a Shimano XT Di2 mountain bike rear derailleur and road bar shifters and brake levers, using XTR post mount disc brakes.

Legor Cicli 650b 9.jpg

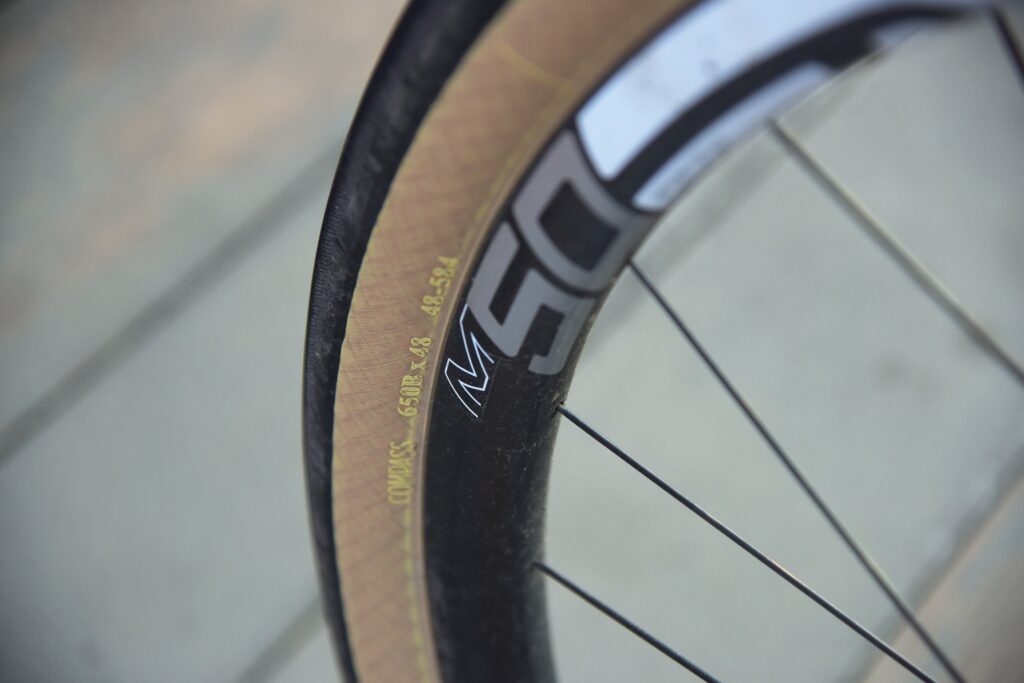

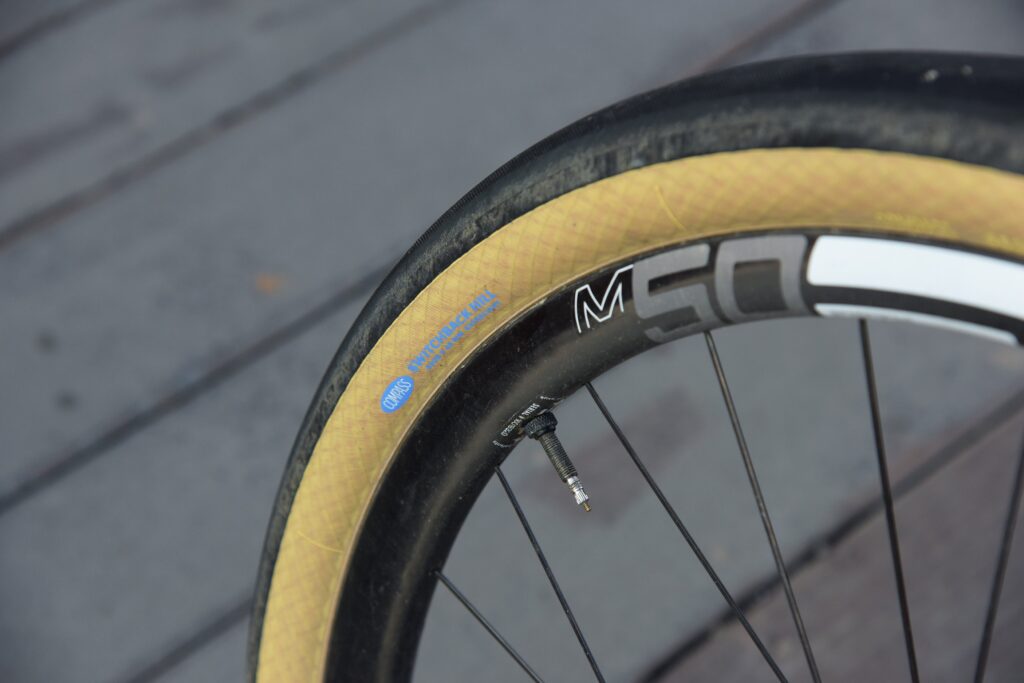

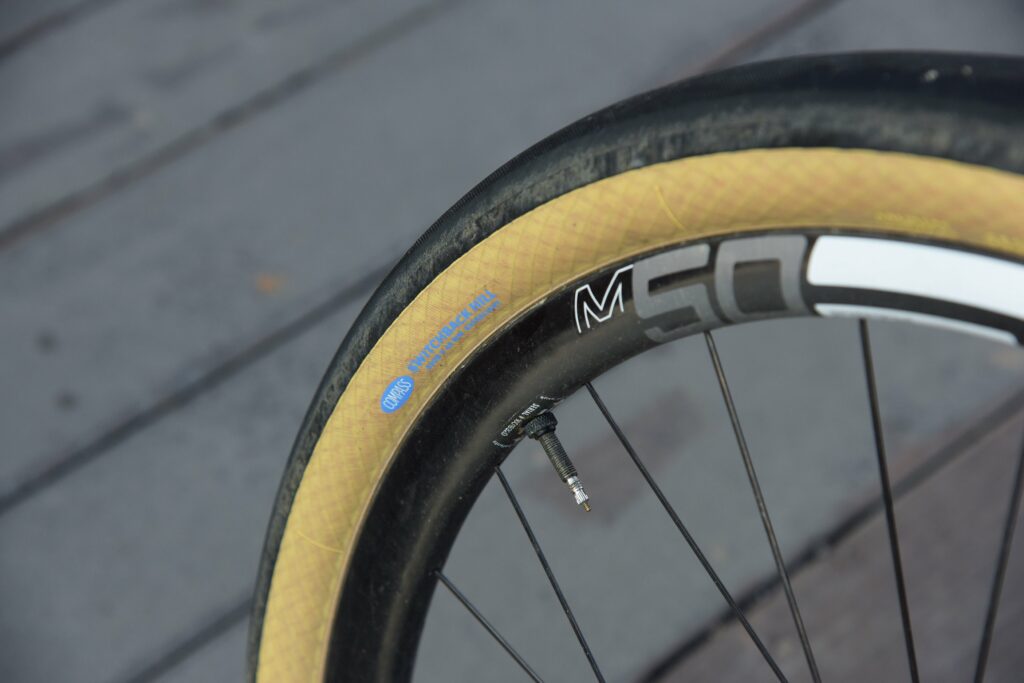

Wheels are also from the mountain bike side of things, Enve’s M50 carbon hoops shod with the aforementioned Compass tyres. An Enve handlebar, stem and seatpost with a San Marco saddle complete the interesting build.

Legor Cicli 650b 2.jpg

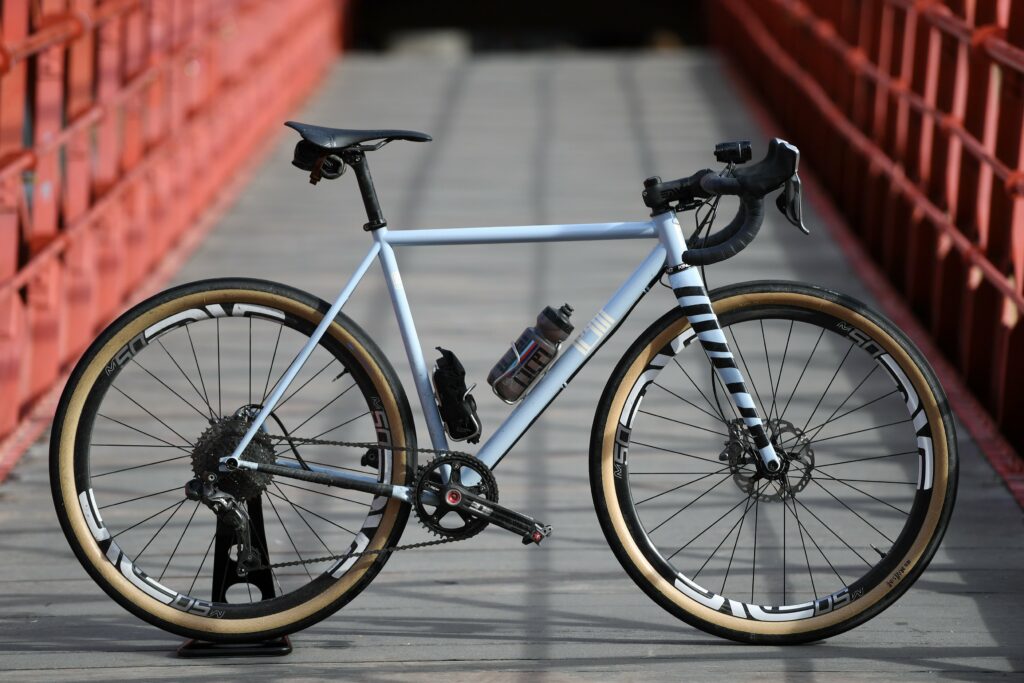

It’s a cool looking bike with go-anywhere purpose, and Mattia tells of how he’s been riding it everywhere around Barcelona, using it for road and off-road roads, as his Instagram photos prove. He says he uses for those rides when he’s not sure if he wants to stick to the tarmac or head into the hills because the tyres provide the capability to tackle it all. It looks like a really fun bike, and if it wasn't too small I would have stolen it for a blast around the streets of Girona.

Legor Cicli 650b 10.jpg

More at

Photos © Augustus Farmer

David worked on the tech team from 2012-2020. Previously he was editor of and before that staff writer at RCUK. He's a seasoned cyclist of all disciplines, from road to mountain biking, touring to cyclo-cross, he only wishes he had time to ride them all. He's mildly competitive, though he'll never admit it, and is a frequent road racer but is too lazy to do really well. He currently resides in the Cotswolds, and you can now find him over on his own YouTube channel David Arthur - Just Ride Bikes

Add new comment


SuperG | 7 years ago

Strange the rear disc is postioned outside seat stay, rather than the now excepted position of between chainstay and seat stay?

Nice bike though!

Al__S replied to SuperG | 7 years ago
SuperG wrote:

Strange the rear disc is postioned outside seat stay, rather than the now excepted position of between chainstay and seat stay?

Outside the seat stay makes for easier geometry- look at the straight stays meeting at the drop-out. Inside is trickier, though flat-mount takes up less space, and makes attaching a pannier rack and mudguards (not a consideration here) easier

I love my bike | 7 years ago

Has anybody ever actually measured the difference in flex between a 32.4mm & 25.0mm seatpost?

I'd assume the difference would be at most negligible.

If Legor Cicli were that concerned, why not fit a 25mm post & shim?

P3t3 | 7 years ago

Nice bike, love the tyres.

In english its "at the back" not "out back", stop trying too hard  1

only1redders | 7 years ago

Shows continuing cross-over between road and mountain. Have seen a Mason Bokeh build with an XT rear mech as well, so shows how much riders can customise their setup to meet their own demands. Personally, find the electrical tape solution a little ugly, but then when you're on the bike, who cares!

TypeVertigo | 7 years ago

Looks great. I like how the build focuses on the chunky wheels and tires. More an out-and-out gravel bikepacking rig than an all-season commuter, it looks like.

I'd opt for a front mech myself, but I guess a clamp adapter for a braze-on unit won't be too hard to find.
