Just in: Wilier GTR Team 105 Endurance

A £1,649 carbon road bike with a geometry that's tweaked just a touch for endurance

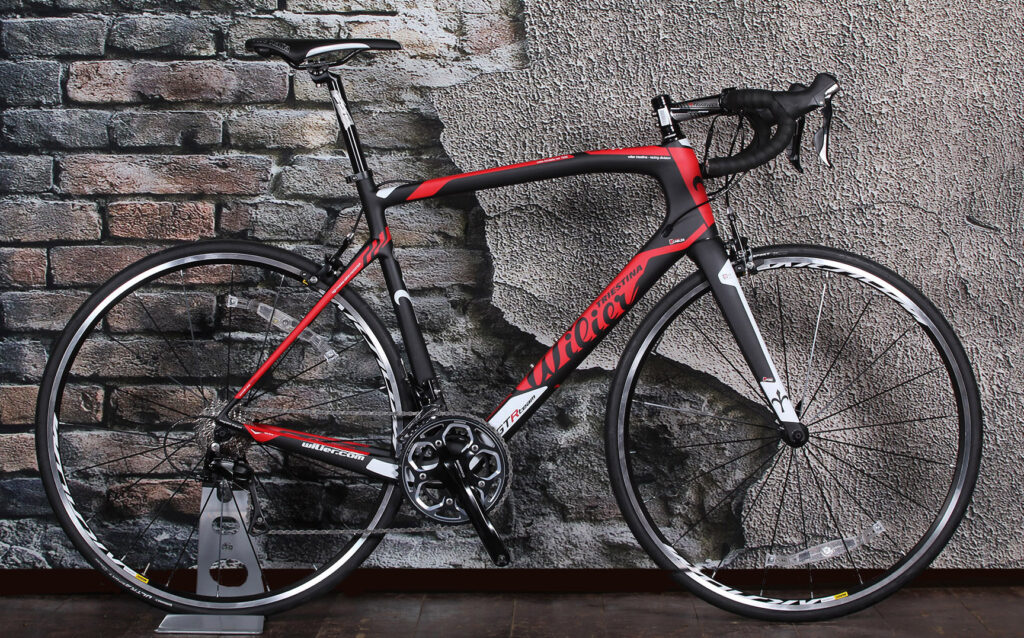

Wilier’s new £1,649 GTR Team 105 Endurance bike has just arrived at road.cc for review, equipped with a Shimano 105 groupset – the clue’s in the name – and Mavic Aksium wheels. Let’s have a quick look at it before we take it out on the road.

The GTR used to be just a single frame, but Wilier has changed things massively this year. We’ll get into how it has done that in a mo.

The new GTR Team and SL have geometries based on Wilier’s Cento1 high-end race bike, but with about 10mm of extra height in the head tube. Wilier feel that it’s better to add a little length to the head tube than to have most riders putting a spacer underneath the stem to bring the handlebar up higher. It’s a stiffer and neater solution, and Wilier reckons that the design still manages to retain a front end that feels planted.

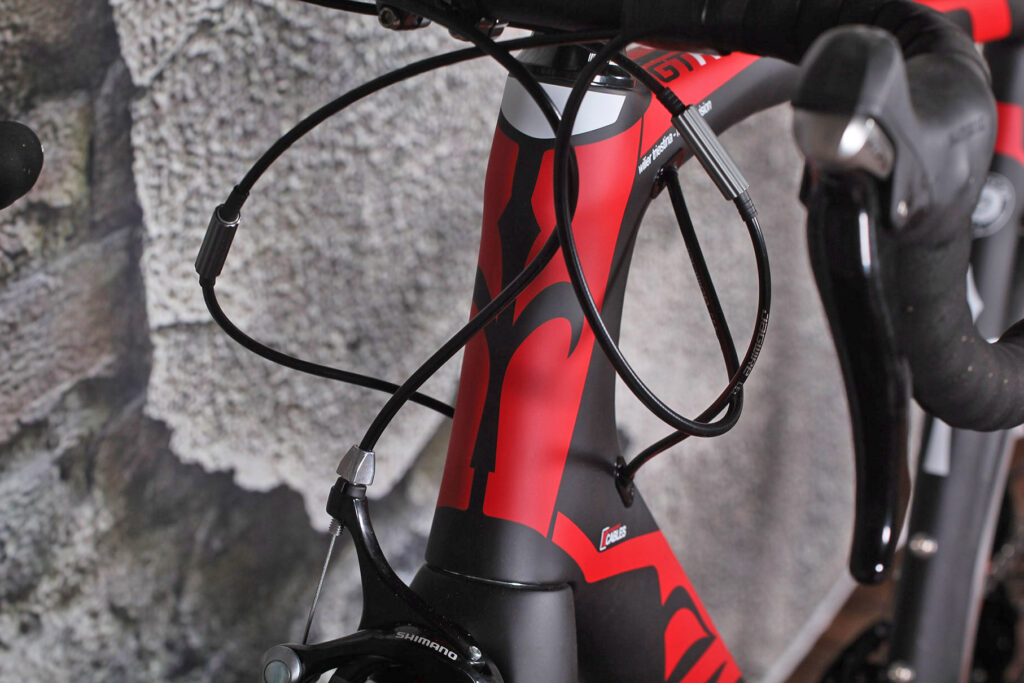

Wilier GTR Team - head tube badge.jpg

The original GTR stays in the range for 2016, available in a choice of either Shimano Tiagra (£1,299) or Campagnolo Veloce (£1,350) builds.

Beyond that, things get a little more complex, so you’ll need to concentrate! The GTR Team and the GTR SL are the same frame, identical in geometry and tube shape, but they use different grades of carbon composite. The GTR Team, the one we have here, is made from a blend of 46 ton and 30 ton carbon and has a claimed frame weight of 1,190g, while the GTR SL uses 60 ton and 46 ton carbon and has a claimed frame weight of 990g.

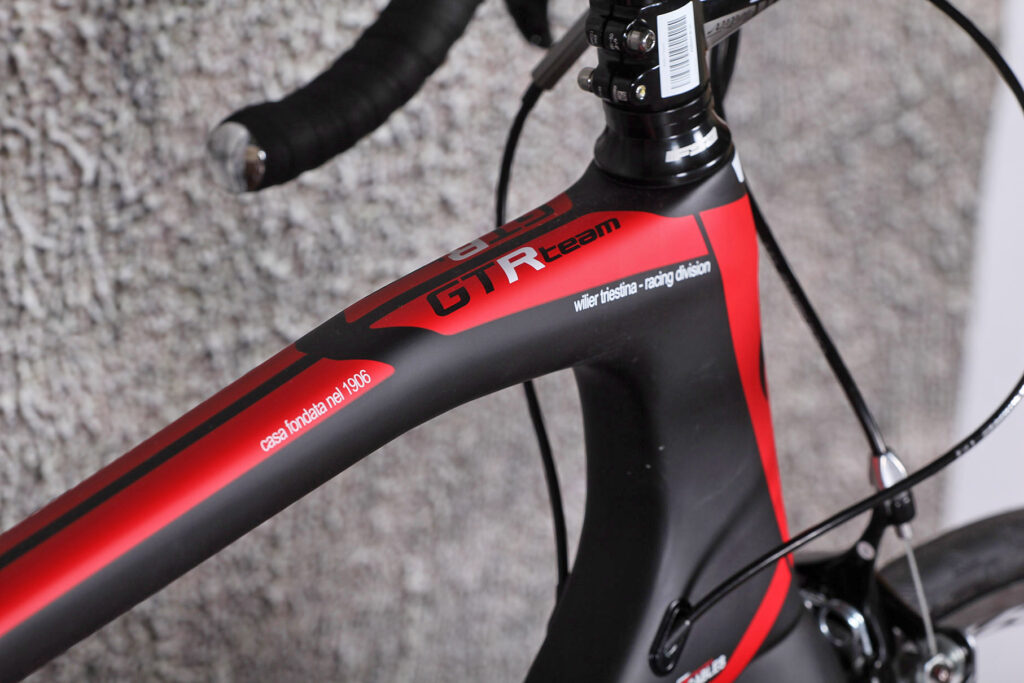

Wilier GTR Team - top tube.jpg

The unusual factor is that both the GTR Team and the GTR SL come in two different geometries: first, there’s the race geometry, and then there’s the endurance geometry.

The difference is in the fork. The fork on the endurance version is longer than that of the race model, so the front end is higher. Wilier has done this by building an extra 10mm into the crown. It has also increased the offset from 45mm to 49mm.

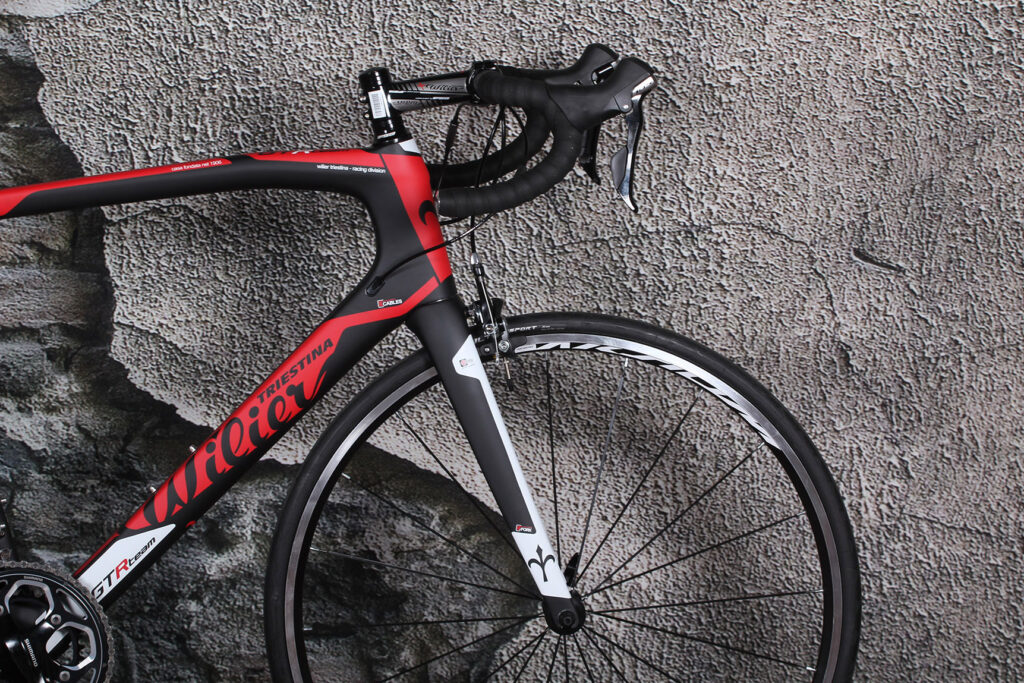

Wilier GTR Team - front .jpg

The biggest effects of this are an increase in the stack height (the vertical distance from the centre of the bottom bracket to the top of the head tube), a slackening of the head angle, and an increased wheelbase. The idea is that you get a slightly more relaxed riding position and increased stability. It’s still a performance-minded geometry, mind; this isn’t a setup that’s abandoned the idea of going fast at all. Wilier reckons that, like the race geometry, the endurance geometry delivers an engaging ride. We’ll soon find out.

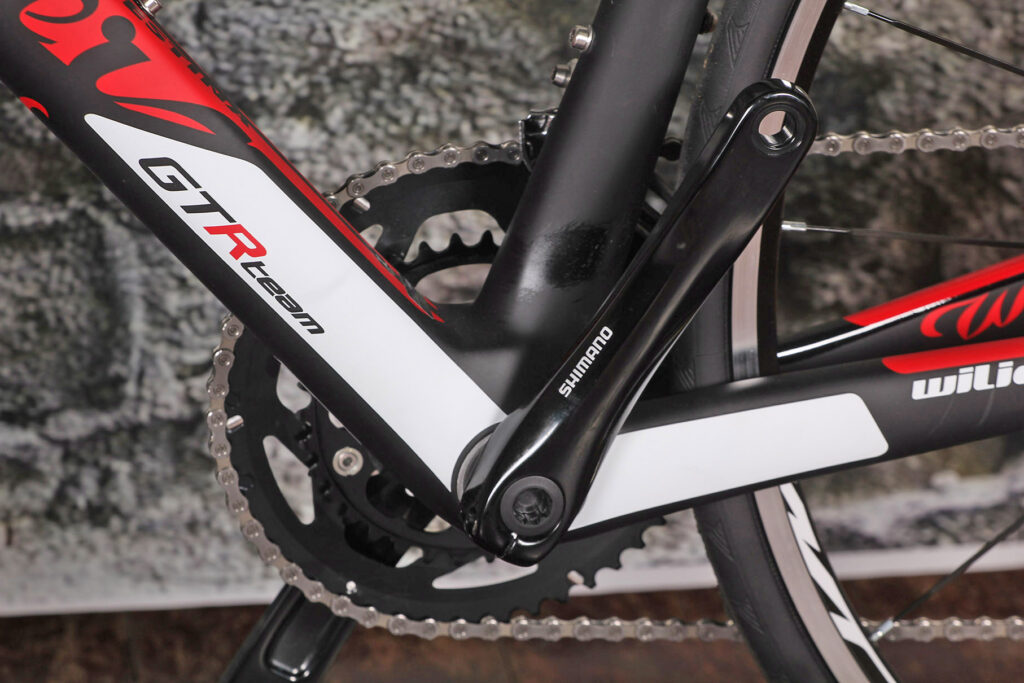

Wilier GTR Team - bottom bracket.jpg

The GTR Team 105 Endurance is available in six different sizes. Our review bike is the second largest one, the XL. Our bike has a 55cm seat tube (centre of the bottom bracket to the top of the seat tube), a 55.3cm top tube, and an 18.4cm head tube. The stack height is 586mm and the reach (the horizontal distance from the centre of the bottom bracket to the top of the head tube) is 388mm.

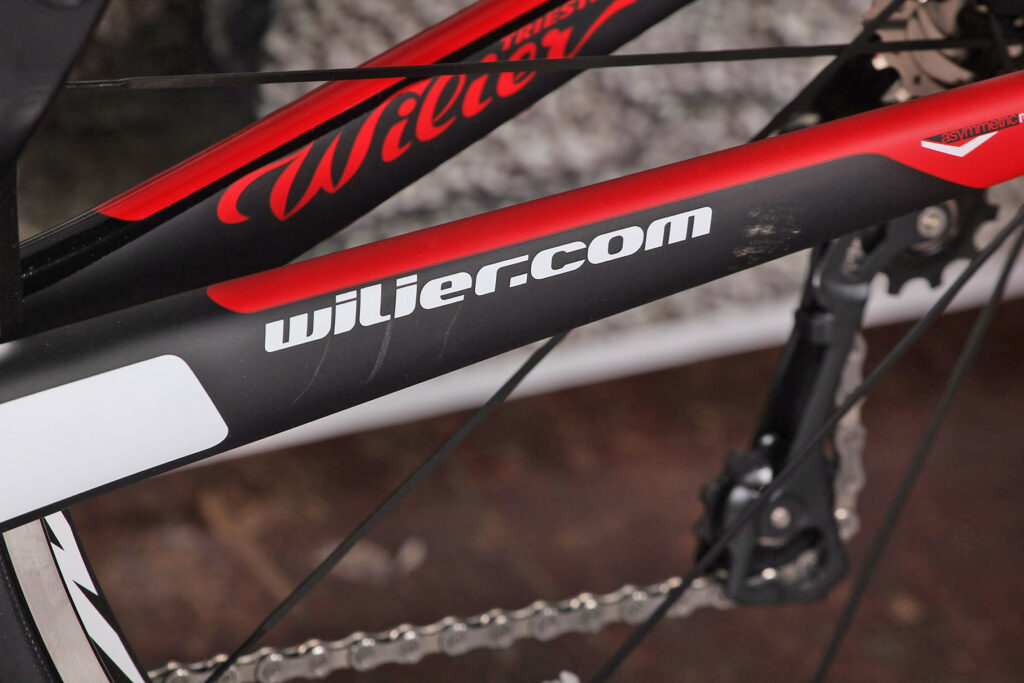

Wilier GTR Team - chain stay.jpg

For comparison, the stack height of an XL bike in a race geometry is 583mm (a little lower) and the reach is 394mm (a little higher).

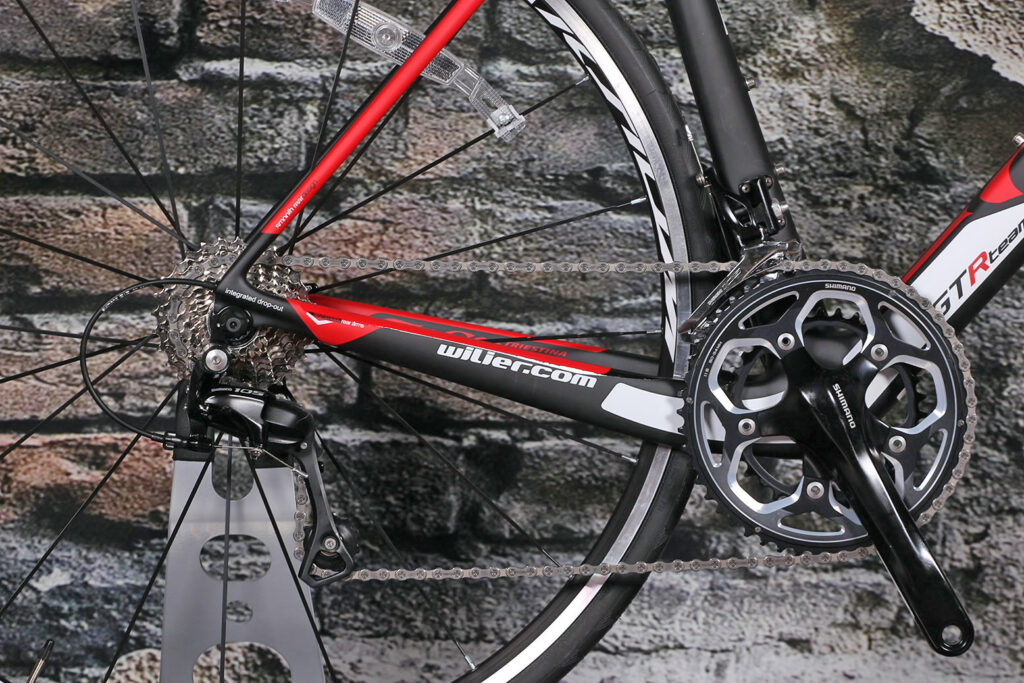

Wilier GTR Team - drive train.jpg

The GTR Team is available in three builds: Campagnolo Athena with Campagnolo Zonda wheels (£1,999.99, this one is an endurance geometry), Shimano Ultegra with Mavic Aksium Elite wheels (£1,899, in a race geometry), and Shimano 105 with Mavic Aksium wheels (£1,649), which is the one we have here.

Wilier GTR Team - rear brake.jpg

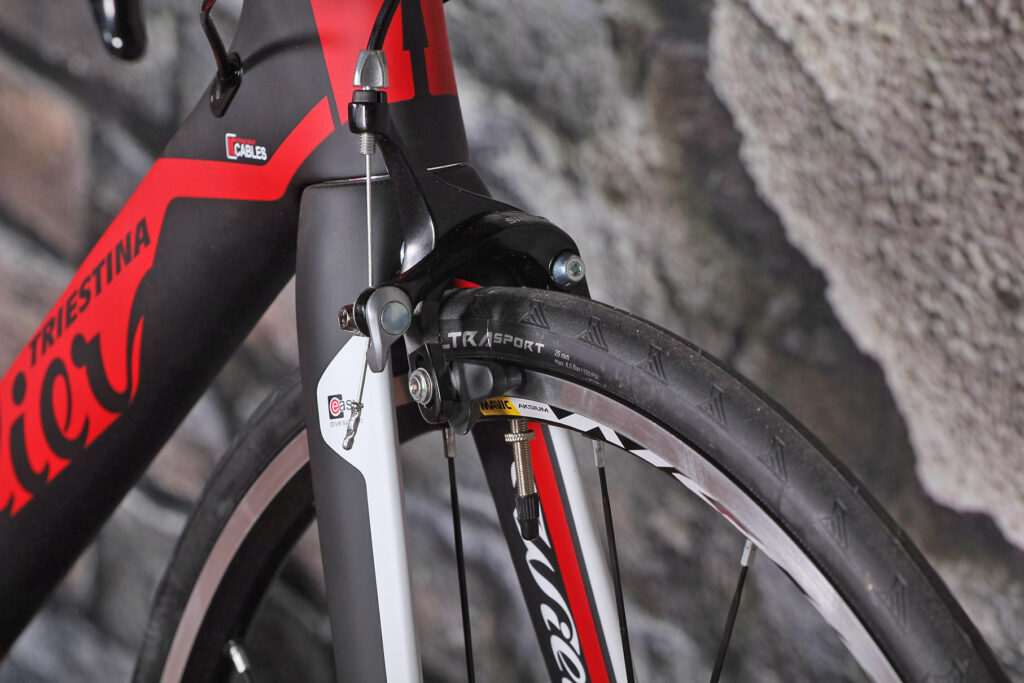

The 105-osity of our review bike extends to both derailleurs, the shifters, the cassette and the chain. The brakes are non-series R561, meaning that they don’t belong to any groupset, and the chainset is non-series too: RS500. It doesn’t have the hollow crank arms of some Shimano chainsets, and it has a five arm spider whereas 105, like Dura-Ace and Ultegra, has switched to a four-arm design and super-stiff chainrings.

Check out road.cc’s complete guide to Shimano 2016 road bike groupsets.

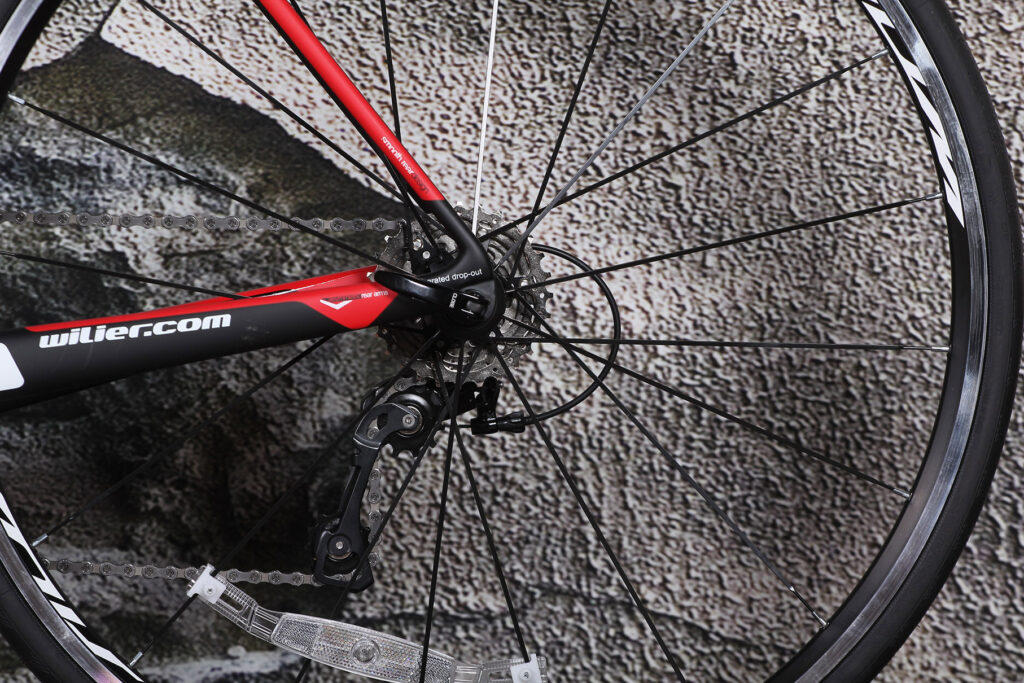

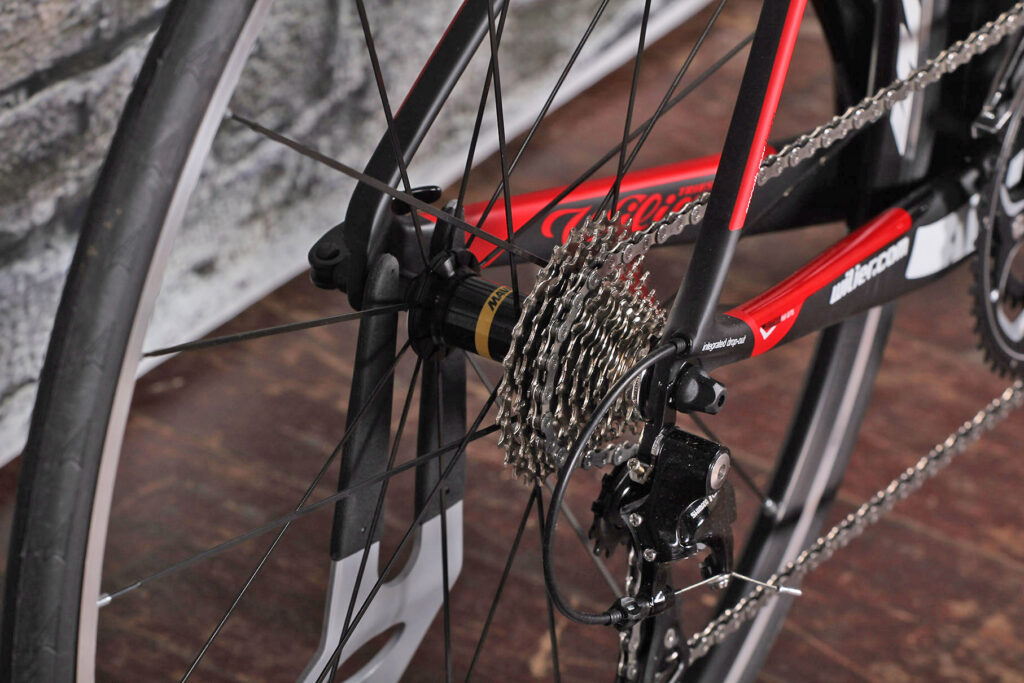

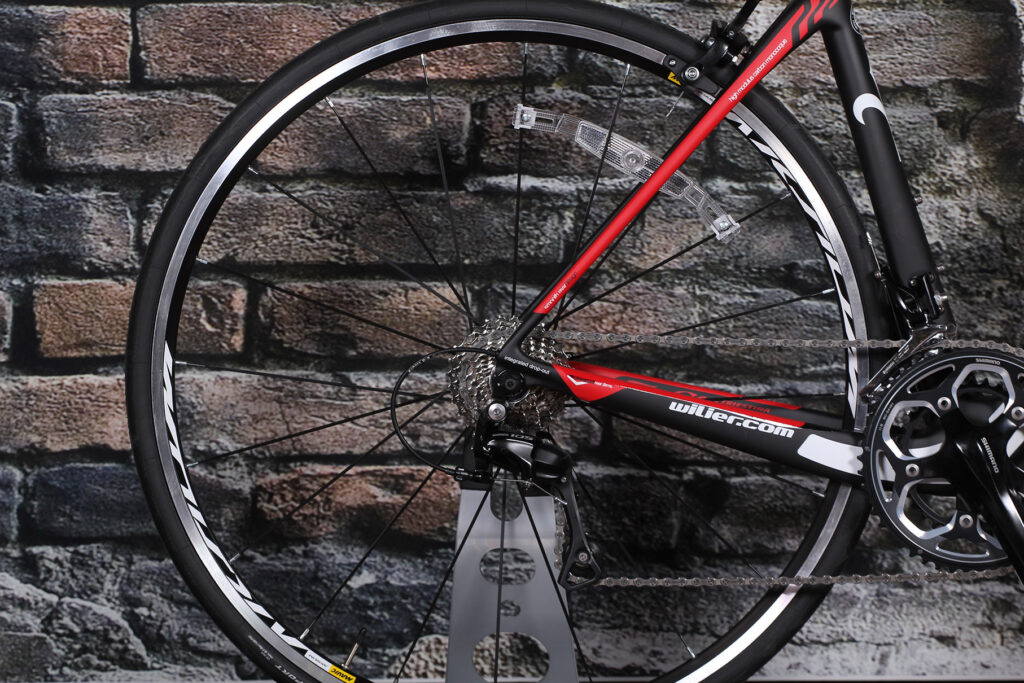

Wilier GTR Team - rear wheel.jpg

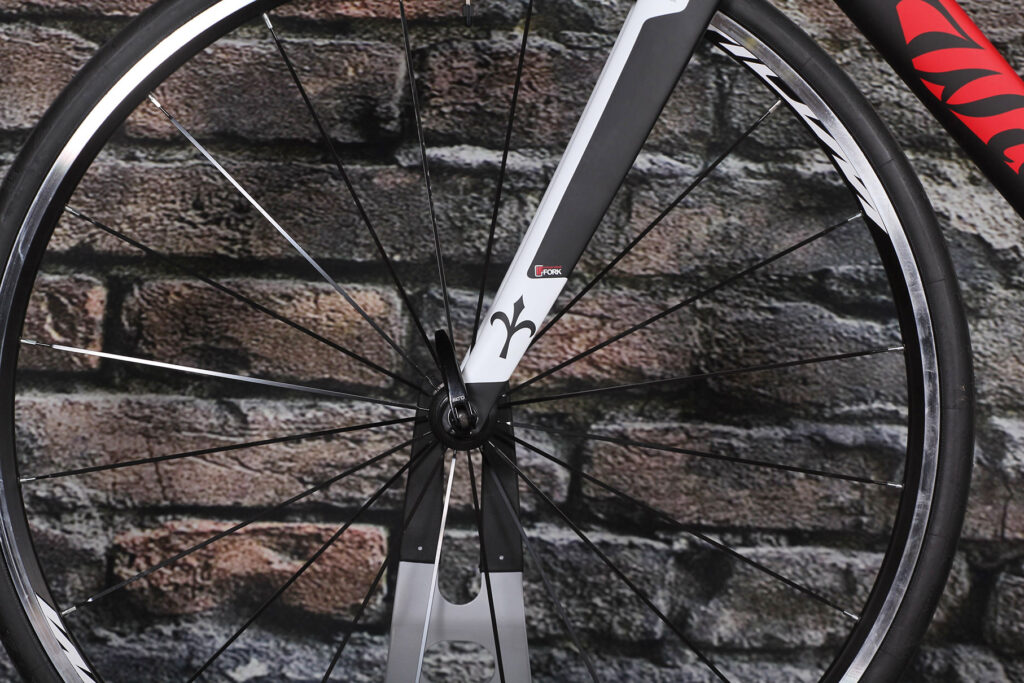

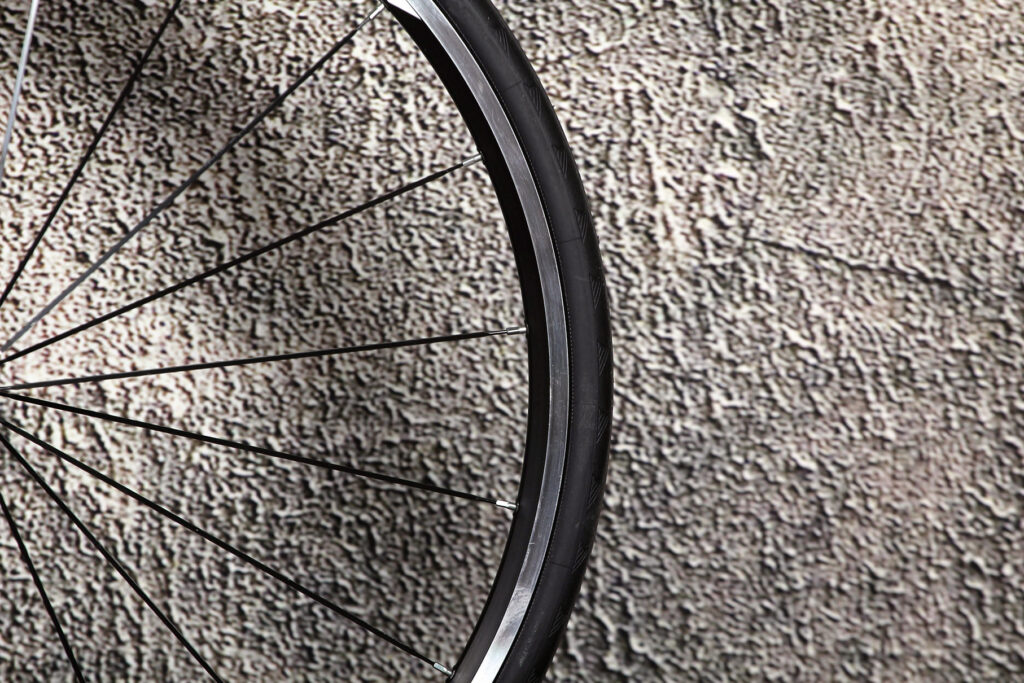

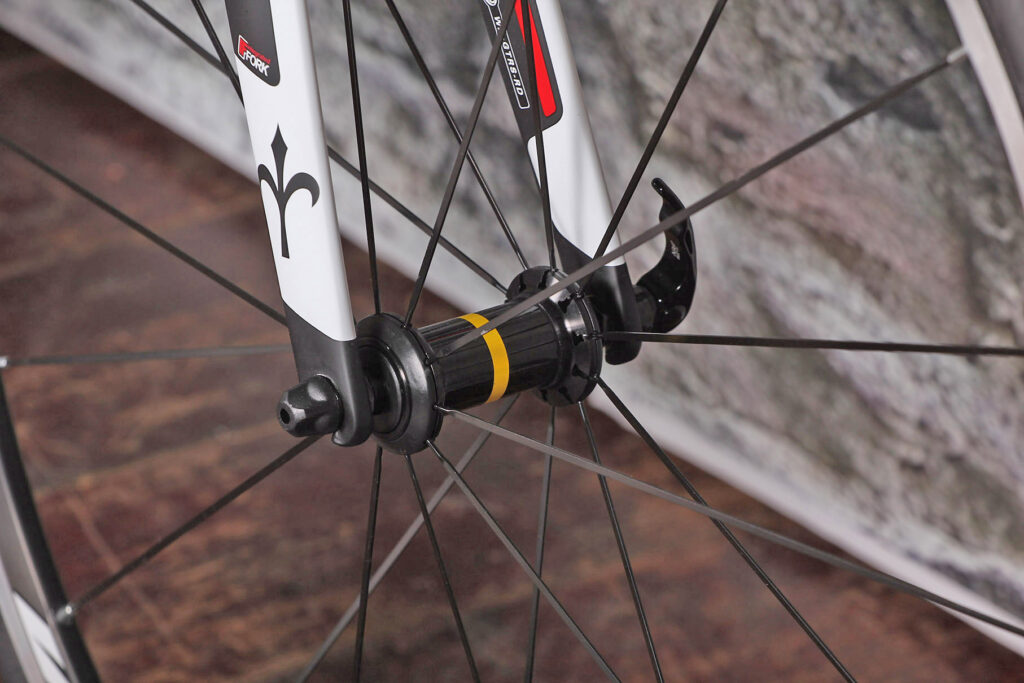

The Aksium wheels might be Mavic’s cheapest road option but we’ve found them to be quick and, in most cases, reliable. They come shod with 25mm Conti Ultra Sport tyres.

Go to our guide to Mavic road wheels for more info.

The chainset is a compact (with smaller than standard 50 and 34-tooth chainrings) and it’s hooked up to an 11-28-tooth cassette, so we’re hoping that getting up the climbs won’t be overly painful.

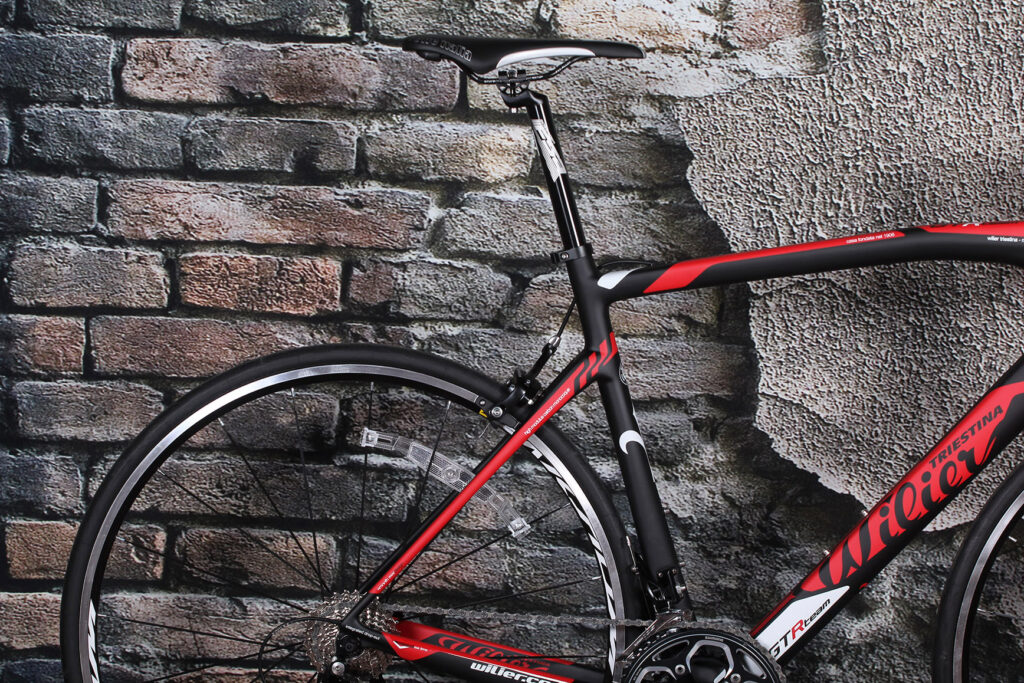

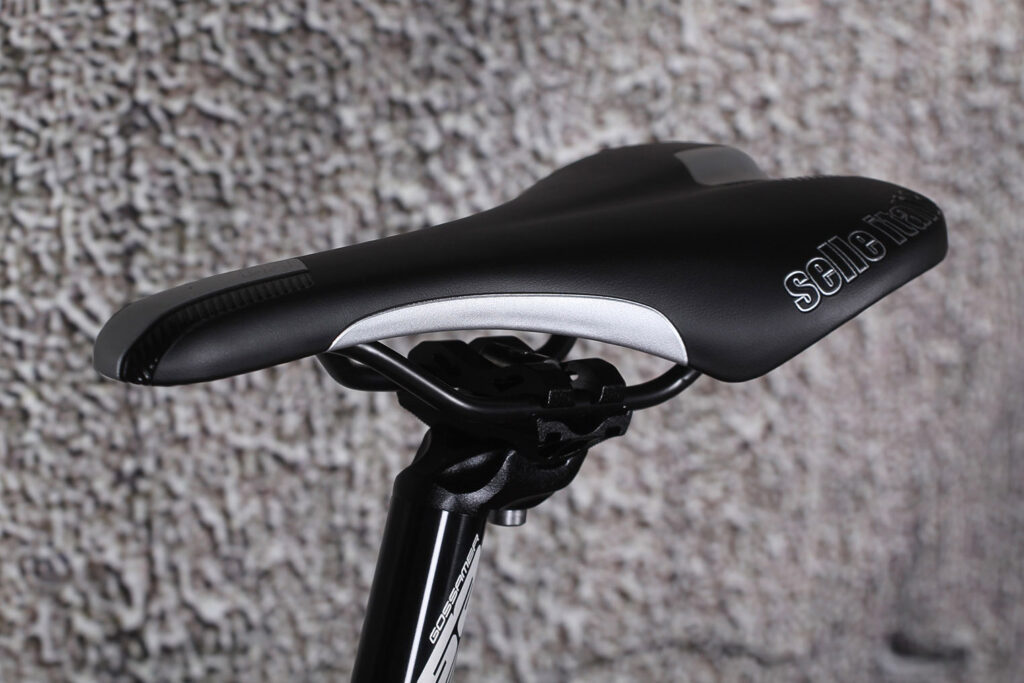

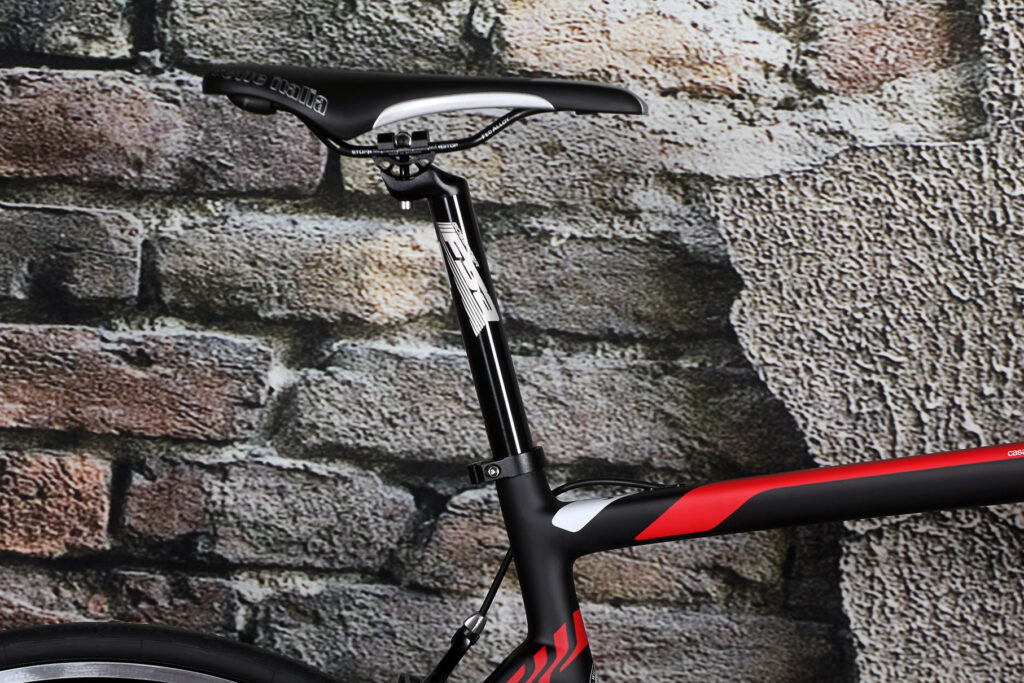

Wilier GTR Team - seat post and saddle.jpg

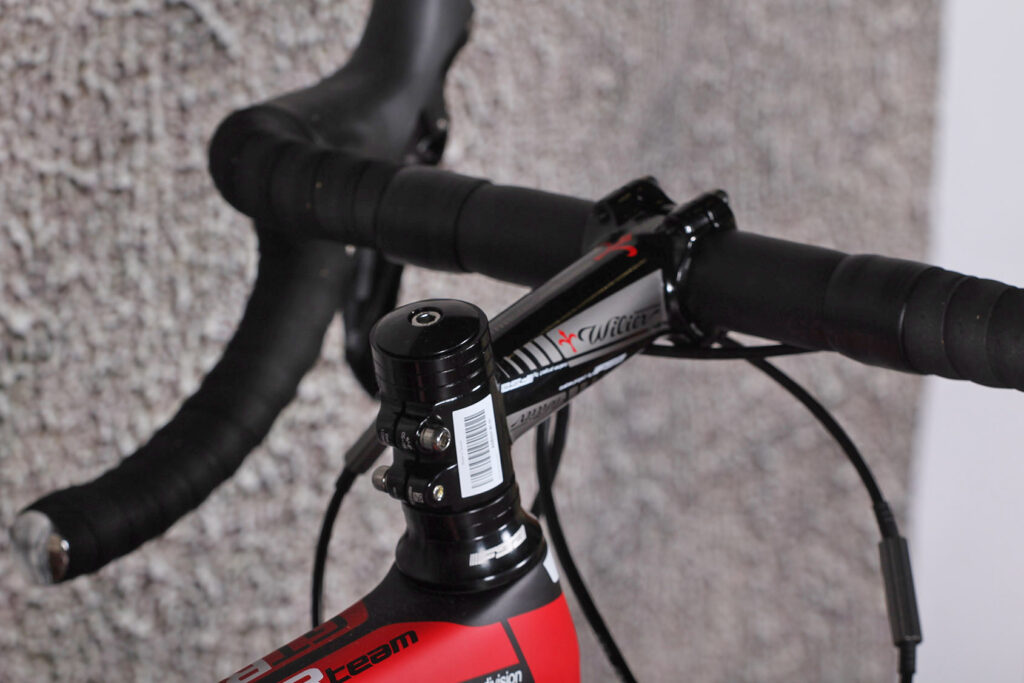

The seatpost and stem are aluminium options from FSA, as is the compact (meaning that you get a shallow drop) handlebar which should hopefully complement the character of the endurance frame. The saddle is a Selle Italia X1.

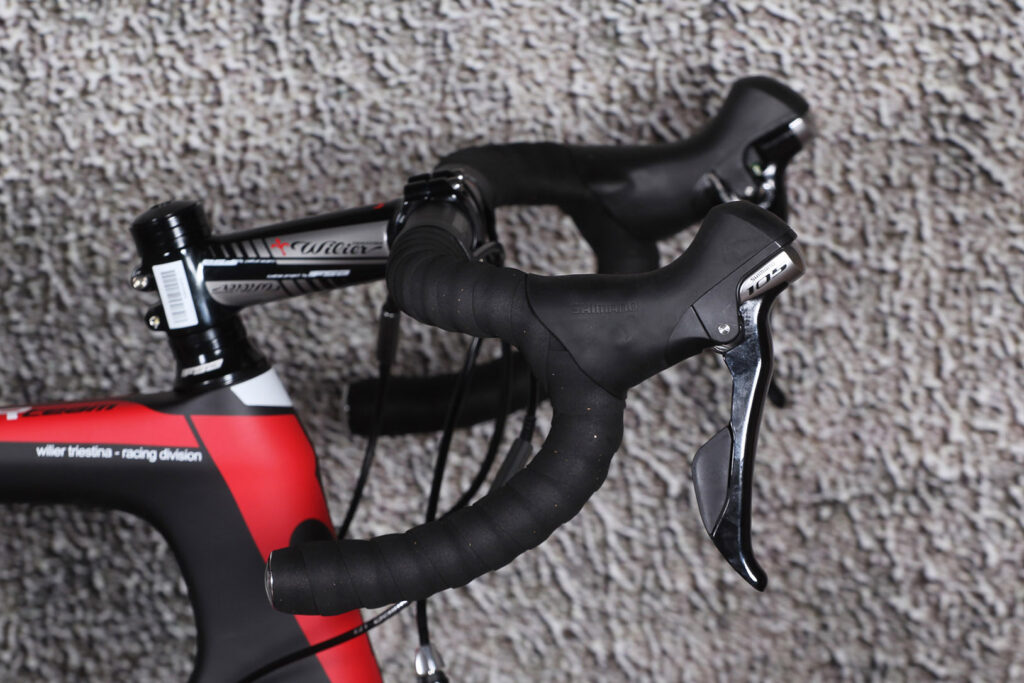

Wilier GTR Team - bars.jpg

As mentioned above, Wilier claims a frame weight of 1,190g – that’s +/-5% – while the full-carbon fork is a claimed 390g – again, +/-5%. Our complete bike weighed in at 8.5kg (18.7lb)

If you wanted to go for one of the Wilier GTR SL bikes – the lighter weight ones, remember – these are a bit more expensive. That’s usually the way! The most affordable of them is the Shimano Ultegra build (£2,399, in a race geometry). That’s full Ultegra, by the way, including the 52/36-tooth chainset and the brakes. The two other models are both priced £2,999; one of these is Shimano Dura-Ace with Mavic Ksyrium Elite wheels, the other is Campagnolo Chorus with Campag Zonda wheels.

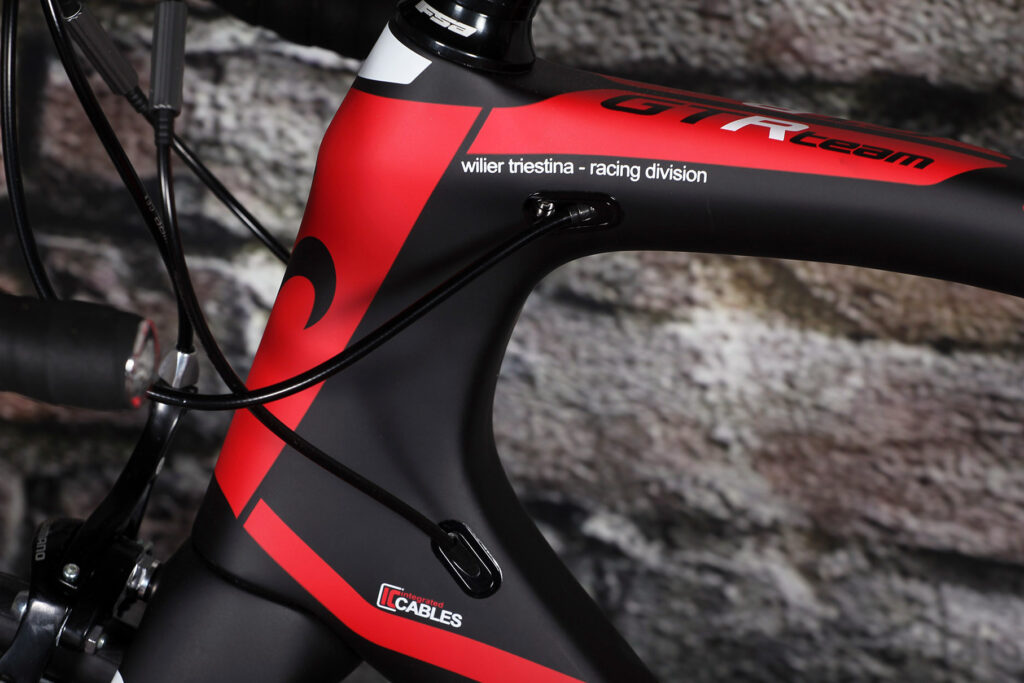

Wilier GTR Team - head tube.jpg

There’s also a GTR Team Disc. This bike uses the same 46 ton and 30 ton carbon as the standard GTR Team that we we have for review, and it’s available in the same endurance geometry. It comes in a Shimano 105 build for £2,399 and a Shimano Ultegra build for £2,699.

The Merida Ride 5000 that we reviewed here on road.cc last year is another bike built to a geometry that’s a bit more relaxed than that of a standard race bike but still performance-orientated. The 2016 model has Ultegra shifters and derailleurs and Fulcrum Racing 7 wheels, but it is priced at £1,800, which is over £150 more than the Wilier.

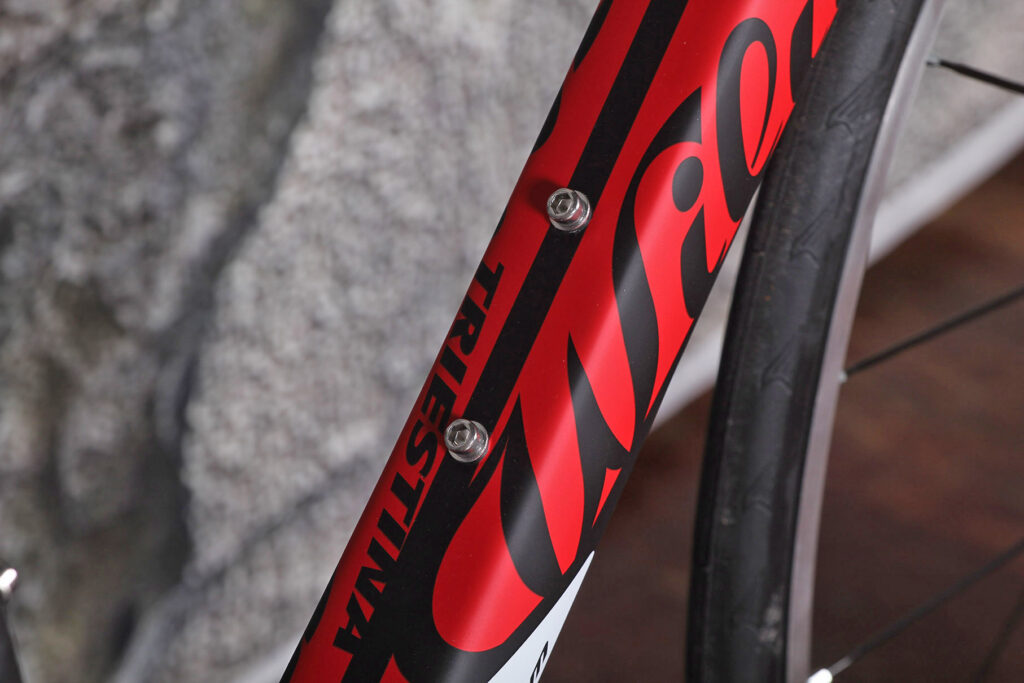

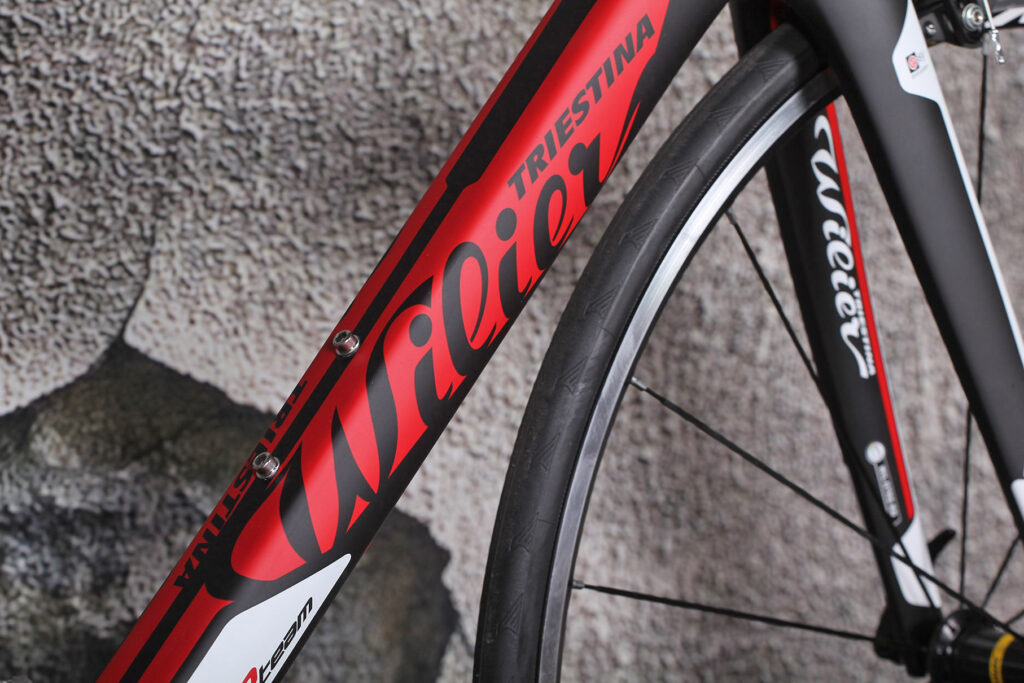

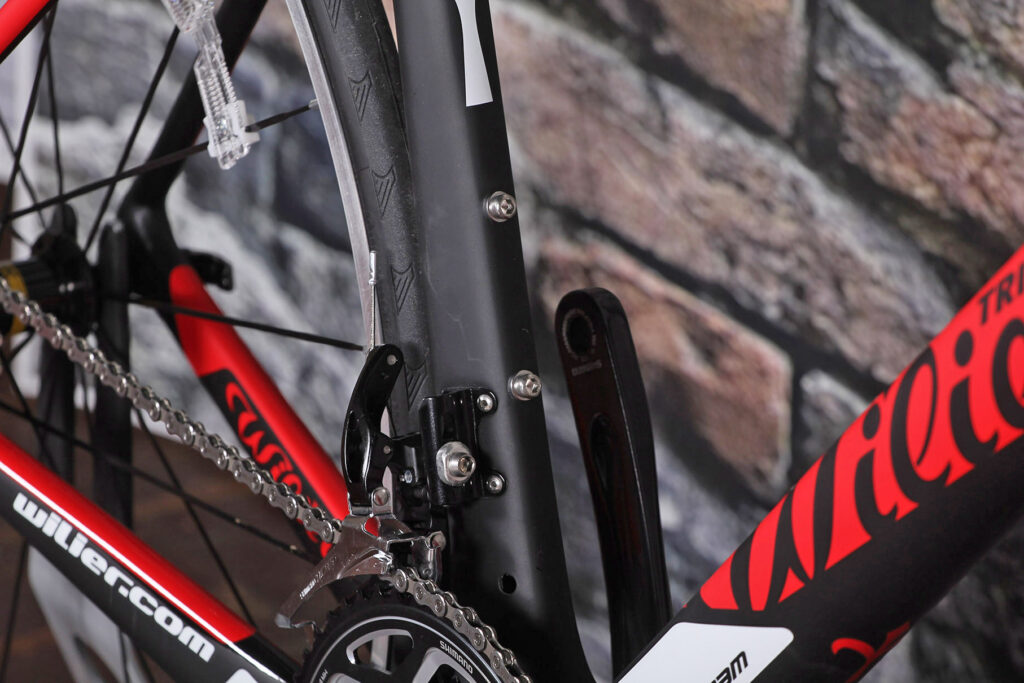

Wilier GTR Team - bottle bosses 2.jpg

Right, this bike isn’t going to ride itself; we need to hit the road and get some miles in. We’ll be back with a review on road.cc soon. In the meantime, check out www.wilier.com for more details.
