Quad Lock Out Front Mount Pro



Currently the best way to get a large phone out front of your handlebar
Longer and lower than its sibling
Changeable locking tabs
Camera mount option
Swappable lever sides
£20 more expensive than the standard mount
No padding if using 31.8mm bar
Can't be reversed
Limited to 31.8mm bars max

At every product is thoroughly tested for as long as it takes to get a proper insight into how well it works. Our reviewers are experienced cyclists that we trust to be objective. While we strive to ensure that opinions expressed are backed up by facts, reviews are by their nature an informed opinion, not a definitive verdict. We don't intentionally try to break anything (except locks) but we do try to look for weak points in any design. The overall score is not just an average of the other scores: it reflects both a product's function and value – with value determined by how a product compares with items of similar spec, quality, and price.

What the scores mean

Good scores are more common than bad, because fortunately good products are more common than bad.

  • Exceptional
  • Excellent
  • Very Good
  • Good
  • Quite good
  • Average
  • Not so good
  • Poor
  • Bad
  • Appalling

The Quad Lock Out Front Mount Pro is the longer, lower sibling of the excellent Out Front Mount. Made from machined alloy instead of plastic, it's the less-sweat-splashed, more-aero rock-solid solution for today's larger devices.

When I reviewed the Out Front Mount five years back, it got a knockout five stars. Quad Lock hasn't changed the fundamental design, but in the intervening half-decade its customer base has exploded and phones have gotten a lot larger – requiring a rethink of the phone-out-front model choices.

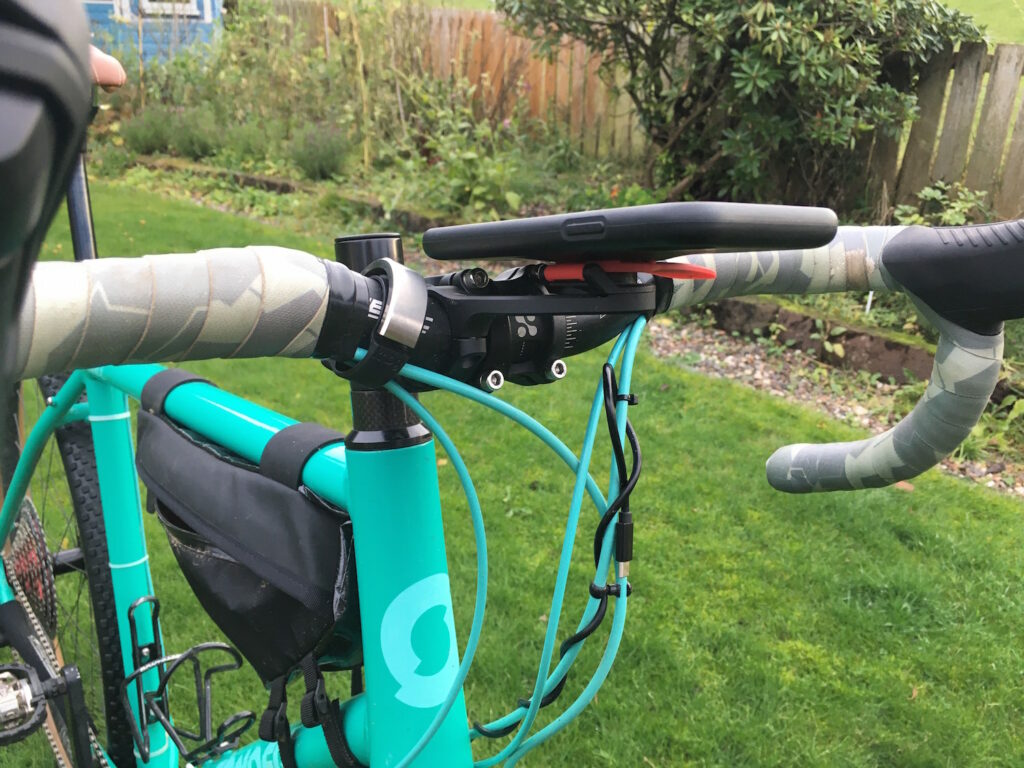

2020 Quad Lock Out Front Mount Pro fitted3.JPG

If you're already in the Quad Lock ecosystem know, your question will likely be 'Is the Pro simply 25mm longer and 9mm lower?' Fundamentally yes, that's it. Having not to look down quite so far to see your screen, or having a large phone be able to clear other things you may have on your bars such as lights, computers and so on, could be a sell for you. Or maybe you care about 'aero' or aesthetics, in which case the 9mm drop in profile will be of interest.

One limitation here, which may not be obvious, is that the drop in height means you can't reverse the mount to position your phone over the stem. You'll need to stick with the standard Out Front mount for that.

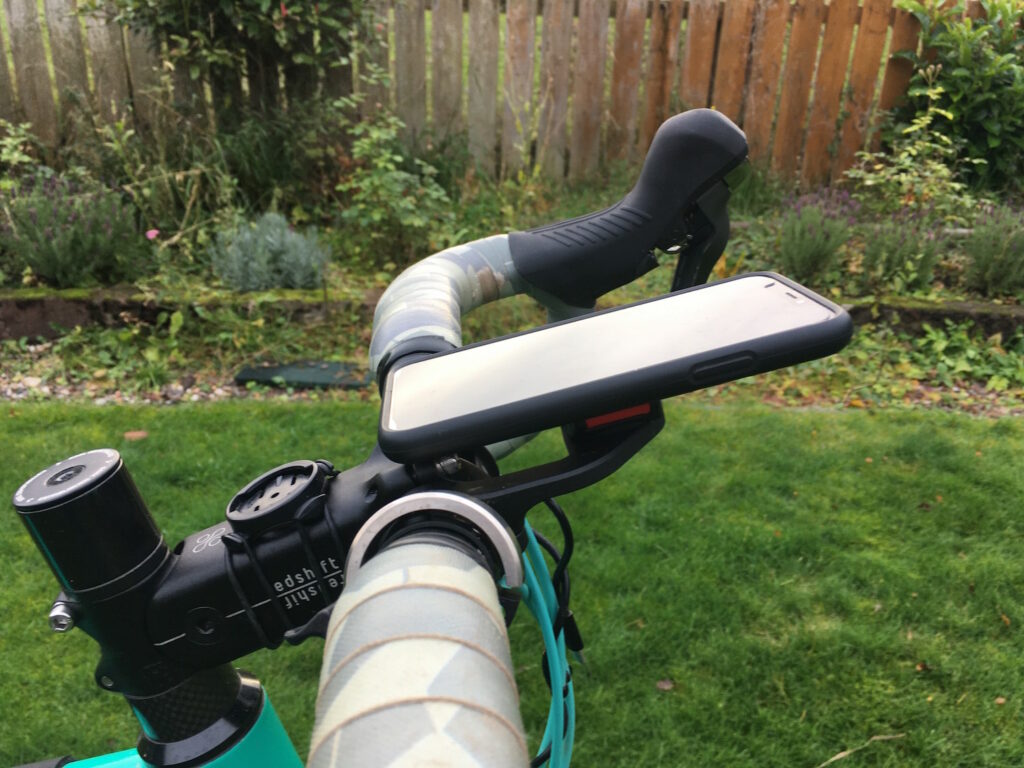

2020 Quad Lock Out Front Mount Pro fitted2.JPG

The new Pro mount maxes out on a 31.8mm bar, so if yours is a newer 35mm diameter you'll be wanting the standard Out Front mount, which was upgraded to the newer fatter size a few years back. Spacers are included for 25.4 and 22mm dimensions. Personally, I line the inside of 31.8mm clamps with electrical tape to ensure they don't scar the bar, and I wish Quad Lock would rubberise the inside of all its mounts likewise.

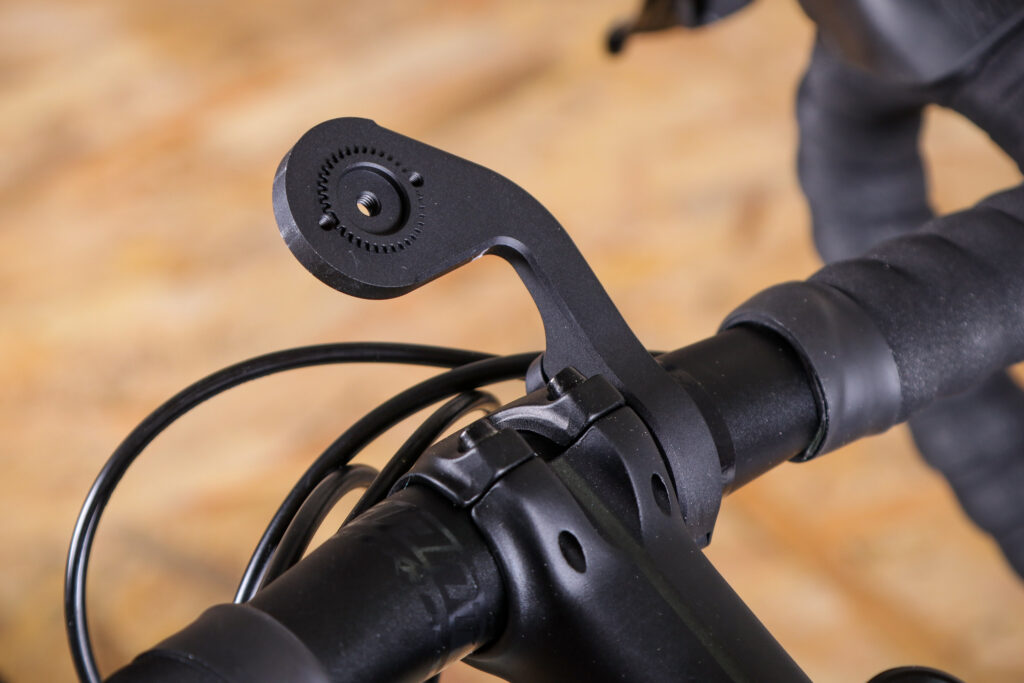

2020 Quad Lock Out Front Mount 2.jpg

The locking mechanism is the same rock-solid eighth turn-and-click as the Out Front. The Pro can also be customised with three different alternative levers in black, white and red, and takes the optional standard action-cam mount underneath.

This review is just for the mount, and you'll need a Quad Lock case or adapter to use the mount. Quad Lock does different bundles for its mounts or you can purchase each component separately. Cases are available for pretty much every popular modern smartphone, or you can buy a stick-on Universal Adapter that will go on the back of any phone or case. The Quad Lock cases are excellent; all our household’s phones live in them 24/7 for drop protection.

A cool feature of the Pro mount is that you can reverse the lever position – which you can't do with the standard mount. This means if you are predominantly left-handed, you can have the lever stick out the left side, so you can press down with your small and ring fingers while gripping the phone with thumb and first two fingers, as you can see in the on-bike photos.

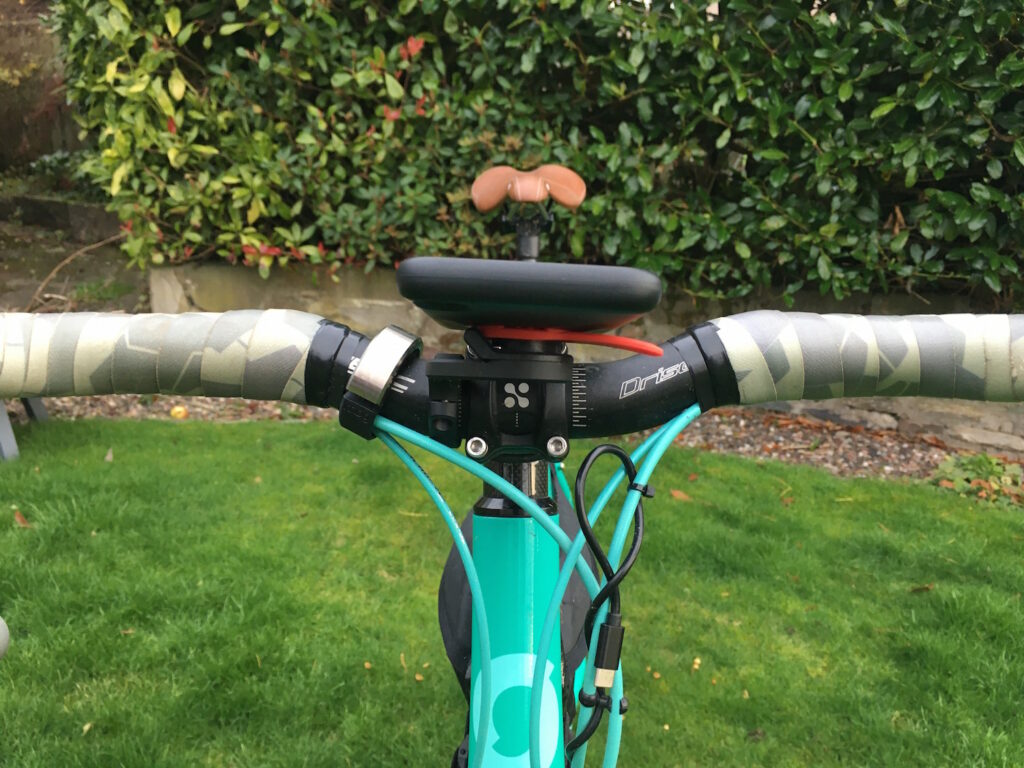

2020 Quad Lock Out Front Mount Pro fitted1.JPG

Possibly an esoteric advantage, and one Quad Lock doesn't currently promote, is that the Pro mount can be fitted with its 'Moto' wireless charging head. As of October 2020 the Moto charger is undergoing a redesign, and once available could be retrofitted to the Pro mount, meaning you can have weatherproof wireless fast charging off a dyno hub or USB-C battery pack – a real boon for long-distance, bad-weather cycling navigation. If you're reliant on phone apps such as Komoot or Viewranger for route plotting and then navigation on the go, having an alternative to a non-waterproof charging port could make all the difference in the damp middle of nowhere.

> Buyer’s Guide: 28 of the best cycling apps

Riding with it over very rough tracks for a few months, the Quad Lock system performed flawlessly. Phones released and attached to order, whether I had gloves on or not, the large locking tab making easy work of articulating the mechanism. There's a learning curve to getting the phone in the right eighth-turn position to press in, and it doesn't happen first time, every time, but it's never been an issue that warranted more than a second or two's delay reattaching.

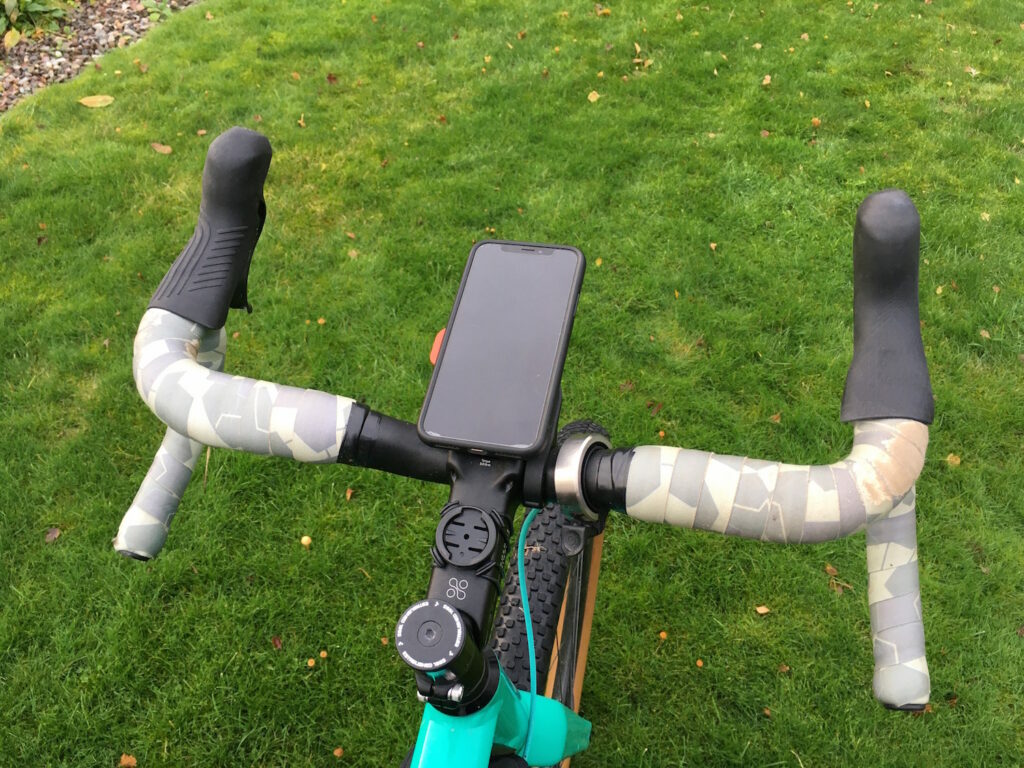

2020 Quad Lock Out Front Mount Pro fitted4.JPG

Having the phone a bit further out front was of noticeable benefit over the standard mount, but not as much a gamechanger as going from stem-mount to the original Out Front was.


At £49.95 the Pro is a full £20 more expensive for that extra 25mm out and 9mm down. You're also paying for a doubling of weight from 37g to the Pro's 79g. Mind you, if you're using it to safely and slickly support a 120g+ phone likely costing in excess of £700, then £20 and 42g extra probably isn't that much of an issue.

In the 'hold your phone out front of the bars' category there's surprisingly little competition for Quad Lock. SP Connect does a £30 version, but it's a full quarter-turn and the need to aim carefully seems higher than with Quad Lock, looking at the videos; we haven't tested it, but the reviews aren't favourable. The £34 Tigra Sport FitClic Neo does a similar job using an assembly of magnets driving a mechanical lock, but again the user reviews aren't universally flattering, shall we say.

Overall, the Out Front Mount Pro is a class bit of kit – only let down by price comparison with its closer, higher but lighter relative. If you didn't know the alternative was £20 cheaper you'd probably not quibble the £49.95 asking price, given the quality, functionality and reputation on offer. So really the question is – what's your use case? And do you need a further-out, lower mount to achieve it? If the answer is yes, then you won't be disappointed with the Pro.


Currently the best way to get a large phone out front of your handlebar

If you're thinking of buying this product using a cashback deal why not use the Top Cashback page and get some top cashback while helping to support your favourite independent cycling website test report

Make and model: Quad Lock Out Front Mount Pro

Size tested: Max bar size 31.8mm

Tell us what the product is for and who it's aimed at. What do the manufacturers say about it? How does that compare to your own feelings about it?

It's for people wanting large phones out front, low down, and secure.

Quad Lock says:


Both mounts come with our patented dual-stage lock, which allows you to ride with confidence knowing that your smartphone will stay secure on your bike, no matter the terrain.


Simply twist and lock to view apps as you ride such as Strava®, MapMyRide or Apple® maps. Detach just as easily so you don't miss a photo opportunity or important call. Remember, it's all in the technique, not the force.


Both mounts are designed for aerodynamics. The Out Front Mount PRO features a lower profile and super rigid anodised aluminium mounting arm. The standard Out Front Mount can be reversed to go over the stem of your bike's handlebars.

Add a colored lever to style your Quad Lock® Out Front Mount or Out Front Mount PRO to your bike.

Tell us some more about the technical aspects of the product?

From Quad Lock:


1 x Quad Lock® Out Front Mount PRO

2 x Spacers for 22mm and 25.4mm bars (mount suits 31.8mm bars)

1 x Hex (Allen) Key


Suits handlebar sizes 31.8mm, 25.4mm and 22mm

Black anodised CNC aluminium mounting arm

Stainless steel hardware

Compatible with Quad Lock® Action Cam Adaptor

Compatible with all Quad Lock® cases and the Universal Adaptor

Rate the product for quality of construction:

Usual high Quad Lock standards.

Rate the product for performance:

Whilst the eighth-turn can still sometimes take a few goes, overall it's rock solid.

Rate the product for durability:

I have close to a decade of Quad Lock experience and nothing has ever broken. The Pro mount feels the same.

Rate the product for weight (if applicable)

It is heavier than its sibling, but not overly so.

Rate the product for value:

£50 is a lot for a phone mount, but if your use case requires, it's worth it.

Tell us how the product performed overall when used for its designed purpose

Can't fault it, as with pretty much all Quad Lock products.

Tell us what you particularly liked about the product

The added length. It's on the tin.

Tell us what you particularly disliked about the product

The need to tape the inside to protect bars.

How does the price compare to that of similar products in the market, including ones recently tested on

As per the review, the few competitors are of questionable quality based on reviews and aren't that much cheaper.

Did you enjoy using the product? Yes

Would you consider buying the product? Yes

Would you recommend the product to a friend? Yes

Use this box to explain your overall score

Really, the only markdown here is why there's £20 extra in here over the standard mount, when assembly, shipping and all other cost will be identical. Overall, though, it's very good.

Overall rating: 8/10

About the tester

Age: 47  Height: 183cm  Weight: 77kg

I usually ride: Sonder Camino Gravelaxe  My best bike is: Nah bro that's it

I've been riding for: Over 20 years  I ride: A few times a week  I would class myself as: Expert

I regularly do the following types of riding: cyclo cross, general fitness riding, mtb, G-R-A-V-E-L

Living in the Highlands, Mike is constantly finding innovative and usually cold/wet ways to accelerate the degradation of cycling kit. At his happiest in a warm workshop holding an anodised tool of high repute, Mike's been taking bikes apart and (mostly) putting them back together for forty years. With a day job in global IT (he's not completely sure what that means either) and having run a boutique cycle service business on the side for a decade, bikes are his escape into the practical and life-changing for his customers.
