PedalCell bicycle power source



Great way to keep devices charged, while being easy to fit and swap between bikes
Oodles of power, especially at low speeds
Quick to install or remove
Long-life rubber ring
Multiple installation options
Charges two devices at once
Easy to turn on/off while riding
Will wear anodising off black rims
Not cheap but cheaper than most dyno hubs
Need to factor in import costs
Not recommended for carbon wheels and a few fork designs

At every product is thoroughly tested for as long as it takes to get a proper insight into how well it works. Our reviewers are experienced cyclists that we trust to be objective. While we strive to ensure that opinions expressed are backed up by facts, reviews are by their nature an informed opinion, not a definitive verdict. We don't intentionally try to break anything (except locks) but we do try to look for weak points in any design. The overall score is not just an average of the other scores: it reflects both a product's function and value – with value determined by how a product compares with items of similar spec, quality, and price.

What the scores mean

Good scores are more common than bad, because fortunately good products are more common than bad.

  • Exceptional
  • Excellent
  • Very Good
  • Good
  • Quite good
  • Average
  • Not so good
  • Poor
  • Bad
  • Appalling

The PedalCell is a new take on a design nearly as old as the bicycle itself – the bottle dynamo, running on the front wheel. PedalCell has used the latest supercapacitor technology and a high-output dynamo to create a charging system that beats the pants off hub dynamos in terms of power overall and especially at low speeds. Yes, it's more visually intrusive – but if you've already covered your bike in racks and bags it looks fine.

PedalCell launched in late 2020 after a five-year development process. At least one of the team is a literal rocket scientist, having worked on the SpaceX project, and the amount of electrical geekery that's gone into the PedalCell is huge for what is at its simplest a spinning magnet inside some wire loops.

> Buy this online here

You buy the PedalCell from its US website for $320 including shipping. This means you're looking at around the £280 mark with VAT and duty applied. As import duty can be a grab-bag of which code the border force decide to apply, don't take this price as gospel.

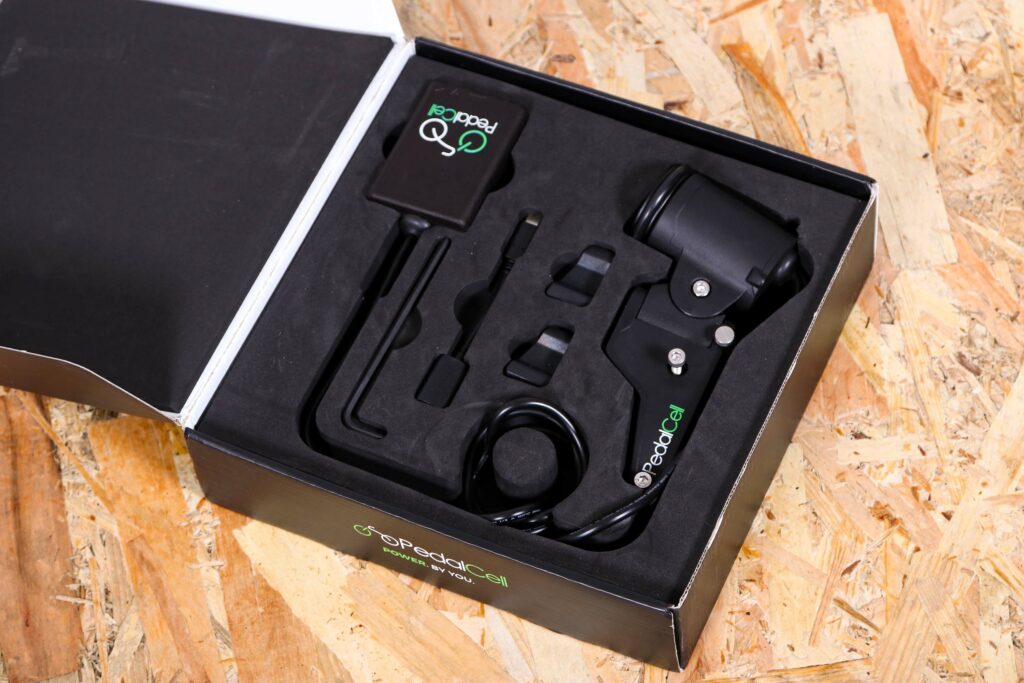

2021 PedalCell CadenceX Dynamo - boxed 2.jpg

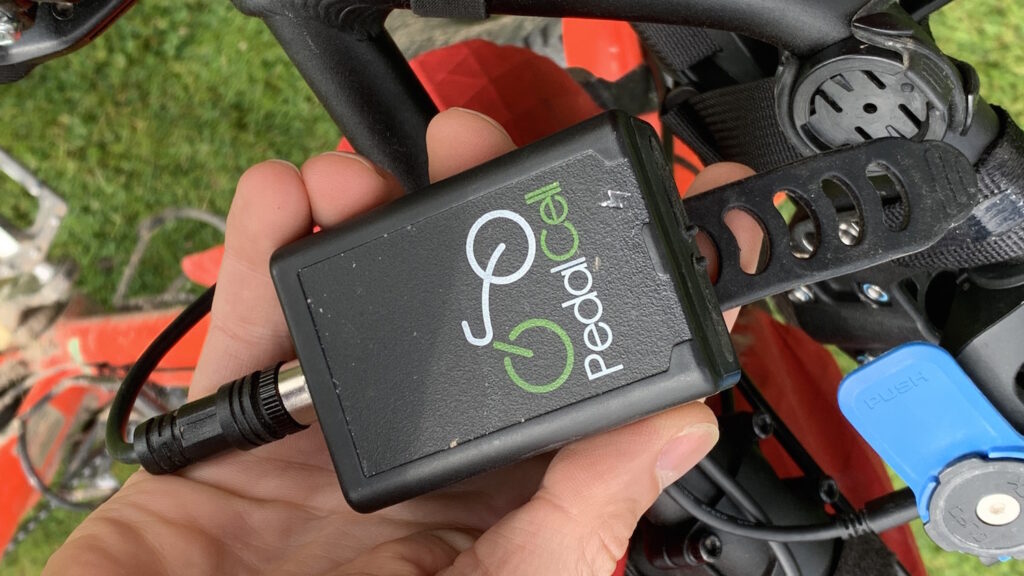

The PedalCell comes in two parts: the dynamo which clamps to your fork or frame, left or right side, front or back, which then attaches to the charging box with an 80cm cable. That cable length is as measured from where the cable emerges from the clamp and starts its journey to the box. There's plenty of slack for fork-mounted installations, but if you have a large frame then it might not stretch all the way to the handlebar.

Of course there's nothing saying the box has to mount on the bars – there's enough stretch in the rubber ladder strap to fit on a 35mm frame tube too. You could also pass the cable through the port in a framebag, thereby waterproofing your solution while cleaning up the look.

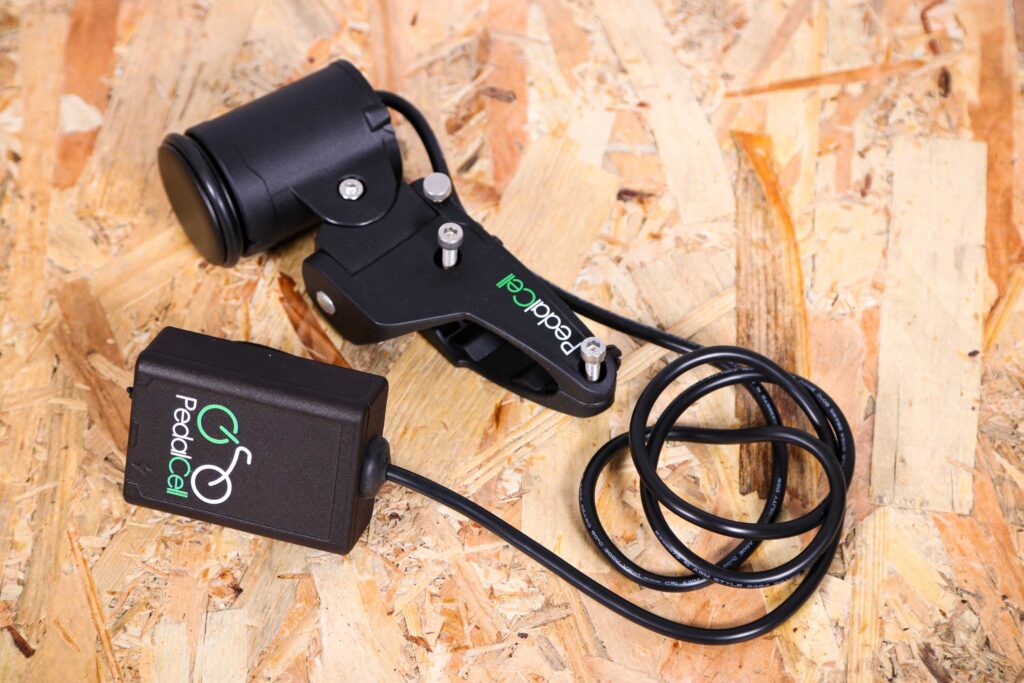

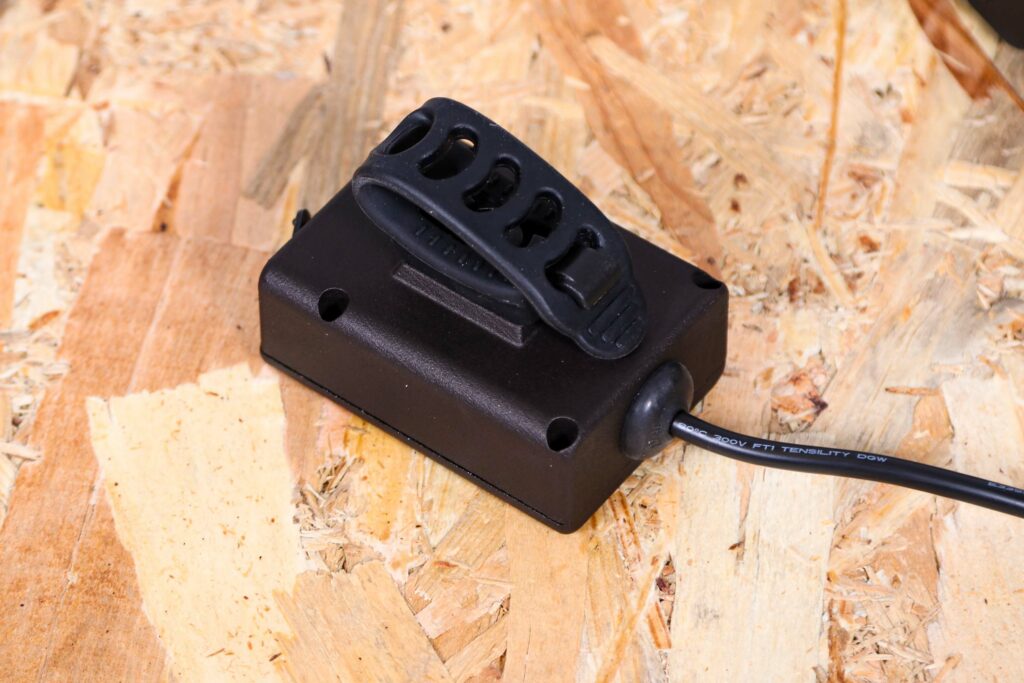

2021 PedalCell CadenceX Dynamo 2.jpg

This would be a sensible plan for bikepackers using the PedalCell to charge up battery banks – particularly ones then able to pass charge through to devices while being topped up themselves.

A few caveats: PedalCell doesn't recommend it for use on carbon wheels, and it won't work on Lauf or Cannondale Lefty forks where the wheel moves in relation to the upper part of the fork. PedalCell says that you can mount it on the chainstays in those cases.

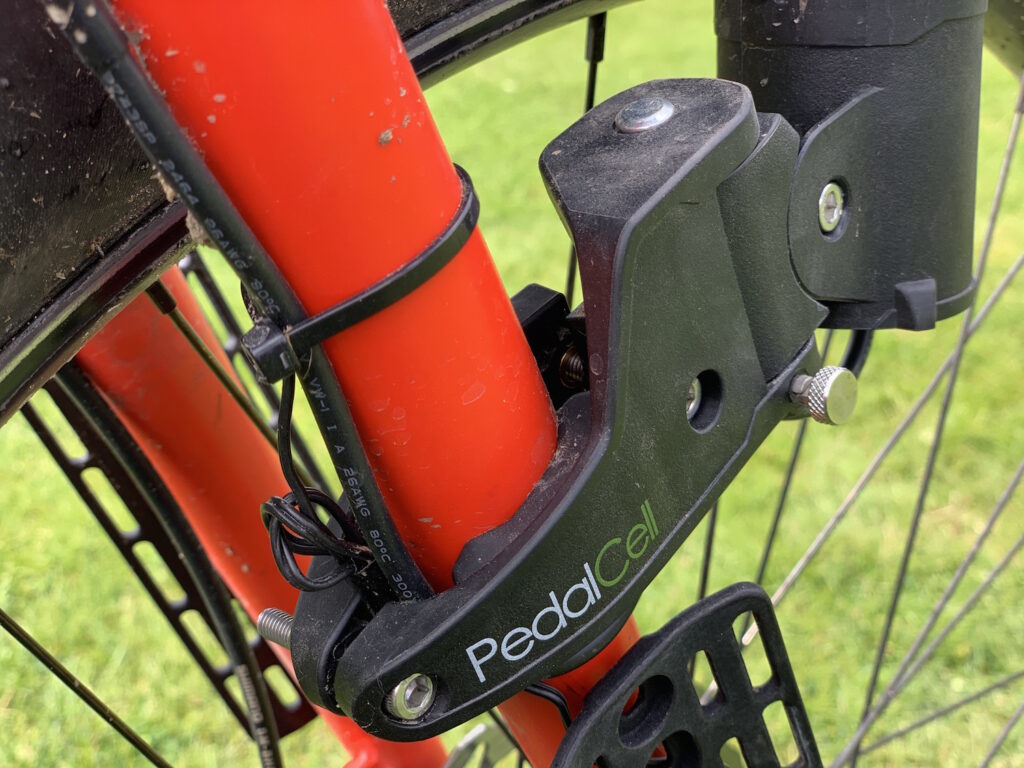

2021 PedalCell mounted 2.jpg

The charger itself measures 75 x 30 x 55mm, with the aforementioned rotating-mount rubber ladder strap on the back, the 6-pin connector at one end and the two USB-C charging ports at the other.

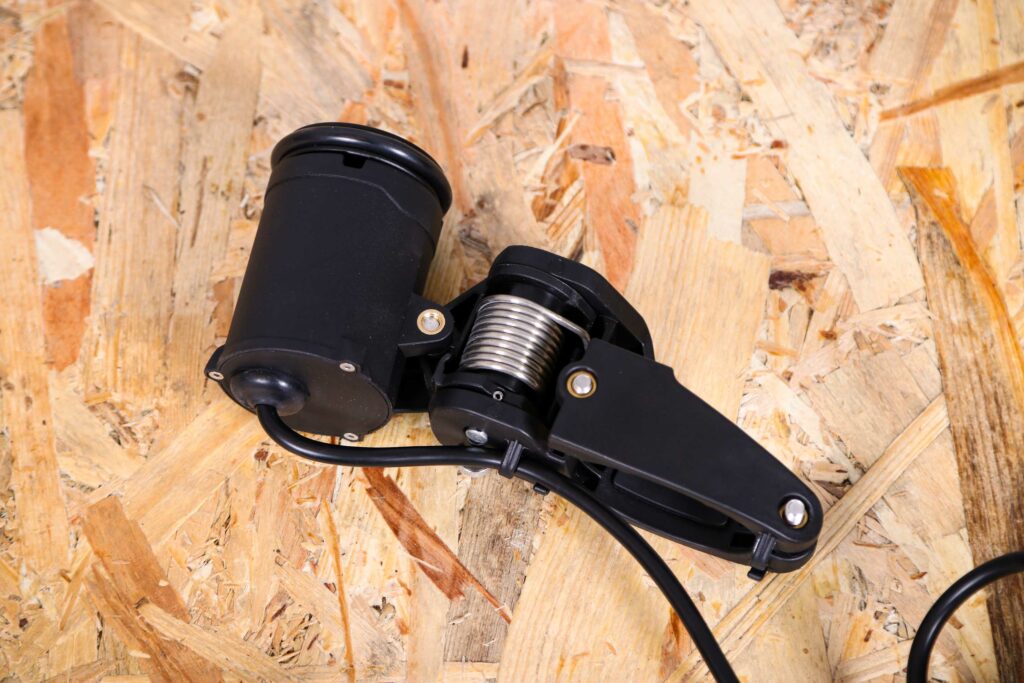

2021 PedalCell CadenceX Dynamo 3.jpg

The USB ports aren't waterproof per se, I'd say rain-proof to an extent. Let's face it, few USB ports are waterproof, and if you're after a solution that will survive torrential rain you need to be looking at mounting everything in a frame bag, and/or going for wireless charging as offered by the likes of the SKS Compit+ system.

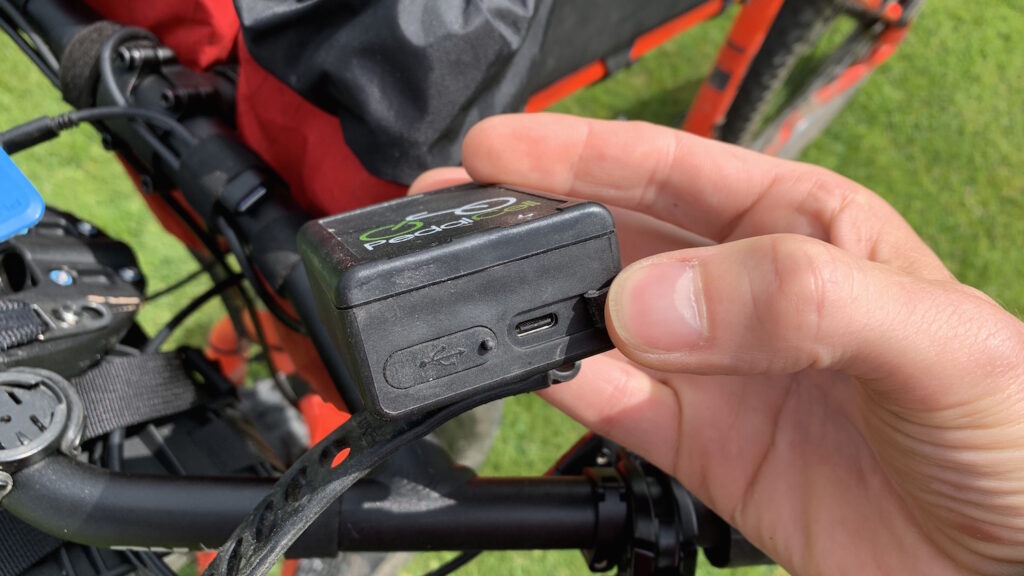

2021 PedalCell mounted usb.jpg


Installing the PedalCell is a few minutes' work with the provided 4mm Allen key. PedalCell offers a tamper-resistant set of bolts and a special Allen key for $20. One theft-proofing option is to just remove the charger box, which might discourage people who know it's needed.

It's really important to align the dynamo so the rubber ring sits perpendicular to the rim surface when engaged. It has a bolt to change the dynamo angle to fine-tune this.

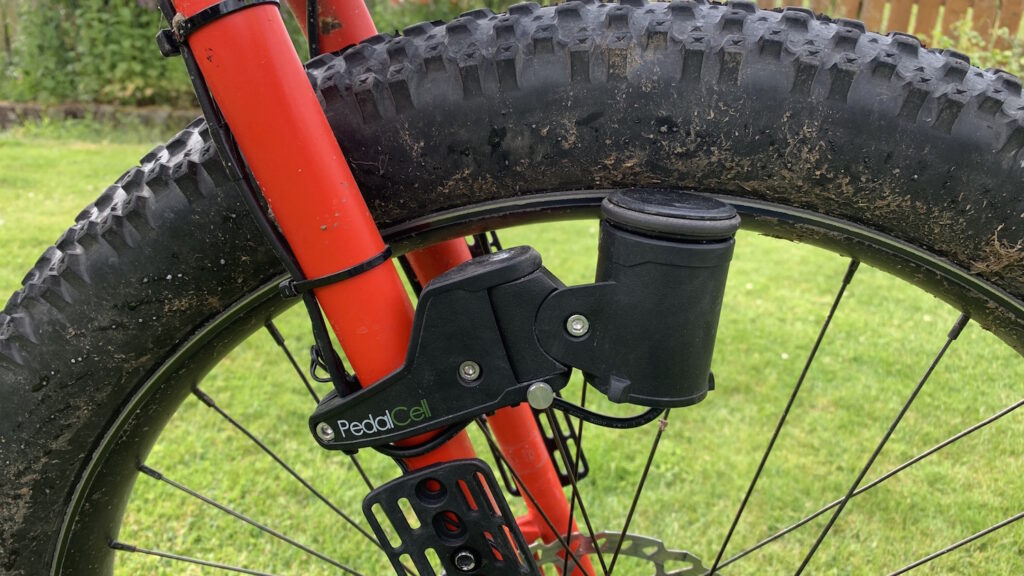

2021 PedalCell mounted.jpg

The dynamo is held against the rim by a strong spring, with a locking mechanism to hold it out from the rim when not in use or changing wheels. This can be operated while riding with practice and care. PedalCell advises the top speed of the unit is 40mph; I wouldn't recommend trying to disengage the dynamo at that speed. This ability to totally disengage the dynamo is a bonus over hub models.

The dynamo needs about 5mm of rim to contact, which should be fine even for low-profile disc brake-only rims. It will wear black anodising off rims, leaving a silver strip of about 3.5mm, which against a tyre is hard to notice but worth being aware of.

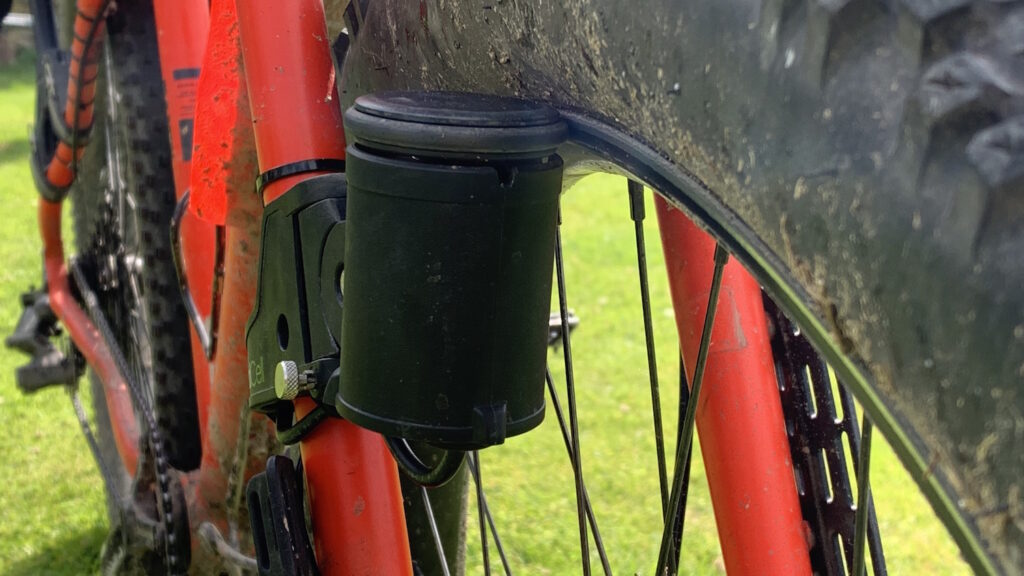

2021 PedalCell mounted 1.jpg

PedalCell claims O-ring life of around 2,000-3,000 miles, and provides two replacement rings with your purchase. A pair costs $10 plus shipping, so hardly an expensive maintenance regime.

An obvious concern with a physical rubber-on-metal interface exposed to mud, rocks and general road filth will be wear, but over a few hundred miles of bikepacking on gravel roads and muddy tracks the PedalCell O-ring performed flawlessly and still looks in good shape. Overall, the installation and physical robustness of the PedalCell can't be faulted.


One of the USB ports is a constant-output 'priority' limited to 600mA (3 watts), the other is the 'high power' port that can do 2.4A (12 watts), but needs the supercapacitors to charge up first. Somewhat annoyingly, this port is identified by a tiny black-on-black icon of a lightning bolt – which is near-impossible to see in sunlight or rain. I rubbed mine with a white crayon to make it stand out. The 3W/600mA priority port stays on for 30 seconds once the bike stops, if the capacitors are full – so if you're using that port to power a USB light you should be good.

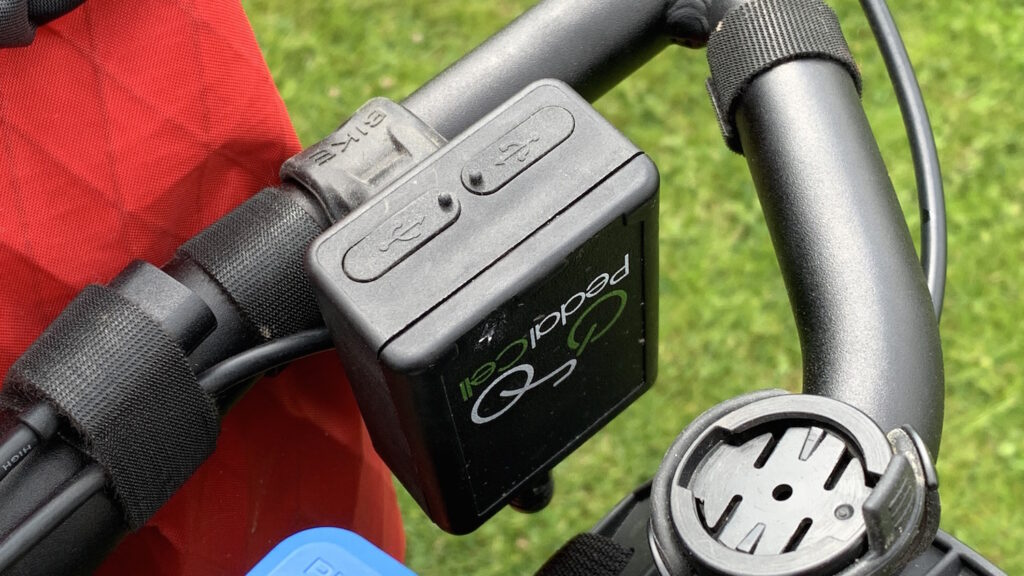

2021 PedalCell mounted box on bar.jpg

Inside the box is a computer that controls which ports get how much power, depending on your speed, what's plugged in where, how charged the supercapacitors are and so on. The supercapacitors are rated for between half and one million charge cycles, and operate over a wide temperature range. So basically, plug your stuff in and ride. Let the box charge everything as best it knows how.

I went for a 5,000mAh battery pack that could pass the charge through to my iPhone, thereby ensuring both my phone and the battery pack were always charged. On multi-day rides I'd plug my Garmin 830 and InReach GPS communicator into the 3W port, as they took next to no time to charge back up.

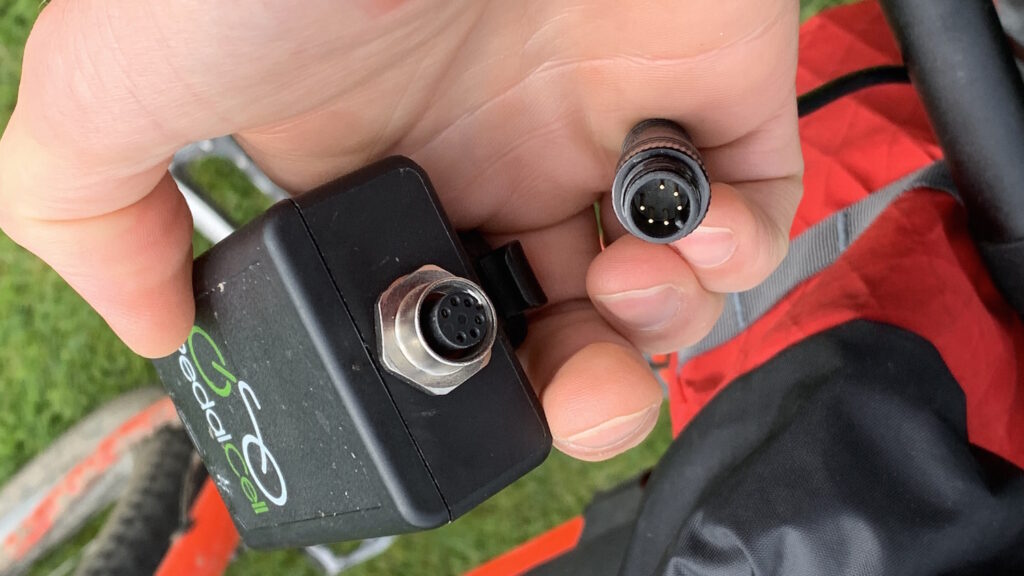

2021 PedalCell mounted 8.jpg

This is where the PedalCell rubber hits the road – just how much juice can you get from it for a given speed, compared to a dynamo hub? The answer is 'lots' – way more than a dyno hub setup and, critically, at much lower speeds.

Now PedalCell has been in the wild for a while there are several independent test results, including this one from the German FahrradZukunft team. Their results show the PedalCell beating out the other dynamo-USB converters, which were all powered by a SON28 hub dynamo on a test rig.

The SON28 is £200 by itself; you then need to build it into a wheel, and then buy the appropriate USB converter (dozens out there, anywhere from £30 to £237) to make it useful for charging things. Oh, and they do a max of between 0.8 and 1.5A at best, and you usually can't run lights and charge USB at the same time.

Of course, if you're using the dynamo hub just for lights that's a different story as you don't need the USB device – fill yer boots. But these days most people are also looking for phone, navigation and other charging options.

PedalCell has published a handy Google Spreadsheet detailing expected charge rates for given wheel sizes and speeds.

So the dyno hub + USB converter route is both considerably more expensive and less powerful than the PedalCell – but is undeniably tidier. If a dyno hub fails, you're looking at a wheel rebuild – which, depending on how handy you are (or not), could set you back more money and time.

There's no right or wrong way to do on-bike power, just what's the best balance of cost, looks, power and maintenance for your use case.

In use

Out in the Highlands on my bikepacking rig, the PedalCell gave me good results as reflected in the various online lab test articles. A 35km ride with 500m of climbing at an average of 17.5kph over two hours gave an output of 1,300mAh into a battery – meaning a usable 885mAh output available later thanks to the loss in the charge-discharge process. For comparison, that's about a third the capacity of a newish iPhone – so six hours riding would give you a full charge. Or run a Garmin for about a week, my 830 taking just 350mAh to go from flat to full.

The PedalCell is pretty quiet when engaged – you can hear a low hum, but if you're riding over gravel or chip seal it pretty much vanishes into general road noise, especially over about 25kph with the wind in your ears. Certainly it's much quieter than I remember the milkbottle-shaped metal-on-tyre dynamos of my childhood.

On an overnight trip of 140km, the PedalCell gave me more than enough juice to keep my iPhone, Garmin and GPS tracker running with screens on constantly, with loads in the battery bank for recharging overnight.

> How to go bikepacking: A beginner’s guide to getting started

If you were desperate to charge your phone as quickly as possible it will always be better to plug directly into the PedalCell, thereby omitting the 20-30% loss converting from 5V down to the battery bank's internal 3.7V, then back up to 5V. It's this inefficient conversion process – in or out – that makes battery banks hot to touch while charging or discharging. That heat is lost power.

Another factor that can make a considerable difference to the results you see from any charging solution is the number, type and length of USB cables and adapters you use. Adding in one or two right-angle adapters – while making things tidier – can decrease the efficiency by decent amounts. So always use the shortest leads with the fewest connection points.

Current available from the high-power port does depend on speed and the time the PedalCell has been running. The charger is constantly negotiating the best USB charge current with devices like phones, and each phone and battery bank manufacturer seems to do this differently. Fundamentally, you just need to know that the PedalCell manages charging for you at the most efficient rate, and that that rate is roughly two to three times higher than what you'd get from a dynamo hub at the same speed. If you care, the amount of drag for a given power output is about half that of a dynamo hub too.


Overall, the PedalCell is a great bit of kit. The design is robust, looks good paired with racks and bags, and critically delivers a lot of power at lower speeds more associated with long-distance riding. Price-wise per watt delivered, it beats out any dynamo hub/USB charger combination, without the special skills or tools that building charging into a wheel requires. It comes with a two-year warranty too.

If you need to power devices on long rides and don't mind the look, it's hard to go past the PedalCell.


Great way to keep devices charged, while being easy to fit and swap between bikes test report

Make and model: PedalCell bicycle power source

Size tested: 15-20W

Tell us what the product is for and who it's aimed at. What do the manufacturers say about it? How does that compare to your own feelings about it?

It's for people wanting to charge battery banks or devices on long rides, without going to the extent of a full custom dynamo hub setup.

PedalCell says:

Take charge of your ride. Power essential USB devices that keep you safe and connected without stopping to recharge.

Compatible with nearly all bicycles. Install on your bike in minutes.


Housed in an aluminum and fiberglass nylon casing with 11 anti-moisture seals that withstand mud, rain, snow, and other extreme elements. Works in hotter and colder temperatures than any battery.


USB devices expect a reliable energy source. We implement patented technology that provides 3X more power than most bike dynamo generators, safe to use no matter your ride speed.


PedalCell mounts on nearly any bicycle in minutes, meaning it can be installed or moved between bikes as-needed.


Well-designed mechanics + electronics provide the lowest drag-per-watt in the industry that dynamically adjusts based on ride speed and device charging needs.

Tell us some more about the technical aspects of the product?

From PedalCell:

Generator 15-20 watt output, can be decoupled when not in-use.

Smart Power Hub*

* Patented CadenceX Technology

* 1X prioritized safety USB-C (600mA, 5V)

* 1X high-powered device USB-C (2.4A, 5V)

Drag Adaptive Based on Speed and Device Power Needs

Weight 1 lb (490g)**

Enclosure Weather-resistant 30% Fiberglass Nylon and Aluminum

Consumables Rubber O-Ring Replacement every 3K miles

Top Speed Decouple above 40 MPH

Compatibility Fits most bicycles with a circular or oval fork design. Can be mounted on the rear seat/chainstay of select bicycles***

*Actual power varies depending on speed, mount location, and device used.

**540g with strap and cable

***Not recommended on Carbon rims and Inverted Fork Suspensions. View install page for info.

Rate the product for quality of construction:

Solid, quality construction.

Rate the product for performance:

Just ride, and see the juice flow. It works.

Rate the product for durability:

The O-ring has lasted just fine, no reason to suspect it will fail soon.

Rate the product for weight (if applicable)

520g isn't that light, but it's OK considering it will almost certainly be going on a loaded bike.

Rate the product for value:

Compared to the alternative hub setups, the price is very good.

Tell us how the product performed overall when used for its designed purpose

Pretty well. You need to get over expecting to see a constant charge rate, unless you're riding very consistently.

Tell us what you particularly liked about the product

Charging current. Lots of it.

Tell us what you particularly disliked about the product

Nothing particularly.

How does the price compare to that of similar products in the market, including ones recently tested on

Very competitive. No dyno hub solution comes close for cost vs power output.

Did you enjoy using the product? Yes

Would you consider buying the product? Yes

Would you recommend the product to a friend? Yes

Use this box to explain your overall score

Price-wise the PedalCell clearly wins over hubs and USB converter setups. I wish the charger had more mounting options, and a UK distributor would be a bonus. It certainly looks chunky, but function wins over form for long rides.

Overall rating: 8/10

About the tester

Age: 47  Height: 183cm  Weight: 77kg

I usually ride: Sonder Camino Gravelaxe  My best bike is: Nah bro that's it

I've been riding for: Over 20 years  I ride: A few times a week  I would class myself as: Expert

I regularly do the following types of riding: cyclo cross, general fitness riding, mtb, G-R-A-V-E-L

Living in the Highlands, Mike is constantly finding innovative and usually cold/wet ways to accelerate the degradation of cycling kit. At his happiest in a warm workshop holding an anodised tool of high repute, Mike's been taking bikes apart and (mostly) putting them back together for forty years. With a day job in global IT (he's not completely sure what that means either) and having run a boutique cycle service business on the side for a decade, bikes are his escape into the practical and life-changing for his customers.
