Charge Filter Hi (2013)



Well built, well specced four season commuter and light tourer but on the heavy side

At every product is thoroughly tested for as long as it takes to get a proper insight into how well it works. Our reviewers are experienced cyclists that we trust to be objective. While we strive to ensure that opinions expressed are backed up by facts, reviews are by their nature an informed opinion, not a definitive verdict. We don't intentionally try to break anything (except locks) but we do try to look for weak points in any design. The overall score is not just an average of the other scores: it reflects both a product's function and value – with value determined by how a product compares with items of similar spec, quality, and price.

What the scores mean

Good scores are more common than bad, because fortunately good products are more common than bad.

  • Exceptional
  • Excellent
  • Very Good
  • Good
  • Quite good
  • Average
  • Not so good
  • Poor
  • Bad
  • Appalling

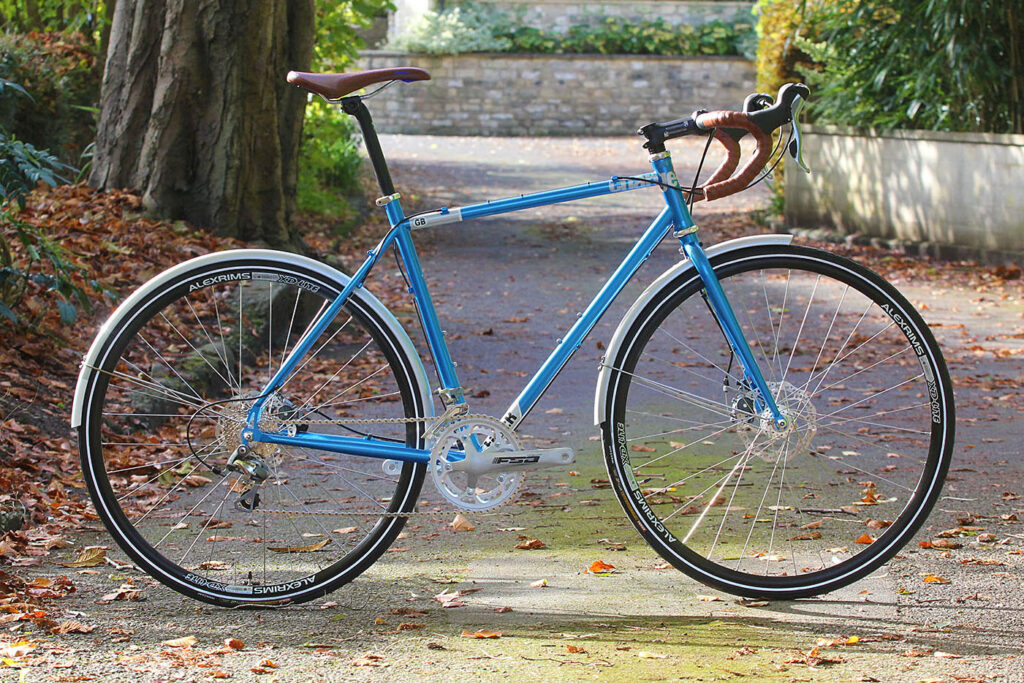

In a similar vein to the Genesis Croix de Fer recently tested, Charge's Filter Hi is a do it all commuter, light tourer and part time crosser. Drop bars, discs, huge tyre clearances, mounts for mudguards and rack all tip a nod to the mile muncher who's happy to keep the pedals spinning whatever the weather.

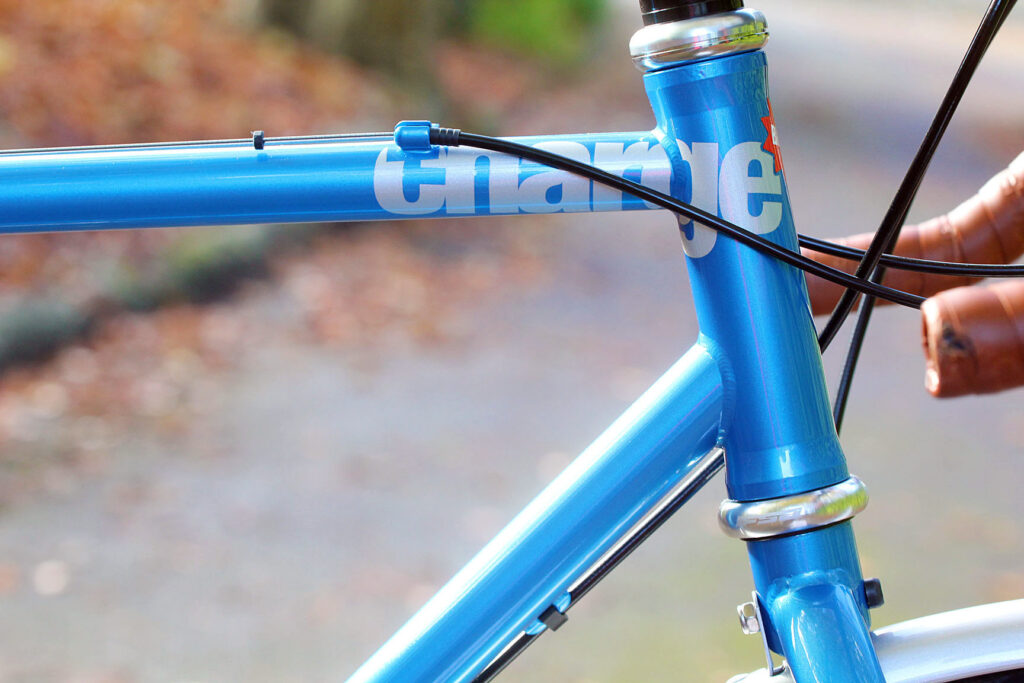

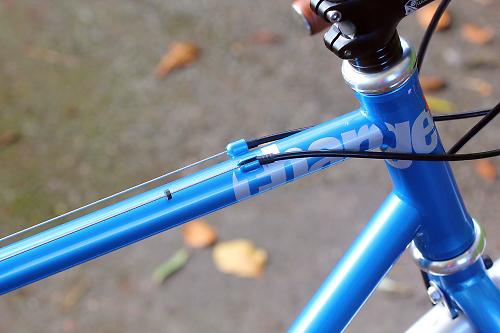

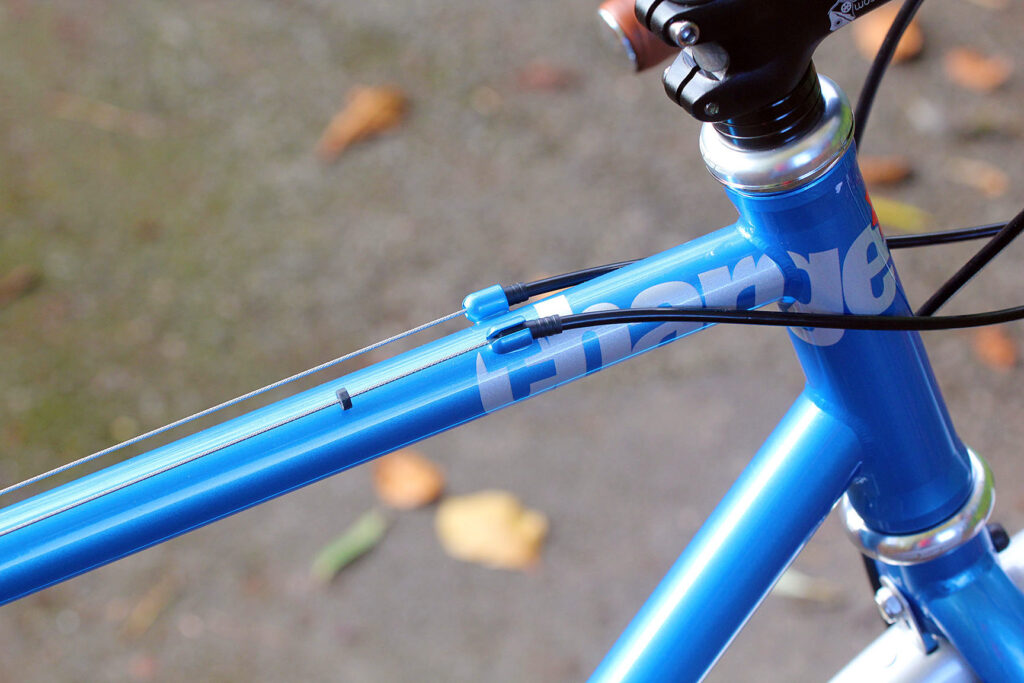

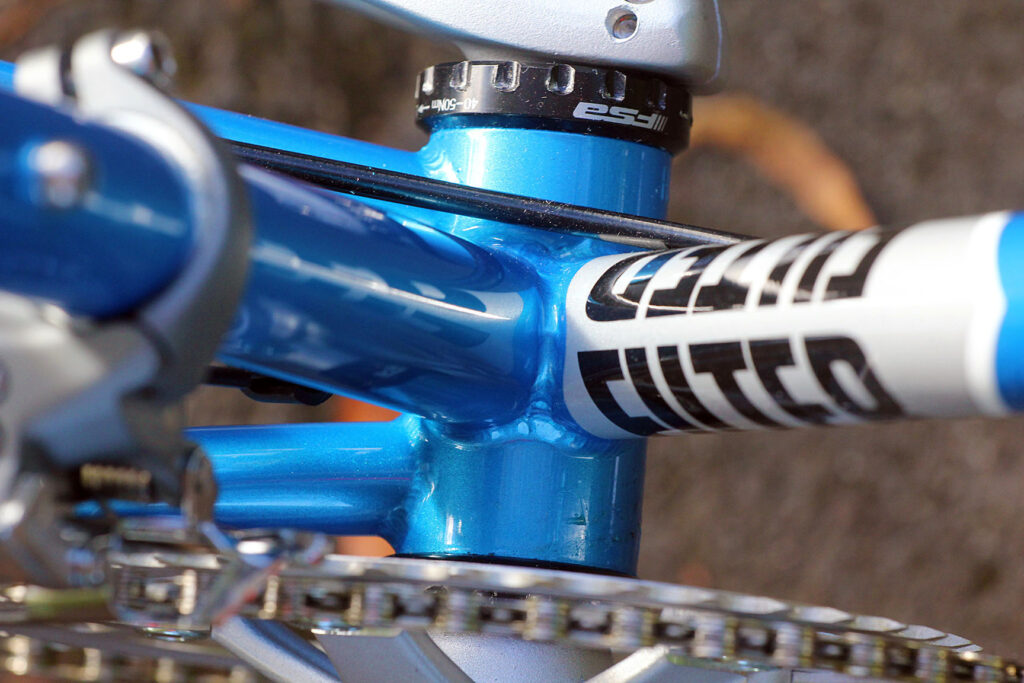

While it never really went away steel is back en vogue and Charge is certainly running with it. Every one of their road models is made from it with the Filter Hi specifically using Tange Infinity tubing, a seamless, double butted cromo. Steel is always renowned for the way it rides and the Filter Hi's Tange frame is no different. It's a supple feeling, almost elastic while still feeling stiff enough for purpose meaning you can spend hours in the saddle without taking a battering.

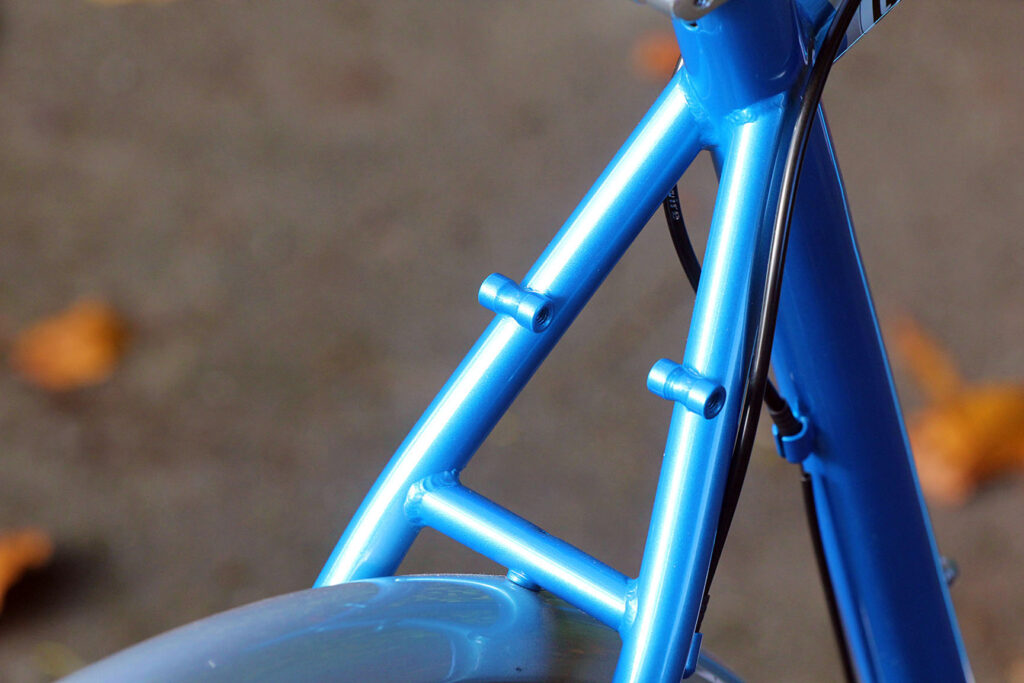

As mentioned above there is a full complement of mounts for guards and rack while the mount for the rear disc calliper is on the seatstay to provide clearance if you do fancy a bit of load carrying. The fork is a Tange steel cyclocross version even though with its thin straight legs it's hard to believe it'll resist all the forces under hard braking from the disc.

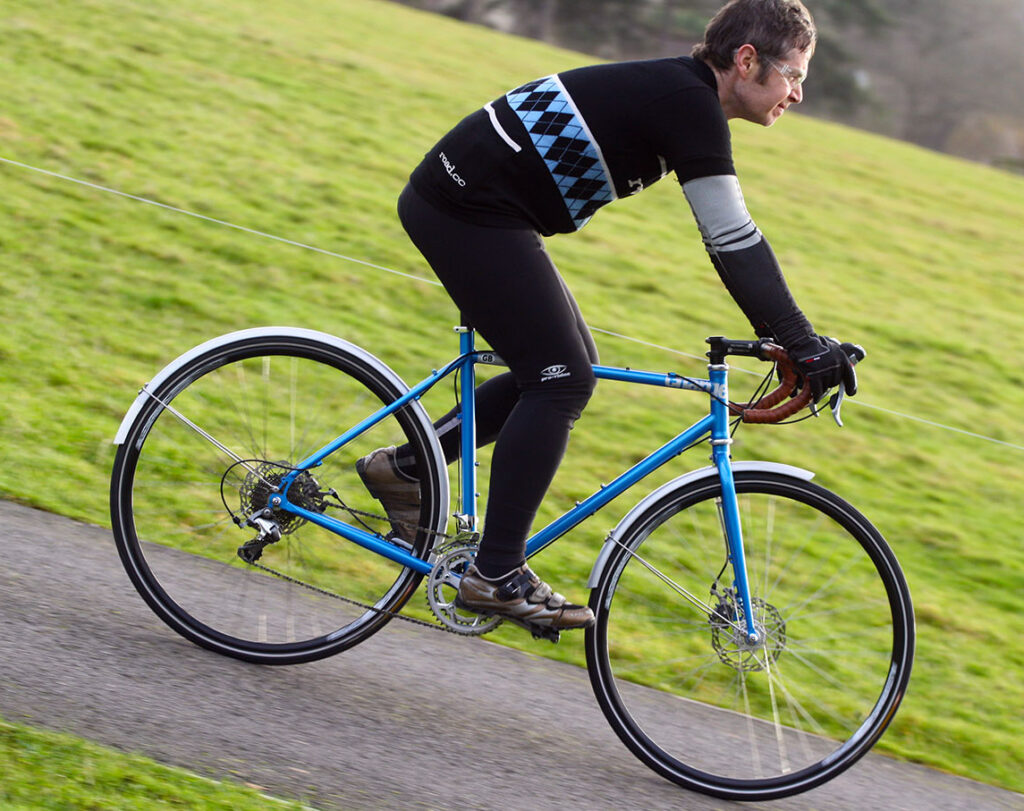

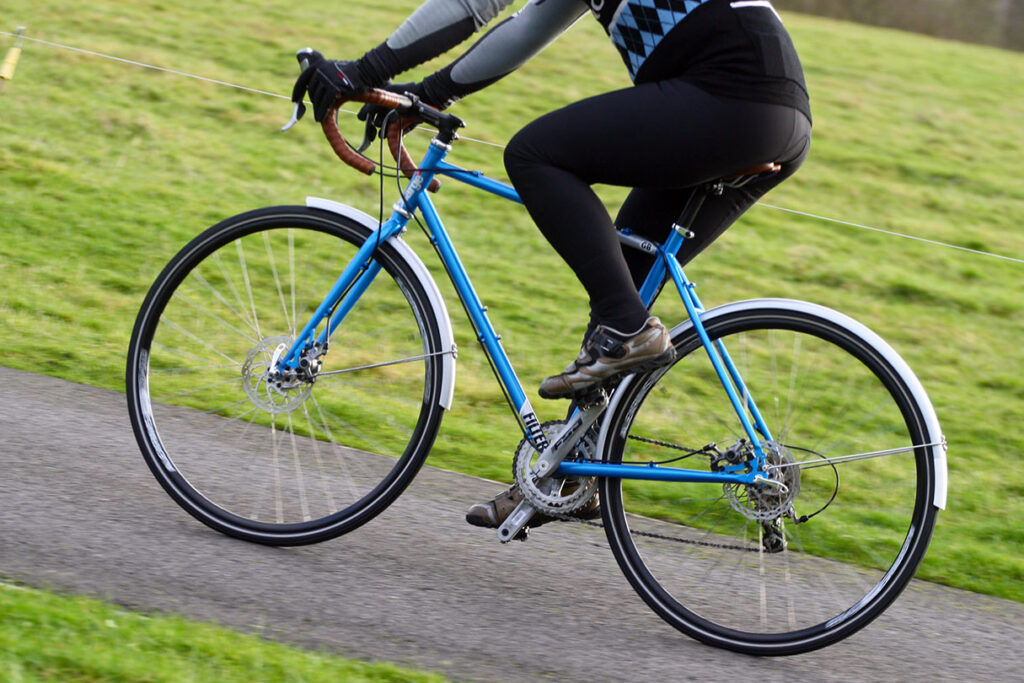

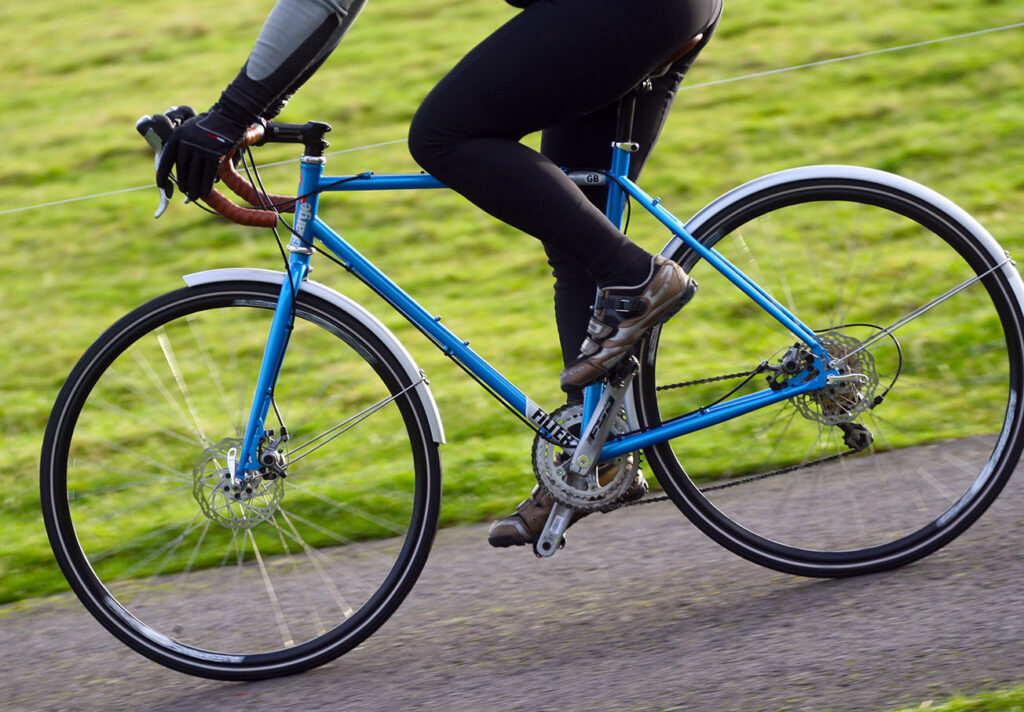

The geometry is pretty relaxed at 71.5° for the headtube and 73° for the seat (54cm/medium) and this leads to a very stable predictable ride. Even on descents the Charge turns in with little fuss and holds a line very well regardless of speed, I had it up nudging 45mph at one point and apart from a bit of under steer from the tyre everything was pretty drama free.

The Charge comes in just a penny shy of the usual thousand pound bike to work scheme limit and for your cash you get a decent amount of kit. Tiagra groupset with an FSA Omega chainset, Pro-Max DSK-715 cable operated discs, Alex XD Lite rims and Kenda Kwick Tracx 28mm tyres. The finishing kit is all Charge logoed stuff, alloy oversized bars and stem, alloy seatpost and their highly regarded Spoon saddle. There are only 4 sizes in the range XS-L with top tube lengths of 51-56cm.

The majority of the test miles were done commuting in all sorts of conditions. Flood water up to the bottom bracket, high winds, snow, no matter what, we've got through – with varying levels of success I might add. The gear cables are run along the top of the top tube, ideal if you fancy a go at a bit of cyclocross as it makes the bike easier to shoulder but it also keeps everything out of the road spray and mud.

One component that has stood out through all of this is the disc brakes. Whatever your view on a drop bar/disc combo the amount of modulation and performance in crappy weather makes them the perfect choice for this style of bike. Being able to control your speed downhill in two inches of snow unlike the cars in front of me, even when you're on slick tyres was the highlight of my January. The Pro-Max callipers use the same pads as SRAM's BB5 so a ready stock of replacements should be easy to find whether at your LBS or online. The rotors are 160mm front and rear and as I've mentioned modulation is very good as is the overall performance wet or dry, you can pull up very quickly with very little chance of a lock up. The rear cable runs below the down tube but is fully enclosed from the lever to calliper while the front runs down the fork leg. Small braze ons the length of the cables keep things tidy.

This sets the theme with regards to the rest of the kit, it's all functional with a proven background and is there to be reliable rather than flash. The Alex XD wheels took an absolute pounding crashing through invisible water filled potholes in the dark with a bit of rough canal path chucked in for good measure and not a single complaint. This is all with the Kenda tyres pumped up to their max 85psi pressure. Kenda's Kwik Tracx tyres seem to offer very little in the way of rolling resistance and corner way better than I thought they would. They're still in great nick as well even after 1000 miles of back lanes and canal path showing no signs of cuts or a single puncture. The reflective sidewall is a nice touch for night riding as well.

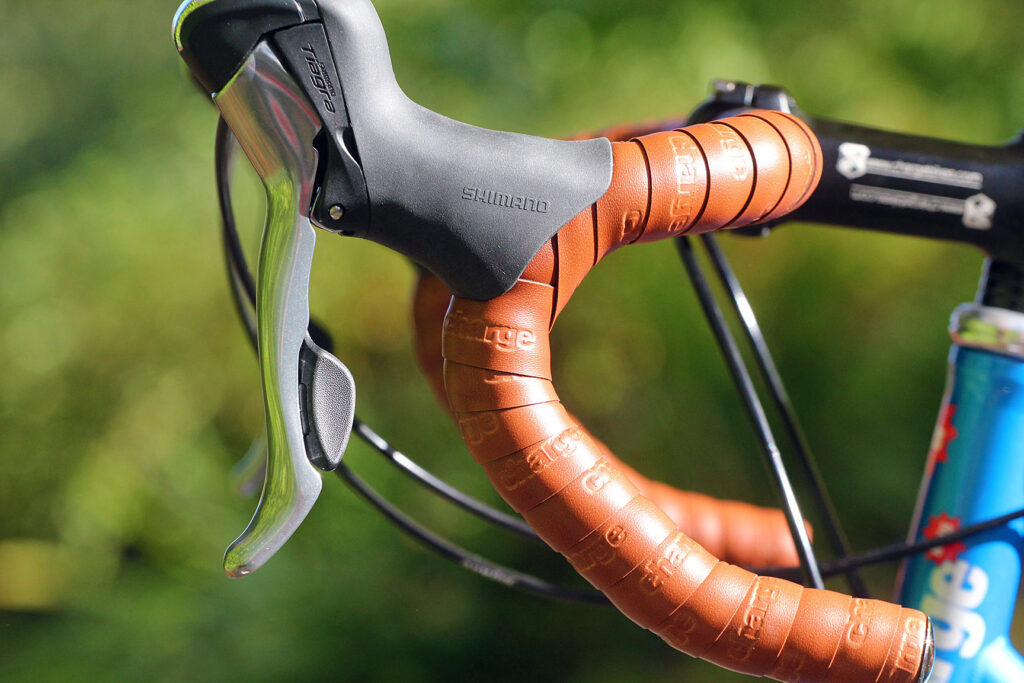

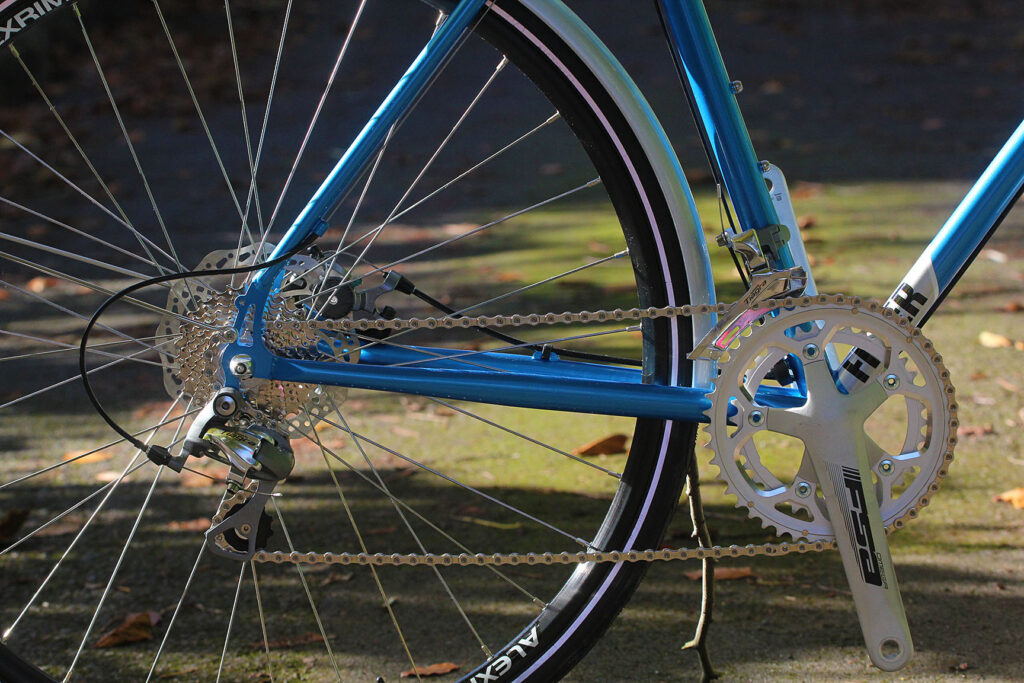

Shimano's 10 speed Tiagra provides a decent level of shifting for the cost. As I've mentioned on other bike reviews the shifting can be a little vague and the gear indicator is pretty pointless but it doesn't mind getting covered in road crap and continues to work pretty well when it does. Experience shows it lasts well too especially as a winter groupset. An Omega compact deals with shifting at the front and as with all of FSA's cranksets it's a decent performer and matches the Charge with its silver finish. Rather than the usual 50-34 combination this uses a 46-36 paired with an 11-28 cassette at the rear, the gearing may sound low but I didn't once wish I had a 50 on the front. Due to the 25.8lb/11.7kg weight of the bike, speed is scrubbed off as soon as you hit the slightest incline, and having the 46 on the front means you can just flick up and down the cassette for small increments rather than the huge 16 tooth jump provided by a 50/34. You will run out of gearing at about 30mph but it's a sacrifice I'm happy to make especially if you're load carrying.

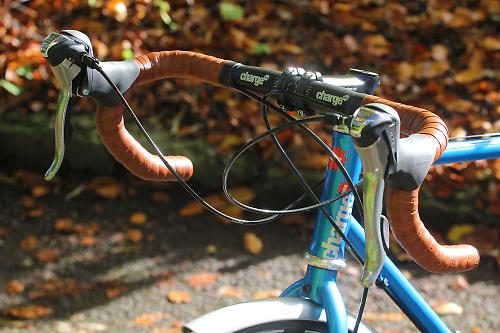

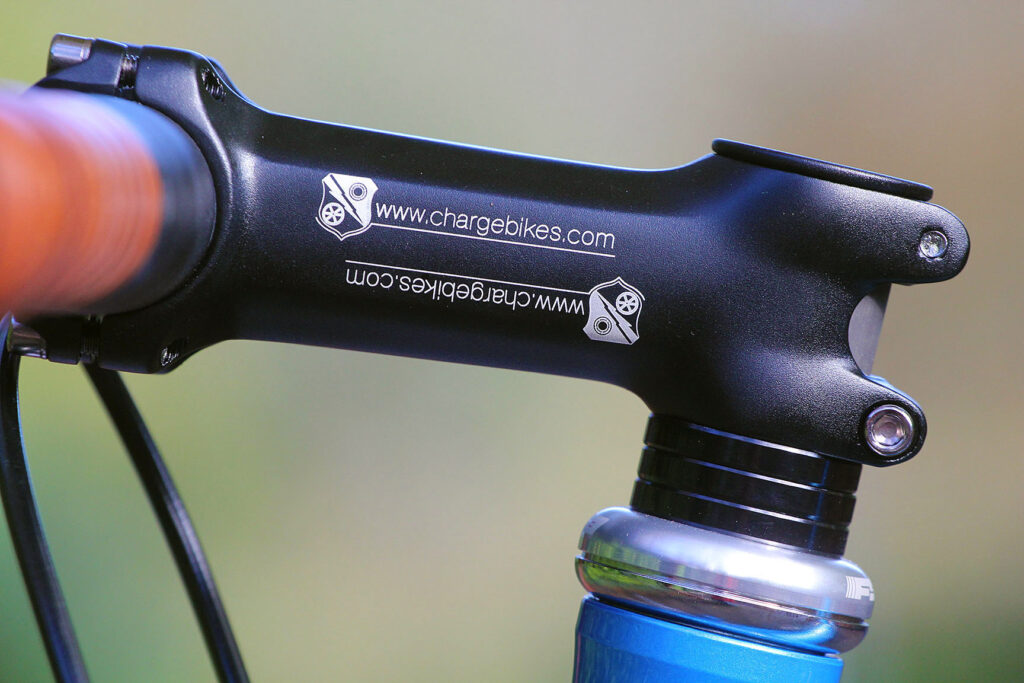

Finishing things off are the Charge components of which the handlebars, stem and seatpost are a weight reducing exercise replacing the 2012 model's FSA items. The anatomic bars are very comfortable providing plenty of hand positions and I found myself using the drops quite a bit. The Spoon saddle is a favourite of mine, I run one on my own commuting bike and even though it's covered around 7000 miles so far it's still looking good. The brown version found here on the Filter ties in nicely with the leather look bar tape. It's not the most padded or comfortable but should wear well. The mudguards are custom for the Filter and although not entirely full length like SKS' Chromoplastics they do keep a surprising amount of road spray off of your feet. Once fitted and adjusted they remain in place and are largely rattle free, tolerances are tight width wise with the 28mm tyres but there is plenty of clearance above which should mean things shouldn't get trapped between guard and tyre.

Overall the Filter Hi is a nice ride, the frame is comfortable and certainly stiff enough for what it's designed for. As a commuter it ticks all the right boxes with regards to guards and rack fittings plus the ability to change to larger knobbly tyres to take on snow or towpaths making it a real four season bike. It is heavy though and while it rolls well on the flat even slight changes in terrain will see you scrabbling around through the gears trying to keep the pace up plus if you have a stop start commute the constant acceleration from a stand still takes its toll. It handles well though with predictable steering and an overall relaxed feel to it, so as long as you're not in a hurry to get to your destination it'll be an enjoyable trip.


Well built, well specced four season commuter and light tourer but on the heavy side. test report

Make and model: Charge Filter Hi (2013)

Size tested: 55cm

About the bike

State the frame and fork material and method of construction. List the components used to build up the bike.

Frame: Tange Infinty Double Butted Cromo Steel

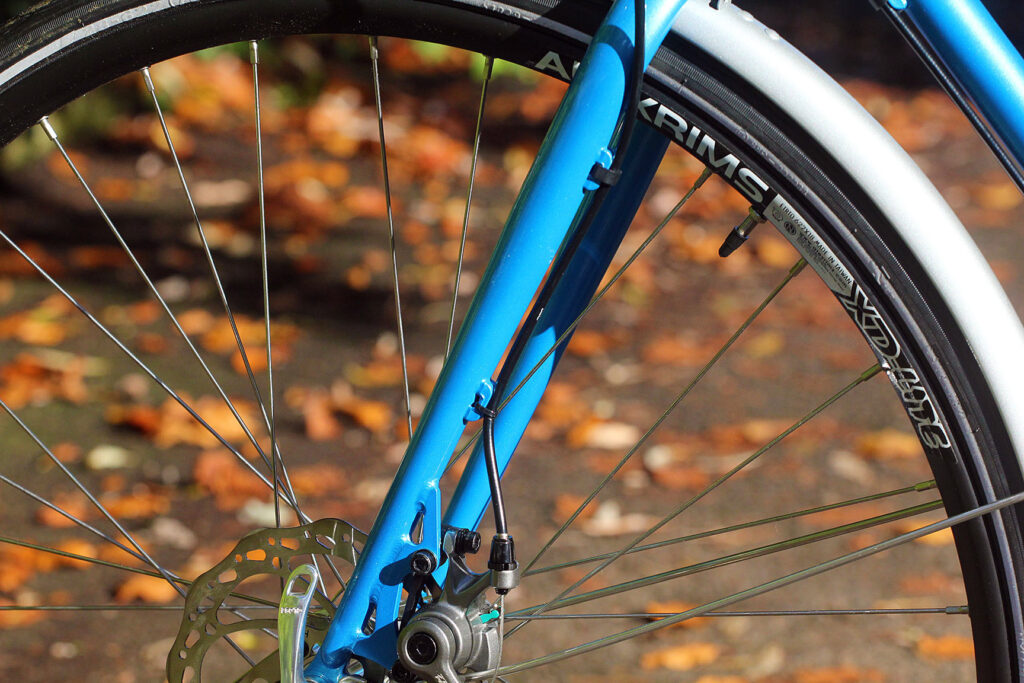

Fork: Tange steel cyclocross

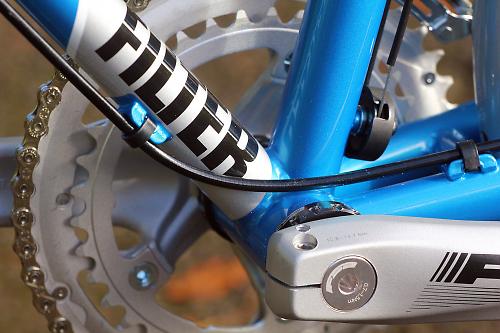

Chainset: FSA Omega 36/46

Cassette: Tiagra 10spd 12/28

Shifters: Tiagra 10spd

Brakes: Pro-Max DSK-715 discs, 160mm rotors

Tyres: Kenda Kwick Tracx 28mm slicks

Wheels: Alex XD Lite 700c

Saddle: Charge Spoon

Seatpost: Charge alloy 27.2

Stem: Charge alloy

Handlebars: Charge O/S alloy

Tell us what the bike is for, and who it's aimed at. What do the manufacturers say about it? How does that compare to your own feelings about the bike?

Charge say "The steel framed Filter has a more relaxed cross geometry, making it the perfect commuting machine. Seamless butted Tange Infinty tubing keeps the frame light and responsive, perfect for smoothing out the potholes and canal towpaths on your daily grind."

Well I tried all that and it did what it says on the tin, not sure about the 'light' frame though.

Frame and fork

Overall rating for frame and fork

Tell us about the build quality and finish of the frame and fork?

Well put together and a good paint finish

Tell us about the materials used in the frame and fork?

Tange Infinity steel which is double butted and seamless

Tell us about the geometry of the frame and fork?

Everything you need is here:

How was the bike in terms of height and reach? How did it compare to other bikes of the same stated size?

Fit was good, the medium we tested has a 54cm top tube which is pretty much the norm.

Riding the bike

Was the bike comfortable to ride? Tell us how you felt about the ride quality.

Yes, that steel feel is there.

Did the bike feel stiff in the right places? Did any part of the bike feel too stiff or too flexible?

Yeah, there were no issues. Its not a performance machine so stiffness isn't such a major concern.

How did the bike transfer power? Did it feel efficient?

Power transfer is fine - it's just heavy to get moving

Was there any toe-clip overlap with the front wheel? If so, was it a problem?

Yes, not really a problem though.

How would you describe the steering? Was it lively, neutral or unresponsive? very neutral

Tell us some more about the handling. How did the bike feel overall? Did it do particular things well or badly?

handling is suprisingly good from a performance point of you. Very reassuring and predictable.

Which components had the most effect (good or bad) on the bike's comfort? would you recommend any changes?

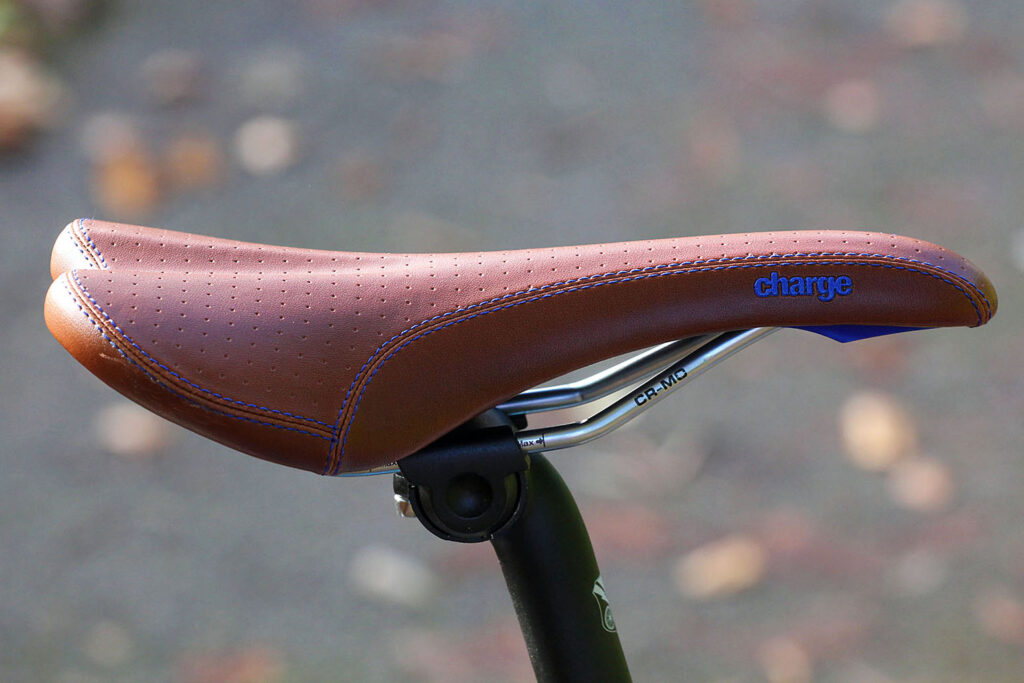

The Spoon saddle is comfortable while still offering a firm perch.

Which components had the most effect (good or bad) on the bike's stiffness? would you recommend any changes?

The bars and stem keep things tight. The fork is stiff and resists braking forces very well.

Which components had the most effect (good or bad) on the bike's efficiency? would you recommend any changes?

Tyres = good, weight = bad.

Rate the bike for efficiency of power transfer:
Rate the bike for acceleration:

It does accelerate okay but it hurts.

Rate the bike for sprinting:

Not what its about but good for its weight.

Rate the bike for high speed stability:
Rate the bike for cruising speed stability:
Rate the bike for low speed stability:
Rate the bike for flat cornering:
Rate the bike for cornering on descents:
Rate the bike for climbing:

low gears and good position let you tap it out

The drivetrain

Rate the drivetrain for performance:
Rate the drivetrain for durability:
Rate the drivetrain for weight:
Rate the drivetrain for value:

Tell us some more about the drivetrain. Anything you particularly did or didn't like? Any components which didn't work well together?

Tiagra is very workmanlike, no frills but it does its job. Hardwearing too.

Wheels and tyres

Rate the wheels and tyres for performance:

Bomb proof.

Rate the wheels and tyres for durability:
Rate the wheels and tyres for weight:
Rate the wheels and tyres for comfort:
Rate the wheels and tyres for value:

Tell us some more about the wheels and tyres.Did they work well in the conditions you encountered? Would you change the wheels or tyres? If so, what for?

The wheels are bombproof and roll well and the tyres are much the same. Dependable if you've got a long trip planned.


Rate the controls for performance:
Rate the controls for durability:
Rate the controls for weight:
Rate the controls for comfort:
Rate the controls for value:

Tell us some more about the controls. Any particularly good or bad components? How would the controls work for larger or smaller riders?

It all works well as Charge stuff always does.

Your summary

Did you enjoy riding the bike? Yes.

Would you consider buying the bike? Yes if it fitted my needs.

Would you recommend the bike to a friend? Yes.

Rate the bike overall for performance:
Rate the bike overall for value:

Overall rating: 7/10

About the tester

Age: 34  Height: 180cm  Weight: 76kg

I usually ride: Ribble Winter Trainer for commuting, Genesis Flyer  My best bike is: Sarto Rovigo

I've been riding for: 10-20 years  I ride: Every day  I would class myself as: Expert

I regularly do the following types of riding: time trialling, commuting, club rides, sportives, fixed/singlespeed,


As part of the tech team here at F-At Digital, senior product reviewer Stu spends the majority of his time writing in-depth reviews for, and ebiketips using the knowledge gained from testing over 1,500 pieces of kit (plus 100's of bikes) since starting out as a freelancer back in 2009. After first throwing his leg over a race bike back in 2000, Stu's ridden more than 170,000 miles on road, time-trial, track, and gravel bikes, and while he's put his racing days behind him, he still likes to smash the pedals rather than take things easy. With a background in design and engineering, he has an obsession with how things are developed and manufactured, has a borderline fetish for handbuilt metal frames and finds a rim braked road bike very aesthetically pleasing!

Add new comment


sidesaddle | 11 years ago

Hate that 'Designed in GB' label. It only highlights the fact that this country is incapable of even welding a few tubes together.

Jerm | 11 years ago

It does seem bizarre to criticise a bike for not being something it wasn't designed to be. Given the price point, this appears to have cycle to work schemes in mind for which it seems to be nearly perfect barring a few matters of personal taste. I don't suppose most people need or want triple chainsets. This is no Long Haul Trucker.

joemmo | 11 years ago

the gearing does seem an odd choice, hints more at cx than load carrying. A triple would seem more logical but they're a bit of fashion at the moment. I wonder if the new 'mountain compact double' (basically a 104 BCD crank without the outer ring) will start appearing on this kind of bike where you can have a 38/24 or 36/22 combo. As long as you don't mind coasting down the faster hills, a 38-11 will see you comfortably into the late 20mphs and the bottom end would be handy.

Simon E replied to joemmo | 11 years ago

I think that 46/36 is a better combo than 50/34 for most people. You could swap the cassette with 12-30 for a lower bottom gear. 11-32 would be even better but this may require a MTB rear mech. At the other end 46x12 = 50x13.

I really like the look of skinny steel frames and this is the sort of spec - and colour - I'd wish for in a year-round commuter/trainer (bar the inadequate front mudguard, that would be replaced with Tortec full length).

I don't think 11.7 kg is particularly heavy for a steel frame with steel fork, discs and mudguards. XD Lite are 32-hole offroad rims, it looks like a resilient wheelset, not a flyweight minimally-spoked pair you save for dry summer days. If you put two 750ml water bottles on a bike you've just added over 1.5 kg yet I don't see people suddenly unable to climb hills because of this additional weight.

nowasps | 11 years ago

They're not BB5s, they just take BB5 pads.

Also, the SKS guards have a double stay arrangement which make fitting then around discs problematic (on my bike, anyway). I wonder if the shortness of the guards has anything to do with the stay arrangement?

nbrus replied to nowasps | 11 years ago
nowasps wrote:

...the SKS guards have a double stay arrangement which make fitting then around discs problematic (on my bike, anyway). I wonder if the shortness of the guards has anything to do with the stay arrangement?

I had to bend the stays on my SKS mudguards to get them to fit various bikes I own. It wouldn't be hard to have these 'custom' bent at the factory.

alotronic | 11 years ago

@nbrus to be fair I think the distinction (though not explicitly made above) would be to run the knobs in 'CX mode' - without the guards - thus buying your self another 10mm or so for something more like 35/37c.

nbrus | 11 years ago

I love how the review puts a positive spin on a negative design choice. The front mudguard is way too short ... next to useless IMHO. I find even SKS mudguards a bit short and have added longer mudflaps to mine to keep my feet dry and keep mud off the chainset. Sounds like they fitted cheap, poorly designed, 'custom' unbranded mudguards to save money. This is a false economy as these would be the first thing I'd replace if I bought this bike. Its a very nice bike too.  4


... tolerances are tight width wise with the 28mm tyres...

Quote: the ability to change to larger knobbly tyres to take on snow or towpaths...

Bit of a contradiction there, though I presume you were comparing with mudguards removed for the knobblies.

11.7kg is also pretty reasonable for a bike this well equiped, though I would prefer to have BB7s to the BB5's fitted ... the pads last much longer (and cost the same) and they have in-board pad adjustment.

A few upgrades and this bike would tick all the right boxes for me. Love the colour.

alotronic | 11 years ago

Agree, 46/32 might be more realistic, but if it were mine I'd bang a triple on it for sure. I've got a parts bin that would cope with that, but it suddenly becomes less good value.

I suspect most people will actually buy it as a commuter and for pottering about on the weekend, for which it seems to be a brilliant fit. It's not really 'serious' enough in one or another category to appeal to those with lots of bikes, but for a BTW thing it will make a lot of sense to a lot of people - Home brand, steel, discs, racks... all good.

robdaykin (not verified) | 11 years ago

do Charge expect anyone to put a rack on this and ride up a hill?

The 34 on a compact is to help climbing hills unloaded on a light bike, so fitting a 36 on a heavier bike with rack mounts defies reason. I'd love to hear their logic.
My tourer has a MTB triple, 42,32,22 and when I've got 2 panniers on that 22 gets used. The hills don't go away just because you're not riding a sportive or segment bagging on Strava.
