Sheffield company launches TiltShift Rail bicycle roof rack on Kickstarter

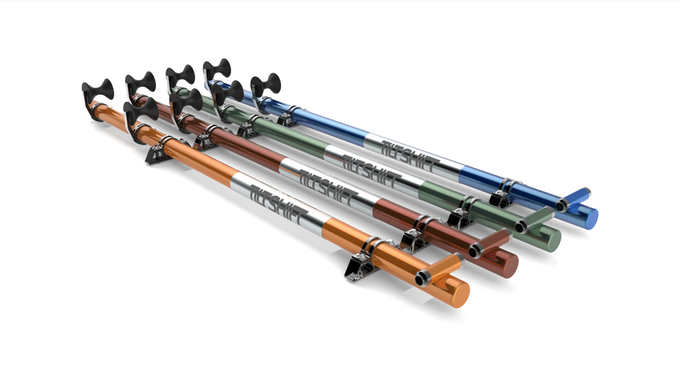

TiltShift Rail is a new bicycle roof rack designed and manufactured in Sheffield that has just been announced on Kickstarter. The company is seeking £7,500 of funding, and you can pre-order a rack now for £169.
The TiltShift Rail rack, in development for the past year, is constructed from stainless steel and machined and hard anodised aluminium. It’s a clean and minimalist design, the company stating that it wanted to design a rack that is not only easy to use but also looks good on top of the car.

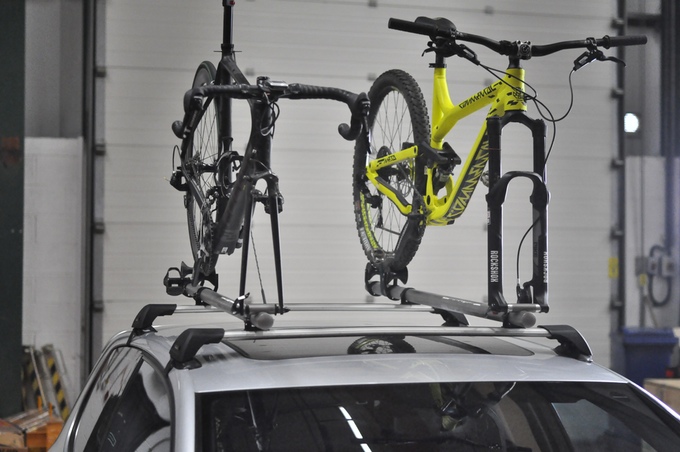

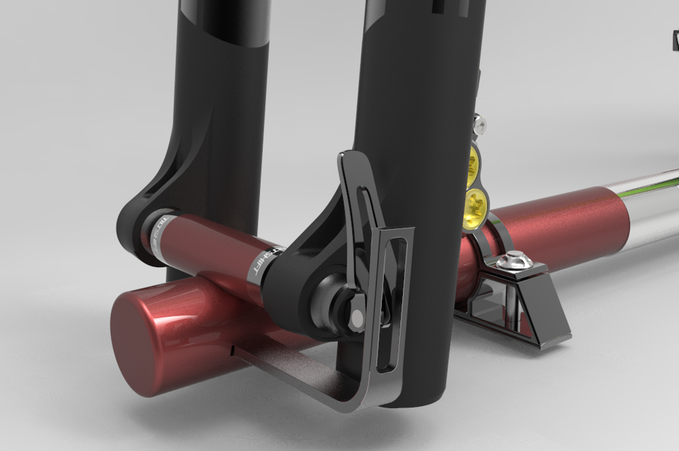

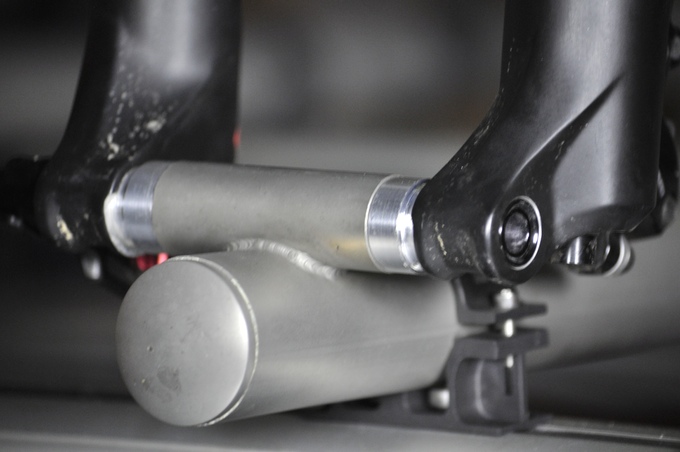

It’s a fork mounted design because the company believes this is a better method of carrying a bicycle on the roof of a car than a rack that clamps directly onto the frame. “Bolting through the forks keeps loads running through the bike in the direction they’re designed to go,” adds the company.

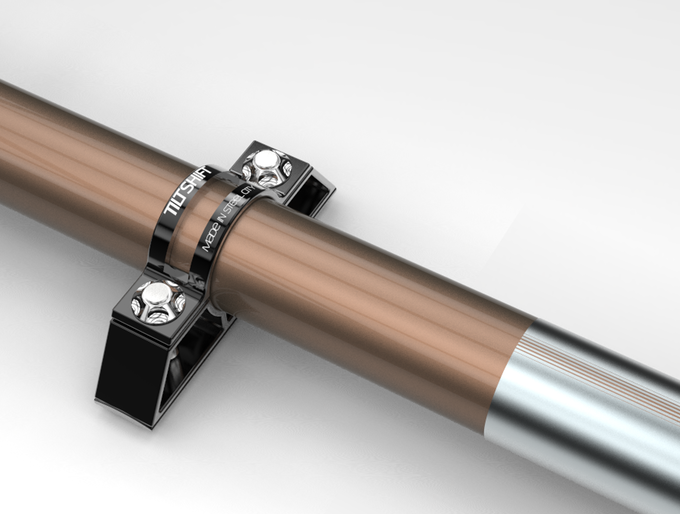

The rack comprises a main tube, available in a range of colours, with a pair of clamps that use two bolts to fit to a T-slot style roof bar. The rack is compatible with most common fork axle standards, including 9mm quick releases and 15 and 20mm thru-axles. The adapter can easily be changed with different end caps if you’ve a garage full of bikes with different front axles. The rear wheel is secured in place with a pair of rollers and a ratchet strap.

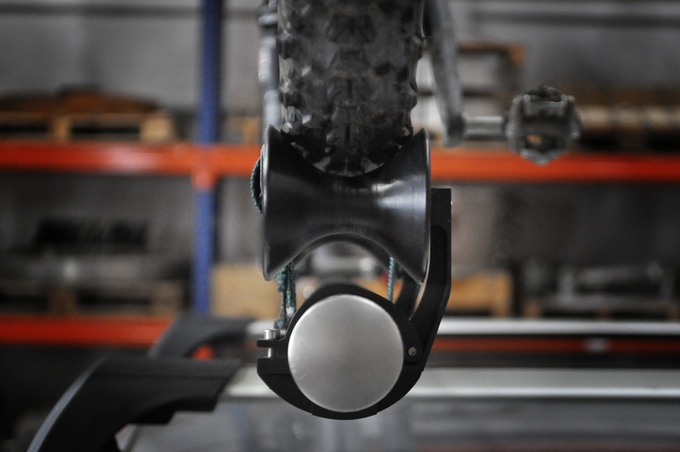

To ensure good stability, and prevent the bicycle rack from shifting under load, the company has added a “keyway” under the main rail which interfaces with the clamps on the roof mounts and prevents the tube from rotating. The rack can be easily adjusted for different bike and wheel sizes with the clamps sliding along this keyway.

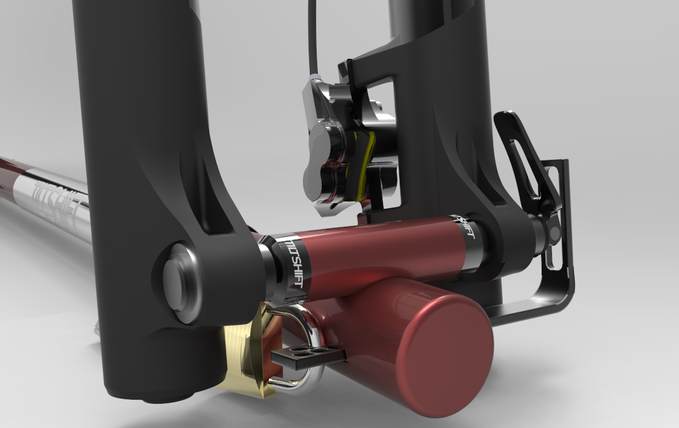

Security has been considered. The company has developed a lock that slides through the main tube and prevents access, with a standard padlock, to the fork quick release lever.
Expensive isn't it? Well you certainly don’t have to look far to find bicycle racks costing less than the £169 TiltShift is charging. Here’s the company’s explanation for the price:
“Why spend £169 on a bike rack when you can go to the local motor factors and buy one for half the price? Well perhaps you have you sat behind 'that car' on a motorway watching several thousand pounds worth of carbon bike wobbling round, waiting to make its break for freedom. Or winced as someone ratchet-straps some lovely carbon wheels to the top of their car, scratching both the bike and the car as bungee cords decide they don't want to attach (do they ever?)? We have, hence the reason we decided to engineer these products. We also think that individuality is key - TiltShift Rail is designed to stand out in a crowd.”
To find out more about the rack or to pledge your support for it, head over to the Kickstarter page here.
