How do you choose the right tubeless tyre pressure?

Advice from Hunt and Continental on getting your tubeless tyres set up just right

We’ve covered how to choose your tyre pressure elsewhere but in this article we’re looking specifically at tubeless tyre pressures. One of the benefits you often read about with tubeless tyres is the ability to run a lower pressure for more comfort. But how low can you go and what’s the right pressure for your setup?

- Tubeless tyres: With more choices than ever and Conti and Michelin entering the field is it time to switch to tubeless?

Why lower pressures?

Along with reduced punctures, one of the benefits of removing the inner tubes and replacing with liquid sealant is the lower pressures that can be used without negatively impacting performance.

“Tubeless tyres can be used with lower inflation pressure without compromising performance. That brings clear advantages in comfort as well as more control in critical situations and poor road/trail conditions,” explains Schwalbe.

michelin power road first ride39

Hunt concurs with this recommendation and as well as reduced punctures, more comfort, and also points to reduced rolling resistance being another benefit.

“Alongside the ability to seal punctures, it’s the biggest reason to consider giving tubeless a go. Without a soft inner tube, the chance of pinch flats/‘snakebite’ punctures is much lower. When an object like a rock or pothole completely flattens the tyre against the rim, a reinforced tubeless tyre sidewall is much less likely to be damaged than a butyl inner tube, explains Brand Manager Ollie Gray.

“Once you can run lower pressures without an increased risk of punctures, then you can get all the benefits that come with that: the obvious ones being increased comfort, better grip from a larger contact patch, but also reduced rolling resistance. The rolling resistance reduction is interesting, and a little counterintuitive; with a higher pressure the tyre can’t deform as much over small bumps in the road and the wheel, bike and rider are all bounced up over the object. You don’t get that energy back when you come down the other side, instead as the rider you are working to absorb that vibration.”

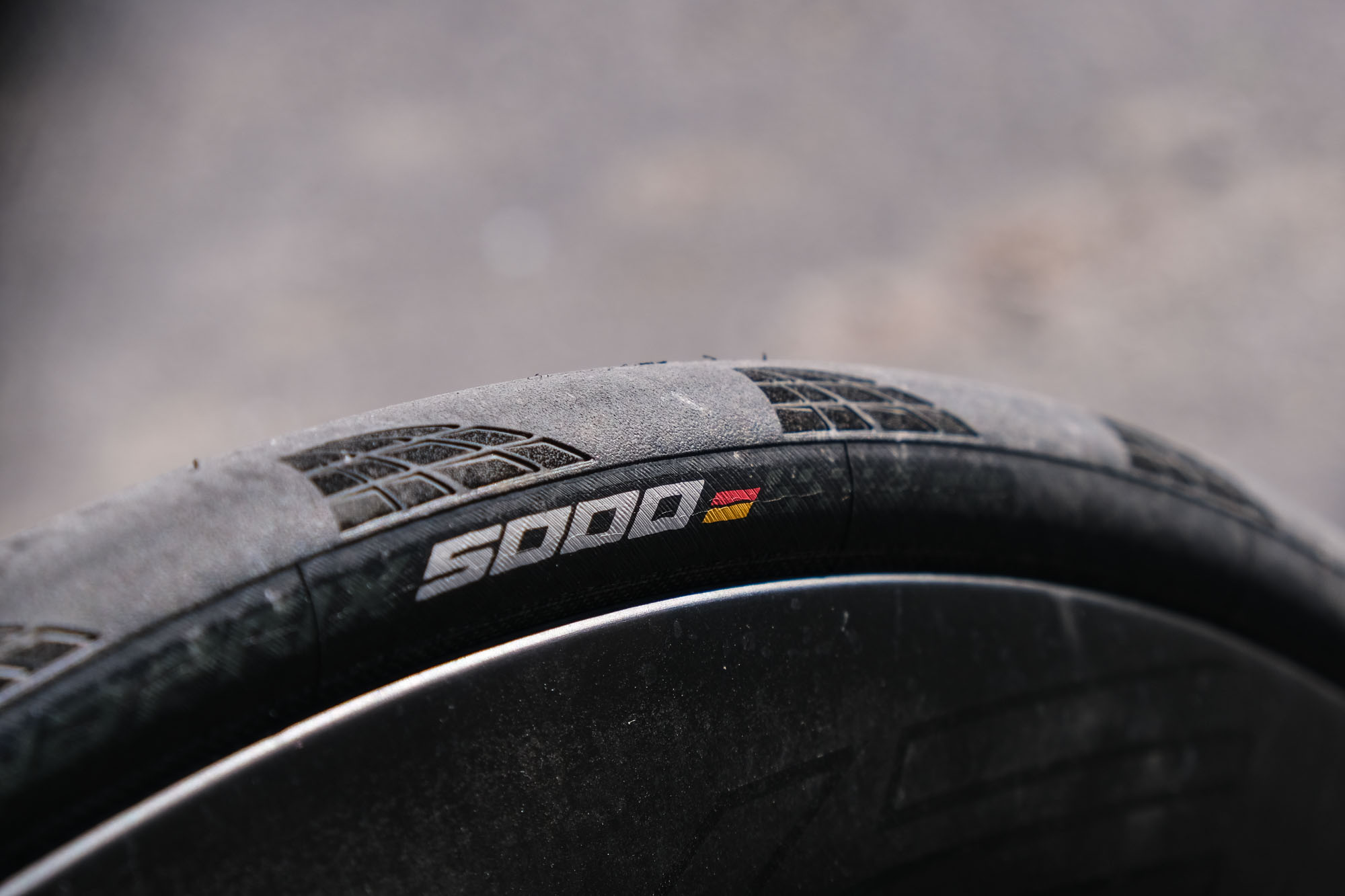

continental gp 5000 tyres5

There are lots of variables you also need to consider. You need to take into account the rider weight, the bike weight, the quality of the roads and whether they’re rough or smooth, weather conditions also play a part as well and generally wet roads demand lower pressures. Even different tyres and their construction can make a difference, some tyres are soft and supple, others have very stiff sidewalls, and these changes can affect the ideal tyre pressure.

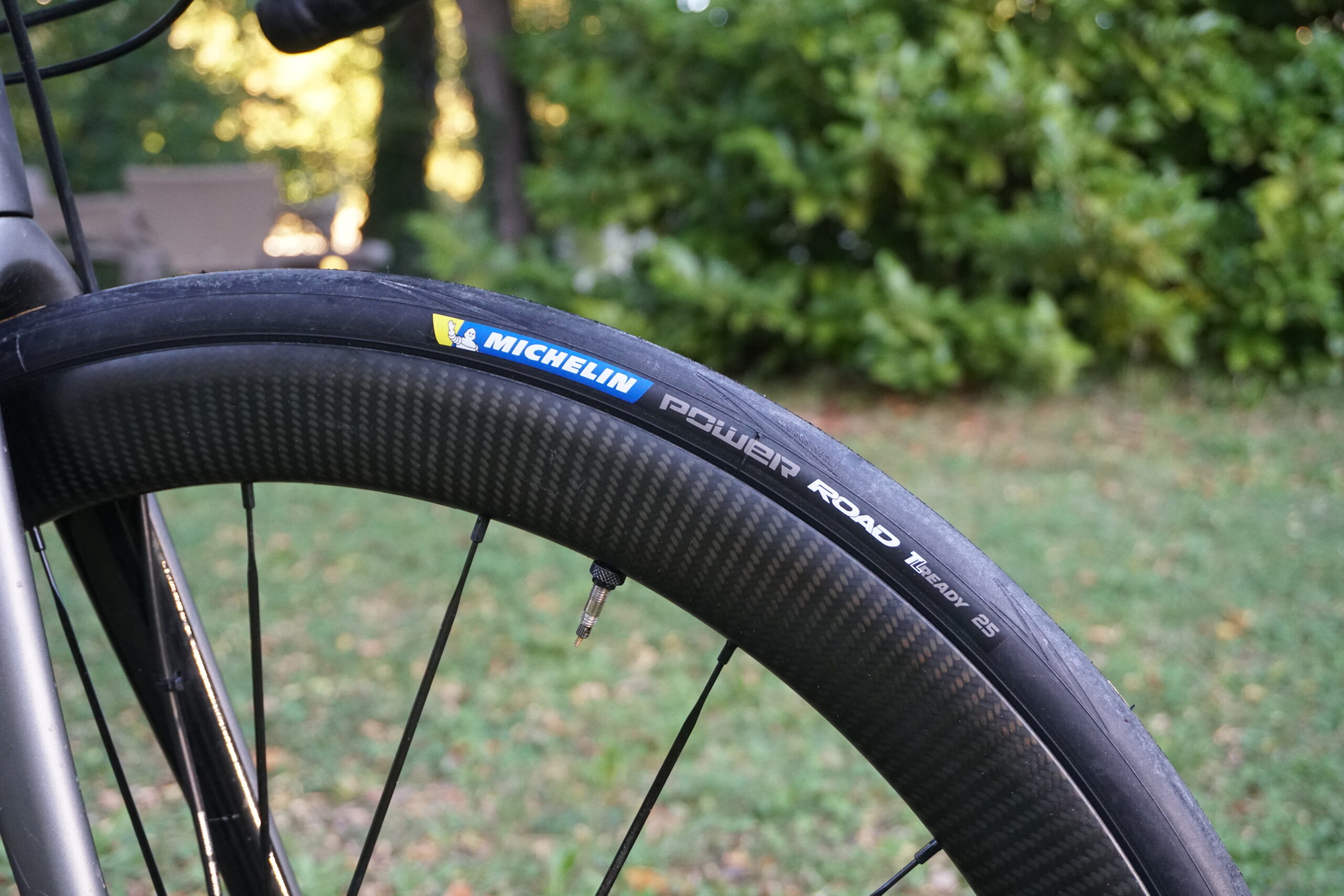

michelin power road20.JPG

You can’t go too low of course, because the tubeless tyre needs a certain amount of air to keep it mounted onto the rim. Too low could be asking for trouble. Equally, go too high could also be inviting trouble as the tyre could blow off the rim. There’s a sweet spot between the two extremes which you want to aim for. Hunt advises against going above 100 psi with 25-28mm tyres, 70 psi for a 30mm tyre, and 35 psi for over 46mm wide tyres.

You don’t want to go too low either because the tyre could collapse under load in corners and squirm horribly. It also increases the risk of slamming the rim into the ground and damaging the tyre.

- How to fit a tubeless tyre

US tyre brand Compass points out that an excessively flexing tyre can damage the casing: “You also don’t want to run too low a pressure with tubeless tyres. If the tyre flexes excessively, this will break down the casing until it starts to leak. With a narrow tyre, you have a narrow window between “too high” and “too low” pressures,” says the company.

How do you choose the right pressure?

We’ve established there are benefits to lower pressures as one of the reasons to adopt tubeless, but as with regular tyre pressure, it can seem a bit of a dark art to know what is the optimum pressure for your setup. As ever, there are many variables that dictate the ideal pressure, from rider and bike weight, road surface conditions, rim width and more.

“Width and rider weight are key factors along with the road surface and riding style. The rougher the riding surface, the bigger the benefits of using lower pressures (and also wider tyres). If a surface is wet or loose then the extra grip from a lower pressure is a big benefit too. In all honesty, there are a lot of variables,” suggests Hunt’s Ollie Gray.

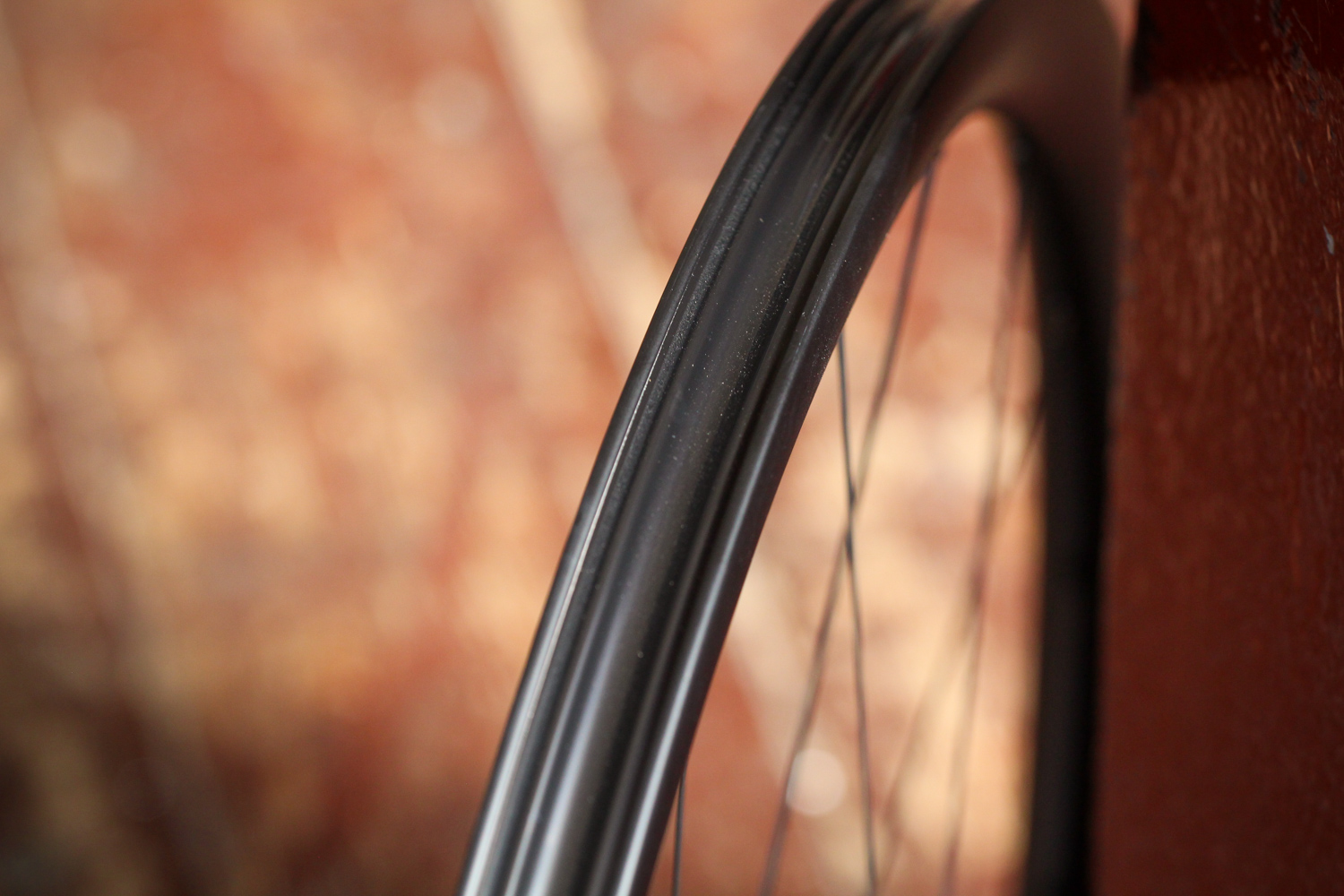

Hunt 30 Carbon Aero Disc Road Wheelset - rim bed.jpg

Rim width and tyre width is an important relationship in the equation too. “When considering pressure riders will need to think of the wheel and tyre as a system opposed to individual parts. A wider rim will help support a tyre better, so can allow lower pressures than the same tyre on a narrower rim. As the tyre gets wider, the pressure should also decrease accordingly,” adds Hunt.

Experimenting with tyre pressures is often a good tactic. Invest in a good pressure gauge and pump and don’t be afraid to try different pressures. Make notes of the pressures as you try them and record your findings on how the bike feels on your local roads. Does it feel smooth, rough, slow, fast, squirmy, bouncy?

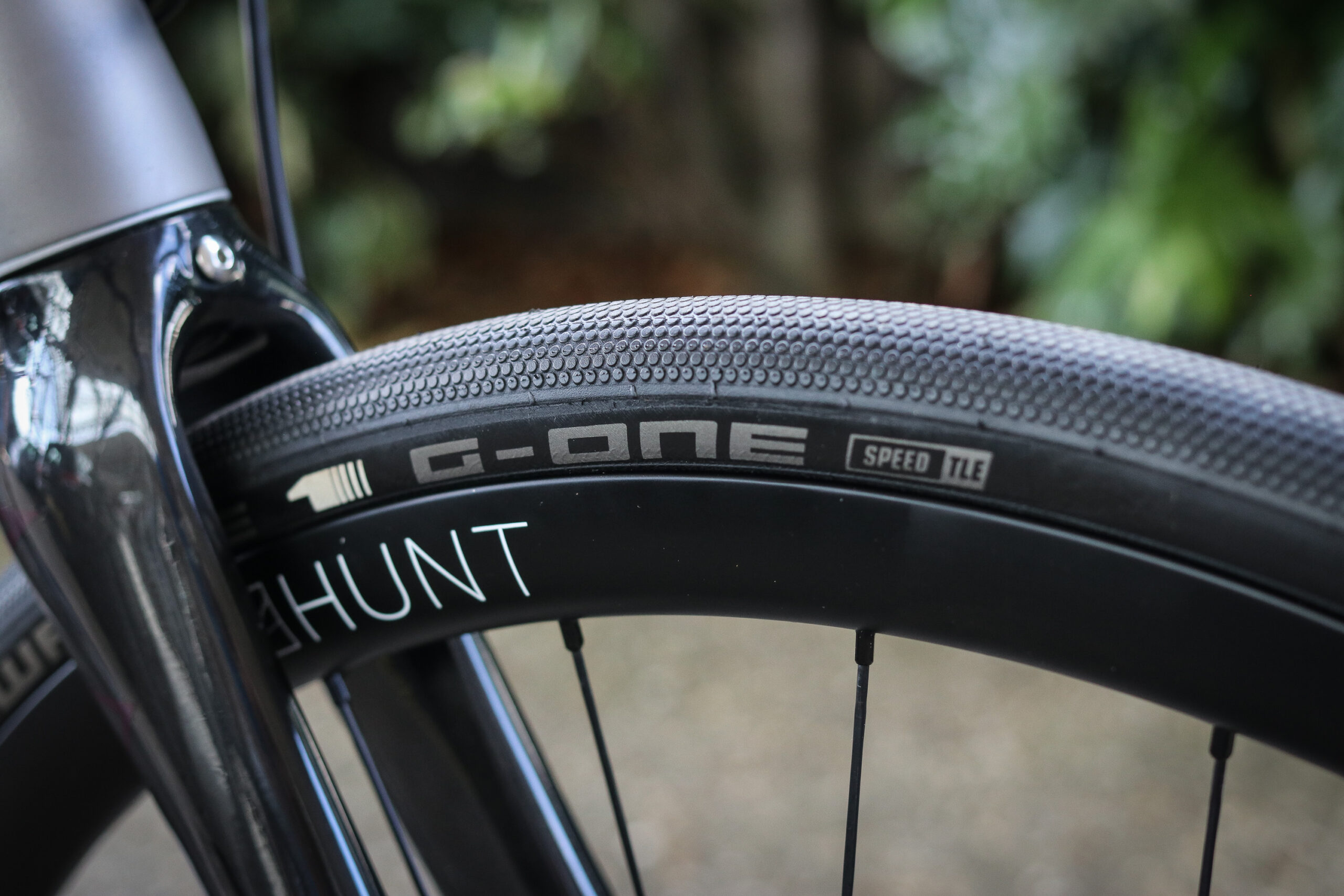

Mason Aspect Ti-3.jpg

“As a good way to test what works for you, start off checking the recommended pressure ratings on your tyre and start somewhere in the middle. The signs that the pressure is too low are ‘bottoming out’ the tyre or getting excessive lateral movement from the tyre in cornering – so reduce your pressure until you start to get bottom outs or tyre squirm, then increase it by a little until it feels good again. By then you probably have the best balance of comfort, speed and grip,” suggests Hunt’s Ollie Gray.

So what is the right pressure then?

An obvious starting place is the tyre pressure stamped on the sidewall of the tyre. Thankfully, long gone are the days when people used to just use the max tyre pressure as the go-to pressure for riding. Many tyres now have a range of real-world pressures that offer a much better starting place to experiment from.

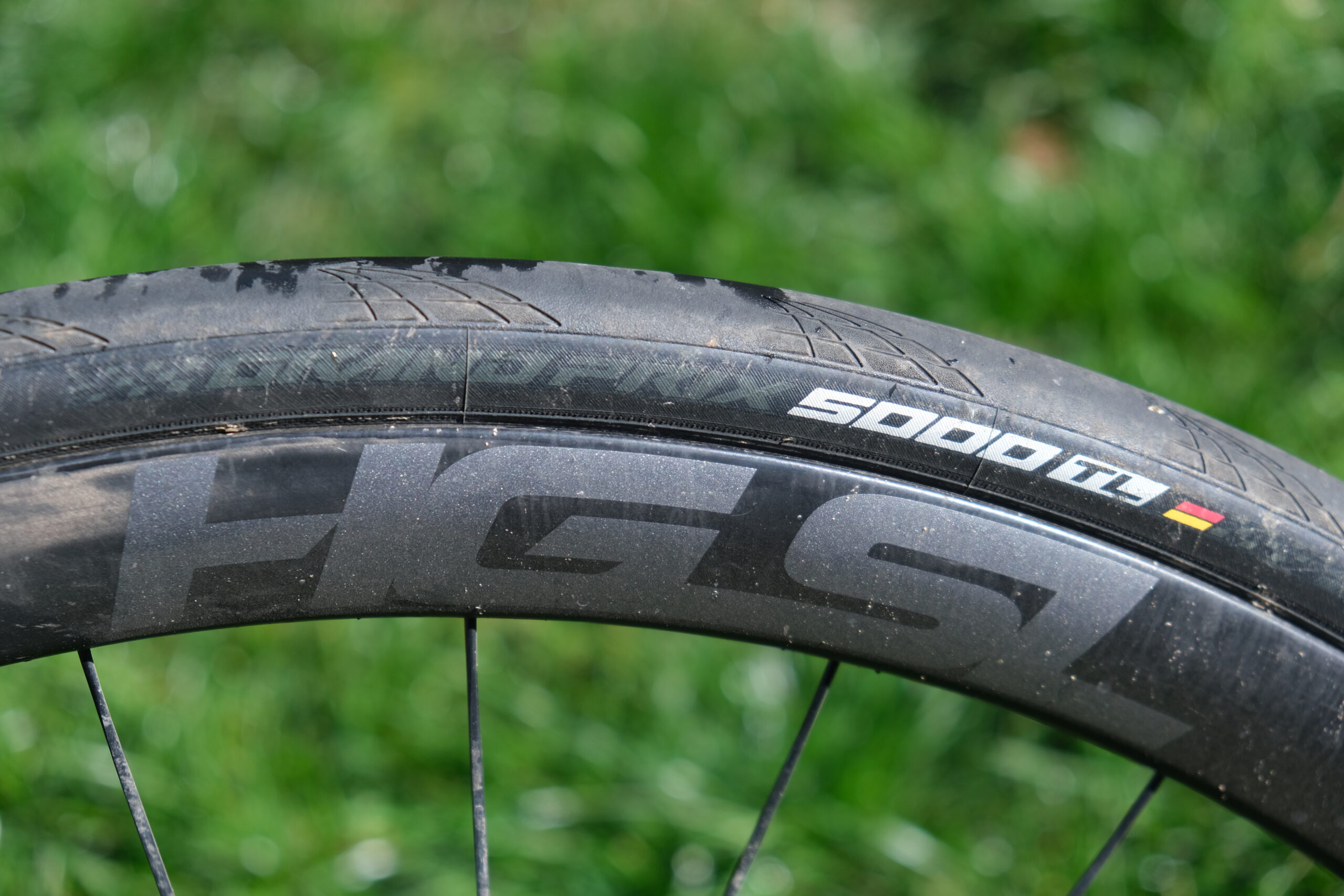

Continental GP5000 Tubeless tyres20.JPG

Continental has developed its first road tubeless tyre this year, the GP5000 TL, so we asked them what they recommend for tyre pressures.

“The first indicator is always the tyre’s individual pressure range, depending on the respective constructions. In fact we even do test the tyres with the double amount of pressure before they are finally released,” explains Continental’s head of marketing Sarah Hohmann-Spohr.

“Depending on the system weight (rider, bike) and underground/conditions the riders can opt between the min/max range. This range we communicate on the tyre’s sidewall, in our current programme/catalogue/website etc.”

For its new tubeless tyres, Continental recommends, for a 25m width tyre, between 80-109psi, compared to 95-123psi for the tubed clincher tyre. So you can see the tyre pressure is much lower than with an inner tube but it offers a 29psi range to allow for the aforementioned variables like rider/bike weight, riding style and road conditions.

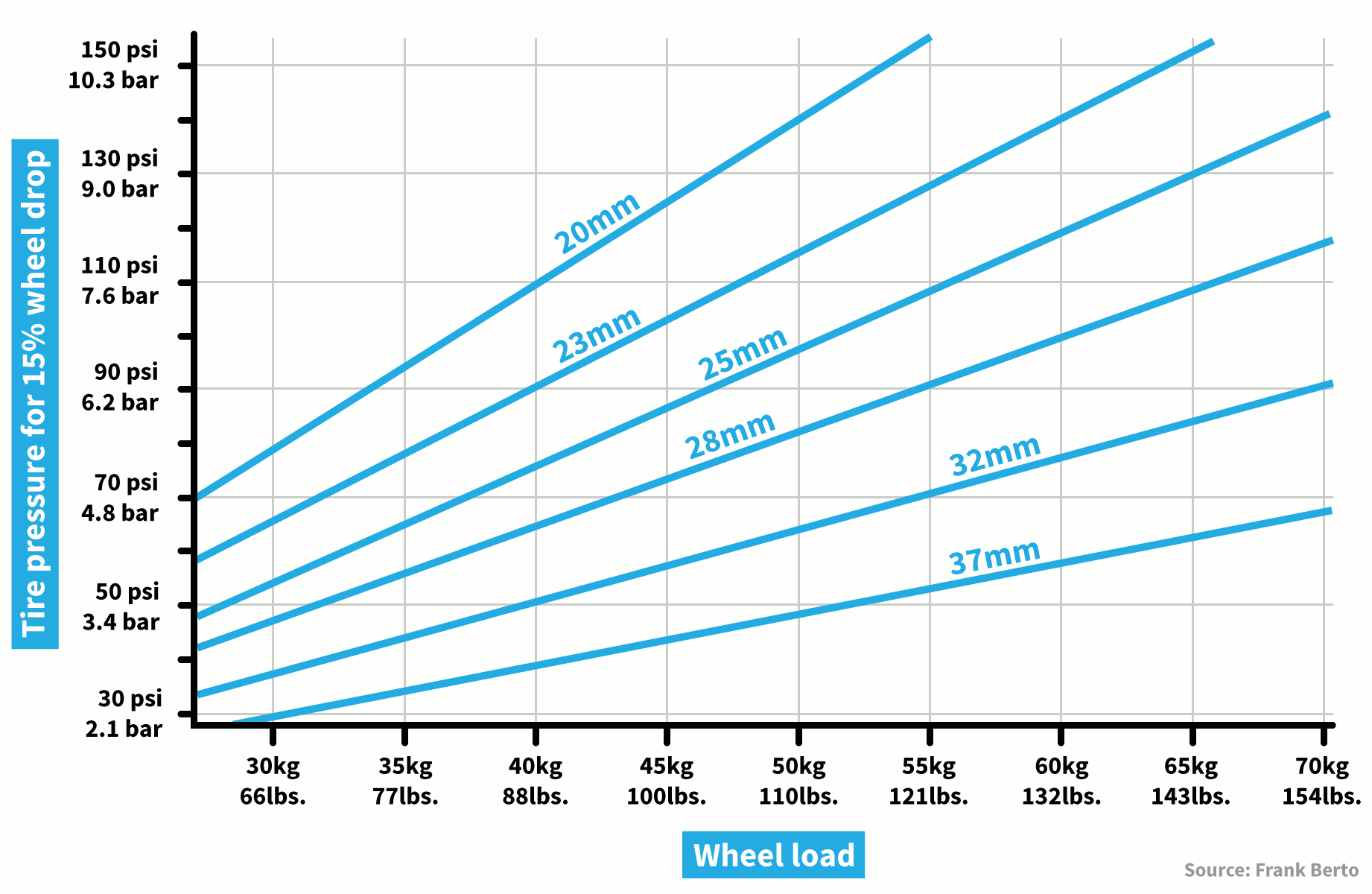

Another good starting place is Frank Berto’s recommendation to choose a tyre pressure that involves a tyre being compressed 15% of its height under the rider’s weight. Heres a handy chart to make it a little easier:


What this chart doesn’t take into account is tubeless. “Generally on the road, we’d recommend 8-10psi difference compared to current pressures as a starting point,” recommends Hunt, so you can take 10psi off the recommended pressure on Berto’s chart above.

Hunt offers a list of recommended pressures on its website for both clincher and tubeless tyres, based on 60, 70 80 and 90kg rider weights and 23, 25 and 28mm widths. Taking a 70kg rider on 28mm tyres, it recommends 86 psi front and 91 psi rear.

Is there an app to make it really easy?

Yes, there are now several smartphone apps that take the guesswork out of determining your ideal tyre pressure. I’ve been trying out two from TyreWiz and Michelin.

TyreWiz is a clever tyre pressure sensor developed by Quarq (part of SRAM) that attaches to the valve and monitors the pressure inside the tyre, sending this information to the app.

However, the app also lets you use it without the expensive sensor. You can input all your key data - rider weight, bike weight, wheel and tyre size - and it recommends front and rear pressures. I’ve been using it for a little while now and the numbers it recommends are pretty good, close to what I would normally use based on lots of tyre testing and experimenting.

Mavic also produces a tyre pressure app called MyMavic. In it you can input your vital data, even choosing rim width as that’s an important consideration in the relationship between tyre and wheel, and it produces a good set of numbers that I have not hesitated to use on my bike.

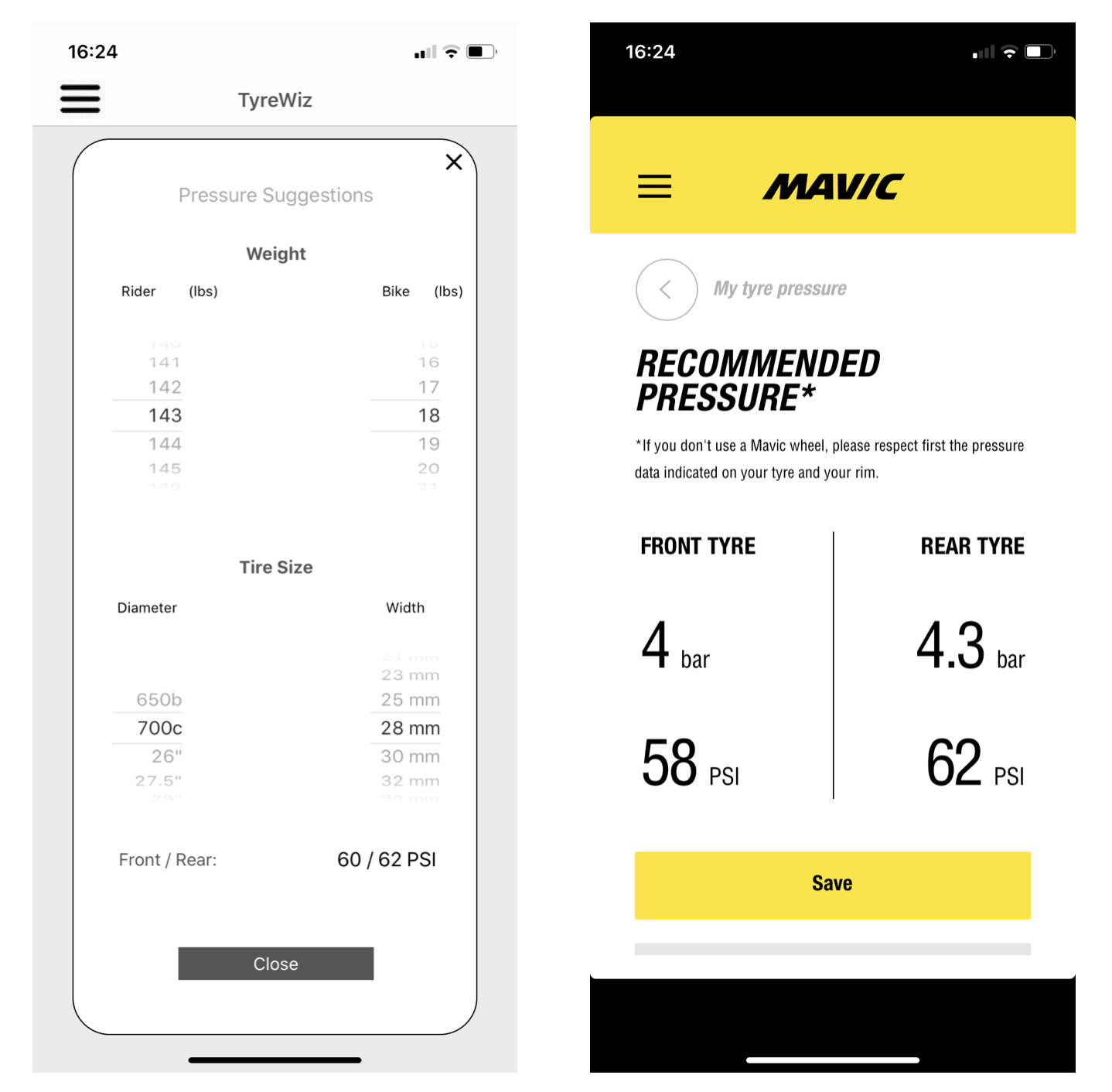

tyre pressure app recommendation

Here are screenshots from both apps, using the same set of numbers. The results are extremely close.

Summary

In conclusion, there is no real secret answer to what the best tubeless tyre pressure is, but it’s clear from speaking to industry experts that it’s lower than a regular clincher setup with inner tubes.

Don’t be afraid to experiment, tyre pressure makes a big difference to how the bike rides and feels on the road, so it’s worth making some changes and noting down the differences. Invest in a good pressure gauge or track pump and see what pressure works for your setup and riding requirements. It’s worth the effort.

Remember that tyre pressure isn’t a set and forget a thing, especially with tubeless which can be more prone to leaking air over time, so you want to regularly check the pressure and adjust it to suit different conditions. Don’t just assume they’ll be okay.

Over to you now, how do you choose the tyre pressures and what pressures are you running in your tyres?
