SwissStop Catalyst Rotors 140mm

9
£56.99

VERDICT:

9
10
Quiet and robust, an excellent upgrade for your cyclo-cross or winter bike
Superb in grotty conditions
Quiet
Powerful
No lockrings included
Weight:
22g

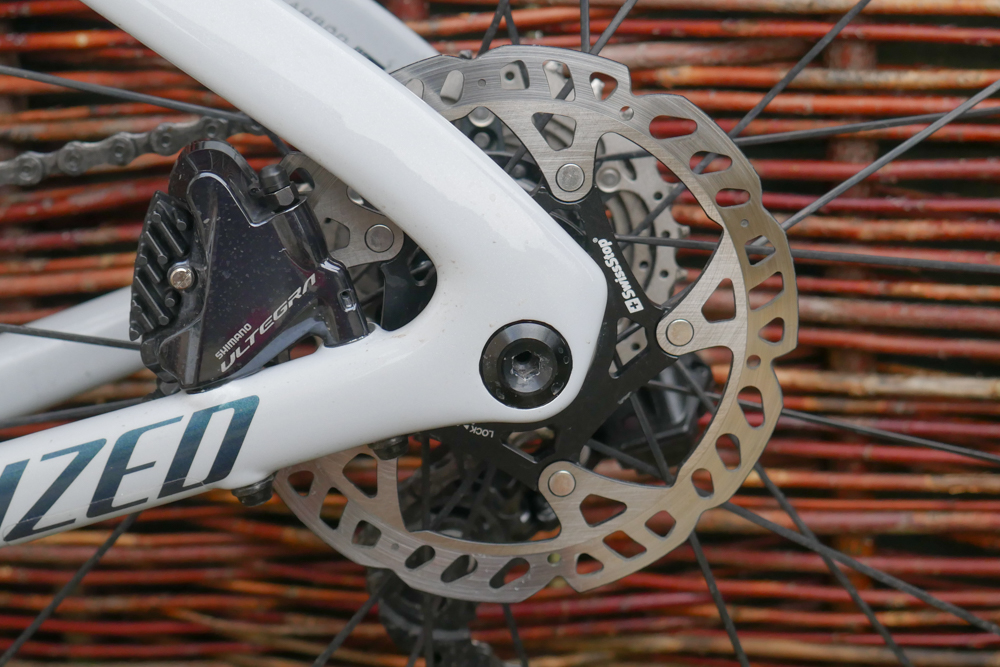

SwissStop's Catalyst Rotors are superb, offering quiet stopping power and very good durability in the tough conditions of cyclo-cross and winter riding.

It says a lot about the silent performance of a test product when you forget that it's on your bike. The SwissStop Catalyst rotors have been silent through what has been an incredibly muddy cyclo-cross season, and when I've taken the CX bike out on the road they've provided plenty of stopping power on steep descents.

> Find your nearest dealer here
> Buy these online here

Disc brakes, typically, will really let you know if they're a bit dirty. The howl from contamination is really annoying, so finding a setup that deals with mud, sand and water without even a hint of noise is great.

The only time that I could get a squeal from these was after some particularly muddy pre-race practice laps. Washing the bike off between these laps and the race start is always a bit of a rushed job and a bit of soap tends to find its way onto the rotors. It wasn't an issue for long, though – a few sharp squeezes of the brakes in the car park and the noise was gone. And while racing I've had no noise issues at all.

> How to look after your disc brakes

Resisting too much wear from the gritty combination of mud and sand is also pretty important in cyclo-cross. SwissStop has used SUS410 stainless steel for the brake track and it's holding up very well. I can see these rotors easily lasting two race seasons and possibly even stretching to three. That makes the £56.99 investment for each rotor a little easier to stomach.

The 140mm rotors were the perfect size for me. I'm only 63kg and too much stopping power on slick mud is a recipe for locking up. I found the rotors offered good control both when riding CX and when on the road, though I can't say there's a huge performance upgrade from the Shimano Ultegra Ice-Tech rotors that these replaced. If you want to go bigger, there are 160mm, 180mm and 203mm sizes in both Centerlock and 6-bolt fittings, with prices slightly lower for the 6-bolt options.

Heat build-up doesn't seem to be an issue, though winter temperatures and short braking periods of cyclo-cross isn't the best testing ground for this. I've had no brake fade on longer descents while on the road.

> All you need to know about disc brakes

Shimano's Ultegra RT800 rotors are a bit cheaper at £49.99, but I've found the SwissStop Catalysts to be quieter and that, with the low wear rate, makes them worth the extra in my book.

My only tiny gripe would be that they don't come with lockrings. That said, you can just reuse your old ones. For me, the lack of noise in wet and muddy conditions, paired with the resistance to wear, makes these a decent performance upgrade for your cyclo-cross bike.

Verdict

Quiet and robust, an excellent upgrade for your cyclo-cross or winter bike

If you're thinking of buying this product using a cashback deal why not use the road.cc Top Cashback page and get some top cashback while helping to support your favourite independent cycling website

road.cc test report

Make and model: SwissStop Catalyst Rotors 140mm

Size tested: 140mm, Centerlock

Tell us what the product is for and who it's aimed at. What do the manufacturers say about it? How does that compare to your own feelings about it?

From SwissStop: "Powerful braking and high durability, available in four sizes for applications including road, cyclocross, cross country, downhill and e-bike."

Tell us some more about the technical aspects of the product?

From SwissStop: "A two-piece design consisting of a 7075-T6 aluminium alloy spider and SUS410 stainless steel brake track was chosen to balance light weight with reliable thermal management and structural performance."

Rate the product for quality of construction:

9/10
Rate the product for performance:

10/10
Rate the product for durability:

10/10
Rate the product for weight (if applicable)

5/10
Rate the product for value:

5/10

A little higher priced than Shimano's Ultegra rotors (£49.99), but worth it.

Tell us how the product performed overall when used for its designed purpose

Very well. They provided good stopping power, loads of control and did it all in silence.

Tell us what you particularly liked about the product

Silence is golden. These are great in grotty conditions.

Tell us what you particularly disliked about the product

No lockrings.

Did you enjoy using the product? Yes

Would you consider buying the product? Yes

Would you recommend the product to a friend? Yes

Use this box to explain your overall score

Performance and durability is excellent, and they're quiet; I'd happily pay the extra over rivals.

Overall rating: 9/10
