White spokes, tubs and no front-end integration: Chris Horner's Vuelta-winning Trek Madone from 2013

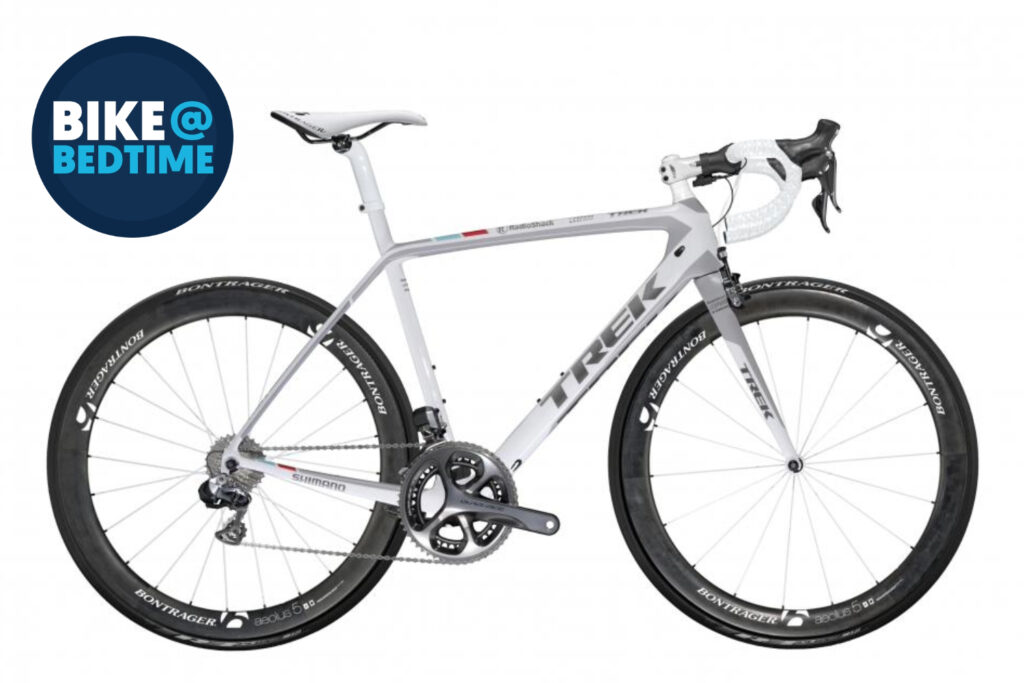

In 2013, at the age of 41, Chris Horner became the oldest rider to win the Vuelta a España, or any Grand Tour for that matter. He's also the most recent American to win a Grand Tour, but will Sepp Kuss be next? Let's take a look at Horner's Radioshack Leopard team edition Trek Madone 7.9 that he propelled to victory a decade ago, featuring tubular wheels and dirt-unfriendly white spokes...

The 2013 Vuelta a España was a showdown between Nibali and Horner and the battle of Specialized versus Trek, but it was the veteran American and his American-branded bike that came out on top. It was one of the most surprising Grand Tour victories of recent times, and also made Horner the oldest to achieve this feat.

© Unipublic:Graham Watson

The Radioshack Leopard team had the choice of two top-end race bikes for the 2013 season after Trek launched the all-new Domane and the updated Madone back in 2012.

They chose the Domane 6.9 for the Classics, a cobble-taming race bike with an innovative suspension frame design, and the more aerodynamic Madone 7.9 for the Grand Tours.

The Madone is one of Trek's most established models, and it underwent one of its most significant overhauls to date at this time. There was a strong focus on enhancing aerodynamics, resulting in some striking transformations.

> Has aero gone too far? The most excessive cycling tech made to shave milliseconds

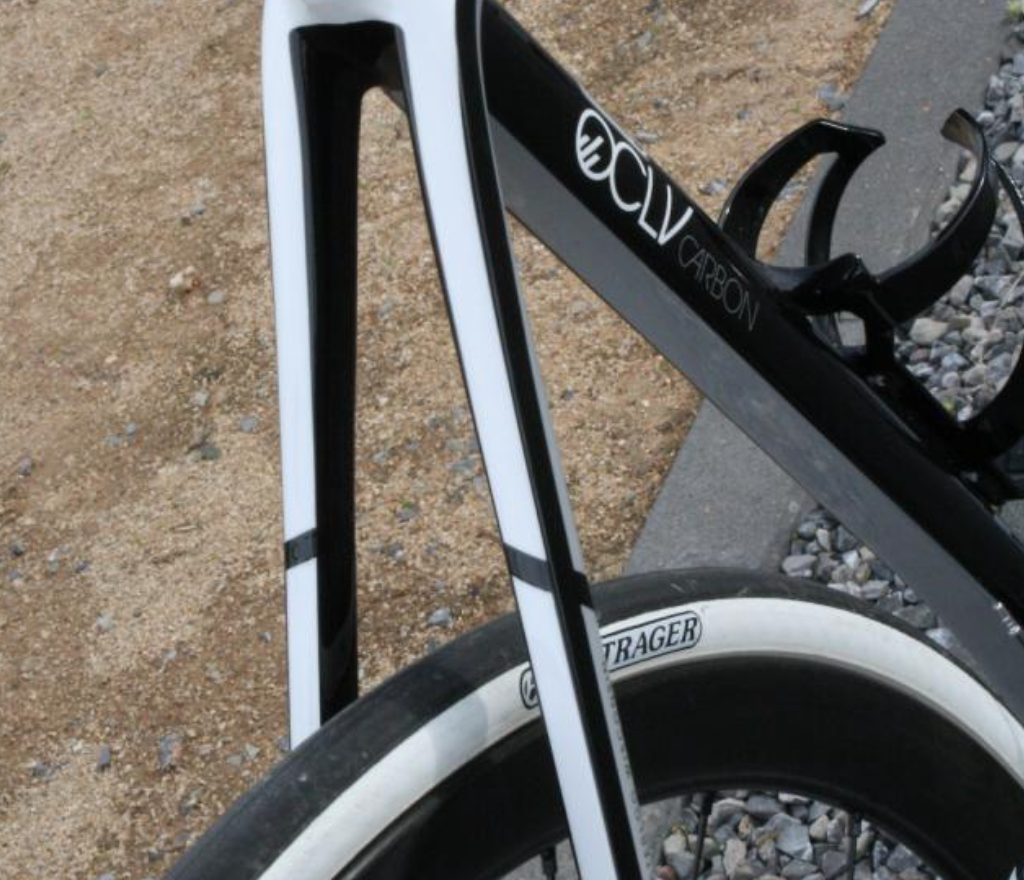

Attention was immediately directed to the rear stays, where the brake caliper had disappeared. It was moved to beneath the chainstays behind the bottom bracket to minimise aerodynamic drag and also reduce weight due to the absence of a brake mount.

Kammtail Virtual Foil (KVF) tube profiles, taken from Trek's Speed Concept time trial bike, were incorporated into the main tubes in the front triangle. This tube design and the repositioning of the rear brake, claimed to make the bike much faster overall, saving 25 watts when riding at 40kph, Trek said.









View this post on Instagram























A post shared by Jim Fryer (@brakethrough_jf)

In contrast to some of the best aero bikes of today, the Madone 7.9 lacks front-end integration and doesn't feature aero profile handlebars.

Instead, you'll notice that Horner's drops are an unsual shape and these are from Trek's own component brand Bontrager - the Bontrager RL anatomic bar, which are ergonomically shaped to enhance comfort.

Bontrager also supplied the stems, seatpost and saddle.

Another interesting feature is that Horner attached his race number inside the front triangle rather than on the seat tube where we would ordinarily see it, which was perhaps thought to mitigate some of the aerodynamic disadvantages.

> Best road bike wheels

The wheels are also from Bontrager, and you'll either love or hate the white spokes!

Horner used the Aeolus D3 tubular wheels in a choice of 35, 50, 70 and 90mm deep, combined with Schwalbe Ultremo HT tubular tyres with a claimed weight of 250g.

Tubular wheels are now largely a thing of the past in the pro peloton with the rise of tubeless setups, but tubular setups are still often lighter than tubeless.

> Have we witnessed the death of tubular tyres?

The groupset of choice was Shimano's latest version of its electronic groupset at the time, Dura-Ace Di2 9070 11-speed.

It had a much cleaner design than the previous version of Dura-Ace, with noticably more compact derailleurs, and the battery could be slipped inside the seatpost rather than hanging off the bottom of the downtube.

Finally, SRM supplied the crank-based power meters, which still have a reputation for being some of the best power meters even today.
