Aero for the masses? Body Rocket's system offers cyclists real-time drag measurements without a wind tunnel

We take a closer look at the on-board aero tech that gives you real-time drag readings out on the road

Aero data tech developer Body Rocket has designed a device that provides real-time drag measurement for cyclists. The three-part sensor system can be attached to the bike for live "wind tunnel accurate" data. Body Rocket says that this brings aerodynamic measurement to the masses and empowers riders to be in control of their own CdA (coefficient of aerodynamic drag) through their body position.

We spoke to Body Rocket founder Eric DeGolier—a design engineer who has previously worked for Trek Bicycles, PowerTap and CycleOps—to find out more about the innovative aero measuring device.

“Power readings were available in the 1980s by going to the lab and hopping onto a Monark ergometer, but it didn’t become a powerful metric until you could gather it all the time. We want to do the same with real-time drag force measurements,” DeGolier explains.

“What we have done is looked at how wind tunnels work and put together a system that in essence replicates what is going on in a wind tunnel but in a real-world setting.

“When we were designing this, we had to look at the real problem here. The problem is that the rider is very different from what a wind tunnel is designed for—we are all shaped differently and change when we are riding.”

Is this going to be as big a game-changer as the arrival of off-the-shelf power meters? Body Rocket certainly thinks so…

2021 Body Rocket 3

Why do we want real-time aero measurements?

Your body accounts for a huge proportion of total system (rider plus bike/equipment) drag—Body Rocket reckons about 80%—and this device gives you CdA readings in real-time so you can see how your body position affects that figure. In short, the idea is that it measures how efficient you are aerodynamically, and allows you to make changes based on that.

This is an untapped metric where significant improvements can be made for performance gains, because, let’s be realistic, even if you know what your perfect aero position is, are you holding it for the duration of your event?

Body Rocket says that its technology provides an accurate picture of your body’s drag with data constantly collected over a period of time in a range of different wind conditions. The drag measuring metric, CdA, recorded by Body Rocket’s on-board sensors, can be seen live as you ride, as well as afterwards for analysis. All other things being equal, the lower the CdA number, the faster you will go.

This data can be analysed against the length of the ride to reveal fatigue in holding a position, for example, or against the elevation profile to determine if improvements can be made when the road ramps up or slopes down.

> Why riders like you need to get more aero and wheel weight doesn't matter

DeGolier says: “If you’re making changes to your body and equipment, such as a skinsuit or helmet, this will be measured and be quantifiable in the same way that they would be in a wind tunnel.

“But it will be over the course of a ride so you look at changes and understand if your position is shifting because fatigue is setting in, or if you need a different balance between your power output and your aerodynamics because you are on a hilly course instead of a flat course.”

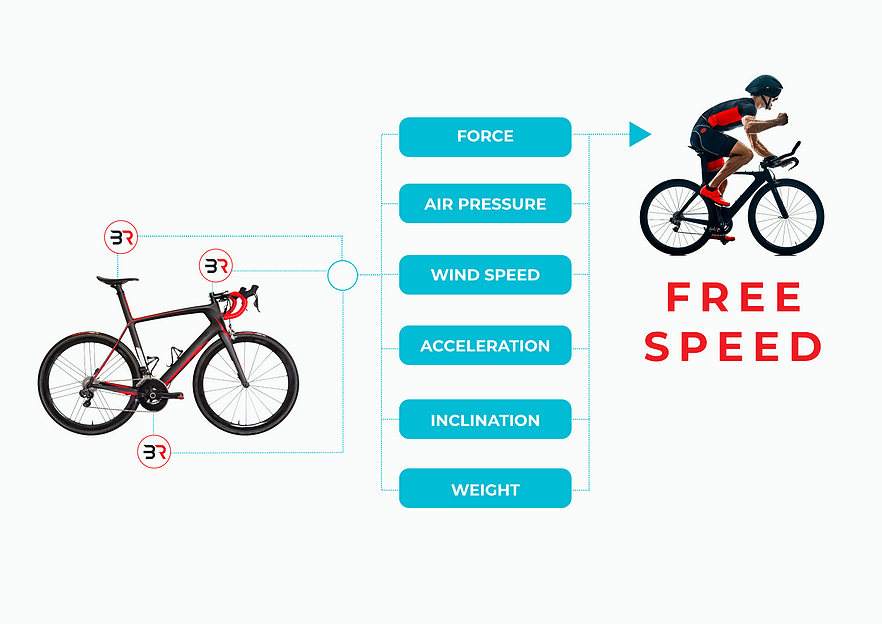

2021 Body Rocket explainer

Being able to have instant readings displayed as you ride enables you to experiment and discover a position that produces a low reading, and gives you confidence in the value of holding that (probably slightly burning) tuck on the bike.

With data highlighting any upper body weakness in holding an aerodynamic position across the full duration of your event, doing core body strength training on the side can be quantified with real improvements in your CdA numbers on the bike. Without this the two types of training can seem worlds apart, and therefore arm day is more easily neglected.

How accurate is Body Rocket’s onboard aero tech compared with a wind tunnel?

Body Rocket says that its patented aero system directly measures drag force, which is what differentiates it from competitors and makes this technology an exciting development.

DeGolier says: “The alternative systems on the market use a method called Virtual Elevation which takes your power numbers and from there you know how much energy you are putting out. It has to make some estimates about all the other energy losses in the system. That’s rolling resistance and drive train losses. It also assumes that your body weight stays constant, but this does vary over the course of a long event. Only when getting all those guesses right, what is left is your correct CdA.

> Using the Velocomp AeroPod: does the device that promises drag measurement on the fly deliver?

“We are isolating the rider from the bike and looking at just the body,” DeGolier says.

Body Rocket says this is how rolling resistance and drive train friction are completely removed from the equation.

Body Rocket completed its testing in collaboration with the University of Southampton and its wind tunnel to determine the accuracy of its device.

DeGolier says: “As we are doing the same type of measurement, the actual direct measurement of force, this is the only type of device that you can take into a wind tunnel and measure directly against it.

"Other devices rely on back-calculating from a power measurement, and since power is entirely unrelated to wind speed in a wind tunnel all they can do is check to make sure their wind speed measurement equals the wind tunnel.

“Over the range of different positions we tested with our device, the average variation between the wind tunnel testing and the results of our device was 0.3%.”

How do the sensors work?

Each sensor in the Body Rocket system is measuring both horizontal and vertical force.

Starting with the vertical measurement, DeGolier explains: “The sum of vertical forces from all of the sensors is equal to your weight. Think of it like putting one foot on each of two different bathroom scales. You can change what each scale is reading by shifting your weight back and forth but the two will always add up to your total weight.”

He adds that the same principle is applied to the horizontal forces, but with a slight difference.

“When you’re just sitting on your bike, or pedalling on a turbo for example, all the horizontal forces sum to zero. It’s only when you add an external force, like someone pushing on you or blowing a fan across you (and creating a drag force), that the horizontal measurements add up to something other than zero. On a flat road that’s a direct measure of your drag force."

DeGolier says: “We’re taking advantage of the physics principle that for every force there is an equal and opposite force.

“Another way to think of it is to say we’re measuring how hard your bike is pushing you through the wind, which is exactly equal to how hard the wind is pushing on you (i.e. your drag force).”

With virtual elevation methods, which other devices use, DeGolier says that it’s necessary to solve this equation:

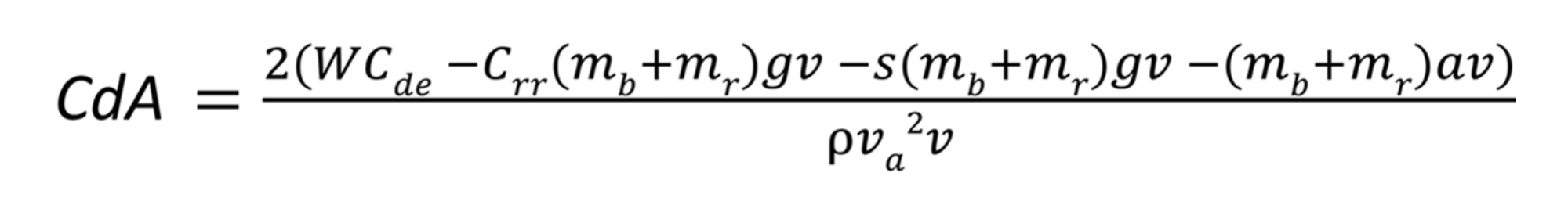

2021 Body Rocket equation 1

CdA Coefficient of drag
W Watts (as measured by a power meter)
Cde Coefficient of drivetrain efficiency
Crr Coefficient of rolling resistance
mb Mass of bike
mr Mass of rider
g Gravity
v Velocity of bike
s Slope
a Acceleration
ρ Air density
va Velocity of wind relative to bike

He explains: “With virtual elevation methods you start with a measure from a power meter and need to make guesses for coefficient of rolling resistance (Crr), coefficient of drivetrain efficiency (Cde), and mass of rider (Mr).

DeGolier says that the mass of the rider can change during a ride and drivetrain efficiency can vary by up to 5% of total power use and is affected by things like the gear combination, the power being transferred, wear over time and the cleanliness of the system. Similarly, rolling resistance can vary by up to 10% and is affected by the choice of tyre, inflation pressure, wear and the road surface.

"This can be mitigated by choosing a test course with consistent pavement surface, careful attention to inflation pressure, and test protocols that vary in speed enough to separate the linear response of rolling resistance from the exponential response of wind velocity, but doing so limits the devices to testing scenarios and significantly increases the time required to get results," says DeGolier.

“But by directly measuring drag force we don’t need to monitor power, we can simply calculate the equation below, where we have a direct measurement for each variable.”

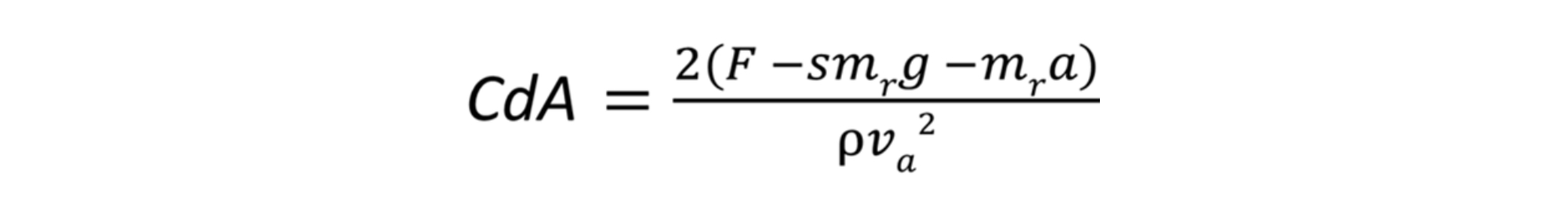

2021 Body Rocket equation 2

F is the horizontal force measured by a direct force drag meter.

Will there be any help interpreting this new metric?

This data is presented to you in real-time and is available after you finish your session for further scrutiny, but how can it be fully understood and used?

Body Rocket says the device works like buying an off-the-shelf power meter in that it won’t come complete with advice. But the brand admits that as aerodynamics is a pretty unknown area of expertise for many, it will branch out to provide some assistance in the form of training up aerodynamic specialists.

“Eventually we want to provide a coaching academy to train coaches to understand the nuances of aerodynamics so they can work with athletes to improve those numbers,” says Body Rocket Head of Marketing Amy Kilpin.

In the short term, the device will allow you to experiment with your riding position and find what works and what doesn’t.

How easy is it to use?

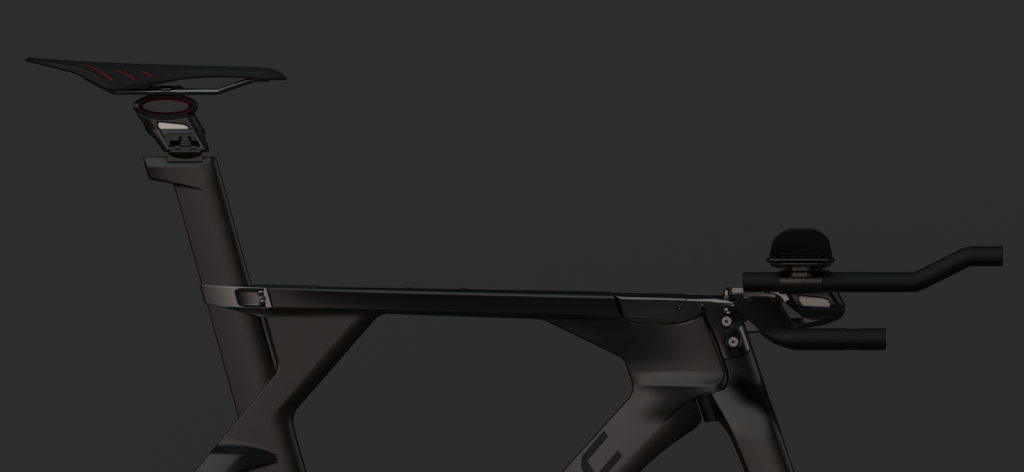

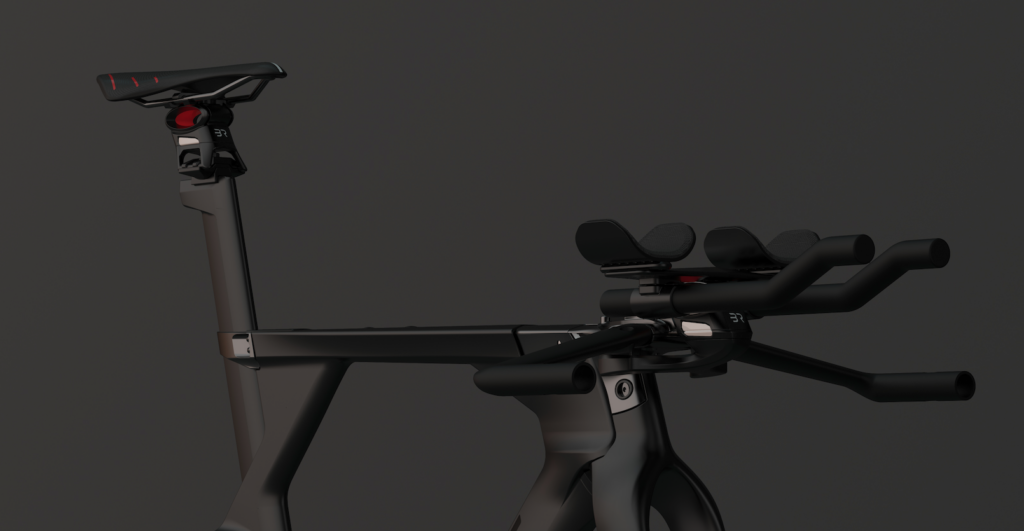

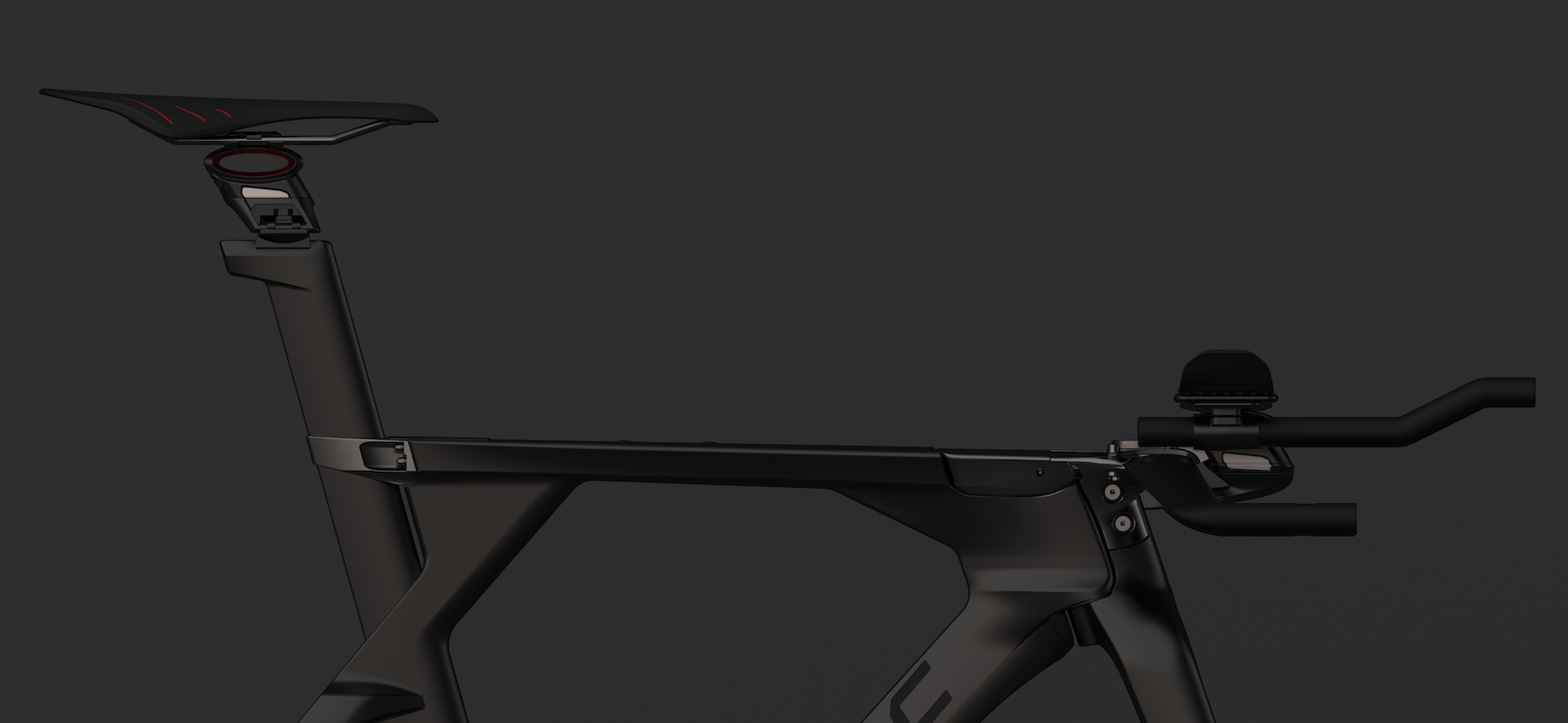

Body Rocket’s full system consists of three sensors: one underneath the saddle, the other a standard stem fitting, and the final one being integrated into specific pedals – for which Body Rocket are also developing their own proprietary power pedal technology.

2021 Body Rocket

These sensors connect with Garmin computers (thanks to the Connect IQ system) to provide feedback on your real-time aerodynamic position on the bike. Body Rocket is in discussion with other cycle computer manufacturers to support its sensors so that aerodynamic data can be displayed on all head units.

The Body Rocket system will have to be calibrated each ride, as you would with a power meter. With a background in power meters himself, working with PowerTap in the early 2000s, DeGolier asserted: “The technology is very, very similar underneath it.”

Will readings be comparable from one ride to the next? “Yes, that’s our expectation,” DeGolier says. “We still need to prove that part out, but we have every reason to believe that we would have absolute and comparable numbers.”

First expected to roll out as an aftermarket product (not integrated on to a complete bike), the three-part system can be in theory be swapped between different bikes.

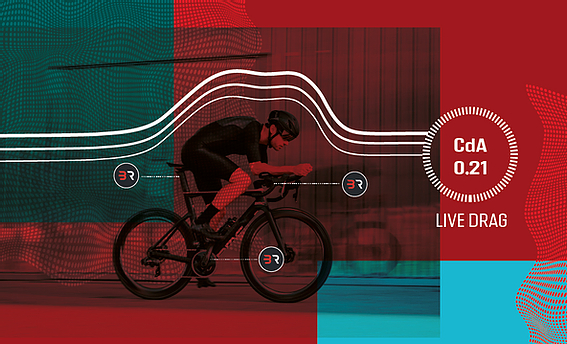

2021 Body Rocket explainer 2

“There may be some subtle offsets between bikes because of the way the air interacts,” DeGolier says, “You’d have to reset your baseline when the device is swapped between bikes.”

How else can the product be used?

As well as selling the device directly to consumers, Kilpin added: “We aim to offer licensing opportunities for bike manufacturers who want to integrate the Body Rocket system into their models to sell as a complete package.

“Along the same lines, a company developing aerodynamics products can license the technology to conduct their own testing.”

Yorkshire based clothing brand Dessus has already made use of Body Rocket’s technology to test the aero claims of its new Aero.21 zipless jersey out on the road, as we reported earlier this month.

2021 Dessus Aero.21 Jersey Nero(1)

“The thinking behind using this tech rather than a traditional wind tunnel is that if kit is designed to be raced on the road then it should be tested as such; races are won and lost on the road,” Dessus says.

When is it arriving?

The Body Rocket system is expected to come to market towards the end of this year, after hitting a hurdle in 2020.

DeGolier said: “When we went into the wind tunnel we had developed the full system, but unfortunately the sensor in the pedals wasn’t capable of accurately tracking the angle that your foot is at—which is very important for our measurements.

“We ended up using an external vision system to track this and we calculated the total drag forces from that. But this would obviously keep us from ever going out into the real world, so most of 2020 was spent redesigning the technology at the pedals.

“Now we have the revised pedals installed on the bike we are going through the final steps of integrating this into our data and validating it in the lab setting.”

From here, Body Rocket plans to refine and perfect the accuracy of its device on BMC bikes, with outdoor testing taking place at Preston Park velodrome near the Brighton coast.

> BMC partner with real-time aero data tech developers Body Rocket

Roads have inclines and descents, and with this aerodynamic drag alters, and so inclinations have to be taken into account in the brand’s testing for a precise end product.

The Sussex track has undulations which are said to make it a perfect testing environment.

“Conducting all of our testing on BMC bikes creates consistency and effective testing, and forging this partnership can also help us integrate the technology in the future,” Kilpin notes.

2021 Body Rocket BMC

Body Rocket will make it possible to get drag data out on the road, but it will come at a premium when it launches. £1499 to 1999 is the envisaged unit price, although a power meter will be included.

When you're making your buying decisions, you might be tempted to go for something substantial and aesthetically pleasing, like some deep-section wheels, over a virtually hidden aero device, but Body Rocket hope that the potential performance gains will win you over.

Would you be willing to pay for CdA measurement or do you reckon you’d still be tempted to splash the cash on aero bling instead? Let us know in the comments below...
