The future of going fast? Why live drag sensors might be cycling's next big tech craze

Lidl-Trek riders have started using live streaming aero sensors, so does that mean the rest of us will soon be using them too? We've got our hands on one to judge for ourselves

In the last few decades, the abundance of data via power meters and cycling computers has changed the face of both professional and amateur cycling. As the data we can glean from tech such as GPS, heart rate monitors and power meters plateaus, could live-streaming aero sensors be the next revolution in road cycling? We've got our hands on one to find out what the World Tour's latest toy is all about...

2024 Classic SRM power meter

> Best power meters

In 1994 the US National team was the first in history to have all their riders kitted out with power meters at the Tour de Pont. Fast forward thirty years and you'll be hard-pressed to find a single pro in the peloton who isn't racing and training to carefully curated wattage targets.

Of course, it's not just the pros that fit these devices to their bikes. You can now pick one up for less than £300, with the more affordable pricing meaning that power meters have arguably changed the face of cycling for pros and amateurs alike.

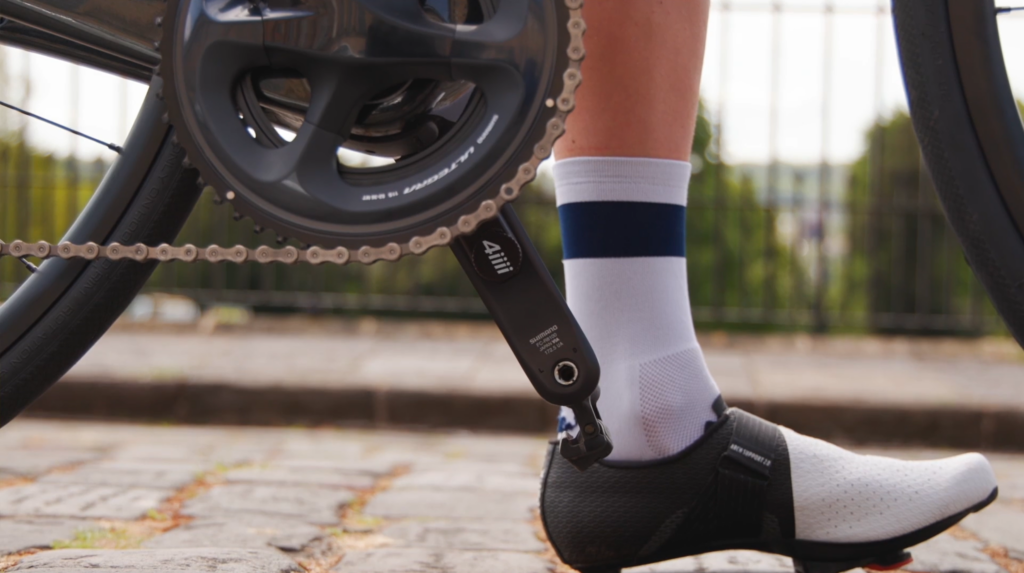

2023 4iiii Precision 3 fitted Ultegra power meter

> Where are they now? The best, worst and wackiest cycling crowdfunders

But what's the next bit of revolutionary cycling tech going to be? Well, in recent months we've seen multiple attempts, prototypes and noise surrounding drag measuring devices. This tech makes power meters look like antiques!

Could this be the future of going fast? Or is this just another promising cycling idea that will never catch on

What is an aero sensor?

Body Rocket prototype road bike 4

> Body Rocket expands its real-time drag measuring system to road bikes

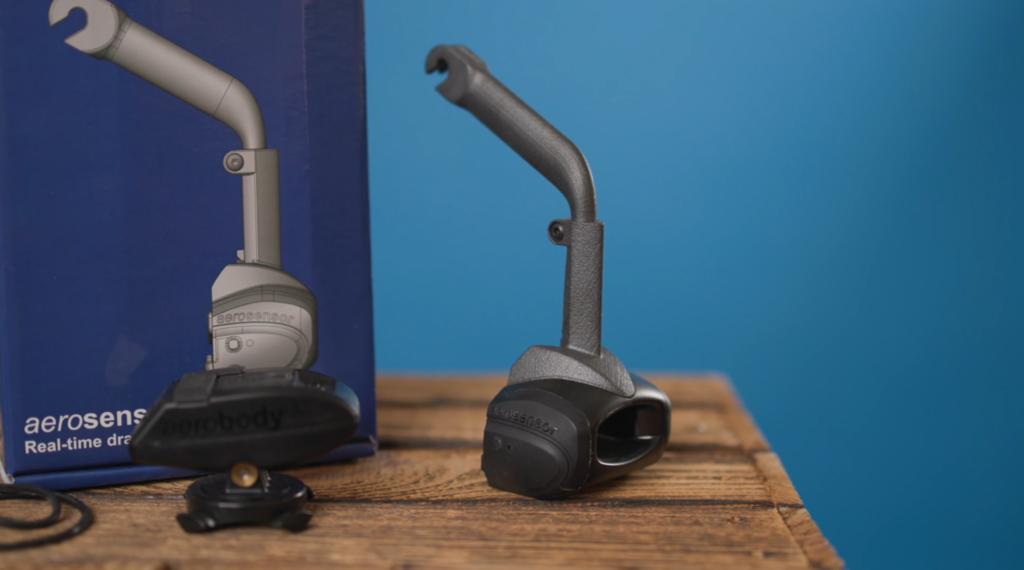

An aero sensor or live drag meter such as the Body Rocket system (fitted to the bike above) or this 'Aerosensor' (below) that I've been using will measure your CdA (Coefficient of drag) in real-time. It's tech that has previously been used on planes and F1 cars, but now teams like Lidl-Trek are using it in an attempt to make cyclists faster.

2024 AeroSensor drag device studio

Over the last few months, I've been putting the miles in to see if this little sensor is any good, how it works and predict whether in 10 years' time, we're all going to be using one. It's worth noting here that this article isn't a full review of the Aerosensor product itself (that will be coming soon), but rather a dive into whether drag measuring devices have the potential to become mainstream.

Why might you want to measure your drag?

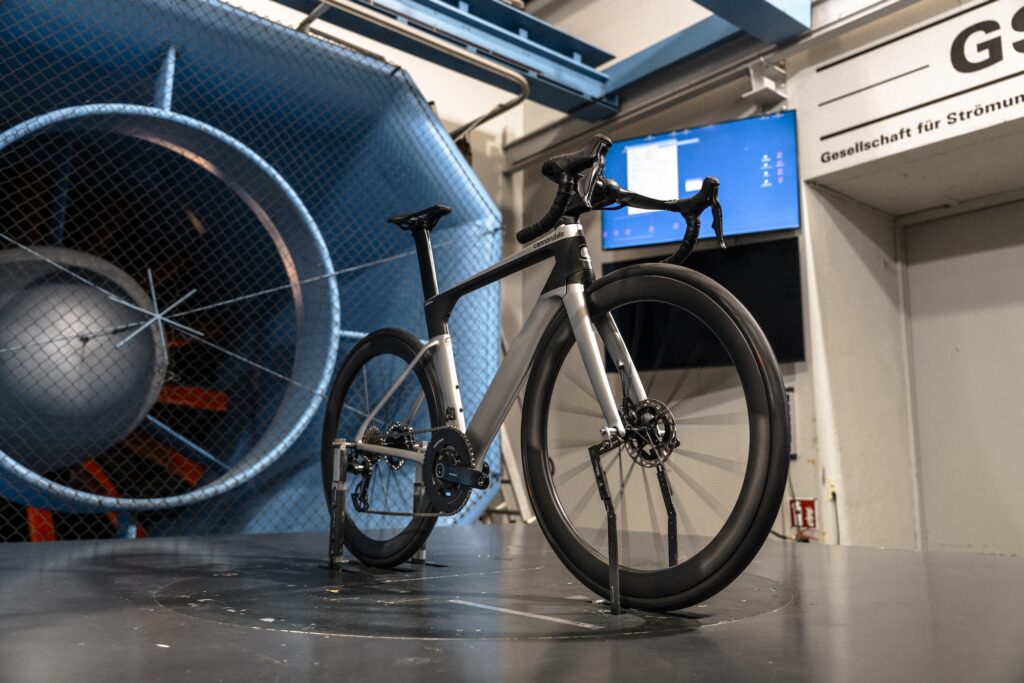

2024 Hunt SUB50 Limitless wind tunnel - 1

Somewhat competitive cyclists (myself included) are always banging on about aerodynamics - it wasn't so long ago that "aero is everything" was Specialized’s phrase for all occasions. The dark art of taming the wind now shapes the clothes we wear, the bikes we ride, the helmets on our heads and even how we ride.

All of this is for very good reason. Drag is, in nearly all cases, by far the biggest force impeding our forward motion. On a flat road, there's only two main things slowing you down: your tyre rolling resistance from an area the size of about a two pence coin, and the air that you're trying to travel through. Maybe we should be paying even more attention to how slippery we are...

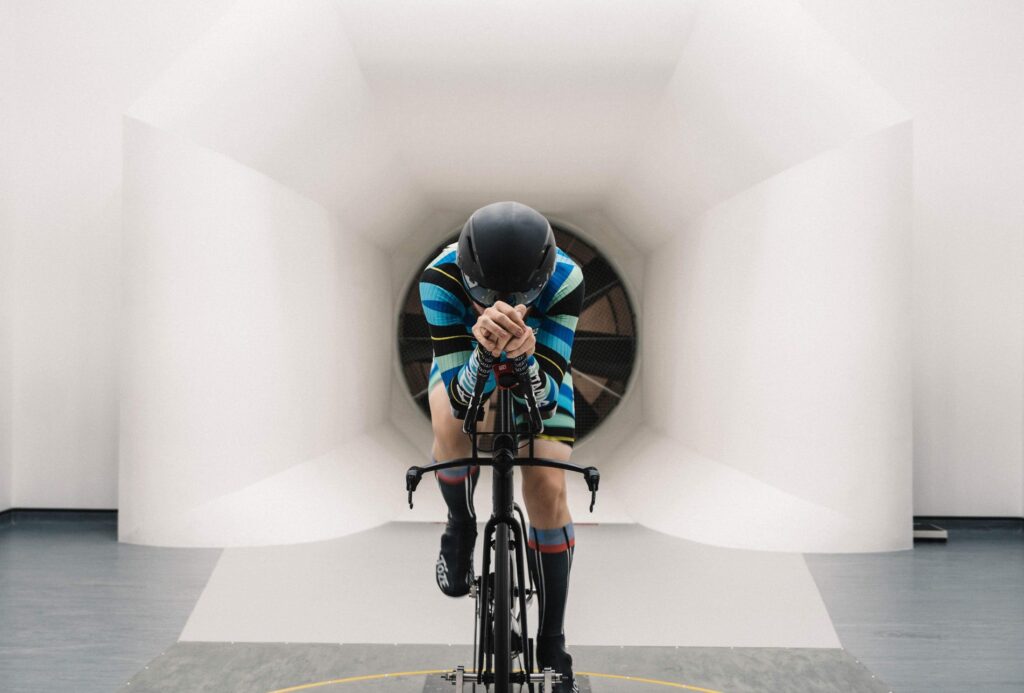

wind tunnel - via aerocoach

> Why riders like you need to get more aero

And yet, while it's now possible to measure power output, heart rate, the glucose in your blood, core body temperature and all manner of other nerdy stats, up until now I haven't had the foggiest idea of how aero I am.

Why might you buy an Aerosensor and how does it work?

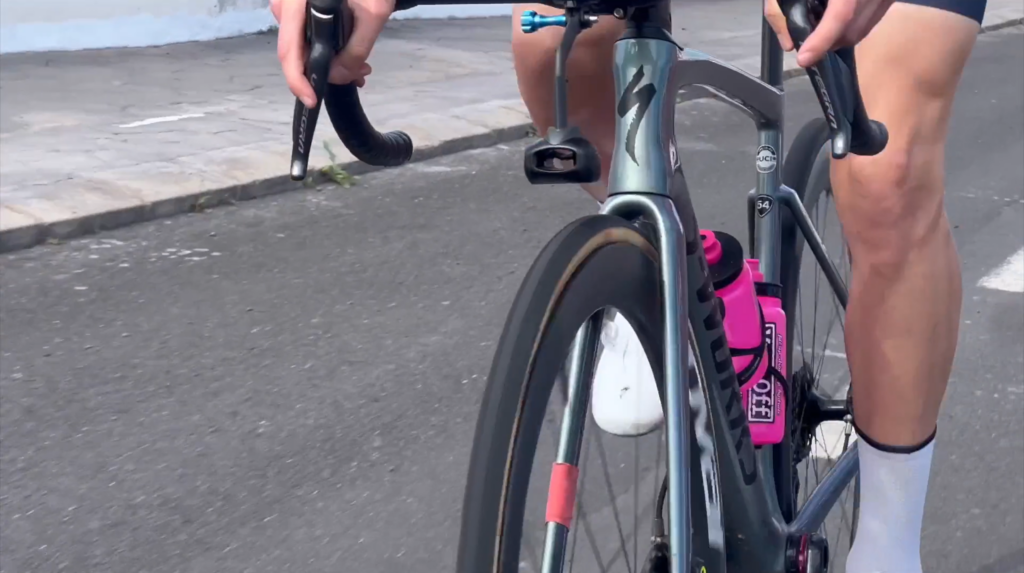

2024 AeroSensor drag device ride testing 2

This is where the Aerosensor comes in, with its claims to give me a live drag number without the need to spend a fortune on a wind tunnel session.

It combines data from an ANT+ speed sensor and power meter (dual-sided preferred) with its own measurements of altitude and wind conditions to calculate my CdA. The idea is that if I then change my body position or equipment, then it takes the guesswork out of whether I've improved my aerodynamics or given myself an even bigger problem.

What's in the box?

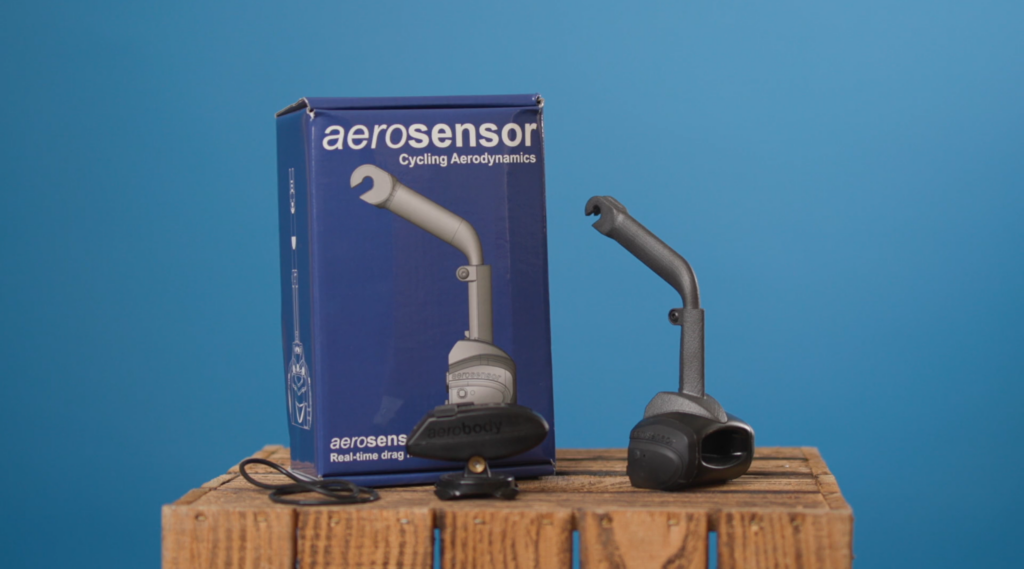

On test, I have what Aerosensor call the ACS Body Package, made up of an aero drag measuring device that sits under my bars on a GoPro-style mount. There's also a body position sensor that sits on a quarter-turn mount on my stem.

2024 AeroSensor drag device box contents

You can buy them separately, but I think to get the most out of it you will require both as around 80% of your drag is your body. Even a small change here can have a far bigger effect than just about anything you could ever do to your bike.

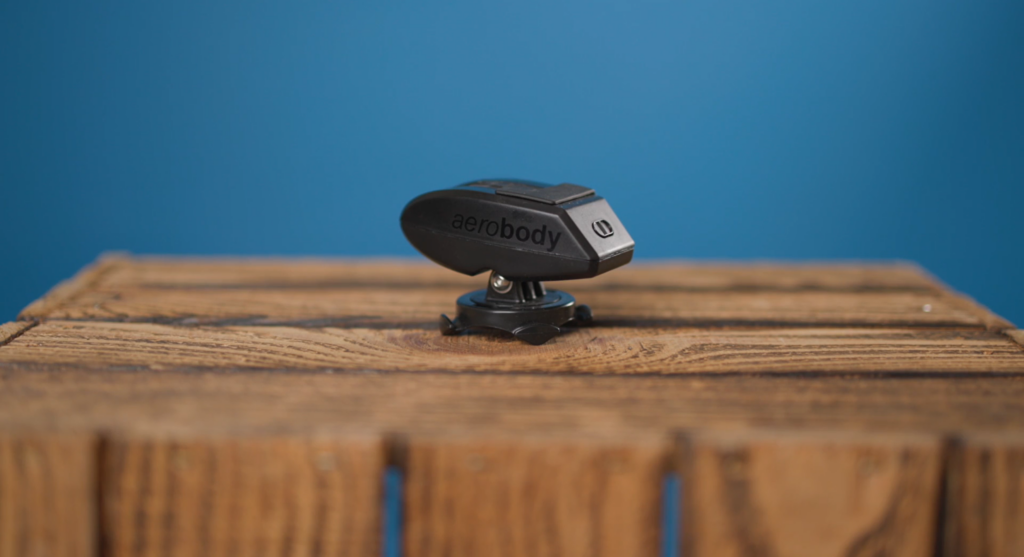

The body position monitor (below) uses optical sensors to measure your head and shoulder position relative to the stem, and claims to be accurate to 1mm. It then live streams this position to my Garmin computer via a Garmin IQ app, and once I've set a target or optimum position it will then change colour if I deviate from that.

2024 AeroSensor drag device body position sensor

The good thing is that you can use all this kit on your local roads. You don't need a velodrome, although if you do happen to have one of them near you then Aerosensor makes another bit of kit specifically for that.

Oh, and if you're wondering whether the rather flimsy-looking 3D-printed mount broke... no, although I was worried it might!

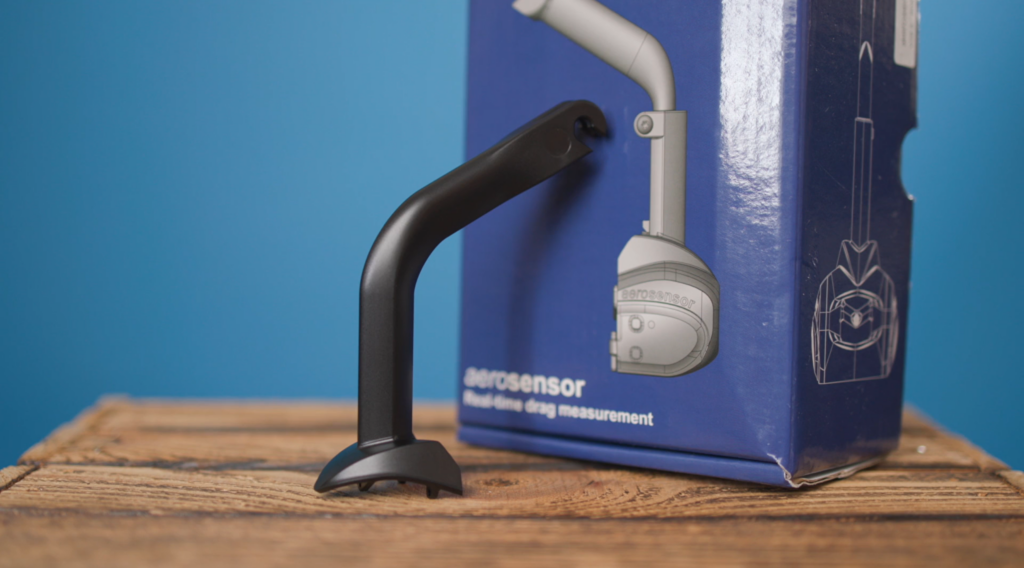

2024 AeroSensor drag device new mount

Aerosensor has already taken this on board and sent me a much more robust injection moulded one (above) which now comes as standard.

First ride and pairing

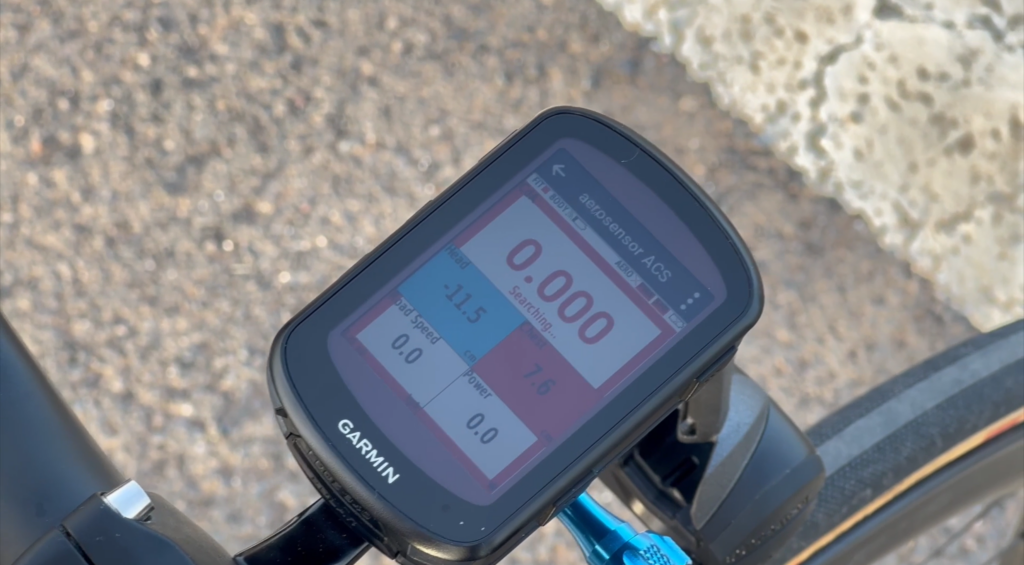

So, after downloading the IQ apps onto my Garmin, one for the body position sensor and one for the drag sensor, I now get live figures as I ride. I can then see all that data in my FIT files at the end for further analysis in some software called Aerotune.

2024 AeroSensor drag device Garmin CdA drag

> Review: Garmin Edge 840 Solar

In the case of the Aero sensor, if you're a Wahoo or any other cycling computer brand user then I'm afraid you're going to have to wait a bit longer. I guess that's the downside of not being able to get user-generated apps, but I'm sure as this technology matures we won't be limited to using it on a limited number of devices.

My Garmin now has some new colours to look at! The one on the left is my head position relative to the stem, and the right one is my chest position. If I'm too low, i.e. an unsustainable position, then it goes blue. If it's white I'm at the optimum that I've set beforehand, and it's red when I get lazy and sit up.

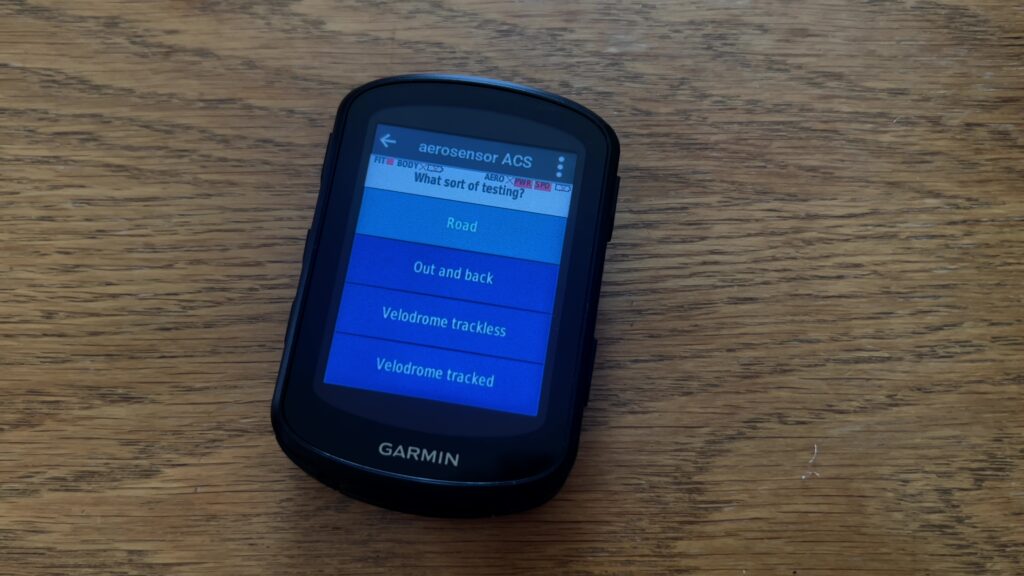

2024 Aerosensor Garmin display setting selection

> Has aero gone too far?

I've been using the freeride and out-and-back testing functions, but there is also modes for if you're doing laps of a circuit, such as a velodrome.

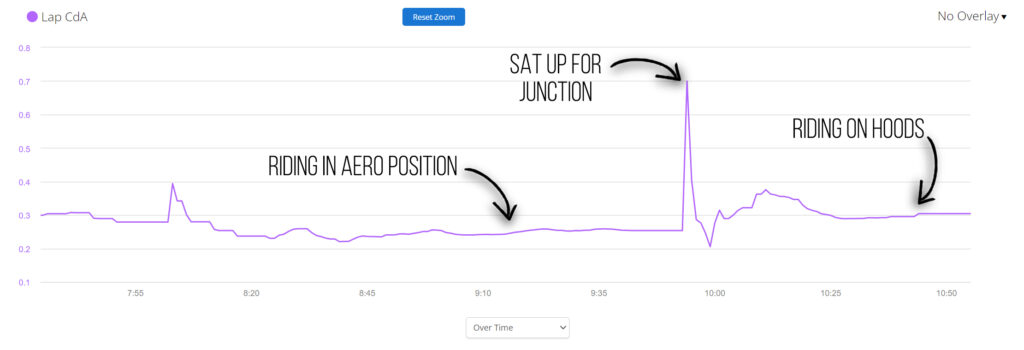

To be honest, the CdA number changes so quickly when riding that it's near impossible to figure out how aero you are; but as soon as you analyse it, you can quickly draw averages for laps, segments and the whole ride.

2024 Aerosensor results graph

The set-up does take some effort, because you have to do some test runs and then manually change a load of parameters on your Garmin.

Results

Alexsandr Vlasov Giro d'Italia 2023 Specialized TT5 head sock (Zac Williams/SWpix.com)

> Is Jonas Vingegaard’s latest time trial helmet one step too far?

According to MyWindsock: "Time trialists can aim to have a CdA below 0.2, however, this is by no means the average which is closer to 0.22-0.23. A road bike racer can be as low as 0.24 but the average is closer to 0.27. A regular road bike and standard helmet in the summer is likely to be 0.3-0.32, however, in the winter this can be much higher.

"A performance cyclist should pay continuous attention to their aerodynamic efficiency. So whatever your current CdA you should attempt to lower it. It is in most cases more important than losing weight, although losing weight is also a good way to reduce your drag."

2023 Specialized Tarmac SL7 Jamie riding shot 2 expensive vs cheap speed test

So what was my CdA? Well, on average across my runs I averaged a CdA of 0.275... I'll take that! This is likely helped by the fact that I was wearing a well-fitting aero kit, an aero helmet (the Specialized Evade 2), aero socks, ran an aero cockpit and even shaved my legs for the occasion.

Ed meanwhile clocked a CdA of 0.287, a result I reminded him of on every subsequent ride right up until I realised that he's several inches taller than me and set the result using shallower wheels. Still, a win's a win...

2023 Lanza Ed road.cc kit

It should be noted that neither of us has been to a wind tunnel to validate these results, but perhaps more importantly the figures did appear to be repeatable on multiple attempts and on different days, as long as you invest a significant amount of time in setting up the parameters.

I'm therefore confident that you could indeed use the Aerosensor to measure the effect that different setups and positions will have on your CdA/drag. Once I'd got the hang of inputting all the parameters correctly, nearly every attempted test resulted in believable figures while on a training camp, but I did find it far harder to use back at home.

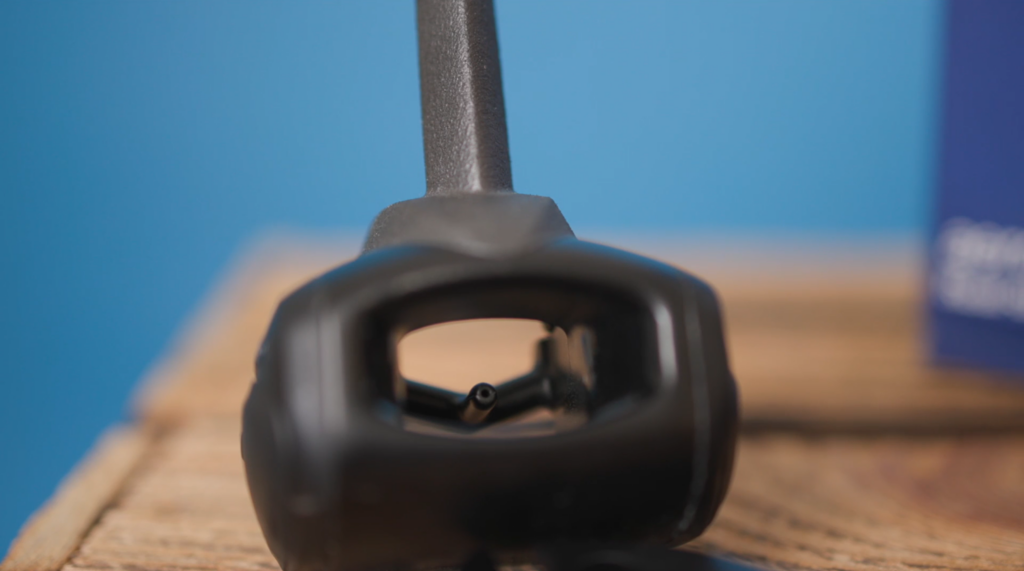

2024 AeroSensor drag device pitot tube

> Are expensive carbon wheels worth it?

The first issue is that you can't use it in wet conditions, which during the UK winter just gone has seemingly been just about every day. Second is traffic. We've found that a car going past or coming in the other direction will completely screw up the results, so it's best to find quiet, flat roads, which takes some searching here on the outskirts of Bath.

Is this the future or just another gimmick?

So, is this the future? Well... yes and no. It's certainly very clever and I've certainly learnt a few things that will hopefully make me faster. I'm also looking forward to using this to once and for all see which of my wheels are the fastest (stay tuned for lots more aero testing articles and videos). The bad news is that this kit that I've been using has an RRP of £1,215, cash that most of us don't have down the back of the sofa…

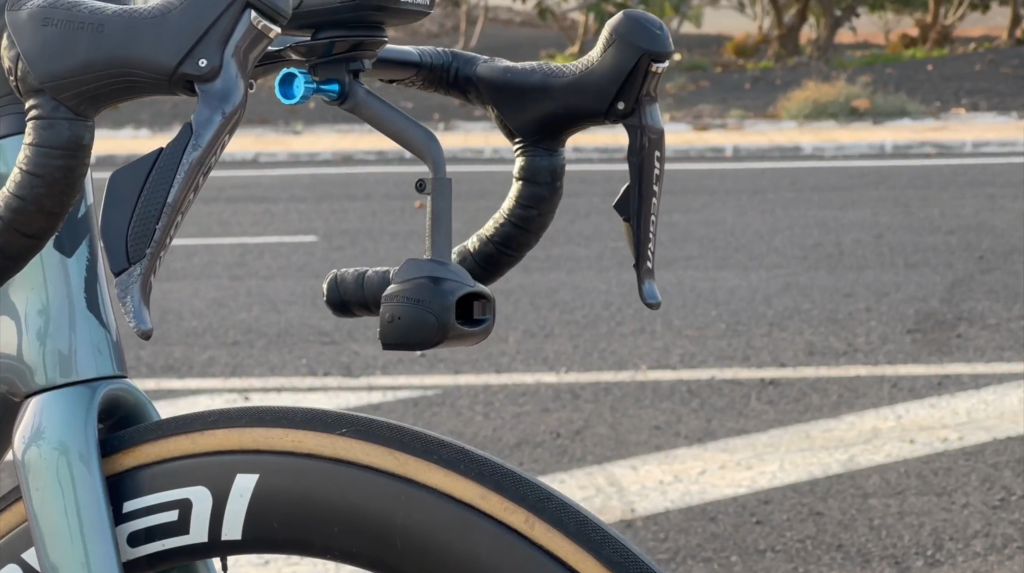

2024 AeroSensor drag device fitted to bike

Of course this is tech that is very much still in its infancy, and so it will likely come down in price in the future. I highly doubt that anyone thought $4,000 dollars was a bargain when the first SRM power meter hit the market with that price tag, which would have been astronomical in the 90s.

At the moment the more limiting factor will be the setup and user interface. It is bug-free and reliable, but takes some getting your head around. I'm sure that this will only improve with time, but at the moment aero sensors certainly aren't for technophobes. I'll be diving into this in more detail in the upcoming full review of the Aerosensor.

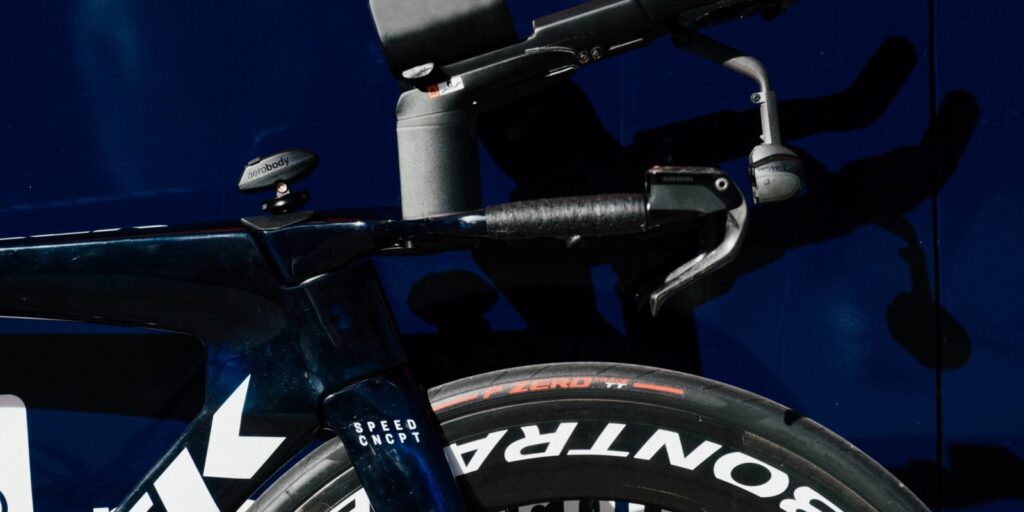

2024 Lidl Trek Aerosensor partnership tt bike

So price aside, is this the future? I certainly think that we'll be seeing a lot more aero sensors and live drag meters very soon, initially being used by more pro teams during training and equipment testing camps, then TT specialists, and then the inevitable trickle-down to performance-driven amateurs. Who knows, maybe one day this kind of tech will be integrated into a cycling computer. That really would be cool...

Let us know your thoughts on this real-time drag-measuring device in the comments below. Would you buy one? Do you think they're the future?

Jamie has been riding bikes since a tender age but really caught the bug for racing and reviewing whilst studying towards a master's in Mechanical engineering at Swansea University. Having graduated, he decided he really quite liked working with bikes and is now a full-time addition to the road.cc team. When not writing about tech news or working on the Youtube channel, you can still find him racing local crits trying to cling on to his cat 2 licence...and missing every break going...
