The vital steps on the road to the modern bicycle

The Design Museum ran an exhibition in 2016 called ‘Cycle Revolution’ that celebrated major steps in cycling technology. But its selections, while unarguably interesting, didn’t really represent the revolutionary stages in the history of the bike. Here are the inventions that truly revolutionised cycling.

The Laufmaschine

Laufmaschine (CC BY-NC-SA 2.0 baerchen57|Flickr).jpg

Laufmaschine (CC BY-NC-SA 2.0 baerchen57|Flickr)

The spark of genius that started it all landed in the head of German inventor Karl Drais in about 1817. (Technically he was Baron Karl Von Drais at the time, but his radical political leanings meant he later dropped the title.)

Europe had had several years of poor harvests, pushing up the cost of oats and making it it prohibitively expensive to keep horses for transport.

Karl Drais (Wikimedia Commons).jpg

Karl Drais (Wikimedia Commons)

Searching for a replacement that didn’t need feeding, Drais hit upon an idea he called the Laufmaschine (running machine), later also known as velocipede, draisine, hobby horse or dandy horse. The rider sat astride a crossbar between two wheels and pushed along the ground to go forwards. It was exactly like a modern kid’s balance bike.

Drais’ genius was in realising — or discovering — that two wheels in a line would not simply fall over if there was a steering mechanism for the front wheel, but would be relatively stable once in motion. To demonstrate his device’s merits, he completed the 15km round trip from Mannheim to Schwetzingen and back in a little over an hour.

Unfortunately, early 19th century roads were too rutted for the Laufmaschine to be practical for any distance, even though Drais had showed it to be quicker than walking on good surfaces. Riders used the sidewalks instead, and governments reacted to pedestrian anger at the influx of fast-moving dandies by banning the machine.



The idea of two-wheeled transport slept for about forty years until the 1860s when bicycles with pedal-driven front wheels appeared in Paris and the Eastern USA. Exactly whose idea this was is still a subject of research among cycling historians but it’s clear that Rene Olivier and his brothers, and a young French mechanic called Pierre Lallement were the among pioneers.

Pedal drive meant the rider didn’t touch the round at all while riding, a phenomenon that amazed contemporary onlookers. With the blacksmith Pierre Michaux as figurehead, the Olivier brothers orchestrated a craze for bicycles in Paris, while American makers of bikes based on Lallement’s design struggled to keep up with demand.

Pedals freed riders from the cumbersome action of pushing along the ground and allowed speeds of 12 mph, and more with larger wheels. A vehicle we’d recognise as a bicycle had arrived.

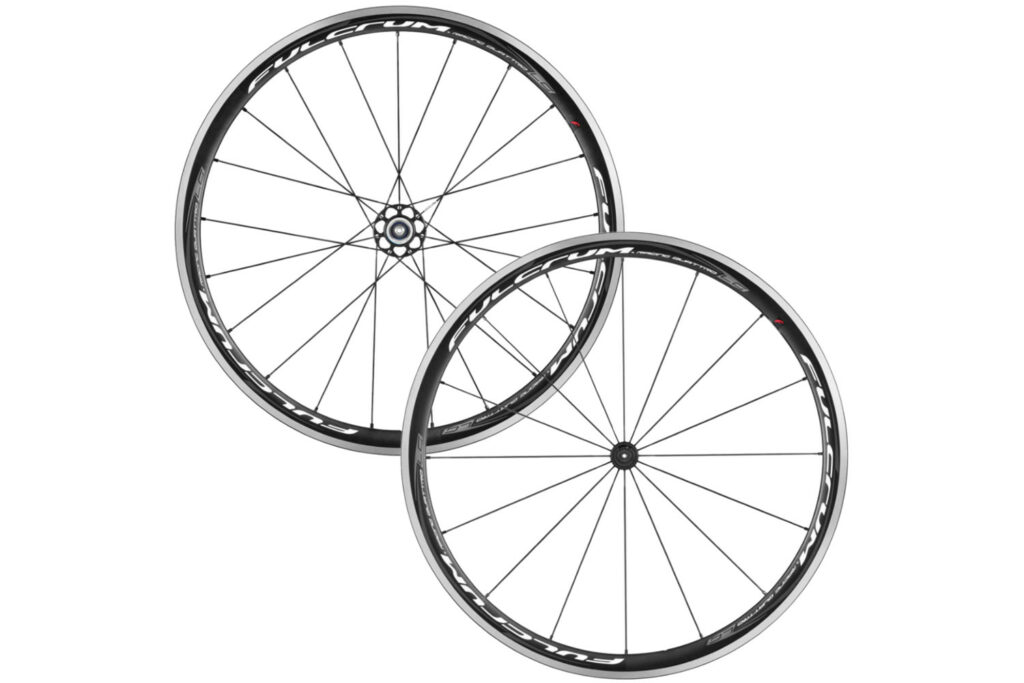

The tension-spoked wheel


Wheels with wire spokes under tension were invented in 1808 by aeronautical engineer George Cayley, but their first successful commercial use was on bicycles, an application for which Eugène Meyer was awarded a patent in 1869.

Wire wheels were substantially lighter than solid-spoked wheels, which made bicycles a compelling application, especially as wheel sizes grew to provide riders with a higher gear for faster riding. As with bearings, chains and high-strength steel, cycling applications drove the development of wheel technology.

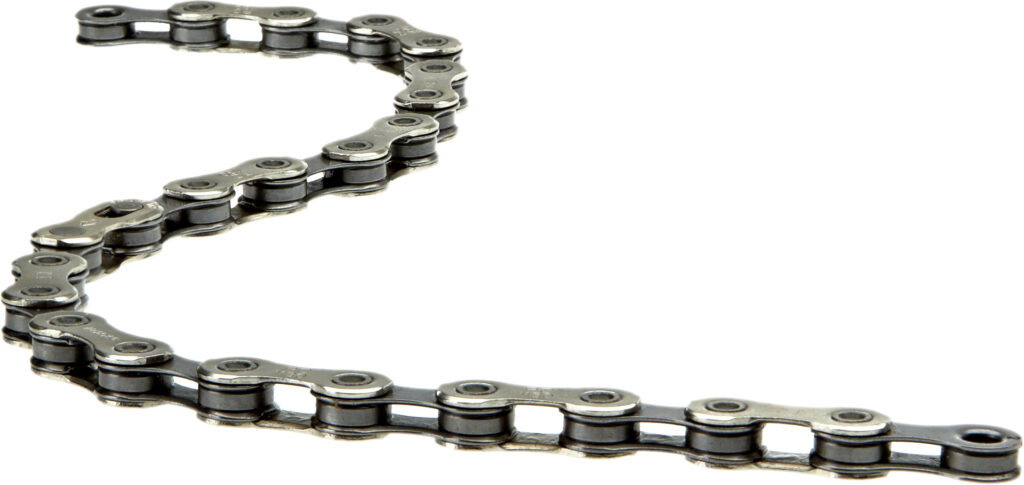

The roller chain

SRAM PC-1130 chain.jpg

The large driven wheels that led to the high-wheeler bikes of the 1870s weren’t the only way of increasing a bike’s gearing. It was obvious that a chain drive and sprockets could do the job too, but early chains were heavy, inefficient and unreliable. The breakthrough came in 1880 with Hans Renold’s invention of the roller chain and improved manufacturing techniques that allowed chains to be mass-produced.

The safety bike

An early ad for the Rover Safety (Wikimedia Commons).jpg

To differentiate them from hazardous high-wheelers, bikes that placed the rider near the ground were called ‘safeties’ and began to appear in the late 1870s. The first truly successful safety, though, was John Kemp Starley’s 1885 Rover safety, which incorporated the essential features of a modern bike: similar-sized, wire-spoked wheels and chain drive to the rear wheel.

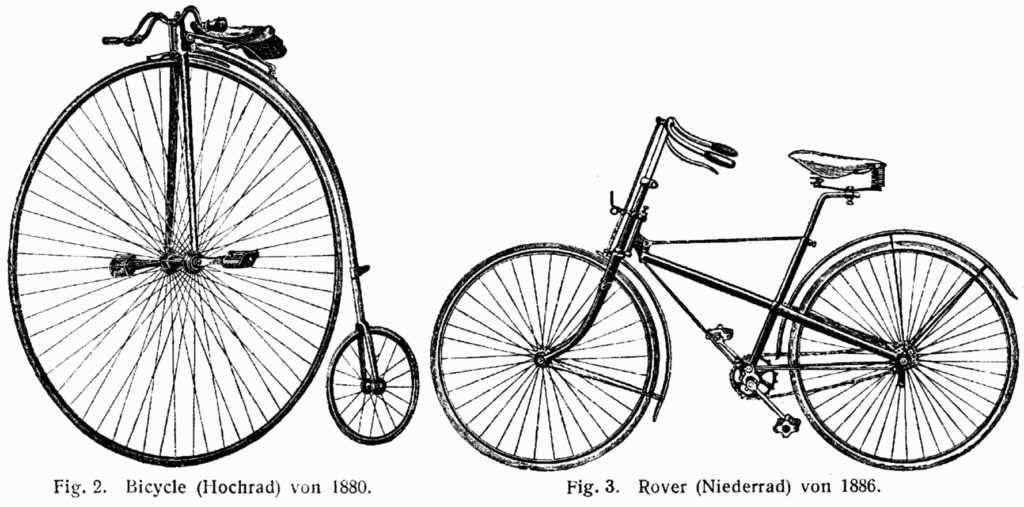

Highwheeler v safety (Wikimedia Commons).png

Highwheeler v safety (Wikimedia Commons)

The safety was a genuine revolution. By reducing the risk of going head-first into the ground if you crashed, the safety allowed everyone to ride a bike, not just the young, brave and athletic.

In time, Starley’s company became Rover Cycle Company Ltd and after Starley’s death branched out into motorbikes and cars. It survives today as Jaguar Land Rover Limited after numerous sales and take-overs.

Pneumatic tyres

Tyre close up for pressure.jpg

Contrary to popular belief, John Boyd Dunlop wasn’t the original inventor of the pneumatic tyre; Robert William Thomson filed a patent in 1845. Dunlop’s application of pneumatic tyres was nevertheless revolutionary even though his lack of a valid patent made it harder for him to exploit the idea.

Tyres had previously been made of solid rubber, giving a harsh ride, a problem that was partly alleviated by the huge wheel of a high-wheeler, but which was severe on safeties. By putting a cushion of air between the road and the rider, Dunlop made the safety comfortable as well as safe. And there was another advantage: pneumatic tyres were lots faster, thanks to their lower rolling resistance. When so-so riders on pneumatics started beating elite racers on solid tyres, racers quickly switched.

Hub gears and the parallelogram derailleur

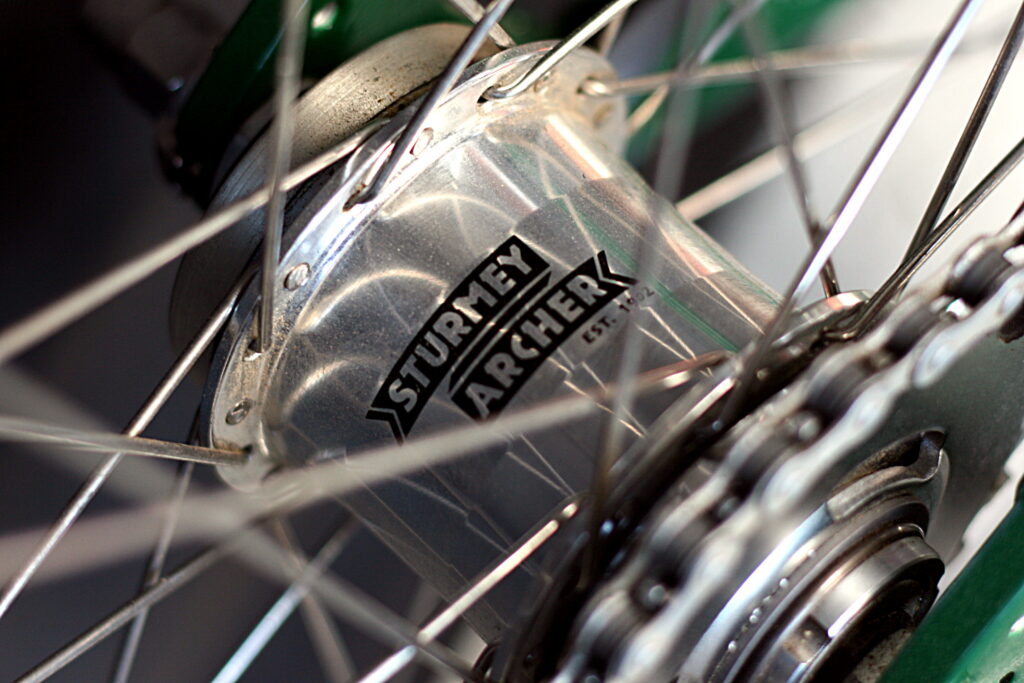

Sturmey-Archer hub (CC BY-SA 2.0 Richard Masoner|Flickr).jpg

Sturmey-Archer hub (CC BY-SA 2.0 Richard Masoner|Flickr)

Two brilliant approaches to the same problem: metering out the human engine’s meagre couple of hundred watts so a rider can get up hills slowly and comfortably on the same bike that speeds along at 20mph on the flat.

Epicyclic gears with interlocking cogs to provide different ratios are at the heart of hub gears. They first appeared on tricycles in the mid-1880s, but they rocketed to popularity after Raleigh head Frank Bowden bought the rights to two different three-speed designs and appointed Henry Sturmey and James Archer to head a division that began to make the Sturmey-Archer three-speed hub in about 1903.

The hub gear was wildly popular in the UK for its simplicity of use and minimal need for maintenance. It provided easier hill-climbing and greater speed on the flat, once again opening up the use of the bicycle to a wider range of people and abilities. With the introduction of the AW hub gear in 1936, Sturmey-Archer enabled the heyday of the classic English three-speed beloved of vicars, policemen, district nurses and factory workers of the era.

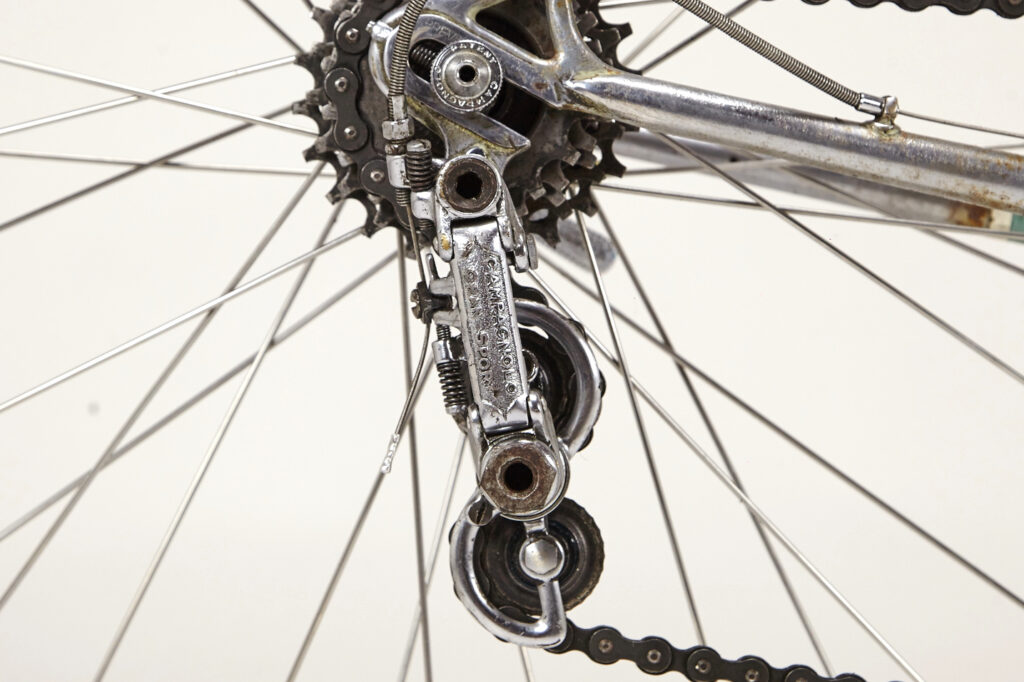

Campagnolo Gran Sport rear derailleur (CC BY-NC 2.0 Officine Sfera|Flickr).jpg

Campagnolo Gran Sport rear derailleur (CC BY-NC 2.0 Officine Sfera|Flickr)

But more adventurous riders wanted more gears and a wider range. French cyclists in particular, faced with the challenge of long and steep Alpine roads, experimented with a huge variety of gear-changing systems. Eventually they settled on the derailleur, a device that literally de-railed the chain between multiple sprockets.

But it took literally decades of development and refinement for the derailleur to reach its modern form. On the way, inventors such as Velocio came up with a huge variety of ingenious contraptions involving cages to shove the chain around, one or two pulleys to take up chain slack, wheels that moved in the dropouts and many, many more.

The first recognisably modern derailleur, with two pulleys on a tension arm and a parallelogram body, was made by Nivex in France in 1938. Another French company, JIC, had a similar design in 1946. Neither company survived. Cycling historian Frank Berto puts that down to the high price of their components, which seem to have been built up to a standard rather than down to a price.

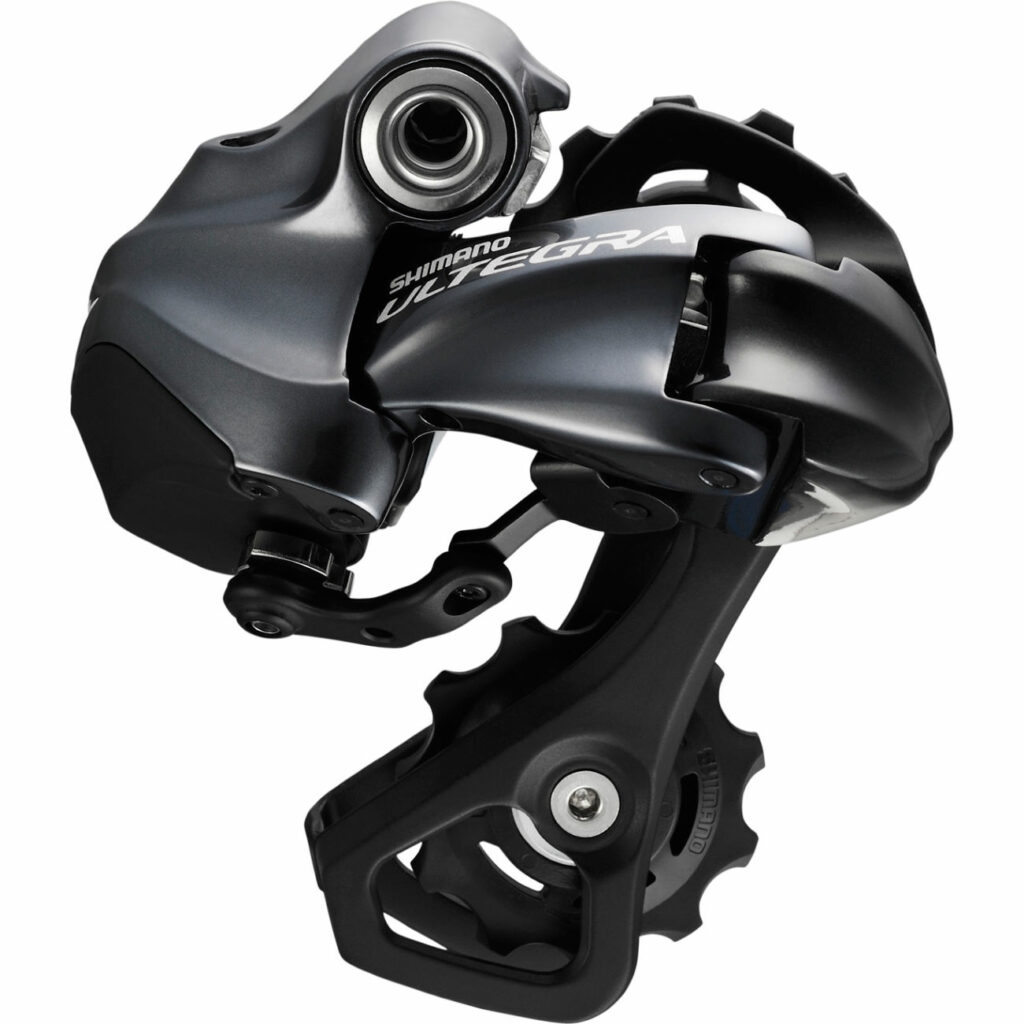

A Shimano Ultegra Di2 rear derailleur, today's descendent of the Gran Sport

Credit for the first commercially successful parallelogram derailleur goes to Tullio Campagnolo, who introduced the Gran Sport derailleur in 1951. Being Campagnoloishly expensive it wasn’t an overnight smash hit, but over the next decade or so copies of the design gradually edged out other derailleurs.

In fact the Gran Sport wasn’t even terribly good compared to the Nivex and others. It came to dominate because of Campagnolo’s prestige and support of racing. The Gran Sport’s main problem was that the top jockey was a long way from the sprockets, so the rider had to overshift and then correct, to allow for the sideways flexibility of the chain.

Nobuo Ozaki of SunTour solved this problem with the slant parallelogram derailleur patented in 1964. When the patent ran out 20 years later, first Shimano then other derailleur manufacturers including Campagnolo adopted it.

The Moulton

Moulton_Standard (Wikimedia Commons).jpg

Moulton Standard (Wikimedia Commons)

Sometimes a bike is revolutionary not for its technical advances but for how it fits the zeitgeist. With its small wheels and novel looks the original Moulton bicycle was as much a part of Britain’s swinging ’60s as the mini-skirt and Mini car.

As they rushed out small-wheeled lookalikes, other bike makers entirely missed the point of the Moulton’s combination of features. Yes, it had small wheels, but they had relatively narrow, high-pressure tyres, a combination that would be uncomfortable but for the Moulton’s rubber suspension.

Rubber was the basis of the Moulton family fortune. Stephen Moulton first brought samples of vulcanized rubber to the UK; his great grandson Alex Moulton designed the rubber-spring suspension system for the Mini car, and then turned his attention to bicycles. The Moulton begat a wave of small-wheeled bikes and changed the look of commuting cycling. Can you imagine the Brompton being as easily accepted if Moulton hadn’t blazed the trail?

Breezer mountain bike

Like so many cycling revolutions, the mountain bike happened because several people and ideas came together at the right time. Gary Fisher provided the marketing nous, Charlie Kelly the spirit and Joe Breeze and Tom Ritchey the frame-building skill. While Tom Ritchey built most of the bikes sold in the early days of Mountain Bikes the company, Joe Breeze meticulously welded the first ten, igniting demand from those who saw them.

Charlie Kelly has written that the first Breeze mountain bike was the most important bike of the 20th century. In a 2014 interview with Velonews, he said: “That bike inspired three or four other people. That was the pebble coming off the top of the hill that became an avalanche, but when you look at the modern mountain bike, working your way upstream, that’s where it hits, with that Breezer bike.”

The mountain bike boom of the ’80s and early ’90s brought a generation back to cycling that might have otherwise abandoned it; opened up the countryside to a new, fun way of exploring; and facilitated urban cycling with pothole-proof bikes that had much better brakes and riding position than road bikes of the day.

Honourable mentions

These are important inventions that shaped cycling — especially sport cycling — but it’s a stretch to call them revolutionary.

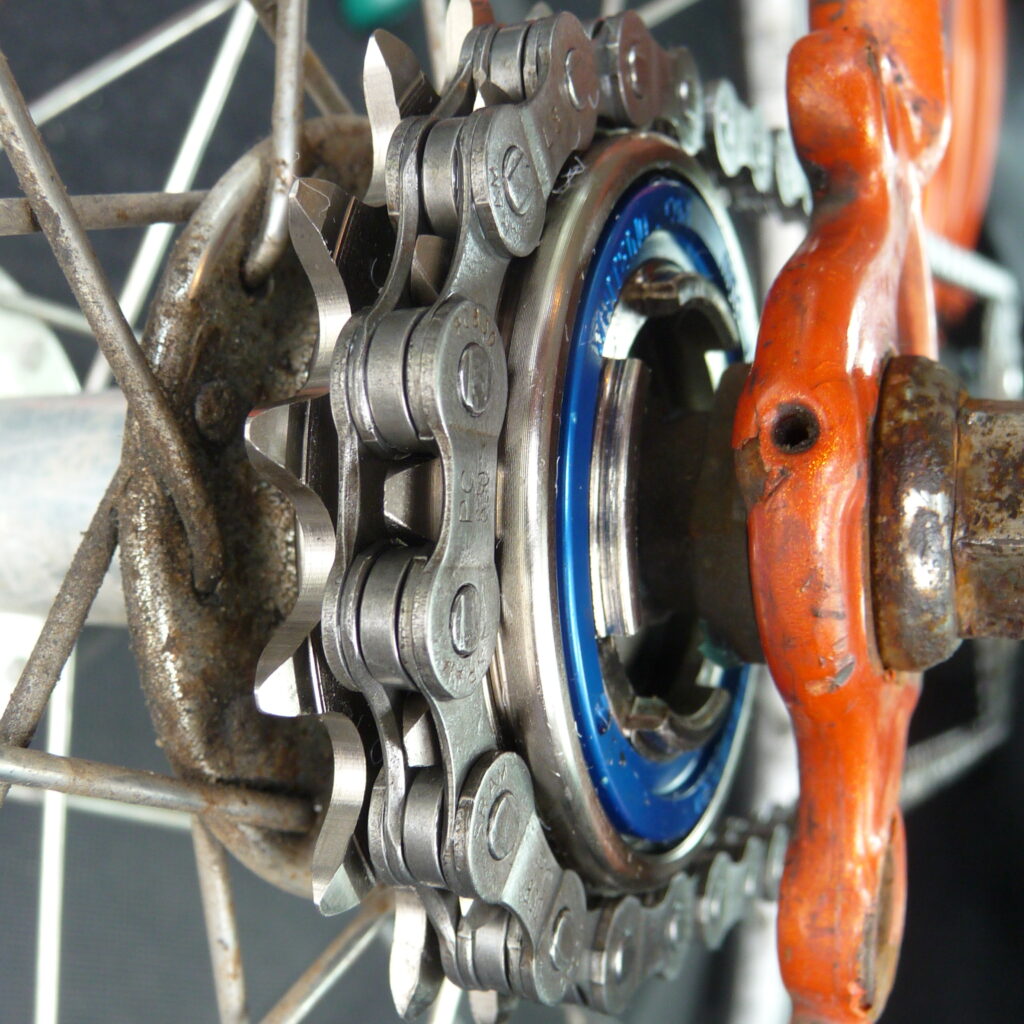

Freewheel (CC BY 2.0 Rex Roof|Flickr).jpg

Freewheel (CC BY 2.0 Rex Roof|Flickr)

Freewheel The ratcheting mechanism that lets a wheel spin without turning the pedals was invented in 1869 by William Van Andenin but was initially disdained by cyclists who feared adding mechanical complexity to the early bicycle. It reappeared with the advent of coaster brakes and multiple gearing.

Lycra Readers with long memories will recall ghastly shorts made from wool and other knitted fabrics in the pre-Lycra era. They were heavy and sweaty and only used by riders doing the sort of long distances that demanded a chamois liner. Stretchy fabrics using Dupont’s Lycra fibre were a huge improvement in comfort, moving with the rider and making cooling much easier.

Indexed gears Shifting that clicks from gear to gear had been around for decades when Shimano introduced SIS gearing — it’s how all hub gears work. But Shimano realised it could be an advantage for racers, who would fluff shifts when tired. Indexed down tube levers and mountain bike thumbshifters led to integrated brake/shift levers. I often wonder if the road bike boom of the last few years would have happened without gears you could change with your hands still on the bars..

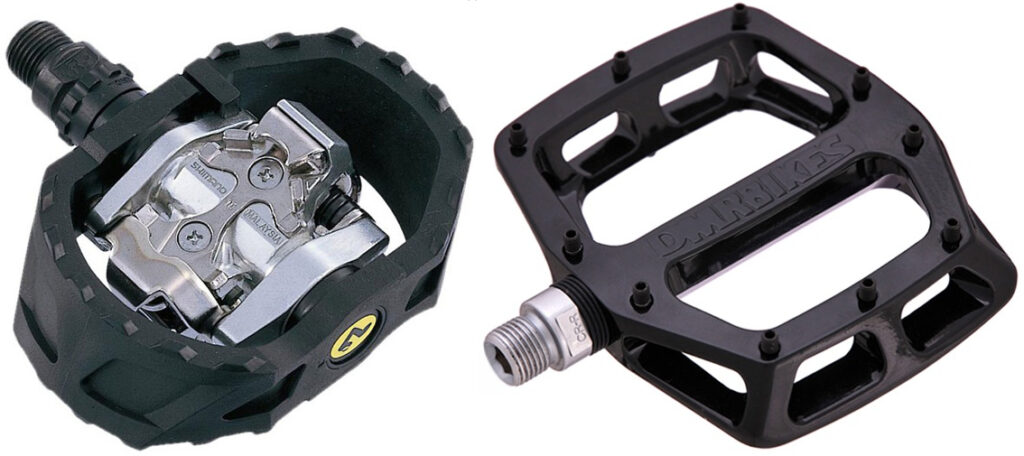

Clipless pedals In the days of clips and straps a common way to fall over was to roll up to lights and discover, far too late, that your straps were so tight you couldn’t get out to touch a foot down. Clipless pedals eliminated that embarrassing tumble, while also improving comfort and, with recessed-cleat SPD pedals, ushering in a combination of efficiency and walkability.

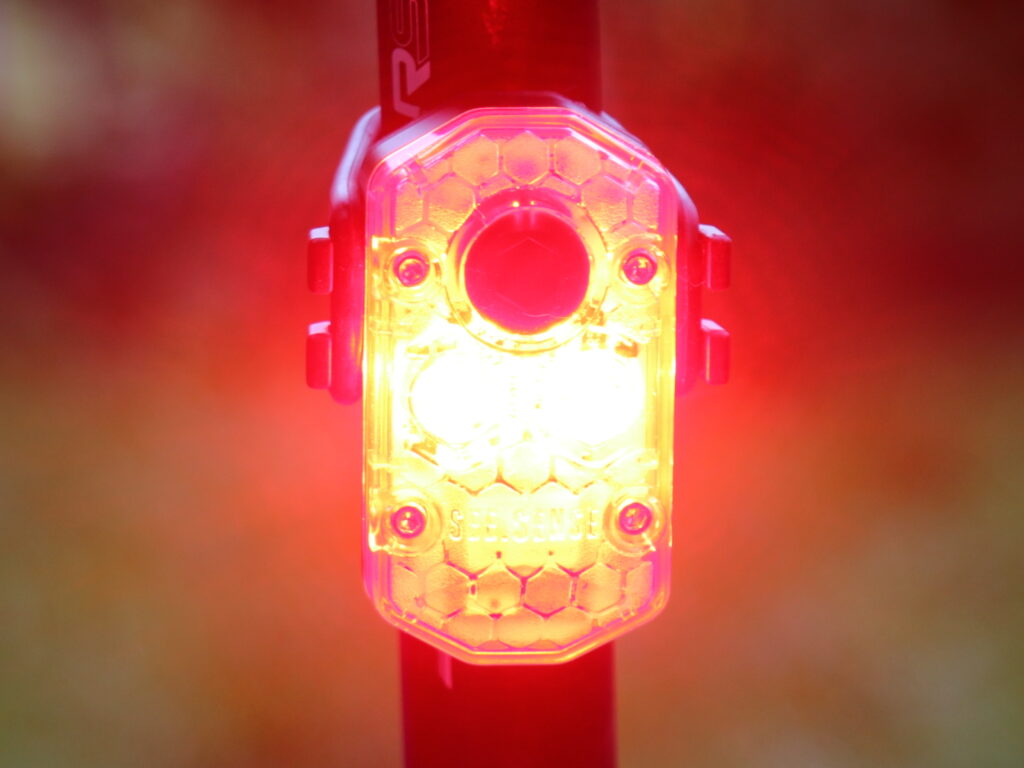

LED lights The light-emitting diode has made it cheap and easy for cyclists to be seen at night, and to see where we’re going. The only option before LEDs was a dim, unreliable glimmer of light from a torch powered by a pair of hulking great D cells. These lights chewed through batteries, so were expensive to run, especially if you decided you actually wanted to be seen and fitted a halogen bulb. Reliability was also awful; cheap, rattly switches corroded if they got damp and in trying to keep the price down manufacturers neglected to pay much attention to sealing out the weather.

The combination of high-power LEDs and improved rechargeable batteries made better front lights possible too. Night riding on unlit lanes became possible and drivers had a whole new excuse to complain about cyclists — our lights are now too bright, apparently.
