BUYER'S GUIDE
8 of the best high-performance lightweight clipless pedals Jan 20217 of the best high-performance lightweight clipless pedals
Switching to a pair of the best high-performance lightweight clipless pedals can lop a chunk of weight off your bike. It's also a chance to switch to pedals that work better in other ways such as providing a broader platform for your shoes or user-friendly double-sided mechanism.
-
For our purposes, high-performance lightweight clipless pedals means the lightest one or two models of each major clipless system: SPD, SPD-SL, Look, Time and Speedplay
-
Big, powerful riders should probably steer clear of many of these, especially pedals with titanium axles whose makers set weight limits
-
Most road bike pedals are single-sided but we've included double-sided models here too, from Speedplay, Crankbrothers and Xpedo
-
Factors such as the size of the contact area, the clip-in and release action and the amount of float are also important; see our guide to clipless pedals for more
7 of the best high-performance, lightweight clipless pedals
- Speedplay Zero Stainless Pedals — £150.00
- Shimano Dura-Ace 9100 Carbon SPD-SL — £180.49
- Xpedo Thrust XRF08CT — €204.50
- Look Keo Blade Carbon Ti Pedals — £236.99
- Time XPRO 15 — €285.00
- Xpedo M-Force 8 Ti — €219.50
- Crankbrothers EggBeater 11 — £341.99
In the selection of lightweight, high-end pedals below we’ve picked pedals designed to save weight but that also improve over regular or less expensive designs in other ways.
For example, Look’s latest Keo Blade pedals have a very large steel contact plate, which in theory makes the cleat — and therefore the shoe — steadier on the pedal.
The Hairsine ratios for these pedals are based on Shimano’s 330g R540 pedals, except for the Xpedo M-Force 8s and Crankbrothers EggBeater 11s which we’ve compared with Shimano’s 374g M520s.
>>Read more: Buyer's Guide — The best clipless pedals

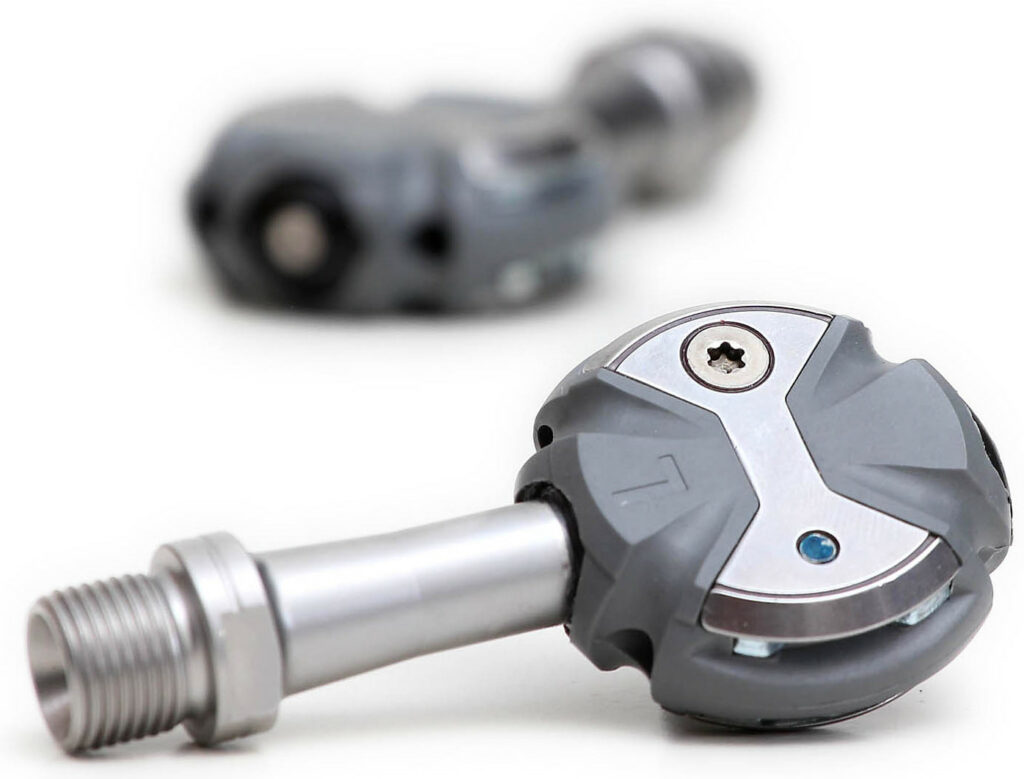

Speedplay Zero Stainless Pedals — £150.00
Weight: 208g Hairsine ratio: 0.81
Those who love Speedplays rave about the low weight, adjustability, and shallow stack. But it's undeniable they need more looking after than most pedals, and they're susceptible to clogging from even the smallest amount of dirt.
But if you have knees that are in any way fragile, or you want pedals that are incredibly easy to enter and release but fit stiff-soled road racing shoes, their free float and double-sided design make Speedplays well worth considering.
Wahoo bought Speedplay in 2019 and a new Zero pedal is now available, currently only available direct from Wahoo for £199.99. For the extra £50 you get bearings with claimed better durability and less need for continual maintenance. A new version of the lightweight Speedplay Nano is also available at a claimed 168g/pr for £379.99.
Read our review of the Wahoo Speedplay Zero pedals
Read our review of the Speedplay Zero Stainless Pedals
Find a Speedplay dealer

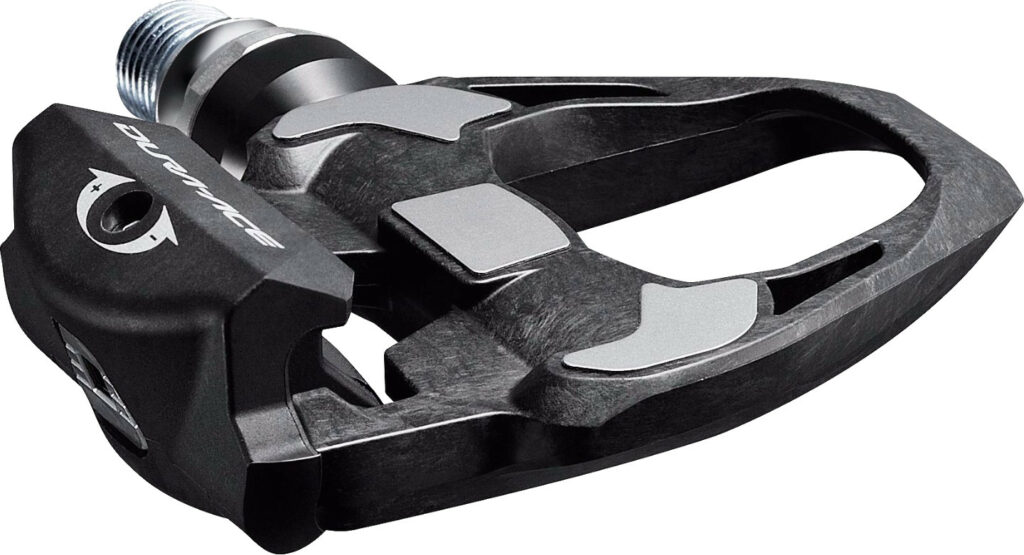

Shimano Dura-Ace 9100 Carbon SPD-SL — £180.49
Weight: 228g Hairsine ratio: 0.57
Shimano's top-level Dura-Ace R9100 pedals offer loads of security and stability and they're a few grams lighter than the previous version, although still not quite as light as some of their biggest rivals.
The pedals feature an injection-moulded carbon composite body with three small stainless steel plates across the centre to provide protection from wear. These plates are moulded in and aren't replaceable (the screwed-on plate of the previous generation Dura-Ace R9000 pedal wasn't replaceable either).
The pedal platform is 66mm wide – a little wider than previously – and provides plenty of stability. That broad platform is one of the best things about these pedals, and is especially welcome when you're riding out of the saddle.
Read our review of the Shimano Dura-Ace 9100 Carbon SPD-SL

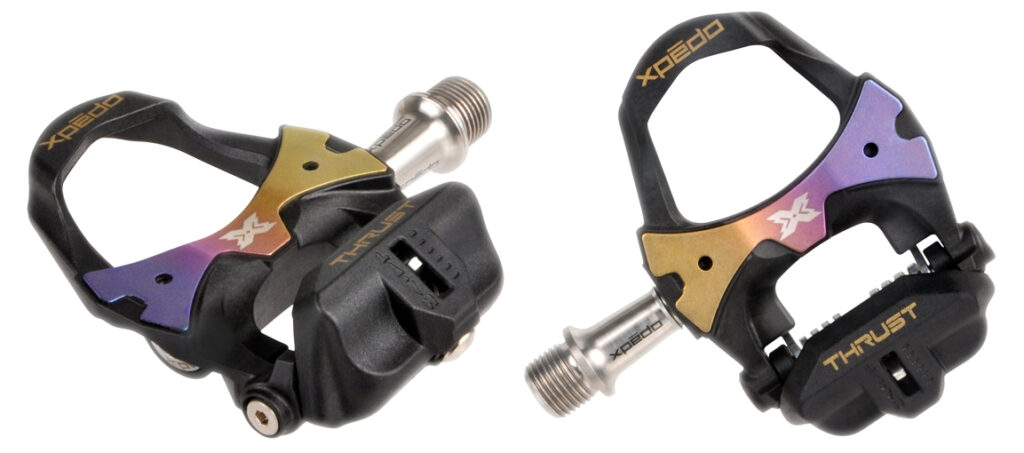

Xpedo Thrust XRF08CT — €204.50
Weight: 174g Hairsine ratio: 0.81
Despite their conventional steel springs, these carbon-bodied Look Keo clones from the upmarket arm of Taiwanese pedal giant Wellgo are very light, thanks to their pared-down carbon fibre bodies and titanium axles.
Out on the road these provide you with a whole lot of stability. That wide pedal body gives you a solid platform underneath your foot for putting down the power, with no rocking from side to side. The mechanism hangs on to your cleat securely, and if you wind up the tension there’s virtually no chance of your foot disconnecting unexpectedly.
Read our review of the Xpedo Thrust XRF08CT

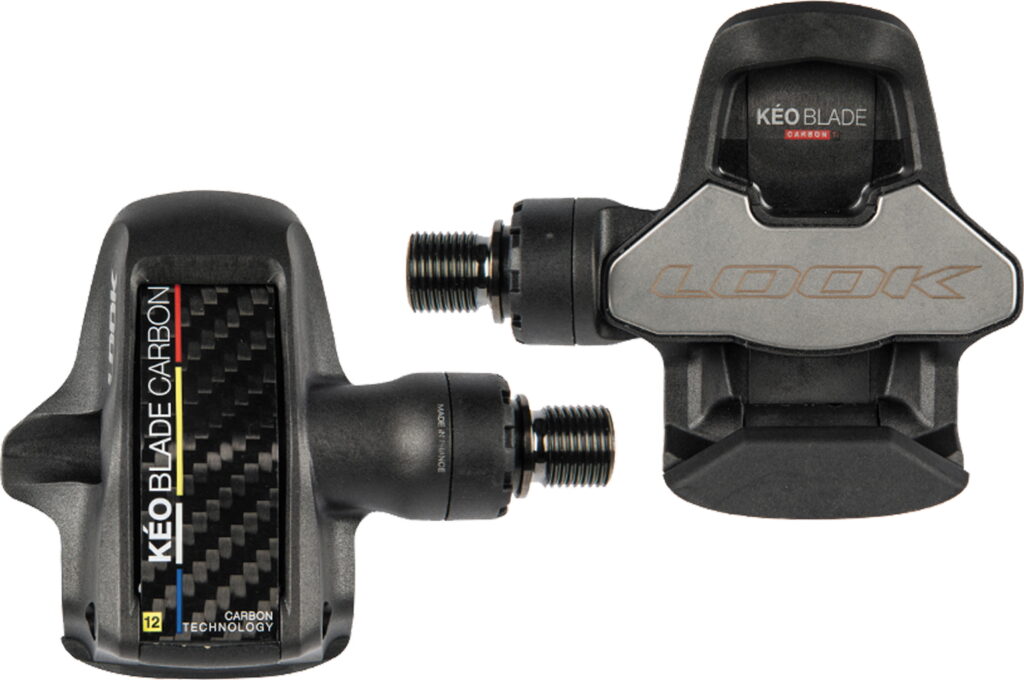

Look Keo Blade Carbon Ti Pedals — £236.99
Weight: 180g Hairsine ratio: 0.63
This is the lightest incarnation of Look’s Keo pedals, and uses a weight-saving carbon fibre leaf spring to provide the retention force in place of the usual steel coil.
We like the less expensive Keo Blade and these have even more bells and whistles, including a very large steel contact plate for stability (700mm2 rather than the Max’s 400mm2) and titanium axle.
The latest versions of the Keo Blade Carbon and Keo Blade Carbon Ti have interchangeable leaf springs; they come set up with 12Nm springs, but there's a 16Nm spring in the box, and a special tool to help make the job easy. You can also buy a 20Nm spring, but Look warns that you shouldn’t come crying to them if you crash because you can’t get out of the 20Nm version.
Read our review of the Look Keo Blade Carbon Pedals
Time XPRO 15 — €285.00
Weight: 175g Hairsine ratio: 0.60
The XPRO 15 pedals are the successor to Time's Xpresso 15 pedals and are your lightest option if you prefer the entry and release action of Time pedals.
At just 175g for the pair, they're very light thanks to carbon bodies, titanium axles, aluminium top plates and ceramic bearings. Clipping in is very easy thanks to a spring mechanism that stays open after you click out. If you have less to spend and can just about live with sacrificing ceramic bearings for steel, there's also the Time Xpro 10 that we reviewed back in 2018 (currently £129.99 at Tredz) and Time Xpro 12 (£255.99 at Tredz).
Note: the price and link for the Xpro 15 above is for an EU-based retailer that appears to be still taking UK orders despite the current border and customs issues. They're £373.79 from Swinnerton Cycles.
Read our review of the Time Xpro 10 pedals
Find a Time dealer
Xpedo M-Force 8 Ti — €219.50
Weight: 215g Hairsine ratio: 0.80
With the Ritchey Micro pedals discontinued, these are now the lightest pedals we can find that are compatible with Shimano's SPD system.
Xpedo is the the upmarket arm of Taiwanese pedal giant Wellgo, so there's a decent level of pedalsmithing competence there, and we liked Xpedo's upmarket road pedals when we tested them a few years ago.
Perhaps the biggest caveat here is that with titanium axles, these pedals have a rider weight limit of 85kg.
Crankbrothers EggBeater 11 — £341.99
Weight: 179g Hairsine ratio: 0.44
If you want to ride in walkable shoes then Crankbrothers' mud-shedding pedal design is a viable alternative to Shimano's SPD system, and this is the lightest version.
However, they have a rider-weight limit of 90kg, and it's a really good idea to use Crankbrother's £8.99 Shoe Shields with them to protect your soles.
The 280g Eggbeater 3s (£99.99) are the cheapest version without a rider weight limit.
About road.cc Buyer's Guides
The aim of road.cc buyer's guides is to give you the most, authoritative, objective and up-to-date buying advice. We continuously update and republish our guides, checking prices, availability and looking for the best deals.
Our guides include links to websites where you can buy the featured products. Like most sites we make a small amount of money if you buy something after clicking on one of those links. We want you to be happy with what you buy, so we only include a product if we think it's one of the best of its kind.
As far as possible that means recommending equipment that we have actually reviewed, but we also include products that are popular, highly-regarded benchmarks in their categories.
Here's some more information on how road.cc makes money.
You can also find further guides on our sister sites off.road.cc and ebiketips.
road.cc buyer's guides are maintained by the road.cc tech team. Email us with comments, corrections or queries.
John has been writing about bikes and cycling for over 30 years since discovering that people were mug enough to pay him for it rather than expecting him to do an honest day's work.
He was heavily involved in the mountain bike boom of the late 1980s as a racer, team manager and race promoter, and that led to writing for Mountain Biking UK magazine shortly after its inception. He got the gig by phoning up the editor and telling him the magazine was rubbish and he could do better. Rather than telling him to get lost, MBUK editor Tym Manley called John’s bluff and the rest is history.
Since then he has worked on MTB Pro magazine and was editor of Maximum Mountain Bike and Australian Mountain Bike magazines, before switching to the web in 2000 to work for CyclingNews.com. Along with road.cc founder Tony Farrelly, John was on the launch team for BikeRadar.com and subsequently became editor in chief of Future Publishing’s group of cycling magazines and websites, including Cycling Plus, MBUK, What Mountain Bike and Procycling.
John has also written for Cyclist magazine, edited the BikeMagic website and was founding editor of TotalWomensCycling.com before handing over to someone far more representative of the site's main audience.
He joined road.cc in 2013. He lives in Cambridge where the lack of hills is more than made up for by the headwinds.
