“But e-bikes are so ugly!” was a retort you used to hear a lot, back when the technology was in its infancy, motors were huge and batteries even more so. These days an e-bike can look just dandy though, and the Raleigh Spirit E is a fine example. Based on their classically-style Spirit city bike, Raleigh have added a TranzX motor system and improved the spec to offer a good-looking and competitive urban e-bike. “Looking good doesn’t have to be hard work!”, they say.

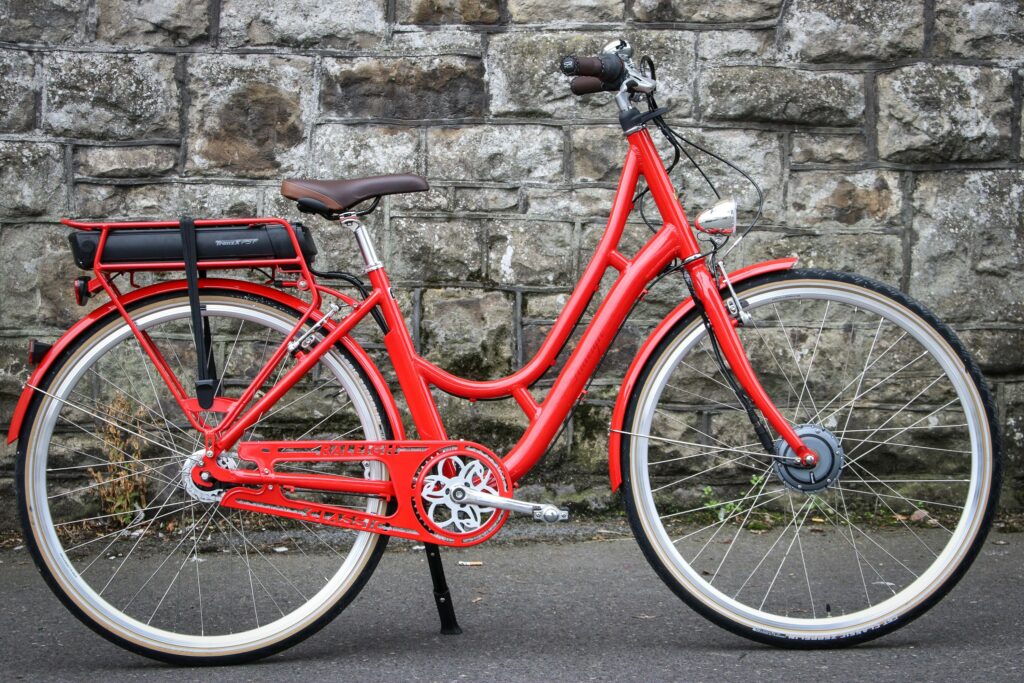

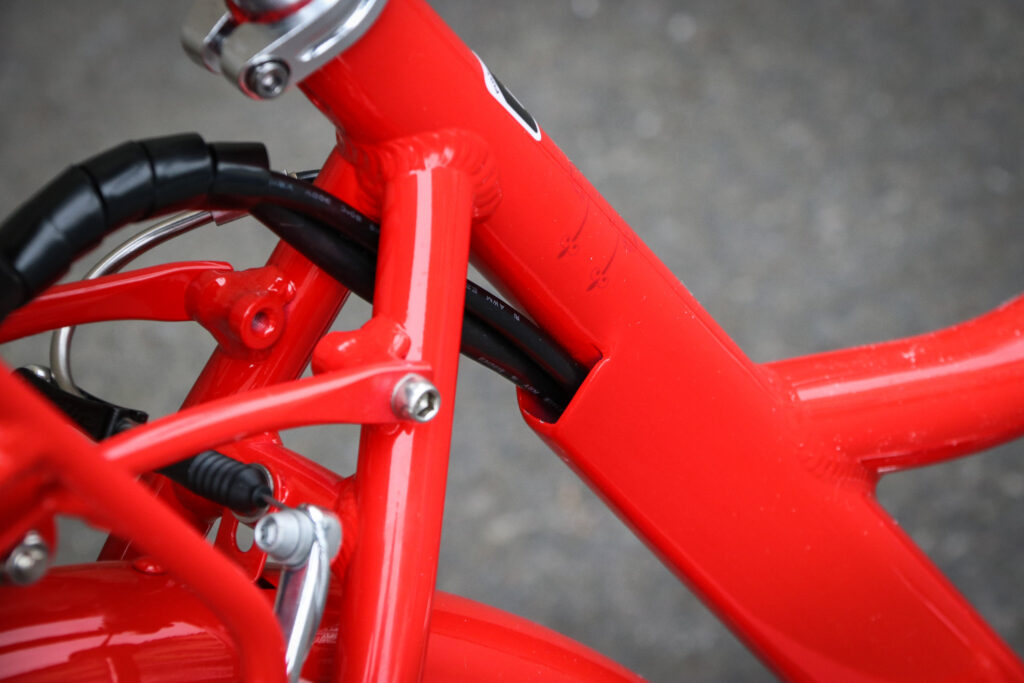

With a deliberately retro look, the Spirit E looks like a classic steel city bike. It’s not though: the frame is Aluminium alloy, which helps to heep the weight down to a reasonable 22.8kg. The low-step design means it’s easy to get on and off, and the frame is double braced to keep things nice and stiff. The frame is basically the same as the non-powered bike, save for a channel behind the seat tube that’s used to house the cables for the electrical system.

Raleigh Spirit e -2.jpg
Raleigh Spirit e -2 (Image Credit: Farrelly Atkinson)

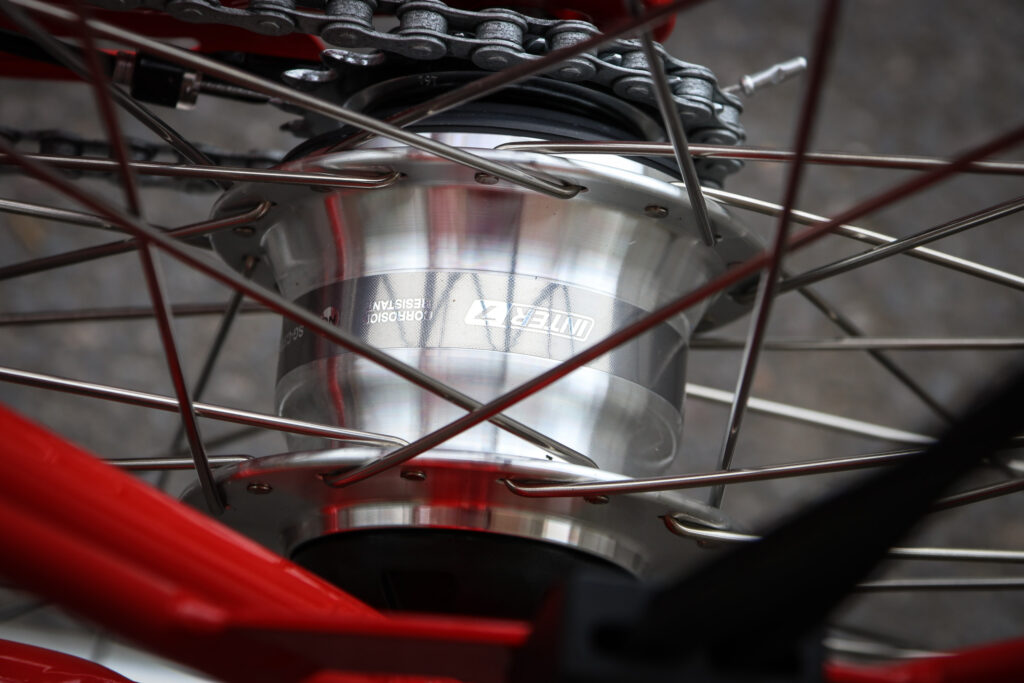

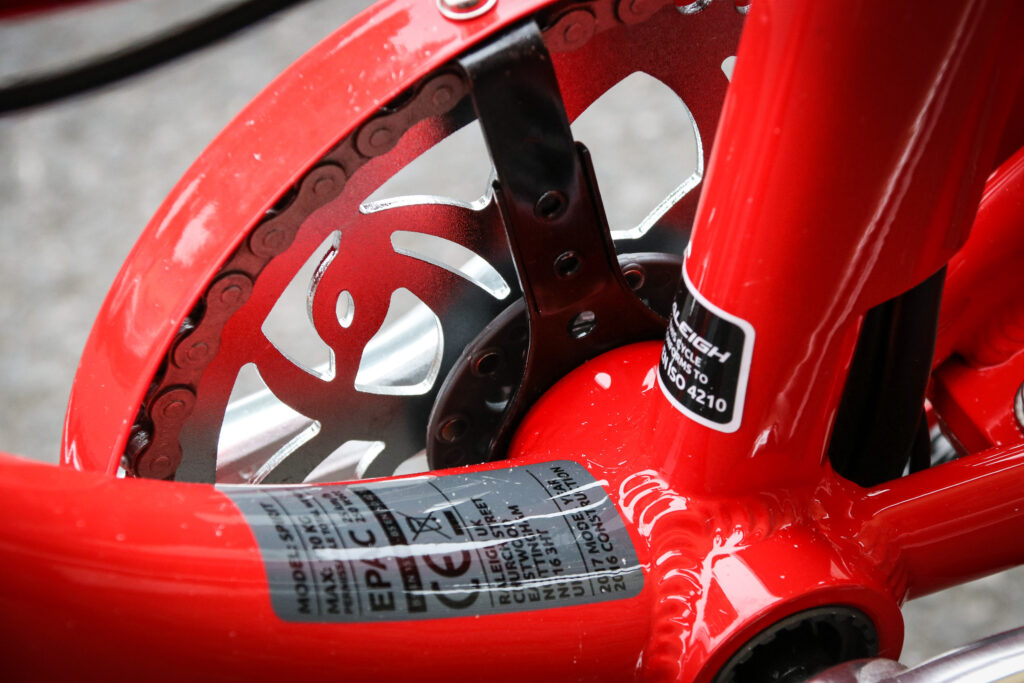

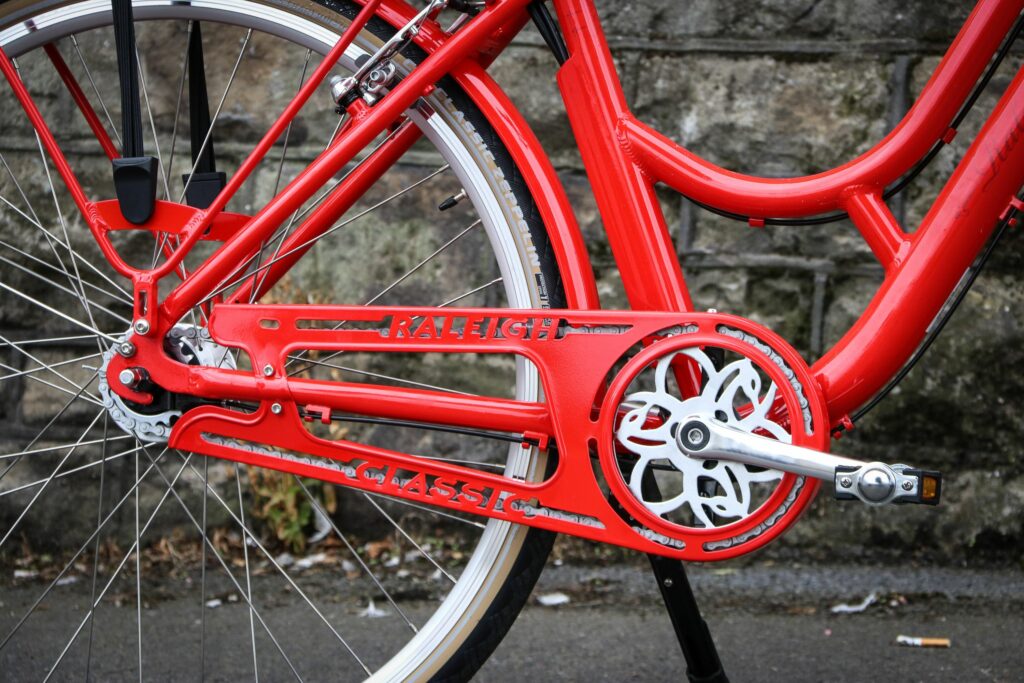

Raleigh have opted for a Shimano Nexus 7-speeed hub gear, and that means a static chain line, and that means you can have a full chaincase. And they’ve gone the whole hog, with a colour-matched, pressed steel chainguard with the words ‘Raleigh’ and ‘Classic’ cut into it. It really gives the bike a classy look, as does the Heron-design chainring. Nice work.

Raleigh Spirit e -8.jpg
Raleigh Spirit e -8 (Image Credit: Farrelly Atkinson)

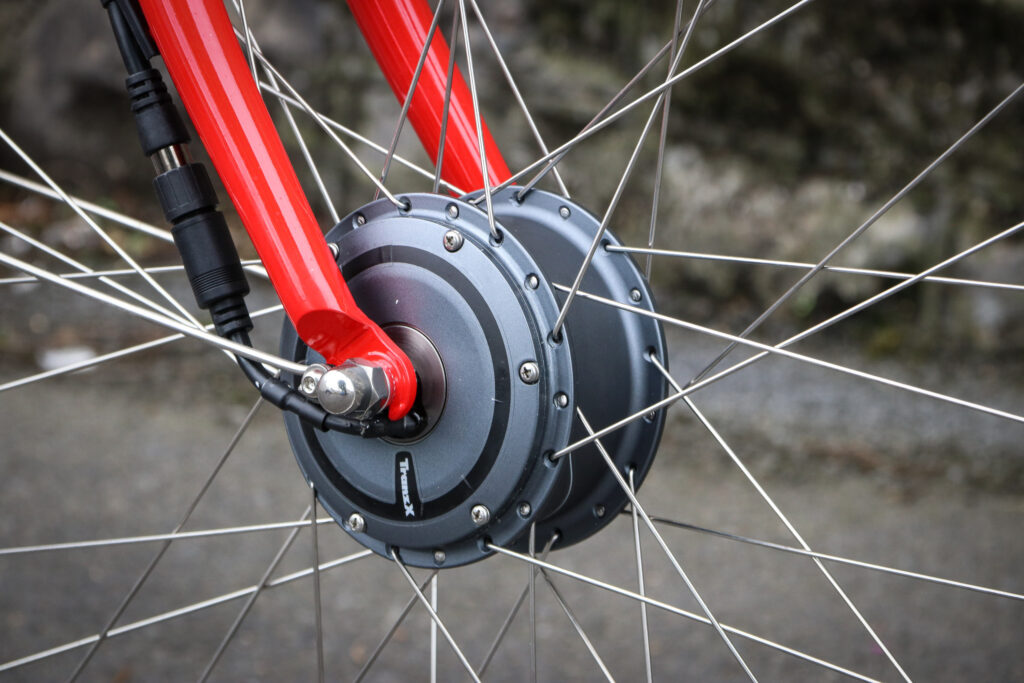

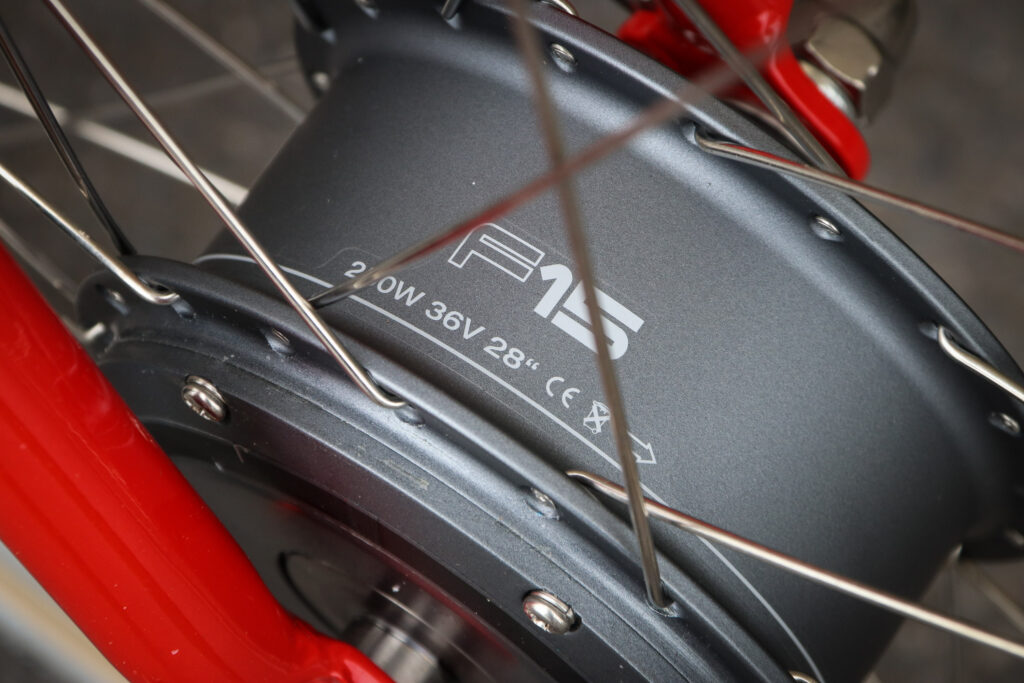

The bike is a very pleasing mix of the old and the new. Power is applied via the new TranzX F15 motor unit. TranzX claim 40Nm of torque, which is good for a hub motor, and the gunmetal grey finish is unobtrusive.

Raleigh Spirit e -6.jpg
Raleigh Spirit e -6 (Image Credit: Farrelly Atkinson)

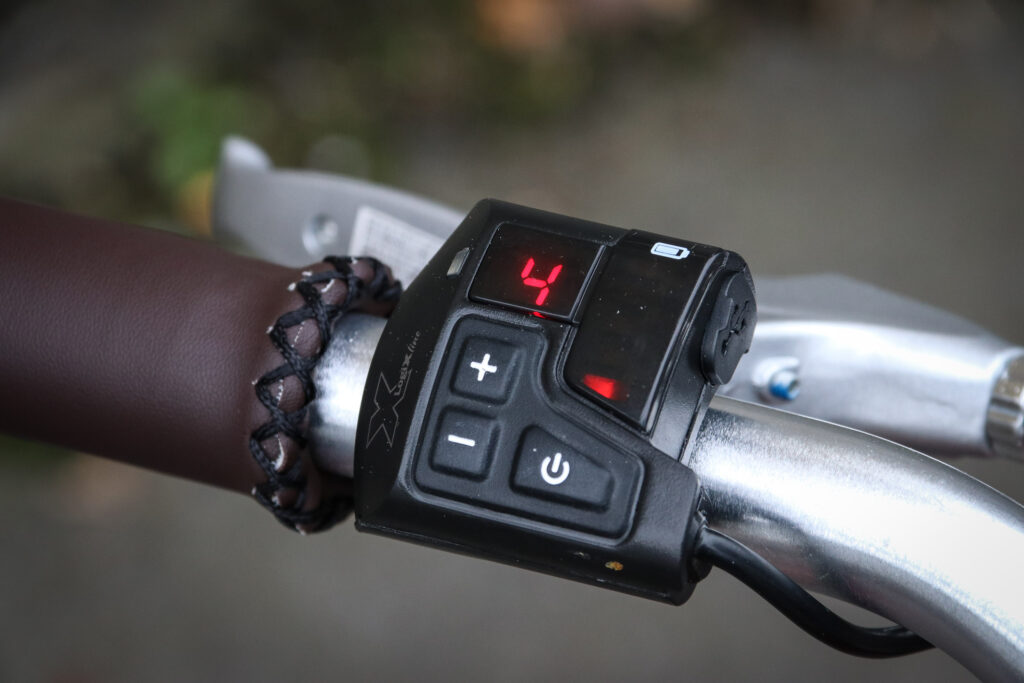

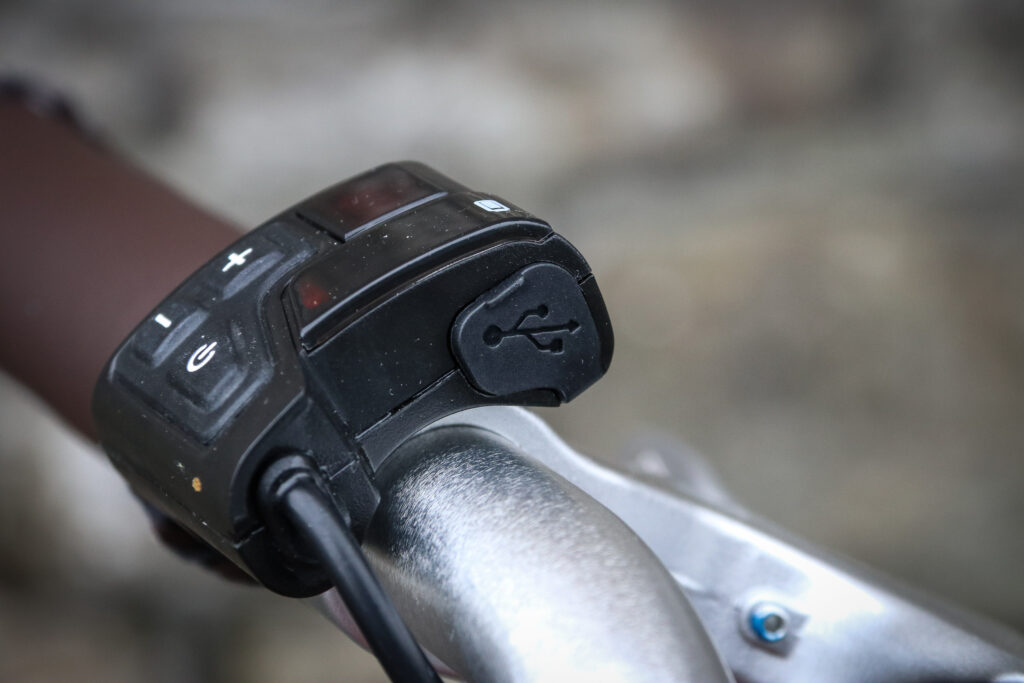

The motor is controlled by a small bar-mounted display. That gives you control over the four assistance levels, and shows you the state of the battery. The USB port in the side can be used to charge devices; it’s also used by TranzX for bike diagnostics.

Raleigh Spirit E -7.jpg
Raleigh Spirit E -7 (Image Credit: Farrelly Atkinson)

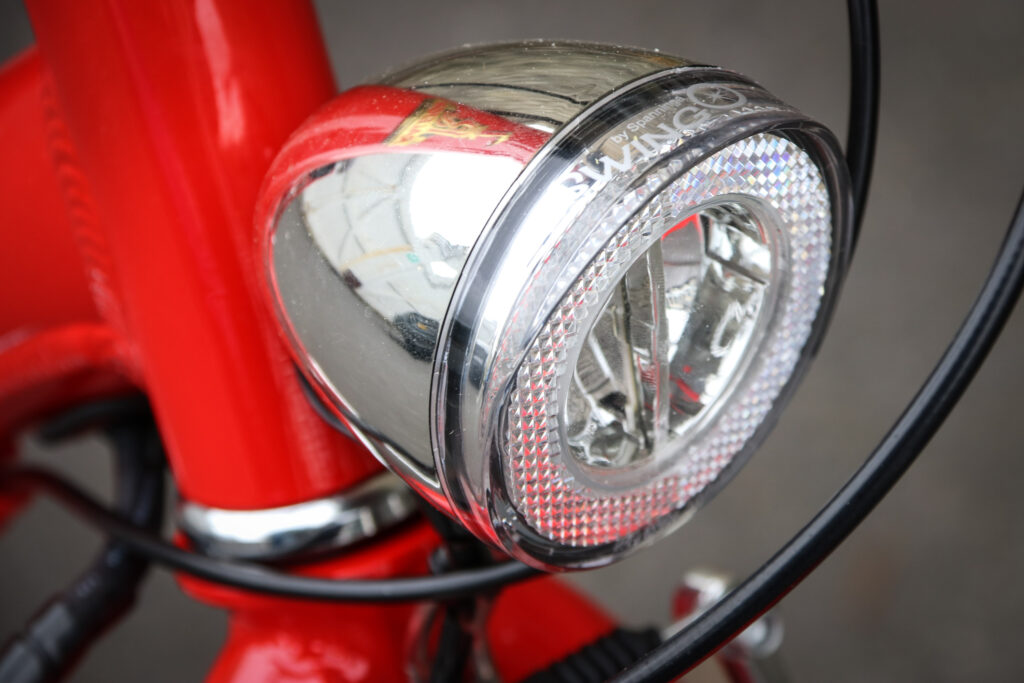

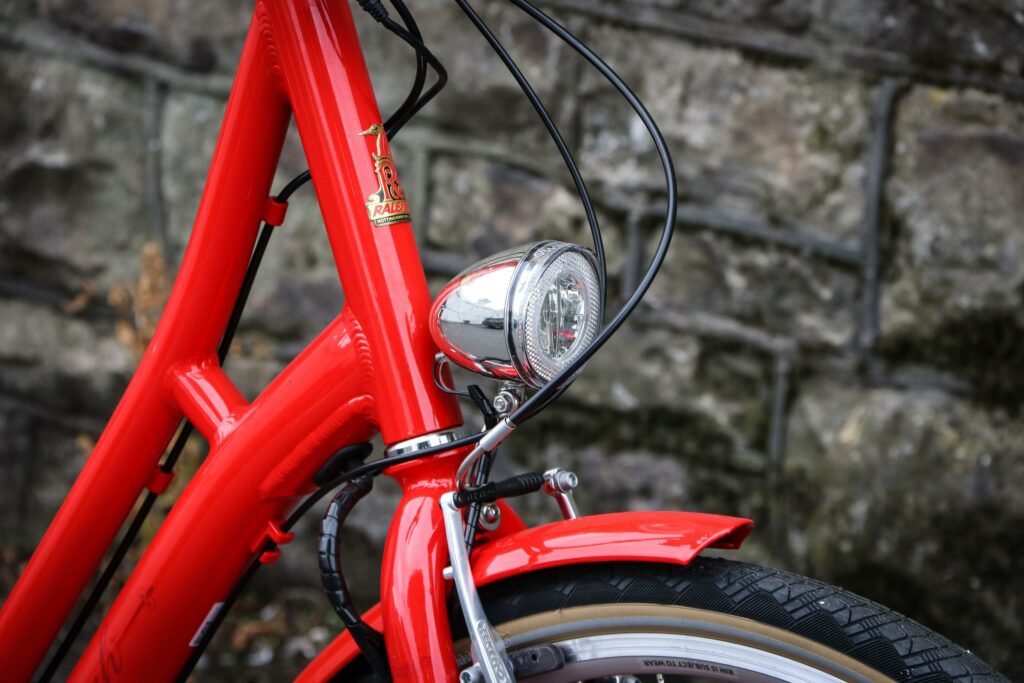

Lighting is integrated into the Spirit E, and it’s automatic: the lights come on when it starts to get dark. So there’s no forgetting them, and no forgetting to turn them on either. On top of that, the front light is a pleasing chromed unit that matches the look of the bike perfectly.

Raleigh Spirit E -4.jpg
Raleigh Spirit E -4 (Image Credit: Farrelly Atkinson)

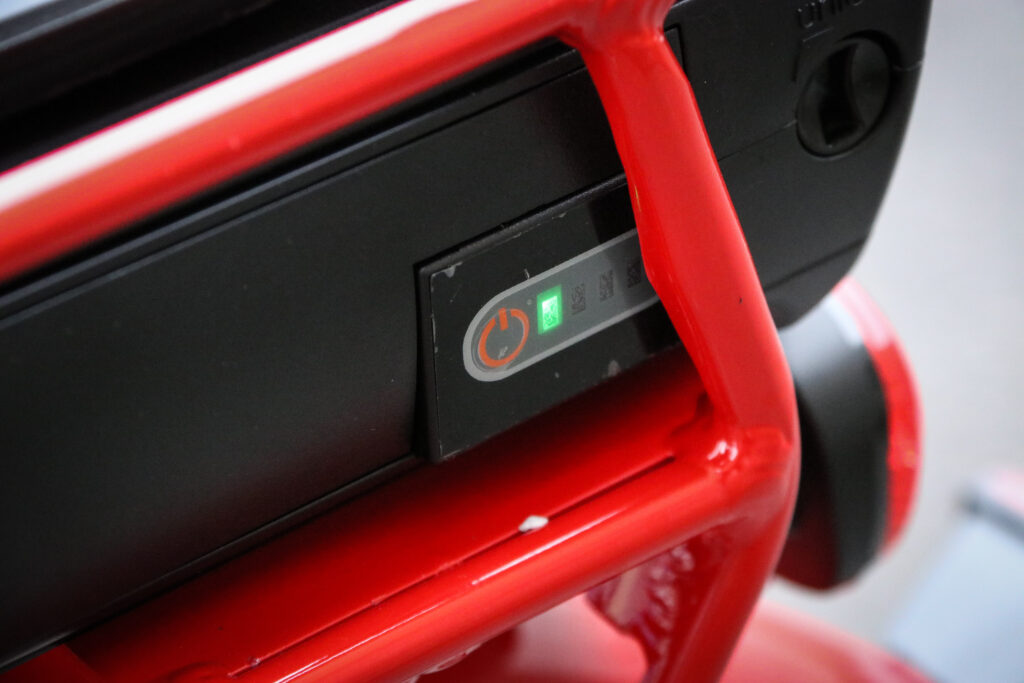

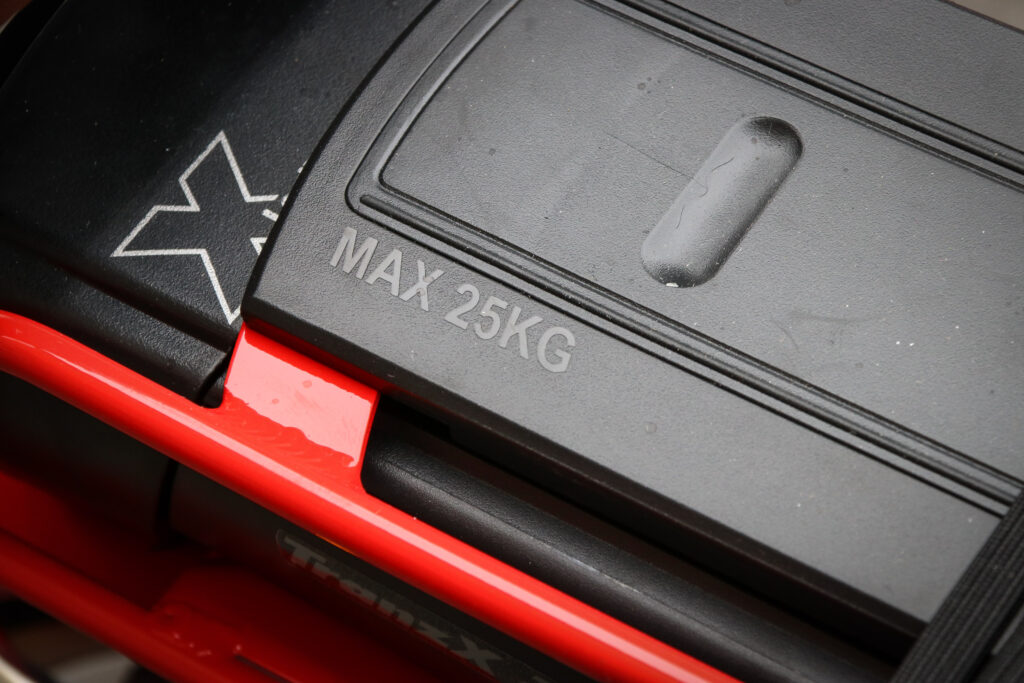

The battery is held in the rear rack. At 400Wh it’s a pretty standard size for an urban bike like this, and should give a decent range; Raleigh claim the bike’s good for 50-80km, which is pretty realistic. The Spirit E is £1,400, and is available in the red we have, or a dark Mushroom brown.

Raleigh Spirit E full spec

Frame Type Low Step
Wheel Size 700c
Frame Aluminium 6061
Approximate Weight 22.5kg
Headset Threaded 1″ 1/8th silver

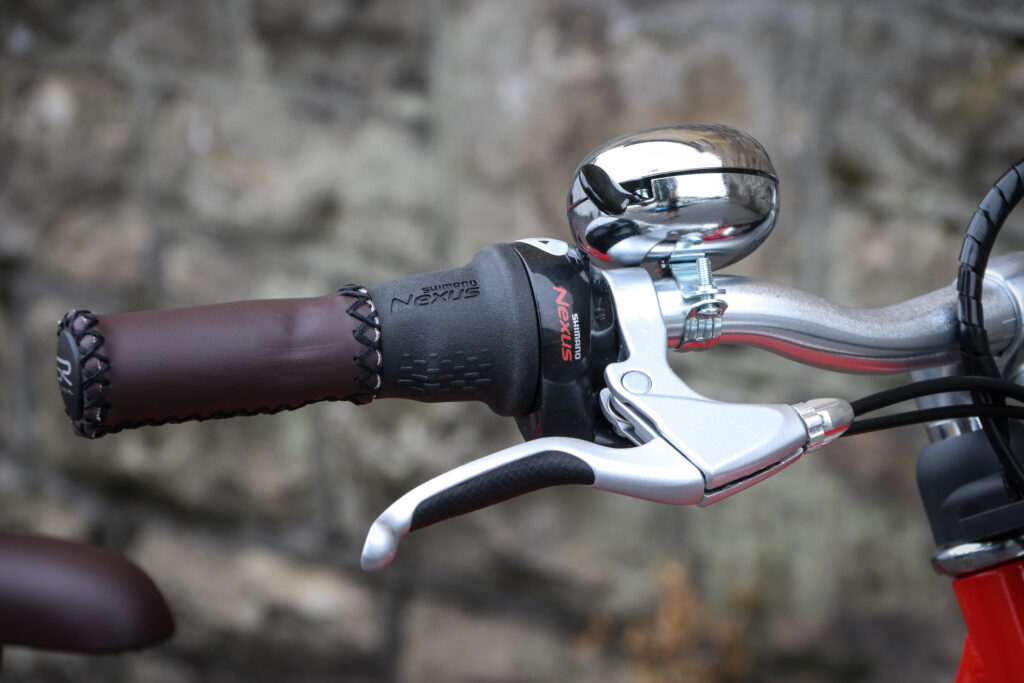

Shift Levers Shimano Nexus 7-speed twist shift
Brake Levers Alloy V-brake with cut off quick stop function.
Rear Derailleur Shimano Nexus 7-speed
Brakes V-Brake
Cassette Nexus
Chain KMC Single speed

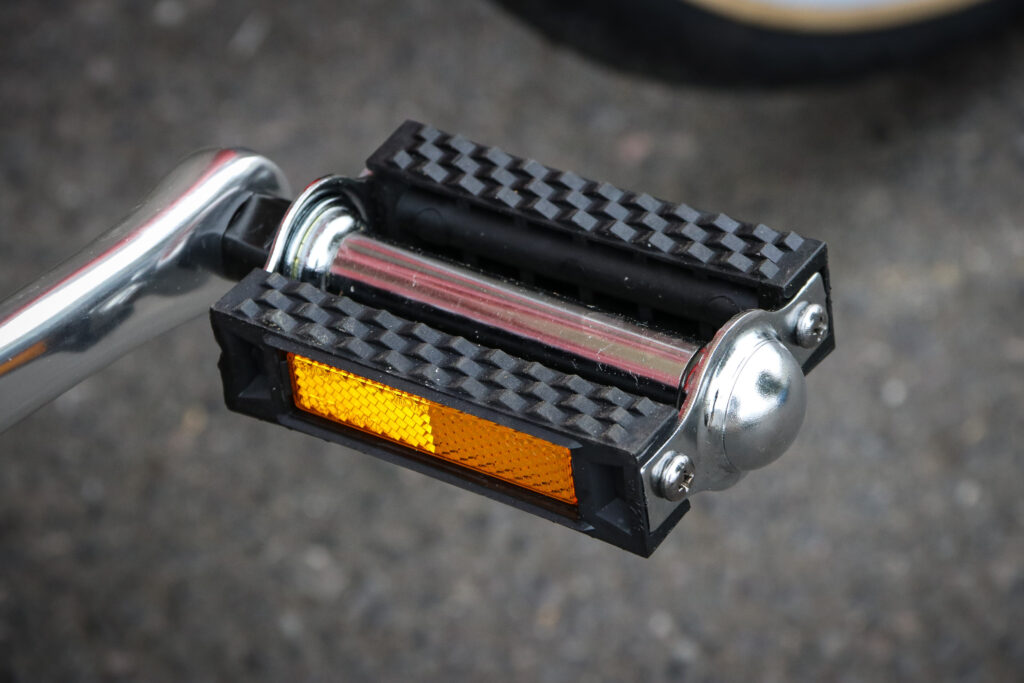

Pedals Comfort Pedals with Anti Slip
Rims Double Wall rim 36 hole 700c

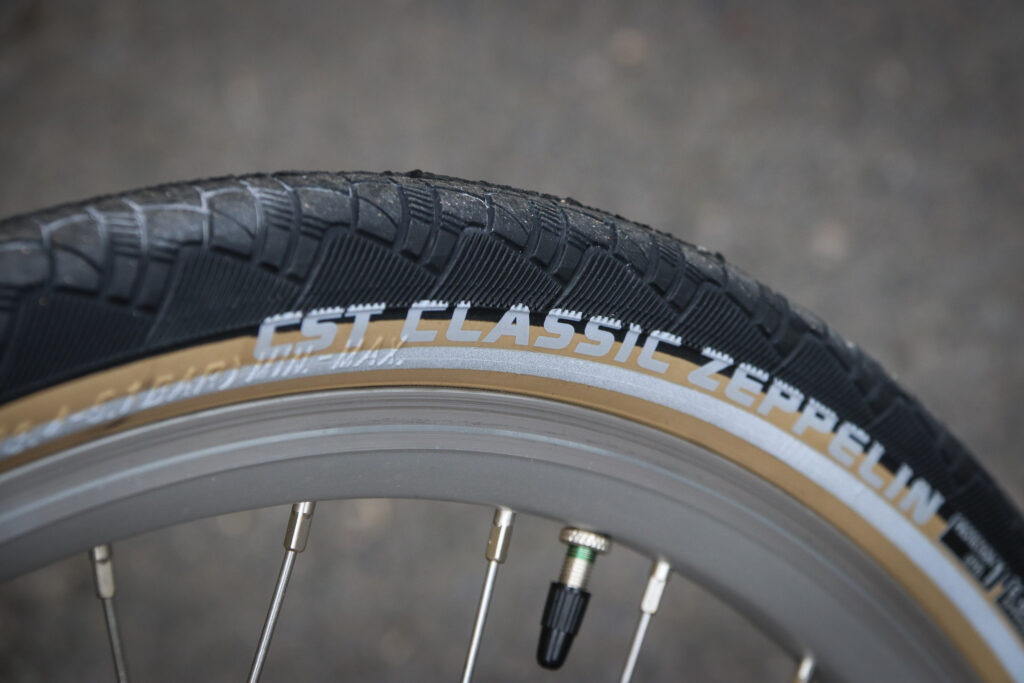

Tyres CST Zeppelin 700 x 40c with tan side wall
Stem Alloy quill stem
Handlebars Raleigh Comfort Handlebar Silver
Grips Selle Royal soft grip

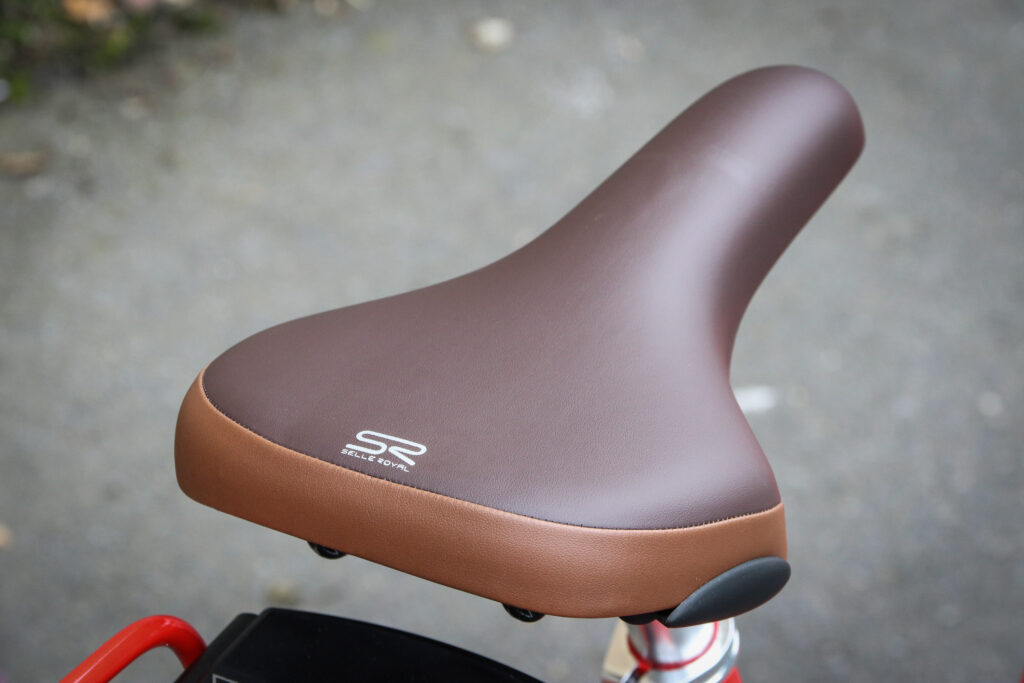

Saddle Selle Royal Milo + women’s brown
Seatpost Alloy micro adjust

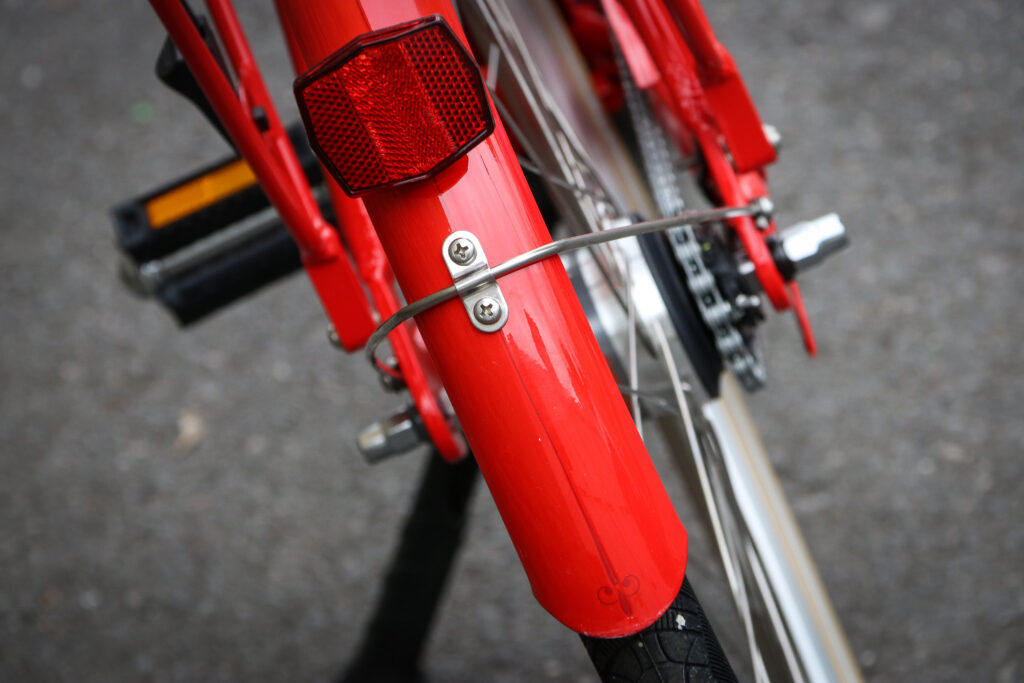

Mudguards Steel colour matched
Chainguard Raleigh full chain cover
Rear Carrier Alloy carrier with Luggage strap
Fork Raleigh Steel trekking fork for E bike
Crankset Alloy forged 170mm, 42t
Bottom Bracket 124.5 MM Square taper
Front Hub TranzX Motor hub
Rear Hub Shimano 7 speed Nexus
Inner Tubes 700x38c presta
Extras Kick Stand
Front Wheel Double Wall rim 36 hole 700c on TranzX F15 Motor hub
Rear Wheel Double Wall rim 36 hole 700c on Cassette hub
Motor New TranzX F15 36v 250w brushless Quick stop motor
Battery TranzX 400wh 36V 11Ah Battery
Display TranzX DP16 PST Display, 3 assist levels with Walk Function
Sensor TranzX Speed Sensor
Wiring Loom TranzX F15 motor cable
Lighting Front and Rear Lights Powered by TranzX system
