Pinnacle Arkose Three



Solid performance on and off road, and good spec for the money

At every product is thoroughly tested for as long as it takes to get a proper insight into how well it works. Our reviewers are experienced cyclists that we trust to be objective. While we strive to ensure that opinions expressed are backed up by facts, reviews are by their nature an informed opinion, not a definitive verdict. We don't intentionally try to break anything (except locks) but we do try to look for weak points in any design. The overall score is not just an average of the other scores: it reflects both a product's function and value – with value determined by how a product compares with items of similar spec, quality, and price.

What the scores mean

Good scores are more common than bad, because fortunately good products are more common than bad.

  • Exceptional
  • Excellent
  • Very Good
  • Good
  • Quite good
  • Average
  • Not so good
  • Poor
  • Bad
  • Appalling

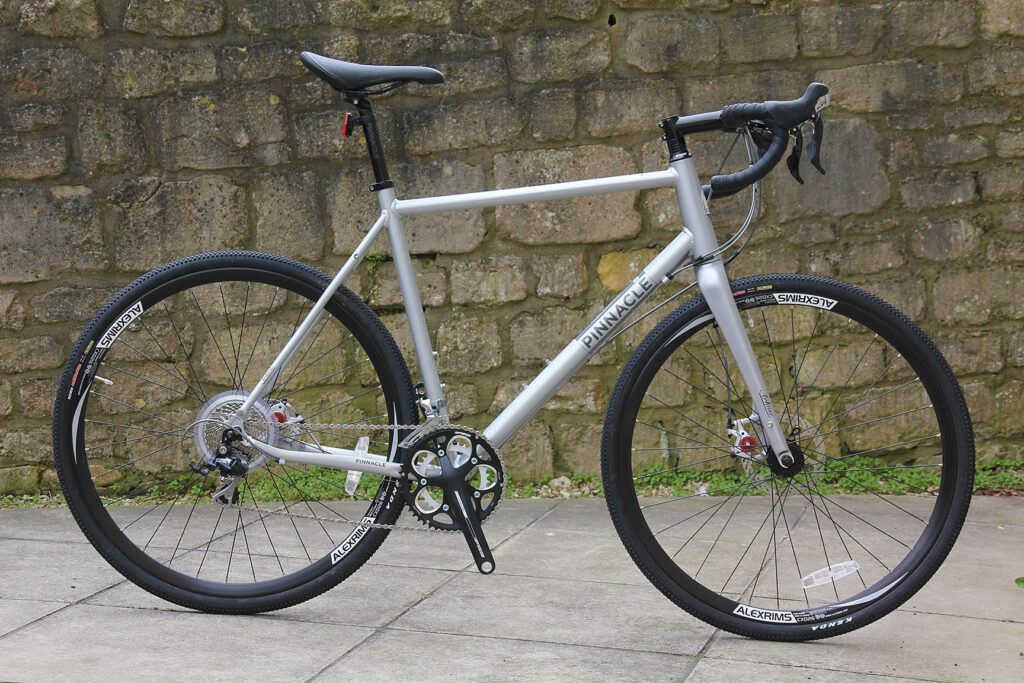

More and more people are turning to disc-equipped commuter/cross bikes as a versatile do-anything bike, and the Pinnacle Arkose Three is a very well-rounded example of the genre. It sneaks under the £1k cycle to work limit with a mostly Shimano 105 drivetrain and good brakes. It's a good ride to boot, and light enough for a crack at a CX race if you fancy punishing yourself for an hour.

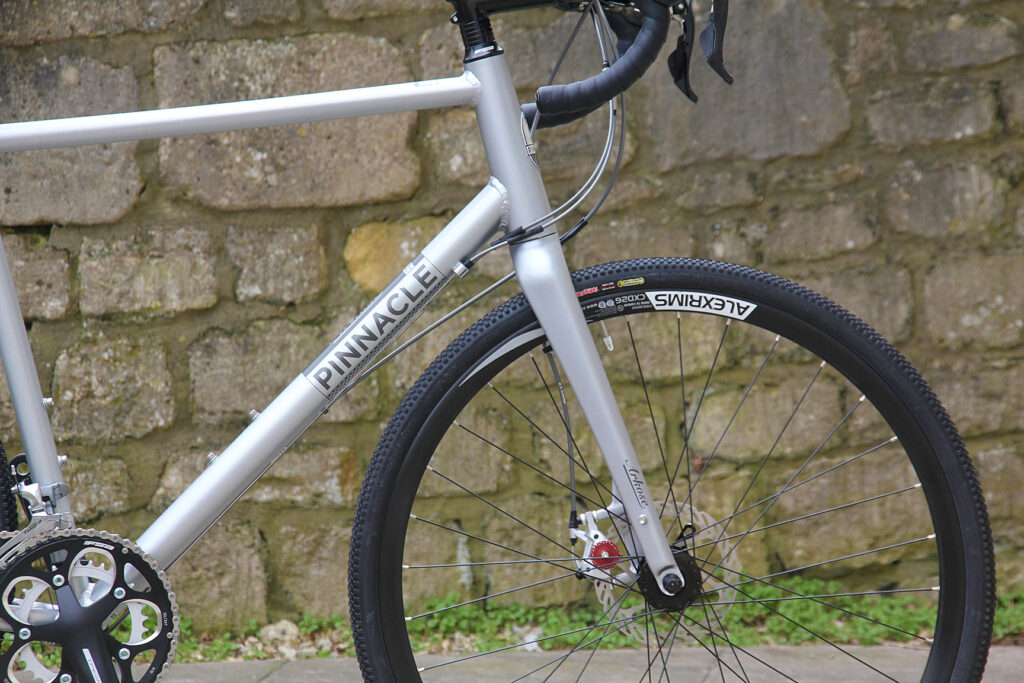

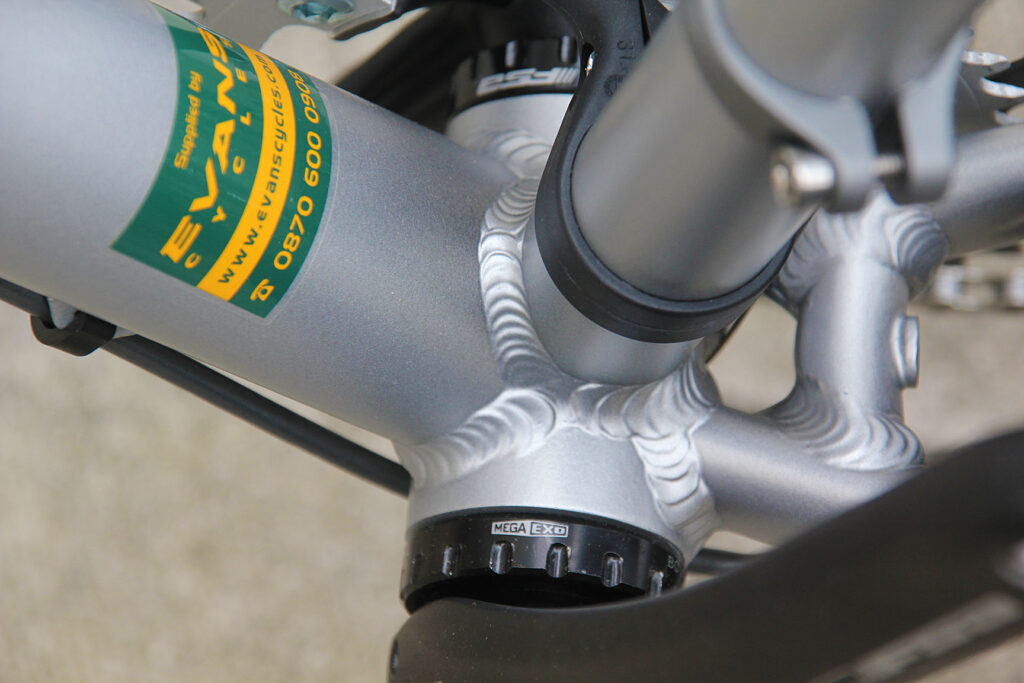

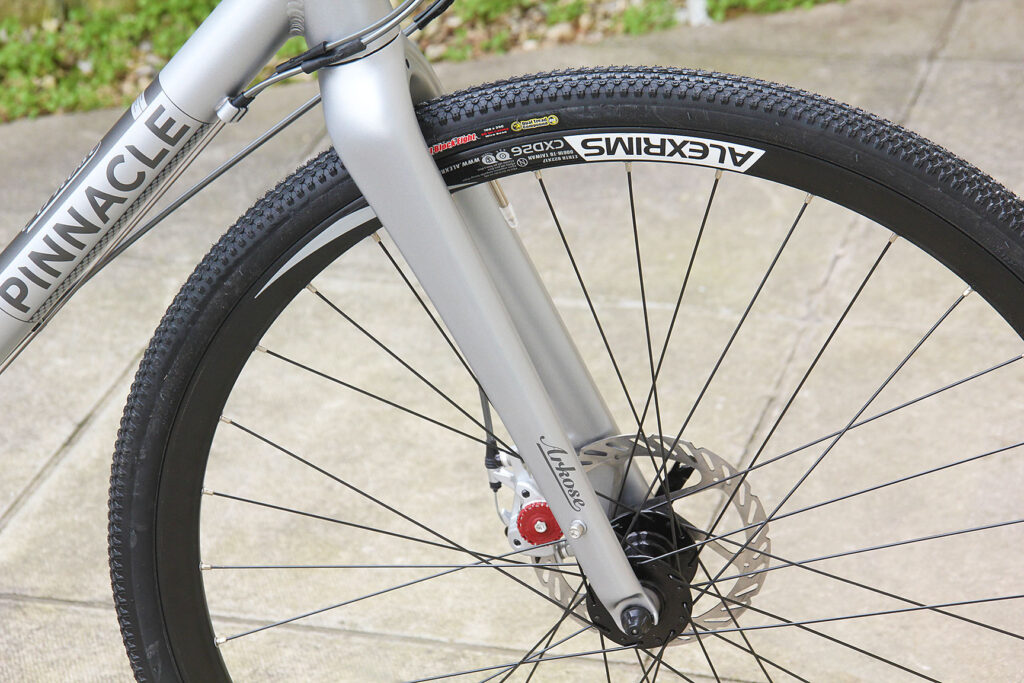

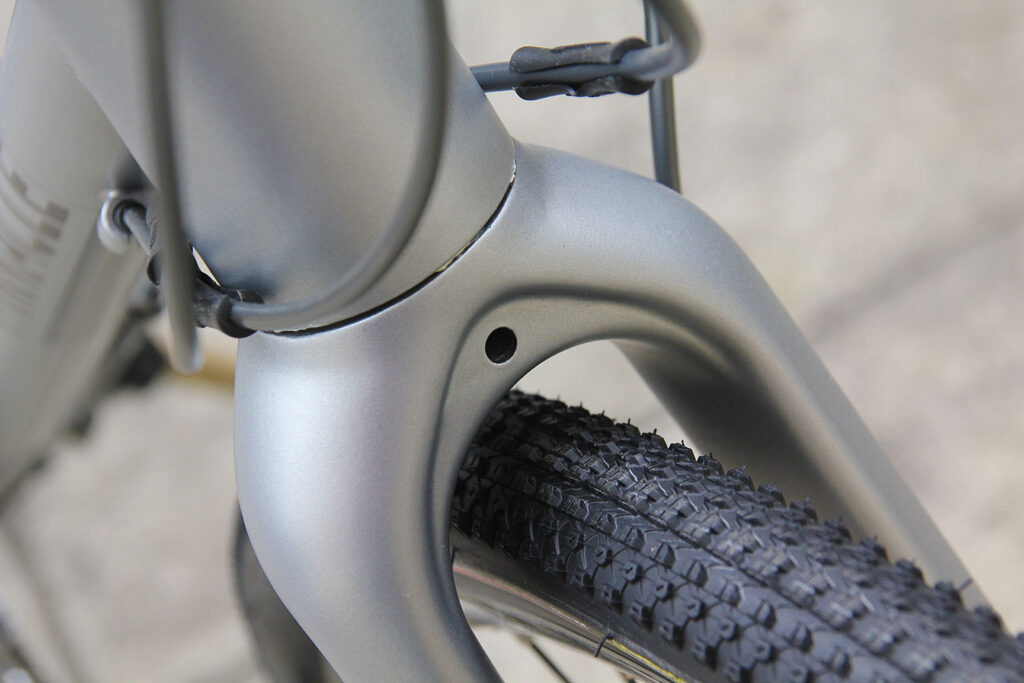

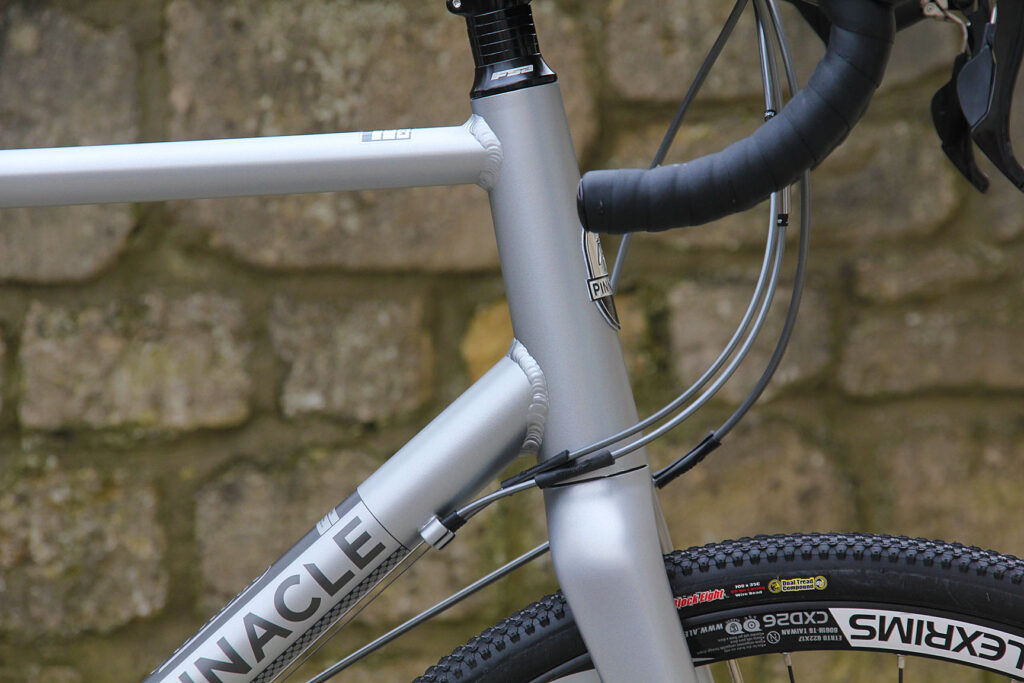

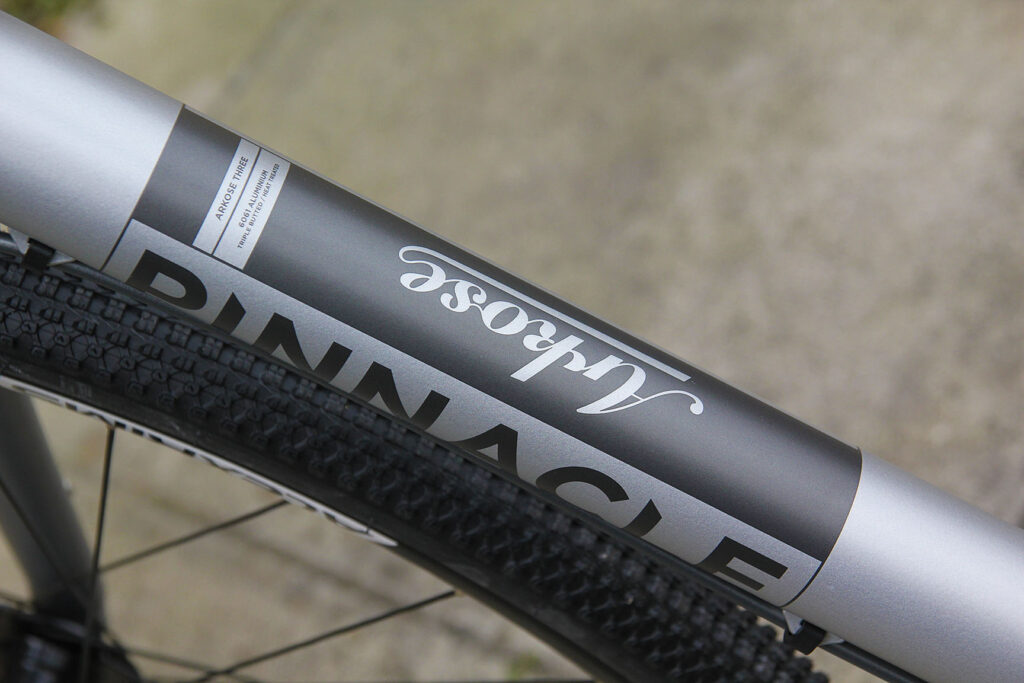

The Arkose frame is a solid-looking thing, fashioned from 6061 aluminium alloy. The welds are pretty tidy, if not beautiful, and the silver finish looks tough and has proved to be exactly that. The head tube is tapered from 1 1/8" to 1 1/4" as is common these days to beef up the stiffness at the front. The fork has carbon legs, with mudguadr mounts; these are positioned on the outside of the fork leg and a couple of inches up from the dropout to keep the mudguard stays from fouling the disc calliper. There's plenty of room for a mudguard and the Kenda Small Block 35mm tyres, you could probably go a bit bigger.

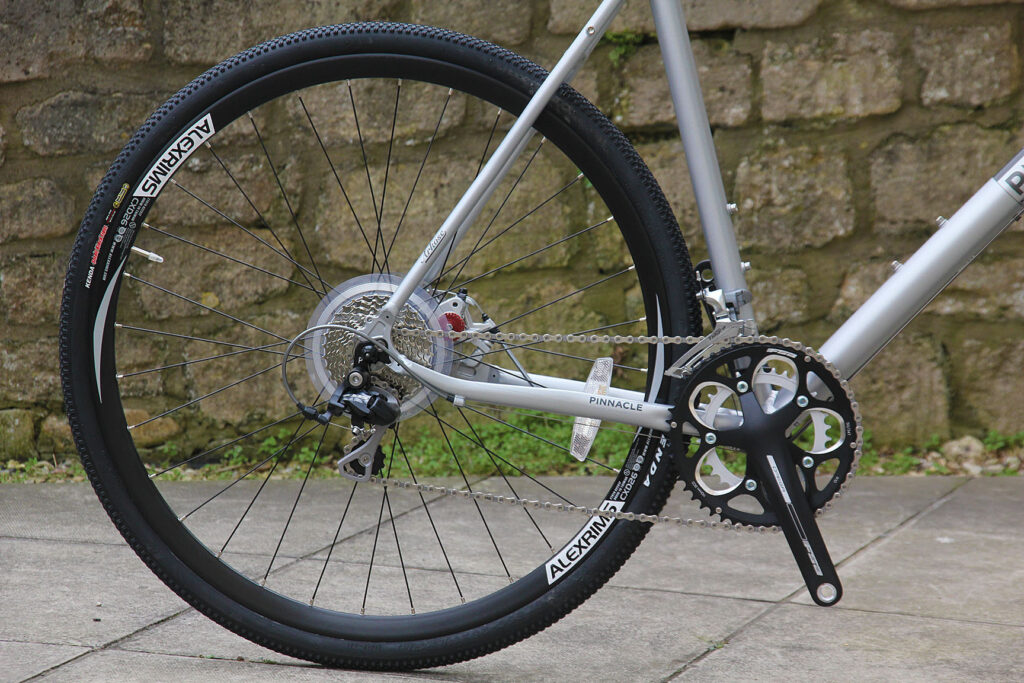

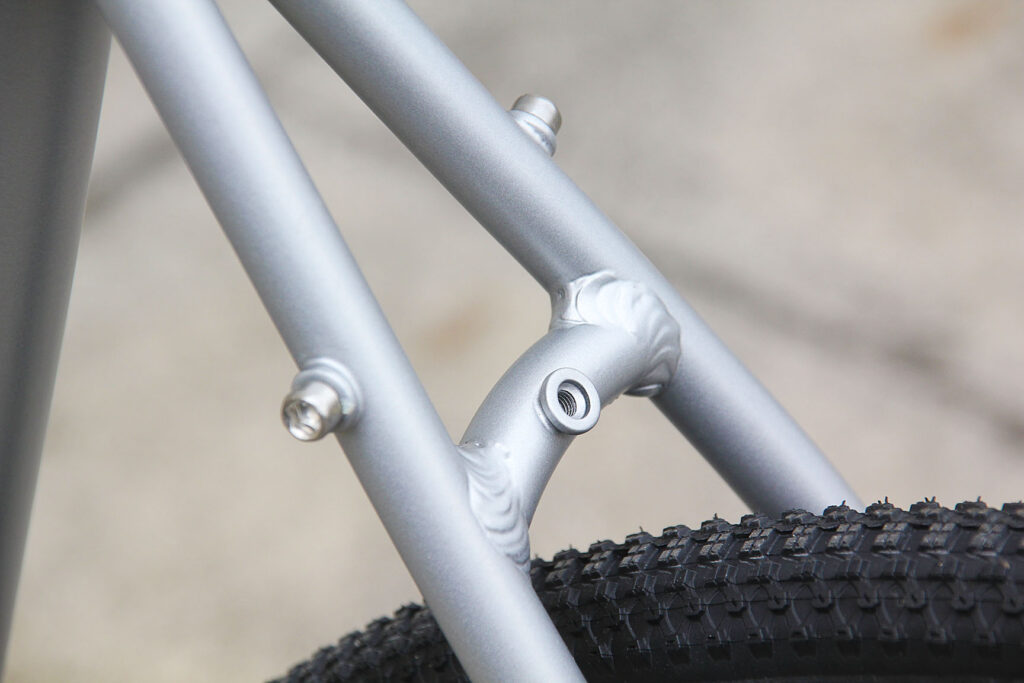

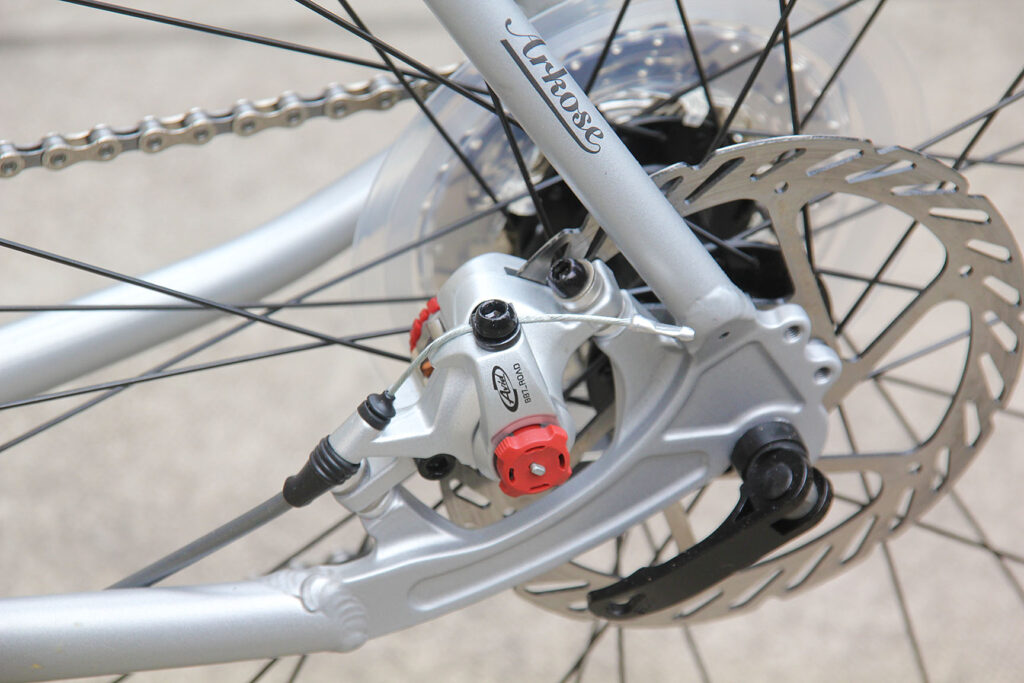

At the back the disc calliper is mounted to the top of the chainstay as is becoming increasingly common. That means that it's out of the way of the mudguard and rack mounts (the Arkose dropout has holes for both) but it does present some other issues, which we'll come to later. All in all the frame is fairly chunky, in its welds and tube profiles, and the fork matches that look.

You'd expect a chunky alloy frame with a tapered steerer fork to be a stiff ride, and that's certainly the case here. The Arkose has a solid feel to match its solid looks. My testing has mostly been commuting (road and path) and a few longer rides, but I also threw the Arkose round the Hell of the North Cotswolds CX sportive to get a feel for its handling on the proper rough stuff. All in all, I've been impressed.

It's not a whippy or particularly twitchy bike, but it has enough poise for most types of terrain. The firm front end transfers a fair bit of shock on a rocky descent and you have to hang on a bit but you'd expect that from a rigid bike running 35mm tyres and it's no worse than others I've used. On smoother surfaces the bike is well-behaved: it tracks well, the steering is neutral but responsive to your input, there's no flex in the bottom braket and rear triangle when you put the power down.

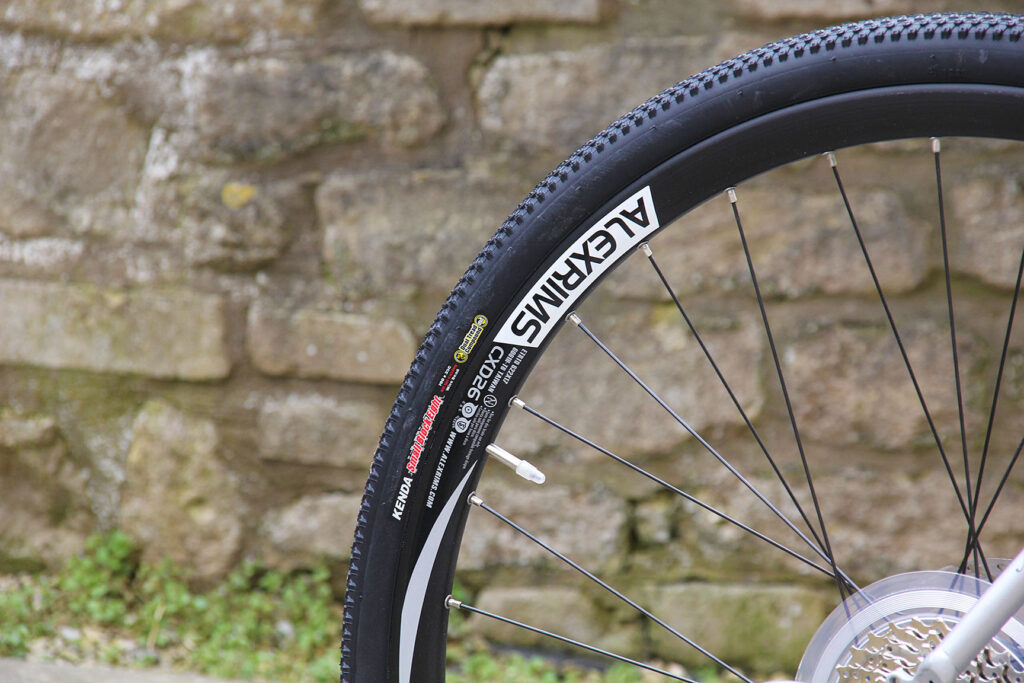

On tarmac the bigger air chambers of the tyres make it more comfortable than a full-on road bike, if also a bit more sluggish. The Kenda Small Block tyres are more or less the best compromise you can get for multi-terrain use. They can cope with most off-road situations (although they're not very happy in thick mud) and roll well enough on road. If your use of the bike is going to be exclusively restricted to tarmac, you'd be better off swapping them out for a good set of 28mm slicks. The tyres are on decent enough wheels: Joytech hubs and Alex CXD26 disc rims. They're not light but they stayed stiff and true, and you're unlikely to really be hindered by them unless you fancing throwing the Arkose at a proper race. The bike's overall 10.7kg weight won't slow you down too much, anyway.

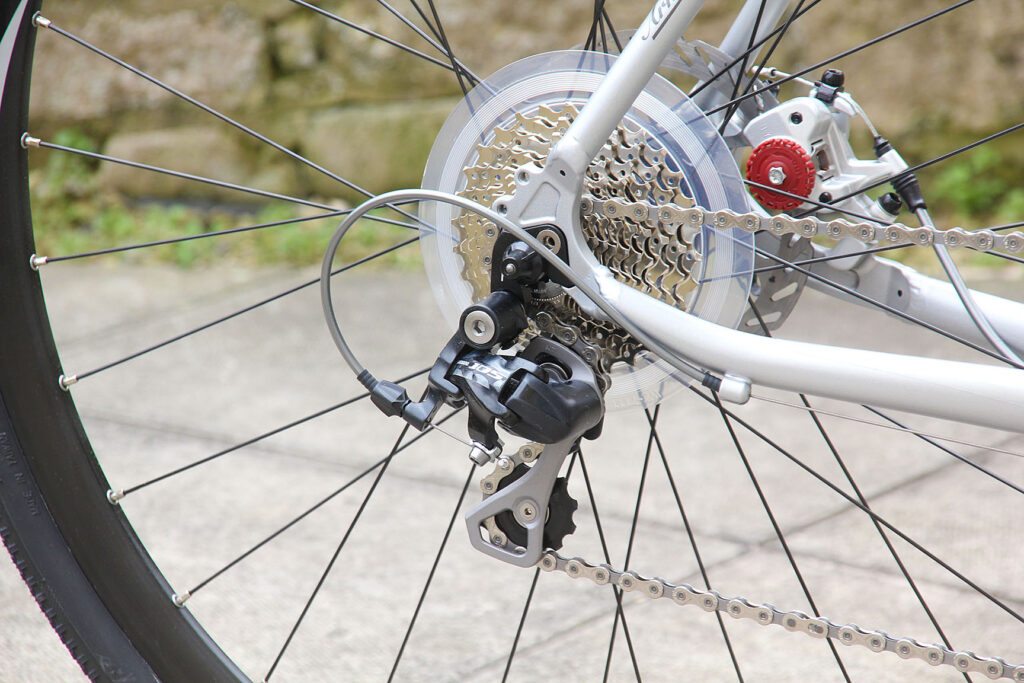

The Shimano 105 transmission performed faultlessly throughout. It's still my first choice in terms of performance versus value. Shifts are crisp and easy from hoods and drops, the under-tape cable routing keeps things neat. Pinnacle have saved money with an FSA chainset and a Tiagra front mech, neither of which significantly impacts on performance although it's my experience that Shimano rings last quite a bit longer. However, it's worth noting that a lot of disc-equipped bikes at this price point are running Sora, which is two rungs below 105 on the big Shimano groupset ladder. So the Arkose is certainly good value for money in that regard. The compact chainset and 12-30T rear cassette mean that there's more than enough gears for nearly everything, although if you were sticking a rack on and going for a big tour you might need to adjust the gearing, possibly by swapping the chainset for a MTB 2x10.

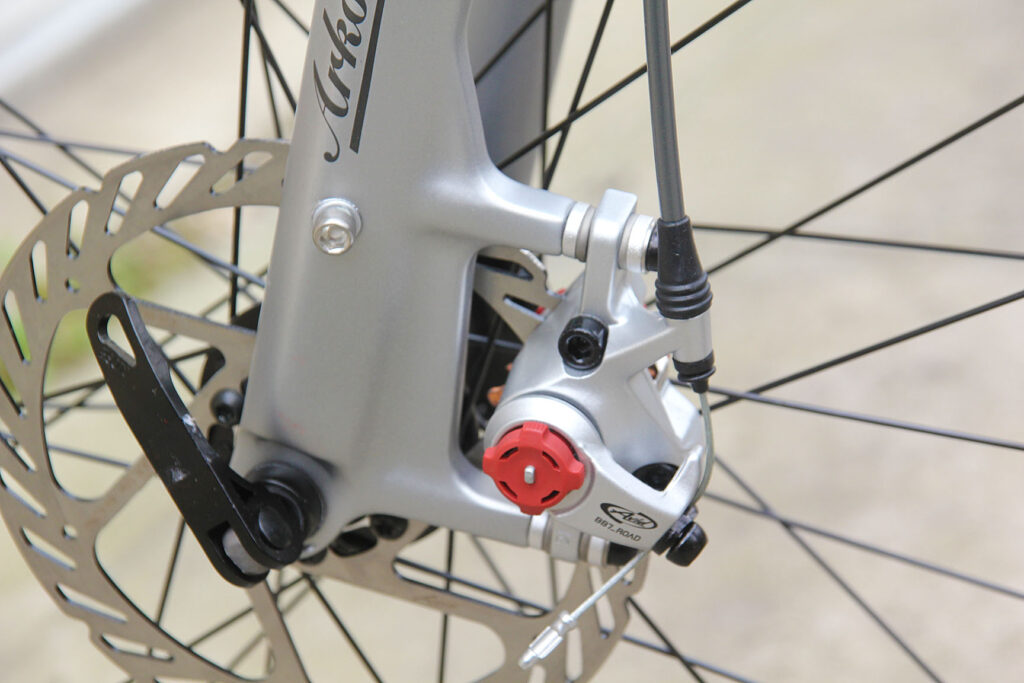

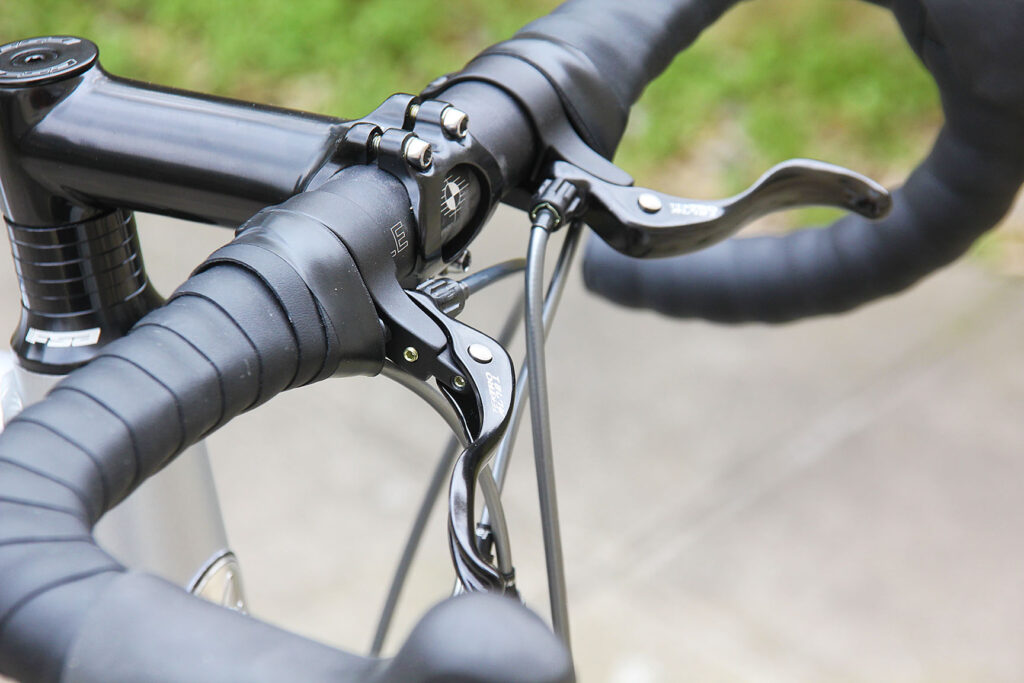

Brakes are Avid's BB-7 callipers which have been the go-to mechanical brake for quite a while now. As ever, they performed very well throughout testing, with plenty of power on offer in all conditions. The Arkose comes fitted with cross-top levers which is a good thing if you like cross-top levers, which I don't. I took them off.

One braking issue did raise its head. Halfway through the HONC ride I had to stop to sort the rear brake out, as it was dragging heavily on the rear rotor. I unwound the outside pad which freed things up, and set off again, but 10km later it was rubbing again. It turned out that I was catching the rear calliper with my heel and the action of hitting it was winding the pad in towards the rotor. Once I'd worked that out I was careful not to kick the brake any more and it didn't happen again, but it is an issue from time to time with wider rear triangles and big feet. Currently the bike is wearing a set of TRP's new semi-hydraulic Hy/Rd callipers and they don't stick out as far, so it's no longer an issue.

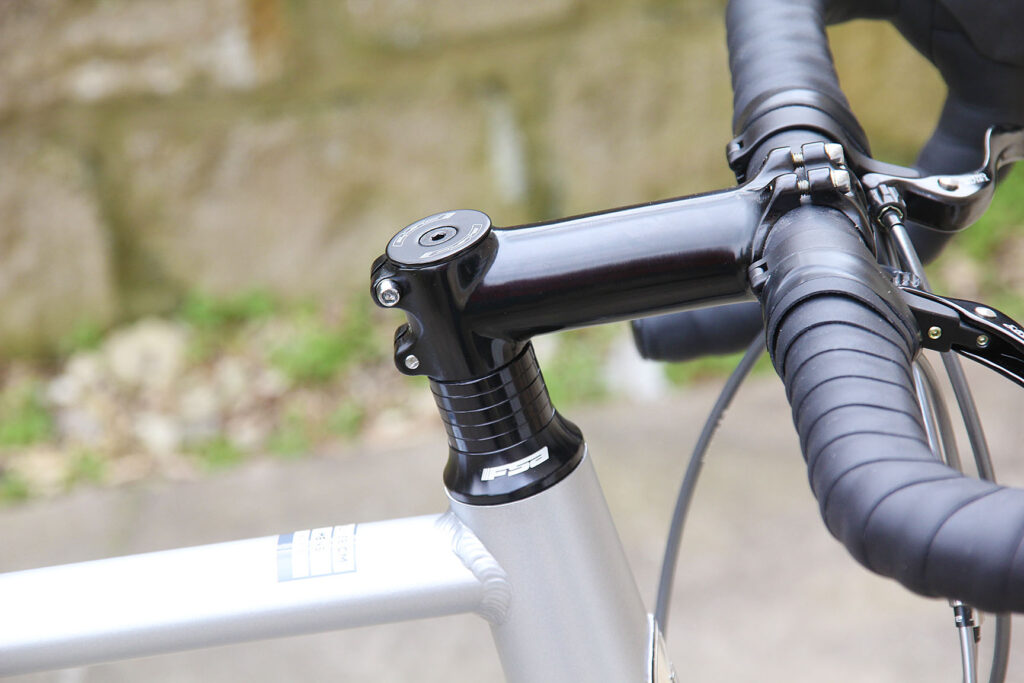

The only other issue I had during testing was that the headset worked a bit loose; this turned out to be because the spacer stack wasn't quite big enough to tension the bearing properly. Swapping a 5mm spacer for a 10mm one sorted that.

My overall impression of the Arkose Three is of a solid bike that puts in a good show across the board. If you're looking for something that will take the strain of daily use and also be up for the odd weekend excursion – even the odd CX race – then it's a tempting package for the money, especially if you can get one on cycle to work. The bike's performance is solid rather than stellar but it doesn't do anything badly, and that in conjunction with the fact that it's very good value means it's certainly one to add to your list.


Solid performance on and off road, and good spec for the money

If you're thinking of buying this product using a cashback deal why not use the Top Cashback page and get some top cashback while helping to support your favourite independent cycling website test report

Make and model: Pinnacle Arkose Three

Size tested: XL

About the bike

State the frame and fork material and method of construction. List the components used to build up the bike.

Frame: Pinnacle 6061-T6 Heat-treated Aluminium alloy

Fork: Carbon blades / tapered 1 1/8" > 1 1/4" carbon steerer, guard eyelets

Front Derailleur: Shimano Tiagra FD-4600

Rear Derailleur: Shimano 105 RD-5700

Shifters: Shimano 105 ST-5700

Chainset: FSA Omega 34-50T

Chainrings: 34-50T

Bottom Bracket: FSA External

Cassette: Shimano CS-4600 12-30T

Chain: KMC

Front Brake: Avid BB-7 Cable Disc

Rear Brake: Avid BB-7 Cable Disc

Brake Levers: Shimano 105 + Tektro bar-top levers

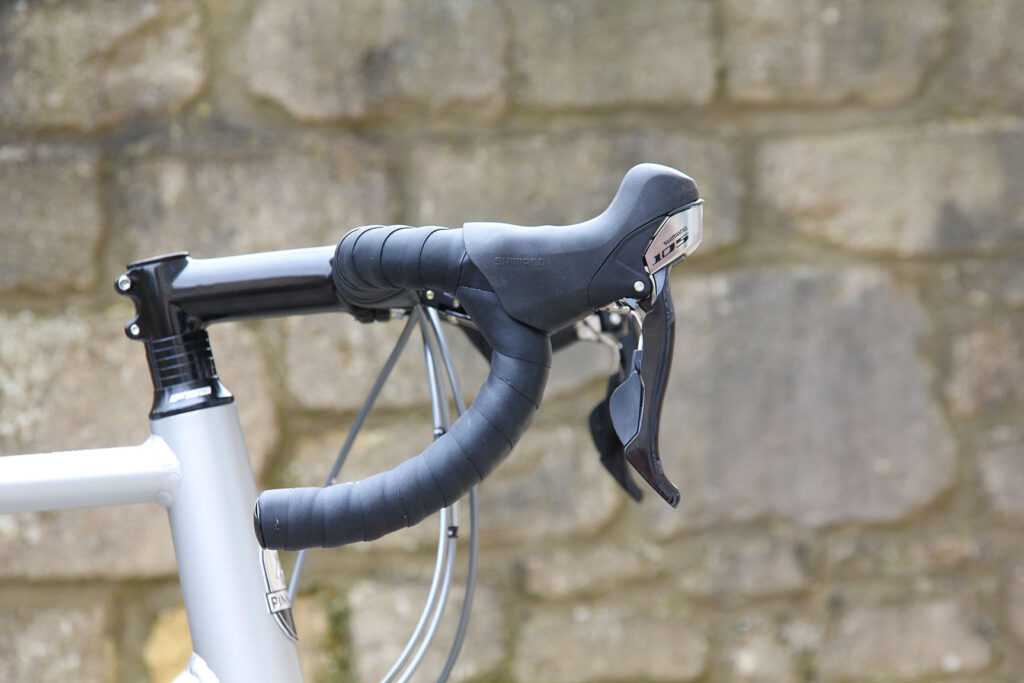

Handlebars: Pinnacle DB Aluminium shallow-drop bar, 125mm drop, 70mm reach, 440mm width

Stem: Pinnacle SL Road Ahead stem, 110mm

Headset: FSA integrated for 1.125>1.25" taper head tube

Grips: Shock-proof dual-density microfibre tape

Front Hub: Joytech 6-bolt disc

Rear Hub: Joytech 6-bolt disc

Spokes: Stainless PG

Front Tyre: Kenda Small Block 8 K1047 35c

Rear Tyre: Kenda Small Block 8 K1047 35c

Tubes: Butyl

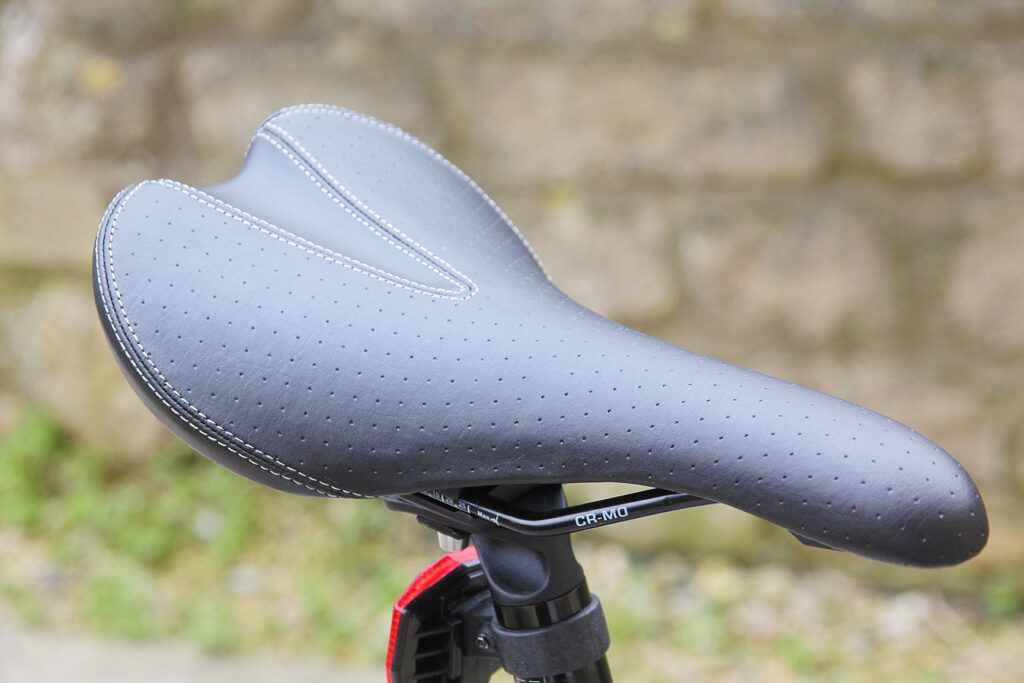

Saddle: FWE Sport MTB men's, grey

Seatpost: Pinnacle micro-adjust Aluminium

Seat Binder: Single-bolt clamp

Rims: Alex CXD26 Disc

Tell us what the bike is for, and who it's aimed at. What do the manufacturers say about it? How does that compare to your own feelings about the bike?

The Pinnacle Arkose Three 2013 Cyclocross Bike uses a Shimano 105 10-speed drivetrain with Avid's renowned BB7 disc brakes offering near-hydraulic braking performance in any weather.


The Arkose rolls fast over tarmac, towpaths, woodland trails and country bridleways. It takes influence from Cyclo-Cross race bikes without compromising its intended use as an efficient high-mileage, all-round, cross-terrain machine. Using a tapered-steerer all-carbon fork and a taper-oval top tube for accurate handling and reduced impact shocks makes this a comfortable ride at speed. The geometry is relaxed enough for high-speed off-road use in wet conditions as well as retaining a neutral feel on tarmac. A chainstay disc mount with maximum heel clearance matches well with narrow Q-factor road chainset and ensures simple fitting of mudguards or racks.

Frame and fork

Overall rating for frame and fork

Tell us about the build quality and finish of the frame and fork?

Nicely put together, solid-looking

Tell us about the geometry of the frame and fork?

Size: XL

Effective top tube: 580mm

Head tube: 210mm

Seat angle: 73°

Head angle: 70.5°

How was the bike in terms of height and reach? How did it compare to other bikes of the same stated size?

A good fit for me

Riding the bike

Was the bike comfortable to ride? Tell us how you felt about the ride quality.

Solid feel, direct and fairly responsive

Did the bike feel stiff in the right places? Did any part of the bike feel too stiff or too flexible?

Good levels of stiffness throughout

How did the bike transfer power? Did it feel efficient?

Power transfer never an issue

Was there any toe-clip overlap with the front wheel? If so, was it a problem?

No issues

How would you describe the steering? Was it lively, neutral or unresponsive? Neutral

Tell us some more about the handling. How did the bike feel overall? Did it do particular things well or badly?

Direct feel to the steering. Front end is very firm

Which components had the most effect (good or bad) on the bike's comfort? would you recommend any changes?

Bar tape a bit thin, transferring plenty of shock from the firm front end

Which components had the most effect (good or bad) on the bike's stiffness? would you recommend any changes?

Frame and fork a good platform for a nice stiff bike

Rate the bike for efficiency of power transfer:
Rate the bike for acceleration:
Rate the bike for sprinting:
Rate the bike for high speed stability:
Rate the bike for cruising speed stability:
Rate the bike for low speed stability:
Rate the bike for flat cornering:
Rate the bike for cornering on descents:
Rate the bike for climbing:

The drivetrain

Rate the drivetrain for performance:
Rate the drivetrain for durability:
Rate the drivetrain for weight:
Rate the drivetrain for value:

Wheels and tyres

Rate the wheels and tyres for performance:
Rate the wheels and tyres for durability:
Rate the wheels and tyres for weight:
Rate the wheels and tyres for comfort:
Rate the wheels and tyres for value:


Rate the controls for performance:
Rate the controls for durability:
Rate the controls for weight:
Rate the controls for comfort:
Rate the controls for value:

Your summary

Did you enjoy riding the bike? Yes

Would you consider buying the bike? Yes

Would you recommend the bike to a friend? Yes

Rate the bike overall for performance:
Rate the bike overall for value:

Overall rating: 8/10
