Acor One inch Headset



Lightweight, serviceable replacement headset for older bikes

At every product is thoroughly tested for as long as it takes to get a proper insight into how well it works. Our reviewers are experienced cyclists that we trust to be objective. While we strive to ensure that opinions expressed are backed up by facts, reviews are by their nature an informed opinion, not a definitive verdict. We don't intentionally try to break anything (except locks) but we do try to look for weak points in any design. The overall score is not just an average of the other scores: it reflects both a product's function and value – with value determined by how a product compares with items of similar spec, quality, and price.

What the scores mean

Good scores are more common than bad, because fortunately good products are more common than bad.

  • Exceptional
  • Excellent
  • Very Good
  • Good
  • Quite good
  • Average
  • Not so good
  • Poor
  • Bad
  • Appalling

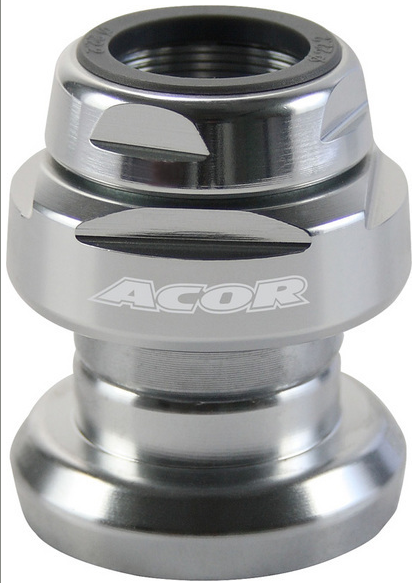

One inch threaded headsets are increasingly close to extinction on new bikes but this one might come to the rescue of older mid range winter trainers, crossers and commu-tourers needing a cheap but fairly cheerful replacement.

The nine-piece alloy construction keeps the weight low and styling is reminiscent of Stronglight’s venerable A9 unit but the Acor requires careful installation to avoid damage, especially to the crown race. A moderate 37.5mm stack height means it should fit all but the most shallow of steerers.

Costs are cut a bit by running on a hybrid of caged ball and needle roller bearings. Needle rollers top and bottom would be an obvious upgrade, although setting them loose in a bed of thick marine grease is a notable improvement.

After riding in all weathers without guards for six weeks, it was reassuring to discover the basic seals offered reasonable protection from dirt and ingress, although machines in hard service-especially cyclo cross and mountain bikes – should fit a boot around the lower race as extra insurance.

There are better designs on the market but upgrading the bearings and with regular servicing it makes a worthy replacement for older, mid range road bikes now earning their keep as winter trainers and fixer conversions.


Lightweight and reasonably serviceable alloy headset for older, mid range machines. test report

Make and model: Acor One inch Headset

Size tested: One inch

Tell us what the product is for, and who it's aimed at. What do the manufacturers say about it? How does that compare to your own feelings about it?

It is a one inch threaded alloy headset to cater for old fashioned threaded steerers and the resurgence in popularity of fixer conversions may see this niche make a small but noticeable comeback. My initial feelings were that this was a copy of Stronglight's venerable A9

Tell us some more about the technical aspects of the product?

With a moderate 37mm stack height and weighing 89 grams, it should accomodate most threaded steerers aside from those cut for Shimano, the upper race are relatively cheap caged ball bearings whilst the lower are more dependable needle roller cartridge type.

Rate the product for quality of construction:

Inexpensive and fairly cheerful.

Rate the product for performance:

Surprisingly effective, if slightly basic weather seals keep the elements at bay and with a liberal re-greasing bearings feel reassuringly smooth.

Rate the product for durability:

Generally fine but care needs to be taken when installing as crown race in particular is easily damaged.

Rate the product for weight, if applicable:
Rate the product for value:

Inexpensive but there are models sporting two sets of needle roller bearings for about a fiver more.

Tell us how the product performed overall when used for its designed purpose

Performs reasonably well, is easily serviced but some tweaking and a stout grease is required to get the best from it.

Tell us what you particularly liked about the product

Low weight, classic design and reasonable weather seals.

Tell us what you particularly disliked about the product

Cheap, caged ball bearings and soft crown race.

Did you enjoy using the product? Yes, minor niggles aside

Would you consider buying the product? For old, mid range cro-moly bikes

Would you recommend the product to a friend? Possibly

Overall rating: 6/10
