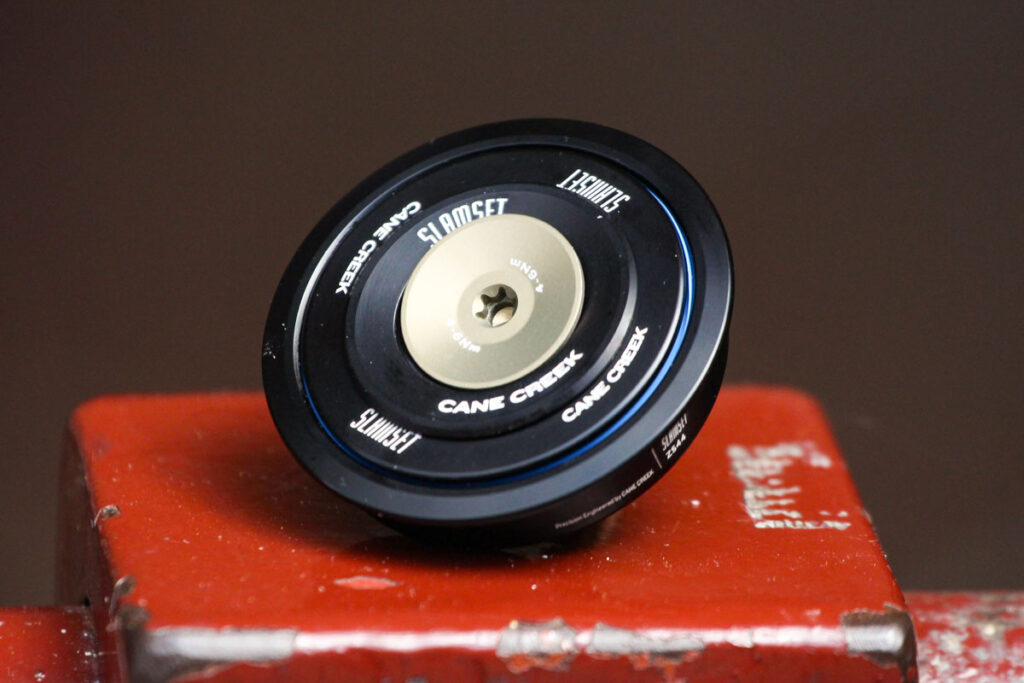

Cane Creek Slamset ZS44/28.6 headset top assembly

8
£74.99

VERDICT:

8
10
Well-made headset that delivers a racy position while keeping out the elements
Weight:
40g

If you can't quite achieve that low race position with your standard headset then this Cane Creek Slamset ZeroStack (ZS) Top Assembly could be just what you are after. Your stem will be suitably slammed for that pro look and thanks to the sealed Hellbender bearings, keeping the elements out won't be a problem either.

  • Pros: Very easy to set up, bearing seals have kept the water and dirt out
  • Cons: Pricier than some of the main competitors

Many headset top assemblies can sit around 10mm proud of the top of the head tube, the equivalent of having another spacer between it and your stem. If you want to really get as low as you can at the front end, the ZS reduces that height to just 2mm, and that can be quite a noticeable difference.

> Find your nearest dealer here

> Buy this online here

The ZS model is an internal/integral style headset that will fit your head tube if it takes a 44mm diameter bearing cup. It drops into your frame and then the bearing race is positioned inside that. The top cover then tightens in on top of that for a very clean looking and enclosed assembly.

The cups and covers are made from 7075-T6 aluminium alloy and are nicely finished, feeling totally smooth inside and out.

At its heart, the ZS uses Cane Creek's stainless steel Hellbender bearings which are designed to resist corrosion and stand up to the elements – should any get in. The headset has seen plenty of rain and mud over three months of testing and on inspection still looks like new.

Once assembled and adjusted, the whole setup felt completely smooth and that hasn't changed during testing. I'll keep an eye on things over the winter when the real abuse should start, but this is looking like a fit and forget item for many seasons to come.

> Customising your bike to maximise your performance – how a few changes can help you go faster

If you have an integrated style head tube where the bearing race sits directly into the frame then Cane Creek also offers IS versions (£49.99). These don't give quite as low a stack height as the ZS, but you are still only looking at 4.6mm above the top of the head tube.

Both the ZS and IS versions are available as full assemblies too.

When it comes to value, the ZS is a bit of an outlay at £74.99, especially when you can get the highly regarded Hope Technology Integral headset for around £40. It doesn't offer anywhere near as miniscule a stack height as the Cane Creek, mind.

Overall, the Zerostack is a very smooth headset that's simple to fit and adjust, and though it isn't cheap it should last you a long time.

Verdict

Well-made headset that delivers a racy position while keeping out the elements

If you're thinking of buying this product using a cashback deal why not use the road.cc Top Cashback page and get some top cashback while helping to support your favourite independent cycling website

road.cc test report

Make and model: Cane Creek Slamset ZS44/28.6 headset top assembly

Size tested: ZS44/28.6

Tell us what the product is for and who it's aimed at. What do the manufacturers say about it? How does that compare to your own feelings about it?

Cane Creek says, "The Slamset is a premium headset created for riders seeking to lower their handlebars further than the standard stack height without compromising bearing seal and proper preload. With the HELLBENDER bearing included, the Slamset excels at durability and longevity when it comes to steering performance."

Tell us some more about the technical aspects of the product?

CUPS AND COVERS 7075 T-6 Aluminum, contoured and relieved to minimize weight and maximize strength

TOP COVER Low-friction upper bearing seal completely seals cup from contaminants and is fully captured by the top cover with no loose parts

CROWN RACE Aluminum crown race with integrated low friction seal

COMPRESSION RING Carbon friendly cap-in compression ring

Top BEARING HELLBENDER, sealed stainless-steel bearings

Bottom BEARING HELLBENDER, sealed stainless-steel bearings

MANUFACTURING Assembled In USA

STACK HEIGHTS

External Cup (EC) '' 12mm bottom

ZeroStack (ZS) '' 2mm top, 4mm bottom

Integrated (IS) '' 4.6mm top, 1mm bottom



FINISH Anodized Aluminum

Rate the product for quality of construction:

8/10
Rate the product for performance:

8/10
Rate the product for durability:

9/10
Rate the product for weight (if applicable)

8/10
Rate the product for value:

6/10

Tell us how the product performed overall when used for its designed purpose

The handling feels smooth and it keeps the weather out.

Tell us what you particularly liked about the product

Well sealed against the elements.

Tell us what you particularly disliked about the product

Quite an outlay.

How does the price compare to that of similar products in the market, including ones recently tested on road.cc?

At the higher end of the market but it does have that zero stack height USP.

Did you enjoy using the product? Yes

Would you consider buying the product? Yes

Would you recommend the product to a friend? Yes

Use this box to explain your overall score

It's a little pricey compared to some of the opposition, but it's well made and performs very smoothly.

Overall rating: 8/10

About the tester

Age: 40  Height: 180cm  Weight: 76kg

I usually ride: This month's test bike  My best bike is: B'Twin Ultra CF draped in the latest bling test components

I've been riding for: Over 20 years  I ride: Every day  I would class myself as: Expert

I regularly do the following types of riding: time trialling, commuting, club rides, sportives, fixed/singlespeed

With 20 years of road cycling and over 150,000 miles in his legs it's safe to say Stu is happiest when on the bike whatever the weather. Since writing his first review for road.cc back in 2009 he has also had a career in engineering including 3D-CAD design and product development, so has a real passion for all of the latest technology coming through in the industry but is also a sucker for a classic steel frame, skinny tyres, rim brakes and a damn good paintjob.
His fascination with gravel bikes is getting out of control too!
