Steven Abraham’s Raleigh Sojourn Year Record bike

Three identical bikes with some special equipment modifications for Steven's Year Record attempt

On the 1st January 2015, Steven Abraham set off into the darkness with the aim of breaking Tommy Godwin’s 75,065 mile Year Record, set way back in 1939. Currently averaging over 200 miles and 18 hours of riding a day, he’s well ahead of Godwin’s record at the time of writing.

Such a ride clearly places a huge demand on your endurance and stamina, both physical and mental. But while it’s one thing to hope his legs continue to spin the pedals, his bike needs to be reliable and durable. There has been a lot of equipment preparation ahead of this Year Record attempt to ensure the bike can stand up to the challenge and that no miles are lost to a mechanical issue. The odds of something going wrong are high when you’re cycling over 200 miles a day.

The bike and kit needs to be able to do some serious mileage: in January alone Steven clocked up a mighty 5,743 miles. That sort of mileage places a huge amount of wear and tear on the bike, so for the record Steven, sponsored by Raleigh, has shunned the temptations of a lightweight racer and opted for a reliable and comfortable touring bike. The mostly stock and modest Sojourn is an £1,100 bike, that road.cc summed up in a 2012 review as a “smooth riding tourer but very heavy and modest.”  Tommy Godwin also rode a Raleigh during his 1939 record ride.

Steven actually has three identical Raleigh Sojourn touring bikes for his record attempt. The plan is to do roughly 6,000 miles on each bike, and then swap onto another one while that previous bike is whisked away to be fully serviced by Stripes Bike Shop.

The three bikes are handily identifiable by the colour matched Hope headsets, bottom brackets and hubs that have been fitted. He has a 'Silver', 'Black' and, the bike he started his challenge aboard, a  'Red' one.

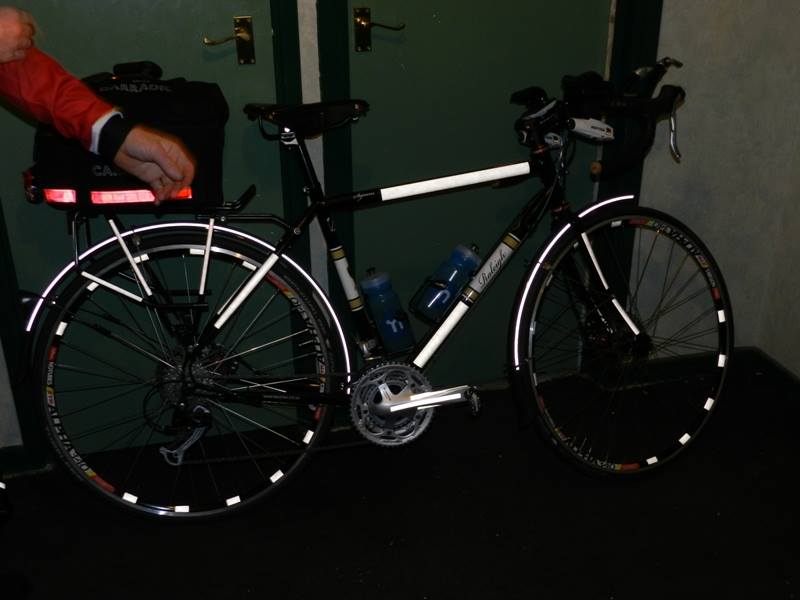

The ‘Red’ bike pictured has had a hard innings. It's been ridden through some atrocious conditions during January, with plenty of rain and lots of road salt to contend with. As such, on the 9th February, it was taken out of service, having covered 5,600 miles.

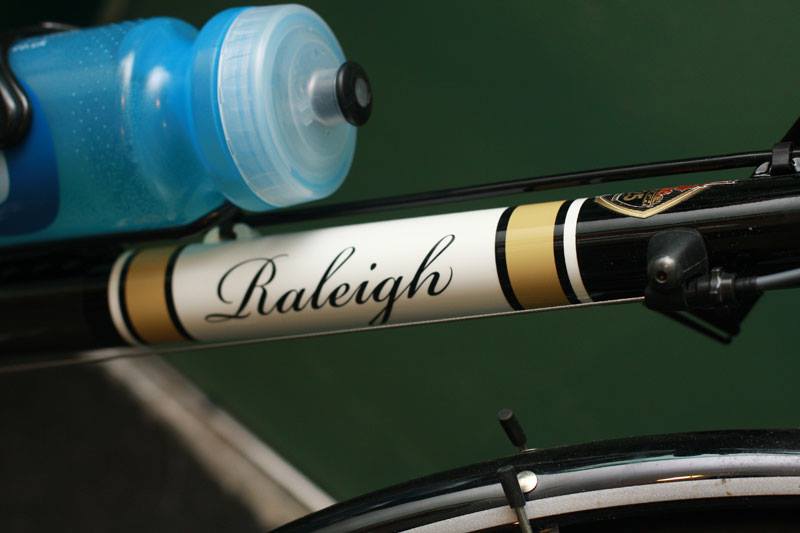

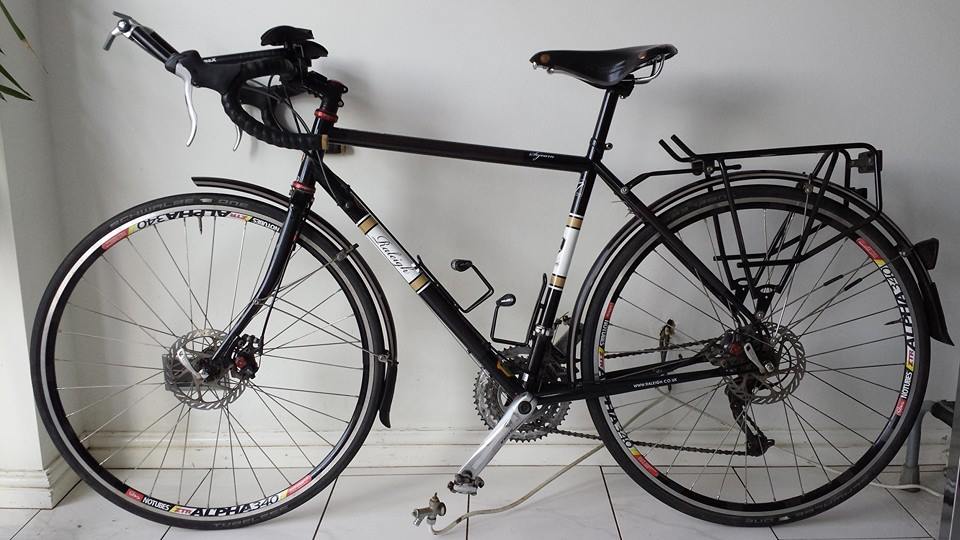

Steven is riding a mostly stock Raleigh Sojourn, but with several important changes. The Sojourn is your classic Reynolds 631 touring bike with a steel fork, and the addition of Avid BB5 mechanical disc brakes. Why disc brakes? Steven reckoned that with the high mileage he’s doing, conventional brakes would only last a few days, and the rims need replacing every 6-8 weeks. The rims and pads last a lot longer with disc brakes.

The Sojourn sells for £1,100 and comes fitted with a 27-speed Shimano Sora groupset, with a triple chainset (50-39-30) and a Tiagra 9-speed cassette (11-25). Steven’s strategy at the moment is long and slow rides, and keeping his heart rate low. The wide spread of gear ratios will certainly enable him to conserve energy on any hills he faces and always find the right gear.

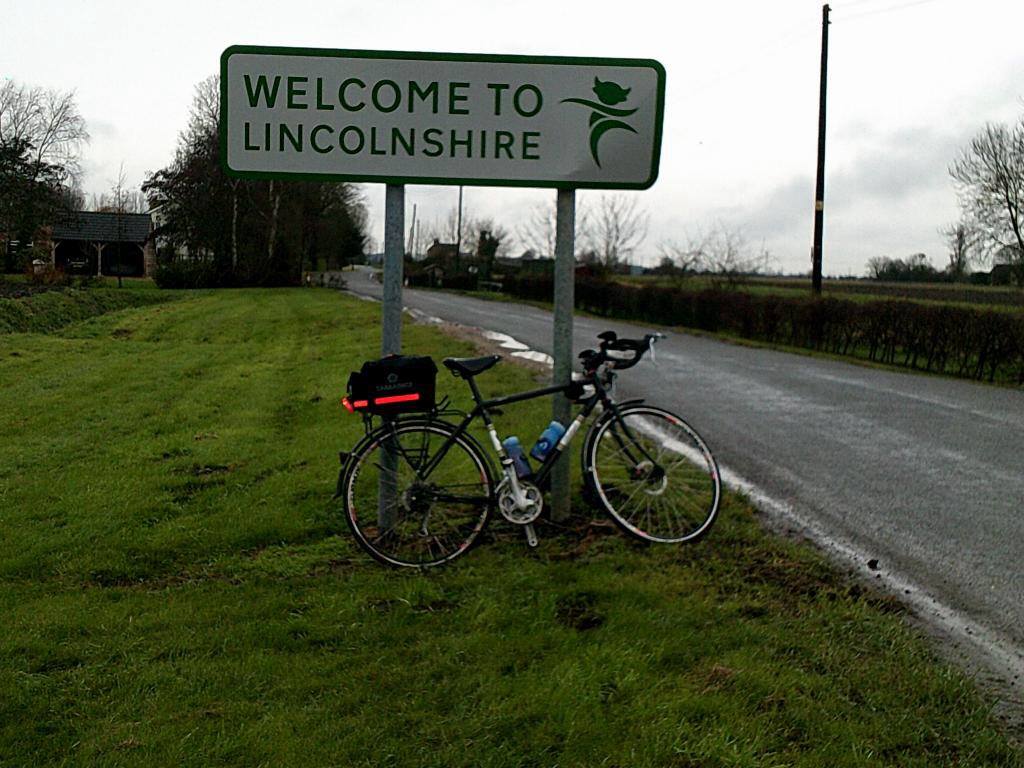

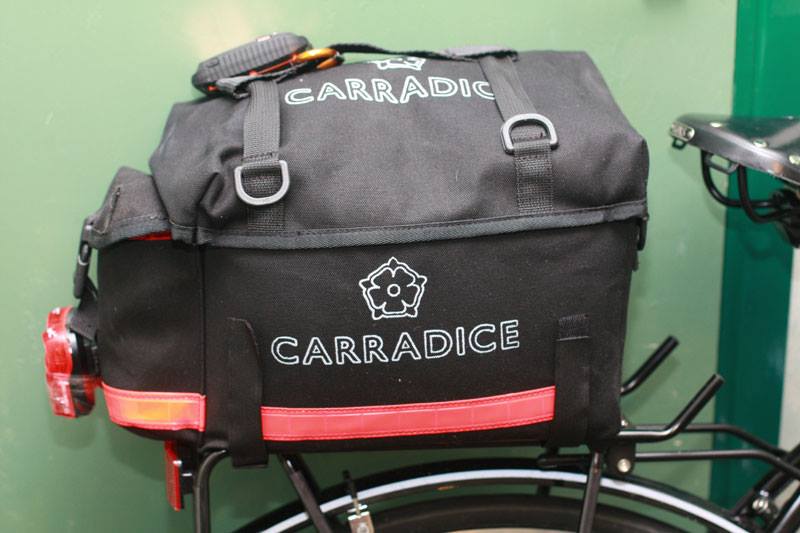

Of course the bike has full-length mudguards fitted to protect him from road spray. He's using a Carradice rack to carry a Carradice rack-top bag, which will be stuffed with essentials like food, money, tools and spares and extra clothing. No sense in carrying it in your jersey pockets when you’re riding such long distances, where comfort is the highest priority.

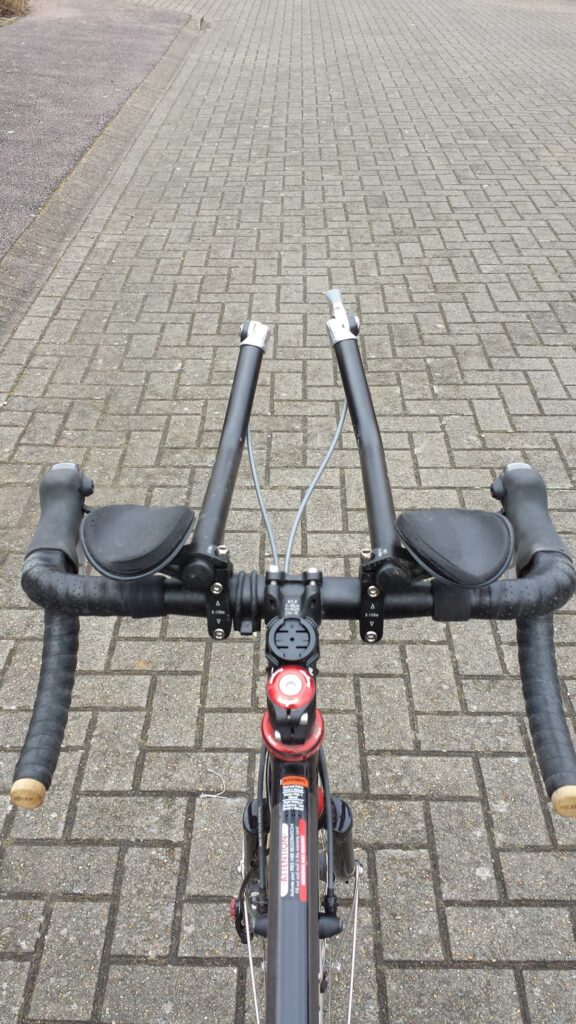

Other modifications include a set of time trial extension bars, which are as much about providing a different position for his back, as cheating the wind. Steven will sit upon a Brooks B17 saddle, a very popular choice for any distance cyclists and has carried numerous cyclists around the world in the past.

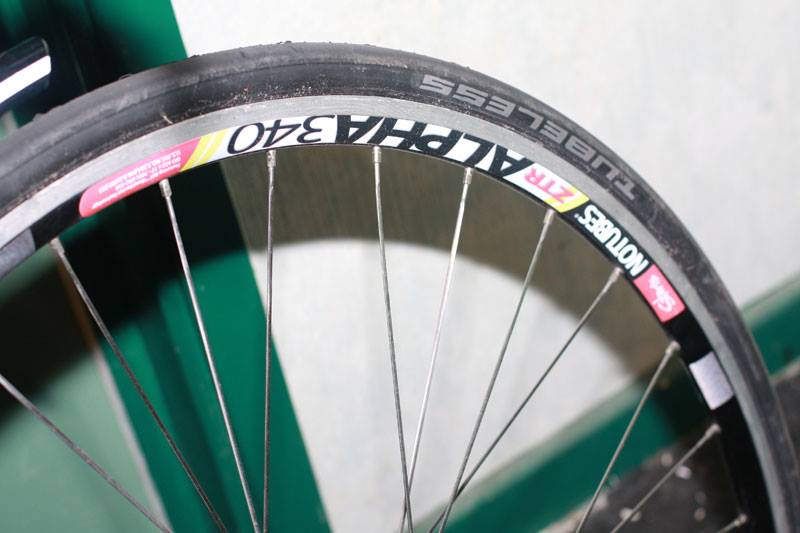

British company Hope have supplied headsets, bottom brackets and hubs, and they’re colour matched on each bike. The hubs are laced to Stan’s Alpha 340 tubeless rims, which I reviewed last winter, with stainless steel spokes and steel nipples. They’re a light and sturdy rim and importantly allows Steven to use Schwalbe One tubeless tyres with sealant.

Avoiding punctures is of critical importance - Steven reckons the 10 minutes it takes to replace a punctured inner tube could cost him 3 miles. So far, Steven has covered 9,218 miles with no reported punctures. The Schwalbe One is very much a race tyre though and the prediction is 6,000 from the front tyre and 3,000 from the rear one.

Wondering what the bike weighs? Well, it’s not a light bike that’s for sure, normally it weighs about 26lb (11.79kg) but it’s closer to 30lb (13.6kg) when laden up.

Steven has worked out a schedule that would take him to 82,835 miles in a single year, averaging a lowest monthly daily distance of 170 miles in January and peaking at 285 miles.

You can find out more about Steven at the official website http://oneyeartimetrial.org.uk/ and have a read of this insightful interview. Plus you can follow his attempt on Strava as well.

Photos reproduced with kind permission of the The One Year Time Trial Support Team.

David worked on the road.cc tech team from 2012-2020. Previously he was editor of Bikemagic.com and before that staff writer at RCUK. He's a seasoned cyclist of all disciplines, from road to mountain biking, touring to cyclo-cross, he only wishes he had time to ride them all. He's mildly competitive, though he'll never admit it, and is a frequent road racer but is too lazy to do really well. He currently resides in the Cotswolds, and you can now find him over on his own YouTube channel David Arthur - Just Ride Bikes

Add new comment

40 comments

Avatar
BikeJon | 7 years ago
0 likes

Does anyone know if Steve is using the same three bikes on his latest attempt? I know he set off on a Sojourn again. I notice his shifting has been moved to the tri bars. He could have swapped out his STIs for regular brake levers and shaved some weight off. Mind you, it would hardly make a dent in the overall weight.

Great to see him having another attempt at an astonishing record.

Avatar
Bikeylikey | 9 years ago
0 likes

Adding my total respect and amazement, of course, I couldn't even think about such an attempt. But...

Can anyone explain the thinking behind such a heavy bike? Surely he'll be wasting a lot of energy hauling all that weight up hills, energy which could have been converted into even more miles if he'd gone for a lighter bike, easily achievable these days. Even a pannier carrier??? Why not just a biggish saddle pack or saddlebag?

The weight makes it all the more an amazing achievement, of course, but seems like an unnecessary handicap.

By the way, nobody ever mentions the most amazing record of all, Walter Greaves' record in 1936. Talk about handicaps, he only had one arm! Plus one of the worst winters on record, many accidents in the first month, a very heavy, ordinary bike, and a veggie diet of nearly all bread, apples and milk.

Avatar
Godfrey Barlow replied to Bikeylikey | 9 years ago
0 likes

One armed Walter Greaves took the record off the Australian Ossie Nicholson in 1936. Walter did an amazing ride in beating it. He created so much interest that the day he finished two riders on two different continents were preparing to brake Walters record. One of them was Ossie and the other Rene Menzies. Sound similar to the 2015 attempt, except for the gap of 76 years!

Avatar
jsabine | 9 years ago
0 likes

Ley Cycles did support him and provide the machine he used for the first 27,000 miles though ... It's not as though Raleigh was stepping into a vacuum.

Avatar
ChairRDRF | 9 years ago
0 likes

A good interview with him is by Jack Thurston of The Bike Show http://thebikeshow.net/a-year-on-two-wheels/ . (Done before he set off - he is going to be kinda busy until 2016).

He sounds a very laid back kind of guy. Which I suppose you have to be.

All the very best to him.

Avatar
ianrobo | 9 years ago
0 likes

I will add my awe to everyone else's !! What an effort already in poor weather.

Avatar
hirsthirst | 9 years ago
0 likes

Genuinely astonishing - what a guy, all the best to him.

Avatar
Dropped | 9 years ago
0 likes

This is a fantastic effort that I am keeping a close eye on but I just can't get my head round the effort involved. Mega impressed and a whole bag full of chapeaus.........with a cherry on top!

Avatar
Leeroy_Silk | 9 years ago
0 likes

It'd be really interesting to see some kind of 'day / week in the life of' documentary. I just can't get my head around the numbers, 18 hours in the saddle, 6 hours rest and repeat. Where does the motivation come from? It's simply staggering!

It would be interesting too to see a catalogue of all the parts he gets through whilst going for the record.

I wish him all the best of British.

Avatar
CarbonBreaker | 9 years ago
0 likes

Has anyone been out with him yet? How is he with people just turning up to keep him company for a day?

Avatar
fenix replied to CarbonBreaker | 9 years ago
0 likes

You can read about riding with him here http://oneyeartimetrial.org.uk

Basically you're best just cheering him on and making sure you don't bump into him !

Avatar
Reg Molehusband | 9 years ago
0 likes

Amazing what this bloke's doing. His January mileage is incredible. Great way to evaluate equipment. Clothing and accessory firms should be showering him with products to test.

Avatar
pullmyfinger | 9 years ago
0 likes

Would coasting 38 miles downhill on Mount Kilauea six times a day count? If so, I can beat the record!  38

Avatar
124g | 9 years ago
0 likes

This is undoubtedly an amazing effort but I can't help think that Tommy did it without that sort of support so it really does show what a top top guy he was.

Avatar
David Arthur @d... replied to 124g | 9 years ago
0 likes
124g wrote:

This is undoubtedly an amazing effort but I can't help think that Tommy did it without that sort of support so it really does show what a top top guy he was.

Are you sure about that?

Avatar
Scowel replied to 124g | 9 years ago
0 likes

Tommy was sponsored and supported by Raleigh as well mate, by all accounts the level of support is very similar

Avatar
Godfrey Barlow replied to Scowel | 9 years ago
0 likes

Remember Tommy did not ride or get support from Raleigh until 27th May 1939. It's all in the book UNSURPASSED.

Avatar
Simon E replied to Godfrey Barlow | 9 years ago
0 likes
Godfrey Barlow wrote:

Remember Tommy did not ride or get support from Raleigh until 27th May 1939. It's all in the book UNSURPASSED.

I see Mousehold Press sell copies directly:
http://www.mousehold-press.co.uk/detail_tommy_godwin.cfm
In the light of Steven's attempt I may have to get a copy. Profits to Road Peace too  16

Steven spoke to Mark Florence in January for his podcast (http://cyclingtimetrialpodcast.libsyn.com/ and available iTunes).

Avatar
Godfrey Barlow replied to Simon E | 9 years ago
0 likes

Simon you correct that Mousehold Press are selling the book direct. Unfortunately after I ceased to market the book in May 2013, RoadPeace no longer benefit from sales. They have had cheques to the total of over £2,500 from book sales, so if you wish to support RoadPeace please make you own donation to them.

Avatar
CountrysideWobbler | 9 years ago
0 likes

So what's the deal with Steve's gear changers? Do the STIs and the shifters on the aero bars both work?

Avatar
grahamparks replied to CountrysideWobbler | 9 years ago
0 likes

There are no gear cables coming out the side of the shifters (which is how they run on Sora levers), so only the levers on the aero bars will work. Unusual choice.

Avatar
Pub bike replied to grahamparks | 9 years ago
0 likes
grahamparks wrote:

There are no gear cables coming out the side of the shifters (which is how they run on Sora levers), so only the levers on the aero bars will work. Unusual choice.

It is possible to have both controls work after a fashion using these http://jtekengineering.com/doublecontroll.php

Avatar
banzicyclist2 | 9 years ago
0 likes

Amazing effort and very interesting to read about his bike set-up. I've been riding on a set of hope wheels this winter with Schawble marathon plus tyres pretty much bomb proof.

I think disc brakes is defjnately the way to go on turing and winter bikes. Interesting to see Sora / Tiagra group set choice.

I'm following his progress with awe and facination.

Avatar
pants | 9 years ago
0 likes

I can barely stay awake for 18 hours a day, let alone ride for that long everyday. amazing stuff.

Avatar
Bärli Bär | 9 years ago
0 likes

Really interesting thread on YACF with Steve announcing his intention to take on the record and ideas being thrown together to get it all going, ratifying the record, equipment etc. Many posts from the man himself which is great.

https://yacf.co.uk/forum/index.php?PHPSESSID=koe0lsjp8cjaaflvj5hh7pcs05&...

Avatar
gazza_d replied to Bärli Bär | 9 years ago
0 likes
Bärli Bär wrote:

Really interesting thread on YACF with Steve announcing his intention to take on the record and ideas being thrown together to get it all going, ratifying the record, equipment etc. Many posts from the man himself which is great.

https://yacf.co.uk/forum/index.php?PHPSESSID=koe0lsjp8cjaaflvj5hh7pcs05&...

Thanks for that link. that is a fascinating read. I genuinely laughed out loud in the office at the post asking people not to post on fb cos he hadn't told his mum yet.

Avatar
gareth2510 | 9 years ago
0 likes

I think its brilliant he's doing it on a Raleigh bike myself.  41

Avatar
Stef Marazzi | 9 years ago
0 likes

Goes to show that there is nothing wrong with Sora and Tiagra groupsets! I've been waiting for this article as was fascinated to find out what his bike was running. Thanks.

Avatar
robthehungrymonkey | 9 years ago
0 likes

As already said, an awesome achievement (even so far!).

I am a bit surprised by the choice of equipment though. It seems the trend for the last few years of round the world records was to get lighter/faster bikes. Also, having been on my tourer a bit recently, man, it's slow compared to my road bike!

Avatar
Bärli Bär | 9 years ago
0 likes

Thanks for the write up on the bike. Have been following Steve with some interest and its great to get insights like this.

An interview with the man now that he is (almost) a couple of months in would be super (though appreciate an interview may be the very last thing he wants to do after a day's ride!).

Wishing Steve all the luck. In my mind this has got to be one of the greatest sporting endeavours that I've had the chance to watch unfold. Truly inspiring.
