Hydraulic disc brakes offer improved braking performance with greater consistency than traditional calliper
rim brakes. They're a little more involved to set up and service than cable brakes, but once you know what you're doing it's really very straightforward. As with any hydraulic system, air is the enemy causing inconsistent performance. Removing it, or 'bleeding' it out of the system is vital. Here's how to do it on a SRAM hydraulic road disc
Hydraulic brakes work on the basis that brake fluid is not compressible. Squeeze the brake lever and the displaced fluid is forced through the hose, into the calliper, forcing the pistons (and brake pads) towards each other and applying pressure to the disc rotor. Unlike fluid, air is a gas and therefore is compressible. If air is in the system it can cause the brake to have a mushy feel at the lever as the air compresses instead of directly transferring the braking pressure.
Air in brake hoses
can also cause issues with inconsistent system pressure when hot. Under hard braking an air bubble can expand and cause
the lever to pump out. Neither are helpful to effective braking. Both are fixed by 'bleeding' air from the system and replacing the trapped air bubbles
with brake fluid.

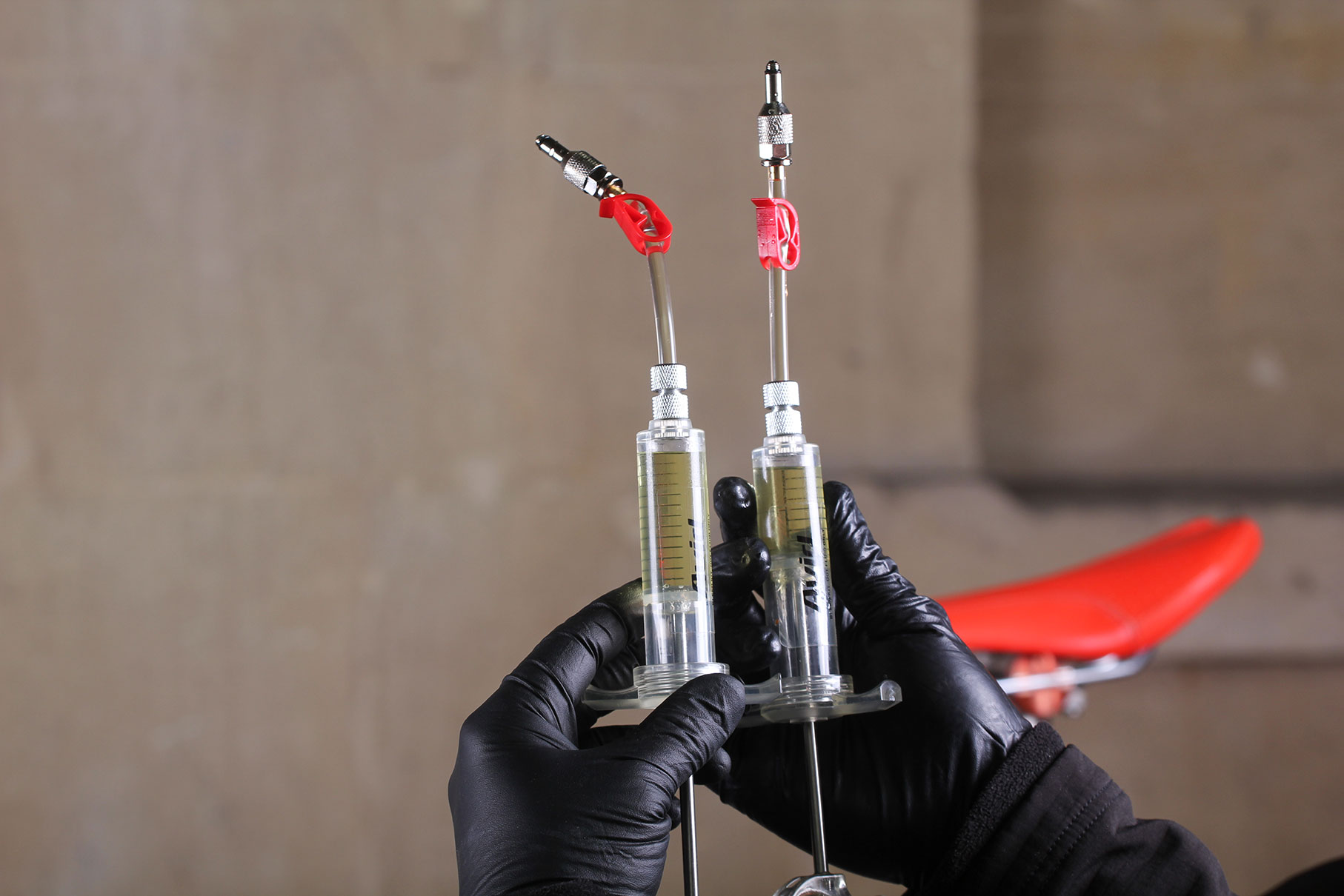

1 Put a pair of protective gloves on. DOT brake fluid is nasty stuff and contact with skin is best avoided. Fill the two syringes with fresh DOT5
brake fluid. Fill one half full,
the other a quarter full. When filling the syringes try not to make any bubbles in the fluid bottle. The fewer you have in the syringe, the fewer you'll have to remove in the next step...

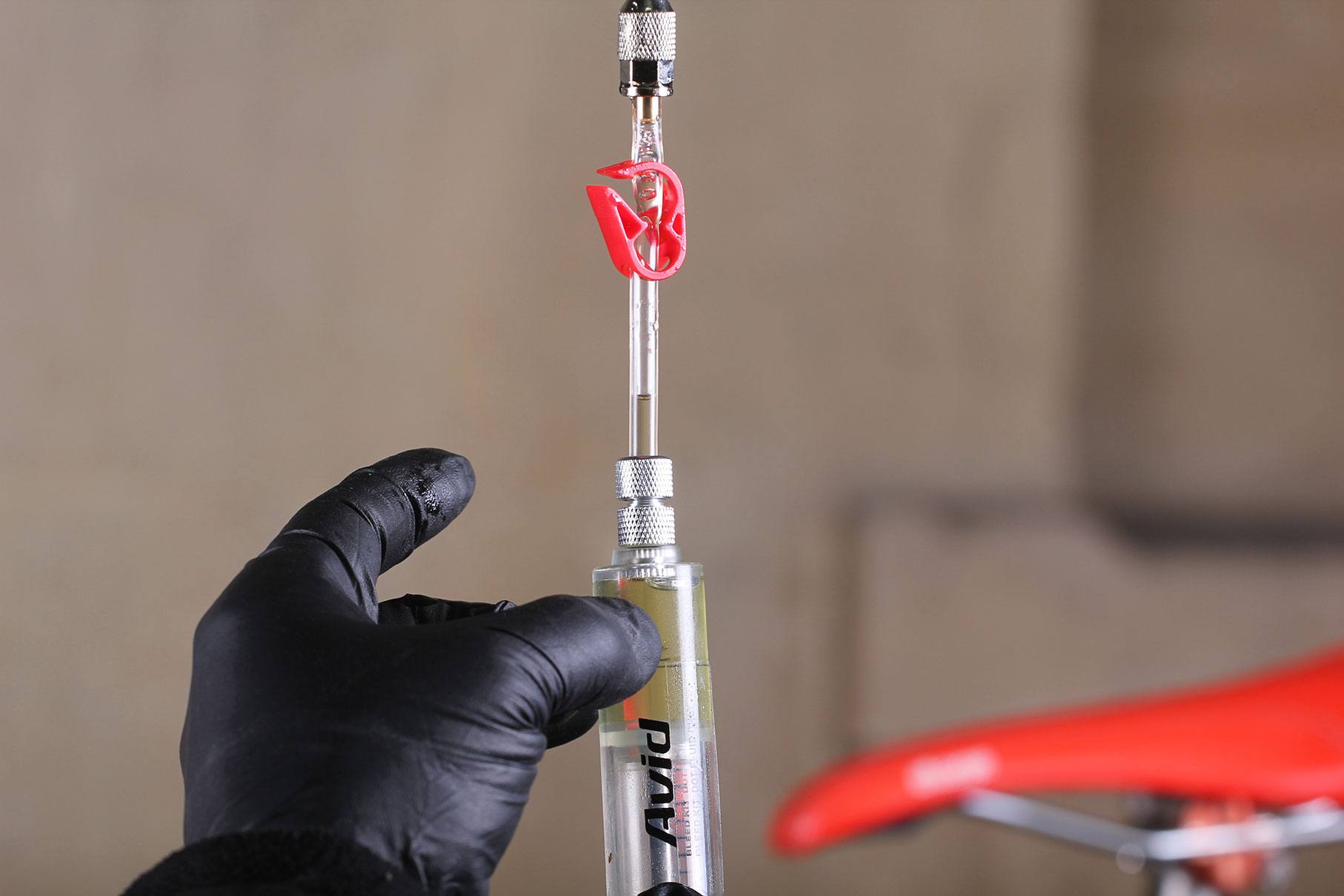

2 Tap out the bubbles.
There will be air in with the fluid, however careful you've been in filling them. Tap the sides of the syringes to release the bubbles into the spout area of the syringe. Gently apply pressure to the plunger and push the bubbles up the clear hose and out past the red clamps.

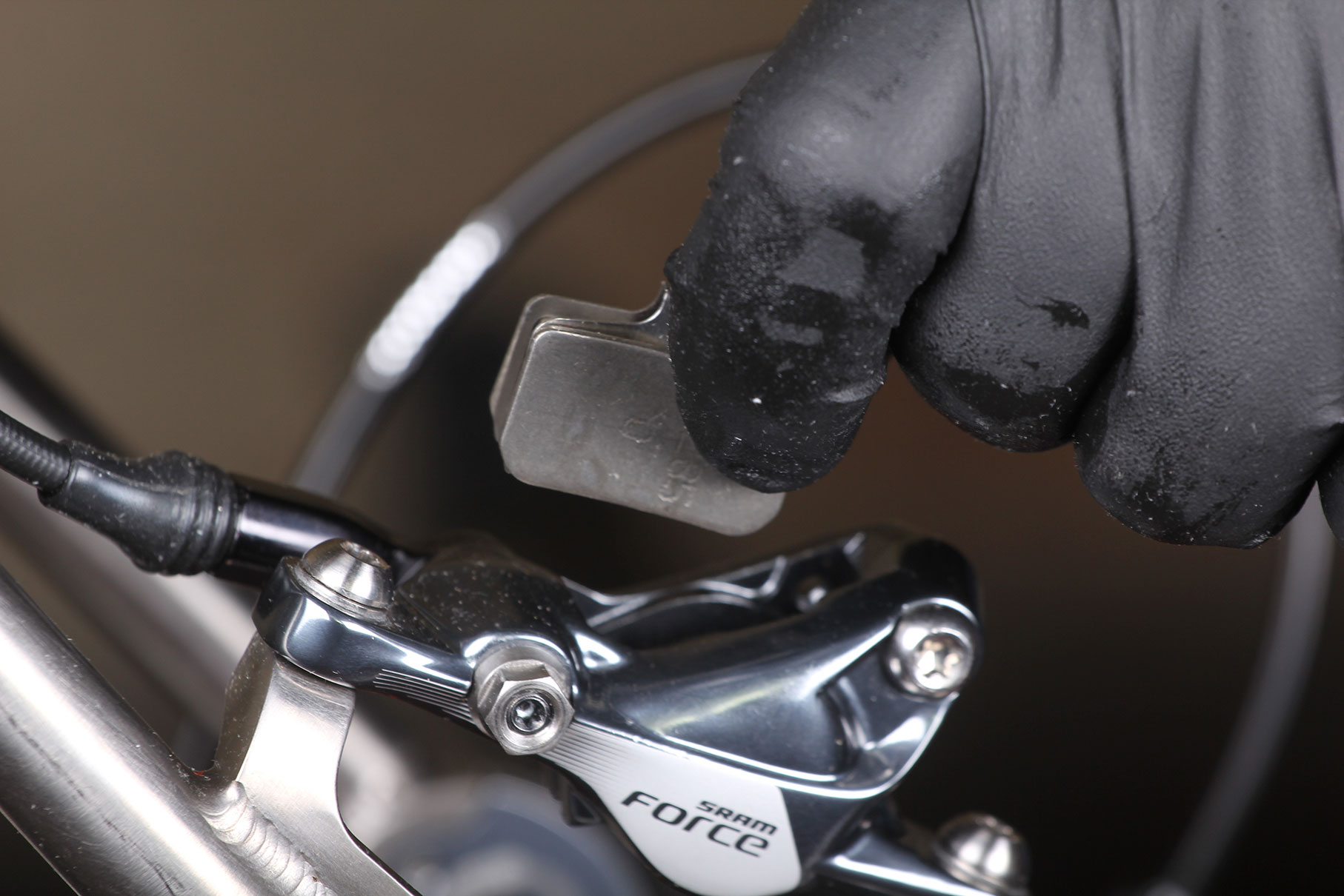

3 Remove the pads.
Remove the safety circlip from the calliper, then the threaded pad carrier bolt and finally slip the pads and their divider spring out of the calliper. We do this because hydraulic brake fluid kills brake pads. It is vital no brake fluid touches the pad material, so remove them, and put them somewhere safe.

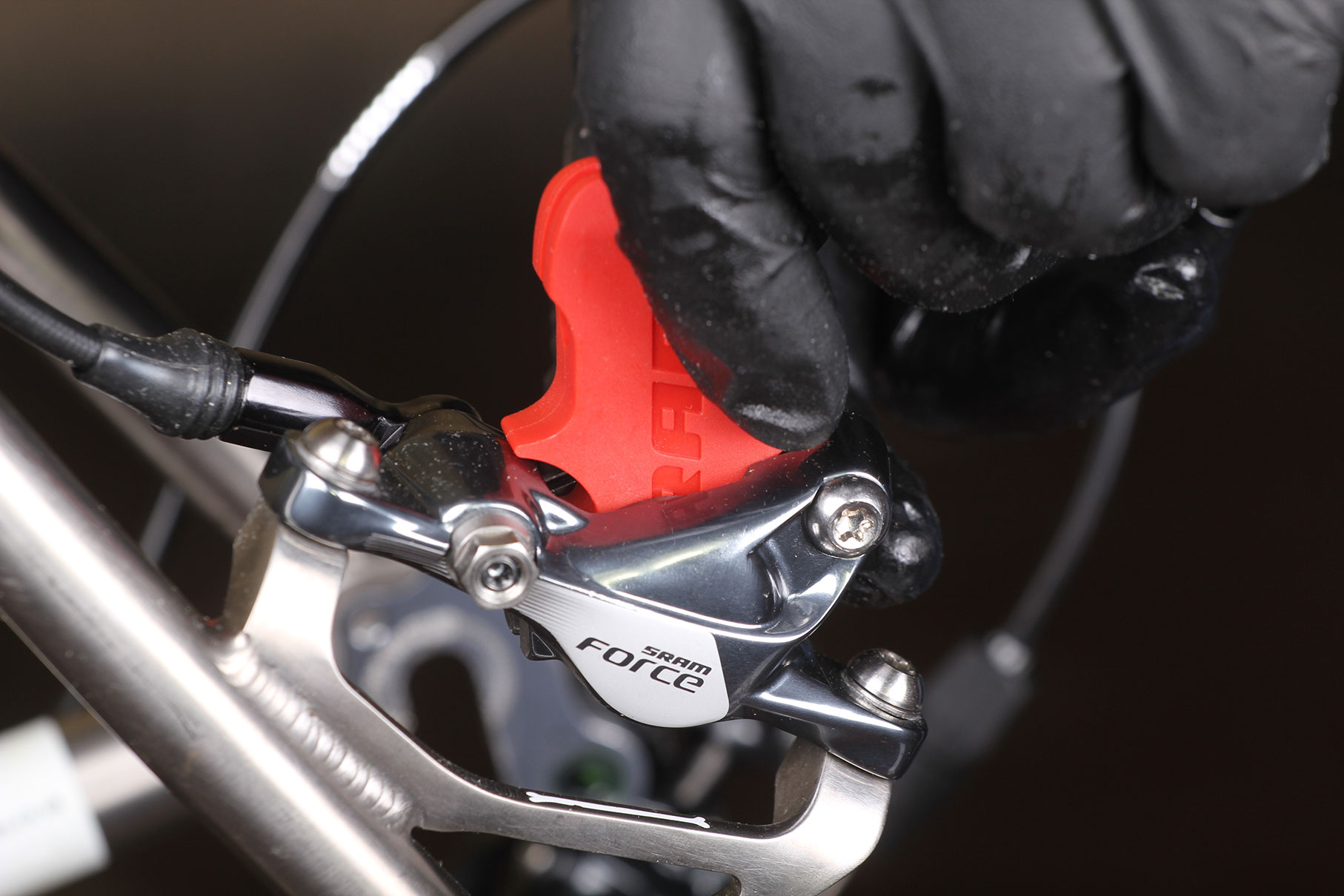

4 Insert the bleed block.
With the calliper open, slot the SRAM
brake bleed block into the space where the pads were. The bleed block is designed to stop the pistons in each side of the calliper from pushing out as you force more fluid into the system. If you don't have the specific bleed block any
non-compressible item will do. We've used the end of a ring spanner before.

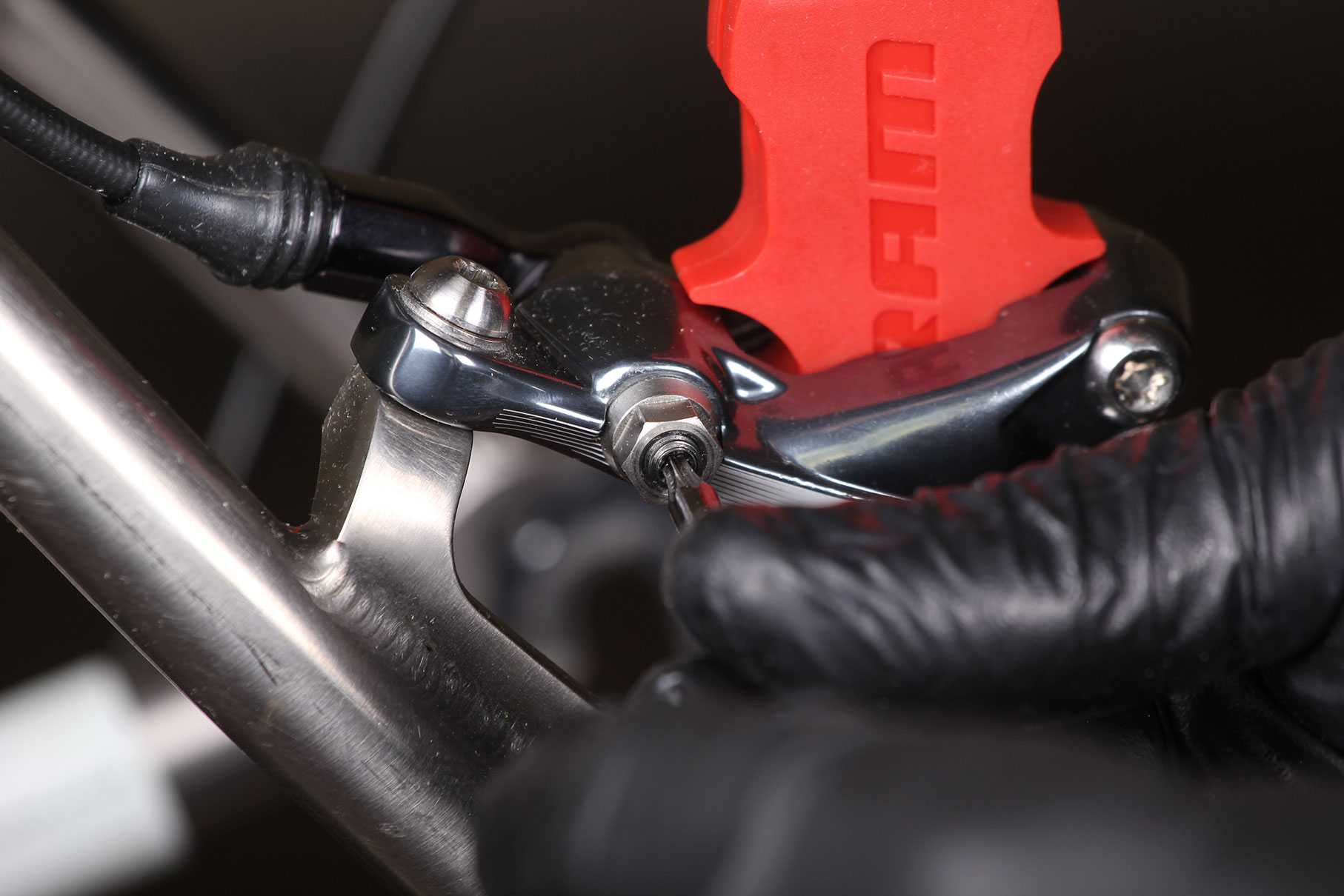

5 Remove the calliper bleed port screw. Don't be alarmed to see a drop of fluid seep out, this is quite normal. Just don't let it get on your components or frame. Water neutralises its effects, though disc brake cleaner can also be used. Place the tiny bleed port screw somewhere safe.

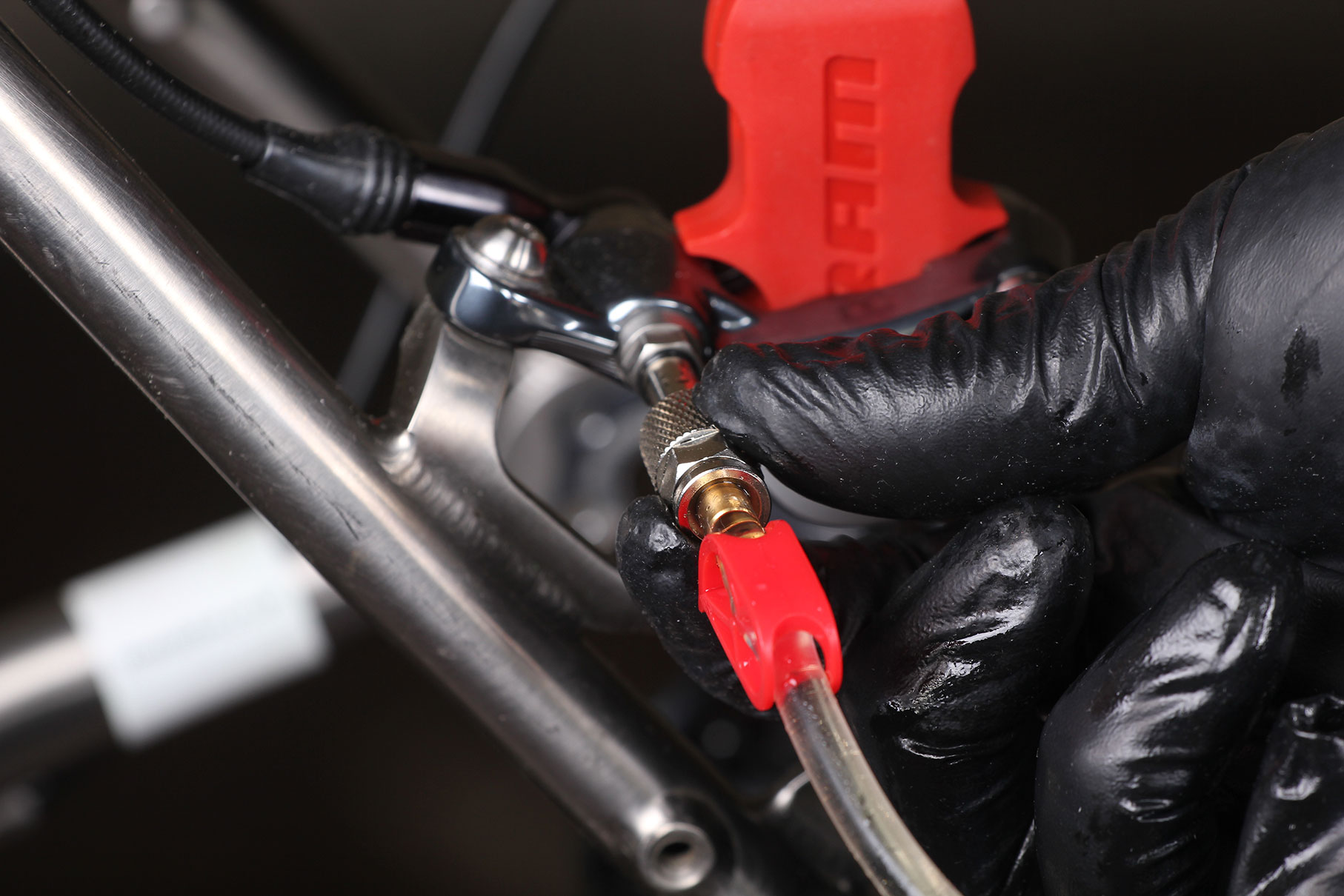

6 Screw in the half-full
syringe. The red pinch clamp on the hose should be open.

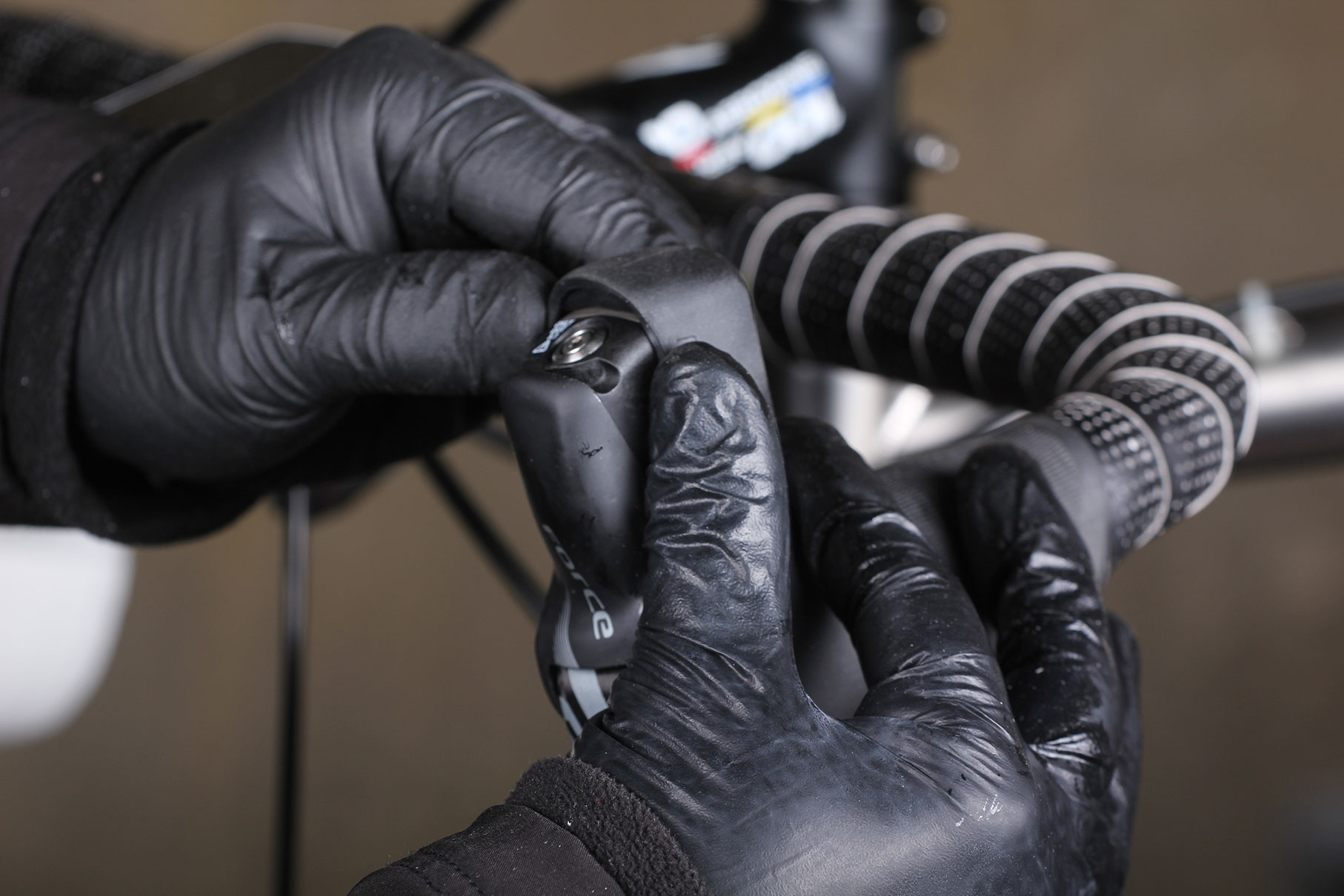

7 Expose the lever bleed port. Peel back the rubber brake hood cover of
brake. This will expose the plastic brake architecture. On the front of the uppermost part of the lever is another bleed port.

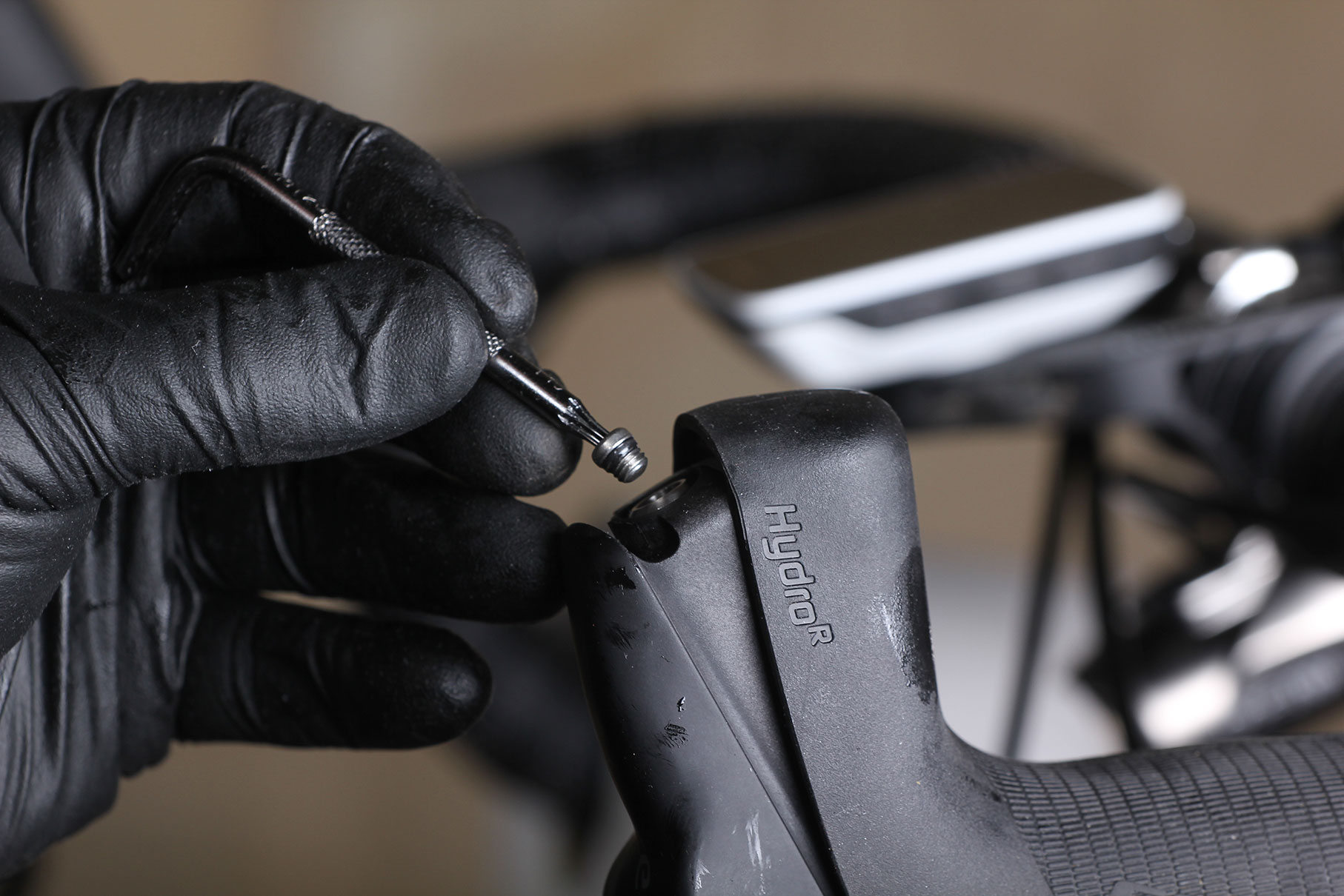

8 Remove the screw.
Unscrew and remove the lever bleed port screw. Place it wth the rear one you've already removed from the calliper. Wipe away any drips.

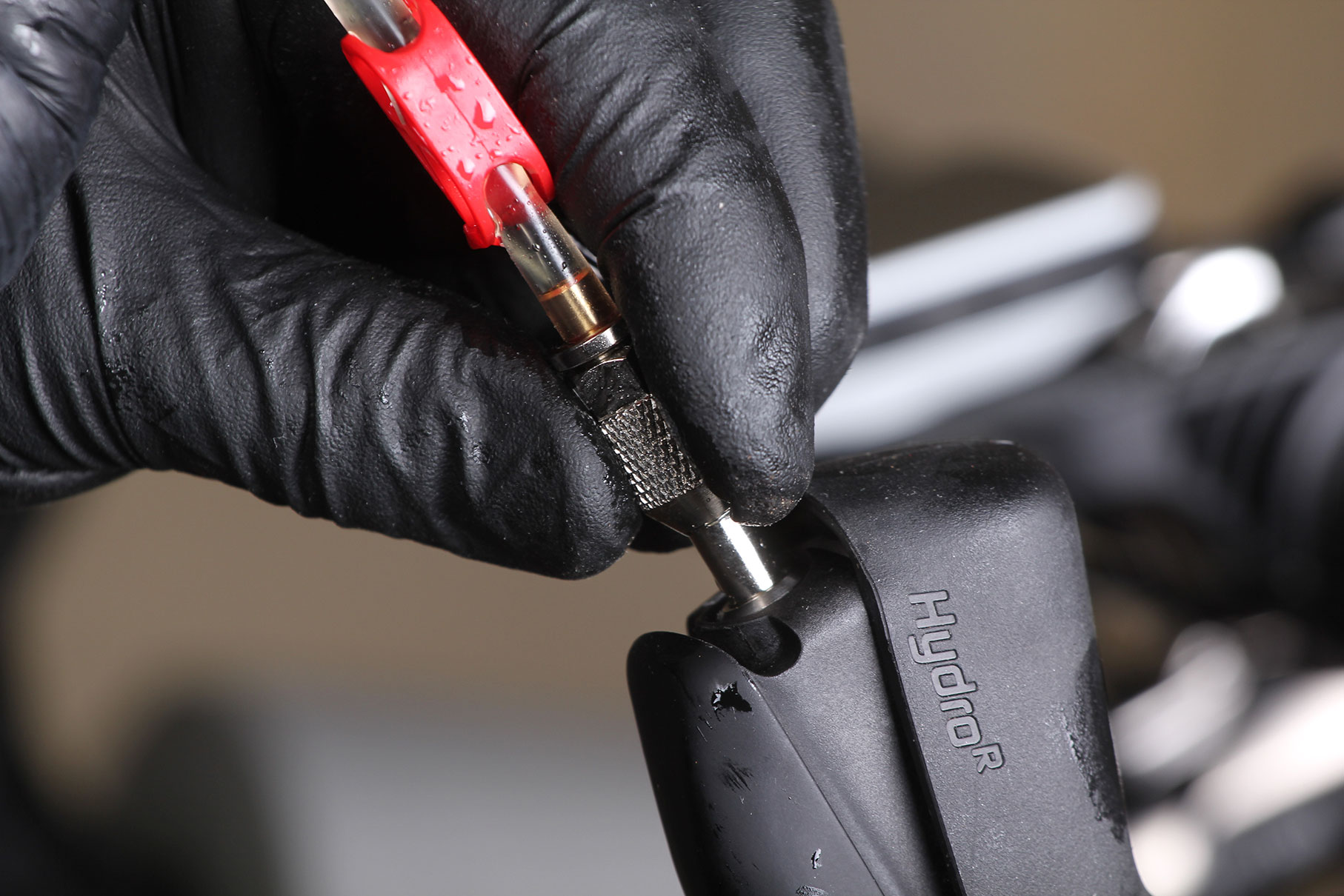

Fit the other syringe.
Screw the quarter full syringe into the open lever bleed port.

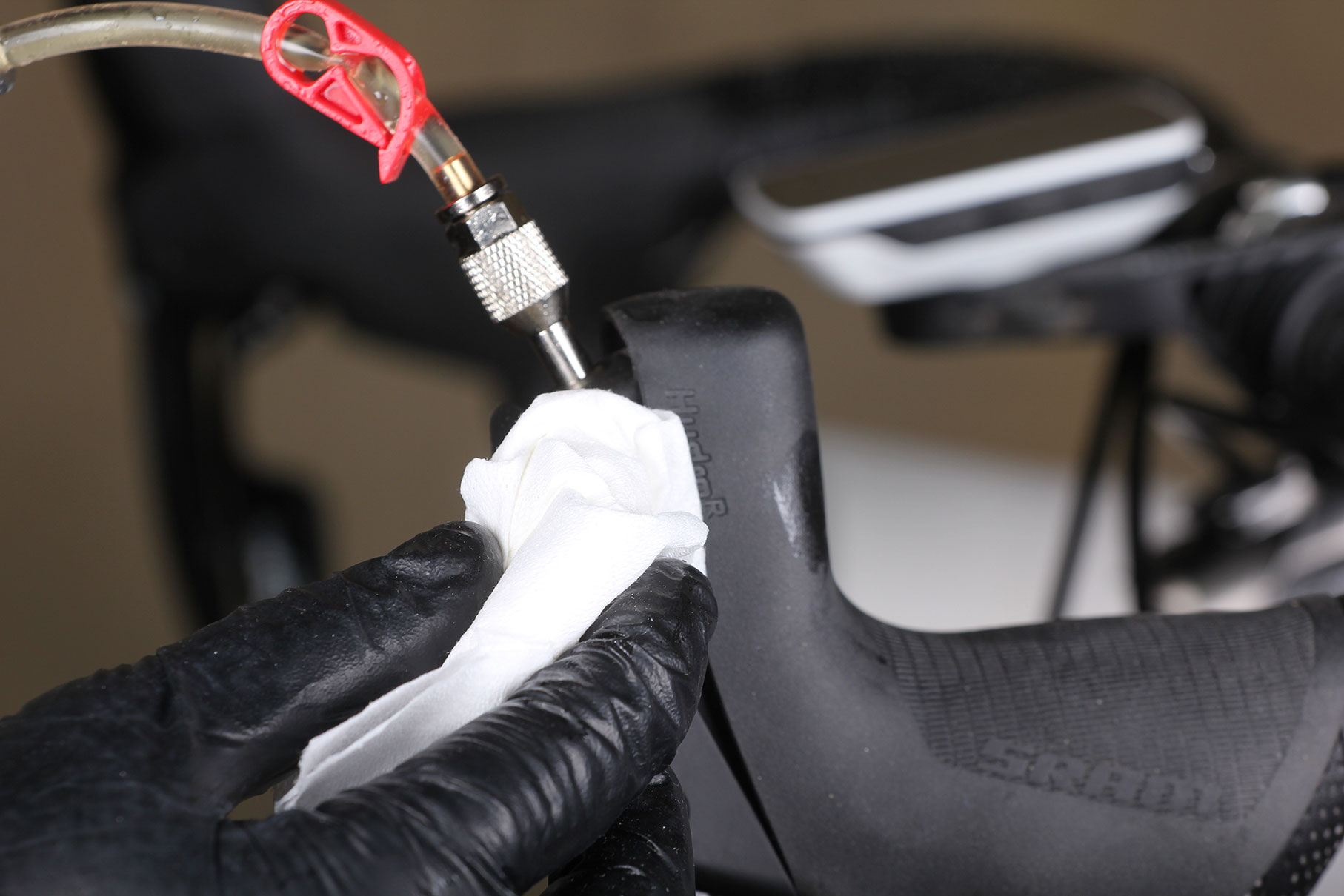

10 Keep it clean.
Have tissue or rag handy to wipe up any drips. Remember water neutralises DOT brake fluid, so have some stood by.

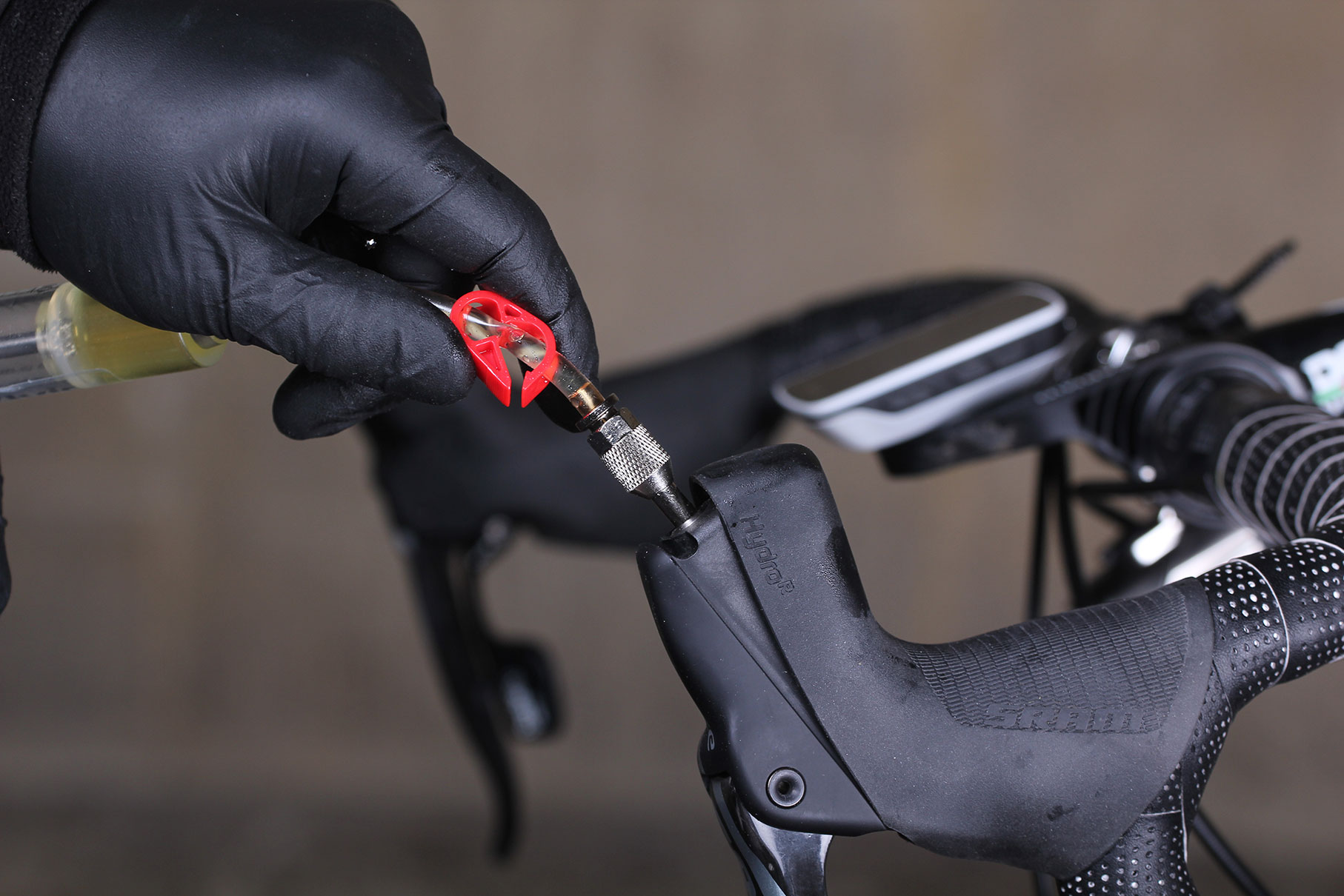

Open the red plastic hose clamp on the brake lever syringe.

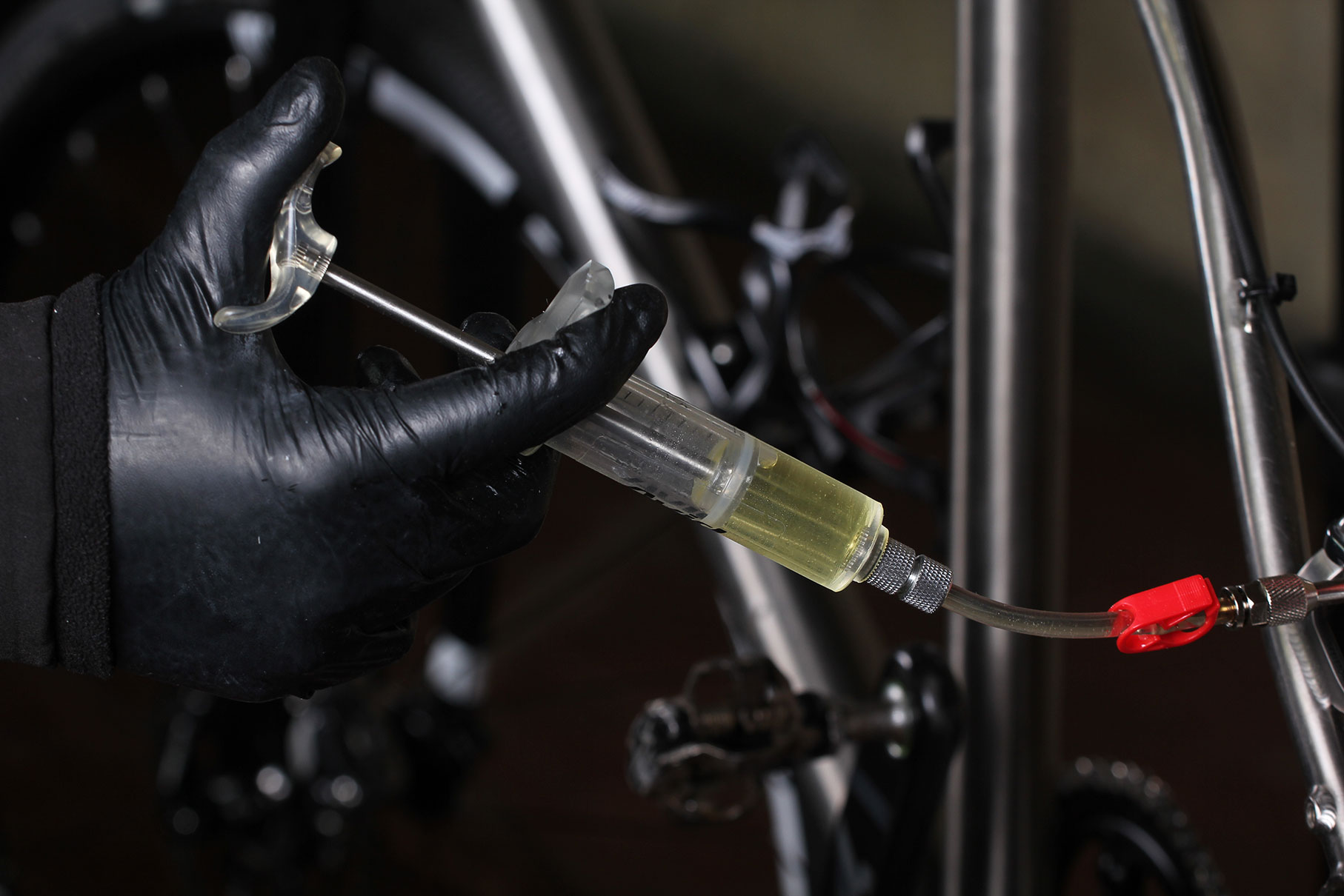

12 Push fluid through the system.
With both syringe hose clamps now open, apply a gentle and steady pressure to the calliper syringe plunger. This will force fluid through the entire system. Push half the contents of the calliper syringe through (a quarter of a syringe). The same amount of fluid will be pushed out of the brake lever port and into the attached syringe...

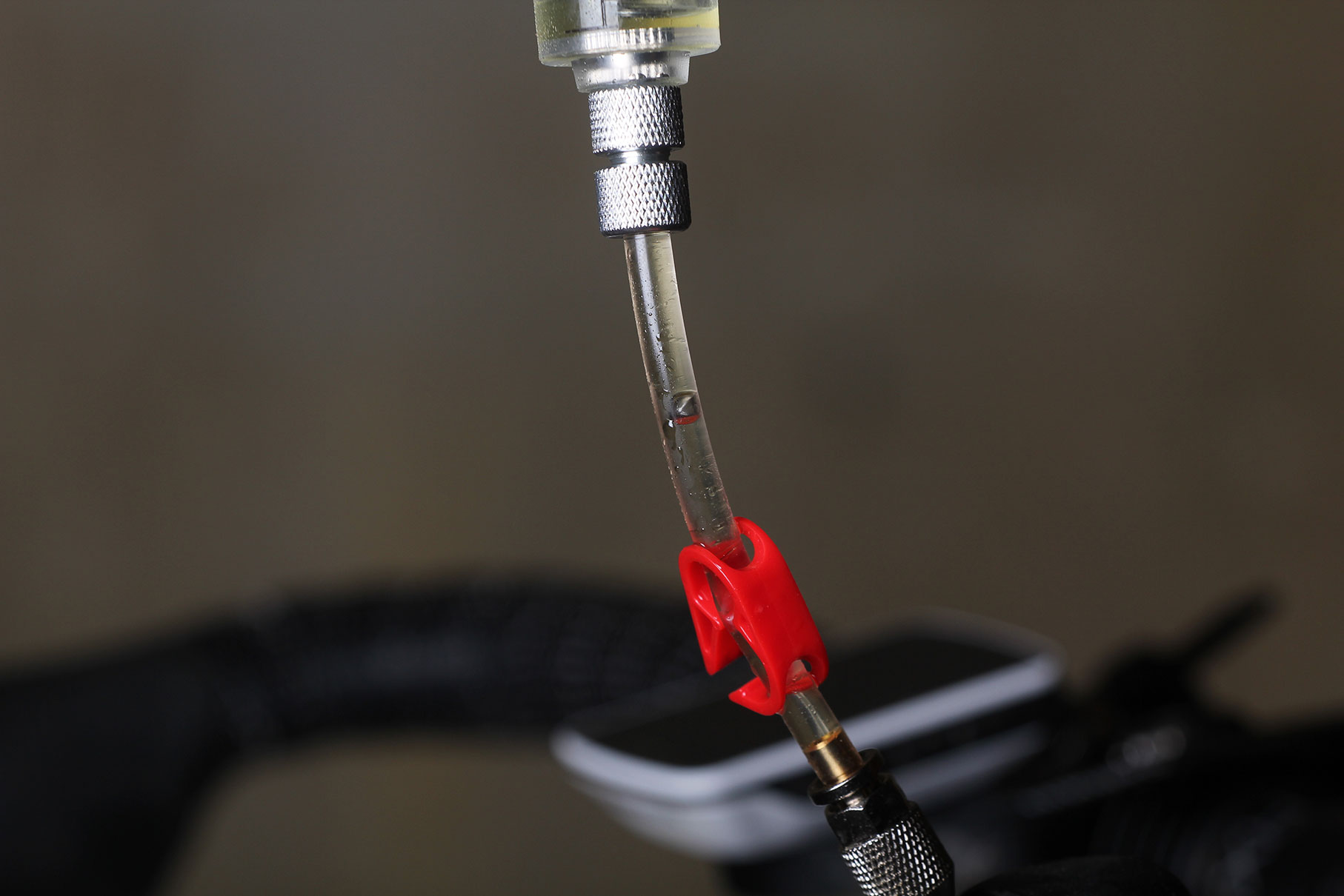

13 Repeat to remove bubbles.
There will also be some air bubbles being pushed out of the system. These will pass up the tube, into the syringe, gathering at the plunger base, stop when you've pushed a half the contents of the calliper syringe through.
Because you won't get all the bubbles out in the first pass, carefully
push the fluid back to the calliper -taking care not to reintroduce any of the air you've painstakingly removed. Slowly repeat the process three or four times. Each time the fluid emerges from the lever it will have a few more bubbles. When no more emerge, you're ready to move on...

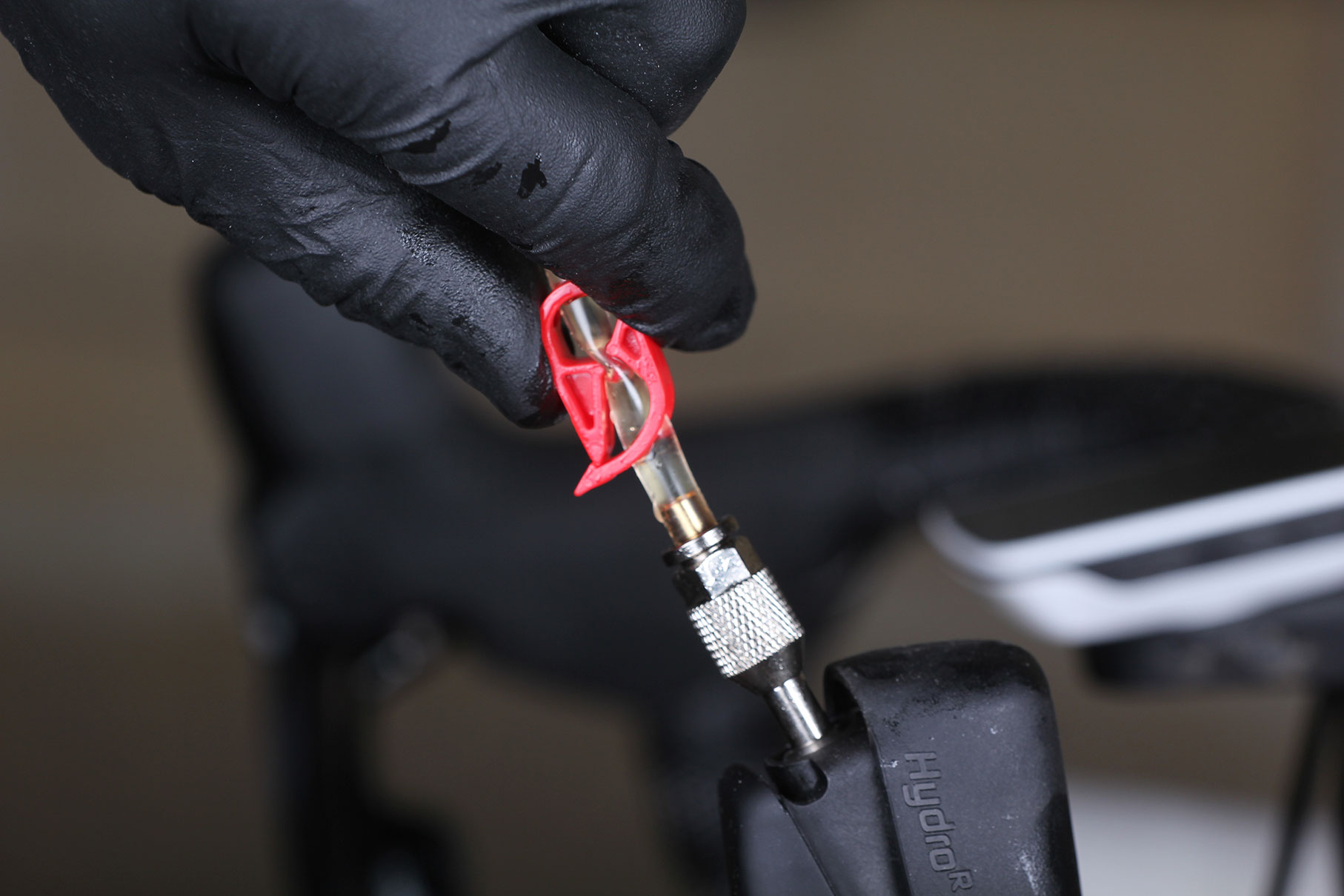

14 Close the the red hose clamp of the brake lever syringe.

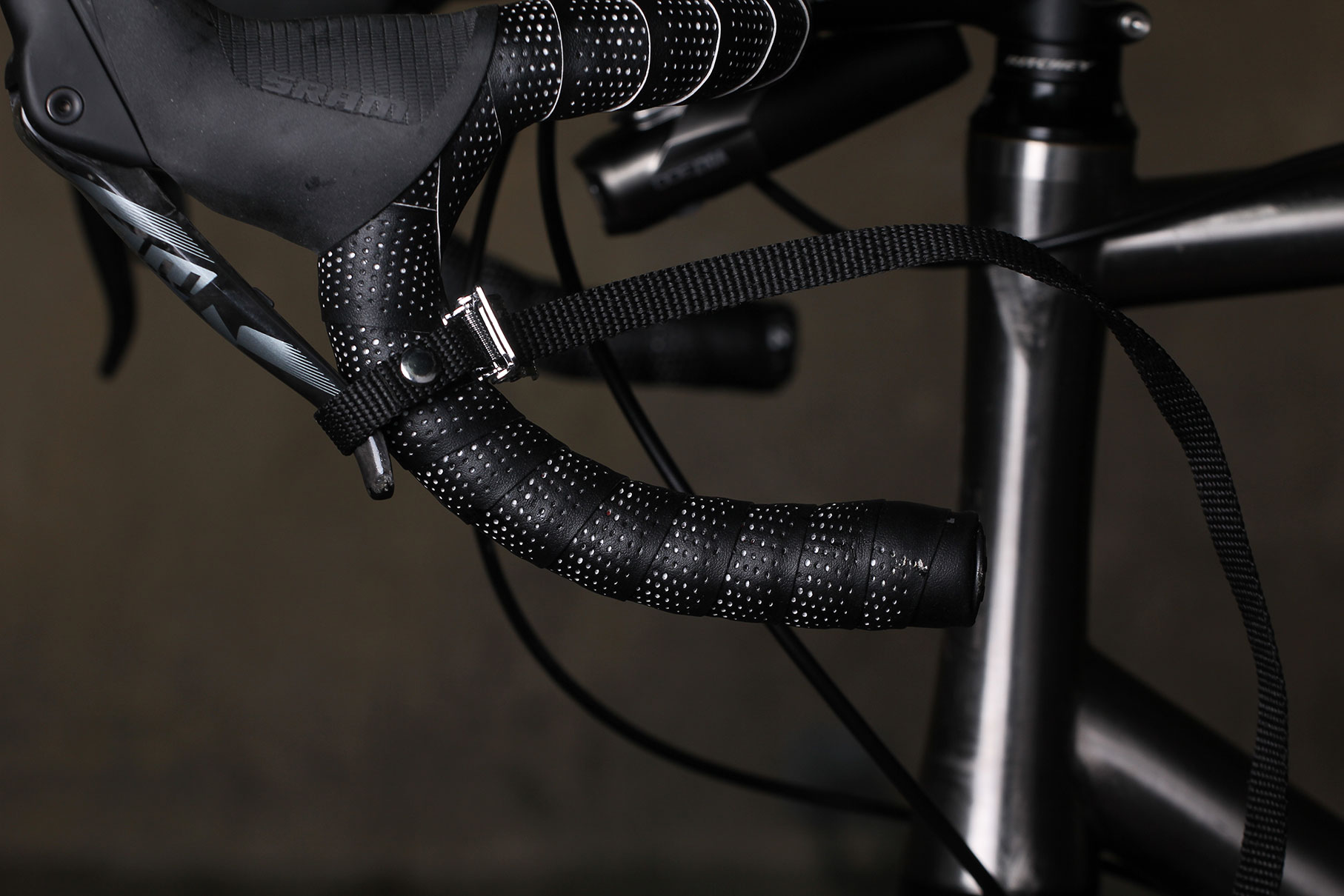

15 Clamp the lever.
Use a toe strap (remember those..) or an elastic band to hold the brake lever firmly back to the handlebar.

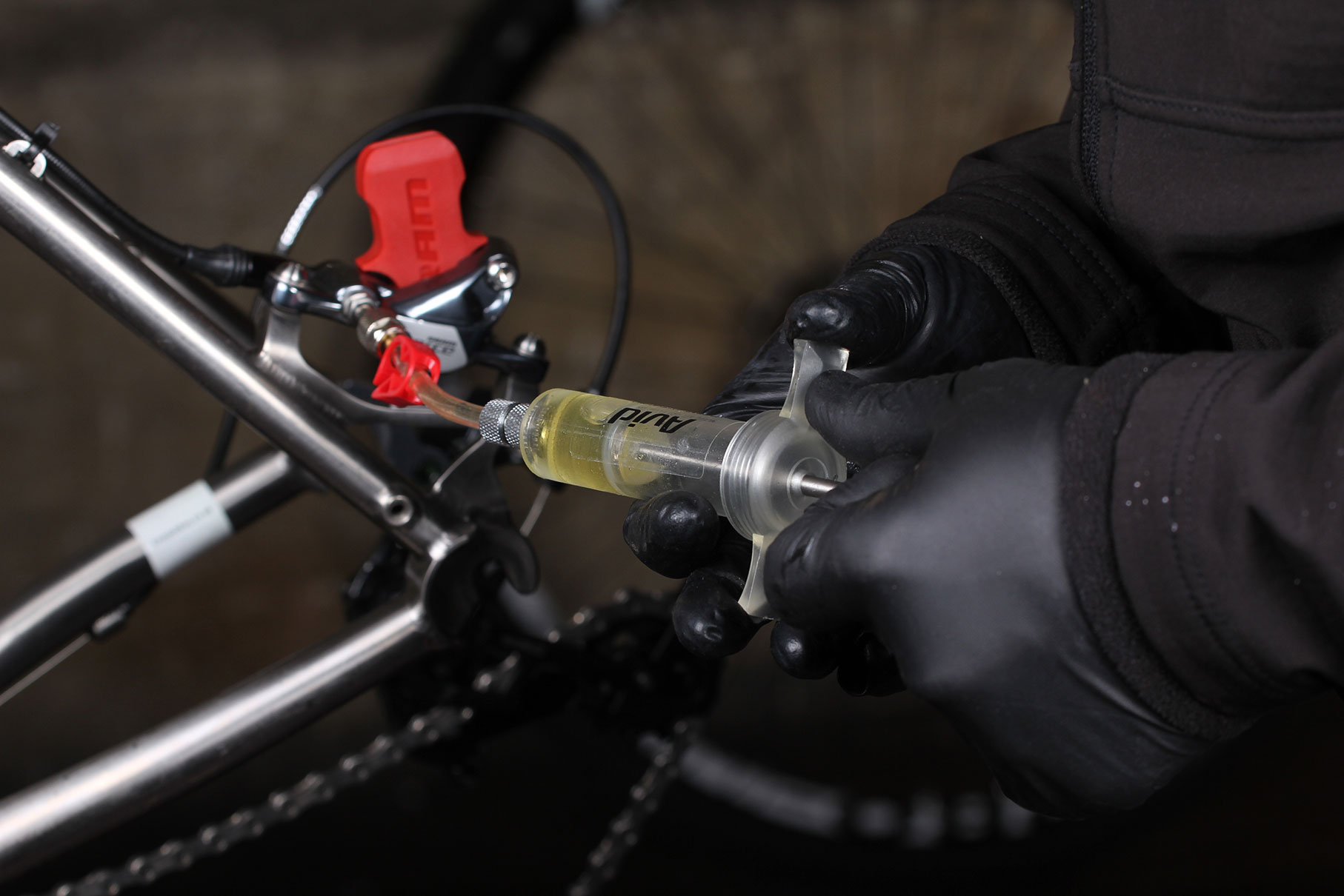

16 Pressurise the system.
Gently pull out on the calliper syringe plunger, then push in on the plunger to pressurise
the system. Repeat this process until bubbles stop coming out of the calliper. Don't pull the plunger too hard or you risk compromising the syringe seal and introducing more air into the system.

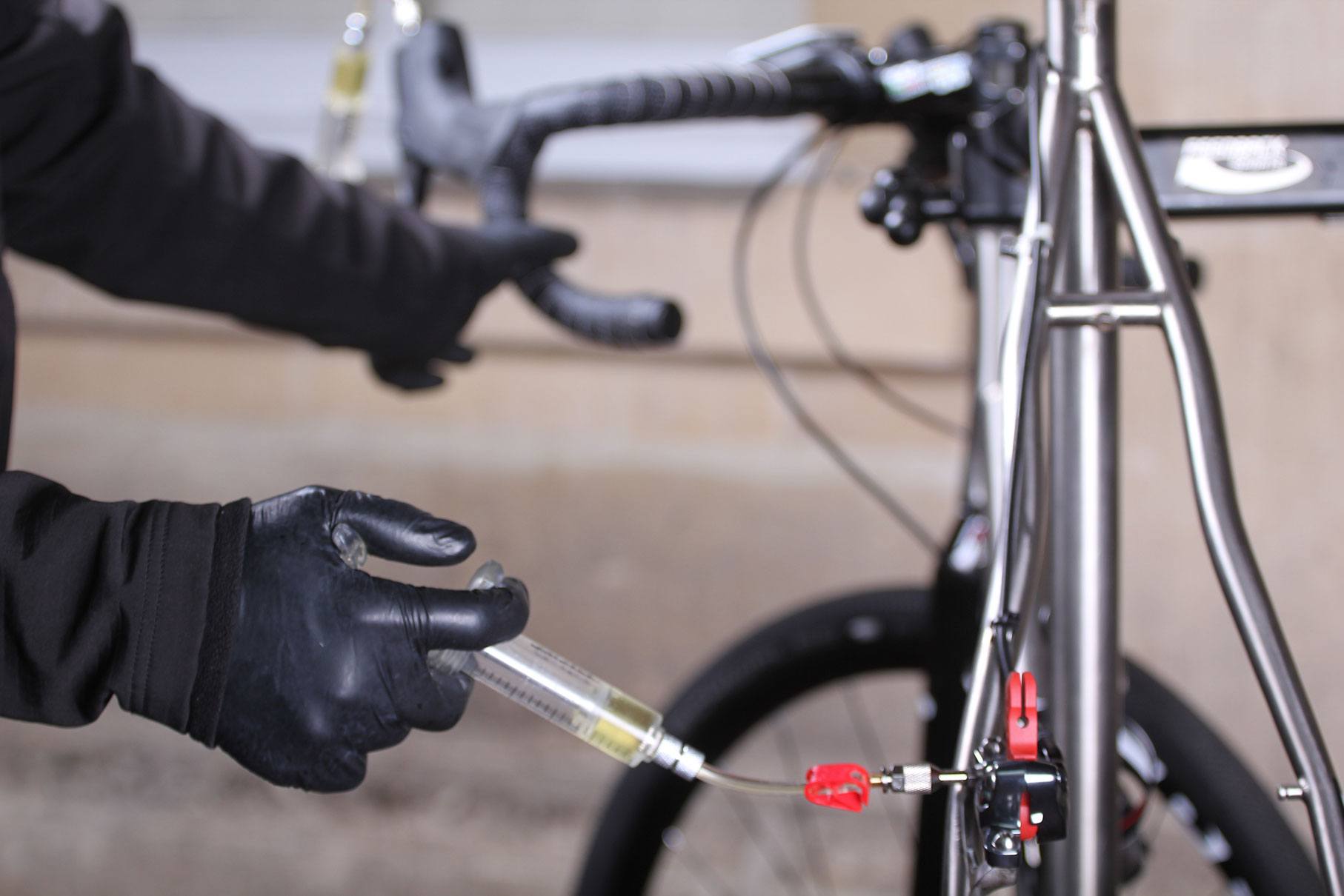

Remove the toe strap and without releasing the brake lever continue to hold it into the bar. Apply gentle and steady pressure to the calliper syringe.
You'll feel the resulting fluid pressure trying to push the brake lever out . Gently allow the lever to move back to its normal static position.

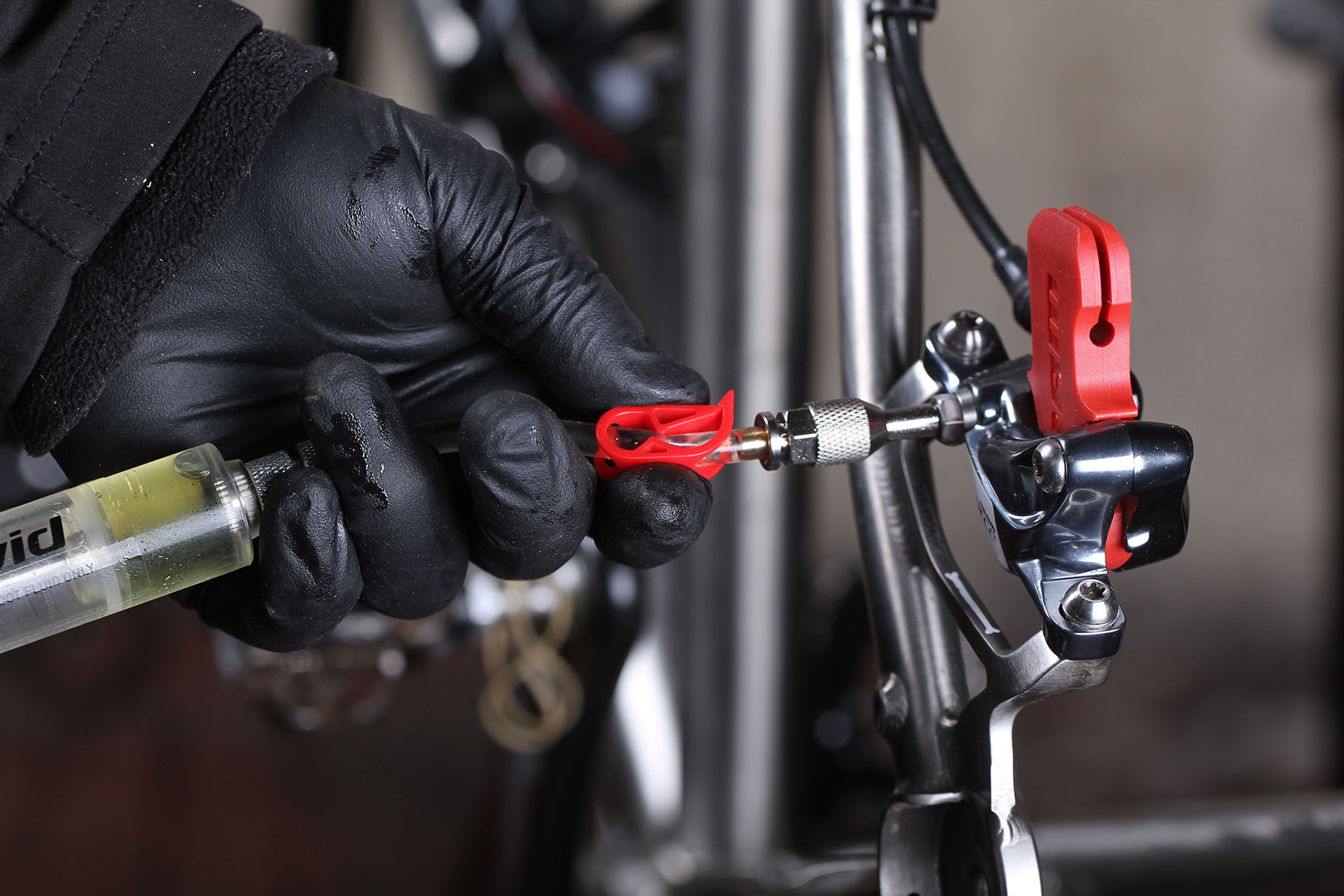

18 Close the calliper syringe hose clamp.

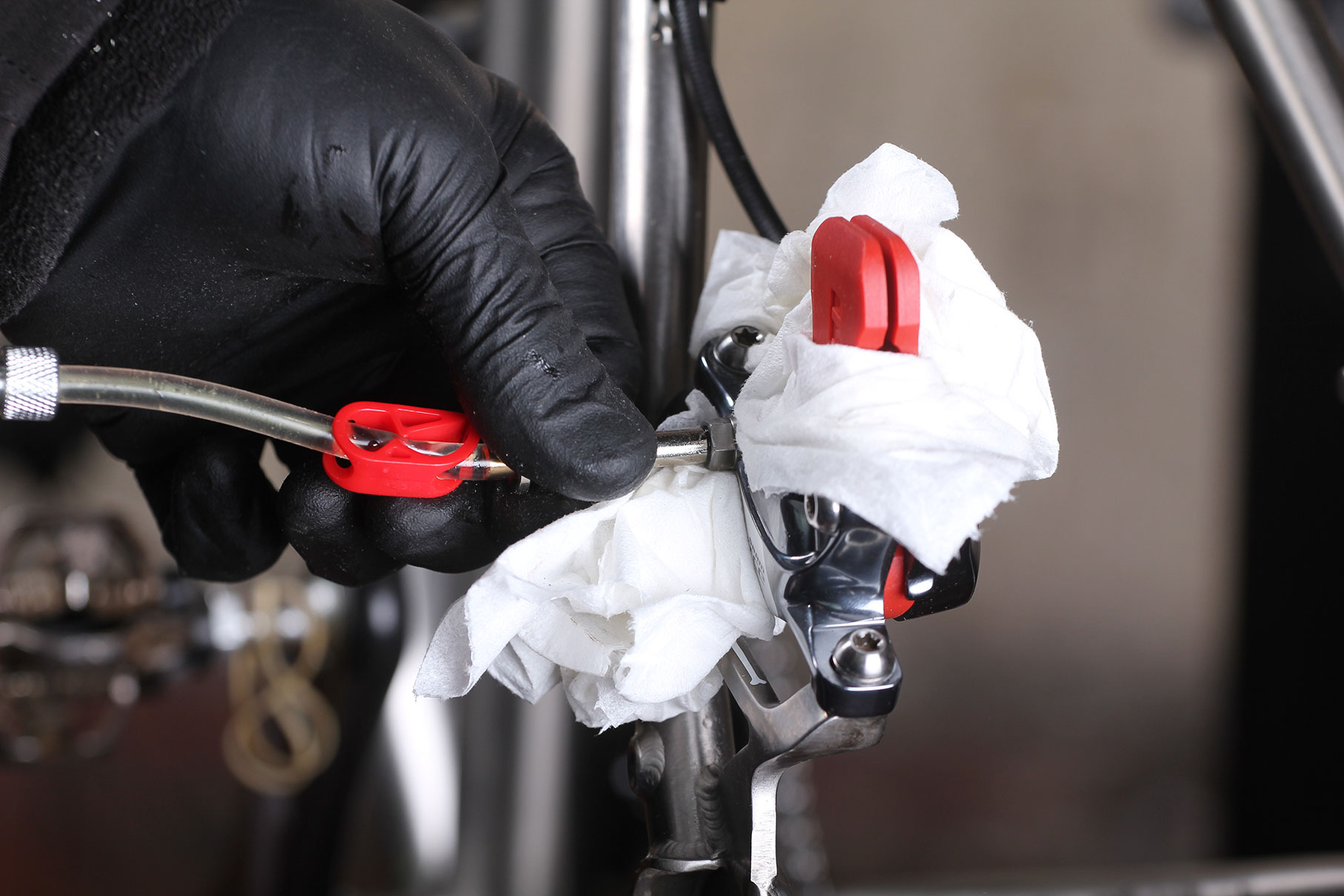

19 Remove the calliper syringe.
Wrap some rag or tissue around the calliper to catch any drops.

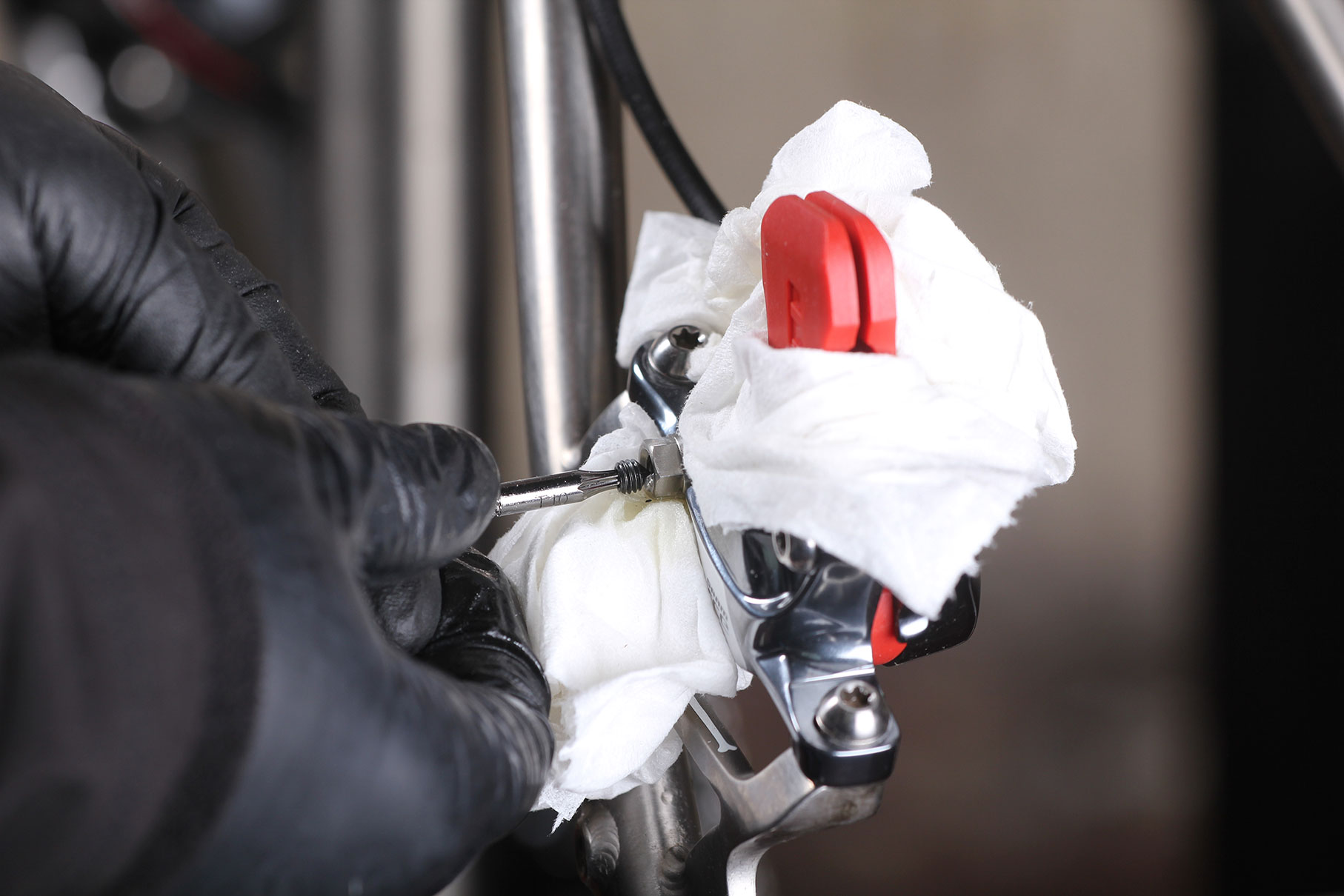

20 Refit the calliper bleed port screw.
21 Open the brake lever syringe hose clamp.

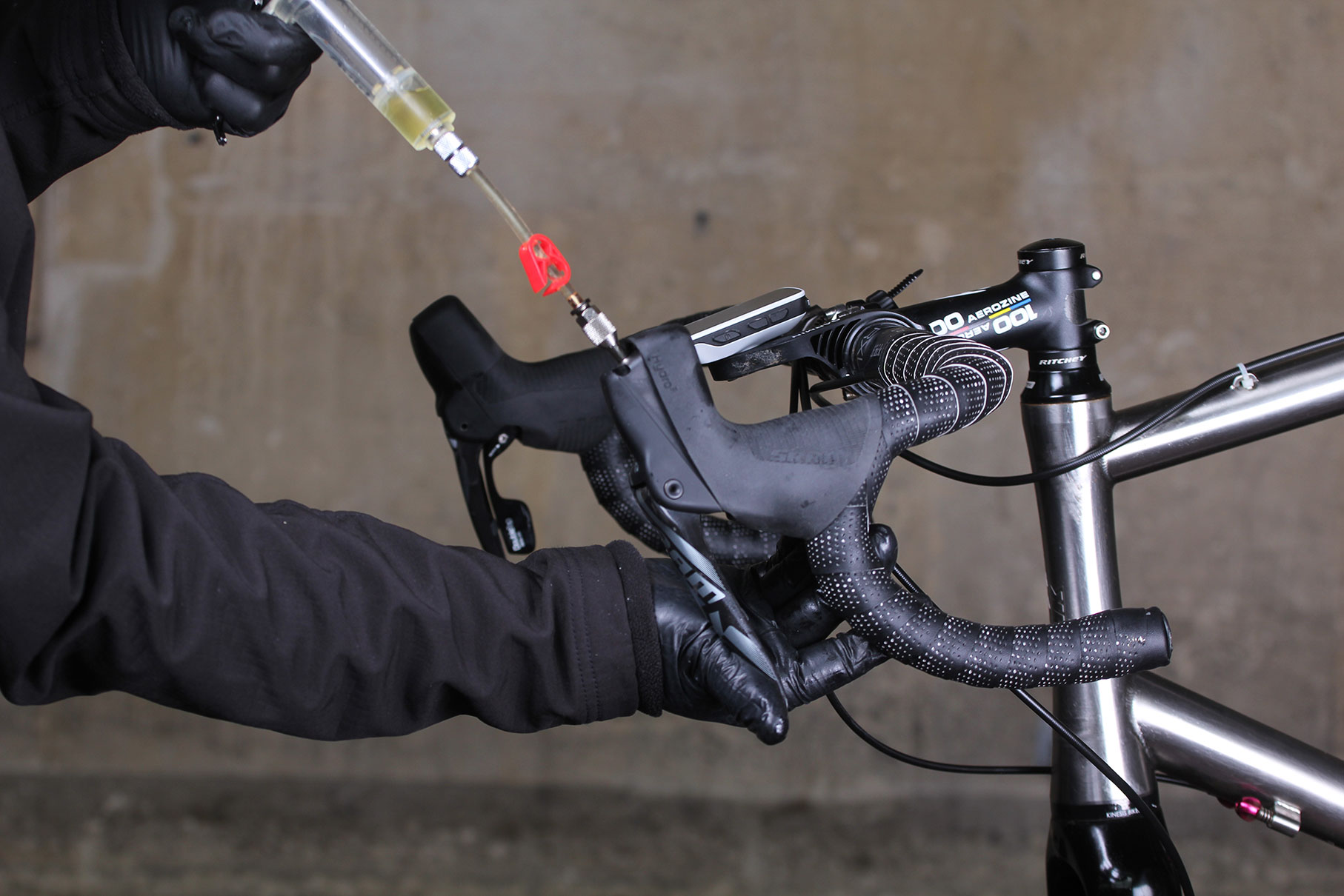

22 Pull out on the brake lever syringe, then push it back in. This will pressurise
it. Now squeeze the brake lever and allow it to flick back into its static position. Do this ten times, or until bubbles stop exiting the brake lever.
Then gently press on the syringe to add some pressure to the brake lever syringe.
some rag or tissue around the lever bleed port to catch and drips, close the red hose clamp. Unscrew the brake lever syringe from the brake lever.

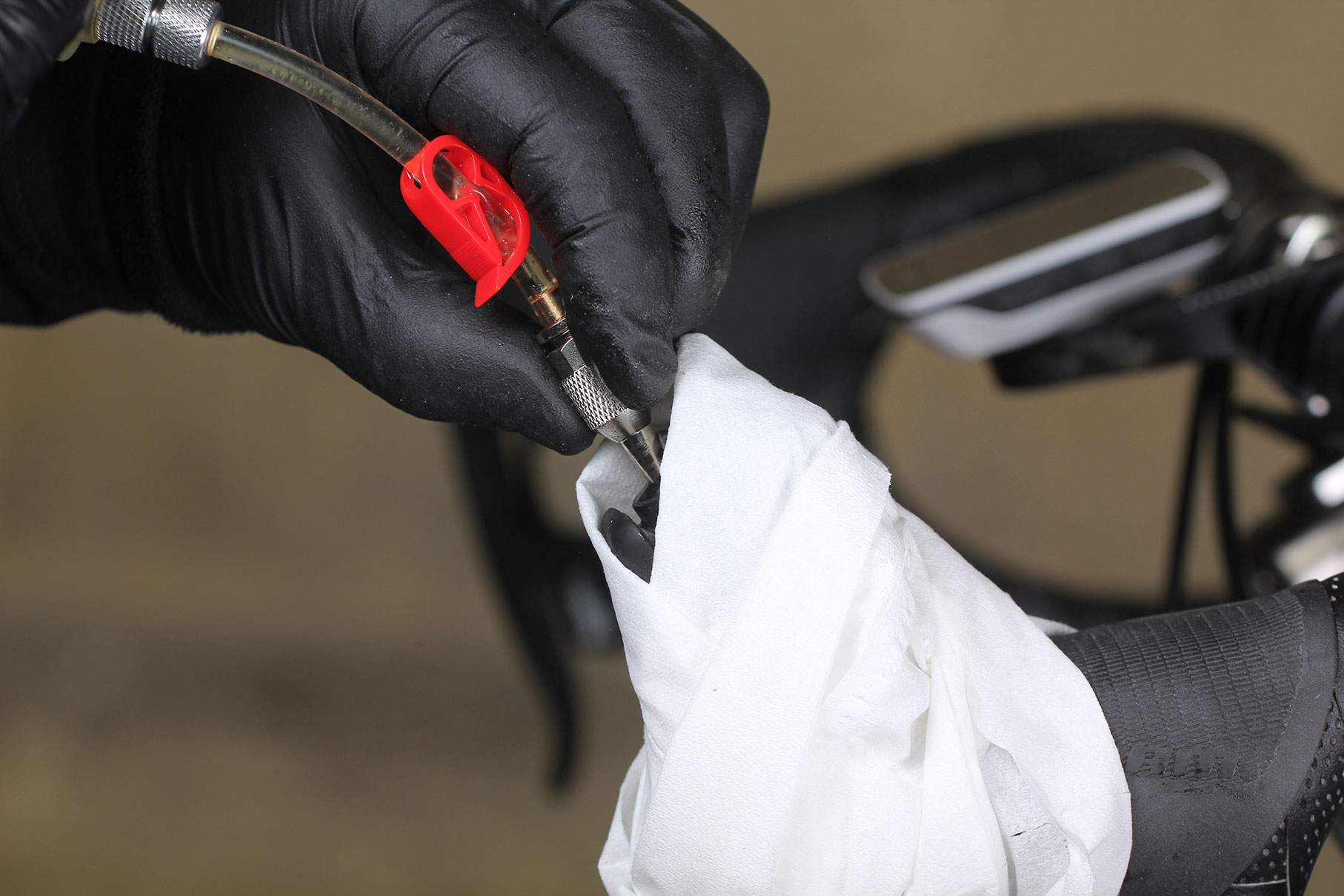

24 Remove the brake lever syringe.

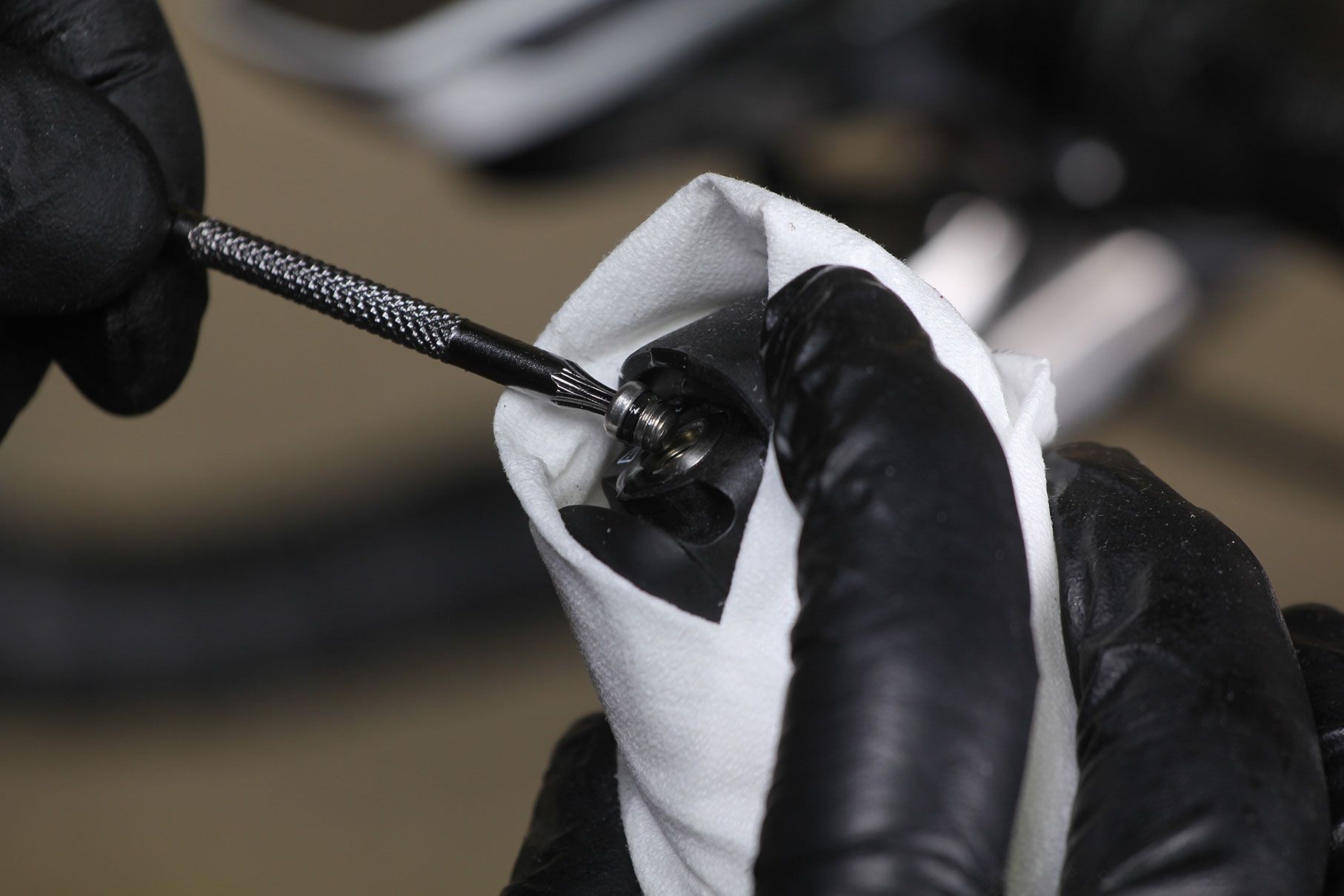

25 Replace the brake lever bleed port screw. A little fluid may be displaced as you do this, so be ready to catch it.

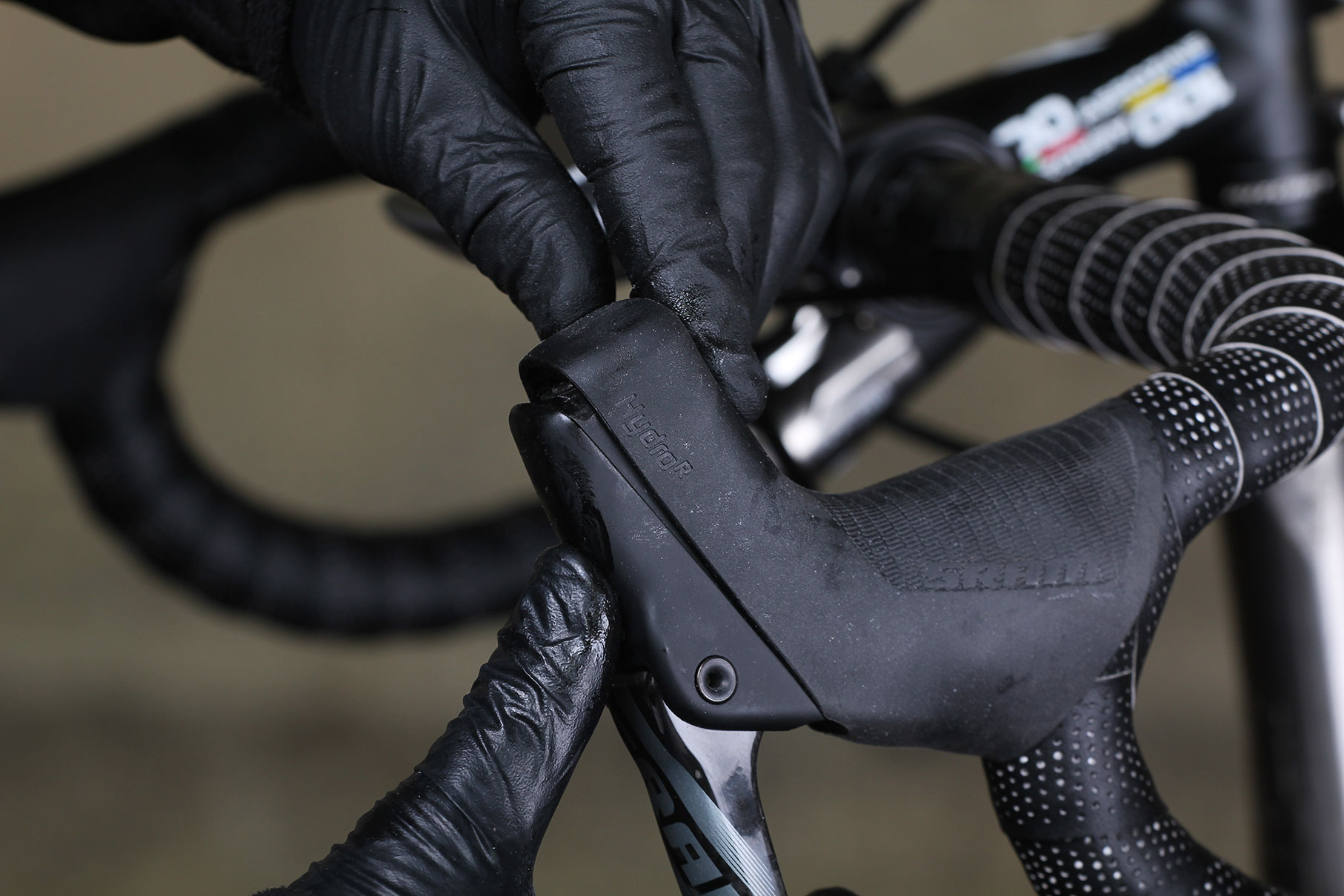

26 Flip the rubber brake hood covers back into their normal positions.

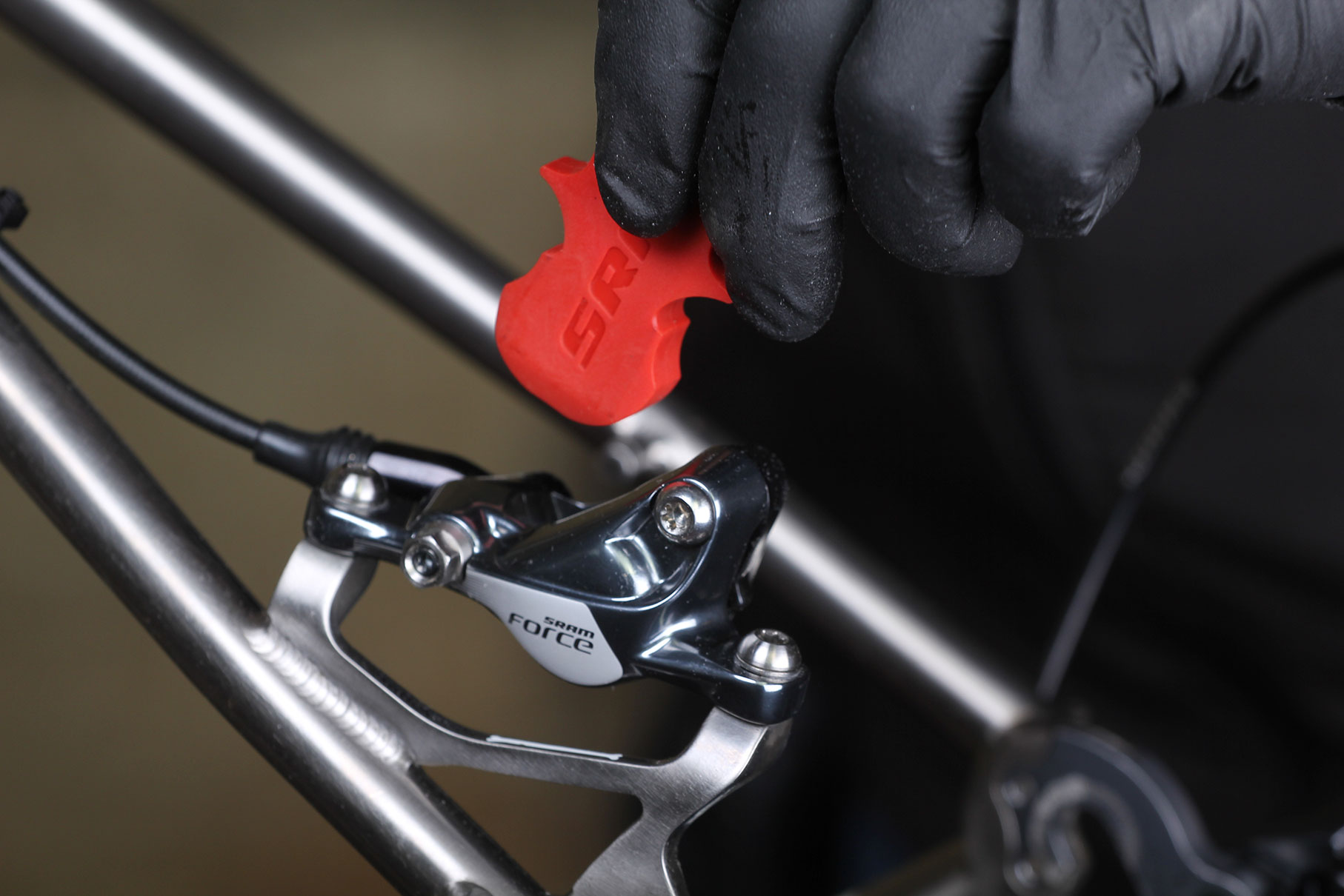

27 Remove the plastic bleed block from the calliper.

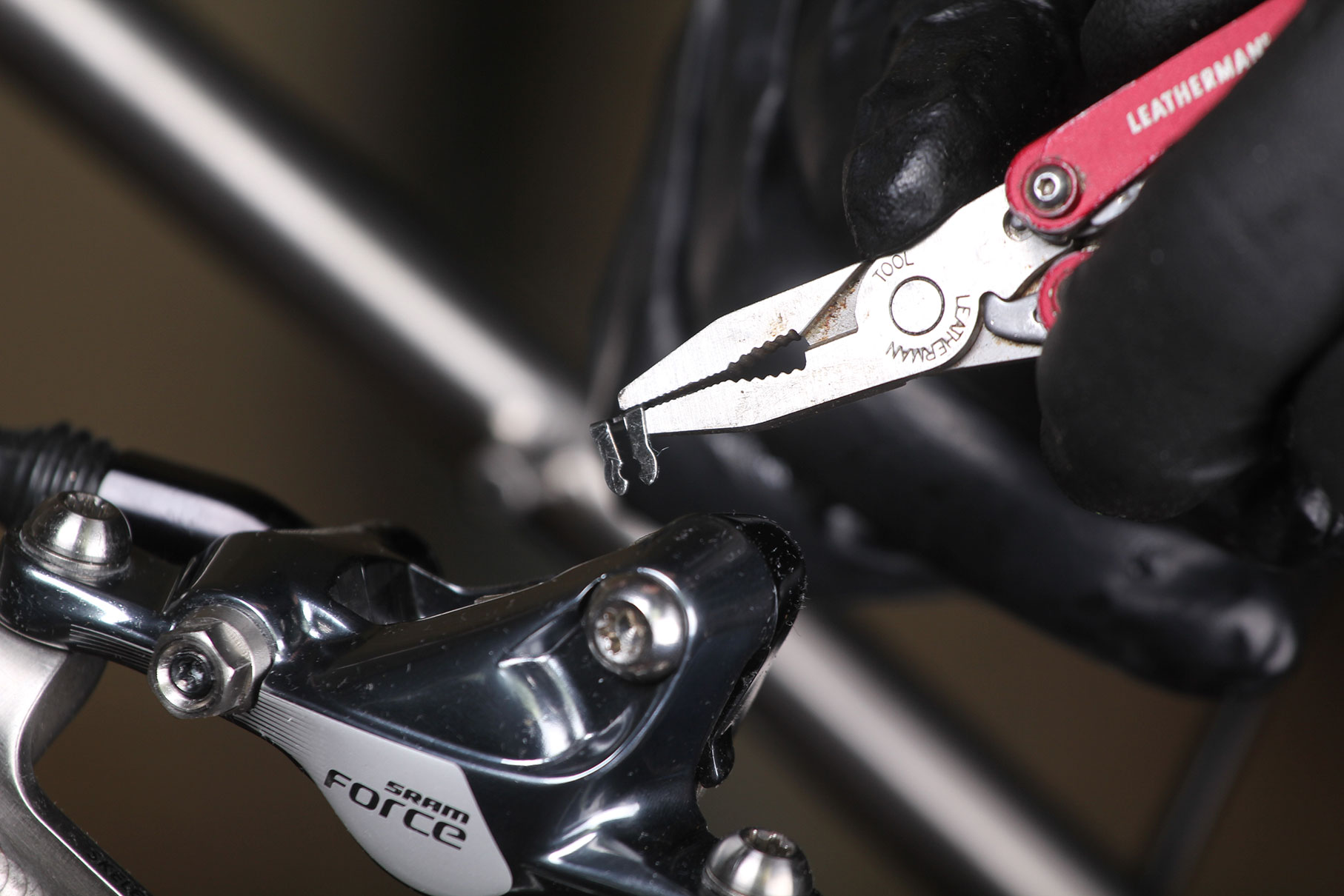

28 Refit the pads and pad carrier bolt and finally the brake pads. Finally, don't forget the safety circlip. This stops the carrier bolt from backing out.
You're now fully bled. However as with any brake servicing, it's always a good idea to test your work thoroughly some where safe. The brake should have some lever travel before the bite point and feel firm under a light hand pressure. There will be some squeeze - this is what allows modulation and control of braking force - essential when you've got road
tyres with limited braking traction.
