How the pros are gearing up for stage nine of the Tour de France

This article was first published in a different form on 6th April 2018

Sunday's stage nine of the Tour de France from Arras to Roubaix includes 15 sectors of cobbles totalling 21.7km (13.5 miles) in length. The pavé puts huge demands on both riders and bikes so there’s usually technology on display that’s not used in everyday road races, and here are some examples you can expect to see this weekend.

Many riders use wide tyres run at lower pressure than normal and double-wrapped handlebar tape to cope with the cobbles. Some add secondary brake levers to provide extra control when riding on the tops and put grip tape on bottle cages to prevent their drink from flying out over the bumps.

Read our story: 7 pro tweaks to tame the Hell of the North.

The bike industry uses races across the cobbles to demonstrate the durability of new products. Brands don’t develop a new bike, brake or wheel just for the pavé, but if they do have something that makes a difference in demanding conditions then they have a marketing win.

Of course, there are plenty of examples of riders winning Paris-Roubaix without any unusual equipment. Orica-GreenEdge’s Mathew Hayman famously won a couple of years ago on a Scott Foil aero road bike with no tweaks other than 28mm tyres rather than the typical 25s and a 53/44-tooth chainset instead of a 53/39.

Many riders will opt for unusual setups, though.

Shimano Ultegra RX rear derailleur

Why could it make a difference? All the bouncing and vibration over the cobbles can cause drivetrain issues. Most pros use a chain catcher to stop the chain dropping off the inner ring, but Tom Boonen’s still got stuck between the chainset and the frame in last year’s Tour of Flanders. Then, when he changed bikes, the same thing happened again and he was left stranded and any chance of an individual victory disappeared.shimano_ultegra_rx_-_1.jpg

The new Shimano Ultegra RX rear derailleur – available for both mechanical and Di2 (electronic) systems – features what’s called Shimano Shadow RD+ technology with a chain stabilising switch to control the drivetrain over rough surfaces like the pavé.


This picture shows a chain bouncing around on the pavé with a standard (non-clutch) rear derailleur.

When you flick the switch it’s harder for the rear derailleur pivot to move, resulting in less chain bounce over uneven surfaces. The result is that the performance of the drivetrain is more stable; the chain is less likely to hit the chainstay, there’s less chance of it dropping off the chainring, and it stays on the cassette better. That’s what makes it an attractive option for the cobbles. The essential elements of the design have been tried and tested in mountain biking for a few years now.

Read our story on the launch of the Shimano Ultegra RX rear derailleur here.

Who has it? Members of Trek-Segafredo were using the Ultegra RX rear derailleur over the cobbles earlier in the year so there’s a high chance that they will be again. A total of 14 (out of 18) World Tour teams use Shimano, so perhaps others will fit the new derailleur for Sunday’s stage.

Can I get one too? The Shimano Ultegra RX rear derailleur is available now.

Disc brakes

Why could they make a difference? It'll probably be dry for Sunday's stage but if it does rain the pavé will become slippery, water will puddle in the holes, and the dust will quickly turn to mud.

Disc brakes are able to offer a more consistent performance than rim brakes in rainy conditions because the braking surface is further from the wet and grimy road surface.

Also, that braking surface is steel rather than the carbon fibre that’s used for most high-end wheels these days. Brands are continually trying to improve braking performance on carbon (see Bontrager’s new Aeolus XXX wheels, for example) but it’s generally not amazing.

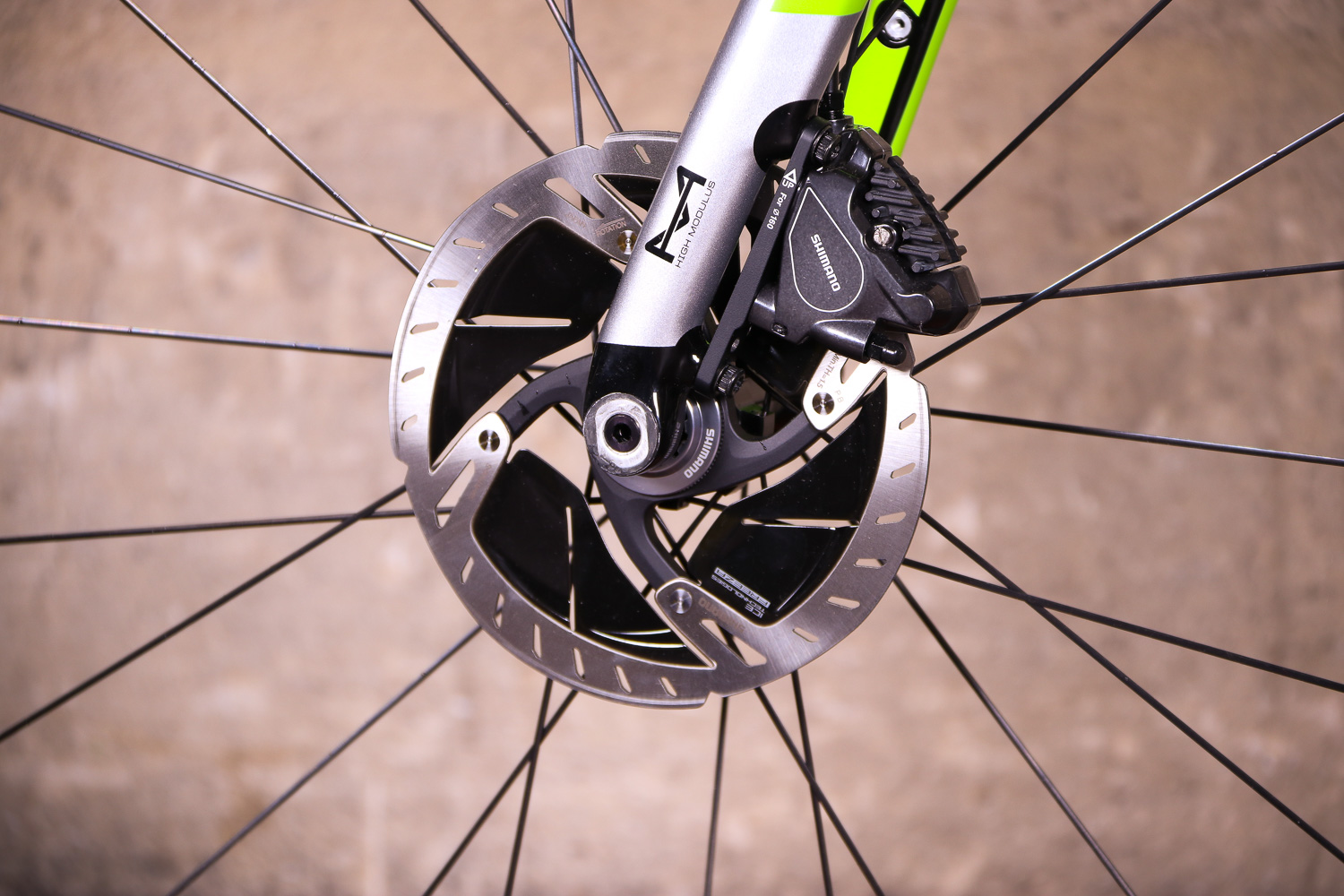

Cannondale Synapse Hi-Mod Disc Dura-Ace Di2 - front disc.jpg

Cannondale Synapse Hi-Mod Disc Dura-Ace Di2 - front disc.jpg

One other potential benefit is that disc brakes provide more tyre clearance, although you see the pros squeezing 30mm tyres into dual pivot brake callipers with a nominal maximum tyre width of 28mm.

Of course, there are downsides to disc brakes too, wheel changes in the event of a puncture being the biggest concern. Most riders will be sticking with rim brakes but it looks like some think the positives outweigh the negatives.

Who has them? Loads of teams have access to disc brake bikes now. The whole of Trek-Segafredo, for example, used disc brake bikes during this year's Paris-Roubaix, and they now have the new Madone Disc as an option too.

EF Education First-Drapac’s Taylor Phinney stuck a picture on Instagram of the disc braked Cannondale Synapse that he rode to ride in Paris-Roubaix. The team now has the option of the new Cannondale SystemSix aero bike too, equipped with disc brakes.

Several members of Team Sunweb rode the Giant Defy Advanced SL Disc in this year's Paris Roubaix so you might see that bike on the cobbles again on Sunday.

Specialized has recently launched an updated Venge in a disc-only format and the revamped BMC Timemachine is disc brake only too, so teams sponsored by those brands could make use of the new bikes.

Can I get them too? Oh yes! They’re everywhere! The Trek 2018 Domane SL 5 Disc, for example is £2,495 here.

Check out 12 of 2018’s hottest disc brake-equipped race bikes here.

Suspension

Why could it make a difference? When you watch races over the pavé on TV the roads look bumpy. When you ride it yourself it feels like you’re being repeatedly kicked in the arse while struggling to operate a jackhammer. The longer the sector goes on the more hurty and energy sapping it gets… But it’s fun! Anything that can help soften the bumps has to be welcome in terms of control, ability to lay the power down and reduction of fatigue.



Who has it? Some Trek-Segafredo riders are likely to be on the Trek Domane SLR Disc which has been around for a couple of years now, or the new version of the Trek Madone. These bikes come with IsoSpeed technology which, although it’s nothing like mountain bike suspension, does help smooth the ride.

Check out all the details on the new Trek Madone with adjustable IsoSpeed.

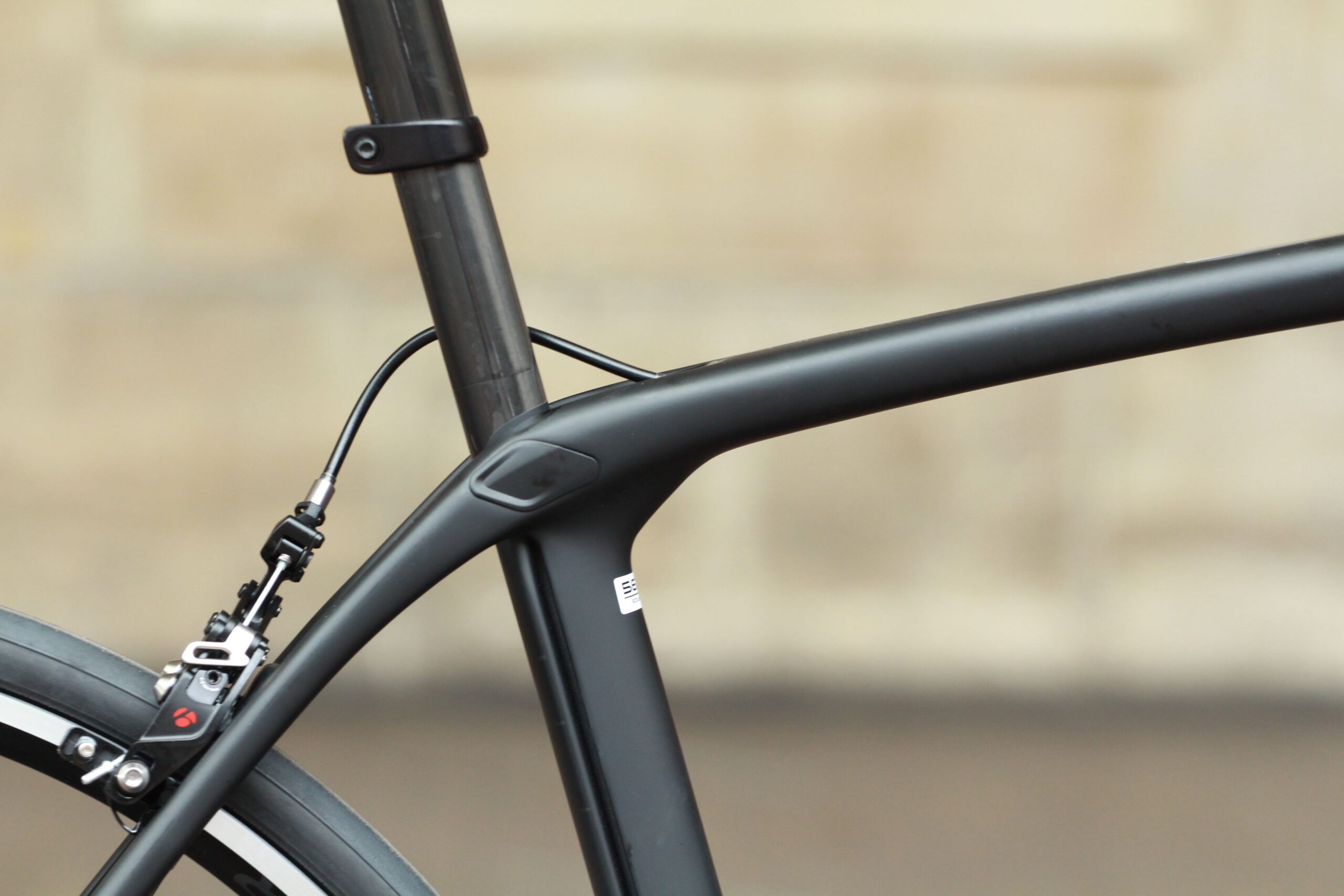

Trek Domane SLR 2016  - 13.jpg

Trek Domane SLR 2016 - 13.jpg

Go to our Trek Domane SLR 6 review for more details on IsoSpeed.

Specialized Roubaix Expert - Future Shock.jpg

Specialized supplies Bora-Hansgrohe and Quick-Step Floors with its S-Works Roubaix (among other bikes) which features a FutureShock system. This uses a spring housed inside the head tube to provide 20mm of vertical movement at the handlebar. Several pro riders have used this over the cobbles before so don't be surprised if it makes another appearance on Sunday.

Read our review of the Specialized Roubaix Expert, another bike with the FutureShock system.

Members of Team Sky have used Pinarellos with suspension over the past few years. Bradley Wiggins, for example, rode the Dogma K8-S – a bike that coupled flexible chainstays with a small elastomer damper at the top of the seatstays to provide a bit of extra cushioning – back in 2015.

Check out our story on the Pinarello Dogma K8-S from that time.

pinarello dogma k8-s 2017 3.jpg

Last year, a couple of Team Sky riders used the K8-S with an adjustable electronic rear damper. Pinarello partnered with a suspension company called HiRide to develop the uprated system. The eDSS 2.0 (Electronic Dogma Suspension System) uses six axis accelerometers and gyroscopes that are able to take feedback from the road and adjust the damper unit accordingly. Pinarello says it can adapt the suspension to suit all types of road surface and terrain in milliseconds.

Check out our story on the Dogma K8-S for more details.

Members of Team Sky also rode the rim brake version of the Pinarello Dogma K10S over the cobbles earlier this year, so that bike could make a reappearance.

Can I get it too? You can certainly buy a Trek Domane or Madone with IsoSpeed and a Specialized Roubaix with FutureShock. You can buy the Specialized Roubaix here for £1,900.

The Pinarello Dogma K10S Disk frameset is available here for £6,699, although no rim brake Dogma K10S has yet been released.

And the stuff you won’t see…

SRAM 1x



SRAM’s 1x (single chainring) system uses a rear derailleur that features a clutch to eliminate chain slack (it has been around since 2015 on the road, unlike the Shimano Ultegra RX rear derailleur that was announced earlier this week). This helps to keep the chain in place over bumpy surfaces.



SRAM’s X-Sync chainrings have tall, square teeth edges that engage the chain earlier, and the traditional sharp and narrow tooth profile helps manage a deflected chain.

Although the Aqua Blue Sport Pro Continental team competes on 3T Strada bikes equipped with SRAM 1x drivetrains, it isn't racing the Tour de France.

Read our review of SRAM Force 1 here.

Tubeless tyres

Tubeless road tyres have been around for years now and they’re gradually growing in popularity, especially since Mavic introduced its Road UST wheel/tyre system last year. Advantages of tubeless tyres over standard clincher equivalents include lower rolling resistance, reduced risk of flats and increased grip.

MavicSAS - 2.jpg

Check out our story: Mavic introduces Road UST tubeless system covering huge section of wheel range.

While a tubeless system might make sense if you’re riding a sportive over the cobbles, the pros want the weight and performance advantages of tubulars, and if they do get a flat they'll just swap the wheel.

Want more 2018 Tour tech? Then visit our special Tour de France tech 2018 tag page and fill yer boots!
