The 3T Exploro is an agile gravel bike with aero features and masses of clearance, although the price puts it out of reach of most of us.

3T boasts that the Exploro is the world's first aero gravel bike. You can file that under 'groundbreaking' or 'madness', depending on your point of view. We'll come back to that issue in a bit. First, though, I'll tell you about the ride.

> Find your nearest dealer here

> Buy this online here

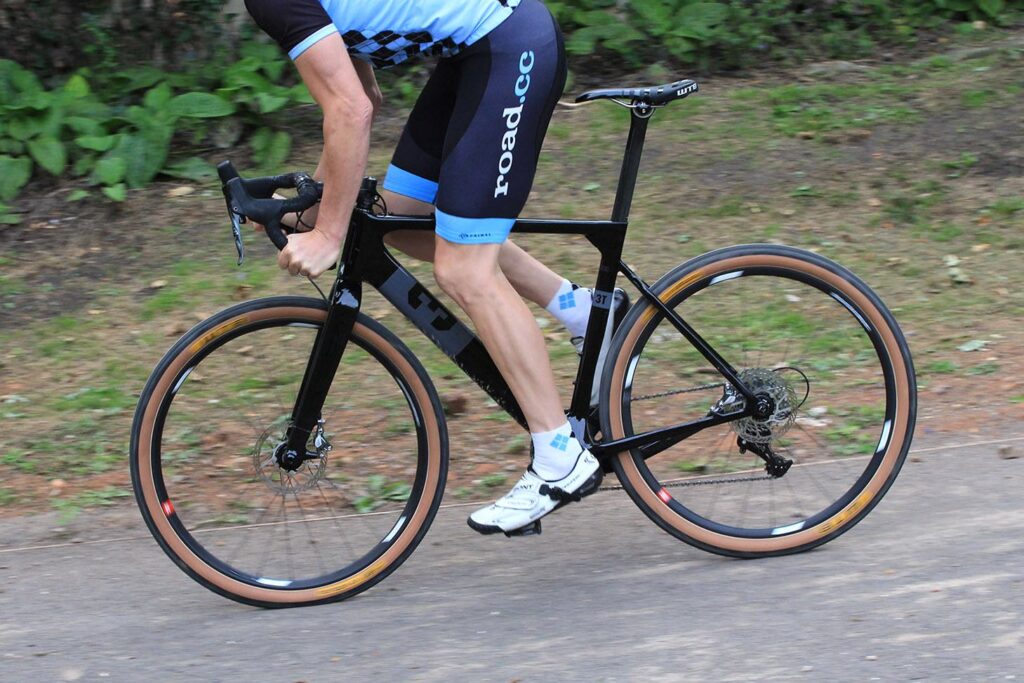

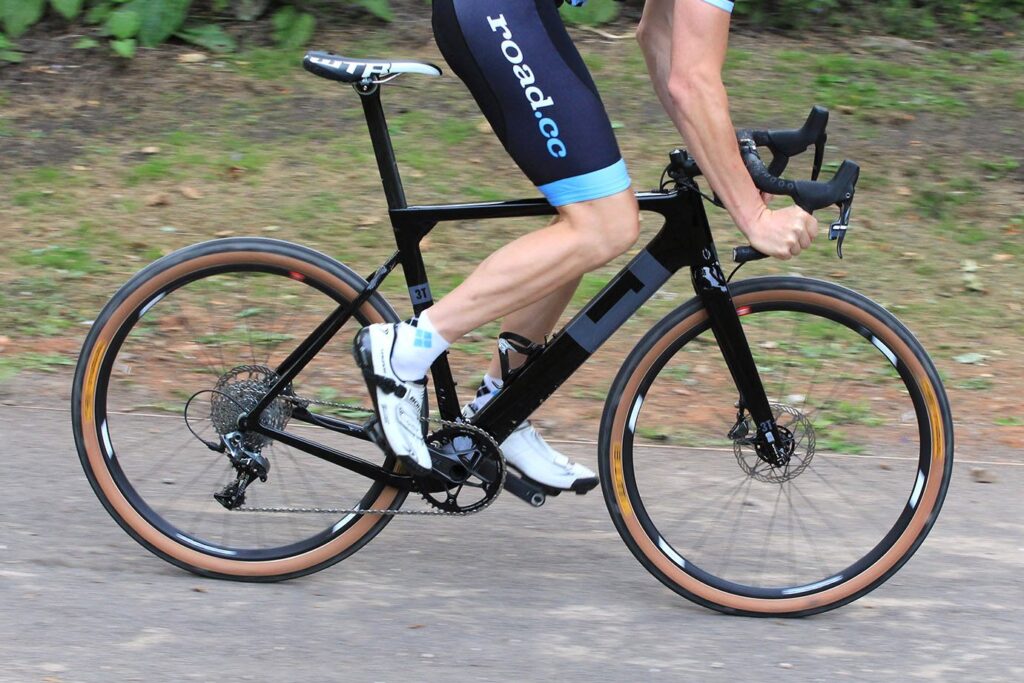

The Exploro is an absolute blast on gravel. If you have fairly well surfaced, fairly well drained tracks around your way, you're in for a treat. This is a bike that allows you to get your head down and crank the speed up high. That's when the Exploro is at its best – when you're pinning it across rough but firm roads. It flies across that stuff faster than any other gravel bike I've ridden.

3T Exploro LTD - riding 2.jpg

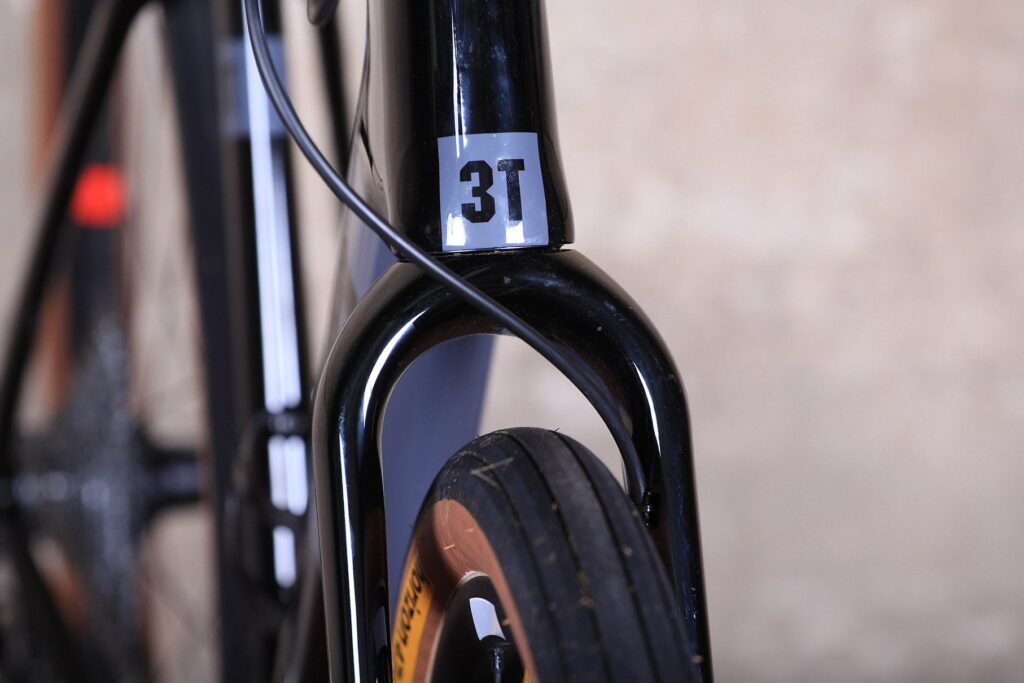

Head onto muddy bridleways and it's still a very capable performer, the proviso being, as it is with any other bike, that you fit the right tyres. The Exploro has plenty of clearance – masses of it, in fact. Our review frameset came fitted with 650B wheels and 47mm tyres although you could go up to 54mm (2.1in) with these wheels or 40mm with 700C wheels.

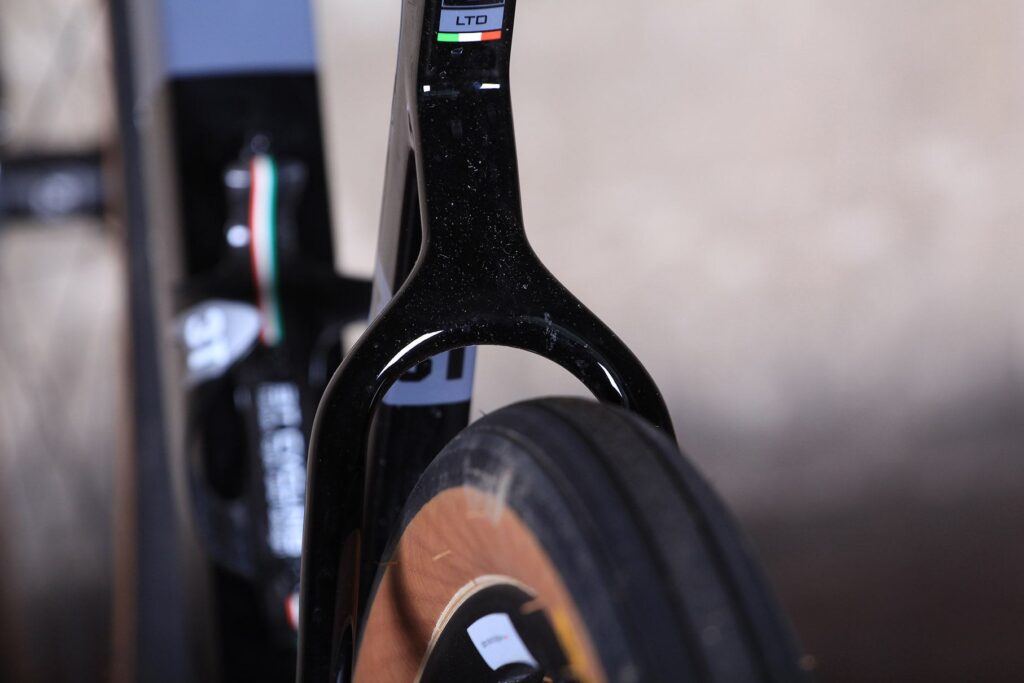

3T Exploro LTD - seat stay clearance.jpg

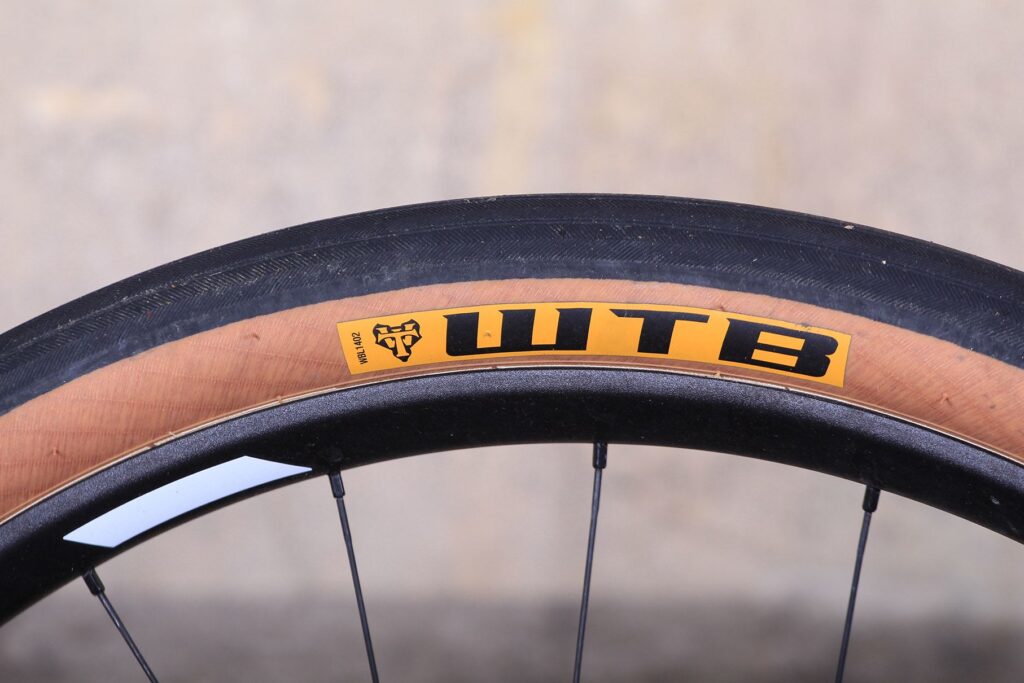

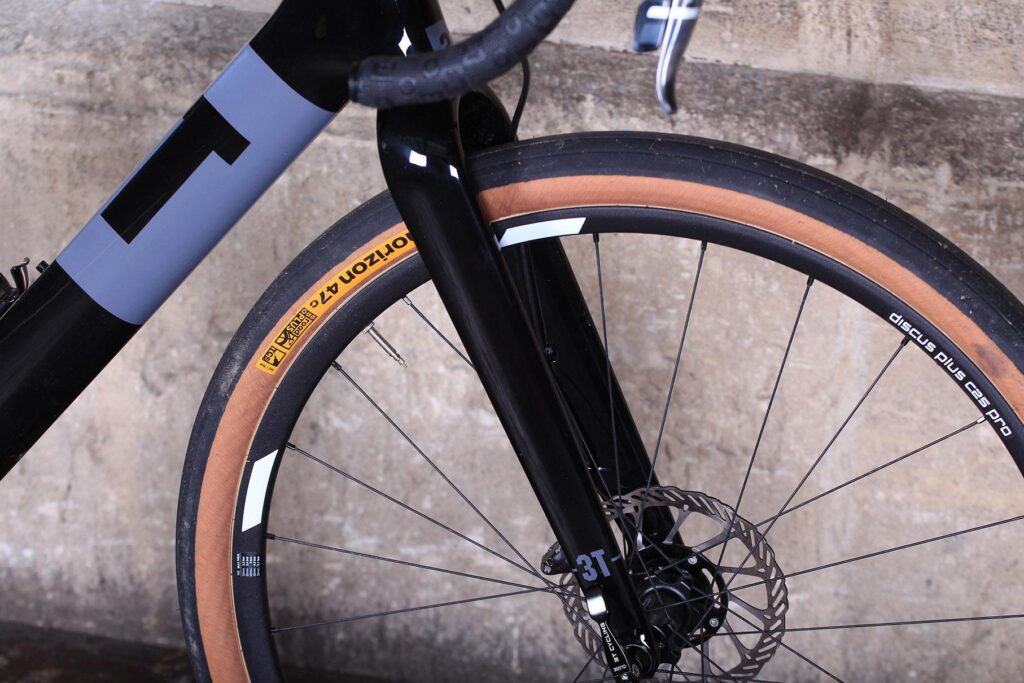

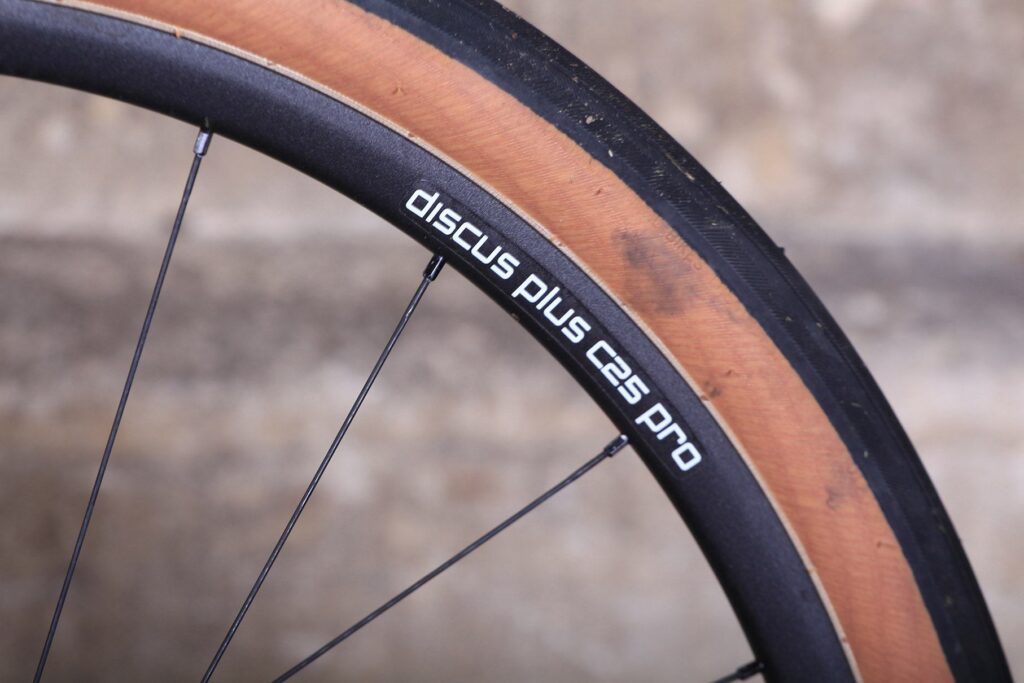

We had smooth WTB Horizon tyres on our review bike and they don't really bite into soft ground so any type of steep, wet climb was a challenge but, on the other hand, they're excellent on gritty tracks. Swapping tyres according to the terrain you ride and the conditions is obviously simple enough.

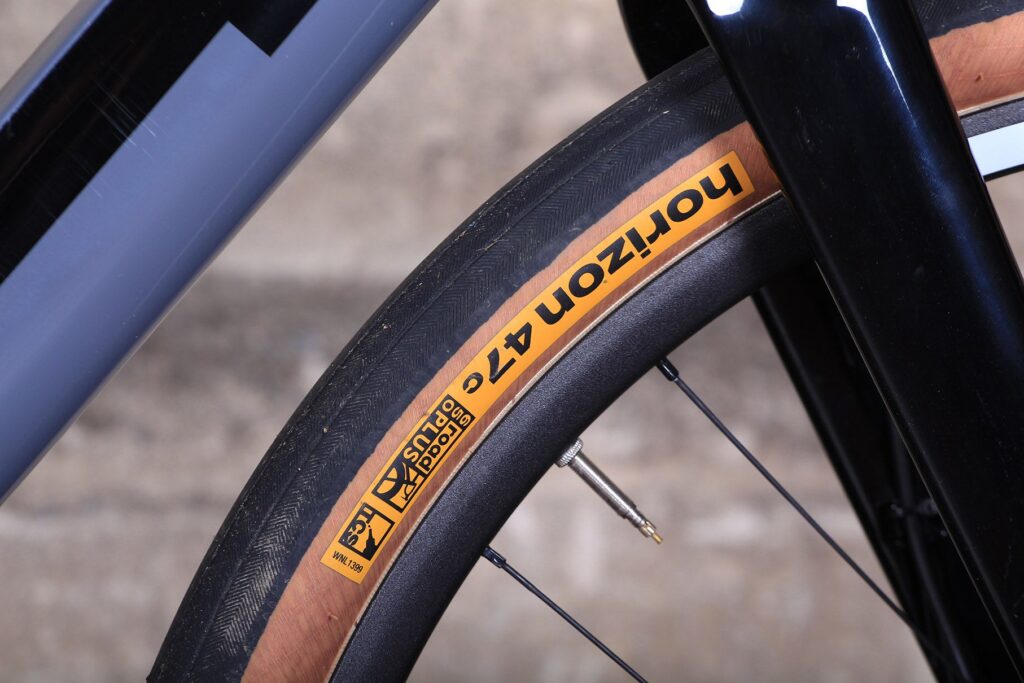

3T Exploro LTD - tyre 2.jpg

When things get technical, the steering is lively enough for loads of manoeuvrability. The Exploro is quick to respond when you need to change your line to avoid dips and bumps, and tight corners really aren't a problem. Short chainstays (415mm) keep the wheelbase short for a bike of this kind, so the handling is similar to that of a road bike.

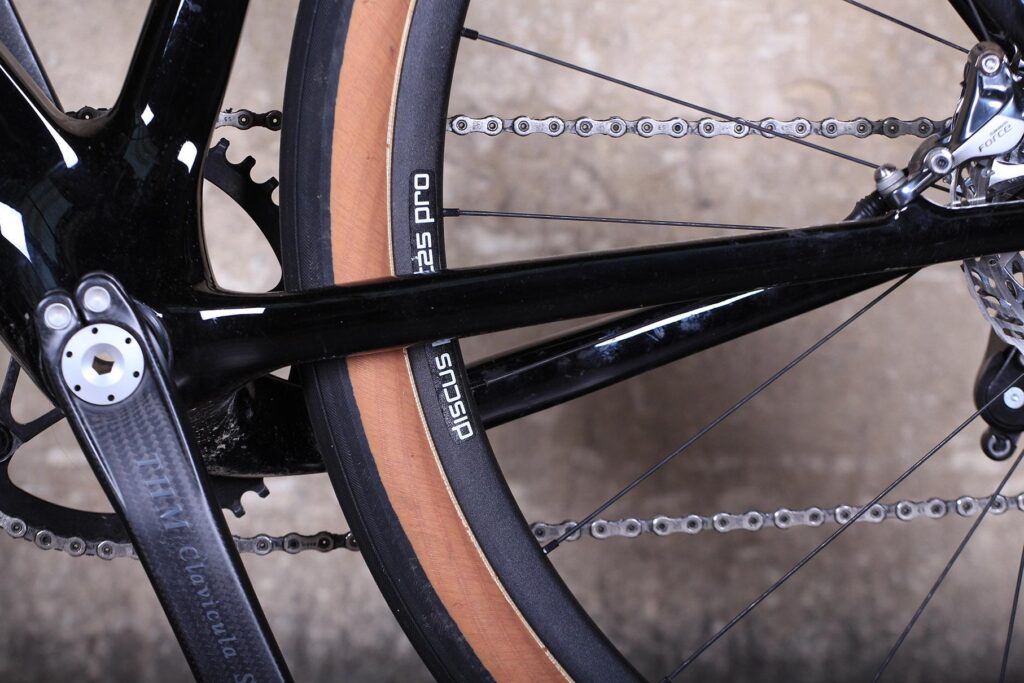

3T Exploro LTD - chain stays 2.jpg

Of course, the Exploro isn't going to keep pace with a mountain bike through lumpy, bumpy singletrack, but you wouldn't expect it to because of the lack of suspension and a much narrower handlebar. You just have to take that kind of stuff at your own pace. But once things open up again and you hit straighter, smoother stuff, the Exploro will leave a mountain bike coughing and spluttering in its dust.

If you're lucky enough to have gravel roads within riding distance of your door, chances are you're going to have to spend some time on tarmac getting to them. The Exploro behaves like a road bike on tarmac – a road bike with massive tyres. In terms of geometry (I'll come back to that), weight, feel and stiffness, you'd do well to notice much difference. Wide tyres squish from side to side when you get out of the saddle but the massive BB386Evo bottom bracket stays resolutely in place when you sprint or climb.

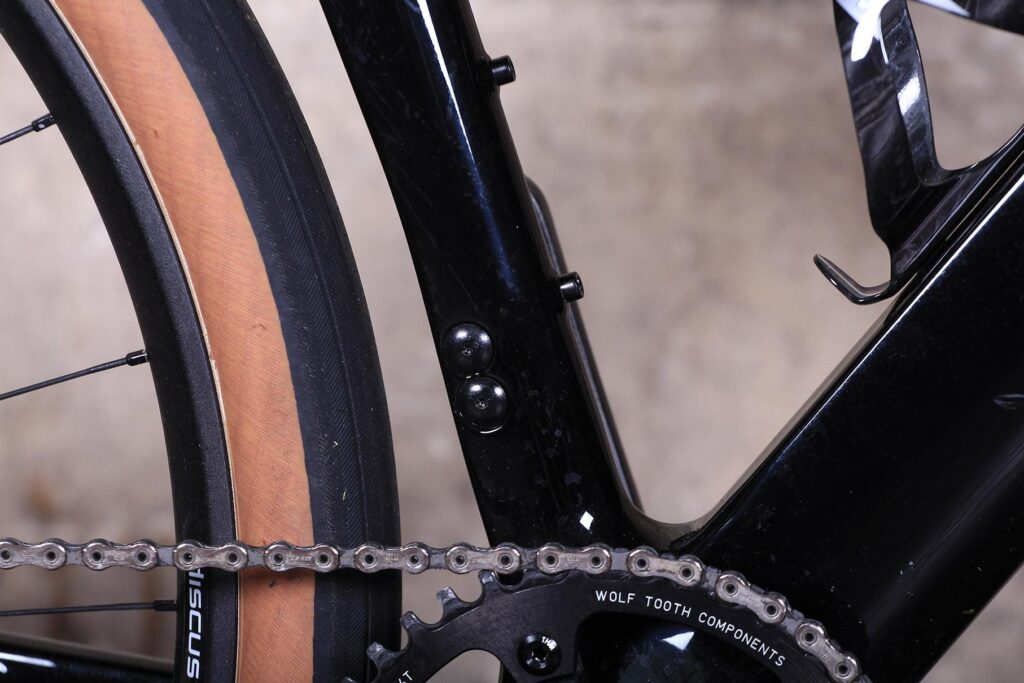

3T Exploro LTD - frame detail.jpg

As an experiment, I did one of my standard tarmac rides on the Exploro as fast as I could and the speed was very similar to what I'd expect on a standard road bike. I know it's anecdotal – you don't need to point that out – but we're talking about a fraction of a mile in an hour, and that's on a bike with 47mm tyres and disc brakes. I was stunned. I didn't find it to be as quick as the quickest road bikes, but it certainly doesn't hang around or feel unsuitable when you hit the asphalt, so for multi-surface adventures it's a very willing and able companion.


So, the Exploro is the world's first aero gravel bike, huh? In the words of many a bad stand-up comedian, what's all that about?

We can't say we heard much of a clamour for an aero gravel bike, but that doesn't mean it's an iffy concept. 3T's argument is that aerodynamics matters even at low speeds. 'Go slow faster,' it says.

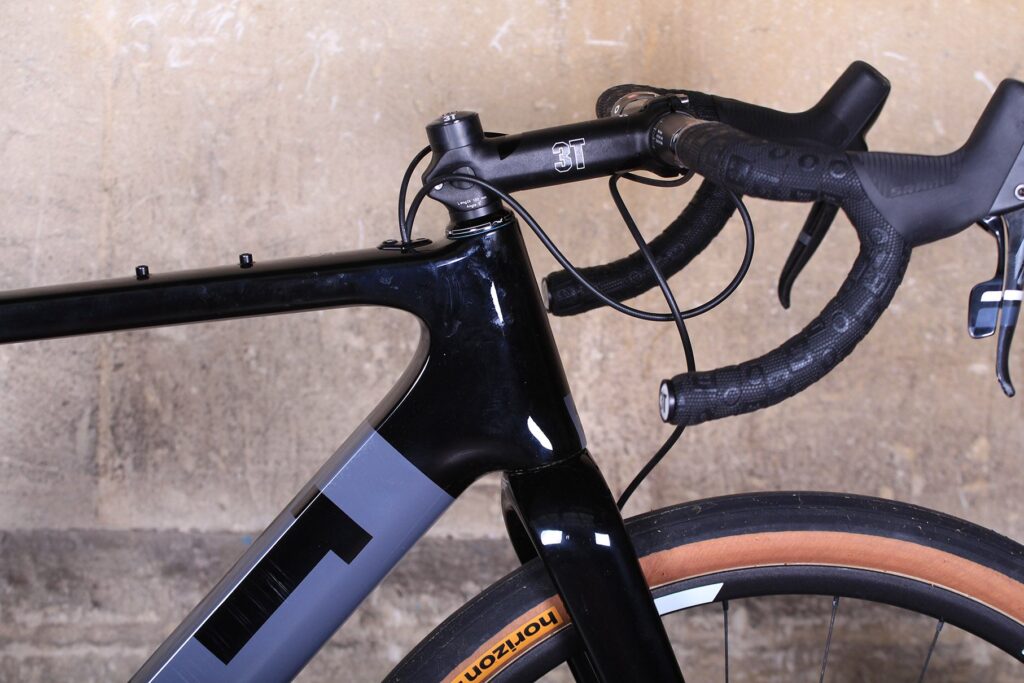

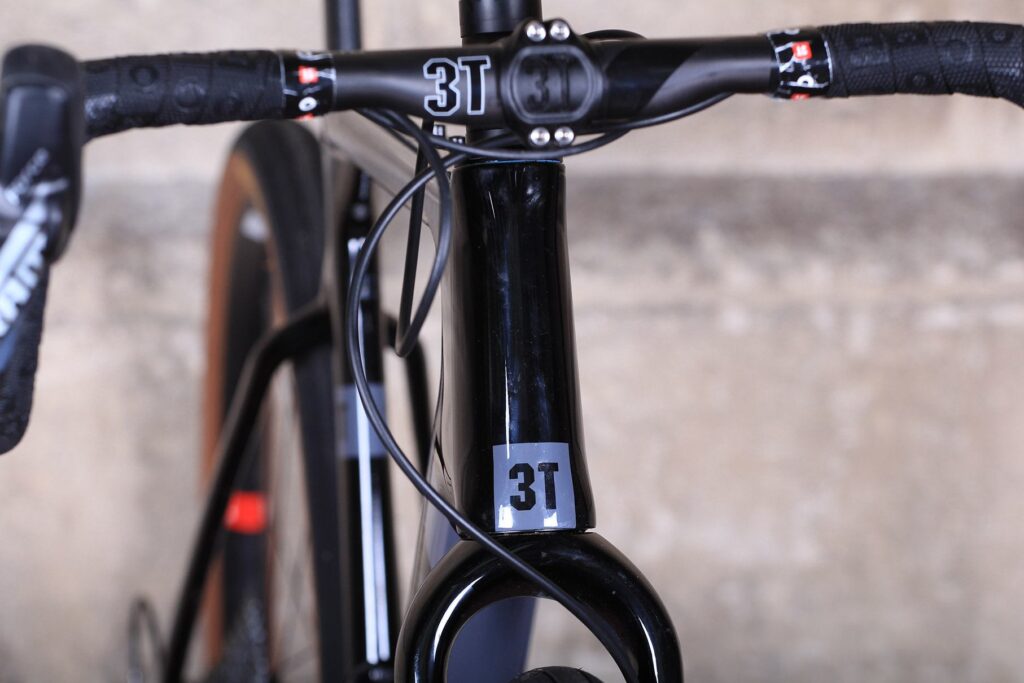

3T Exploro LTD - head tube badge.jpg

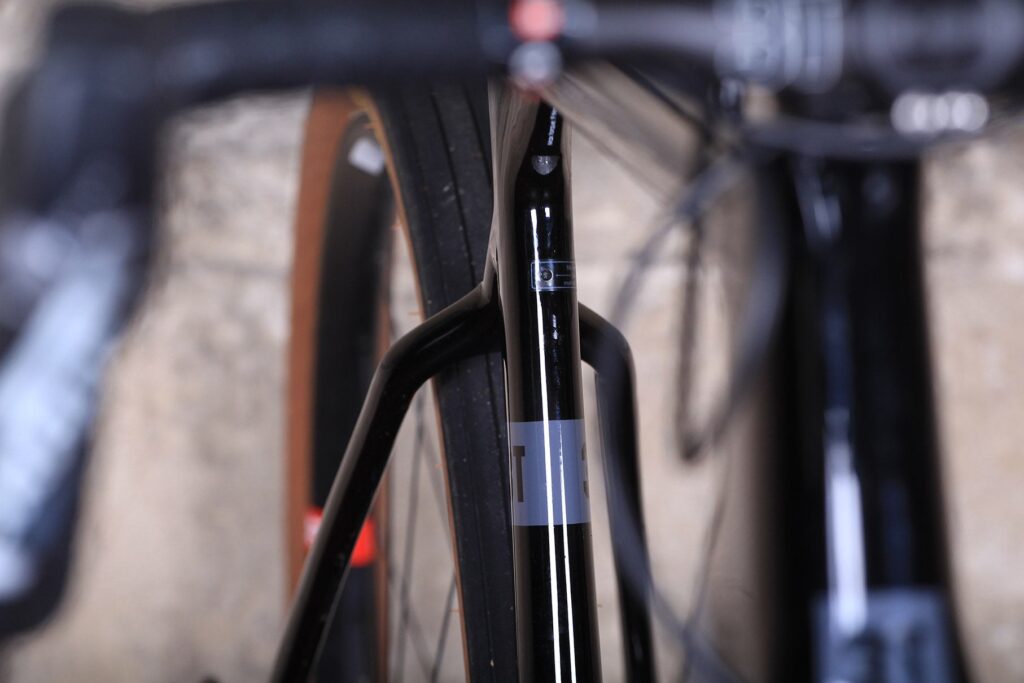

With that in mind, the Exploro features what 3T calls Sqaero tube profiles, which essentially means you get a leading edge designed for aerodynamic efficiency with a square rear section, the idea being that the airflow behaves largely as if the profile had a long, tapering tail. As well as reducing drag, this profile is designed to provide strength and stiffness without making the frame too difficult to handle in crosswinds.

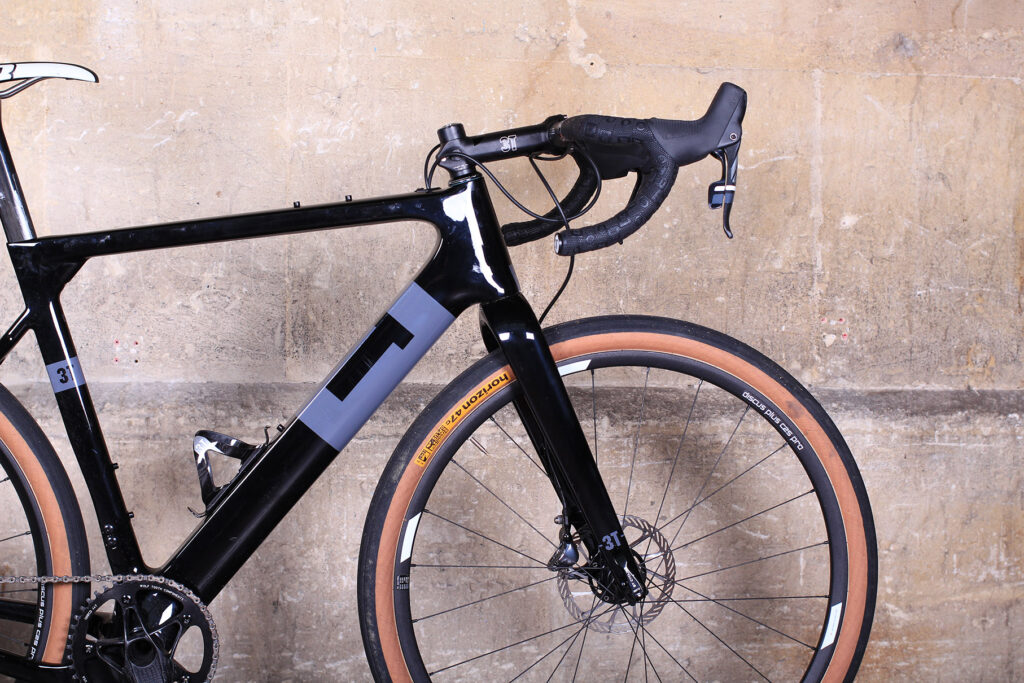

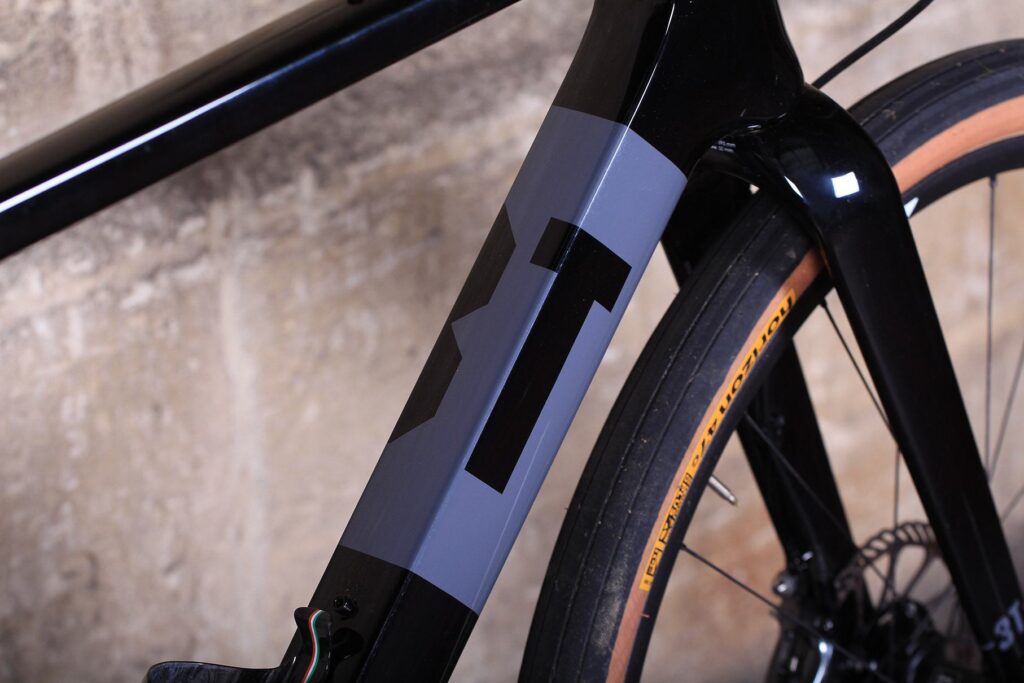

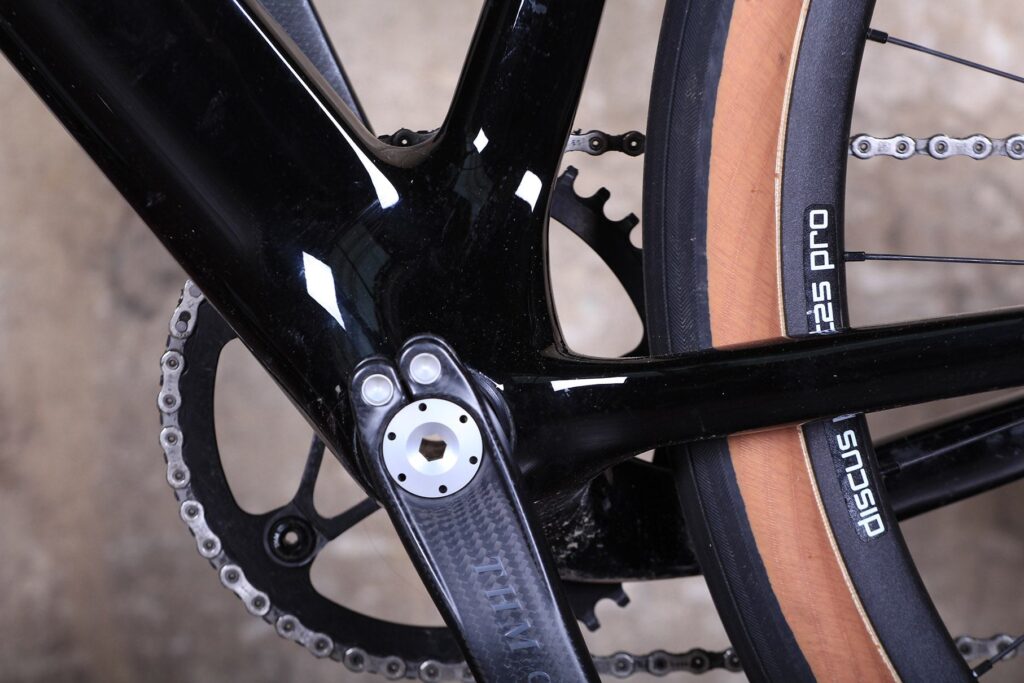

Chunky tubes are a familiar part of the bicycle landscape these days, but the Exploro's down tube really is something special. The vernier callipers say that it's 50mm across while the seat tube is 25mm wide.

3T Exploro LTD - down tube detail.jpg

We don't usually associate wide tubes with aeroefficiency but 3T says that the down tube has to be so large to manage the airflow coming off a wide front tyre and lead it on to the water bottles. The idea is that the seat tube 'aerodynamically disappears' between the bottles and the rear tyre. The head tube, seatstays and seatpost use Sqaero profiles too.

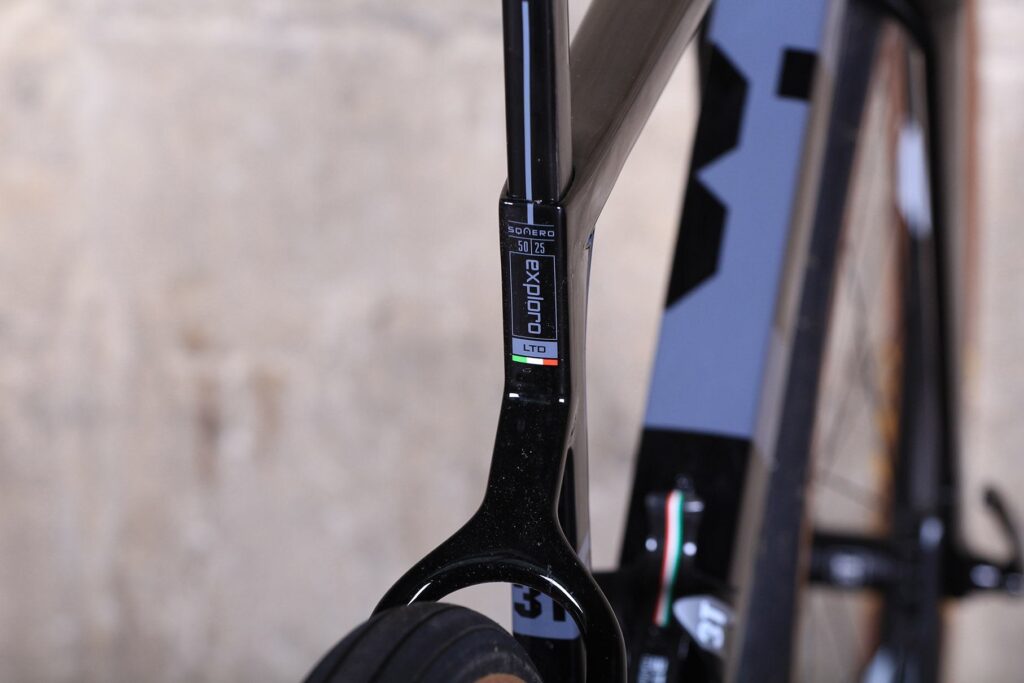

3T Exploro LTD - mono stay.jpg

The result of all this aero shaping, according to 3T, is that at 20mph (32km/h) the Exploro saves 7 watts over a round tube frame with the same tube widths, the same frame details and the same components. At a less realistic 30mph (48km/h) it would be a 24 watts saving, 3T says (3T is going to publish a white paper on the aerodynamic technology, by the way, that you can request here). Those are significant differences if you're racing.

> Read our buyer's guide to gravel and adventure bikes

What about if you're just going out for a tear up with your mates? Are you likely to ride at 20mph on gravel? That's going to depend on your fitness and the type of terrain you ride, but it would be pretty damn quick on the rolling, pockmarked gravel roads around my way. The advantage the Exploro offers over a non-aero bike is going to be small at lower speeds, getting larger the faster you go. That's certainly the way it feels to me. As I said above, the Exploro is at its best when you're bowling along in a big gear.

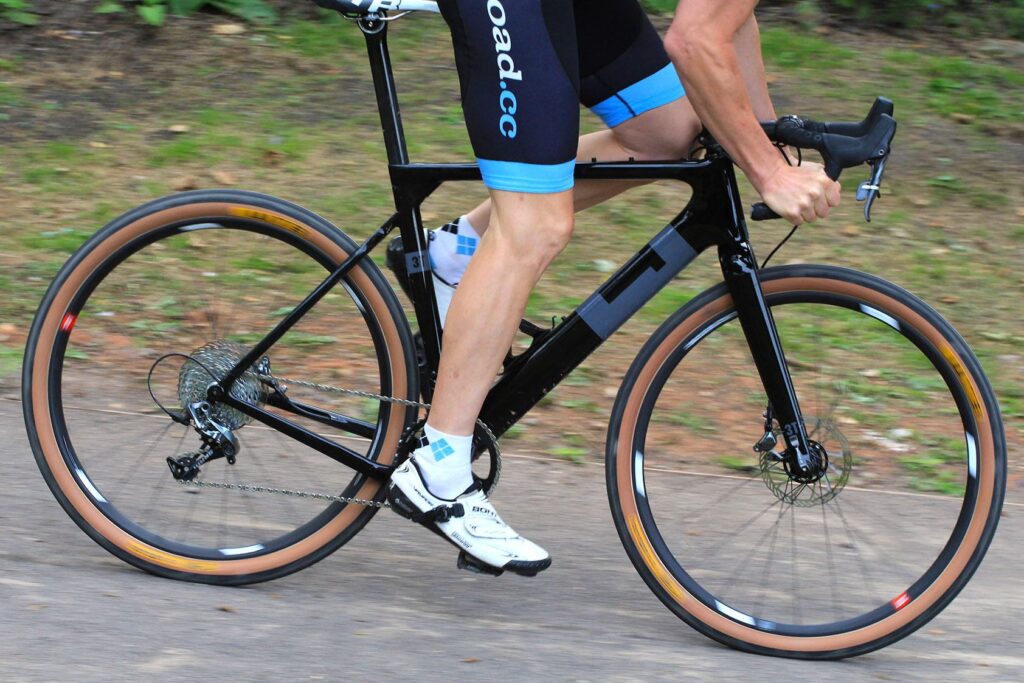

3T Exploro LTD - riding 3.jpg

Anyway, check out the white paper for yourself as soon as it's published and see if you're convinced. By the way, 3T reckons that the aero benefits hold true even when the bike is caked in mud – and, let's face it, if you live in the UK, it's going to spend a lot of time that way.

Other frame features

The Exploro's designer, Gerard Vroomen – formerly of Cervélo – wanted the Exploro to have a road bike's Q factor (the distance between the pedal attachment points), and with clearance for such wide tyres that didn't leave much space for chainstays. For that reason he put a drop in the driveside one to move it out of the way, as he did on his Open UP design. It makes no difference at all to the way the bike feels.

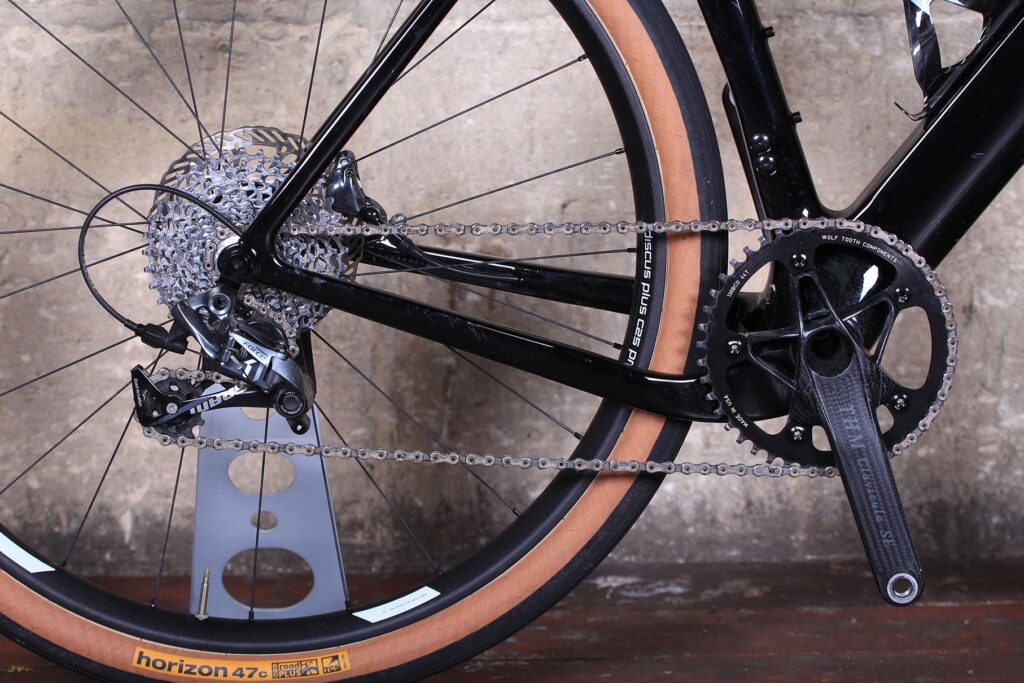

3T Exploro LTD - drivetrain.jpg

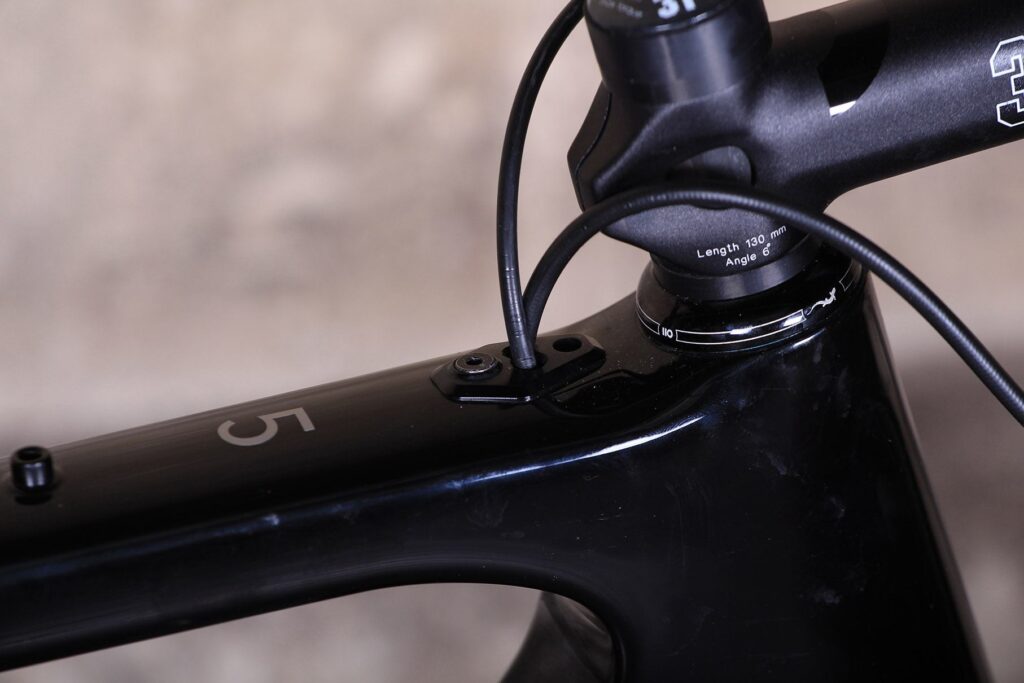

The gear cable (singular; our review bike is set up with a SRAM Force 1 system) and the hydraulic brake hoses are routed internally. Although it wasn't the tidiest execution on our review bike, you could get everything set up very neatly yourself via the FlipTop cable guide on the top tube. This comes in different versions for mechanical and electronic shifting, and single and double chainsets. 3T uses full cable housing through the frame for mechanical shifting to keep the cables protected from dirt.

3T Exploro LTD - cable route.jpg

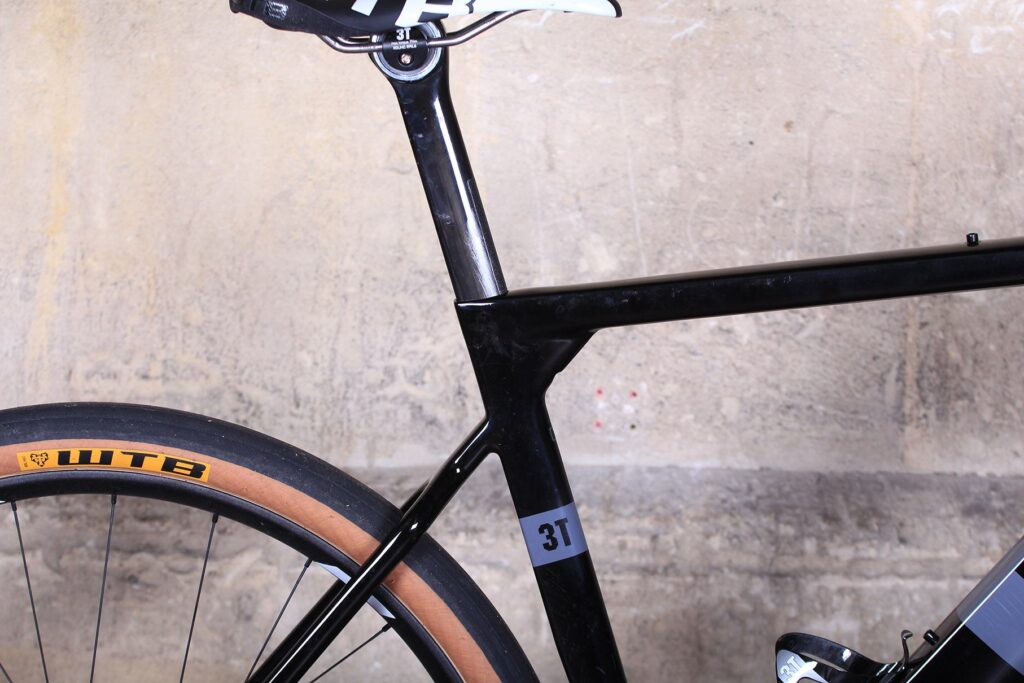

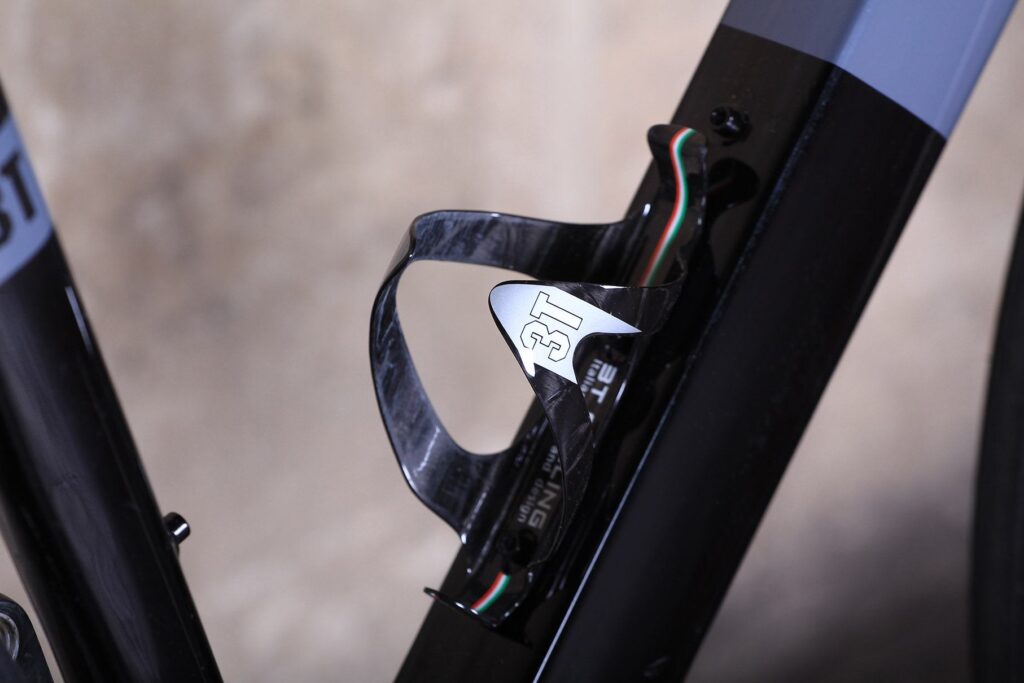

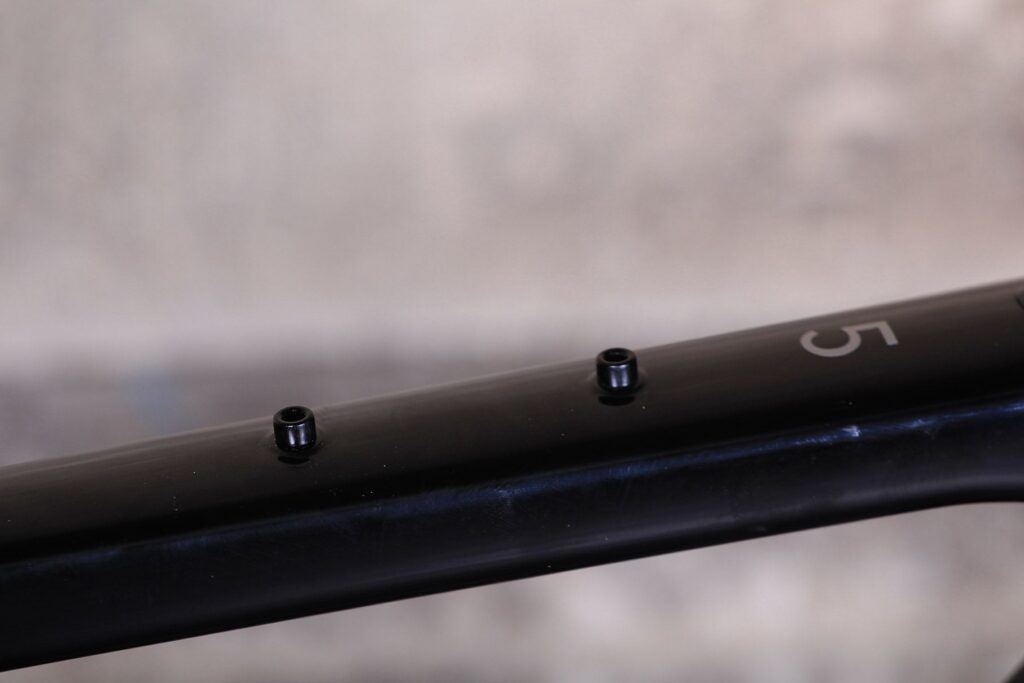

You can choose between two bottle cage positions on the down tube, although you need to opt for the upper one if you want to attach a bottle cage to the seat tube as well. If you're only installing one, the lower position is the more aerodynamically efficient option. You also get two attachment anchors for a top tube bento box, but there are no rack or mudguard eyelets. 3T thinks people are more likely to choose frame bags for weekend adventures.

3T Exploro LTD - cage.jpg

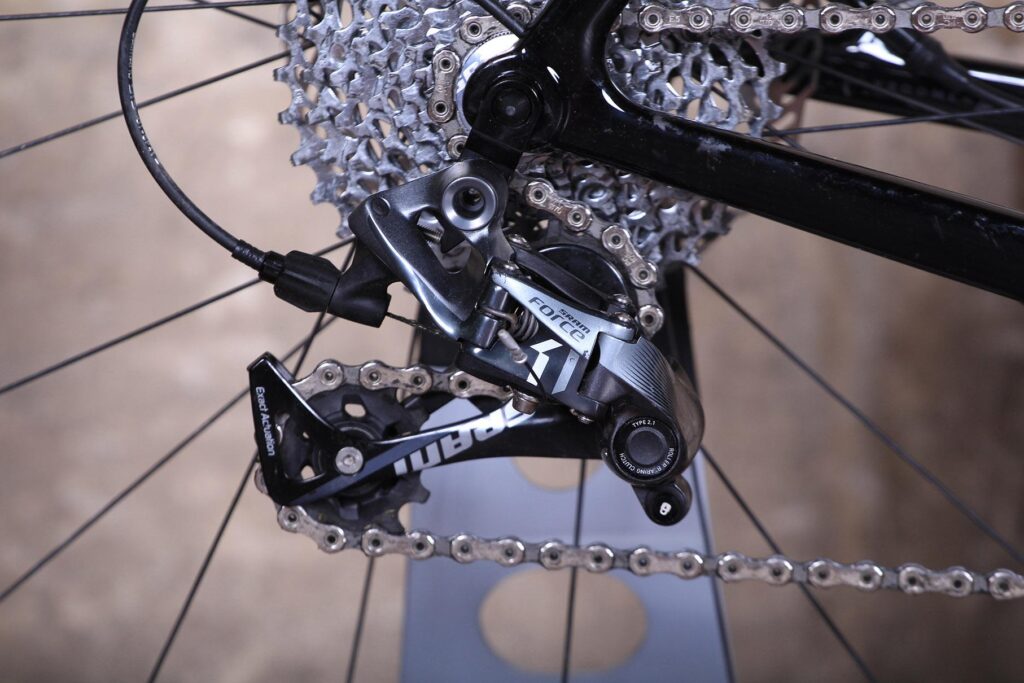

One other frame feature that's worthy of mention is the Hang Loose rear derailleur hanger that's designed to make re-installing the rear wheel easier. You first replace the rear wheel and get the brake rotor alignment right, then you install the thru axle to stabilise the rear wheel before installing the Hang Loose hanger. It sounds complicated but it actually makes setting things up a doddle.

3T Exploro LTD - rear mech.jpg


The Exploro's geometry is intended to be tailored towards both fast and comfortable riding – closer to a road or cyclo-cross position than to a mountain bike position. Your riding position is always going to make more difference to your overall (bike and rider) aerodynamics than any clever tube shapes or frame features, so it makes sense for 3T to offer an aggressive setup here.

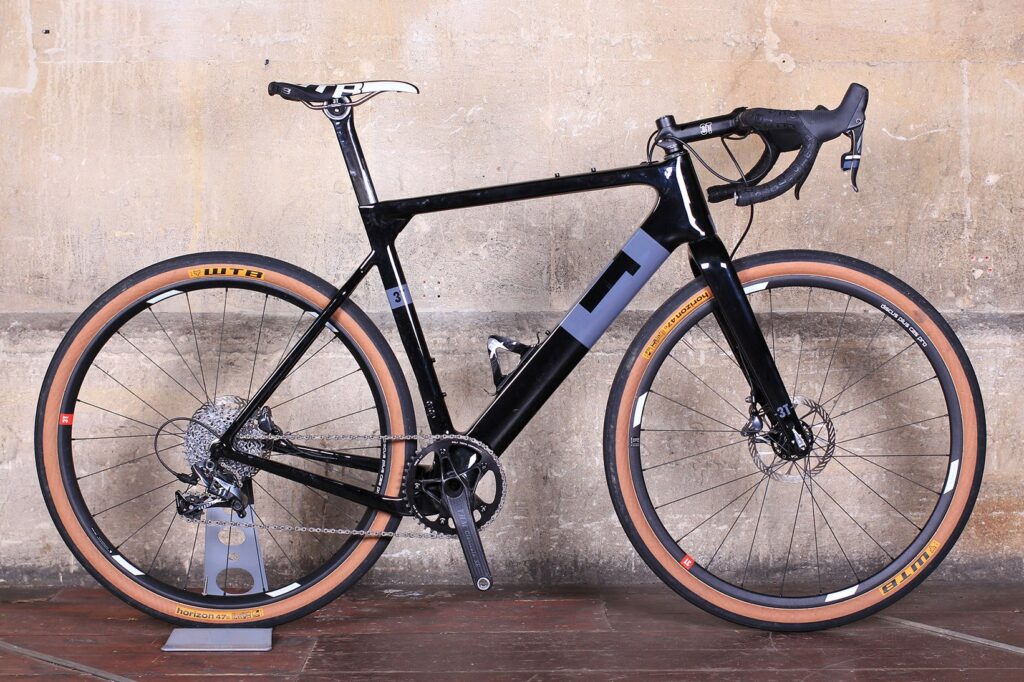

3T Exploro LTD.jpg

We have a large sized model in for review. It comes with a 572mm top tube, a 518mm seat tube, and a short 150mm head tube.

The stack (the vertical height between the middle of the bottom bracket and the top of the head tube) is 576mm and the reach (the horizontal distance between those points) is 390mm. Bear in mind, though, that the dedicated seatpost has an inline clamp, and that shortens things up compared with a layback seatpost.

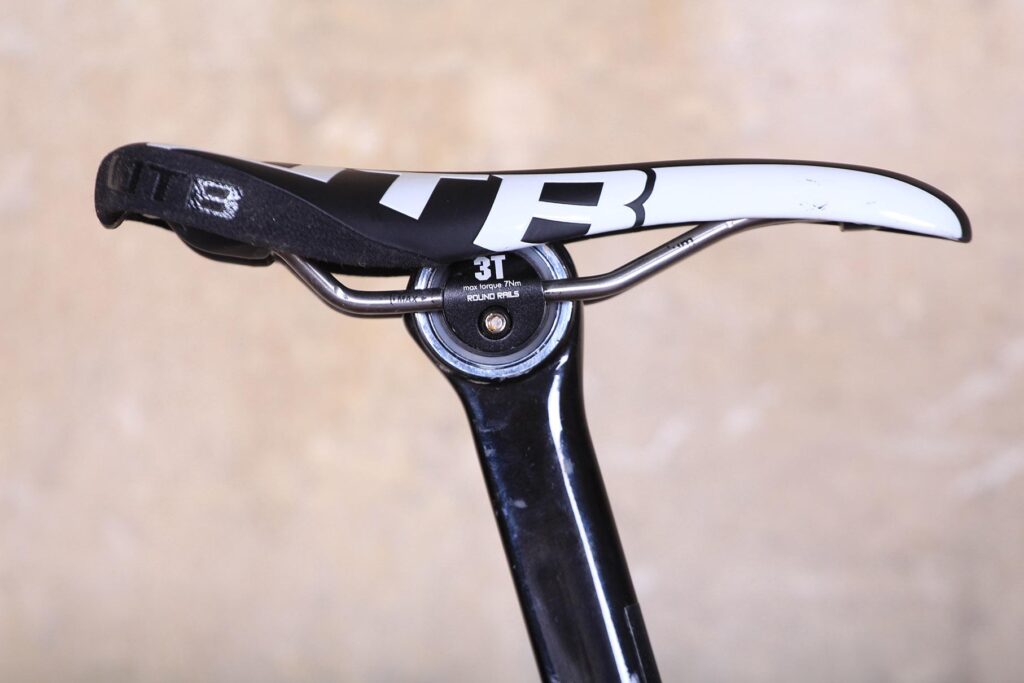

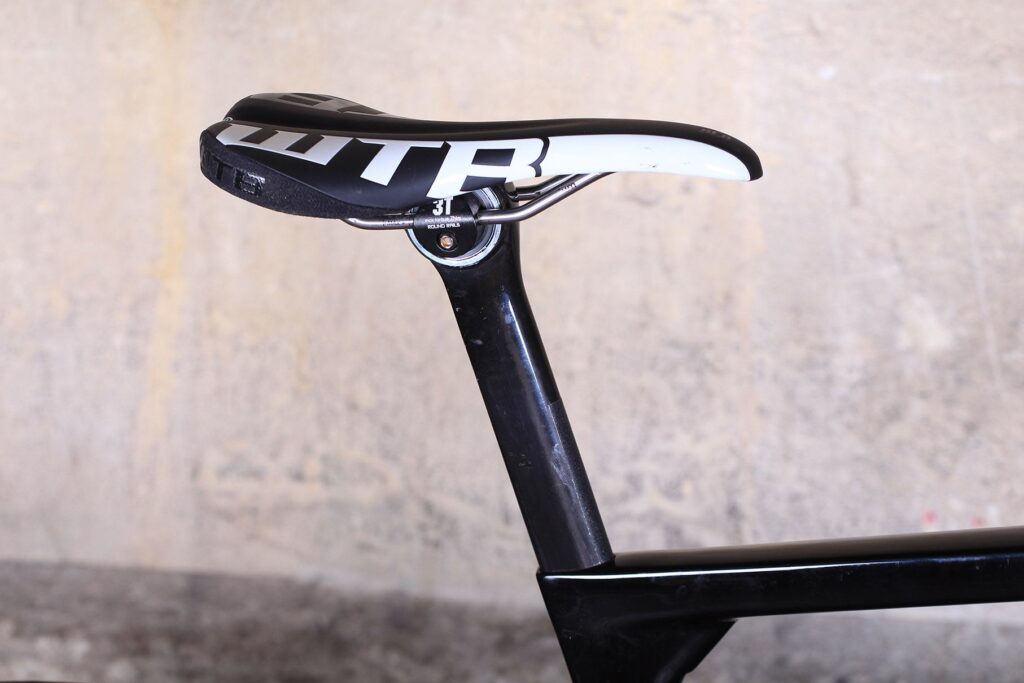

3T Exploro LTD - saddle and post.jpg

If you can't be bothered with the numbers, the upshot is that the riding position is a little more upright than that of a standard road bike, but not by a long way. Chances are you'll get along with this position just fine if you're from a road bike background. I did. I like to get low and purposeful even when riding rough stuff, and I could do that here. Plus, this position is a real boon when you're on the asphalt – and, let's face it, few of us are going to ride a gravel bike solely on gravel.

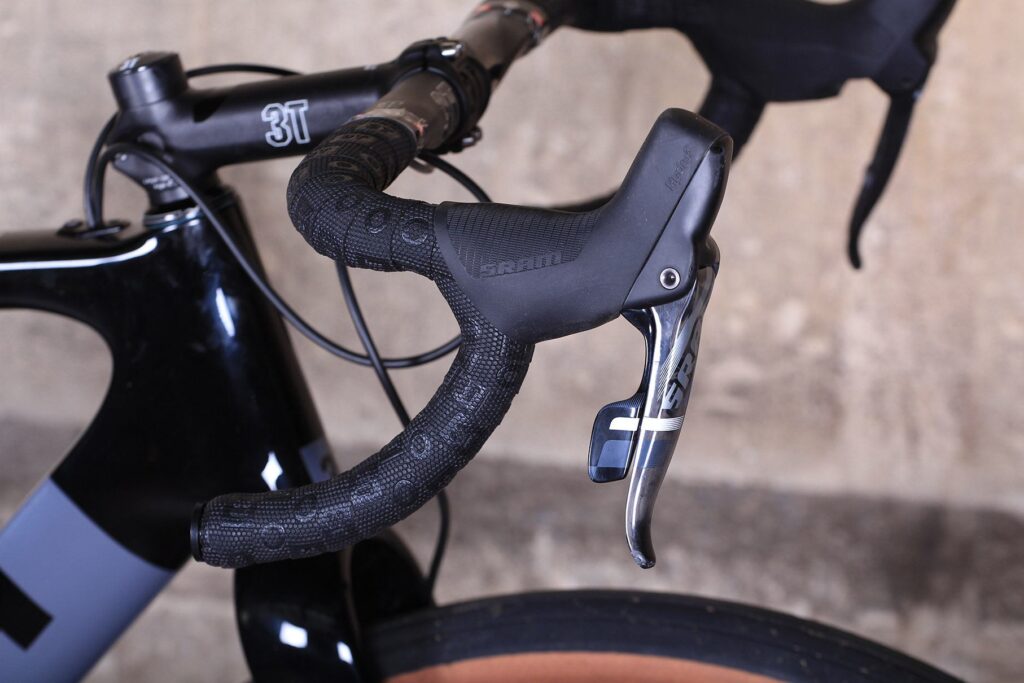

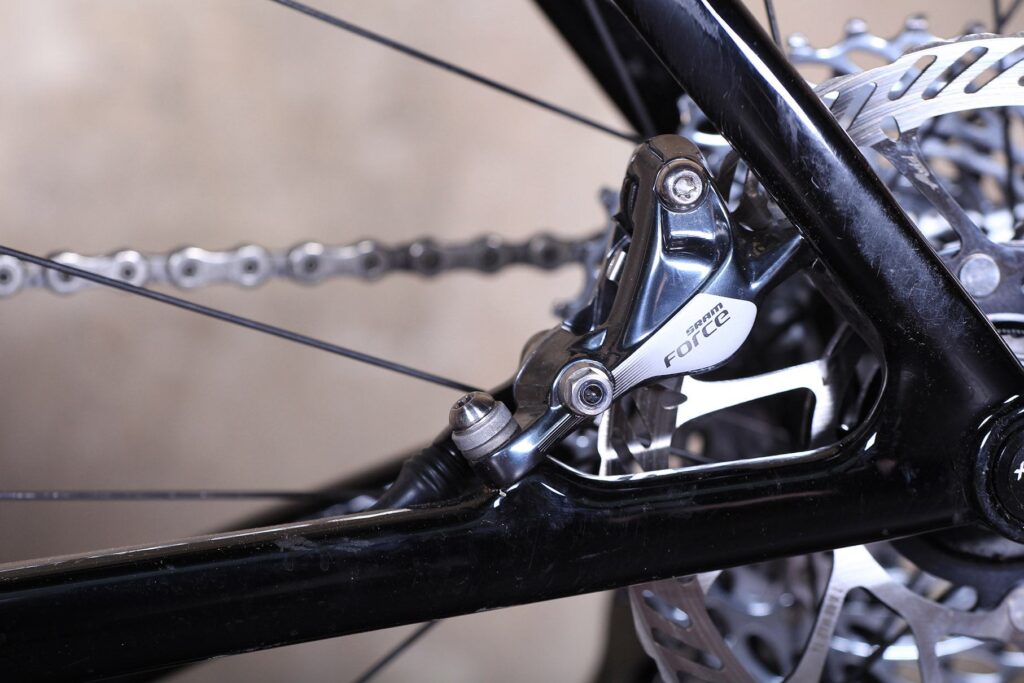

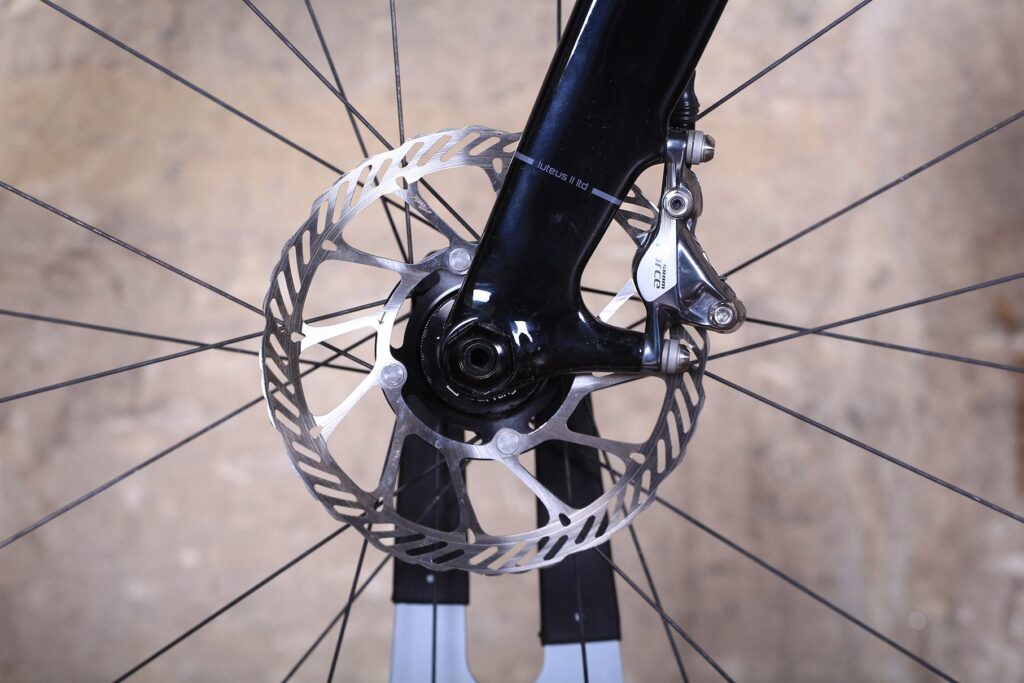

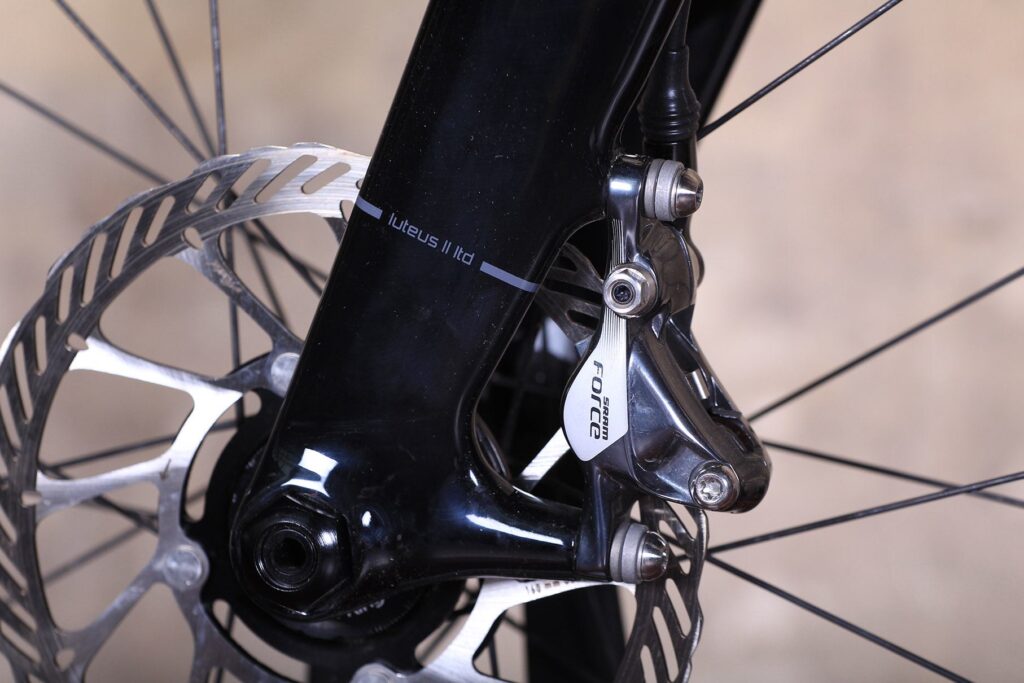

For the record, our review bike came built up with a SRAM Force 1 groupset with hydraulic disc brakes (post mount rather than the flat mount standard that has become dominant) and a THM Clavicular SE carbon chainset. The wheelset is 3T's own aluminium Discus Plus C25 Pro 650b with WTB Horizon tyres. That's all academic, though, because the Exploro is sold as a frameset.

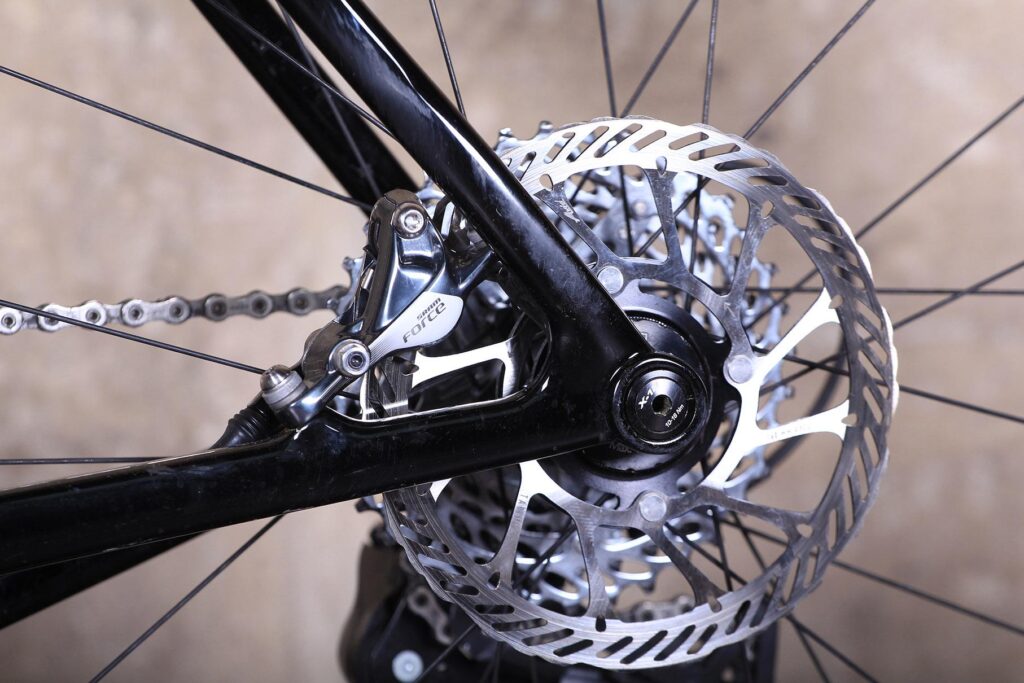

3T Exploro LTD - rear disc.jpg

In fact, it's actually sold as two different framesets. They're out of the same mould but the carbon fibre differs. The Team version weighs a claimed 1,150g and is priced at £2,400 while the LTD model that we have is a claimed 950g and it's priced £3,360.

Summing up

Some people might consider 'aero gravel' to be a niche too far, but the 3T Exploro is an innovative bike that's at its best when you're riding fast over solid or at least firm tracks. It's never going to have mass market appeal, especially at this price, but this would be a great bike for gravel racing, taking on a gravel/cyclo-cross/multi-surface sportive (there are a few around these days), or just getting away for a fast-paced adventure. The Exploro is agile enough for the technical stuff too, it's just that it really shines when you crank up the pace.


Aero gravel bike that's fast and agile, but the price... Ouch! test report

Make and model: 3T Exploro LTD frameset

Size tested: Large


Tell us what the frameset is for, and who it's aimed at. What do the manufacturers say about it? How does that compare to your own feelings about the bike?

The Exploro is an aero gravel bike.

3T says, "Go slow faster: the best gravel rides are long and gruelling, so saving a few watts is very welcome. Enter our Sqaero shapes, squared-off aero shapes that are structurally efficient and fast. Sqaero shapes offer RealFast aerodynamics; they are faster not only under perfect conditions but also in the real world. Even when covered by mud and muck.

"That's right, our Sqaero shapes are designed to be as fast dirty as they are clean. The Exploro uses Sqaero 50/25, with a 50mm wide down tube perfect to pick up the airflow coming off a wider cross or MTB front tyre and lead it on to the water bottles. The seat tube is 25mm wide to make it aerodynamically disappear in-between the bottles and the rear tyre. The headtube, seatstays and custom seatpost also use Sqaero shapes."

State the frame and fork material and method of construction

The frame and fork are both full carbon-fibre.

Overall rating for frameset

Tell us about the build quality and finish of the frame and fork?

It's excellent throughout.

Tell us about the geometry of the frame and fork?

I've covered this in the main text but the geometry is more like that of an endurance road bike than a mountain bike.

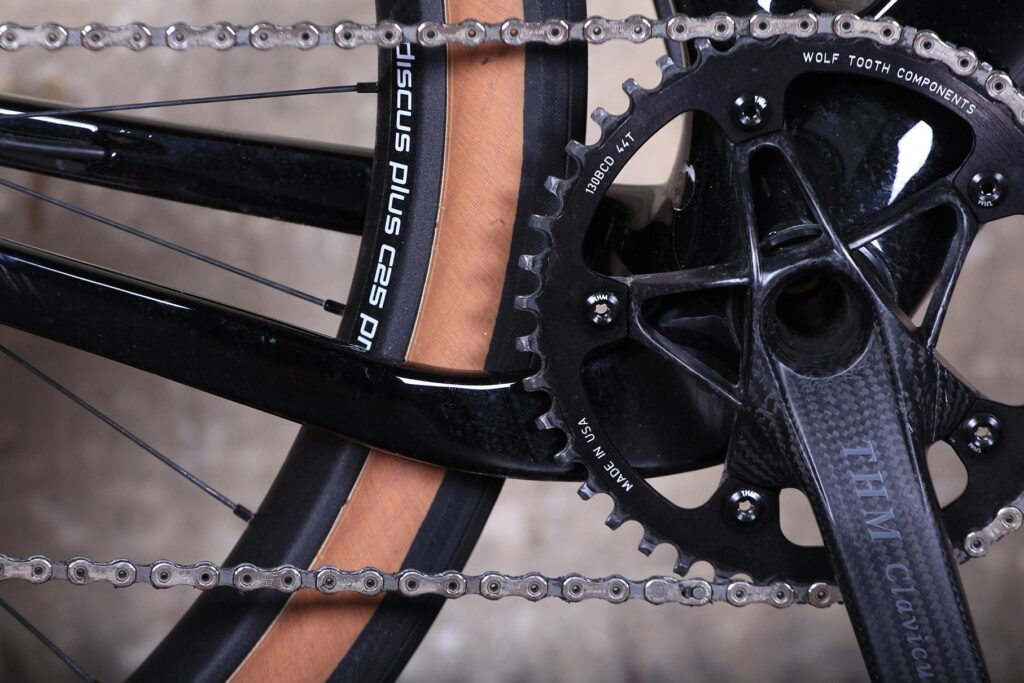

The chainstays are short for a gravel bike (415mm), keeping the wheelbase fairly short.

How was the bike in terms of height and reach? How did it compare to other bikes of the same stated size?

The front end height is lower than you'll find on many other gravel bikes. The reach of the frame is quite long for a gravel bike of this size, although an inline seatpost reins that in.

Riding the bike

Was the bike comfortable to ride? Tell us how you felt about the ride quality.

It was very comfortable. Mind you, I had 47mm tyres on it most of the time. If you're not comfortable with 47mm tyres, you're never going to be comfortable.

Did the bike feel stiff in the right places? Did any part of the bike feel too stiff or too flexible?

The massive bottom bracket area is certainly very stiff.

How did the bike transfer power? Did it feel efficient?

Yes, it feels efficient.

Was there any toe-clip overlap with the front wheel? If so, was it a problem?


How would you describe the steering? Was it lively, neutral or unresponsive? The Exploro is quite agile and manoeuvrable for a bike of this type. The 47mm tyres fitted to our review bike kept it steering straight though.

Rate the bike for efficiency of power transfer:
Rate the bike for acceleration:
Rate the bike for sprinting:
Rate the bike for high speed stability:

The Exploro has a short trail meaning that it's easy to keep the front wheel steering straight when rocks, dips, bumps and so on try to knock it off course.

Rate the bike for cruising speed stability:
Rate the bike for low speed stability:
Rate the bike for flat cornering:
Rate the bike for cornering on descents:
Rate the bike for climbing:

How did the build components work with the frame? Was there anything you would have changed?

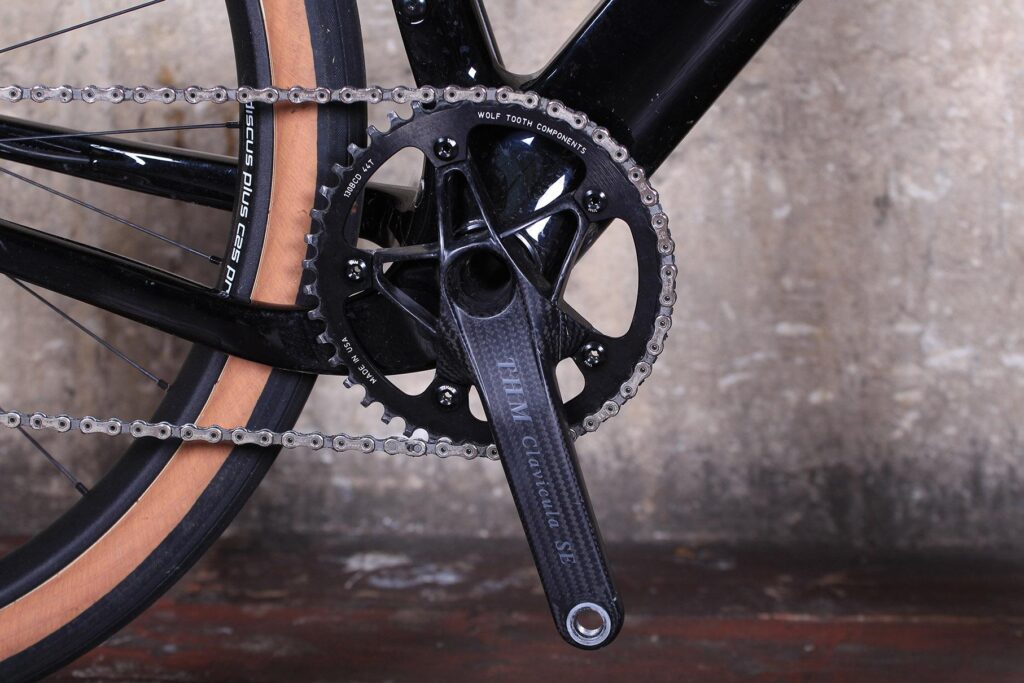

The SRAM 1x system works really well for a bike of this kind and the THM chainset is superb, although it's expensive.

I'd have a couple of different sets of tyres: one set for gravel and another for mud. In fact, as I'm spending hypothetical money, I'd have them mounted on two different sets of wheels to make swapping between them easier.

Your summary

Did you enjoy riding the bike? Yes

Would you consider buying the bike? It's a helluva lot of money for the gravel riding I do. I'd consider it if I raced on gravel.

Would you recommend the bike to a friend? Yes, if they wanted a money-no-object gravel bike.

Rate the bike overall for performance:
Rate the bike overall for value:

Use this box to explain your score

It's a 9 for performance in that this is the fastest gravel bike I've ever ridden and it handles superbly.

Value is a tricky one – it always is. There's a lot of tech going on here, but I'd struggle to pay anything like this amount on a gravel bike. If gravel was my main thing – perhaps if I raced on gravel – I might save up for this bike. And if I was a Lotto winner and money was no object, I'd buy an Exploro in an instant, no question about that. But back in the real world, I'd struggle to justify spending this much on a gravel bike, no matter how well it performs.

Overall rating: 8/10

About the tester

Age: 43  Height: 190cm  Weight: 75kg

I usually ride:   My best bike is:

I've been riding for: Over 20 years  I ride: Most days  I would class myself as: Expert

I regularly do the following types of riding: commuting, club rides, sportives, general fitness riding

Mat has been in cycling media since 1996, on titles including BikeRadar, Total Bike, Total Mountain Bike, What Mountain Bike and Mountain Biking UK, and he has been editor of 220 Triathlon and Cycling Plus. Mat has been technical editor for over a decade, testing bikes, fettling the latest kit, and trying out the most up-to-the-minute clothing. We send him off around the world to get all the news from launches and shows too. He has won his category in Ironman UK 70.3 and finished on the podium in both marathons he has run. Mat is a Cambridge graduate who did a post-grad in magazine journalism, and he is a winner of the Cycling Media Award for Specialist Online Writer. Now over 50, he's riding road and gravel bikes most days for fun and fitness rather than training for competitions.
