The cyclist's guide to looking after your knees — ride stronger and faster with these tips for managing and preventing the most common cycling injury

Knee pain and injuries are some of the most common complaints among cyclists; but, says bike fitting legend Phil Burt, there are many simple remedies for faster, injury-free riding

Nothing is certain in this life, said American statesman Benjamin Franklin in 1789, except death, taxes and picking up a knee injury if you ride long enough. And how prescient the polymath proved to be with a 2011 review and 2017 review suggesting the incidence of knee pain in cyclists stretches from 36% to 62%. It begs a peloton’s worth of questions, including what are the most common knee injuries and how do you both cure and avoid them in the first place? We’ll come onto that but first some good news.

“Yes, it’s true that the most common cycling injury is a knee injury,” says Phil Burt, the former Team Sky bike fitter who now focuses more heavily on recreational athletes at the Manchester Institute of Health and Performance. He’s also written a book on his favoured subject, Bike Fit. “However, the oxymoron is that cycling is really healthy for your knees. What’s the first thing anyone does after a knee operation? They don’t go running. They get back on a static bike to rehabilitate.

> The causes of back pain in cyclists and how to prevent them

2024 Mason Cycles Resolution 4 SRAM Force - riding 4.jpg

“The reason that cycling is good for your knees is because it contains hardly any eccentric forces. These are the landing forces that you experience when, for instance, you’re running and are quite destructive over the long term.”

Locked-in problems

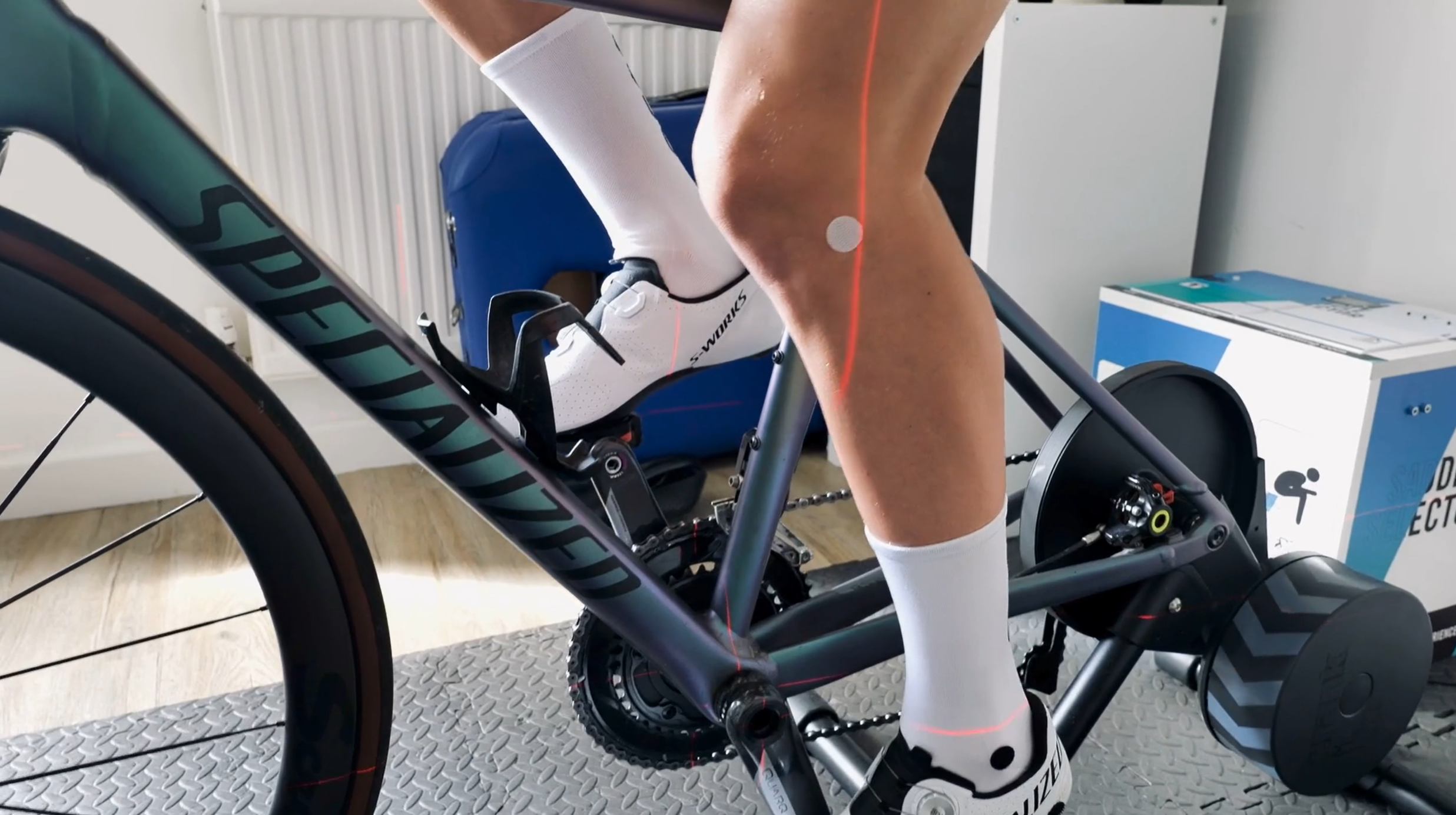

2023 Bike fit Jamie laser specialized

So, good news for the cyclist, but not perfect news. “Cycling is ‘a posture in position’ activity, which means that it’s a locked-in sport and one of much repetition,” says Burt. “Our feet are strapped into stiff shoes that are then locked into a pedal system. That means if anything is out of alignment, things can unravel.”

The result, says Burt, can be two primary types of cycling-related knee pain. There’s the anterior knee pain, or the pain in the front of your knee, that’s caused by a cranking up of pressure on your patella and the tissues that surround it. Iliotibial Band Syndrome (ITBS) is common. Inflammation leads to a stabbing pain that, over time, grows progressively worse.

Then you have the lateral knee pain, towards the outside of the knee. Similar to the anterior pain, it’s caused by a build-up of pressure through lateral or medial knee structures. Patellofemoral pain syndrome, or PFPS, is common. This is more of a dull, aching pain and, rather disturbingly, can be accompanied by crackling noises when you bend your knee.

What could be causing your knee pain in the first place?

“When it comes, the anterior knee pain, the main causes are siting too low or too far forward,” says Burt. “This then places undue strain the patella.” Further reasons include tight hip or knee flexors, which result in compression at the patellofemoral joint. You can also suffer if you’re in too high a gear and cranking out a very slow cadence. Again, this simply equates to pressure and pain. Incorrect cleat position’s another cause, too.

> Cycling cadence: how fast should you pedal?

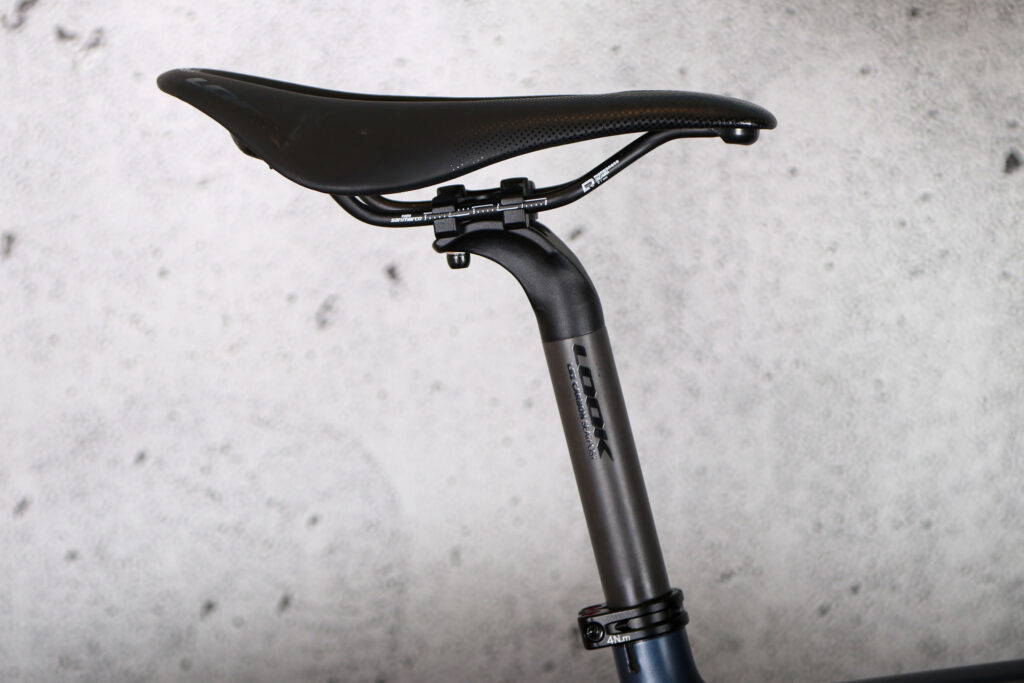

2024 Look 785 Huez 105 Di2 - saddle and post.jpg
It's worth paying attention to your saddle height to prevent knee pain

“As for the lateral knee pain, that’s more commonly associated with too high a saddle position,” says Burt. “It could also be due to a person’s biomechanics. They might need a different Q factor or angle.” The Q factor’s the distance between the outside of one crank and the other, measured laterally through the midline of the bottom bracket. Incorrect cleat alignment’s again another cause, while lack of core strength’s also an issue.

> How to set your saddle height

“All in all, many of knee issues manifest themselves because soft tissues become very tight,” says Burt. “This then places the joints and associated ligaments and tendons under pressure.”

How to banish knee pain

Woman stretching Sept 2024 designed by Freepik

So, what can be done to not only improve the situation, but prevent these knee issues in the first place? “Stretching will always only help,” says Burt. That’s because stretching lengthens the muscle and so boost flexibility and elasticity. There are three types of stretches: static, dynamic and proprioceptive neuromuscular facilitation stretching, or PNFS.

> Common bike fit mistakes and how to avoid them

Static stretching involves slow, controlled stretches that you hold. Dynamic stretching features bouncing movements, progressively increasing the range of motion via successive repetitive motions.  Then there’s PNFS, which involves a contraction and stretching of the muscle and often requires a partner.

All have been shown to increase a joint’s range of motion so all are effective, albeit PNF-type stretching may be more effective for immediate gains. But this is more advanced and does require someone to apply limb pressure.

Around 30 seconds per stretch is fine, though obviously the more you stretch, the greater the results. It’s the same with weekly efforts but start with three a week.

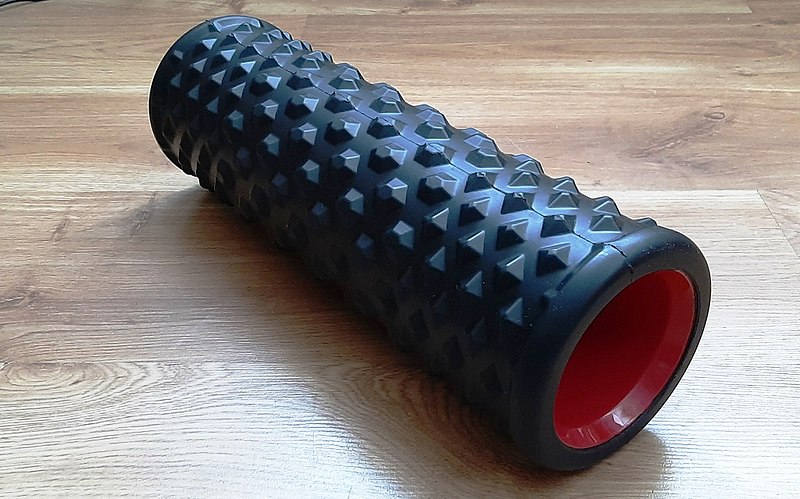

foam roller - wikimedia commons

A foam roller is also a useful purchase, says bike-fitter John Dennis. “The ideal is that you have a professional therapist start you off,” he says. “Because you can be in positions you’re not used to, like lying on your side, often newcomers to foam rollers find it difficult to execute the right pressure. However, read the manufacturer’s instructions carefully and you’ll be fine to start on your own.”

Just remember that the muscle might be particularly tight so gradually applying pressure is the aim, digging deeper as the situation improves. “Harder most definitely isn’t better,” adds Dennis. “You want to feel that it’s not too painful when you first apply pressure.”

How often you roll depends on the aim. If it’s preventative – and that’s something Dennis advises for us all – three times a week is fine, ideally rolling after a session because your muscles will be warm. Just remember that the heavier the massage, the more it tires your muscles so don’t roll the day before an intense session. If the aim is to remedy an injured knee, roll daily, increasing to a couple times a day if needed. If all goes well, after two weeks the pain should subside.

strength training for cyclists screenshot.PNG

Strength training helps, too. This includes squats to strengthen the quads, which ultimately helps the knee, plus core work. A cyclist’s core needs to be strong, or smaller and less efficient muscles will be forced to work too hard and become fatigued. For example, weak glutes result in over-stressing the knee when pedalling.

The benefits of a bike fit

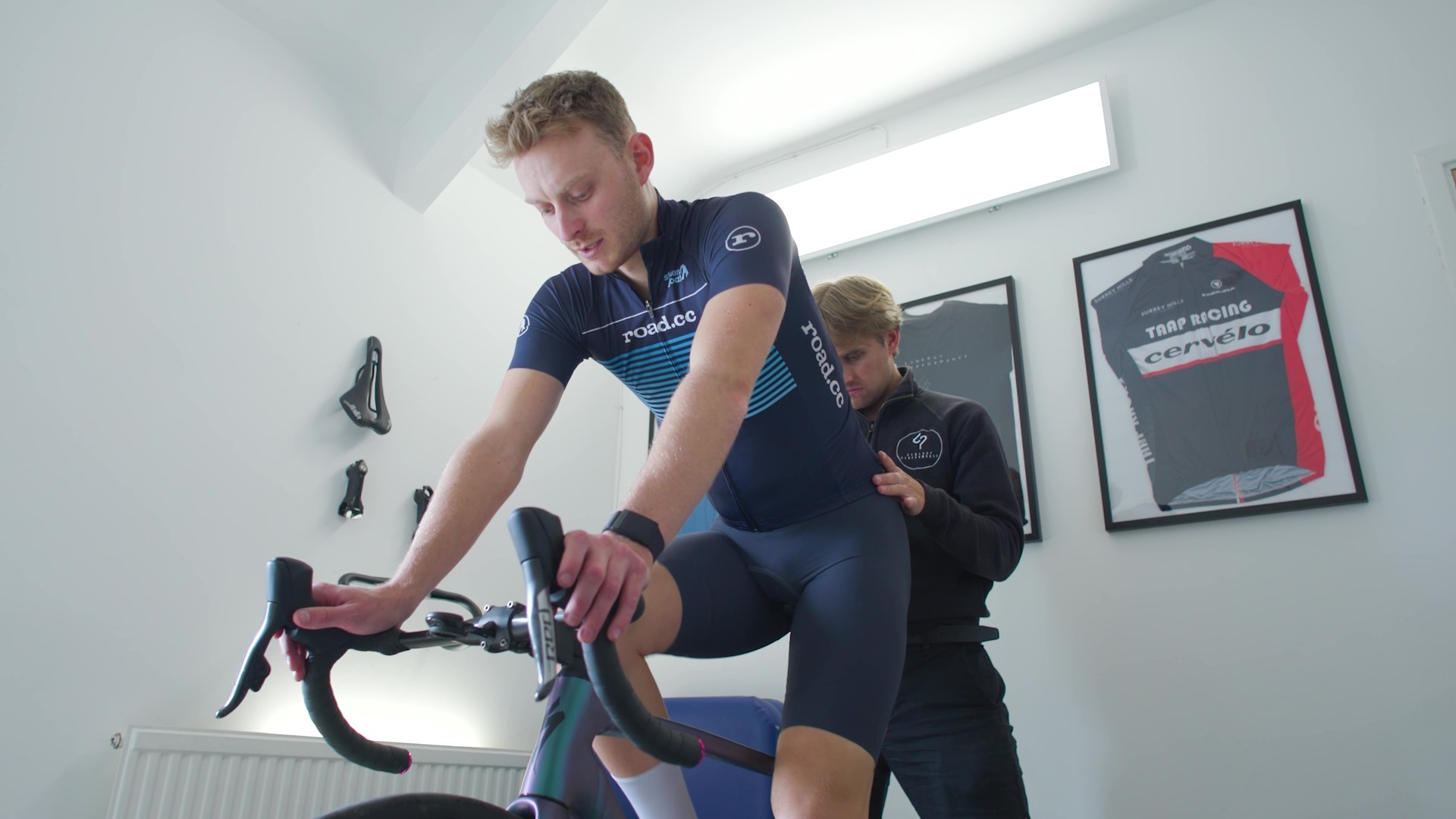

2024 Saddle pain riding bike fit

“Stretching and addressing these balances is really important,” adds Burt, “but they won’t sort the problems on their own. You must assess your position, too, the ideal being that you see a professional bike fitter. That’s because in my opinion, the most important thing to do to prevent getting cycling knee pain is to make sure that your saddle height, setback and tilt are correctly set up for you. This is even more important as the years roll because as we age, we become less adaptable, meaning you should revisit your bike fitter to check everything’s in check.”

> The things I learnt from a professional bike fit

The bike fitter will be able to tell if your knee’s tracking laterally and incorrectly, and will make a series of adjustments that not only include saddle-focused tweaks, but at the foot, too. If you’re heavily pronating, the practitioner might recommend a footbed, which are often customised to your needs. Or, says Burt, they might recommend moving your cleats and even changing what you’re attached to.

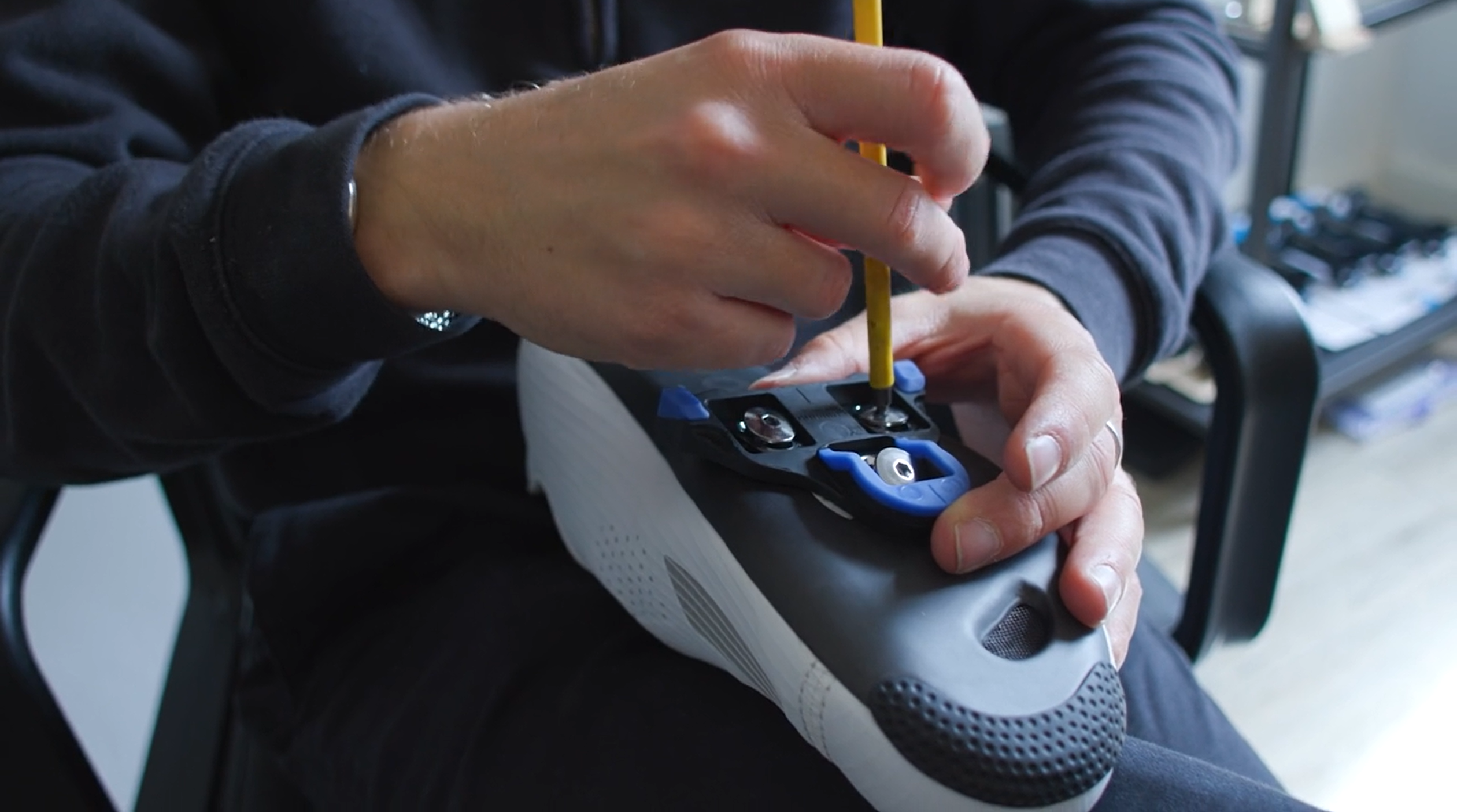

2024 Bike fit cleat location set up

“The right pedal system for your pedalling can make a huge difference,” he says. “Some riders require more float in the pedal system to allow them to pedal in the fashion they want to. If this is often constrained, the outcome will be some form of knee pain.

> How important is pedalling technique?

Investing some time in understanding yourself and your biomechanics, and what equipment might work best for you on the bike, often heads off problems before they occur.”

“Finally, I’d consider dropping crank length if you’re experiencing knee pain,” says Burt. “If the circumference you must pedal is smaller, the knee flexes less, meaning less strain.

2024 Orbea Orca M10iLTD PWR - riding 5.jpg

So, there you have it. Whether you’re looking to overcome knee injuries or prevent them in the first place, you can’t go far wrong if you undergo a professional bike fit and add a moderate amount of stretch and strength work to your routine. Goodbye patella pain, hello faster, stronger cycling.
