Verdict:
Versatile aluminium 1X bike that's well-capable of handling both the daily commute and rough rides into the back of beyond
Weight:
9,600g
Polygon Bend CT5
7 10

The Polygon Bend CT5 is a rough and tough 'urban sport' bike that offers loads of versatility. It's not the lightest bike out there but it'll handle everything from all-weather commuting to gravel tracks, and it's a lot of fun.

I've really enjoyed riding the aluminium-framed Bend CT5 over all kinds of roads over the past few weeks: asphalt, gravel, towpath and even a bit of singletrack. It offers a fairly upright riding position (more on that in a mo) and a decent level of comfort, largely thanks to 30mm-wide Schwalbe G-One Speed tyres, and it's easy to fit mudguards and racks thanks to eyelets on the frame and fork.

> Find your nearest dealer here

The Bend CT5 really shows its worth over poorly surfaced roads. I have a ride from my place where the tarmac gradually deteriorates, then there's a bit of towpath by the canal, a stony section where one minute the surface is flat and rock hard, the next it's a bit rippled, and then there's a bit of loose shingle on an off-camber bend... Interesting and challenging.

The Polygon Bend CT5 doesn't just cope with this kind of stuff, it eats it up, giving you the confidence to tackle the next section that bit quicker and generally putting a smile on your face.

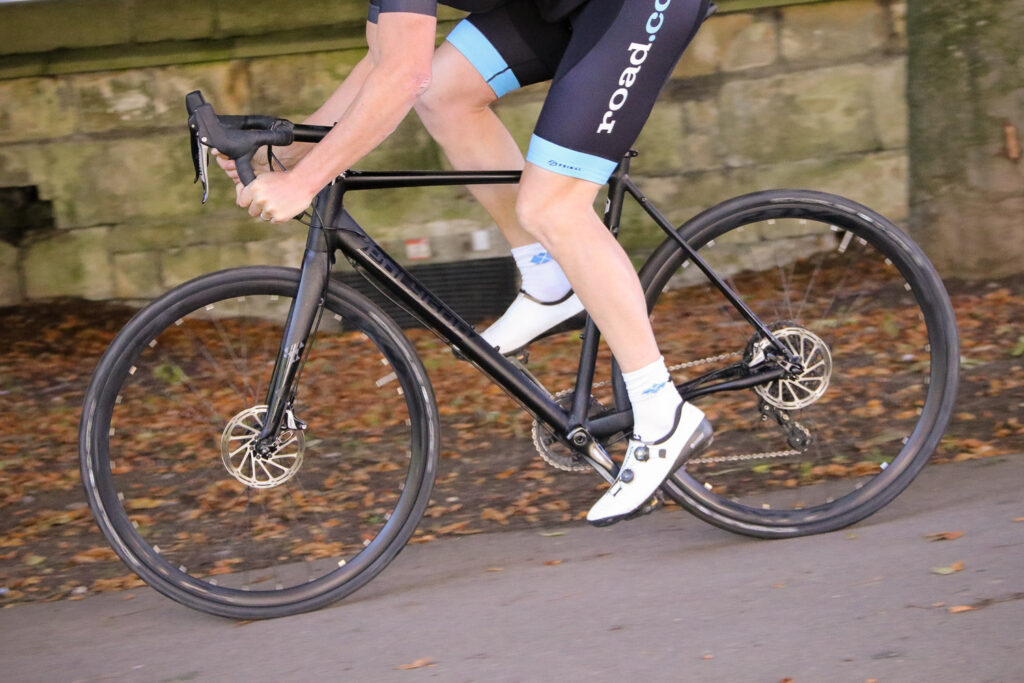

Polygon Bend CT5 - riding 2.jpg

Polygon Bend CT5 - riding 2.jpg

The bike doesn't get knocked about easily, holding its line well when the front wheel hits a bump or hole rather than bouncing you off in an unwanted direction. That means you don't find yourself constantly correcting the steering over uneven roads.

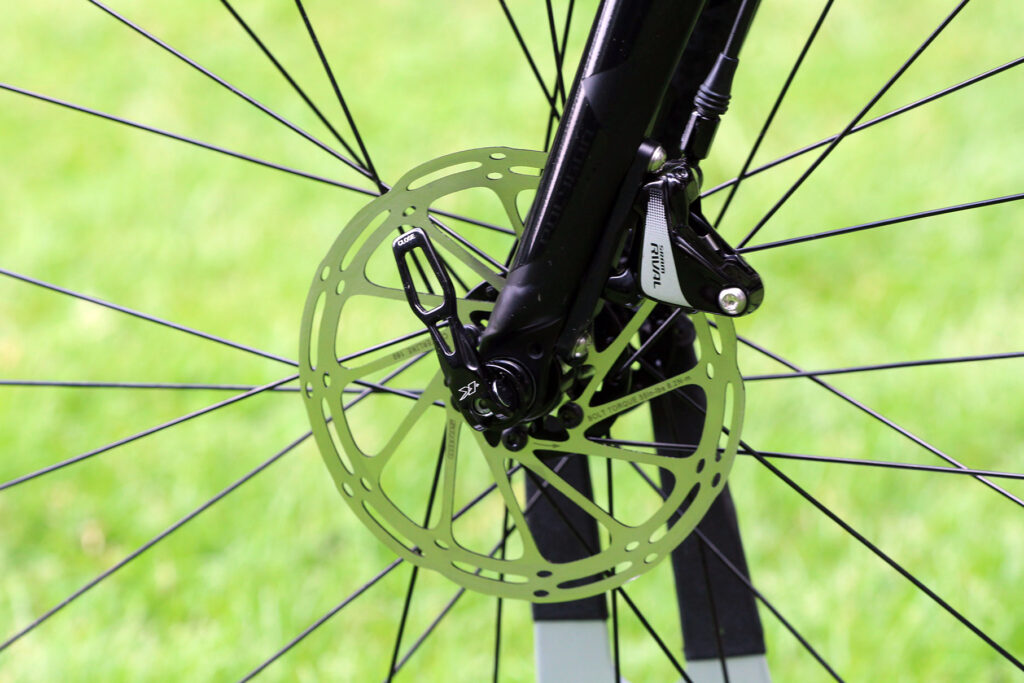

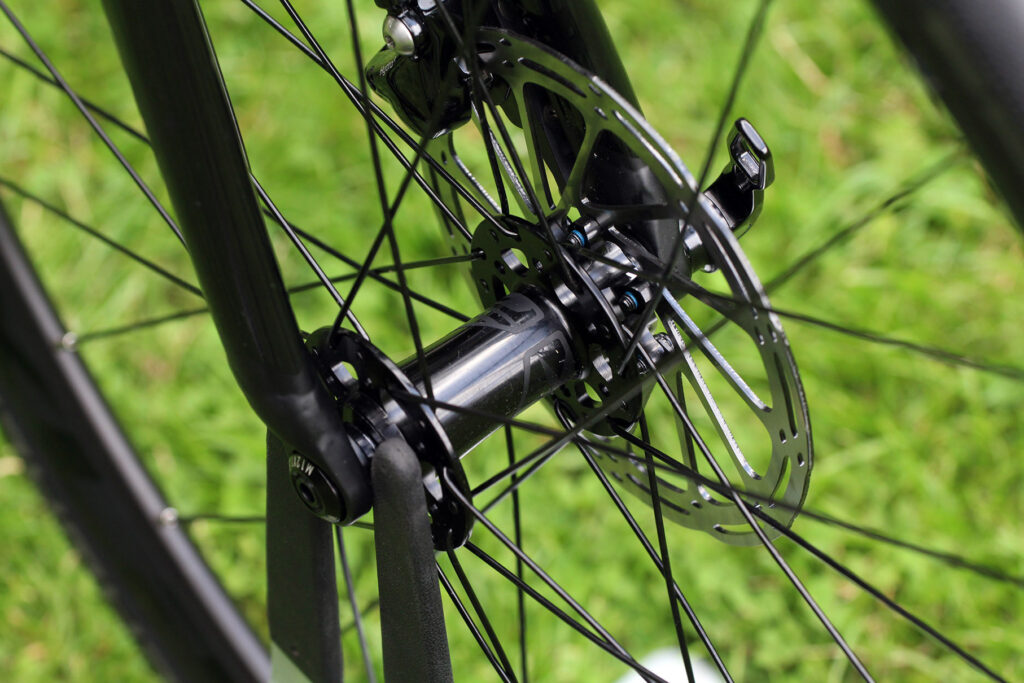

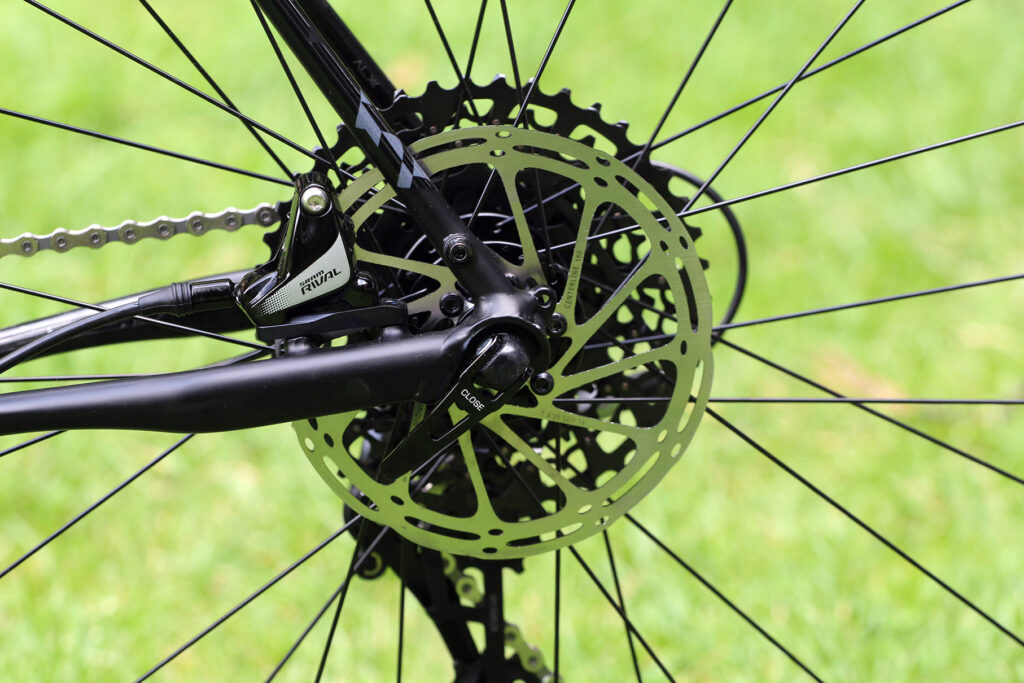

The brakes help there too. These are SRAM Rival hydraulic disc brakes operating on 160mm rotors front and rear and they've performed superbly throughout the test period. It's not the all-out power that's so valuable, it's the amount of control you get at your fingertips – the modulation, if you like – whatever the conditions. That could be valuable if you're using the Bend CT5 for commuting, for example, and you have to ride at a particular time, even if the rain is hosing down.

Polygon Bend CT5 - rear disc brake.jpg

Polygon Bend CT5 - rear disc brake.jpg

The Bend CT5 isn't particularly light – our 56cm model tips the scales at 9.6kg (21.2lb) – but it's one of those bikes that you can steadily winch up really, really steep and loose climbs if you head off well-surfaced roads and on to forest tracks, for example. It's well balanced. On damp, sharp hills where standing up on the pedals would result in the rear tyre spinning, you can just sit in the saddle, keeping your weight over both wheels, and you'll get there. The same is true on less severe climbs if you have a load on board – if you're carrying clothes and laptop to or from work, for instance.

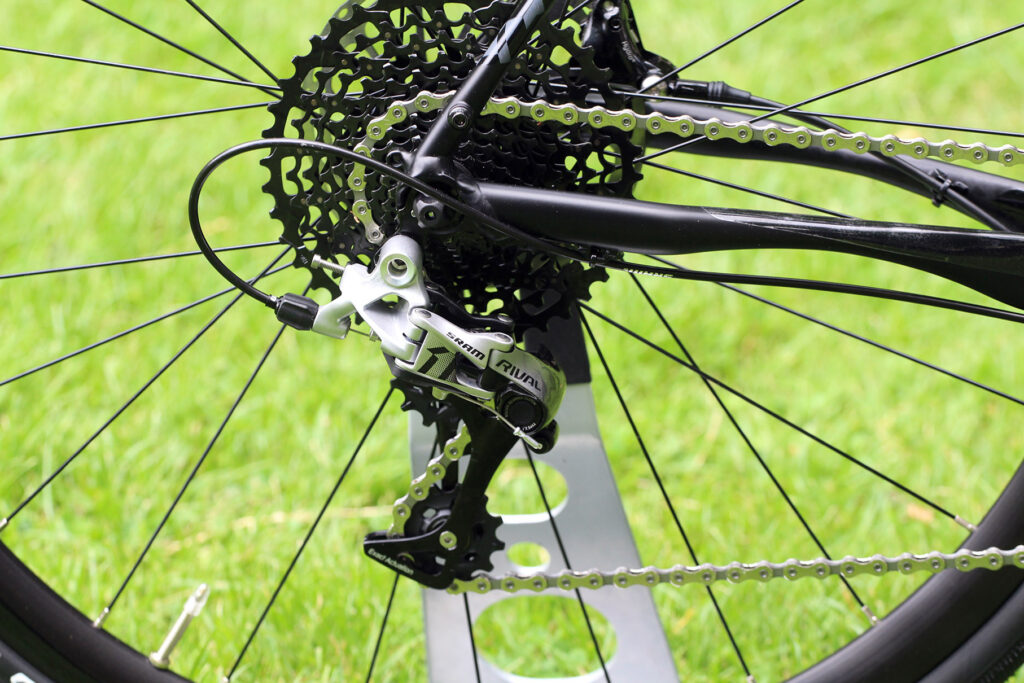

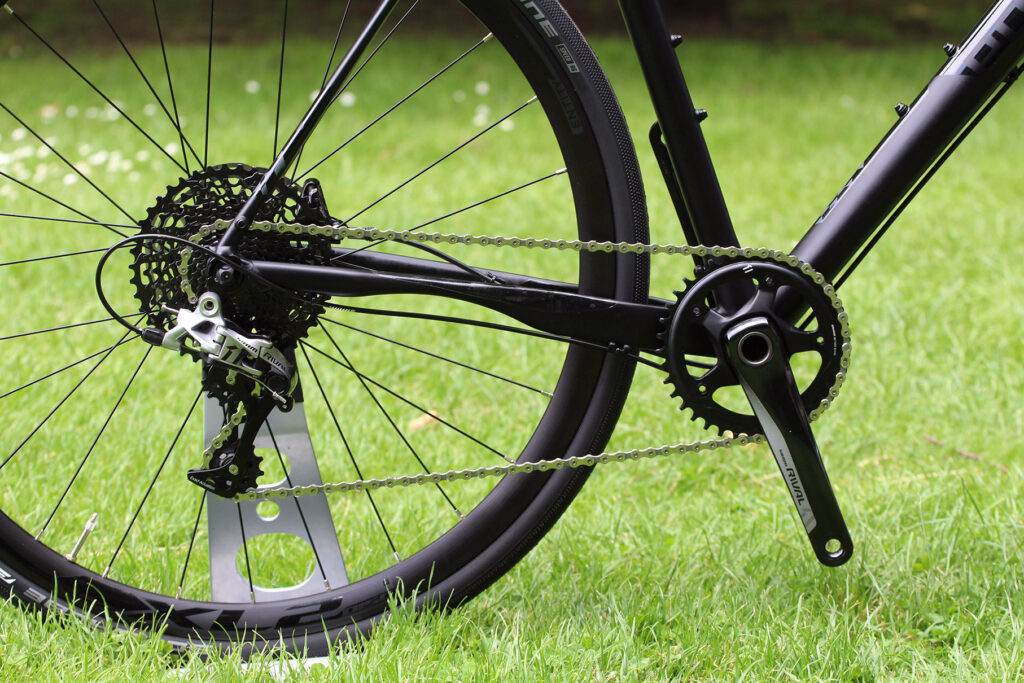

A lot of that is down to the gearing. The Bend CT5 is fitted with a SRAM Rival 1X groupset with a single 38-tooth chainring and a wide-range 11-42-tooth WiFLi cassette.

Polygon Bend CT5 - drive train.jpg

Polygon Bend CT5 - drive train.jpg

We've covered SRAM 1X lots on road.cc over the past couple of years, and it has pros and cons. It's a little easier to use in that you never need to change from one chainring to another – although most people get along with a double just fine – and there's no chance of the chain rubbing on the front mech if you don't have one.

> Read our SRAM 1x Road first ride here

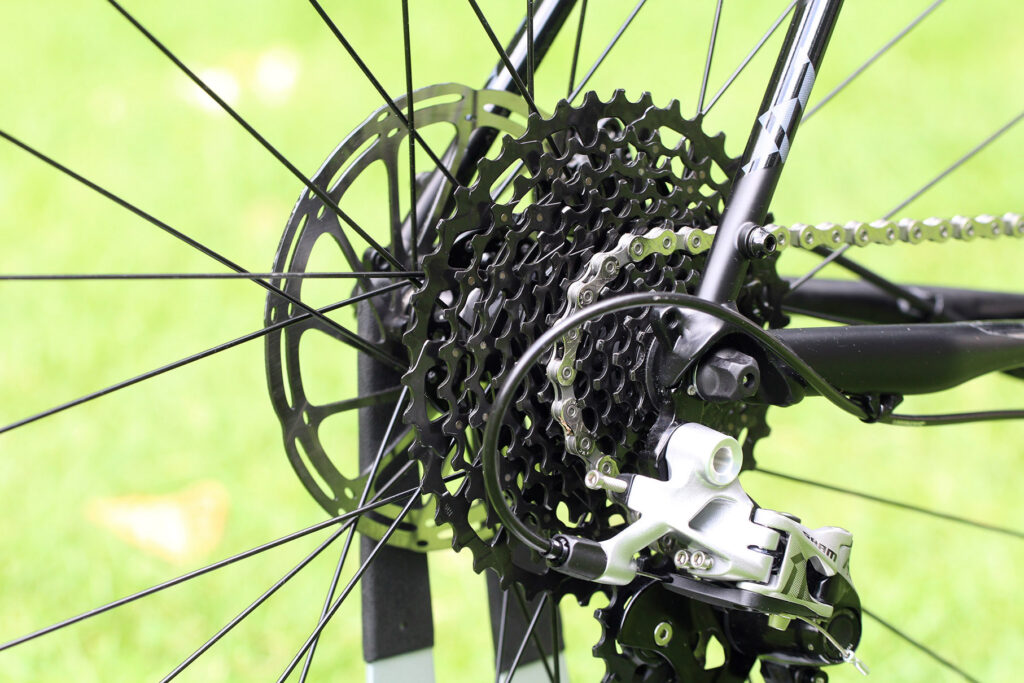

The biggest negative, as far as I'm concerned, is that you get some gert big jumps in gear ratios across such a wide-ranging cassette. The 38-tooth chainring and 42-tooth sprocket give you a 24.3in gear (with the 700 x 30 tyres fitted), if you work in such things, while the next largest sprocket is 36-tooth and gives you a 28.3in gear. It can be difficult to keep your rhythm when swapping from one to the other.

Polygon Bend CT5 - rear cassette.jpg

Polygon Bend CT5 - rear cassette.jpg

That said, the 42-tooth sprocket will get you up nearly anything – not necessarily quickly, but at least you'll keep progressing.

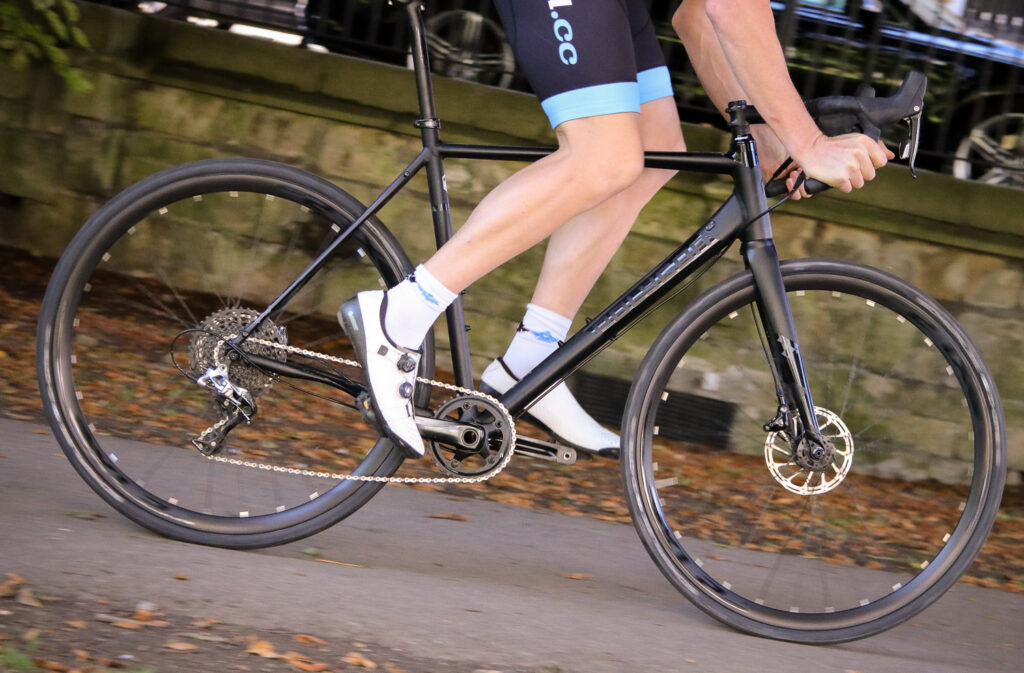

At the other end of the scale, I found myself running out of gears on long, fast descents. If you want to pedal at over 28mph you have to spin at more than 100rpm in the 11-tooth sprocket. If you want to pedal at over 33mph you're looking at 120rpm, so I found myself just coasting more often than usual. If you're going to ride only on tarmac and unladen you might find this 1X system under-geared.

Polygon Bend CT5 - riding 3_.jpg

Polygon Bend CT5 - riding 3_.jpg

One big plus is that the Entity disc wheels (Entity is Polygon's in-house brand) are fitted with those Schwalbe G-One Speed tyres that I mentioned, and I won't have a word said against them. These were previously called S-Ones.

When we reviewed the S-Ones on road.cc last year we said that they were a grippy, light, fast tyre and advised: "if you can fit 'em, buy 'em".

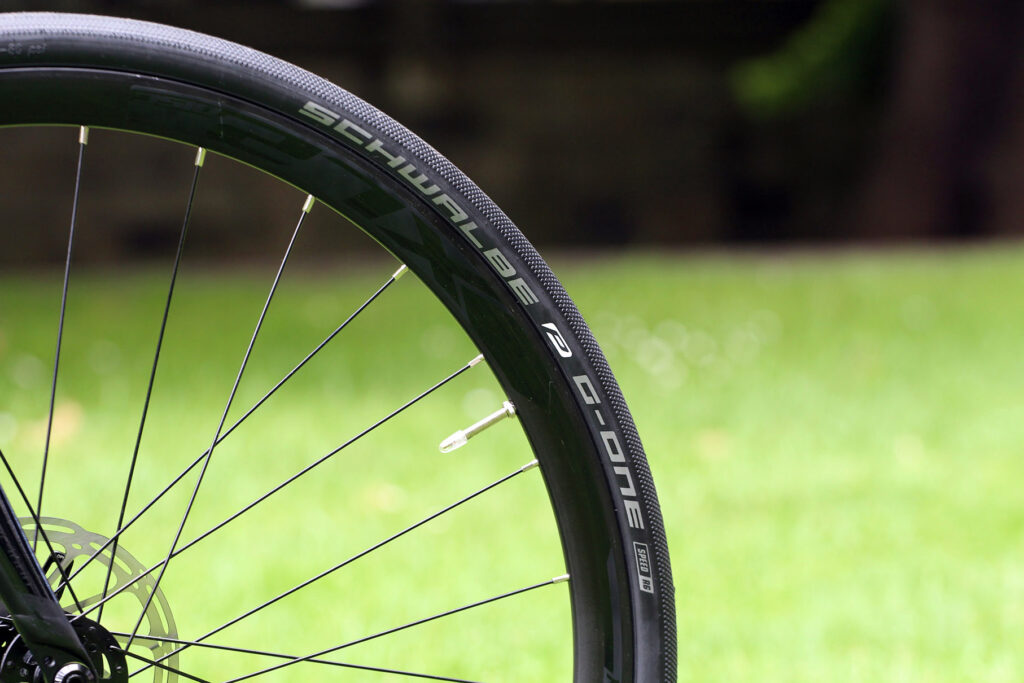

Polygon Bend CT5 - tyre.jpg

Polygon Bend CT5 - tyre.jpg

Some kinds of sticky mud can bung up the bobbly tread of the G-One Speeds, but apart from that they stick firmly to pretty much anything from wet and slimy tarmac to loose stone, getting you out of all sorts of trouble if you misjudge your line slightly. Plus, they never feel like they're sucking away your energy.

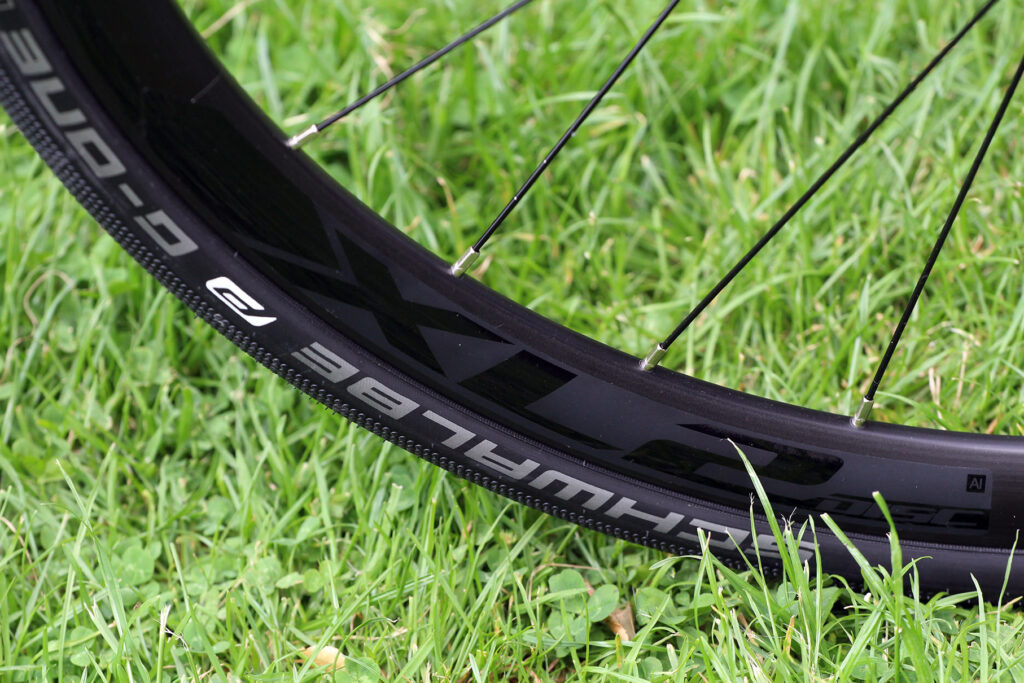

Polygon Bend CT5 - rim.jpg

Polygon Bend CT5 - rim.jpg

The tyres are capable of being run tubeless but the Entity wheels aren't tubeless-ready which is a shame because that would allow you to run lower pressures for greater comfort without the danger of pinch flats. If you use the Bend CT5 on asphalt the whole time that's unlikely to be an issue but if you want to add more comfort over the rough stuff you could always fit wider tyres, the stays and fork offering plenty of clearance. I got on well with the 30mm width as a fast option suited to the various types of roads I've been riding, but you could easily go for 35mm or wider if you intend to spend more time off tarmac than on it.

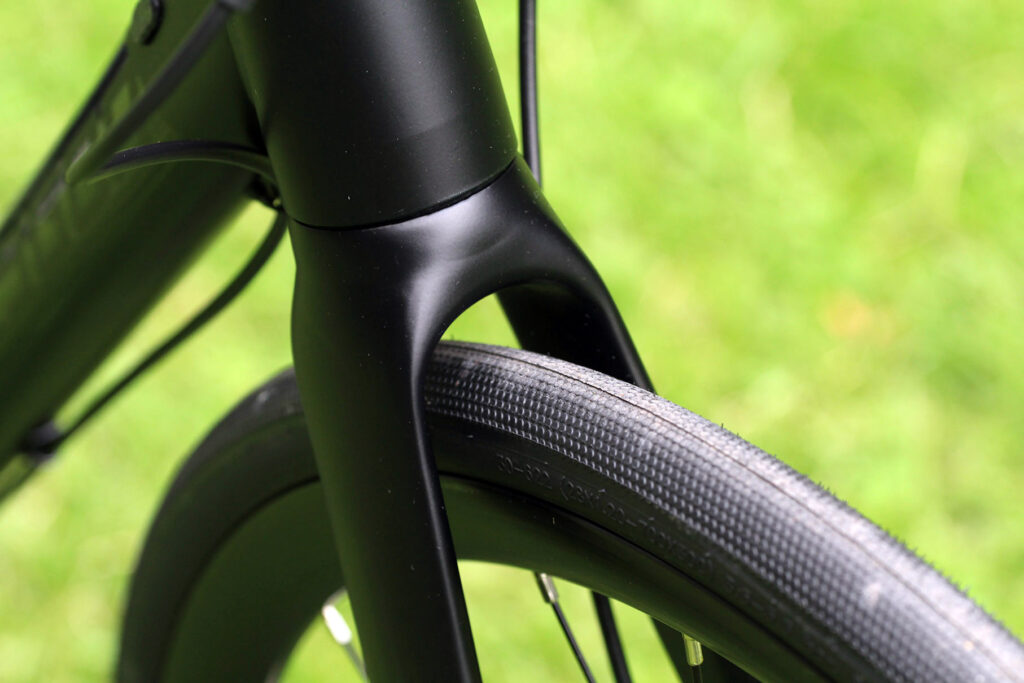

Polygon Bend CT5 - fork clearance.jpg

Polygon Bend CT5 - fork clearance.jpg

Speaking of comfort, I found the ride position offered by the Bend CT5 to provide plenty. I've had the 56cm model with a 565mm effective top tube, a 560mm seat tube and a 170mm head tube. The head angle is 72.5°, the seat angle is 73°, the stack height is 585.5mm and the reach is 385.1mm. Plus, the fork's tall axle to crown height pushes the front end up further.

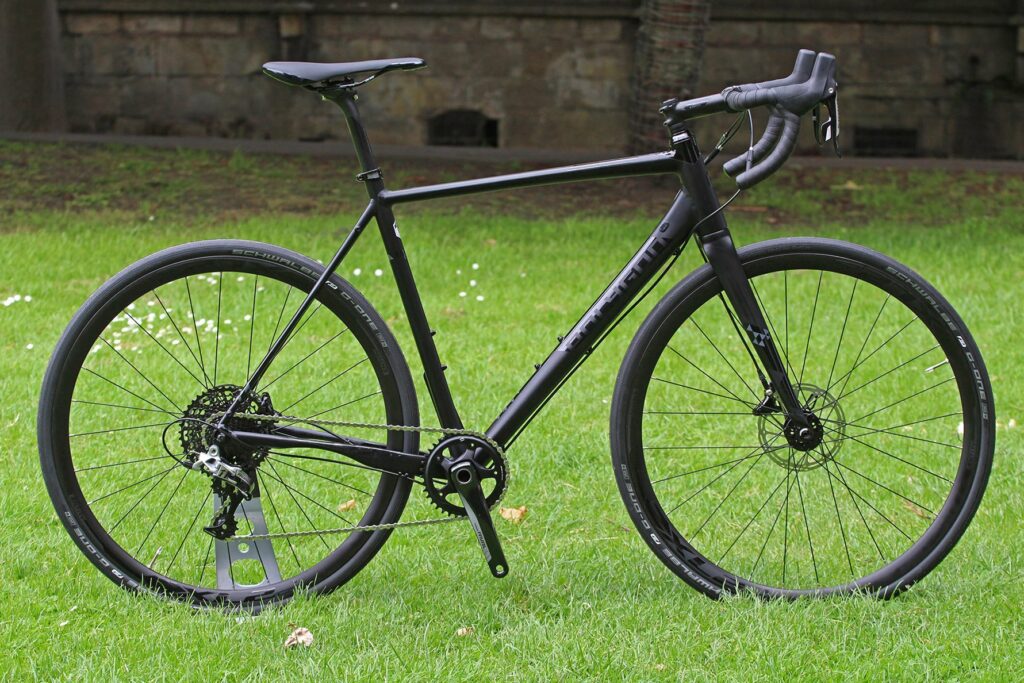

Polygon Bend CT5.jpg

Polygon Bend CT5.jpg

That geometry puts you into quite an upright riding position compared to most road bikes, although there are endurance road bikes out there that are more relaxed. On the other hand, the Bend CT5 is a little more aggressive than the Genesis Datum adventure bike that we reviewed recently. As ever with geometry, it comes down to what works for you.

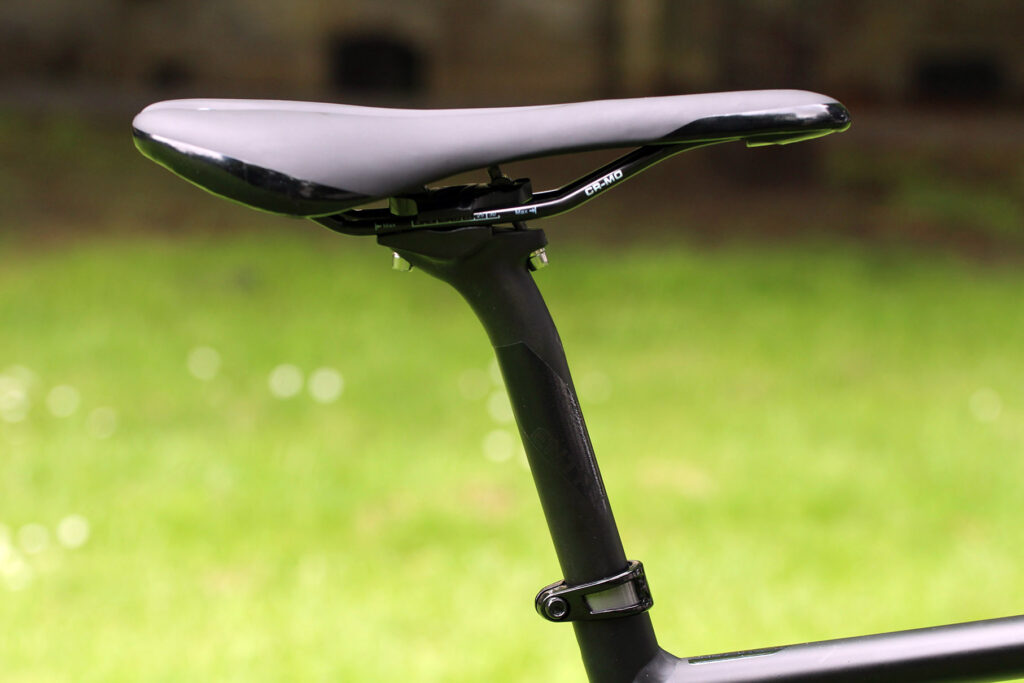

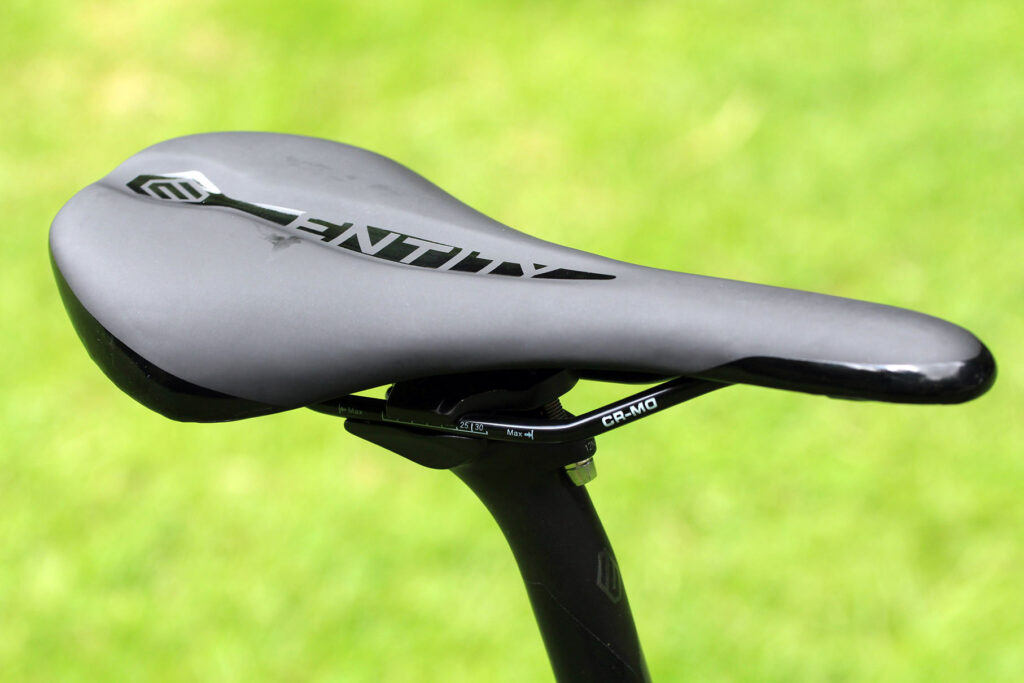

The lightly padded Entity Flux saddle and slim (27.2mm diameter) seatpost provide just enough give to keep you feeling happy over damaged roads and the handlebar tape is certainly grippy, although I'd have appreciated a little more cushioning to help damp vibrations coming up through the fork. I'd also have preferred more of a rearward extension to the Entity Expert handlebar. I got on really well with the variable radius shape of the drops, particularly when resting my hands within reach of the levers, but I found myself wanting more of a sweep down there for flat, open roads where dabbing the brakes or shifting gear are less of an issue.

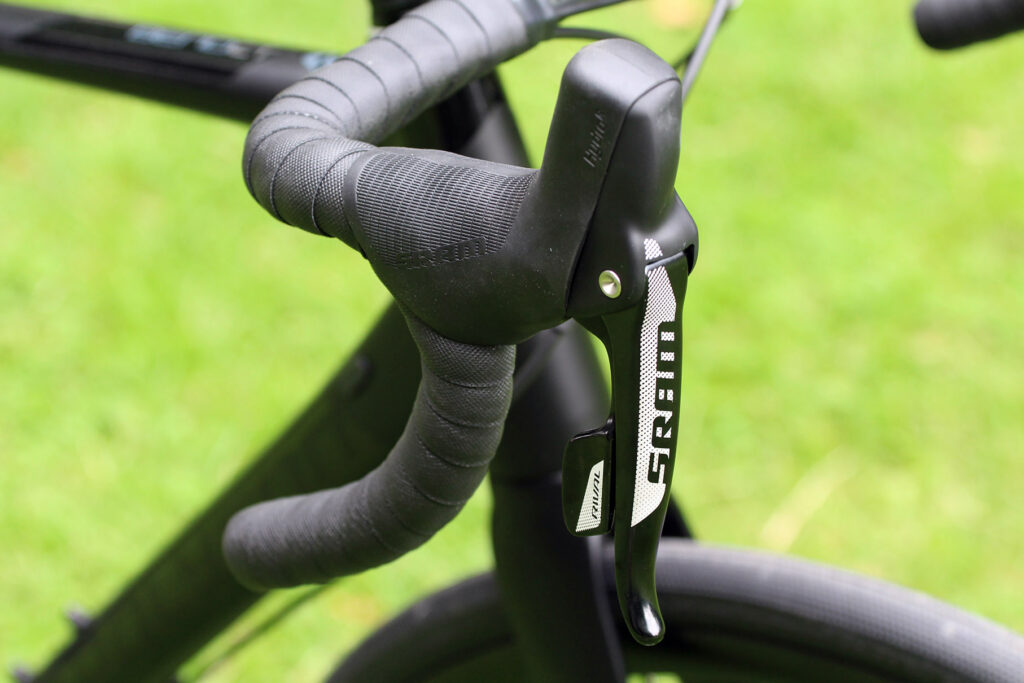

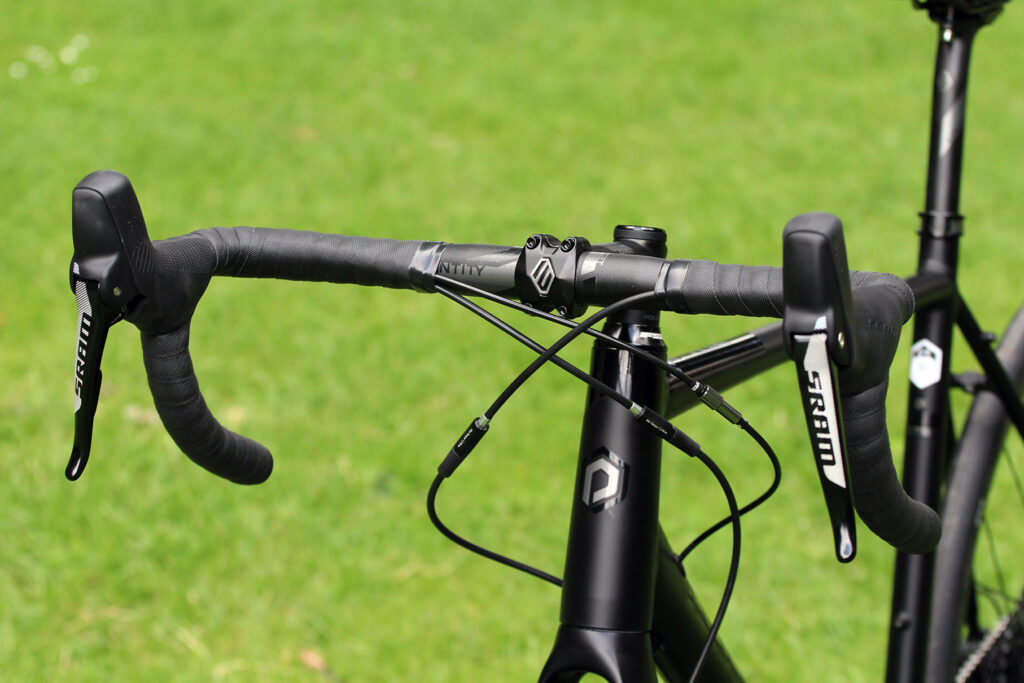

Polygon Bend CT5 - bars.jpg

Polygon Bend CT5 - bars.jpg

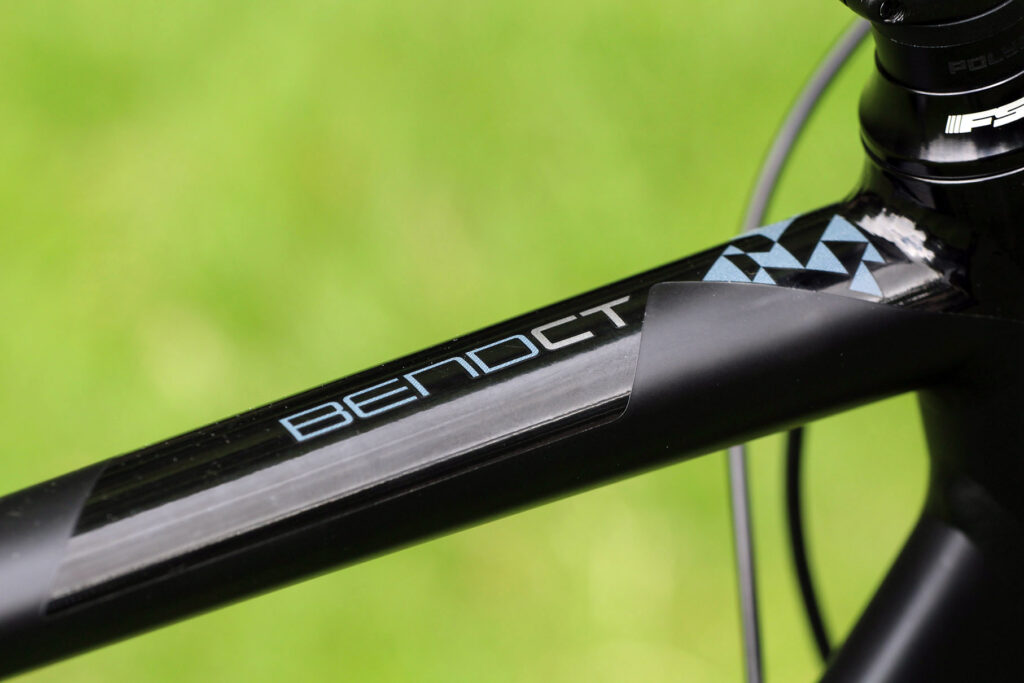

You can see the frame welds if you go looking for them but they're not exactly conspicuous, and the same is true of the black-on-black logos and graphics that are subtle verging on incognito, in the daylight at least. At night, though, some sections zing out in car headlights, which is a neat little trick.

Summary

All-rounder is a term that gets bandied around a lot, and although no bike can offer you the best of all worlds, some are more versatile than others. The way I read it, the Bend CT5 doesn't have any pretensions to grandeur, it's a bike that'll just crack on with whatever you throw at it, and this is its greatest strength.

With a no-nonsense frameset, wide-range gears, grippy tyres and the all-weather reliability of hydraulic disc brakes, it makes a good case for itself as a year-round fast commuter. On top of that, those same attributes – perhaps swapping on some larger volume tyres – mean it's happy to head off on the gravel or other non-tarmacked roads and tracks for adventures at the weekend.

Verdict

Versatile aluminium 1X bike that's well-capable of handling both the daily commute and rough rides into the back of beyond

road.cc test report

Make and model: Polygon Bend RV

Size tested: 56cm

About the bike

State the frame and fork material and method of construction. List the components used to build up the bike.

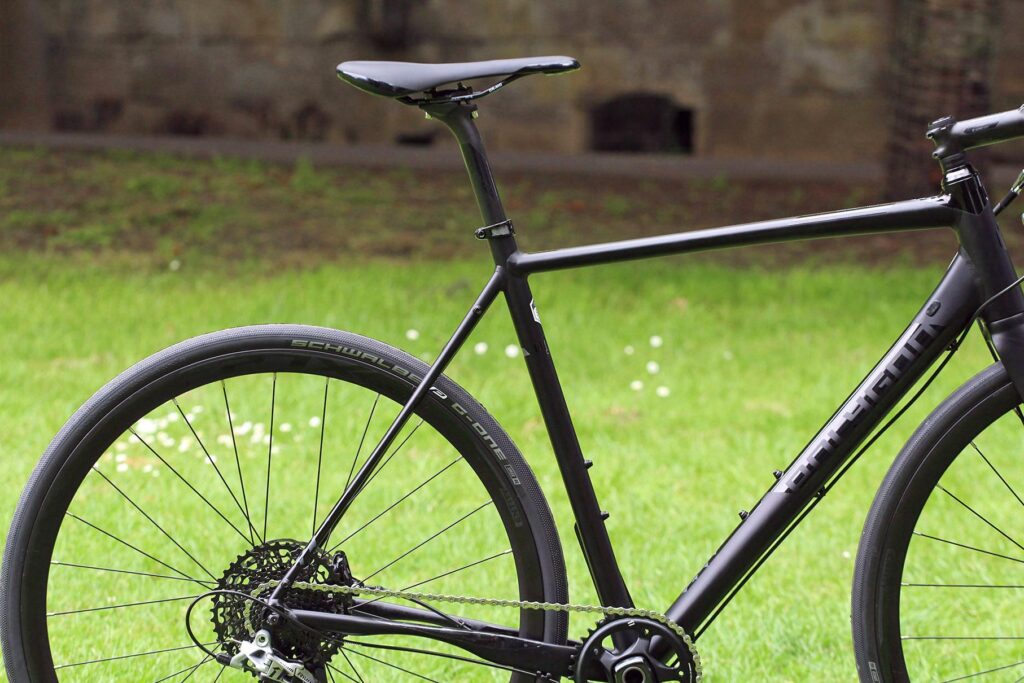

Frame: URBAN SPORT ALX W/ FLATMOUNT, FENDER READY

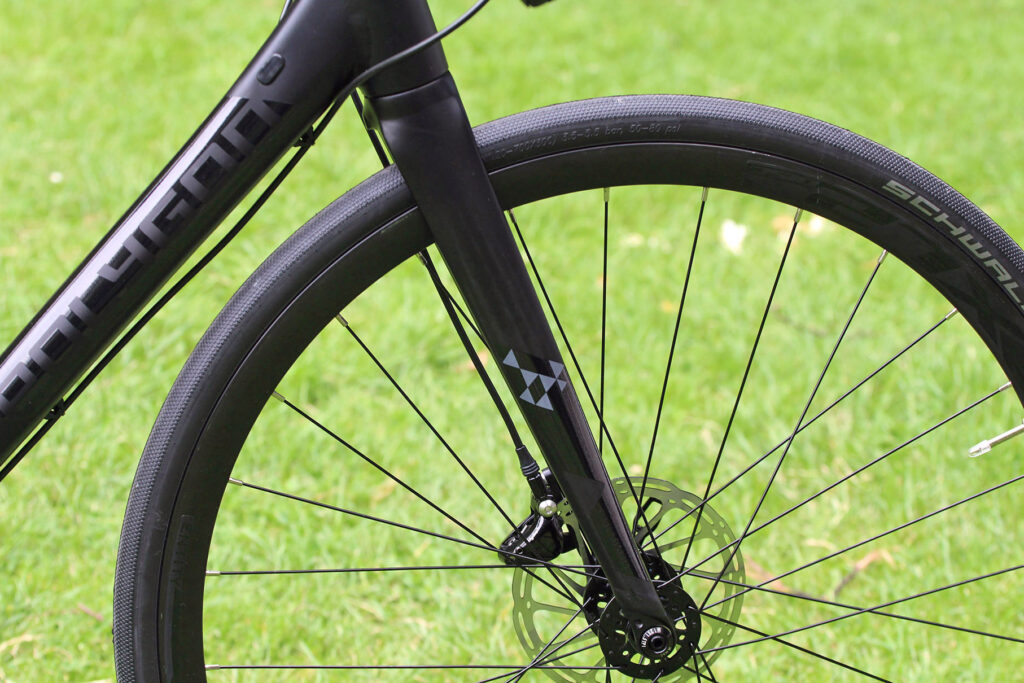

Fork: URBAN SPORT ALX W/ E-THRU & FLATMOUNT, FENDER READY

Shift Lever: SRAM RIVAL 11-SPEED

Rear Derailleur: SRAM RIVAL 11-SPEED

Brakes: SRAM RIVAL HYDRAULIC

Brake Levers: SRAM RIVAL HYDRAULIC

Pedals: ALLOY BODY & CAGE

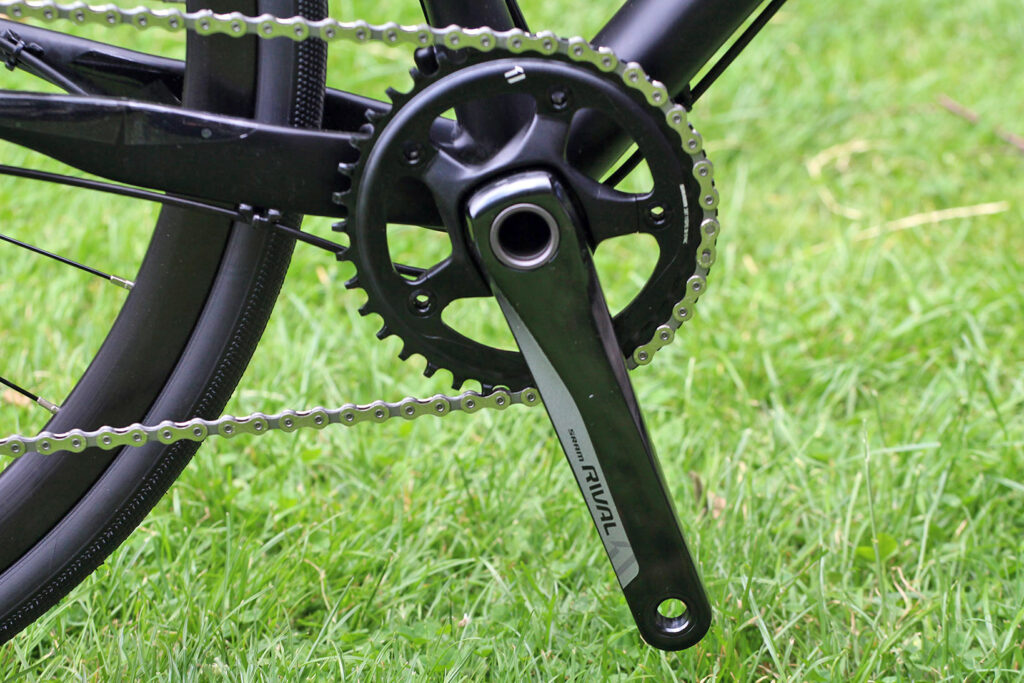

Chainset: SRAM RIVAL 11-SPEED 38T NARROW-WIDE

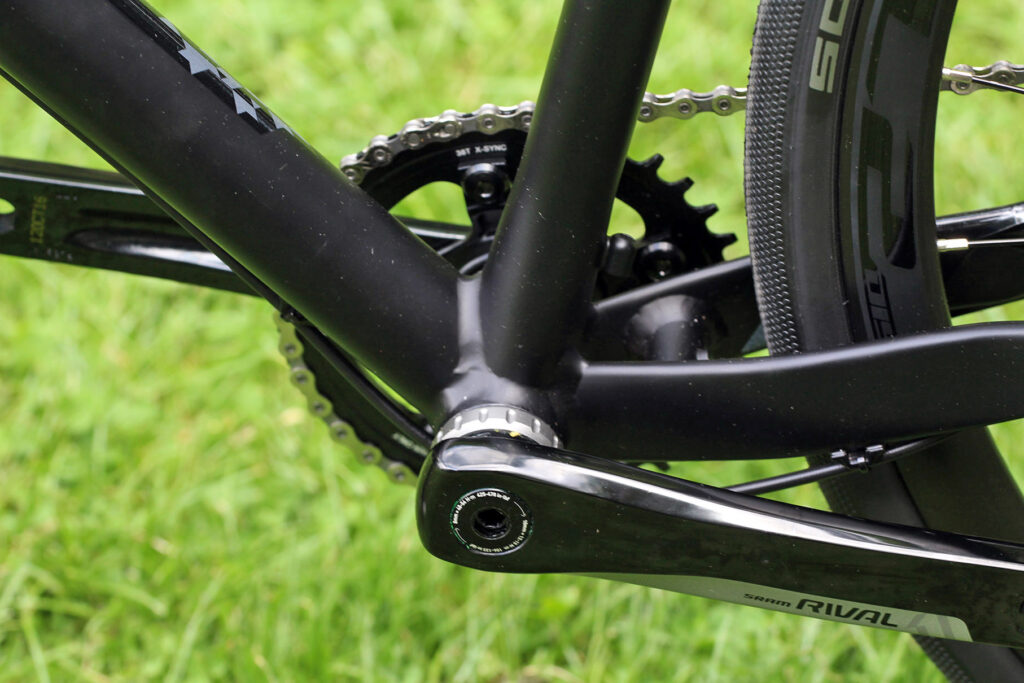

Bottom Bracket: SRAM GXP

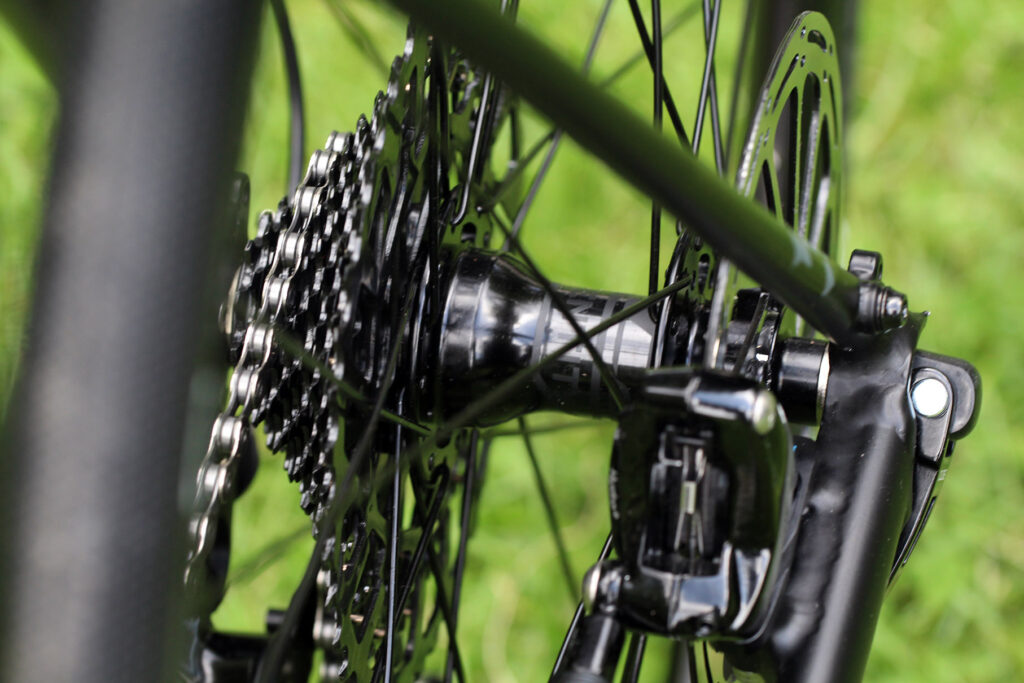

Chain: KMC X-11 Cassette: SRAM PG 1130 11-SPEED 11-42T

Wheelset: ENTITY XL2 DISC 700C

Tyres: SCHWALBE G-ONE, 700x30C

Saddle: ENTITY FLUX W/ CRMO RAIL

Seatpost: ENTITY XPERT D:27.2MM OFFSET:15MM

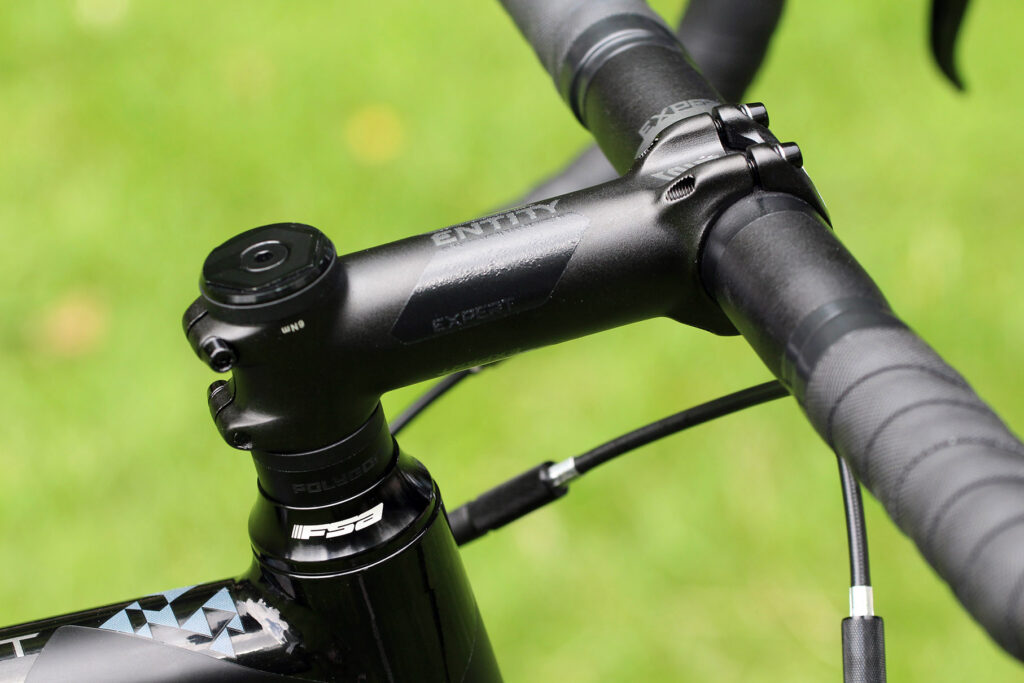

Stem: ENTITY XPERT

Handlebar: ENTITY XPERT DROPBAR

Headset: FSA ORBIT C40 NO.42-ACB

Tell us what the bike is for, and who it's aimed at. What do the manufacturers say about it? How does that compare to your own feelings about the bike?

Polygon says: "From the daily commute to grinding out miles on the unbeaten path, Polygon Bend CT is the bike for you. Built with an ALX frame, internally routed shifting, hydraulic disc brakes, flex seat construction providing an outstanding comfort, and a unique decal system that reflects light while riding at night; Bend CT will take you an adventures for years to come."

I wouldn't say the comfort is outstanding but it's certainly good, largely thanks to 30mm tyres (that are easily swapped for something wider). The bike's biggest strength is its versatility

Frame and fork

Overall rating for frame and fork

8/10

Tell us about the build quality and finish of the frame and fork?

Both good. You can see the welds, but only if you look closely. It's a well put-together bike.

Tell us about the materials used in the frame and fork?

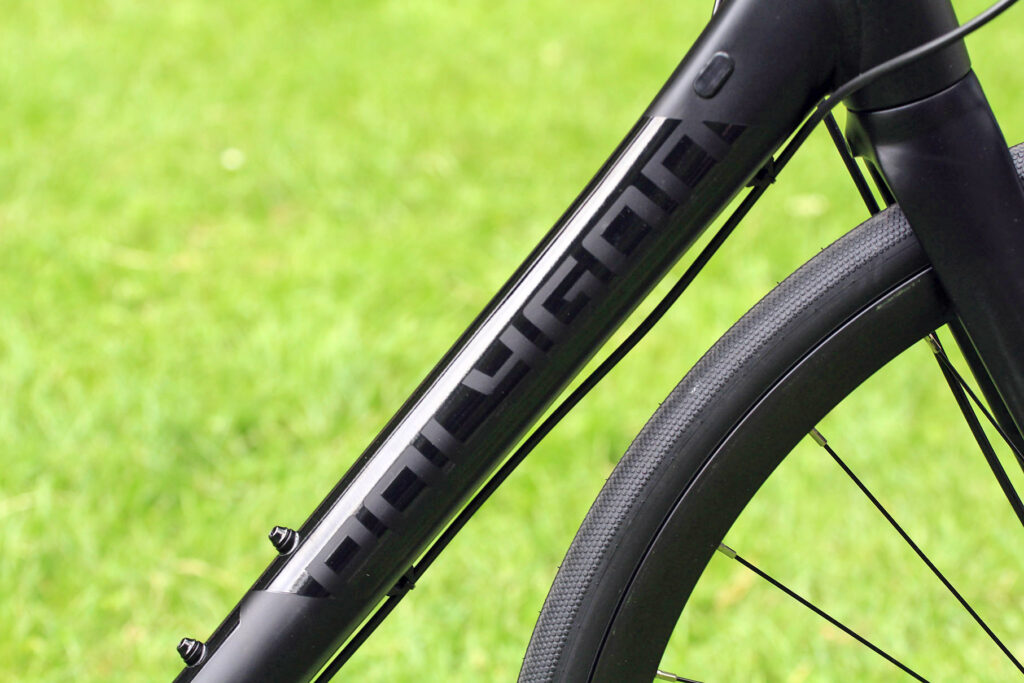

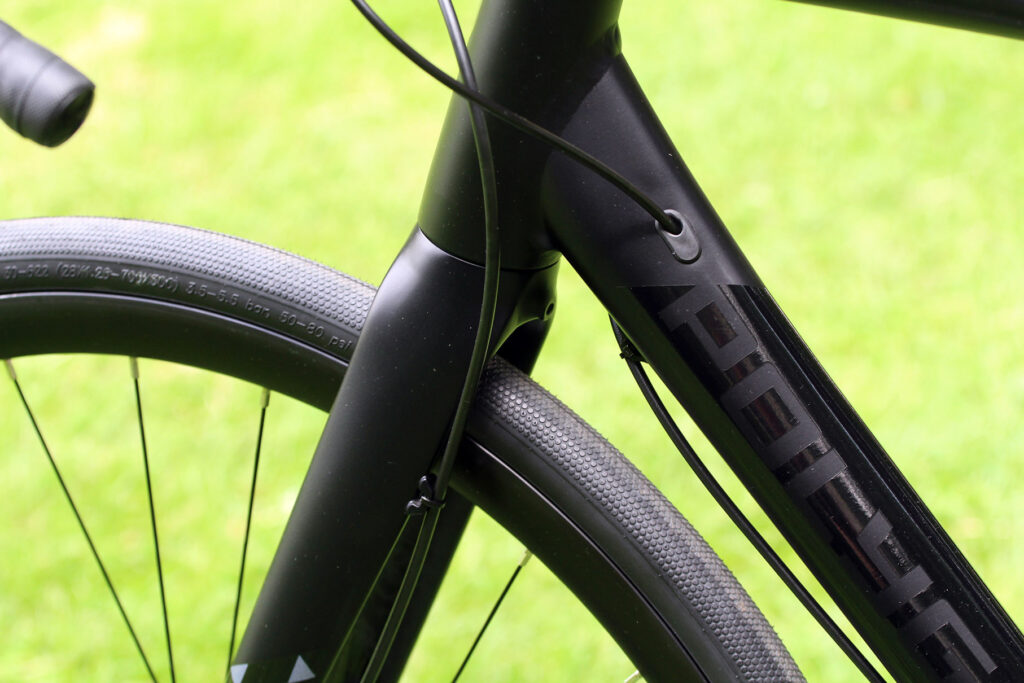

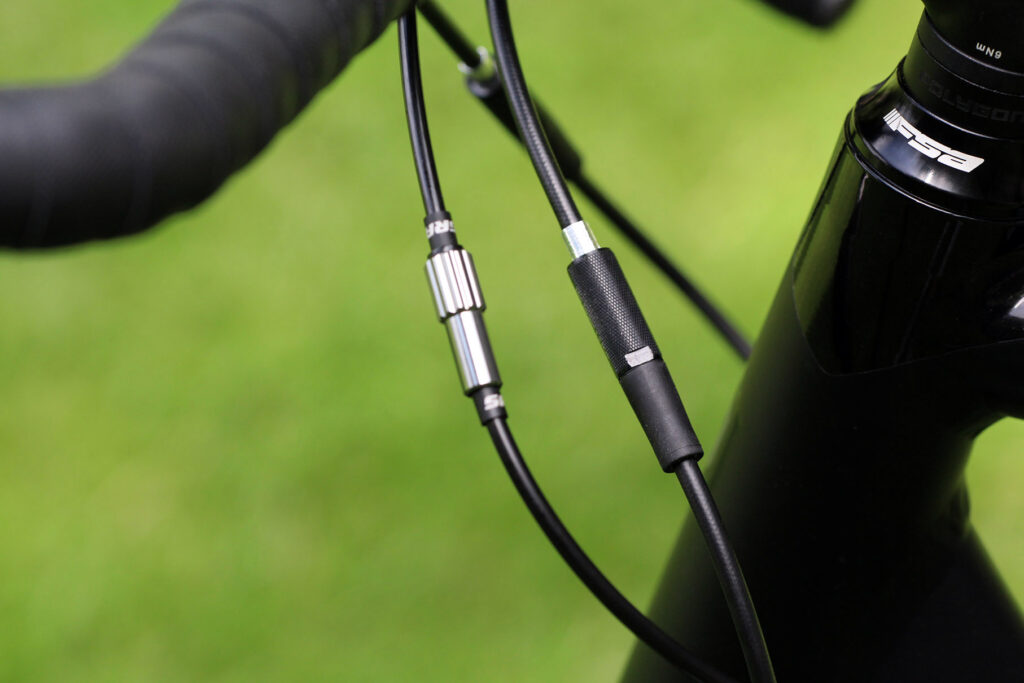

It's aluminium alloy (Polygon calls is ALX) with internally routed shifting.

Tell us about the geometry of the frame and fork?

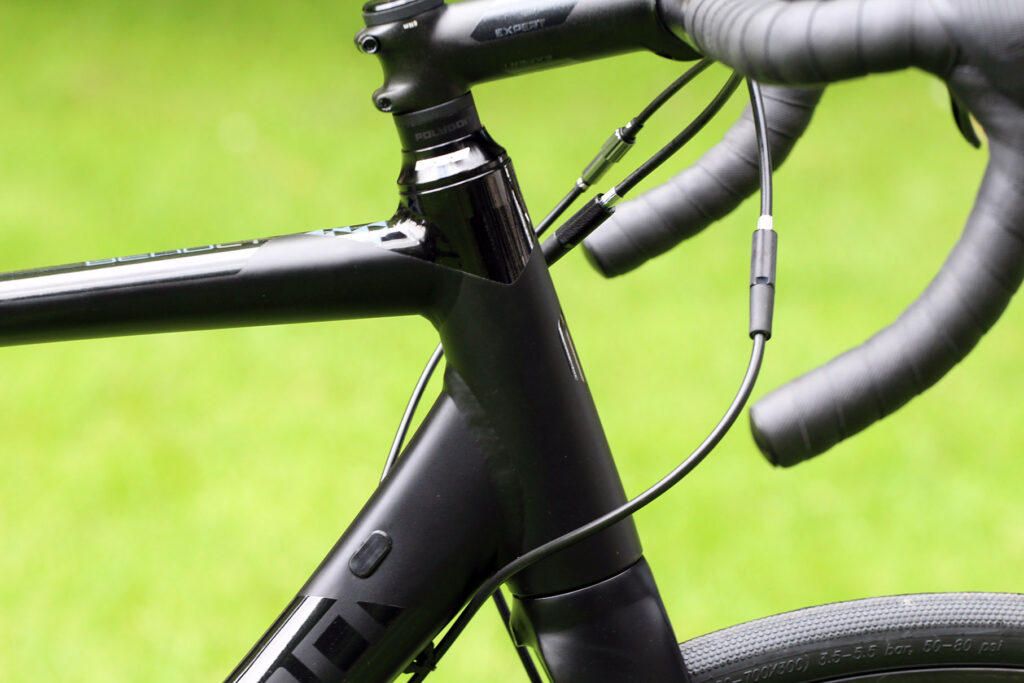

It has a taller front end than a performance road bike of this size, giving a more relaxed ride position.

How was the bike in terms of height and reach? How did it compare to other bikes of the same stated size?

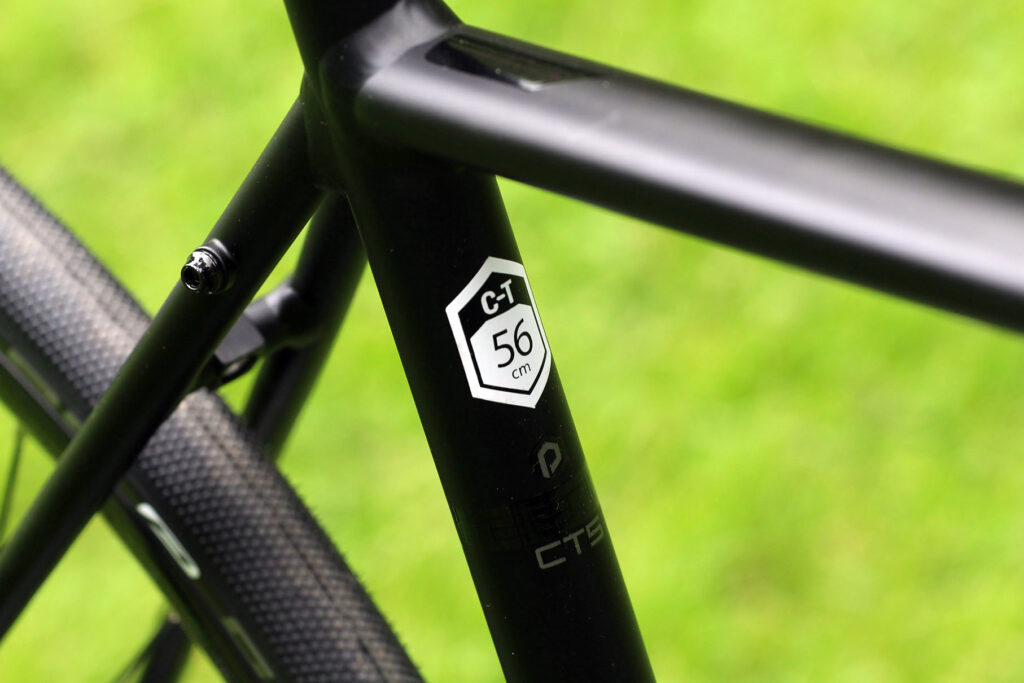

It's large for a 56cm bike with a 56.5cm top tube.

Riding the bike

Was the bike comfortable to ride? Tell us how you felt about the ride quality.

Yeah, pretty comfortable. I wouldn't say it's a plush ride but I never felt uncomfortable. There's loads of clearance for wider tyres.

Did the bike feel stiff in the right places? Did any part of the bike feel too stiff or too flexible?

Yeah, stiff enough. It's probably not the sort of bike you'll be banging out sprint repeats on.

How did the bike transfer power? Did it feel efficient?

As above.

Was there any toe-clip overlap with the front wheel? If so, was it a problem?

My toes just miss the front wheel here.

How would you describe the steering? Was it lively, neutral or unresponsive? Neutral.

Tell us some more about the handling. How did the bike feel overall? Did it do particular things well or badly?

The grippy tyres often get you out of trouble if you choose a bad line. It feels good, does as it's told, and just gets on with the job.

Which components had the most effect (good or bad) on the bike's comfort? would you recommend any changes?

I got on pretty well with the saddle – not oodles of cushioning, just enough. I'd definitely have preferred more backward sweep on the handlebar drops.

Rate the bike for efficiency of power transfer:

7/10
Rate the bike for acceleration:

6/10

That's not what this bike is about, really.

Rate the bike for sprinting:

6/10

Ditto.

Rate the bike for high speed stability:

9/10
Rate the bike for cruising speed stability:

9/10
Rate the bike for low speed stability:

9/10
Rate the bike for flat cornering:

8/10
Rate the bike for cornering on descents:

8/10
Rate the bike for climbing:

7/10

The super-low gearing means you'll get up pretty much anything short of a rock face!

The drivetrain

Rate the drivetrain for performance:

9/10

It's Sram 1X. Some people will get on with a single chainring system, others won't see the point.

Rate the drivetrain for durability:

8/10
Rate the drivetrain for weight:

8/10

The cassette is huge, but the single chainring is small and there's no front derailleur.

Rate the drivetrain for value:

8/10

Tell us some more about the drivetrain. Anything you particularly did or didn't like? Any components which didn't work well together?

You might feel that a 38 x 11 largest combo leaves you undergeared on the road.

Wheels and tyres

Rate the wheels for performance:

7/10
Rate the wheels for durability:

7/10
Rate the wheels for weight:

7/10
Rate the wheels for comfort:

7/10
Rate the tyres for performance:

9/10
Rate the tyres for durability:

7/10
Rate the tyres for weight:

7/10
Rate the tyres for comfort:

10/10
Rate the tyres for value:

8/10

Tell us some more about the tyres. Did they work well in the conditions you encountered? Would you change the tyres? If so, what for?

These tyres are great. Strongly recommend them!

Controls

Rate the controls for performance:

8/10
Rate the controls for weight:

8/10
Rate the controls for comfort:

8/10
Rate the controls for value:

8/10

Your summary

Did you enjoy riding the bike? Yes

Would you consider buying the bike? I'd certainly consider it.

Would you recommend the bike to a friend? I'd advise them to take a good look.

Rate the bike overall for performance:

7/10
Rate the bike overall for value:

7/10

Use this box to explain your score

There aren't all that many SRAM Rival 1 equipped bikes out there and a lot of those that do exist are cyclo-cross bikes. The price is good and so's the performance so I think this is a solid 7 overall.

Overall rating: 7/10

About the tester

Age: 43  Height: 190cm  Weight: 75kg

I usually ride:   My best bike is:

I've been riding for: Over 20 years  I ride: Most days  I would class myself as: Expert

I regularly do the following types of riding: commuting, club rides, sportives, general fitness riding

Mat has worked for loads of bike magazines over 20+ years, and been editor of 220 Triathlon and Cycling Plus. He's been road.cc technical editor for eight years, testing bikes, fettling the latest kit, and trying out the most up-to-the-minute clothing. We send him off around the world to get all the news from launches and shows too. He has won his category in Ironman UK 70.3 and finished on the podium in both marathons he has run. Mat is a Cambridge graduate who did a post-grad in magazine journalism, and he is a past winner of the Cycling Media Award for Specialist Online Writer.
