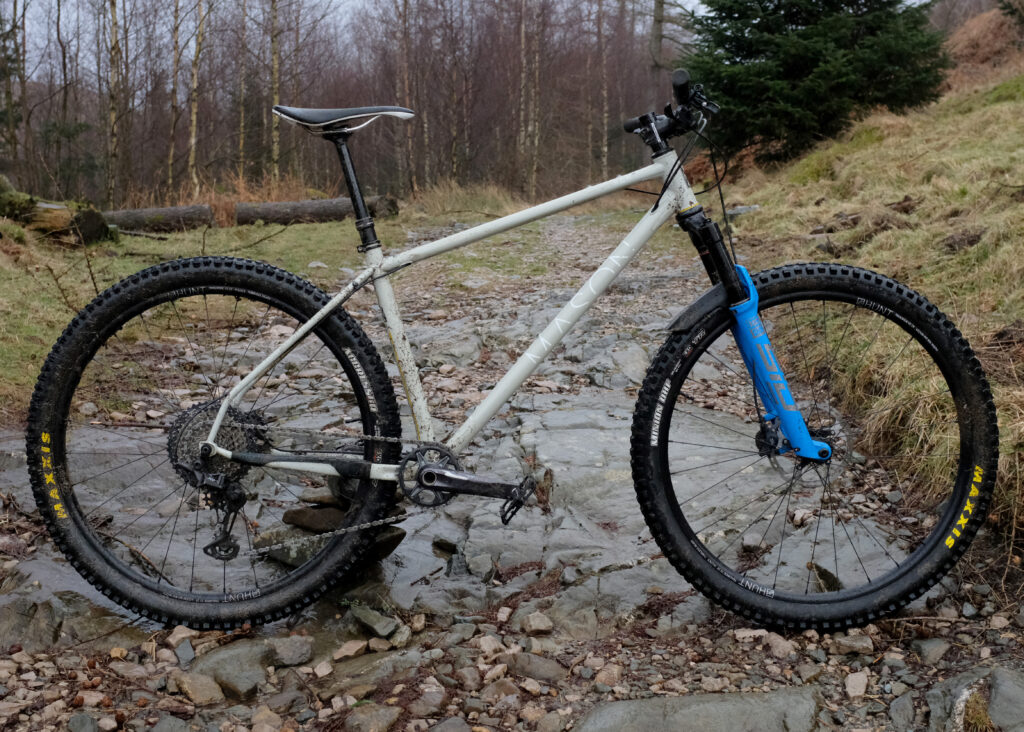

Mason delivers its first mountain bike frame with the RAW – a steel hardtail with bespoke levels of design and manufacturing detail. The Raw is aimed at long-distance fast off-road riding and offers an engaging, supple ride feel. The RAW is top of its class.
- The best gravel and adventure bikes you can buy for under £2,000
- Factor blasts into the mountain bike market
- What is downcountry?
Mason RAW – Frame and build details
Made in the UK by Five Land Fabrication to Mason’s exacting design, the RAW uses a mix of mostly Dedacciai and Reynolds tubing. This selection of tubing offers the exacting detail we’ve come to expect from Mason. Dom (Mason’s owner) joked he has a story for every tube on the frame and each is uniquely shaped and butted to help deliver the ride characteristic they are renowned for. The Mason #fastfar ethos equals long-distance capable bikes, with a focus on speed.
Starting at the sharp end, the head tube produced by BEAR Frame Supplies is machined from Reynolds 631 and is ring re-enforced for additional strength which is said to offer increased longevity to the frame and provide extra support for the lower headset cup and bearings in the upper.
The Dedacciai top tube is shaped and ovalized as per Mason’s requirements with flatter ends to create a wider stronger join where it meets the head tube and seat tube. Dedacciai also provides the down tube, using Dedacciai Zero Uno which is progressively butted and shaped at the bottom bracket junction into what Mason calls the ‘DForm’ creating minimal overlap with the seat tube, and a good weld join with the aim to deliver a stable pedalling platform.
The chainstays are Dedacciai Zero Uno tubing, ovalised, with bends and shaping that aid clearance for both chainrings and large tyres, the seatstays are butted to aid ride feel and together they allow the RAW to accept 29 x 2.6” tyres with a 34 tooth chainring.
The brake mount is a post-mount, CNC machined and integrated into the rear triangle providing easy access to the caliper. The design works well with the neatly cowled bolt through dropouts which provide a solid weld interface for the seat and chainstays and hold the wheel securely.
The frame uses a standard threaded 73mm bottom bracket which is a relief for all the mechanics out there.
The RAW is dropper post compatible with sensible smooth routing options. Whilst the small frame option loses the seat tube bottle mount to allow a long dropper post to be fitted if required, there are still two on the down tube, on the top tube near the headtube, and another on the underside of the downtube. All in all, there is a useful selection of mounting points for bags and bottles in all sizes.
Mason RAW – On the trail
Striking a wonderful balance between engaging ride feel and sure-footedness, the RAW is an excellent trail focused mountain bike. The painstaking process of the tube manipulation, geometry design and detailing translates to a ride that makes you feel involved and connected with the trail. The RAW thrives on off-road surfaces that are beyond the capabilities of a gravel bike, even one with a suspension fork. At its heart, it’s a mountain bike that constantly rewards the rider.
The RAW rides so well because at all stages of its creation, there have been obsessive levels of thought into the selection of the steel – this is where the ‘magic’ comes from. With considered geometry combined with an experienced use of the steel tubing characteristics, and with components that amplify this, the outcome is a frame that is a joy to ride.
I liked the RAW for the vast majority of my riding, although on anything gravity focused and really rough it hits the limits of its capabilities, but that isn’t what it is designed for. It excelled in all other riding I used it for; especially longer off-road rides. It’s in its element on rough trails and technical terrain where the suspension and the larger volume tyres are much appreciated. No standard gravel bike can do that.
I know it’s a cliché, but there is a clear ride quality of steel especially when the tubing has been this well-chosen – that infamous ‘magic steel’ feel where the steel tubing provides a smooth ride and yet still delivers near-instant acceleration.
With geometry that unashamedly favours miles over rougher, technical tracks, the Raw does not have long and slack numbers. The 66-degree head angle is enough to inspire downhill confidence, and with its shorter offset forks and in this case, the 120mm travel Rock Shox SID Ultimates, it’s more suited to all-round riding.
It handles well enough downhill, although when the terrain was at the upper limits of what I would comfortably ride a hardtail over, I felt I was pitched a little too far forward over the front wheel. Also, when really pushed into steeper, more technical trails, I had to focus more than usual, with some sections quickly reaching the limit of the bike and rider, making me very thankful for the dropper post. To be fair to the RAW, this was really only on terrain best suited to a full-suspension bike, not a hardtail.
The RAW climbs really well, it’s predictable and sure-footed whether seated or stood up. I found it to be especially rewarding over longer rides, where the benefits of the lighter weight of a hardtail became obvious – the ethos of fast and far showing through.
It really is happy doing everything – up, down and across within its design parameters, and it is definitely a mountain bike, not a gravel bike with big tyres. It will take you around your local loop or across the world with equal composure. The RAW delivers an excellent ride on multiple types of riding without feeling compromised.
A few words about the components:
The RAW as tested is the top end of the two complete builds offered with a full Deore XT groupset with Hunt Trail Wide V2 wheelset which compliments the frame. Available with a Maxxis Minion DHF 2.5 up front and a Maxxis Aggressor 2.5 on the rear, both had EXO casings which were suited to the rockier conditions I tested the bike over. Mason offers a choice of finishing kit from Ritchey, PRO and Renthal. I had a PRO Koryak Stem and bars. The saddle was my own, sat on the X-Fusion Manic dropper.
Mason also allows you to choose your own gear ratios and tyres as you prefer, with multiple other choices of tyres and cockpit available.
The RockShox SID Ultimate fork is the perfect partner to the frame, offering 120mm of travel in a lightweight chassis. It keeps the front wheel tracking well and provides a stable steering feel, thanks to the decent-sized stanchions and bolt through axle.
The X-Fusion Manic dropper added more space to move around when required and is one of our favourites here at off-road.cc. With the options to spec nearly anything on the RAW, starting with a frame or frame/fork, you can build it as you want.
Mason RAW – Summing up
For me, the RAW would be my first choice for a hardtail, and perhaps even to replace a gravel bike, as I favour my gravel lumpier than many. If you prefer very rough, more technical riding, then the RAW might feel a bit of a handful – but it isn’t intended for that at all. Ride the RAW all day, on pretty much any kind of trail, either loaded or light, and it rewards with great handling, all-day comfort, and it has all the credentials of a mountain bike with useful points to allow cargo to be attached or mounted. I like the RAW for being exactly what it aims to be – a mountain bike to take you far fast.
I’m struggling to find much at fault with the RAW. It is very well made, and the finishing on the welds, paint job and all-around detailing are all absolutely exquisite. The only slight sticking point is the price as some will feel it’s too much money for ‘just a steel hardtail’ – and whilst there are frames that may seem comparable, not much offers the same level of craftsmanship.
You are paying for the design and the expertise in its construction – the very things that set it apart. Features like the custom made chainstay protection, the excellent cable routing, the lovely dropouts and all of the welding make it distinctive and of exceptional quality.
In terms of comparison, it’s tricky, as the RAW sits in a fairly sparse field. One option is the Jones SWB I tested in 2019, although I would much rather ride the RAW as it handles better, is more capable and feels more inspiring for long trips than the Jones SWB. The Jones is a much more general, everyday bike and positioned as such.
In the more traditional trail bike group, the Surly Karate Monkey springs to mind, and ar £950 for the frame, basic build for £2100 and rigid at £2400, the Karate Monkey offers a steel frame with similar mount points but in with no fuss steel tubing, and more entry-level components and a less modern geometry.
It’s a bike that feels classic – in that it benchmarks how good a hardtail should be. It also is absolutely clear about its purpose and use. I can’t fault anything on the RAW – it’s really fun to ride, it thrives on the energy you put in making you keen to feed it for more. As a high-end steel hardtail, it is class-leading with bespoke levels of fabrication producing a sublime ride, whether that is worthy of the price tag is down to the individual – I believe it is.
You might also like:
- Five reasons why you should have a hardtail
- The best helmets with MIPS for £100 and under – Tried and tested
About the bike
Tell us what the bike is for, and who it’s aimed at. What do the manufacturers say about it? How does that compare to your own :
State the frame material and method of construction. List the components used to build up the bike.:
Built from a mix of Dedacciai Zero/Zero Uno and Reynolds UK tubing, fabricated in the UK by Five Lands
Rockshox SID Ultimate fork
Full XT M8100 drivetrain
XT M8100 brakes
29” Hunt Trailwide V2 Wheelset
Renthal Fatbar
Deda EC/ZS44mm sealed bearing headset
Ergon GA2 lock on grips
Ritchey WCS trail stem (Length as per customer request)
Fizik Terra Argo X3 Kium railed saddle
Xfusion Manic 31.6 dropper post
Choice of Maxxis or Vittoria 29” tyres in various widths and tread patterns
MASON Element chainstay protector
Frame & Fork
How much suspension travel does the fork have?:
Was the bike comfortable to ride? Tell us how you felt about the ride quality.:
How was the bike in terms of sizing and angles? How did it compare to other bikes of the same stated size and intent?:
Overall rating for frame
How much suspension travel does the rear end have?:
Did the bike feel stiff in the right places? Did any part of the bike feel too stiff or too flexible?:
Tell us about the build quality and finish of the frame:
Tell us about the geometry of the frame:
Tell us about the materials used in the frame:
Riding
How did the bike transfer power? Did it feel efficient?:
How would you describe the steering? Was it lively, neutral or unresponsive?:
Tell us some more about the handling. How did the bike feel overall? Did it do particular things well or badly?:
Rate the bike for sprinting:
Any comments on sprinting?:
Rate the bike for high speed descending
Any comments on high speed descending?:
Rate the bike for technical descending:
Any comments on technical descending?:
Rate the bike for flat cornering:
Any comments on flat cornering?:
Rate the bike for technical climbing:
Any comments on technical climbing?:
Rate the bike for climbing efficiency:
Any comments on climbing efficiency?:
Rate the bike for agility:
Any comments on agility?:
Suspension
Rate the fork for performance:
Any comments on fork performance?:
Rate the fork for durability:
Any comments on fork durability?:
Drivetrain
Rate the drivetrain for performance:
Any comments on drivetrain performance?:
Rate the drivetrain for durability:
Rate the drivetrain for weight:
Rate the drivetrain for value:
Wheels & tyres
Rate the wheels for performance:
Any comments on wheel performance?:
Rate the wheels for durability:
Any comments on wheel durability?:
Rate the wheels for weight:
Any comments on wheel weight?:
Controls
Rate the controls for performance:
Rate the controls for durability:
Rate the controls for weight:
Rate the controls for comfort:
Any comments on controls comfort?:
Summary
Did you enjoy riding the bike?:
Would you consider buying the bike?:
Which components had the most effect (good or bad) on the bike’s performance? would you recommend any changes?:
Would you recommend the bike to a friend?:
Rate the bike overall for performance:
Rate the bike overall for value:
Use this box to explain your score:
