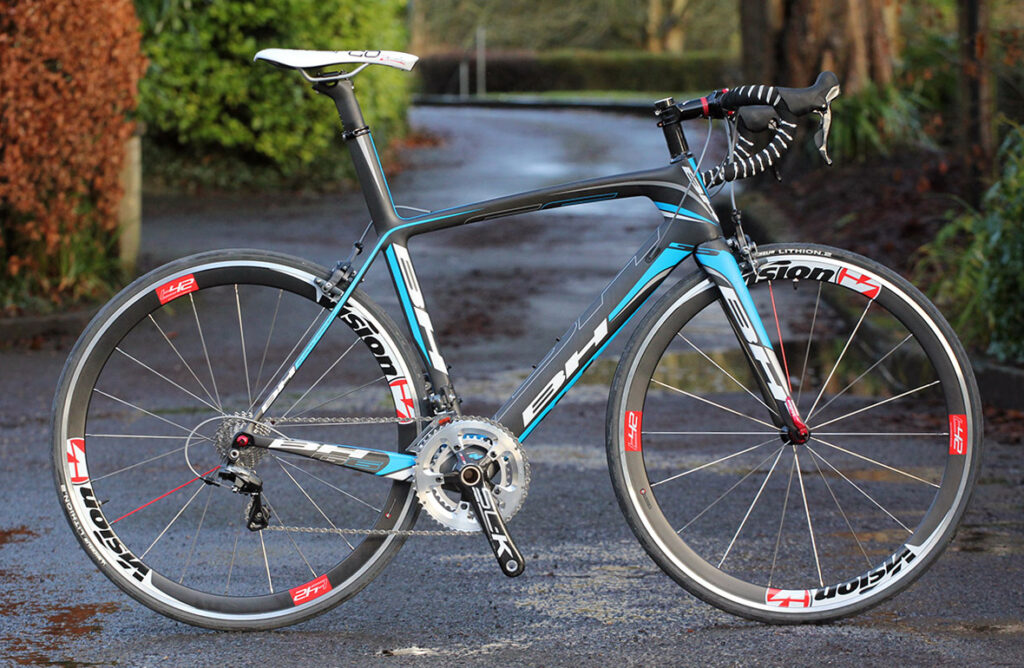

The BH G6.0 is a beautiful, light-as-air carbon road bike that's super fast, very responsive and a joy to ride on your own or in a bunch.
Every since Cervelo launched their S1 back at the turn of the century aerodynamics has been considered at the design stage as much as weight and stiffness. The continued advancement in carbon fibre moulding means more complex wind cheating shapes have also become possible. With a lot of conflicting wind tunnel results and manufacturers claims out there does an aero frame really make that much difference? The BH G6 8.0 has been thrashed around the A-roads and lanes of Wiltshire, Somerset and Dorset to find out.

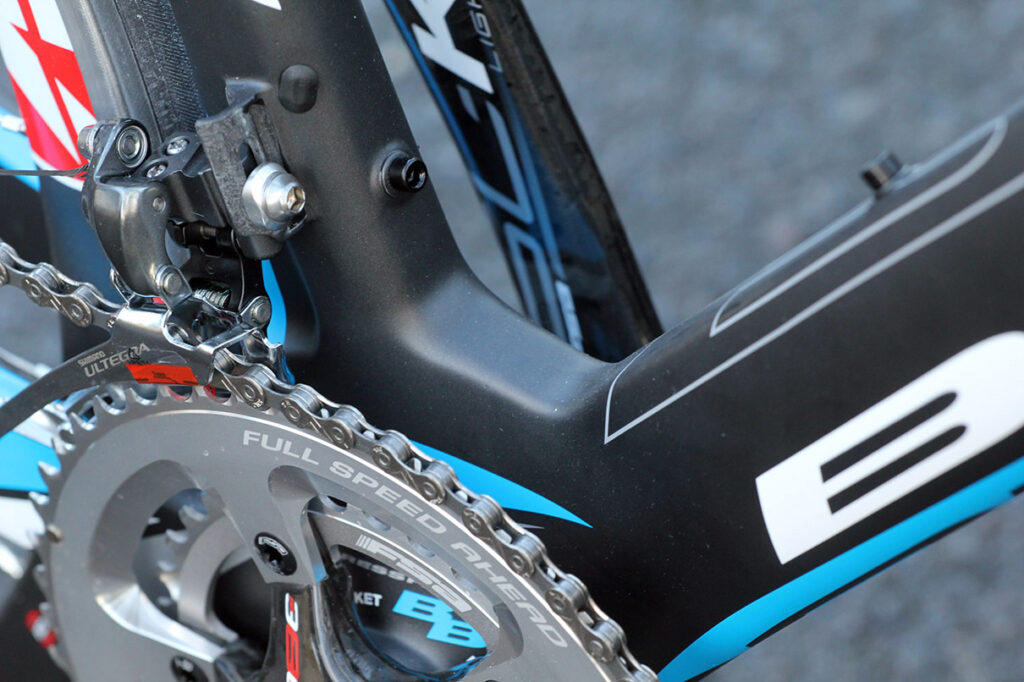

The G5 which, as you can probably guess, preceded the G6 came with an aero seat tube but that was it really with regards to the aerodynamics; it was however very well received thanks to its high levels of stiffness especially at the bottom bracket area. The G6 has improved on that, being designed around a BB386 bottom bracket - the latest standard of BB that uses BB30 press fit bearing cups but spaced at 86.5mm instead of the usual 73mm. This not only increases stiffness due to a larger cross sectional area but also allows BH to use large profile tubes to create the aero effect.
BH use core removal technology to create the monocoque frame which uses high pressure to remove imperfections in the carbon fibre. This allows them to put material where they need to and remove it where they don't, the result – a sub 900g frame where everything is carbon fibre including the dropouts and the front mech hanger - though there is a replaceable alloy gear hanger though should you require it.

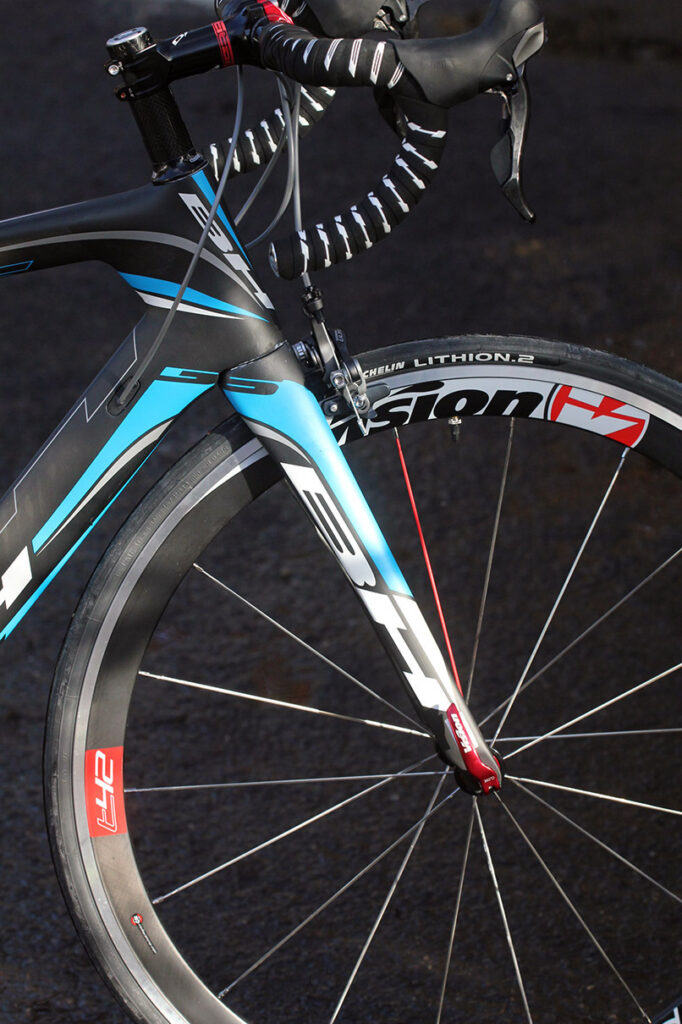

The fork is specific to the G6 and has been designed to work from an aero point of view (BH claim it's the most aero fork they've developed) with the downtube drops down behind it with very tight clearances. A large junction at the fork crown should see an increase in stiffness and directness in the steering.

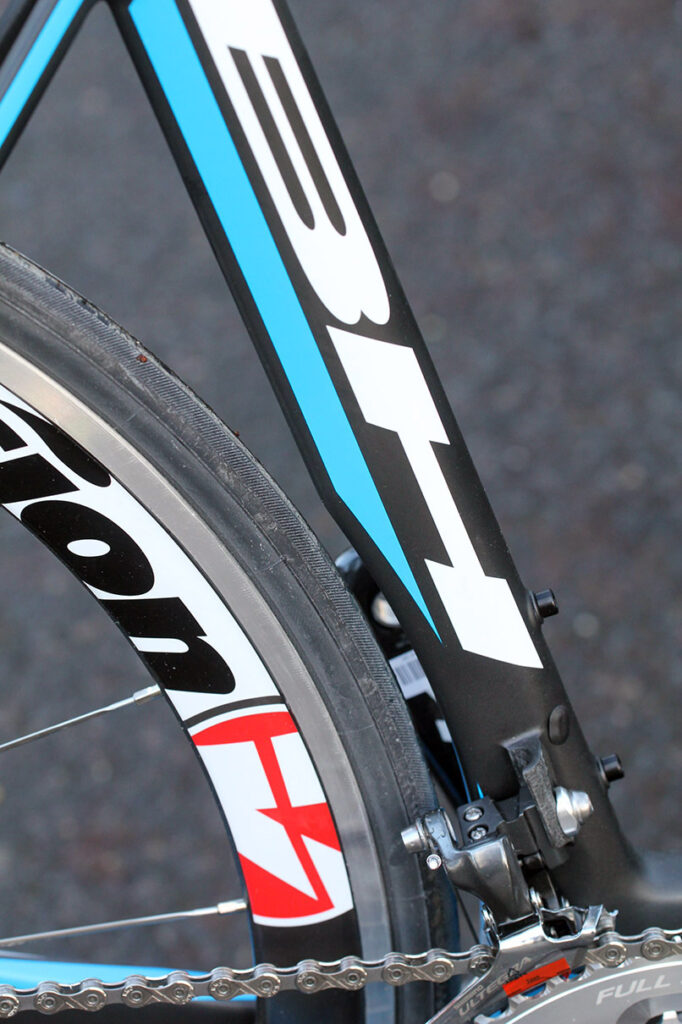

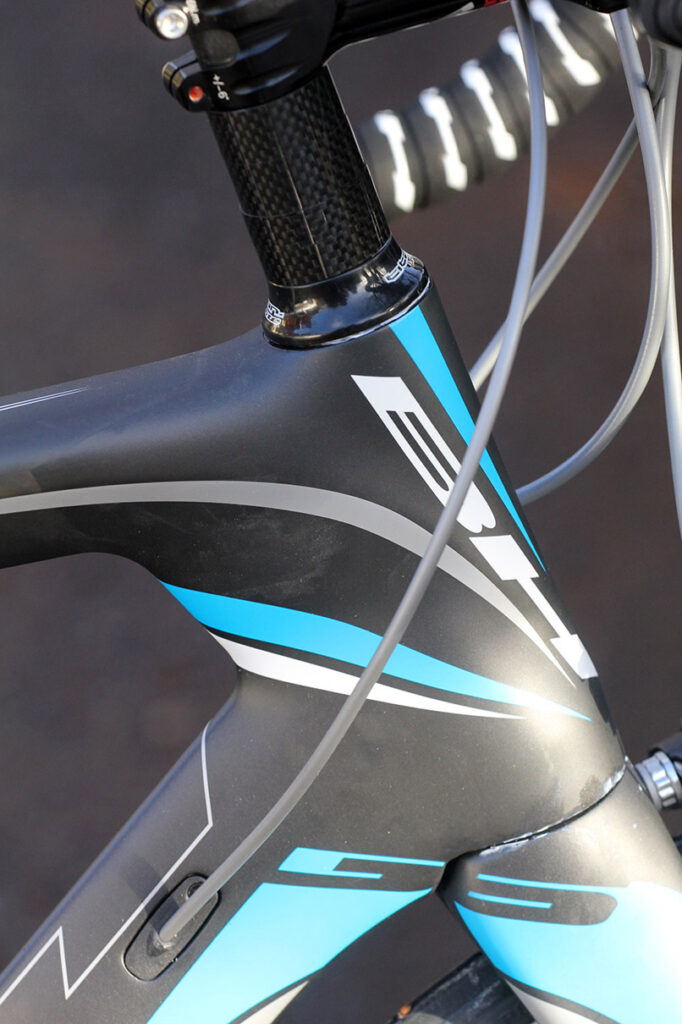

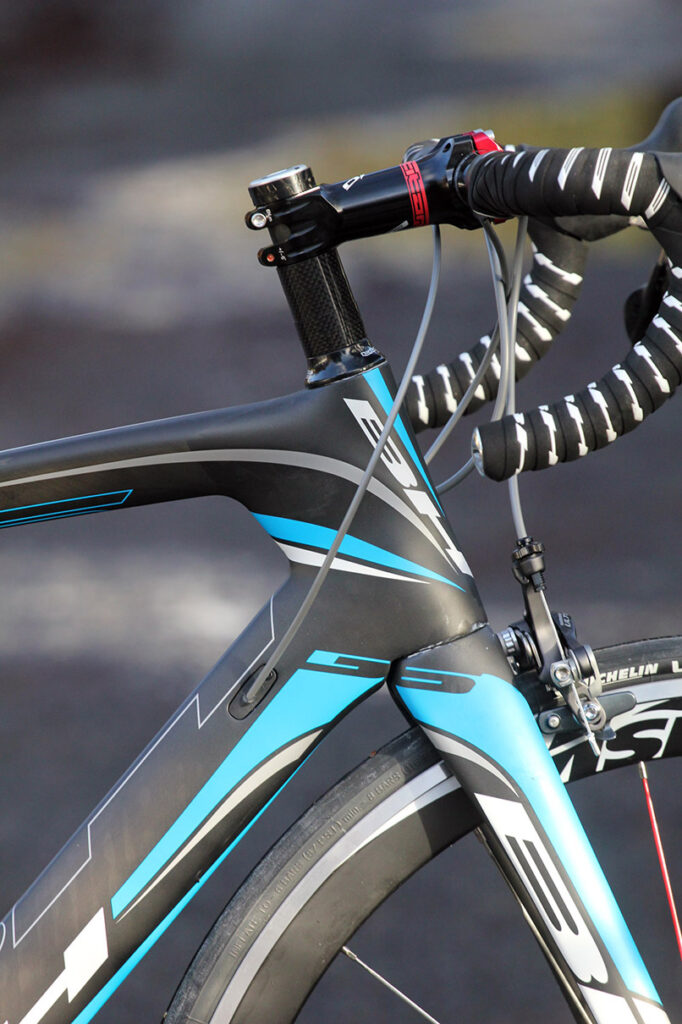

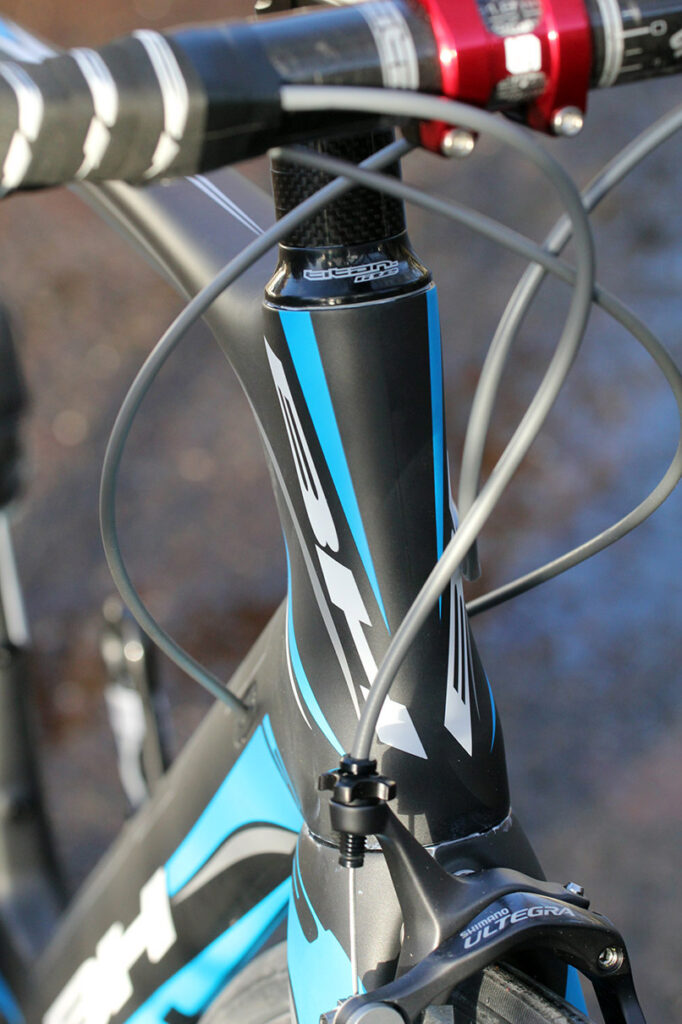

On our medium test model the headtube is 150mm tall and to cut through the wind it virtually matches that for depth creating a web between top and down tube. This and the huge bottom bracket area allows the down tube to be 70mm in the vertical plane while being kept narrow in the other in a bid to cut drag. The clearance for the front tyre is tight, just as it is at the rear where the seat tube is scalloped around the rear wheel, a wind cheating trick usually reserved for time trial frames.

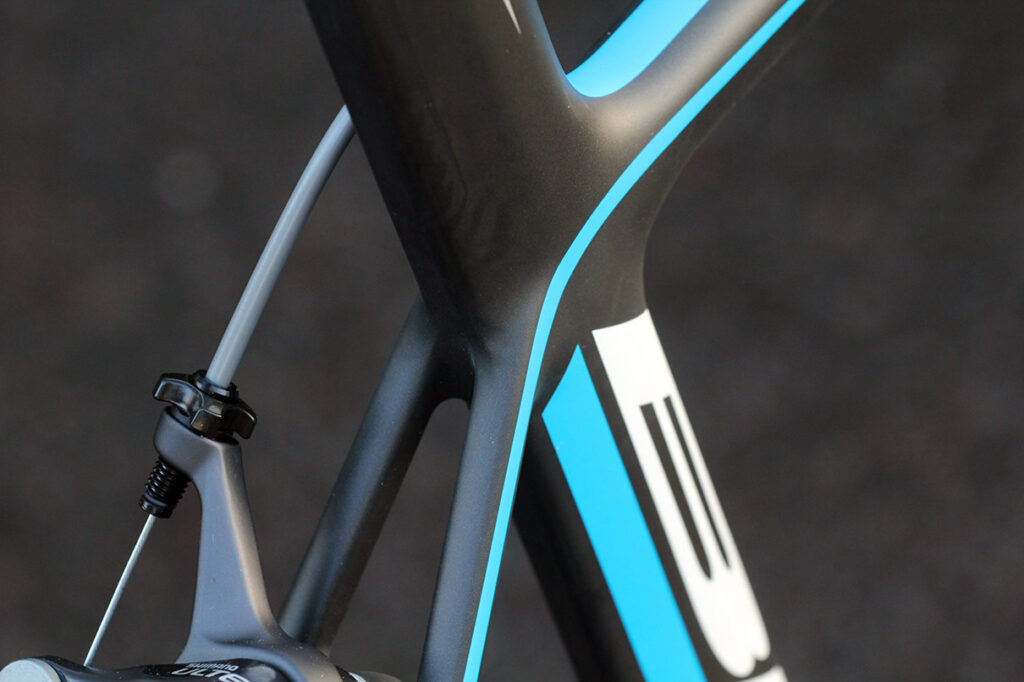

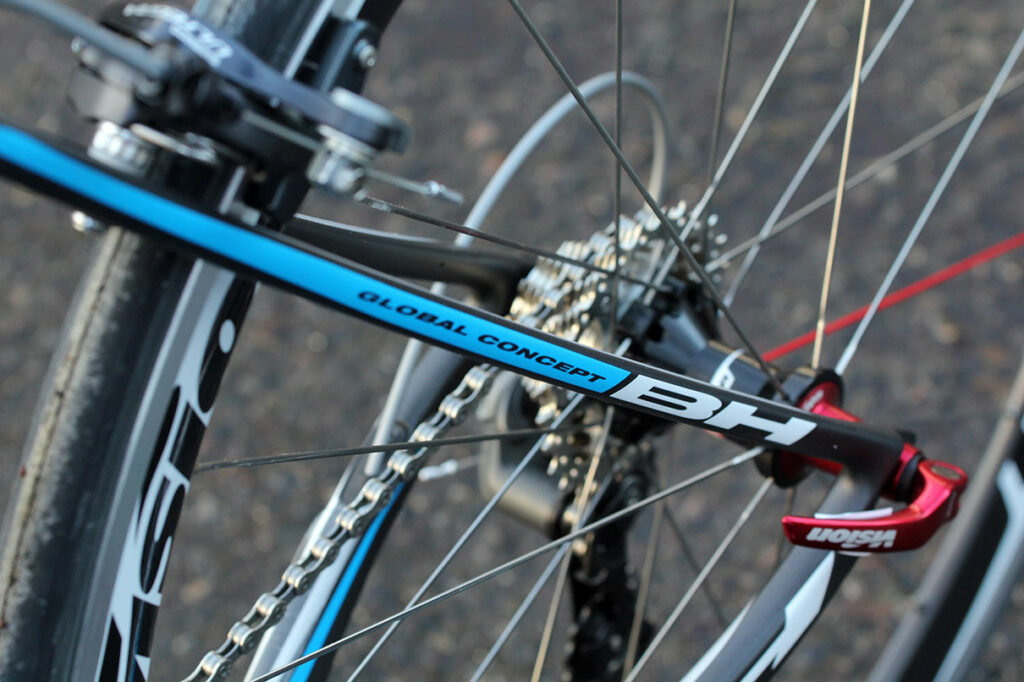

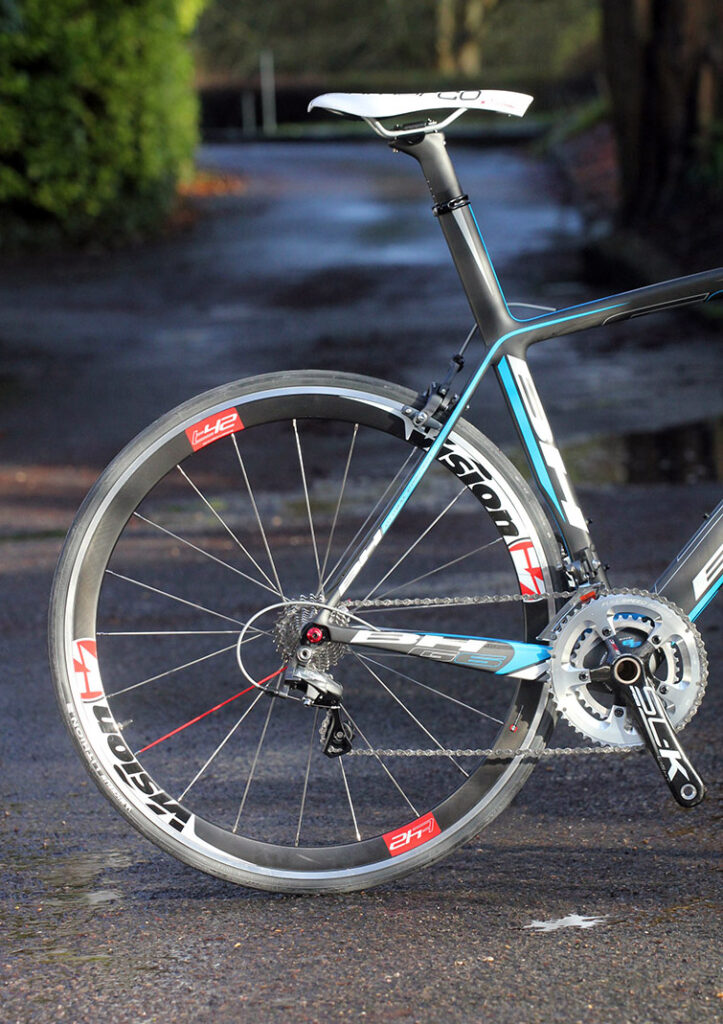

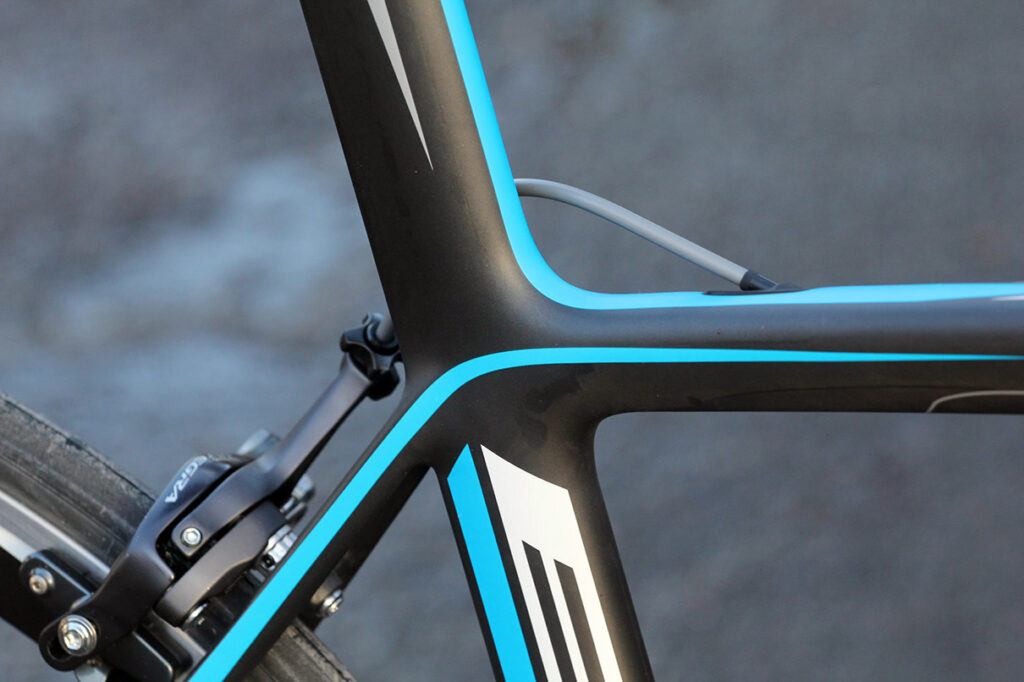

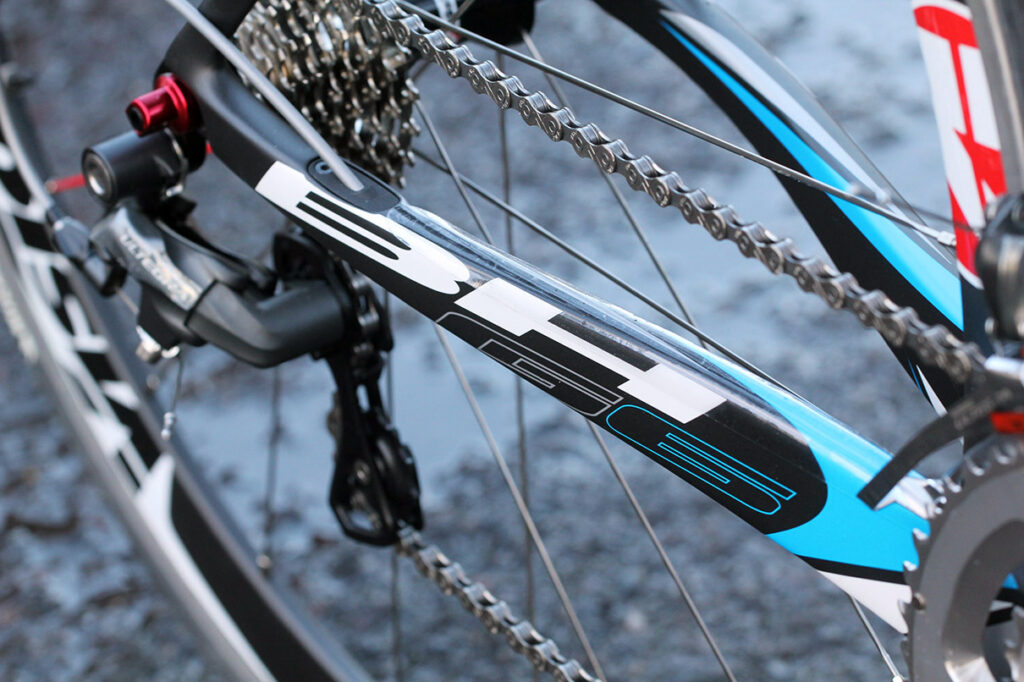

Keeping the rear wheel in check are some massive chainstays, rectangular with a height of 50mm which aren't going to let any form of flex through as you stamp on the pedals. In contrast the seatstays are narrow, a usual ploy to remove some of the harshness from oversize frame tubes.
The 8.0 part of the G6 8.0 is the model number. Basically you have the same frameset throughout but the kit specs change. Ours comes with Ultegra mechanical and is priced at £2999.
The other options include:
8.1 : SRAM Force - £3499
8.3 : Ultegra Di2 - £3999
8.5 : SRAM Red - £4999
8.7 : Dura Ace - £5999
8.9 : Dura Ace Di2 -£7999
As far as the finish goes I think it looks great and the photos really don't do it justice. It does come with red highlights instead of the blue if that's more your thing and to be honest it does clash less with the wheel decals. The size range is quite limited though with only five to choose from giving top tube lengths of 52cm to 58.5cm.

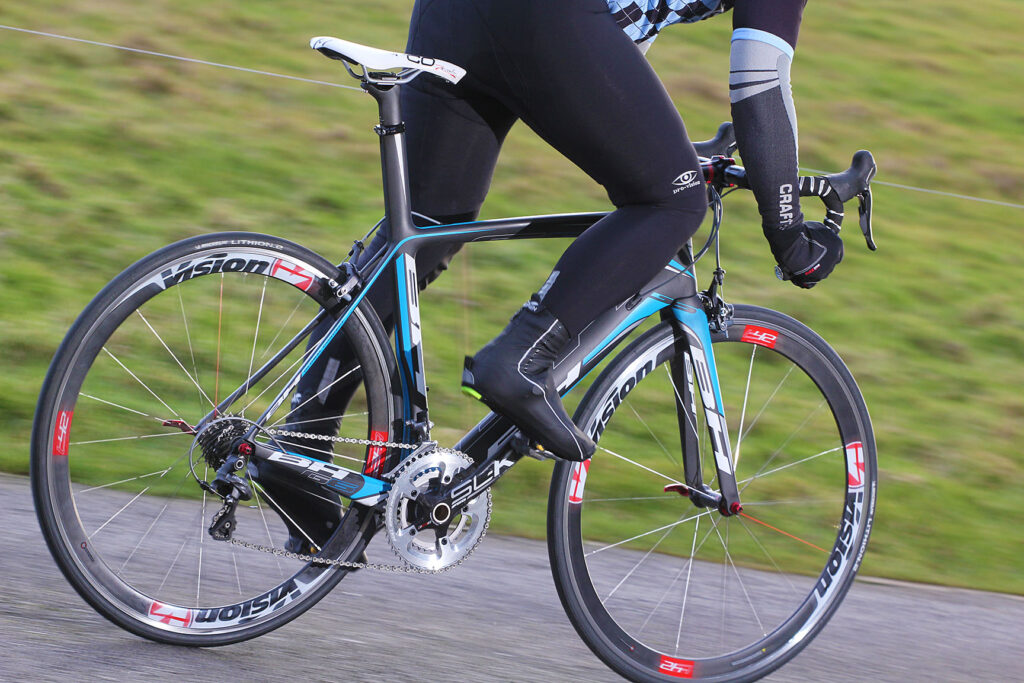

So, is it any faster than a more standard frame? Well to be perfectly honest, who knows? A lot of wind tunnel tests and results very rarely have any bearing on real world conditions but one thing is for sure, the G6 is fast, very fast. An all up weight of 16lb means it accelerates up to speed with little resistance and once there it just keeps rolling. Speeds of 25-30mph on the flat obviously still require effort on the rider's part but it does feel less than I have noticed with other bikes. The wheels help, Vision Trimax T42's roll nicely and are well built. They aren't truly aero at only 42mm deep but as Mat said in his review of them back in August they are 'versatile for everyday use or racing.'
It's alright being able to work well on its own, on the flat, but unless you're time trialling up and down your local drag strip all the aero benefits don't make much difference if you lose out on the hills or through the bends. Thankfully though the 16lb all up weight and the high stiffness levels means the BH is a good climber whether you're in the saddle tapping it out or honking up a 25% lung buster - everything feels stiff beneath you and you're certainly not wasting any energy through the frame.
Descending is also great fun. The front end tracks with confidence following whatever line you put it on, chopping and changing if needed. One of my favourite downhills that I've ridden hundreds of times really shows up any weakness in a test bike. Just under a mile long with most of it at 15% it's twisty and technical through trees and steep banks but it didn't throw up any concerns for the G6. Each change of direction was direct and precise with the front end tracking exactly where you pointed it. The rain and frost-damaged surface was no problem for the fork, as while it's very stiff it also soaks up road buzz surprisingly well - aided by the slight flex of BH's own brand carbon handlebars.
Also receiving a special mention are the Michelin Lithion 2 tyres. For what are essentially training tyres they roll amazingly well and give really confident grip levels and feedback.

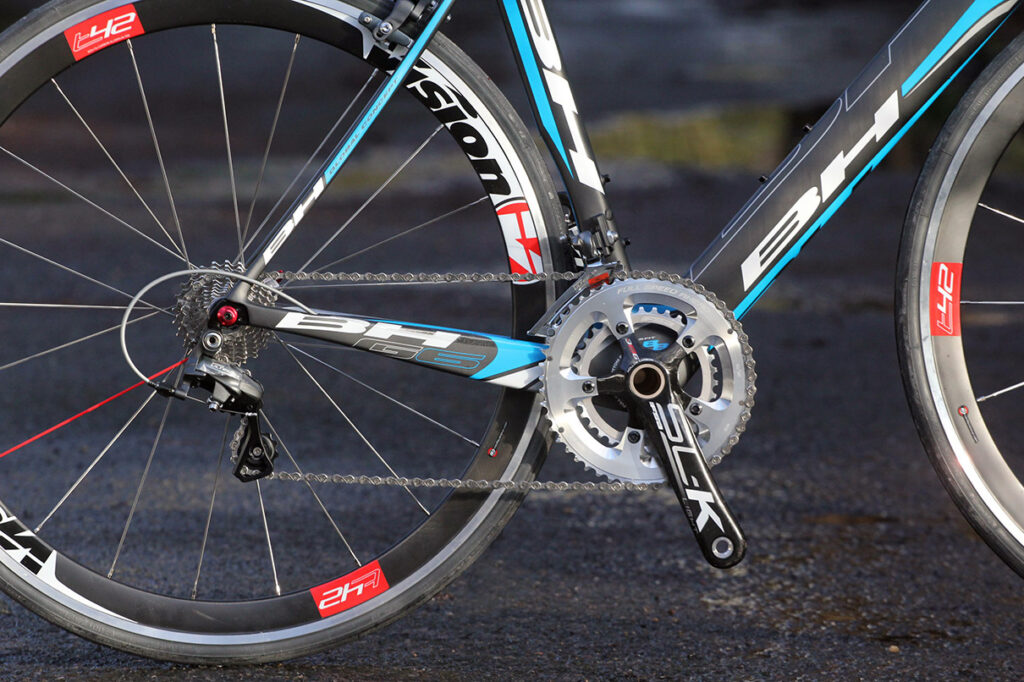

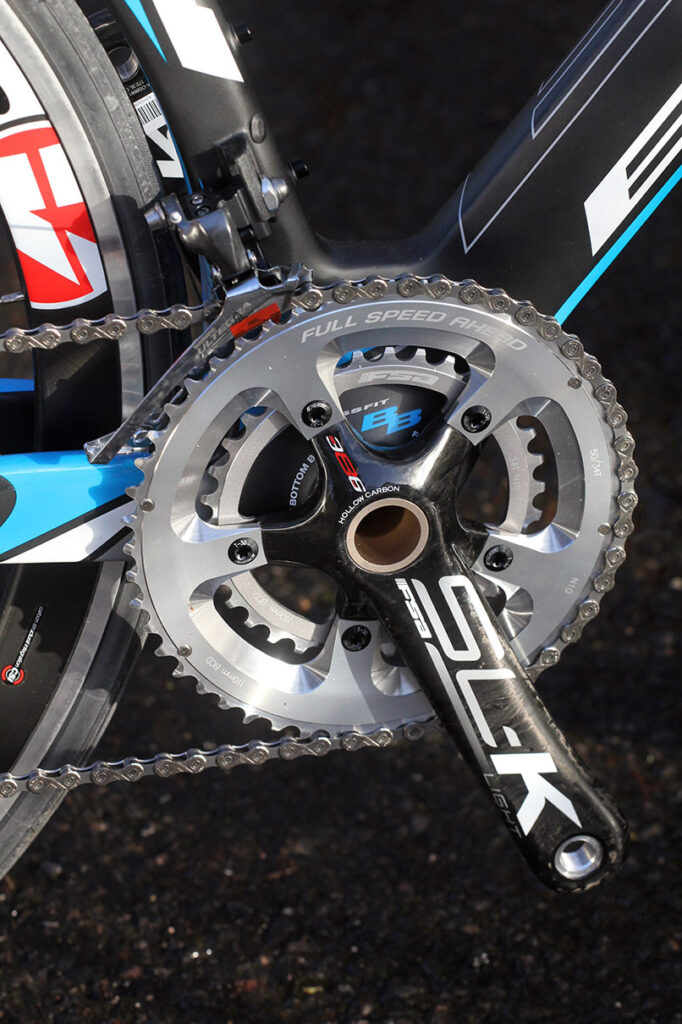

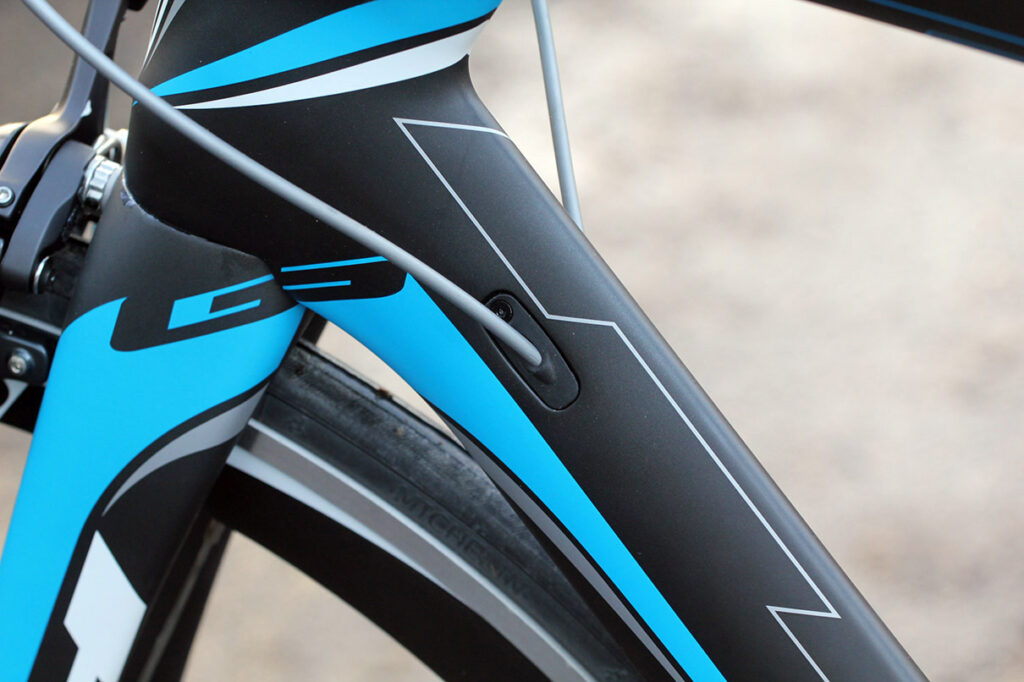

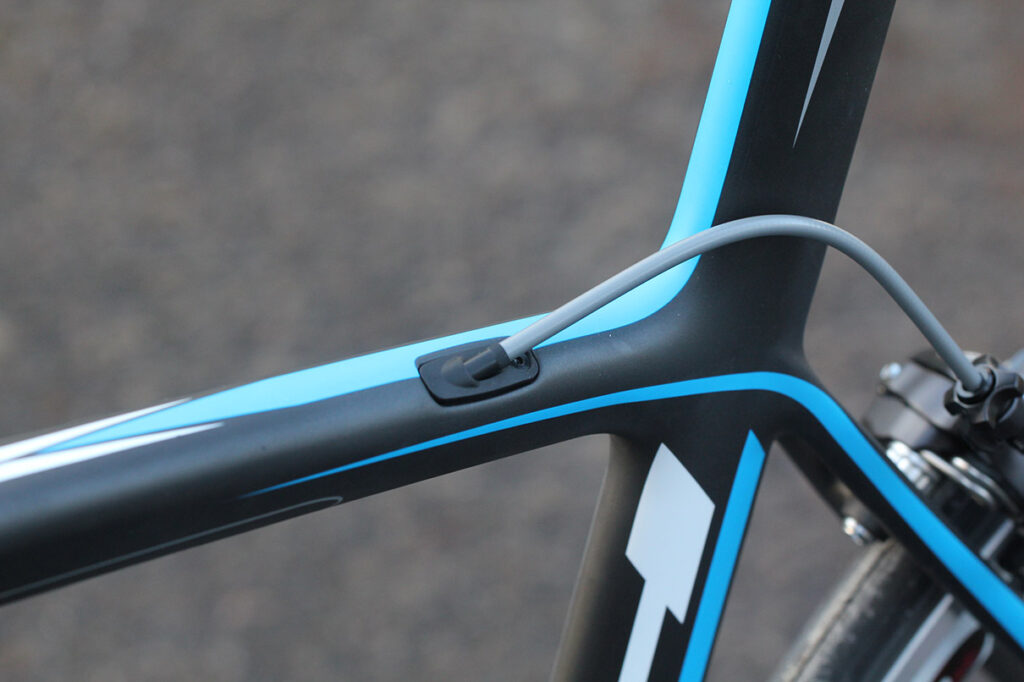

Ultegra is a great groupset, virtually identical to Dura-Ace with regards to performance yet more realistically priced. All the cables route internally through the frame (so that it works with both Di2 and mechanical) and judging by how sweet the shifting is BH has obviously avoided any tight bends anywhere. FSA's SL-K Light BB386 carbon chainset is the only deviation away from Shimano and it's a beautiful bit of kit and very stiff. The thin profile (front to back) cranks work well with the wider BB standard keeping the Q-factor as minimal as possible. It is odd to have a compact chainset on an aero road bike but BH obviously know its market and there is an 11 sprocket at the back so you're going to be moving at a fairish old lick before running out of gears.

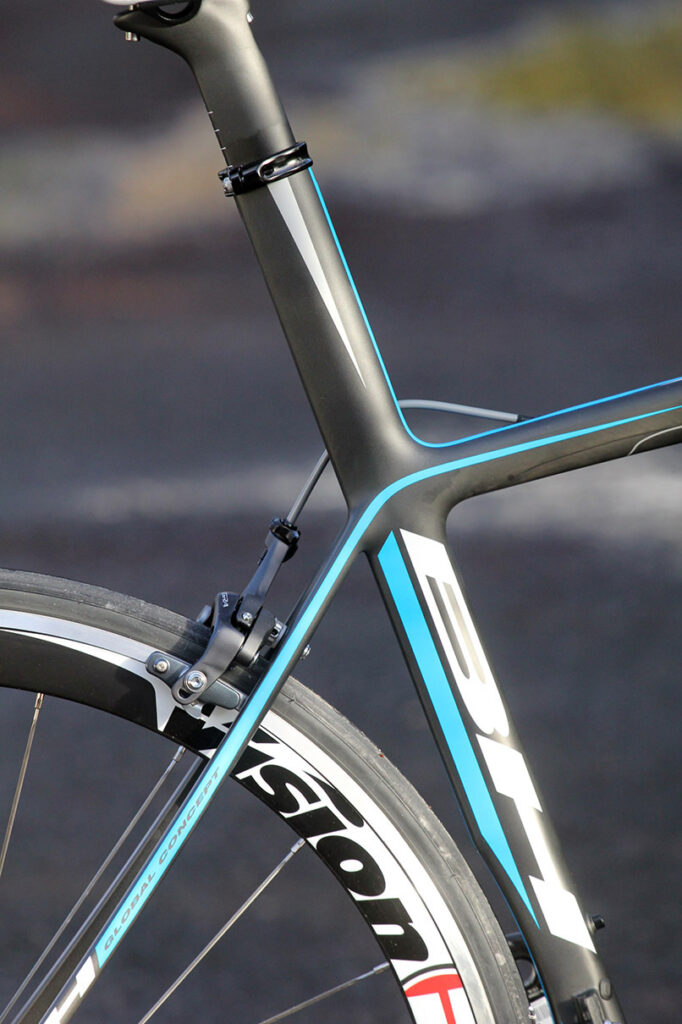

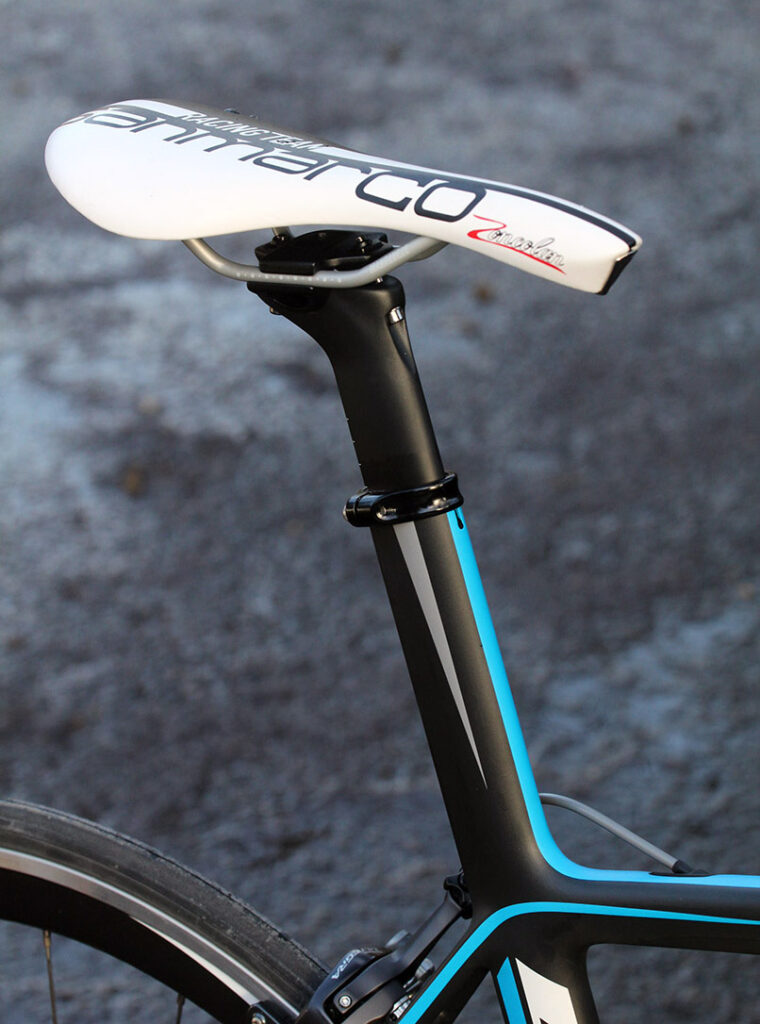

Downsides? There are a couple but really nothing that's a deal breaker. All that stiffness means a bit of harshness and discomfort does come through on long rides. The longest ride I did was around five hours and it was starting to tell a bit on my wrists and back towards the end. The extended seat tube removing any flex you'd receive from a standard seatpost is part of the problem while the San Marco Zoncolan saddle is the other as there isn't much give but on the flipside the slightly unorthodox shape does work well for getting down in the drops.

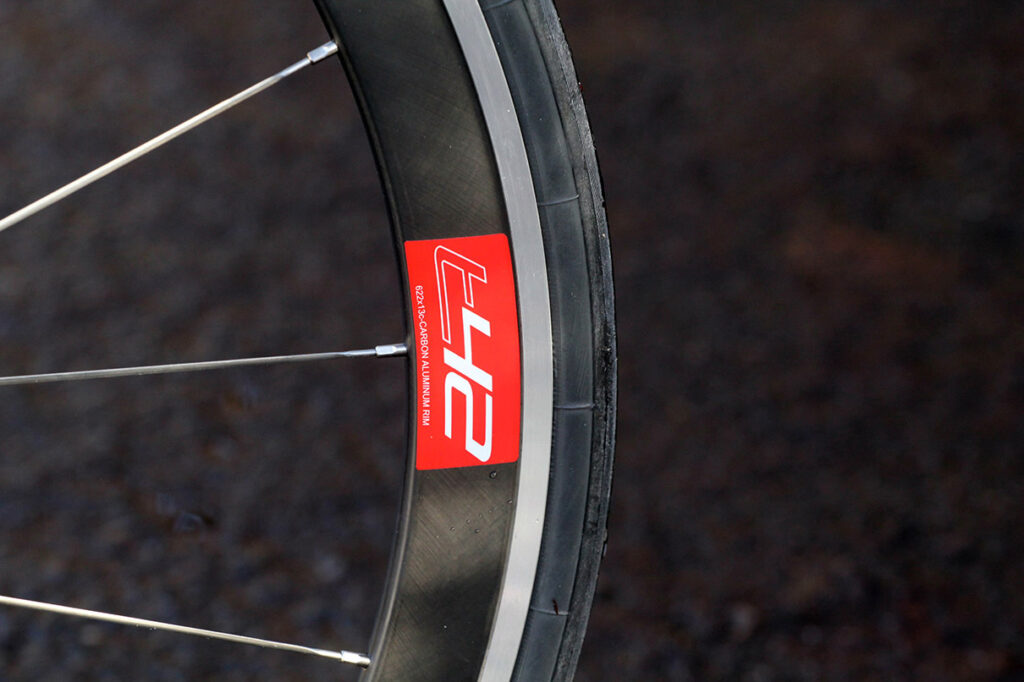

Those deep tube profiles and 42mm rims do make the G6 susceptible to cross winds as well - gateways in hedges can make for some interesting lean angles!!
Three grand is a lot of money for a bike but when you look at the kit level you're getting; sub 900g frame, BB386, carbon wheels and an Ultegra groupset - I think the G6 8.0 is also good value for money. It's more than just a point and shoot bike, the G6 8.0 is a great all rounder. I think we might have found a contender for the road.cc Top Ten 2013.
Fast, light, fast, well specced and...um......did I mention how fast it is?
road.cc test report
Make and model: BH G6.0 (2013)
Size tested: 55cm
About the bike
State the frame and fork material and method of construction. List the components used to build up the bike.
Frame: Carbon fibre monocoque
Fork: Carbon fibre moonocoque

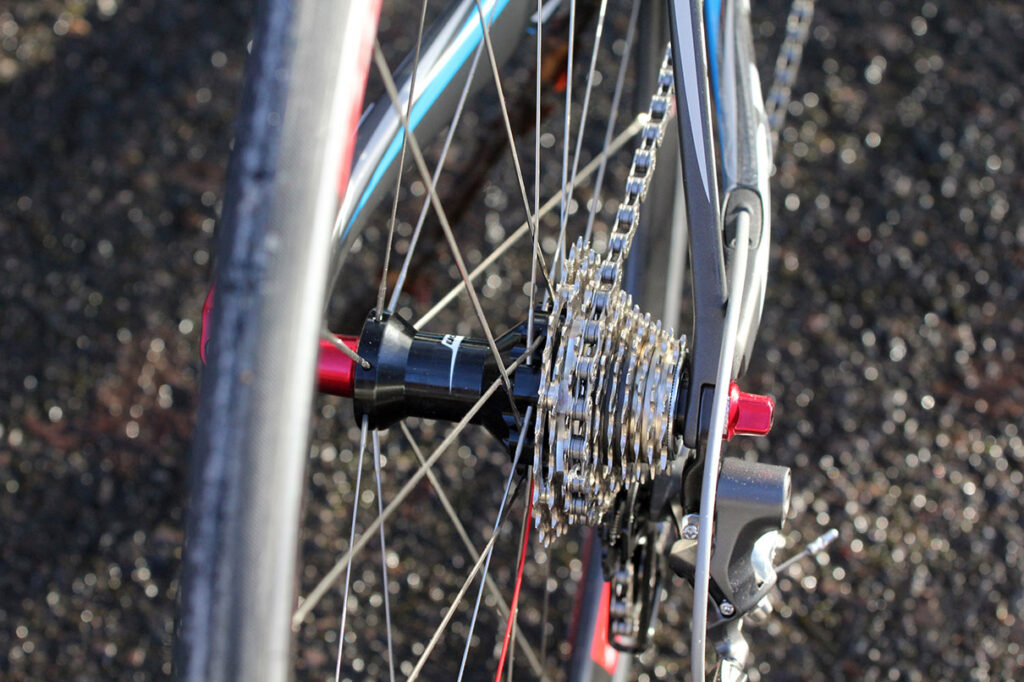

Wheels: Vision Trimax T42 alloy/carbon clinchers
Tyres: Michelin Lithion 2
Bars: BH Superlight Carbon Fibre
Stem: BH alloy

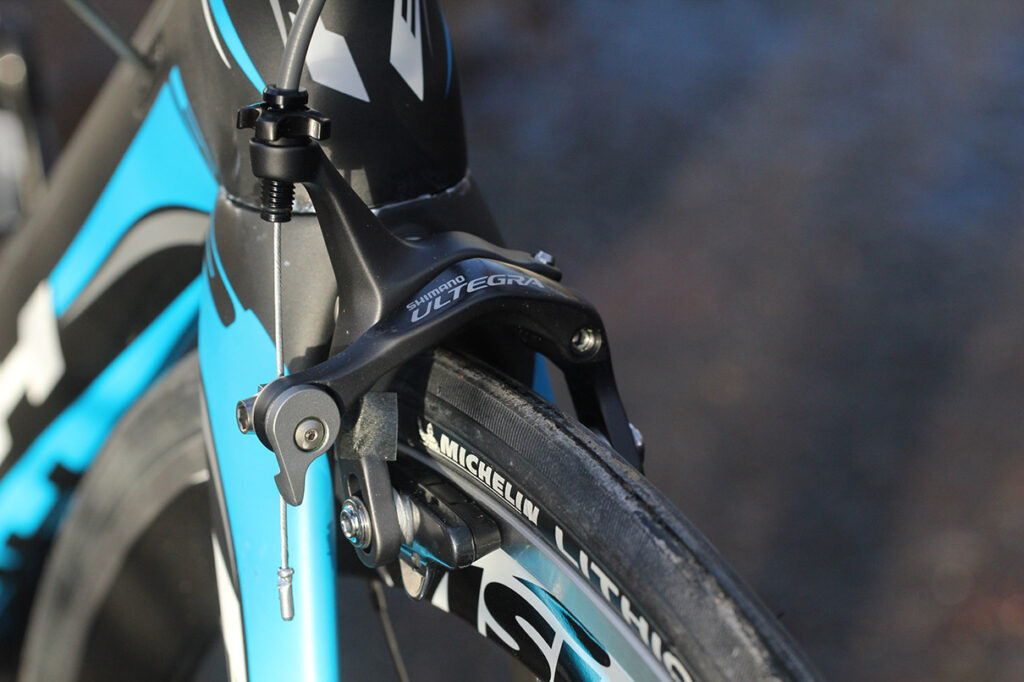

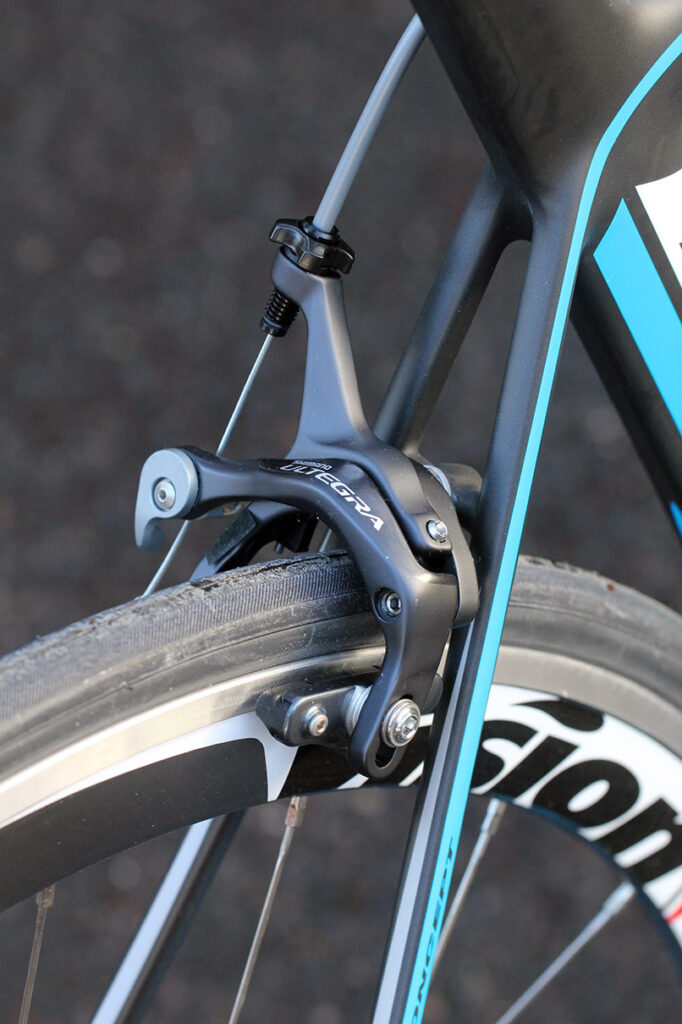

Brakes : Ultegra

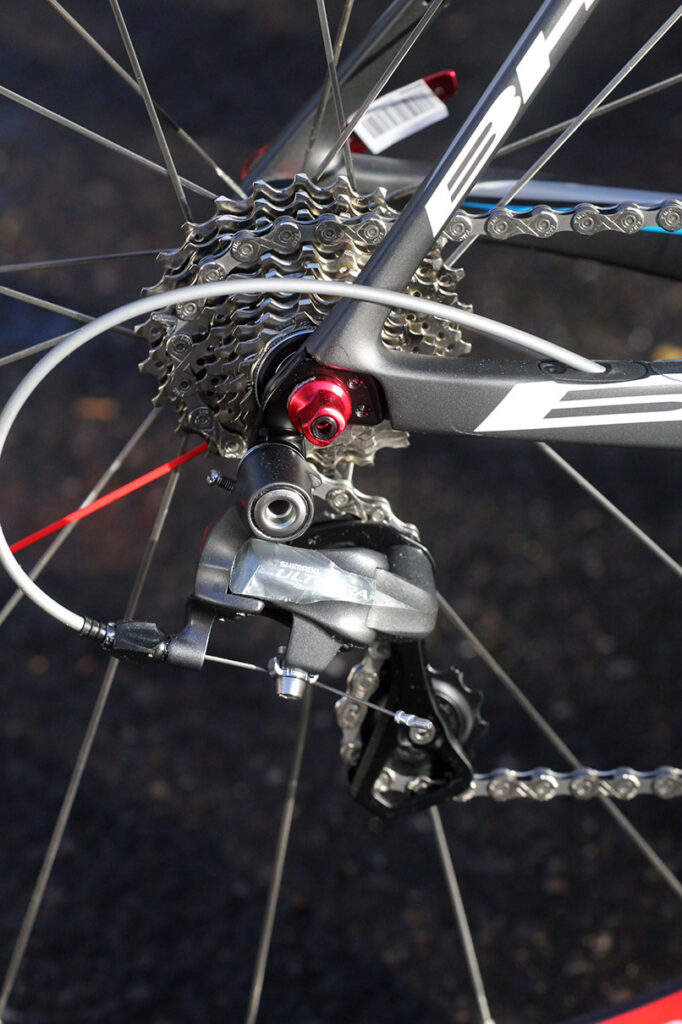

Rear mech: Ultegra
Front Mech: Ultegra
Cassette : 105 10spd 11/25T
Chainset: FSA SL-K Light BB386 50/34T
Chain: KMC x10
Saddle: San Marco Zoncloan
Tell us what the bike is for, and who it's aimed at. What do the manufacturers say about it? How does that compare to your own feelings about the bike?
Its a pro level race frame with aero benefits making it ideal for breakaways and sprints is how BH describe it. I can't vouch for its pro level capabilities but its certainly a fast bike that can climb and descend as well
Frame and fork
Tell us about the build quality and finish of the frame and fork?
Overall build quality and finish looks great. Everything feels tight and well screwed together.
Tell us about the materials used in the frame and fork?
There are various differing types of carbon used and different lay ups all of which BH don't understandably go into.
Tell us about the geometry of the frame and fork?
How was the bike in terms of height and reach? How did it compare to other bikes of the same stated size?
The medium fit me very well as I only had about 25mm of seatpost extension poking out of the top. The seat tube angle puts you nicely in position for getting the power down.
Riding the bike
Was the bike comfortable to ride? Tell us how you felt about the ride quality.
Comfortable in terms of position but the stiffness could cause the frame to resonate on rough surfaces causing some fatigue as the hours clicked by.
Did the bike feel stiff in the right places? Did any part of the bike feel too stiff or too flexible?
Bang on for the performance intended.
How did the bike transfer power? Did it feel efficient?
On group rides chasing down breaks or sprinting for signs you can feel the frame is putting all of your effort into moving forward.
Was there any toe-clip overlap with the front wheel? If so, was it a problem?
How would you describe the steering? Was it lively, neutral or unresponsive? pretty neutral, it was just as happy cruising in the bunch as it was doing 50mph - except in a cross wind
Tell us some more about the handling. How did the bike feel overall? Did it do particular things well or badly?
Very confidence inspiring thanks to everything working together, frame, forks, wheels, tyres all giving really good feedback. The whole bike in fact works as one and nothing stood out as being out of place.
Which components had the most effect (good or bad) on the bike's stiffness? would you recommend any changes?

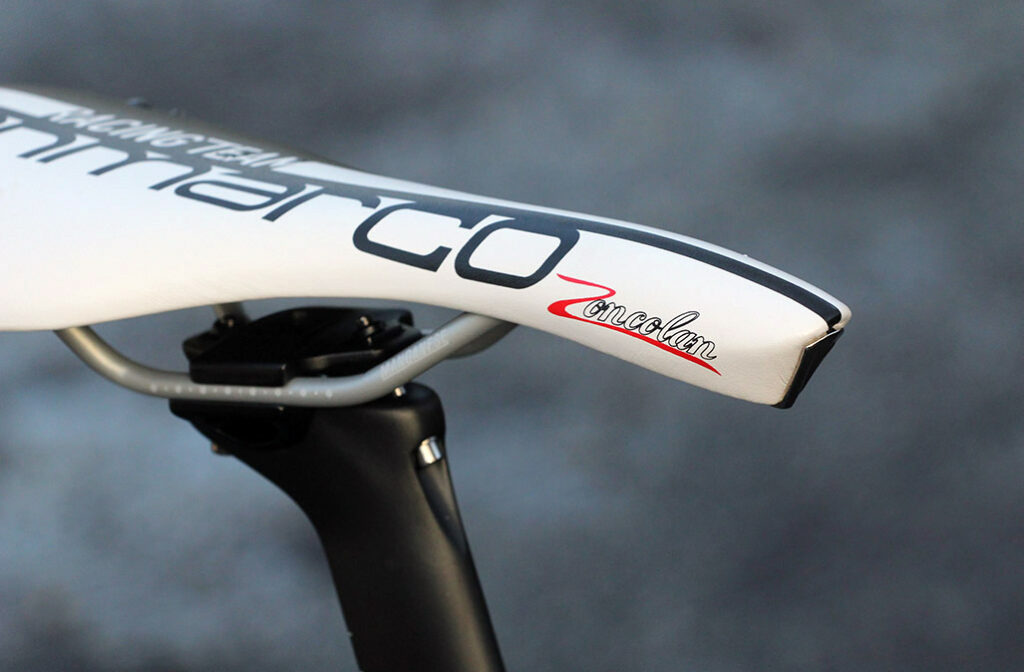

The saddle was stiff but had a good shape for a racing tuck, it was neither comfortable or uncomfortable but you just knew it was there. The carbon bars were comfortable but the flex was barely noticeable.
Which components had the most effect (good or bad) on the bike's efficiency? would you recommend any changes?

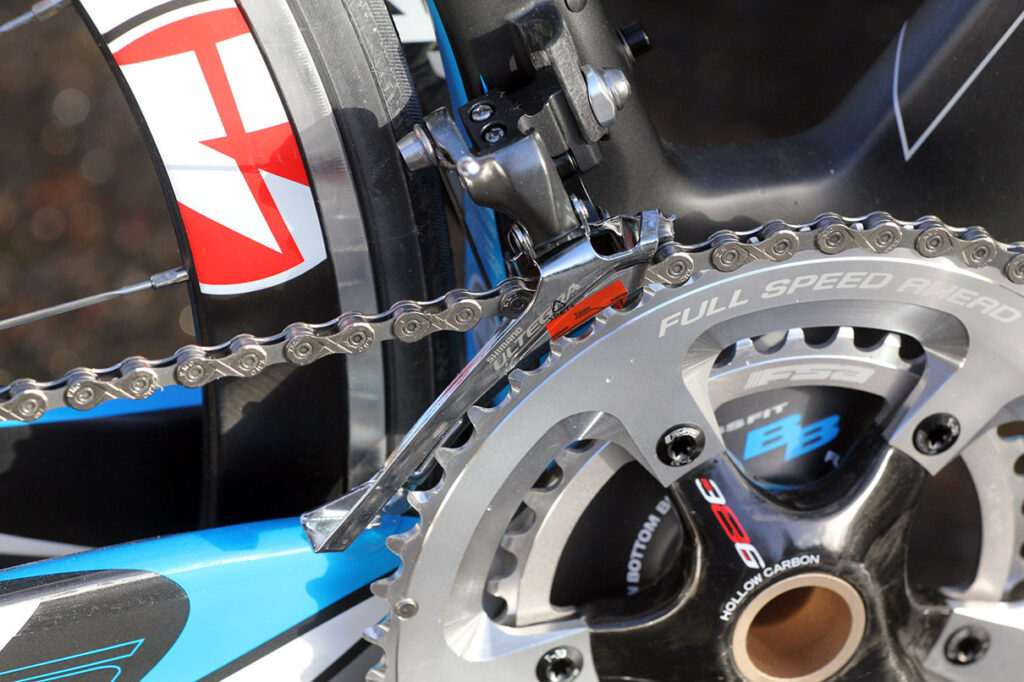

The crankset is very efficient working with the BB386, even under hard efforts there was no front mech rub at all. The wheels/tyres combo also rolled very well.
Ultegra does what it always does, looks good and gets on with its job.
105 is snapping at its heels and is a lot cheaper.
Tell us some more about the drivetrain. Anything you particularly did or didn't like? Any components which didn't work well together?
Everything worked well together and it didn't require any fettling over the test period. Ultegra's shifts are quite light but give a good solid feel.
Wheels and tyres
Tell us some more about the wheels and tyres.Did they work well in the conditions you encountered? Would you change the wheels or tyres? If so, what for?

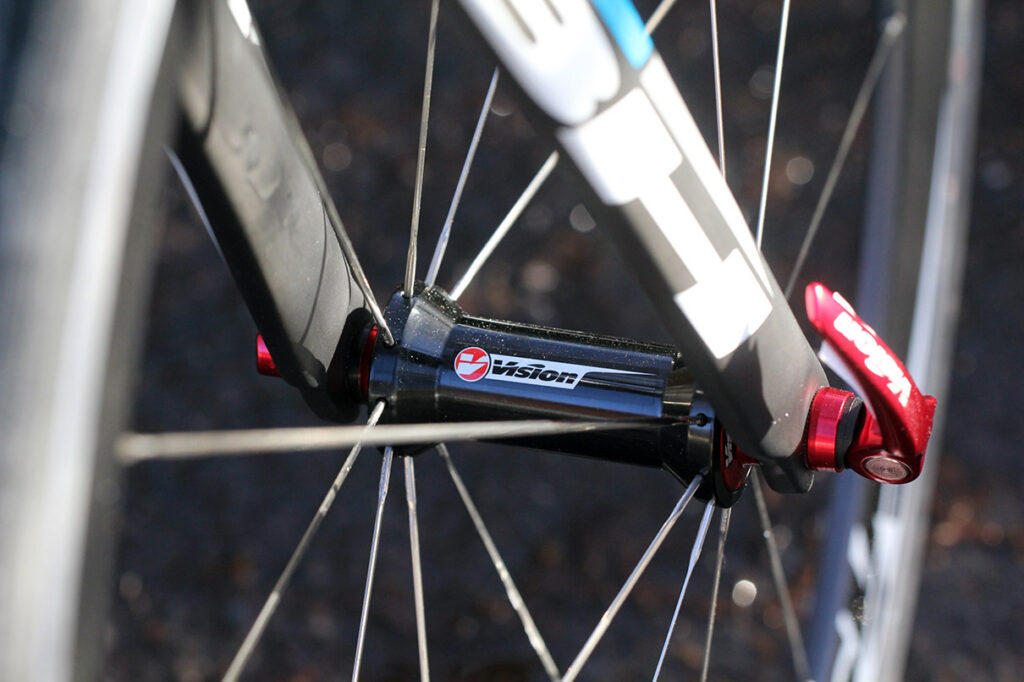

The Vision wheels are great all rounders. They stayed true and the bearings rolled smooth even with a few wet rides chucked in for good measure. Alloy braking surface is better for day to day riding.
Tell us some more about the controls. Any particularly good or bad components? How would the controls work for larger or smaller riders?

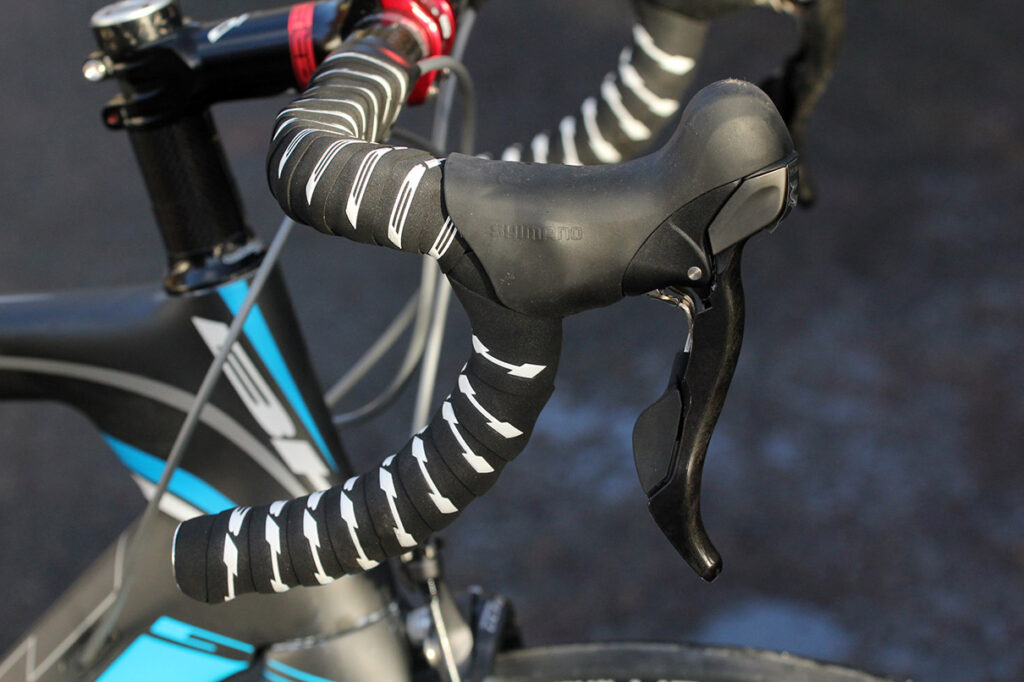

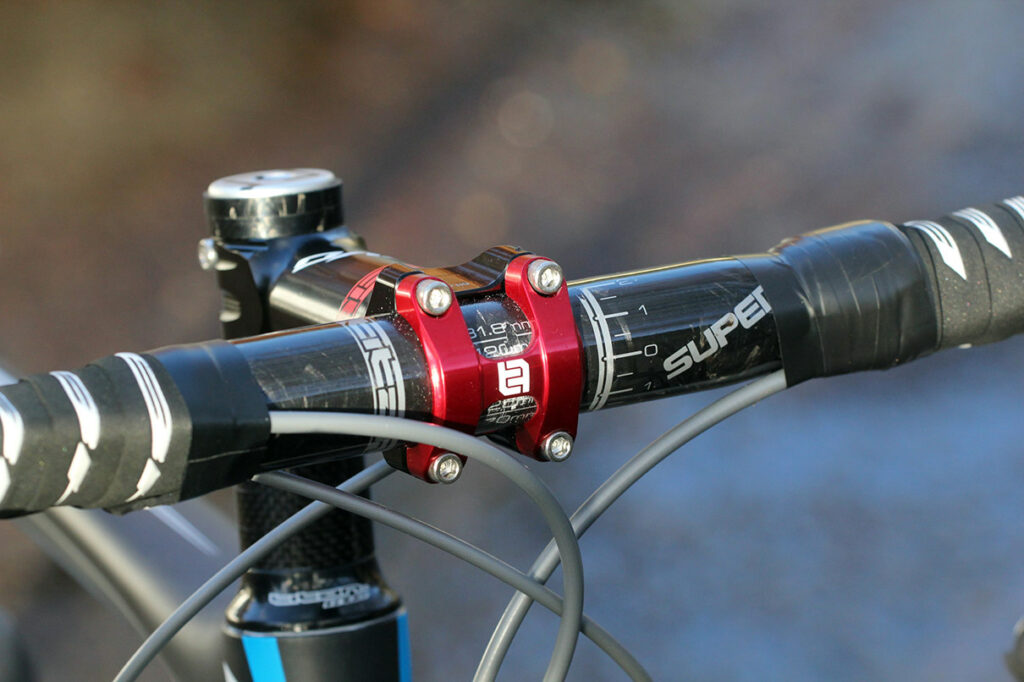

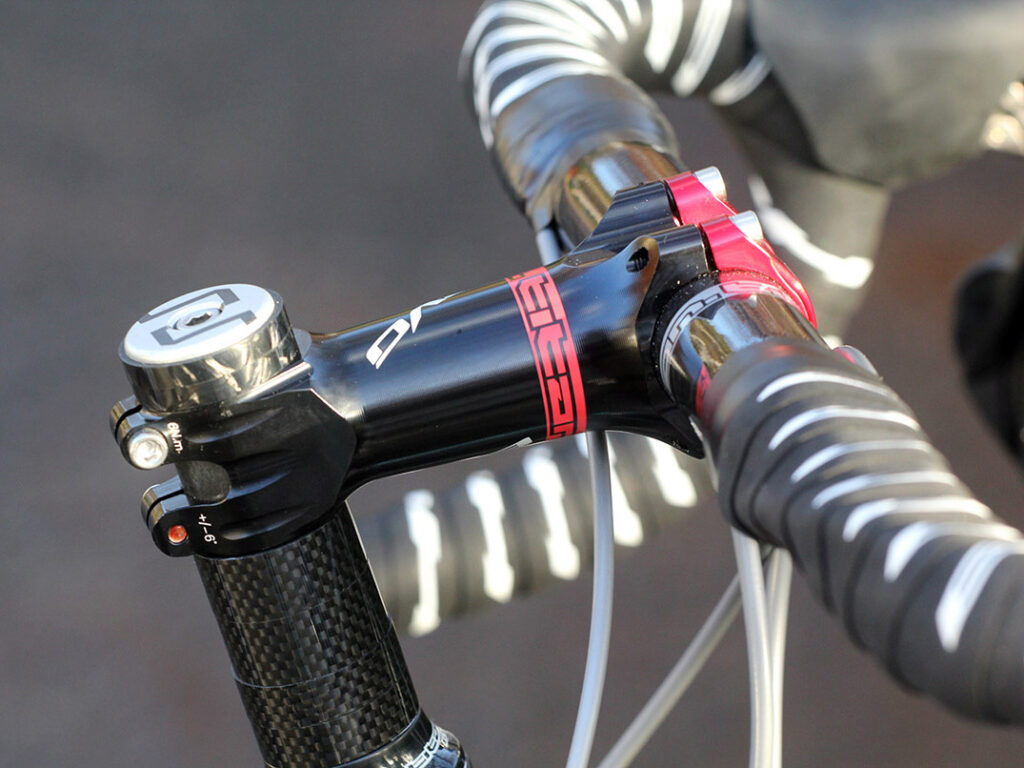

The BH bars are really nice, very comfortable and look great too. The stem didn't show any signs of flex while the saddle was harsh but a good design.
Anything else you want to say about the componentry? Comment on any other components (good or bad)
It's top end considering the budget and BH don't seem to have cut any corners.
Did you enjoy riding the bike? Very much so.
Would you consider buying the bike? Yes.
Would you recommend the bike to a friend? Yes.
