Kinesis GF_Ti Disc frameset

9
£1,799.99

VERDICT:

9
10
If you want fast, comfortable, light, tough and good looking you can indeed pick all five. You will not be disappointed
Weight:
8,100g

At road.cc every product is thoroughly tested for as long as it takes to get a proper insight into how well it works. Our reviewers are experienced cyclists that we trust to be objective. While we strive to ensure that opinions expressed are backed up by facts, reviews are by their nature an informed opinion, not a definitive verdict. We don't intentionally try to break anything (except locks) but we do try to look for weak points in any design. The overall score is not just an average of the other scores: it reflects both a product's function and value – with value determined by how a product compares with items of similar spec, quality, and price.

What the road.cc scores mean

Good scores are more common than bad, because fortunately good products are more common than bad.

  • Exceptional
  • Excellent
  • Very Good
  • Good
  • Quite good
  • Average
  • Not so good
  • Poor
  • Bad
  • Appalling

The Kinesis GF_Ti Disc is a jack of all trades – and a master of most. It's possibly the last bike you'll ever need to buy – for club runs, sportives, audaxing, commuting, Alpine breaks, touring, all-roading... the definitive 'N+1' killer: fast, comfortable, light, tough, good looking. Pick five.

Back in 2011 Stu gave the original non-disc GF_Ti 9/10, saying it 'delivers the goods on speed, lightness, comfort and longevity'. Then in 2013 he found the second iteration to have 'near superbike capabilities in a frame that is just as at home on the commute, audaxing, sportives and much much more. It's a looker too'. It got an 8/10, but only because the overall value proposition was lessened by the kit (Shimano Tiagra/R501 wheels) on offer.

This time round, it's just the frame and fork we're talking about.

> Find your nearest dealer here

The frameset on test is a 57cm, putting my 183cm frame at the higher end of the 174-184cm recommended range. (Kinesis now offers a 55.5cm version as well, reacting to market feedback that people found the 54-57cm jump a bit too far.) Set up with a 120mm stem, it felt spot on for my riding position. The compact ergo bar gave usable options, and I never felt the bike wanted for a lower position or sharper steering.

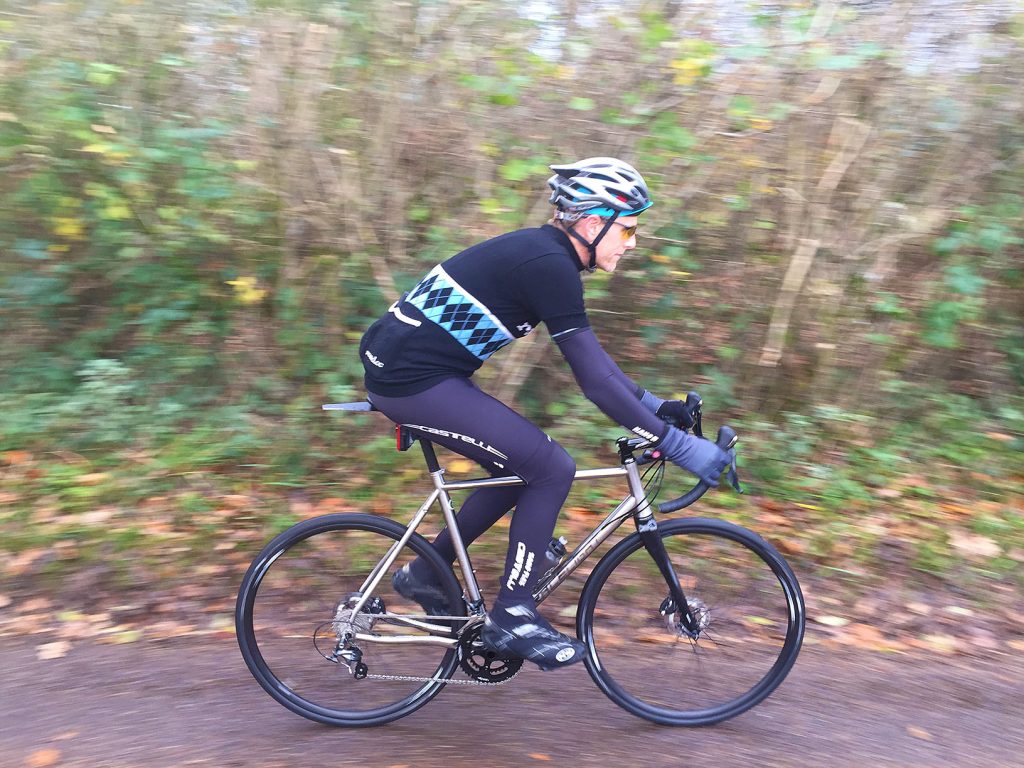

Kinesis GF_Ti Disc - riding 1.jpg

With a head tube angle of 73.5 degrees it's galloping toward the racier end of the geometry paddock, where it runs up against the electric fence of a 1,005mm wheelbase and 420mm chainstays – so roughly somewhere in between 'nippy' and 'forgiving'. It's a nice balance that affords rear wheel clearance for fat tyres plus mudguards, and you don't want a skittish bike threatening to tip you into a hedge at the end of a long day out should you overcorrect.

(You'll find more facts and figures for the Kinesis here, in Mat's First Look.)

For us to test the frameset, Kinesis provided the GF_Ti Disc with its new multi-axle-optioned Racelight Disc wheelset, shod with new Schwalbe S-One 30mm tubeless tyres. It was also built up with full Shimano Ultegra 6800 and Shimano RS-685 disc brakes and Center Lock Ice Tech rotors. The semi-compact chainset came courtesy of Praxis & Turn. Suffice to say, shifting and braking performance were utterly flawless, with the fat tubeless rubber facilitating edge-of-reason braking tests under steering. In this guise the complete bike weighed 8.1kg.

First impressions

The first time out on the GF_Ti Disc I had planned to do maybe an hour's shakedown loop at an average pace. The build was brand new, and I expected a few niggles that would need tweaking. What it turned into was a two-and-a-half hour adrenaline rush, pushing deep into the North Hampshire Downs, seeking ever-steeper hills to ride up – and down again. The stability and stiffness of the frame and fork rewarded every turn of the cranks, with not a hint of flex when out of the saddle from either the front or the bottom bracket.

Kinesis GF_Ti Disc - riding 3.jpg

It was possible to pick up a little bit of squirm from the front tyre, but that's 30mm running at 45-50psi for my weight, so hardly surprising when bent over the bar, and undetectable under braking or cornering at speed.

The ride was only cut short when I realised the bike had taken me outside my 'stored glycogen-café opening hours-distance home' envelope, so the final five miles back was alongside The Man With The Hammer, tapping lightly away at the seatstays. Do not underestimate this frameset's ability to make you feel a more capable rider than you are.

Over the following month a number of club runs proved the frame's ability to potter along perfectly happily, not feeling like it needed constant attention to steering – sitting up hands-free to don or remove a layer was ridiculously easy.

La Dolce Vita

A business trip to Rome was a welcome opportunity to see the GF_Ti Disc in tourist mode on a different side of the road. It easily fitted into the rather fab Evoc Pro bag, just the stem plate off and fork turned 90 degrees to fit the flat-mount calliper into the fork sleeve.

Rome wasn't built in a day, and they still haven't finished the roads, it seems. I lost count of the cobbled sections, but while my native Roman riding companions had initially scoffed at the 30mm rubber, as the ride progressed it was obvious I was able to stay seated while they clambered about their 100psi/23mm-shod stiff-as-you-like carbon whippetry looking for smoother lines and some relief from the almost relentless buffeting.

And yet when we dropped down off Monte Cavo heading back into the new university sector south-west of Rome, the GF_Ti Disc acquitted itself perfectly well as a four-up TTT machine on the buttery-smooth new roads (no, the photos aren't from Italy).

Kinesis GF_Ti Disc - riding 4.jpg

Entering Rome, my guide took me along the Aurelian Wall, where nipping in and out of traffic, cobbled and new sections, under arches and over speed bumps, the Kinesis handed me a third overall on the 2.6km segment. Not that Strava times should in any way be the main measure of a bike's capabilities, but at the end of a 1500m-climbing 90km ride, to feel fresh and confident enough to rip up a strange road and come third has to count for something.

Having tyres, fork and seatstays that smooth the ride makes for a happy backside and hands, and faster times, and I can honestly say I have never felt as comfortable or quick on any other bike. Comfort is relative, but after 40-mumble years running and riding, my joints and muscles have no compunction in making their presence known, should conditions dictate. Even with its fat 31.6mm seatpost, the GF_Ti Disc's ability to soothe the savage road must be without peer.

How the heck has Kinesis created such a ride? Well, let's start at the sharp end...

What lies beneath

The full-carbon Tracer Disc 1.5 fork is unique to Kinesis – you won't see this model available to other manufacturers – and it was designed with the GF and 4S disc frames in mind, for positive steering, comfort and clearance.

It has the largest dropout 'lawyer lips' I've ever seen – it takes seven full turns of the quick-release lever before the wheel can be dropped out, so don't expect to see it on the roof of a DS car anytime soon. That said, there are no concerns regarding the wheel shifting, let alone popping out under even the heaviest of braking. During the test period the QR was done up tight but not so much so that two fingers couldn't undo it, and no movement was discernible.

With 100mm standard hub spacing there's no issue with many available QR disc wheelsets. There's also a ton of tyre clearance to either side and between tyre and crown – with a 30mm tyre on the Kinesis Racelight Disc wheelset (19mm internal width) there's about 5mm either side and above.

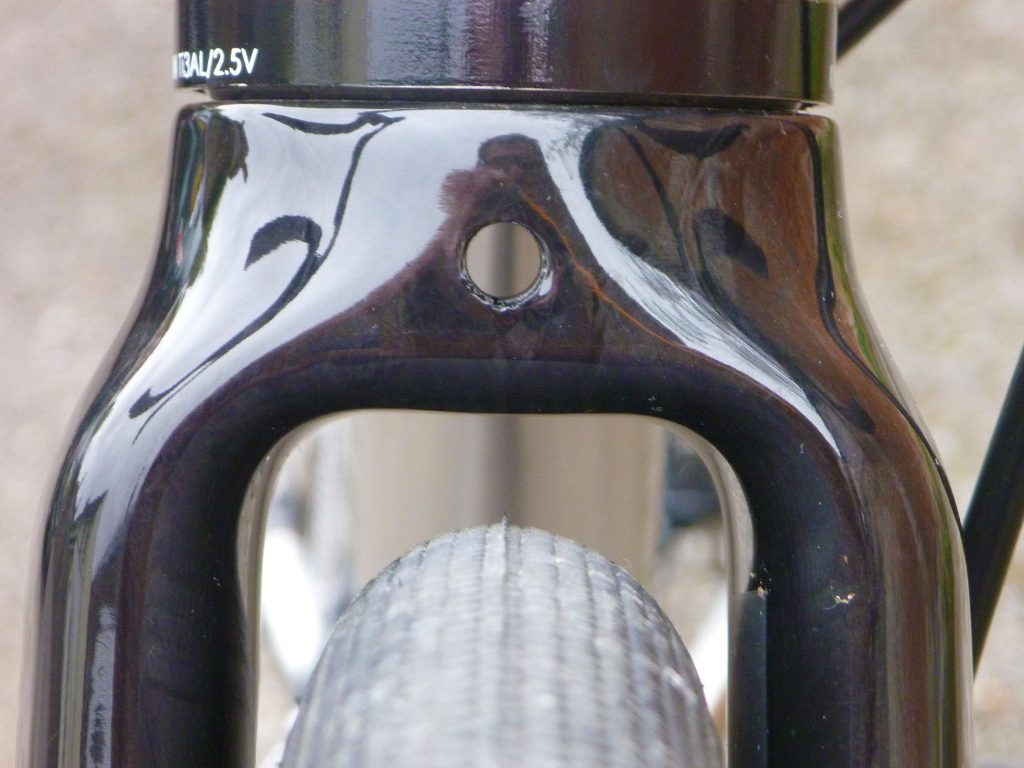

Kinesis GF_Ti Disc - fork clearance.jpg

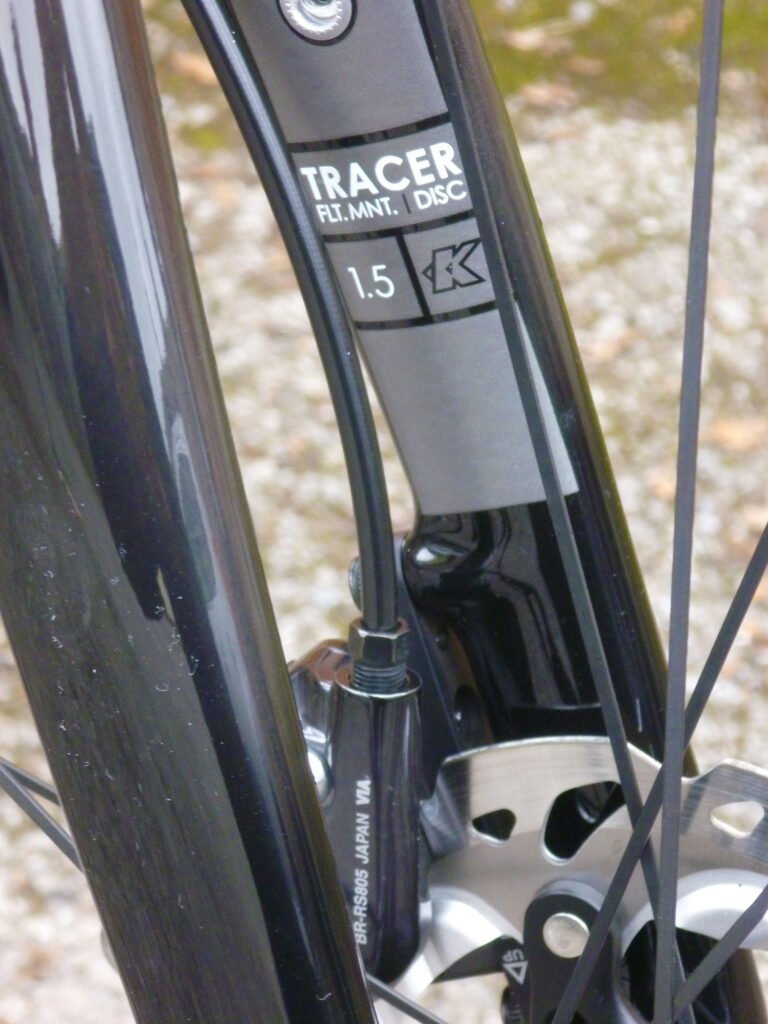

Halfway up the inside of each fork leg is a 4mm mudguard mount, and there's sufficient clearance at the rear of each dropout to fit a removable mudguard tab over the skewer. (With winter looming I fitted a set of SKS Raceblade Longs.)

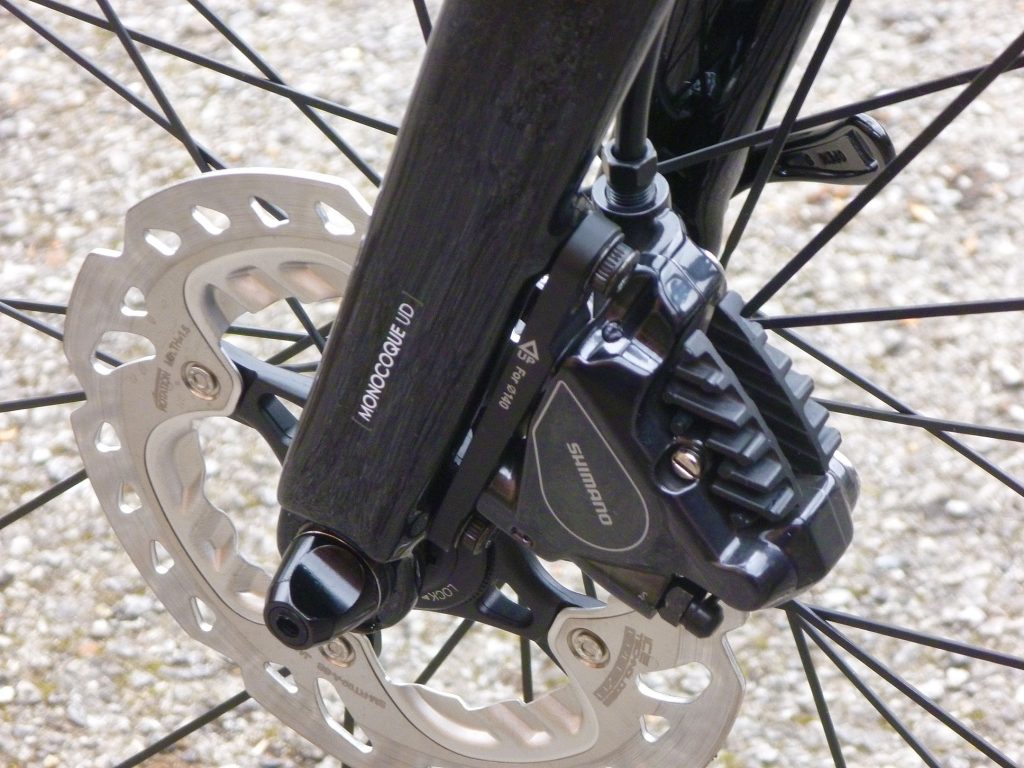

Kinesis GF_Ti Disc - front disc.jpg

Inside the fork crown there's a hole looking for all the world like a calliper mount, but it's got a metal insert to take a bolt for a mudguard or fixed light mount – audaxers and German lighting fans rejoice!

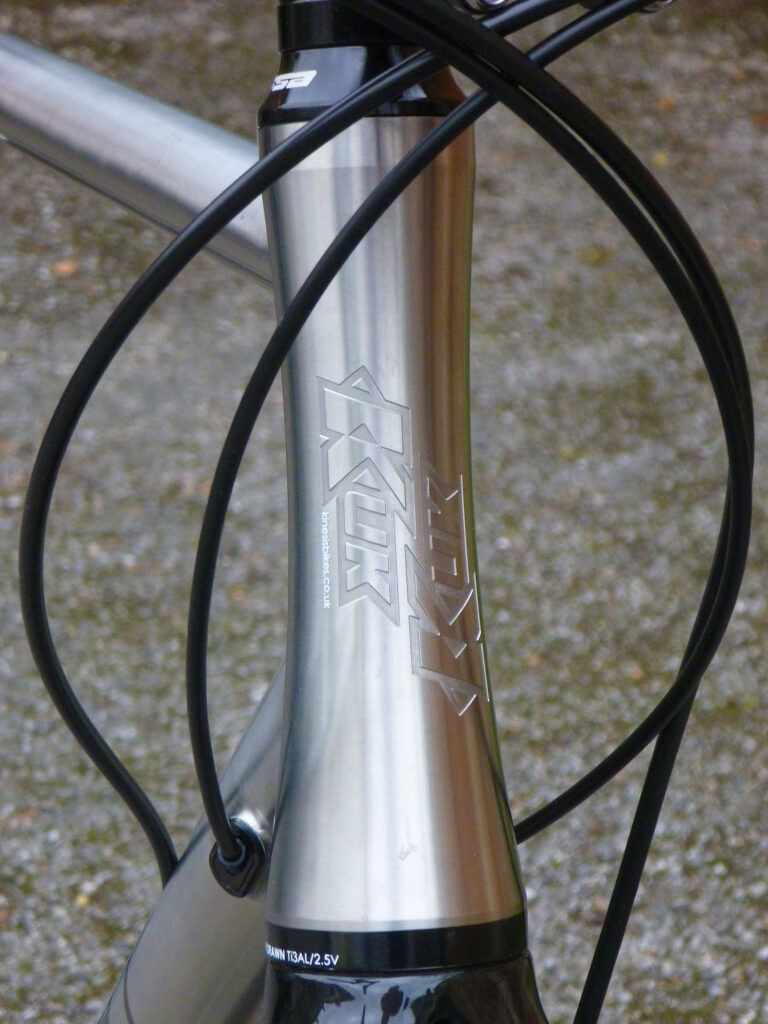

The tapered, integrated head tube is milled from a solid titanium billet, then beautifully engraved with two opposing Kinesis UK logos. The easily replaceable and available integrated FSA headset brings together what is a rock-solid steering package.

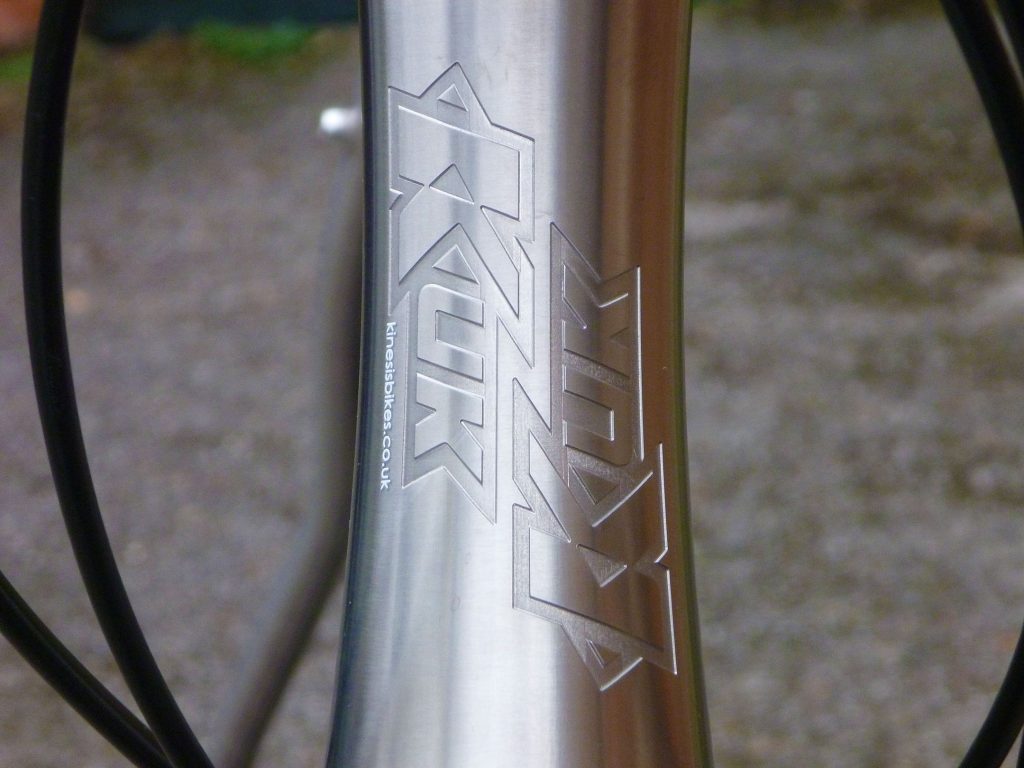

Kinesis GF_Ti Disc - head badge.jpg

This stability inspires all manner of confidence, such that the disc brakes and fat contact patch afforded by the 30mm tyres were necessary complements to keep the bike shiny side up. This is a bike that begs you to dive deep into corners hard under braking, in the knowledge that – unforeseen vehicles notwithstanding – you will exit in one piece with the biggest grin possible plastered across your face.

The proof has to be in the Combe Gibbet pudding. On the 'Britain's 100 Greatest Climbs' tight descent I had previously maxed out at 48mph on the fabulous Merida Ride 5000 Disc on a bone-dry midsummer's afternoon. The GF_Ti Disc gave me the confidence to match that on a misty, leaf-strewn November morning – and I reckon in the dry it would be good for another 3-4mph at least.

While you could argue that terminal velocity is not the best arbiter of performance, as anyone can simply 'not use the brakes', I was – like most people – coming at this descent with the view of wanting to be able to eat/walk/breathe afterwards. Ergo the sum of the frame/fork/wheelset/brakes/tyre gains equals fast, in control, in the damp.

Bringing up the rear

Moving rearwards, while the fork uses external cable routing, the frame's full internal routing is set up for mechanical or Di2 groupsets, using a reversible 'porting system' where you can change the supplied fittings, which include blanking plates for those choosing a 1X shifting system.

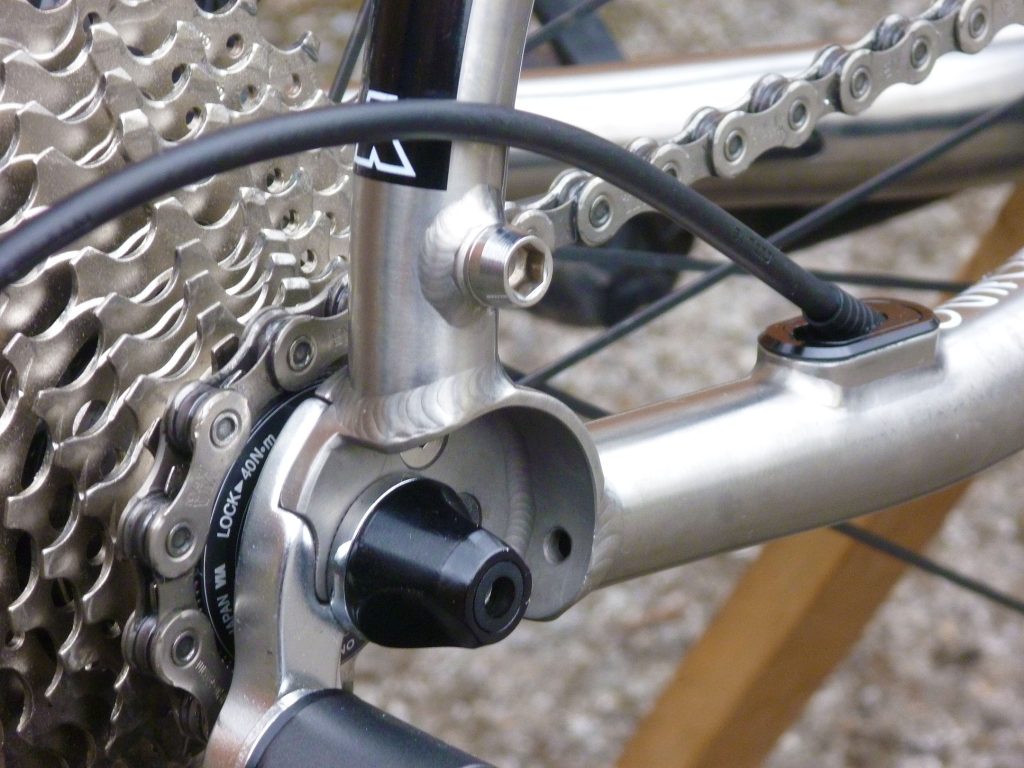

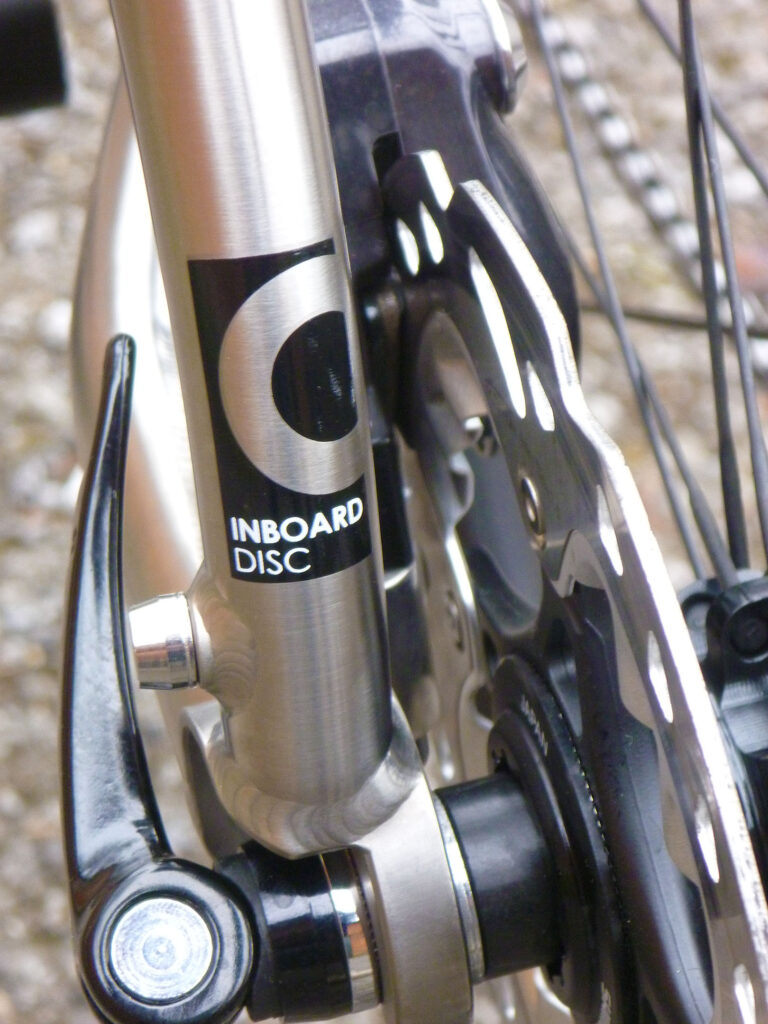

Kinesis GF_Ti Disc - rear dropout.jpg

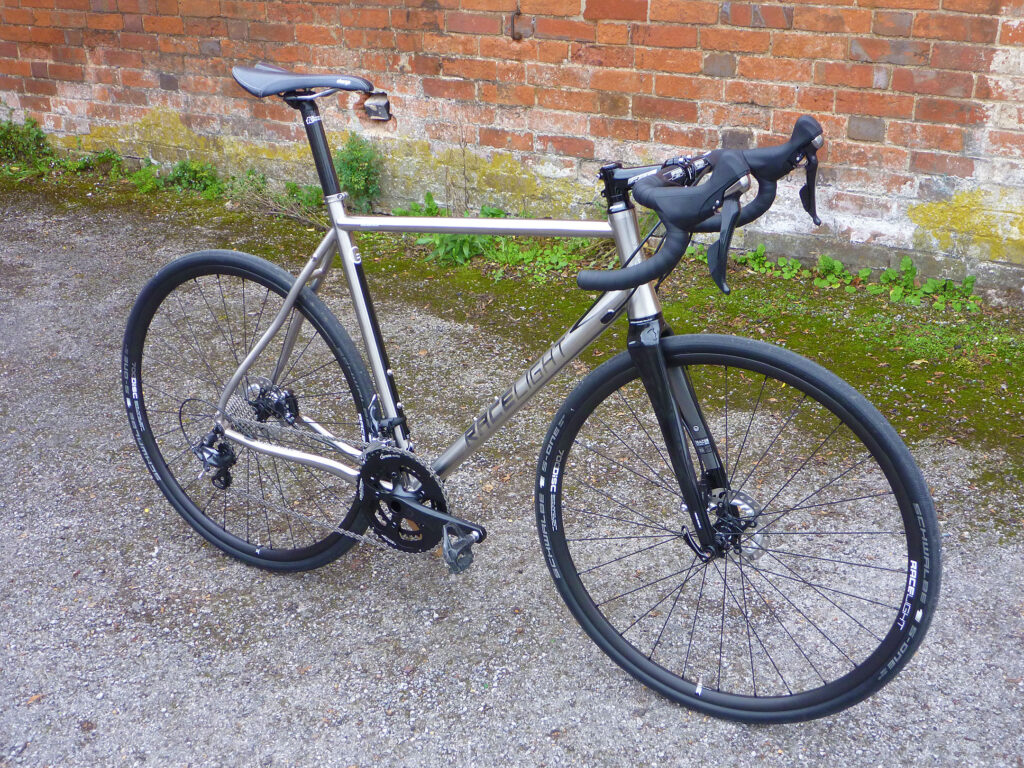

The laser-etched Racelight logo on the down tube is guaranteed to look great for the life of the frame. At the bottom of the bi-directionally-ovalised down tube is a hefty junction with the bottom bracket shell, and a 68mm British-threaded fitting. This frame is built for longevity, ease of servicing and relatively low cost, and Ultegra-spec threaded bottom brackets are frequently available for under £20 and last a year or more of hard abuse.

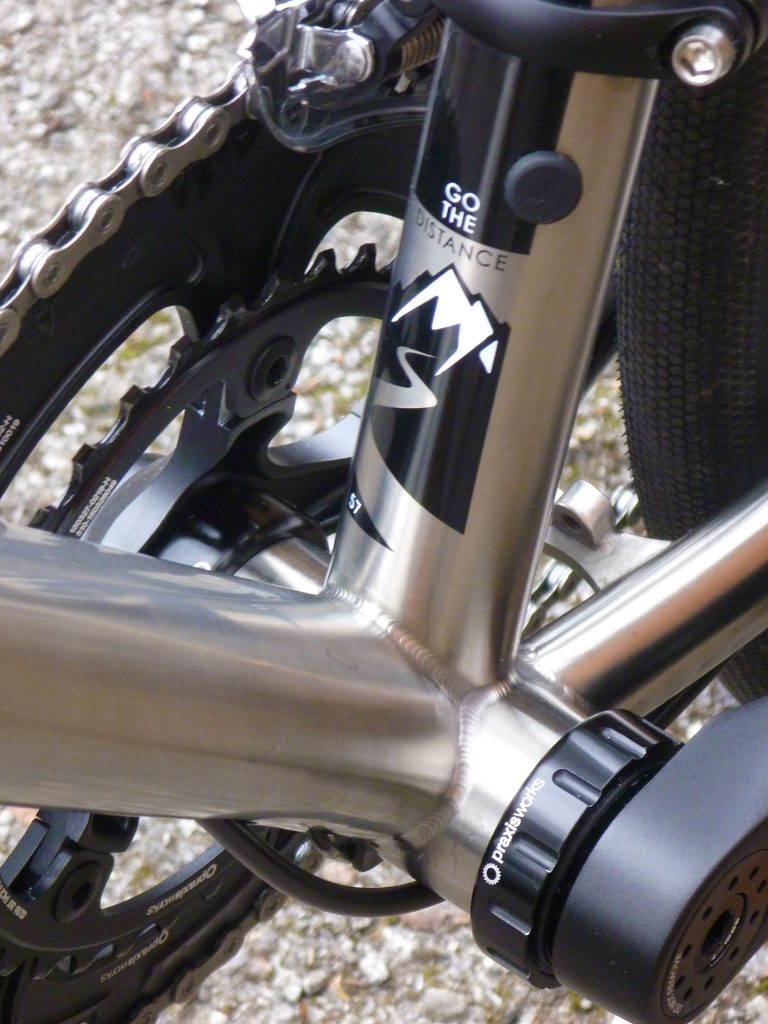

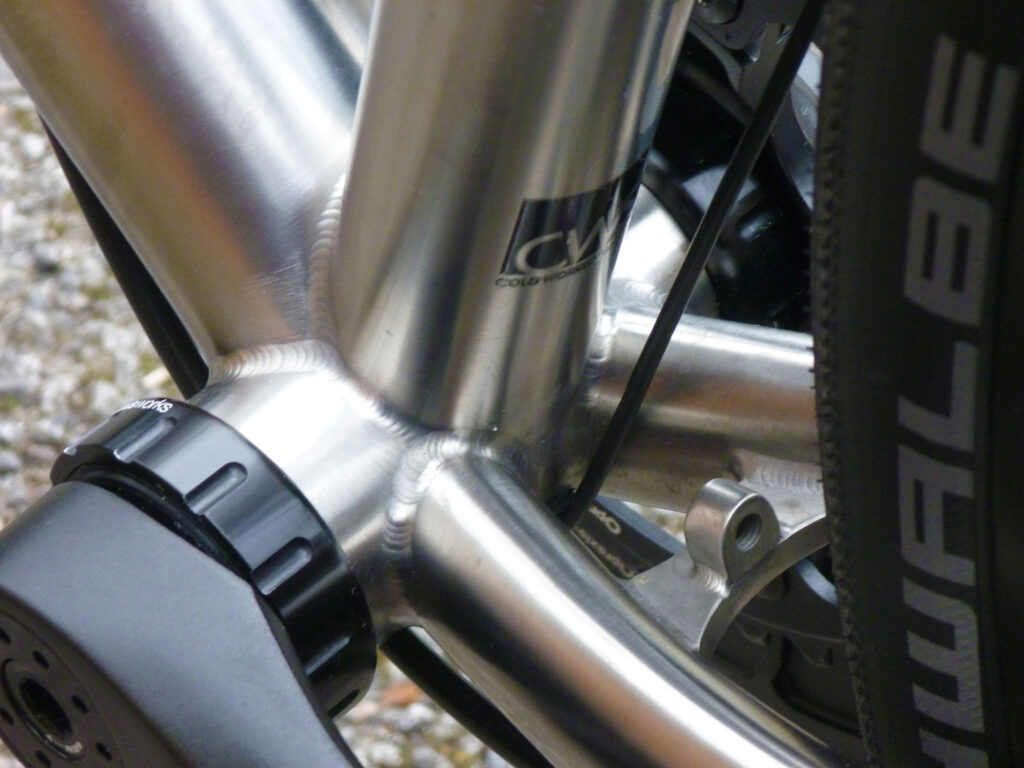

Kinesis GF_Ti Disc - bottom bracket.jpg

The chainstays meet the BB shell somewhat inboard from the edge, with a hefty bridge welded in behind but still affording plenty of clearance and a place to bolt a full-length mudguard to.

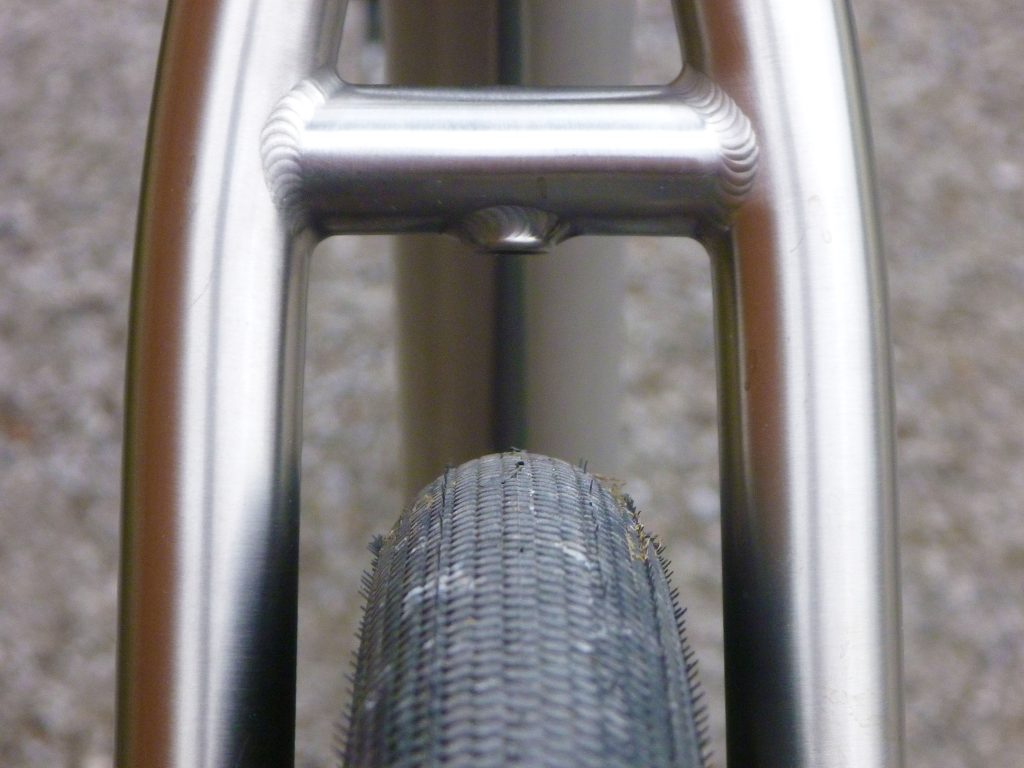

Kinesis GF_Ti Disc - stay clearance.jpg

The 'Anti-Roadshock Tuned Stays' must be the standout design feature of the GF_Ti Disc – it's impossible to view this bike from the rear without admiring the hourglass-esque curvaceousness on offer.

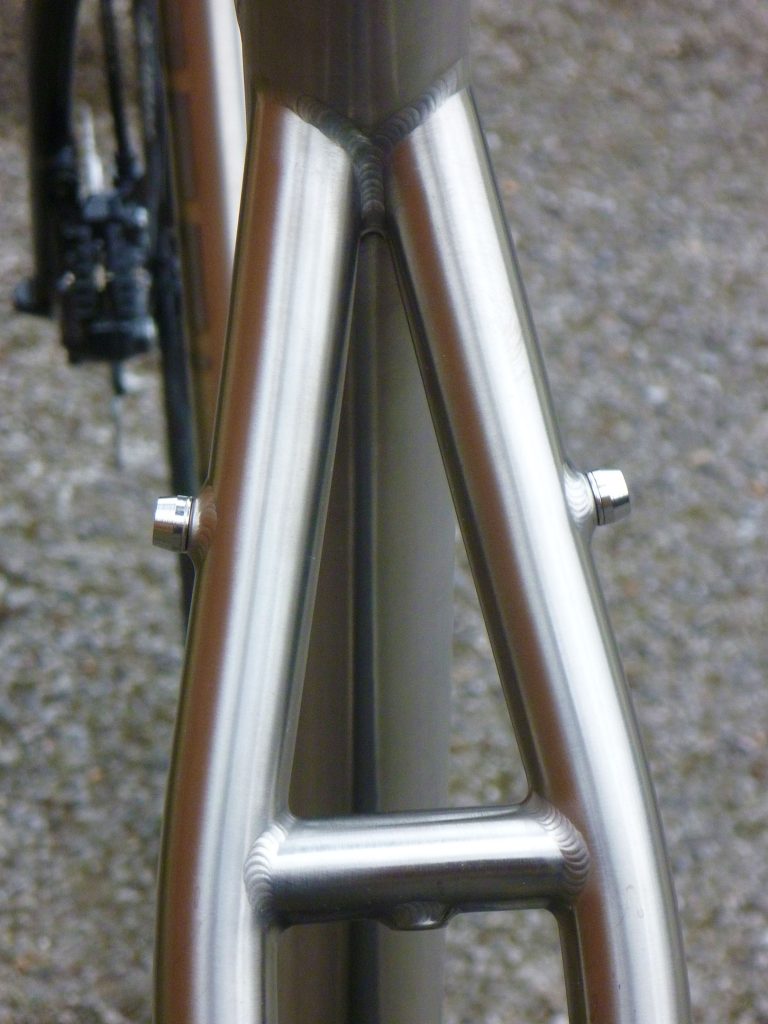

Kinesis GF_Ti Disc - seatstays.jpg

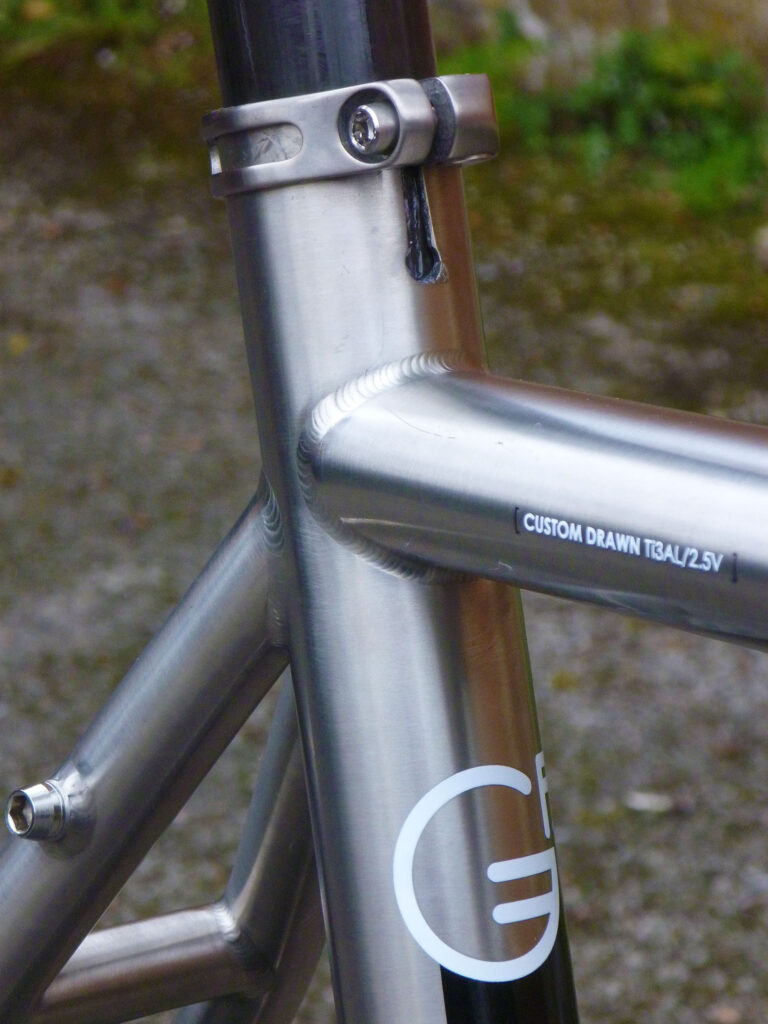

Titanium is famed for being more flexible than aluminium, lighter than steel – but there's got to be design compromise when seeking optimal power transfer alongside comfort and, in this case, load-carrying capacity. The seat tube is much fatter than the current fashion, where shock absorption is delivered partly via 27.2mm diameter or slimmer seat tubes coupled with all manner of post-frame-flex wizardry. The GF_Ti Disc sports a 31.6mm seatpost, the story being that the larger diameter is required to afford the area and weld strength to connect the seatstays while also potentially supporting a fully-loaded rack on the adjacent mounts. Again the spectre of needing N+1 rears its head and is quickly exorcised, this being a bike you can potentially load up without a care, yet ride all day in comfort.

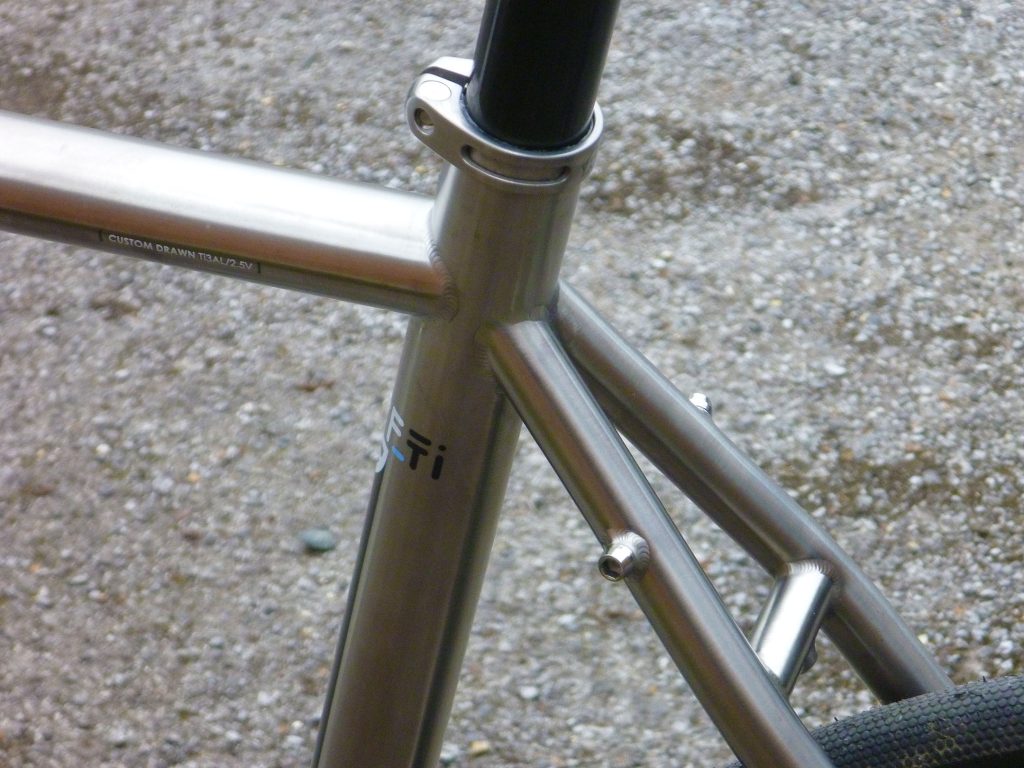

Kinesis GF_Ti Disc - seat tube junction 2.jpg

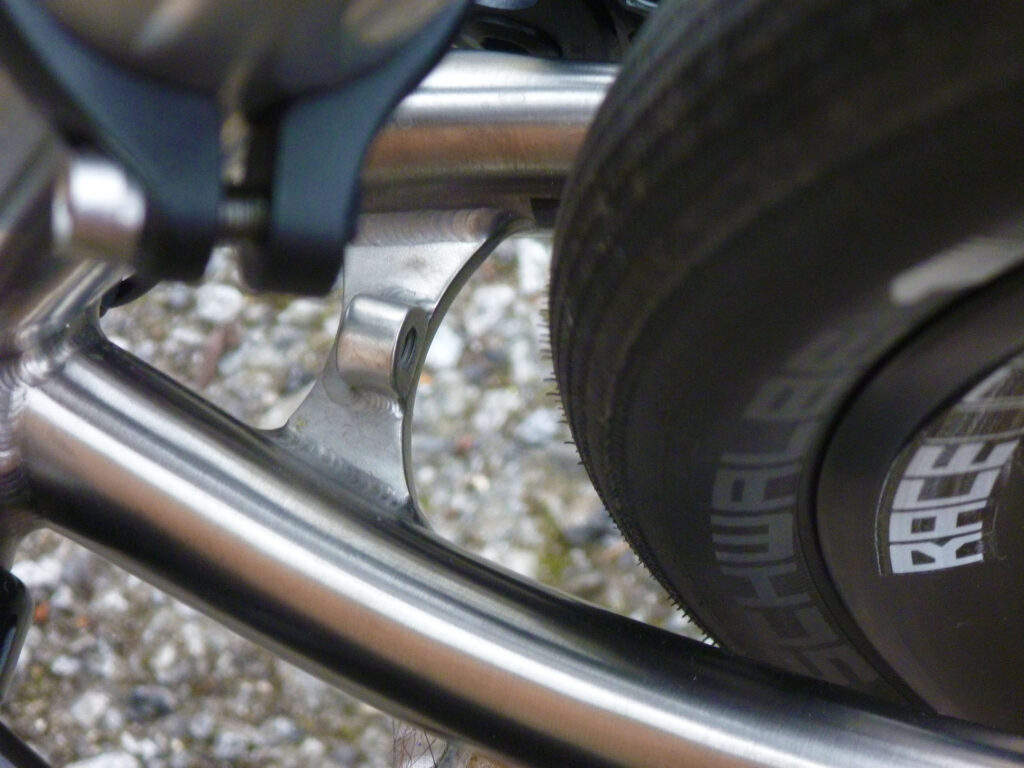

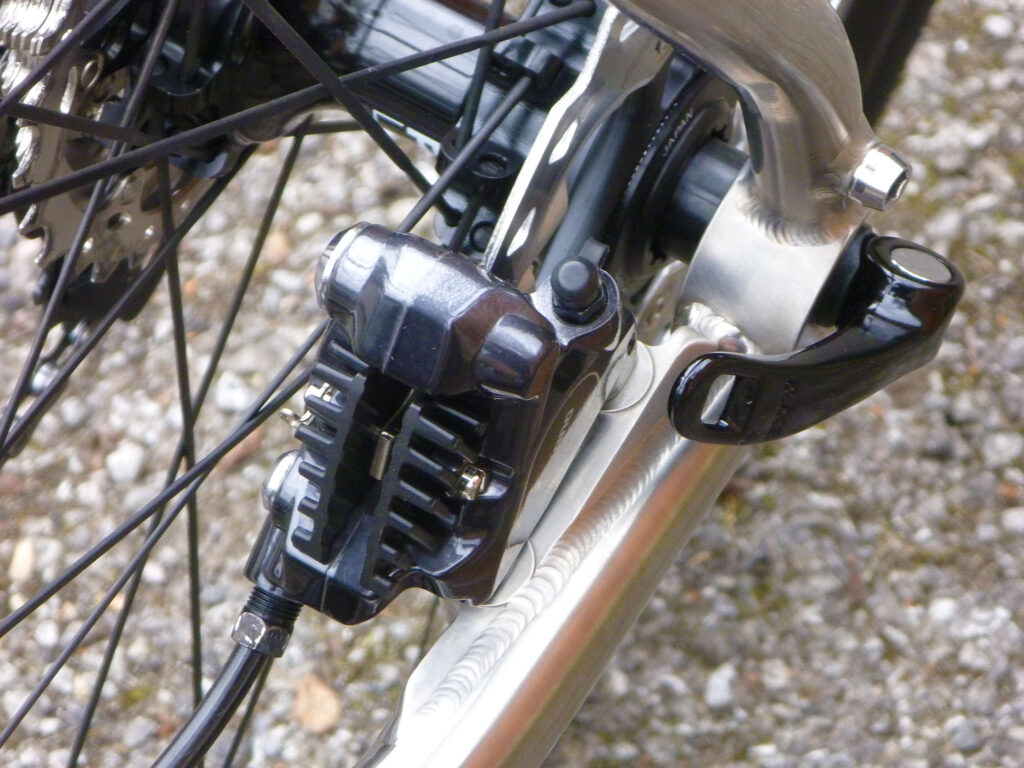

At the bottom of the seatstays the cowled dropout junction offers lots of weld contact area, not least for the inboard flat-mount disc brake bracket – the party piece of this third evolution of the GF_Ti marque. With the chainstays having to spread wide to accommodate the disc hub, keeping the brake calliper as hidden as possible removes the risk of heelstrike. Even with size 45 winter boots on and a reasonably central ball-of-foot/pedal spindle alignment I never felt a single brush of the hardware on either side.

On the inside of the right-hand seatstay there's a lovely little chain pip, welded in place and ready to hang the chain on during any wheel-off antics. What there isn't is a braze-on for the front mech – with a clamp-on mech, the height is infinitely adjustable and if you want to go with a single ring there's no superfluous mounting hardware.

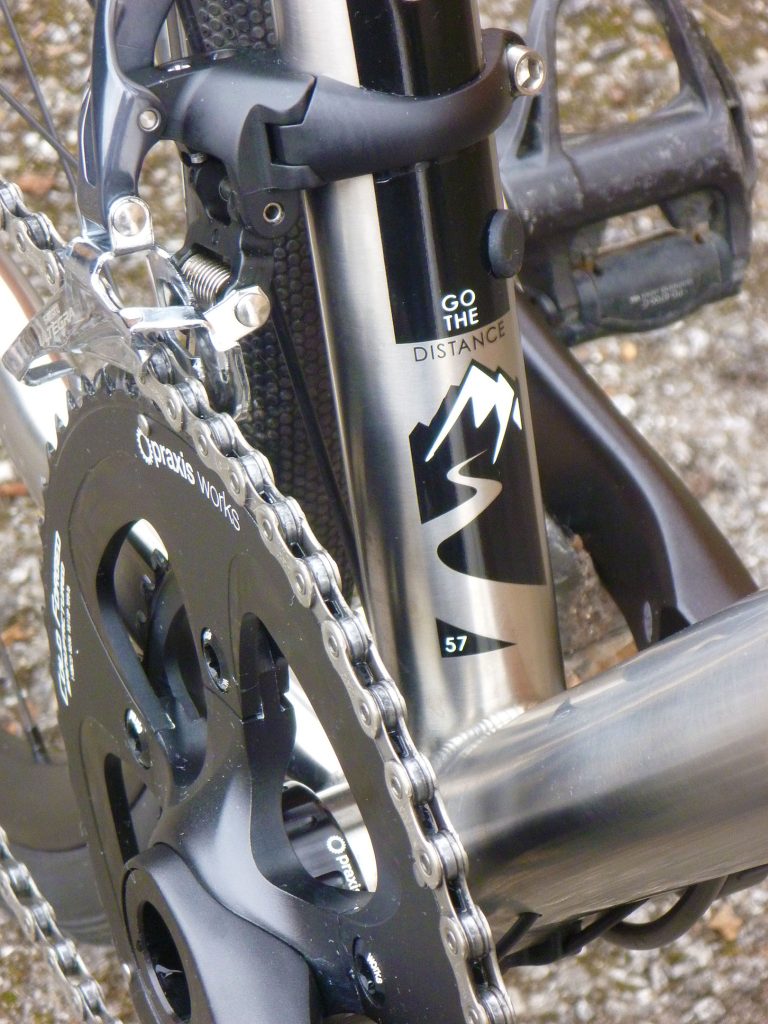

Kinesis GF_Ti Disc - front mech and BB.jpg

In the fast-evolving all-road, all-year, disc-braked sector, Kinesis has gone for traditional 5mm quick-release skewers over thru-axles, citing Shimano's recent E-Thru release as reason to wait and see for a bit longer. Frankly, I never felt the frame or fork were wanting for solidity of hub interface. (As a note, the Kinesis Racelight Disc wheels provided for this review have adaptable hubs, so changing from 5mm to 12 or 15mm thru-axles is a £13 option in the future, should you go with Kinesis wheels for your build.)

Because it's worth it?

It's easy to become inured to the sticker price of review bikes when it's not your own cash, and the model on test would come in at about £3,500 as built. With £1,800 of that the frame and fork, the GF_Ti Disc would obviously be a once-in-a-lifetime purchase for most cyclists, even if they then coat it with used 105, cable disc brakes and hand-me-down wheels. As tested it's a 40th or 50th birthday present to self, an annual bonus instead of replacing the conservatory roof or taking the family to the Maldives.

> See more disc brake-equipped options for 2016 here

A large part of the value-for-money equation on a bike that should last you a lifetime is, 'will I be able to get a repair done, warranty claim honoured or replacement sourced in one, two, three or indeed ten, fifteen, twenty years?'

Kinesis offers a three-year warranty through its dealer network, and an out-of-warranty crash replacement service by negotiation with the Kinesis customer service team, which could go a long way to making an insurance payout-less-excess a lot more palatable.

Last rides

The final ride before handing the GF_Ti Disc back was with Kinesis brand manager and cyclo-cross semi-pro Bruce Dalton. Twice on the narrow Hampshire/Berkshire lanes I had to dive into the gutter to avoid startled supermarket vans and four-wheel-drives who clearly didn't expect people to be out on bikes in the morass of sodden leaves and mud coating the rural roads this time of year.

The handling competency afforded by the 30mm tyres, disc brakes and sharp steering meant events that on plenty of other bikes would have likely ended in a hedge or underneath a Mercedes Sprinter were no more than a blip in an otherwise fast and happy ride.

Kinesis GF_Ti Disc - riding 2.jpg

Is the Kinesis GF_Ti Disc the best frameset on the market? Obviously I've not ridden them all – no one has. But in my experience over the last six weeks, and as I said at the start of this review, if you want fast, comfortable, light, tough and good looking you can indeed pick all five. If you're willing and able to part with £1,800 for that package, you will not be disappointed.

Verdict

If you want fast, comfortable, light, tough and good looking you can indeed pick all five. You will not be disappointed

If you're thinking of buying this product using a cashback deal why not use the road.cc Top Cashback page and get some top cashback while helping to support your favourite independent cycling website

road.cc test report

Make and model: Kinesis GF_Ti Disc frameset

Size tested: 57cm

About the bike

State the frame and fork material and method of construction. List the components used to build up the bike.

AEROgrade brushed Ti3AL/2.5V frame.

Fork: 'TRACER DISC 1.5in Full carbon fork with Shimano 'Flat Mount' and mudguard eyelets.

Built with Shimano Ultegra and RS685 hydro disc brakes, Praxis Works / Turn crankset, Kinesis Racelight Disc wheelset.

Tell us what the bike is for, and who it's aimed at. What do the manufacturers say about it? How does that compare to your own feelings about the bike?

This is a bike for someone who wants to ride far, fast, comfortably. The price says it's a major milestone bike, to be purchased and built up with care and attention.

Frame and fork

Overall rating for frame and fork

10/10

Tell us about the build quality and finish of the frame and fork?

The build quality cannot be faulted. Beautiful welds, seamless carbon layering, gorgeous lacquering.

Tell us about the materials used in the frame and fork?

AEROgrade brushed Ti3AL/2.5V frame.

Fork: 'TRACER DISC 1.5in Full carbon fork

Tell us about the geometry of the frame and fork?

It's designed somewhere between racy and audax-all-day. The measurements change over the frame sizes to maintain a geometry that is fast, yet stable and comfortable.

How was the bike in terms of height and reach? How did it compare to other bikes of the same stated size?

I found it about right for someone of my 6ft stature, with longish arms. I didn't want for a lower posture.

Riding the bike

Was the bike comfortable to ride? Tell us how you felt about the ride quality.

Fabulously comfortable. Cannot fault it. Forgiving, relaxing, fast.

Did the bike feel stiff in the right places? Did any part of the bike feel too stiff or too flexible?

Yes - the bike felt spot on, throughout. No issues, anywhere.

How did the bike transfer power? Did it feel efficient?

Very. Zero flex, every crank turn rewarded.

Was there any toe-clip overlap with the front wheel? If so, was it a problem?

Not noticeably, in my S45 booties with a central position.

How would you describe the steering? Was it lively, neutral or unresponsive? Neutral-to-lively. Interesting, without being skittish.

Tell us some more about the handling. How did the bike feel overall? Did it do particular things well or badly?

Confidence-inspiring. Relaxed, until you want to get a shift on, then it's responsive and fast.

Which components had the most effect (good or bad) on the bike's comfort? would you recommend any changes?

Fat tyres are the future, and few frames have the clearance this does.

Which components had the most effect (good or bad) on the bike's stiffness? would you recommend any changes?

As a frameset, there was no detectable flex in the power transfer chain, so there's nowt to improve.

Which components had the most effect (good or bad) on the bike's efficiency? would you recommend any changes?

As a frameset, it's Di2 ready, internally cabled and as aero as I guess a 'useful bike' can be.

Rate the bike for efficiency of power transfer:

10/10

Instant, amazing bearing in mind the fat tyres.

Rate the bike for acceleration:

9/10

It's not the lightest package overall, but for a 'useful' disc brake bike, getting up to speed happened pretty sharpish.

Rate the bike for sprinting:

10/10

Loved it. So stiff up front and down below, throwing the bike about was so much fun.

Rate the bike for high speed stability:

10/10

The longer wheelbase makes bombing runs so enjoyable.

Rate the bike for cruising speed stability:

10/10

Again, long wheelbase and medium fork angles add up to a stable platform for hands-on or hands-free cruising.

Rate the bike for low speed stability:

10/10

Perfectly able to turn in close to its own length.

Rate the bike for flat cornering:

10/10

Can't fault it. On an effective crit course around Rome it was up there with much 'faster' bikes.

Rate the bike for cornering on descents:

10/10

This bike will get you into trouble. And get you back out again.

Rate the bike for climbing:

10/10

The stiffness and heel clearance meant climbing was as enjoyable as it can be.

The drivetrain

Rate the drivetrain for performance:

10/10

Ultegra + Praxis = faultless.

Wheels and tyres

Controls

Your summary

Did you enjoy riding the bike? Hell_Yes.

Would you consider buying the bike? Yes. Just don't tell my wife.

Would you recommend the bike to a friend? Yes, if they could afford it. Otherwise no, as they'll just be sad knowing what they could have had.

Rate the bike overall for performance:

10/10
Rate the bike overall for value:

8/10

Use this box to explain your score

At £1800 'value' has to be nuanced. If you are in this sort of market, what does this deliver over the competition? English threaded BB, flat mount discs, rack mounts and clearance for silly-fat tyres with mudguards. I don't think anyone else offers this combo, and if they did it would be at about the same price. Then there's the faultless ride quality and knowledge of strong warranty backup. This all adds up to a very good value proposition. If you don't have £1800 to splurge then it's a moot point. Whilst other sites throw about 5-star reviews with abandon, here at road.cc Towers there's a process which involves a lot of consternation, teeth-sucking and navel gazing when anyone suggests adding that elusive half-a-star to round out a perfect score. To earn five stars a bike must be outstanding in every way. Mechanically, visually, and in almost every other way the GF_Ti Disc is just that. Price-wise it's on-par with the competition, ergo, the price isn't 'outstanding', it pretty much matches the market. Had it been, say, £1500, that would have been 'outstanding', and the 5/5 would have been justified. None of this makes it a lesser bike to ride, of course, and that's the long game.

Overall I cannot fault the package - this is a genuine bike-for-life contender.

Overall rating: 9/10

About the tester

Age: 42  Height: 183cm  Weight: 72kg

I usually ride: Charge Juicer  My best bike is:

I've been riding for: Over 20 years  I ride: A few times a week  I would class myself as: Expert

I regularly do the following types of riding: club rides, general fitness riding, fixed/singlespeed, mountain biking, and Dutch bike pootling

Living in the Highlands, Mike is constantly finding innovative and usually cold/wet ways to accelerate the degradation of cycling kit. At his happiest in a warm workshop holding an anodised tool of high repute, Mike's been taking bikes apart and (mostly) putting them back together for forty years. With a day job in global IT (he's not completely sure what that means either) and having run a boutique cycle service business on the side for a decade, bikes are his escape into the practical and life-changing for his customers.

Add new comment

47 comments

Avatar
james9772 | 7 years ago
1 like

Bought, built, ridden, smitten. It's sublime. Road totally smoothed out and instantly responsive. Push and it leaps forward, point and it goes. The wife has gone mental on what I've spent but she'll get over that, the feeling I get from the bike will remain. DIY build with Ultegra, Mavic Ksyriums, USE post/bar/stem (ti/carbon/alloy).



Avatar
richmouland | 7 years ago
0 likes

I have just bought a gf2 to build up. For those who were interested, the frame, fork and headset weigh 2300g.

Avatar
sprite0 | 7 years ago
0 likes

Just in the process of building one of these up.

Frame only weight for a 60cm is 1.85kg.



Avatar
notwelshyet | 8 years ago
0 likes

Not sure this is a N+1 killer, but i am super keen to buy one, seems to fit the type of riding i do - and will replace my trusty and adored enigma winter bike. however, can anyone give me an idea of the bike sizes - i'm 5'10" and ride a 56cm top tube enigma, and certainly don't want to move to a shorter toptube, i like a bit of stretch on the bike - however the geometry of the GF and the enigma seem to differ quite a bit re: reach - the GF is longer (although stack height is within a couple of mm) and i seem to be near the top of the recommended height range for the 55.5cm and lower down the range for the 57cm.

thanks for any advice

Avatar
FerrisBFW | 8 years ago
0 likes

an my new one, picked up Saturday hoping to test tomorrow  1

Avatar
wingmanrob | 8 years ago
2 likes

Well I've got my one, all built up now, and I couldn't be happier  1

Avatar
. . replied to wingmanrob | 8 years ago
0 likes
wingmanrob wrote:

Well I've got my one, all built up now, and I couldn't be happier  1

Very nice (not sure about that bar tape though).   Can I ask the spec?

Avatar
dickie | 8 years ago
0 likes

I'd like to know the weight of the frame too.

Come Easter I'll be looking to replace my Genesis Equilibrium with either a Mason Resolution or the Kinesis GF_Ti Disc.

Mason Resolution: Frame 1985g + Fork 365g = 2350g @ £1459

Kinesis GF_Ti Disc: Frame ????g + Fork 450g = ????g @ £1620 (Winstanleys)

I've emailed Kinesis re frame weight but still favour the Mason Resolution unless the GF_Ti is significantly lighter.

Avatar
richcc replied to dickie | 8 years ago
0 likes
dickie wrote:

I'd like to know the weight of the frame too.

Come Easter I'll be looking to replace my Genesis Equilibrium with either a Mason Resolution or the Kinesis GF_Ti Disc.

Mason Resolution: Frame 1985g + Fork 365g = 2350g @ £1459

Kinesis GF_Ti Disc: Frame ????g + Fork 450g = ????g @ £1620 (Winstanleys)

I've emailed Kinesis re frame weight but still favour the Mason Resolution unless the GF_Ti is significantly lighter.



A tough decision that Dickie and one that I'd like to be in the position of making - I think the Resolution is a bit more boutiquey and the Kinesis is a bit more titaniumy.  Both get great reviews and I'd be proud to own either.  Let us know what you plump for...

Avatar
dickie replied to richcc | 7 years ago
0 likes

I went for the Mason Resolution in the end. They got it to me on the Thursday before Good Friday so I had four days build it.

With just the bar tape left to fit on Easter Monday I slipped on the stairs, fell onto the newel post, on my left ribs. Dr thinks I may have broken a rib or too.

Bike remains unridden.

Unbelievable!!!!!!

richcc wrote:
dickie wrote:

I'd like to know the weight of the frame too.

Come Easter I'll be looking to replace my Genesis Equilibrium with either a Mason Resolution or the Kinesis GF_Ti Disc.

Mason Resolution: Frame 1985g + Fork 365g = 2350g @ £1459

Kinesis GF_Ti Disc: Frame ????g + Fork 450g = ????g @ £1620 (Winstanleys)

I've emailed Kinesis re frame weight but still favour the Mason Resolution unless the GF_Ti is significantly lighter.



A tough decision that Dickie and one that I'd like to be in the position of making - I think the Resolution is a bit more boutiquey and the Kinesis is a bit more titaniumy.  Both get great reviews and I'd be proud to own either.  Let us know what you plump for...

Avatar
macrophotofly replied to dickie | 8 years ago
0 likes
dickie wrote:

I'd like to know the weight of the frame too.

Come Easter I'll be looking to replace my Genesis Equilibrium with either a Mason Resolution or the Kinesis GF_Ti Disc.

Mason Resolution: Frame 1985g + Fork 365g = 2350g @ £1459

Kinesis GF_Ti Disc: Frame ????g + Fork 450g = ????g @ £1620 (Winstanleys)

I've emailed Kinesis re frame weight but still favour the Mason Resolution unless the GF_Ti is significantly lighter.



Would really like to know what this frame weighs.



Very happy expecting it to 500g more than a carbon bike but want to make sure its less than a steel bike.

If anyone can find this out, I'd be very grateful!

Avatar
Foghat replied to macrophotofly | 7 years ago
0 likes
macrophotofly wrote:

Would really like to know what this frame weighs.

Very happy expecting it to 500g more than a carbon bike but want to make sure its less than a steel bike.

If anyone can find this out, I'd be very grateful!

The 55.5cm frame-only weight is surprisingly heavy, at 1,770g (incl. seat clamp, but excl. fork, headset etc).

Fork weight, with uncut steerer, is 437g.

Weight of headset and steerer sleeve/expander is 135g.



So it makes the 8.1kg all-in weight quoted in this review for the 57cm-framed bike look very dubious, unless the test bike's frame was of a different design/construction to the current production model.

Avatar
richmouland replied to dickie | 7 years ago
0 likes
dickie wrote:

I'd like to know the weight of the frame too.

Come Easter I'll be looking to replace my Genesis Equilibrium with either a Mason Resolution or the Kinesis GF_Ti Disc.

Mason Resolution: Frame 1985g + Fork 365g = 2350g @ £1459

Kinesis GF_Ti Disc: Frame ????g + Fork 450g = ????g @ £1620 (Winstanleys)

I've emailed Kinesis re frame weight but still favour the Mason Resolution unless the GF_Ti is significantly lighter.

I've bought one and weighed it with fork and headset installed. 2300g

Avatar
GerardR | 8 years ago
0 likes

Isn't it good that we can argue over important things in life, like bikes?  It's one of the things I enjoy about this site.  Whatever you ride, watch out for idiots out there!

Avatar
cyclisto | 8 years ago
0 likes

We all see Ti frames come up very oftenly but no Ti forks. The point of Ti is that it may not be that good as CF due to lower strength to weight ratio and mainly it's lack of formability that CF excels at, but it will last longer, it will not be affected by sunlight, light falls, or an ambitious guy with an allen key. The thing I don't get is that the fork is the component that should it fail, you will receive an instant face plastic surgery, and yet it is acceptable to be sold with a Ti frames that screams "I am invincible"! It seems to me even more absurd when it comes to expensive steel frame/CF fork combinations...



I love the idea of having a bike from a material that will be light, won't rust, won't fatigue, look supercool and will not fear scratches but I want it at the full bike! As we speak there are only a handful of decent looking unicrown forks (Kocmo, J&L any other?) and maybe none with an elegant tapered steerer tube.



I advice all reasonably priced Ti frames manufacturers (ON-ONE can you hear?) that they should make some decent Ti forks. A full Ti bike would sell like hot cake.

Avatar
Ad Hynkel | 8 years ago
0 likes

Oh dear, this is degenerating. A great review and a cracking looking bike. I come from a more traditional touring/utility bike back ground and this looks like it could be a handful loaded. This review has been billed as a possible N+1 Killer but I don't see photos or description of what it was like loaded up. Maybe I missed that? Also, how does it fare in the mud with proper knobblies on? I don't believe there is a real N+1 killer, but agree this looks reasonably close. I guess it depends on how wide your cycling roles net is cast.

Avatar
700c replied to Ad Hynkel | 8 years ago
0 likes
Ad Hynkel wrote:

I come from a more traditional touring/utility bike back ground and this looks like it could be a handful loaded. This review has been billed as a possible N+1 Killer but I don't see photos or description of what it was like loaded up.

Agreed, it'll do a lot of things well but not convinved it's designed as a tourer or would take those kinds of loads. Yes wider tyres and disc brakes give versitility for winter but it's still at heart a stiff, light, efficient performance machine.  A 4-season-sportive-cum-race-bike, perhaps?

Avatar
whars1 replied to 700c | 8 years ago
0 likes
700c wrote:
Ad Hynkel wrote:

I come from a more traditional touring/utility bike back ground and this looks like it could be a handful loaded. This review has been billed as a possible N+1 Killer but I don't see photos or description of what it was like loaded up.

Agreed, it'll do a lot of things well but not convinved it's designed as a tourer or would take those kinds of loads. Yes wider tyres and disc brakes give versitility for winter but it's still at heart a stiff, light, efficient performance machine.  A 4-season-sportive-cum-race-bike, perhaps?

I've the non-disc version and do use daily with rack and panier - it works with a c. 10kg load but definitely negatively impacts the handling and far less stable than previous bikes.

But as someone with room for only one bike still works great on the daily commute whilst also being ready for longer quicker rides - I'll take the compromise, but then not trying to tour.

Avatar
124g | 8 years ago
2 likes

Well I'm with GeradR on this having just bought an on one pick and flick titanium, total cost for the bike £1400 not jus the frame everything I note total cost for this bad boy is £3500 so where Kiwi gets his £800 difference I have no idea as thats £2100 in my math.



I appreciate the Kinesis is a wonderful bike and the on one doesn't have any rack or mudguard mounts but so what, I just used this Zefal Swan Road Rear Mudguard. Ive used it on a few routes locally and the difference between it and my old Boardman CX is a revelation. It climbs like a billy goat and is so quick it feels like cheating. The riding has been off road and on road so it's had a good outing to gauge how it copes.



I appreciate there are some out there who will dismiss Planet X as not being quite there, trust me I bloody love this bike and when you consider what I paid I could have bought two and still had change of £700 over the kinesis as reviewed. To me thats a complete no brainer, the oney saved will pay for trips away on this bad boy.

Avatar
KiwiMike replied to 124g | 8 years ago
0 likes
124g wrote:

Well I'm with GeradR on this having just bought an on one pick and flick titanium, total cost for the bike £1400 not jus the frame everything I note total cost for this bad boy is £3500 so where Kiwi gets his £800 difference I have no idea as thats £2100 in my math.

RRP for the GF_Ti Disc frameset is £1800. RRP for the Pickenflick frameset is £1000.

£1800-£1000 = £800. What you decide to glue to the frame is up to you, in this case it was nice stuff.



124g wrote:

I appreciate the Kinesis is a wonderful bike and the on one doesn't have any rack or mudguard mounts but so what, I just used this Zefal Swan Road Rear Mudguard. Ive used it on a few routes locally and the difference between it and my old Boardman CX is a revelation. It climbs like a billy goat and is so quick it feels like cheating. The riding has been off road and on road so it's had a good outing to gauge how it copes.

So what? I'd say a bike contenting to be N+1 killer (as is the premise here) bloody well does need mudguard and rack mounts. Plastic floppy afterthoughts that are likely to get broken/nicked in daily use are of no use.



124g wrote:

I appreciate there are some out there who will dismiss Planet X as not being quite there, trust me I bloody love this bike and when you consider what I paid I could have bought two and still had change of £700 over the kinesis as reviewed. To me thats a complete no brainer, the oney saved will pay for trips away on this bad boy.

I have no beef with Planet X - more power to them. But in this comparison, no, you couldn't 'buy two and have change' - you'd have £800 spare from buying *one*, but also have to forever after live with flappy fragile afterthoughts for mudguards and no ability to carry more than a decent jacket and sandwich.

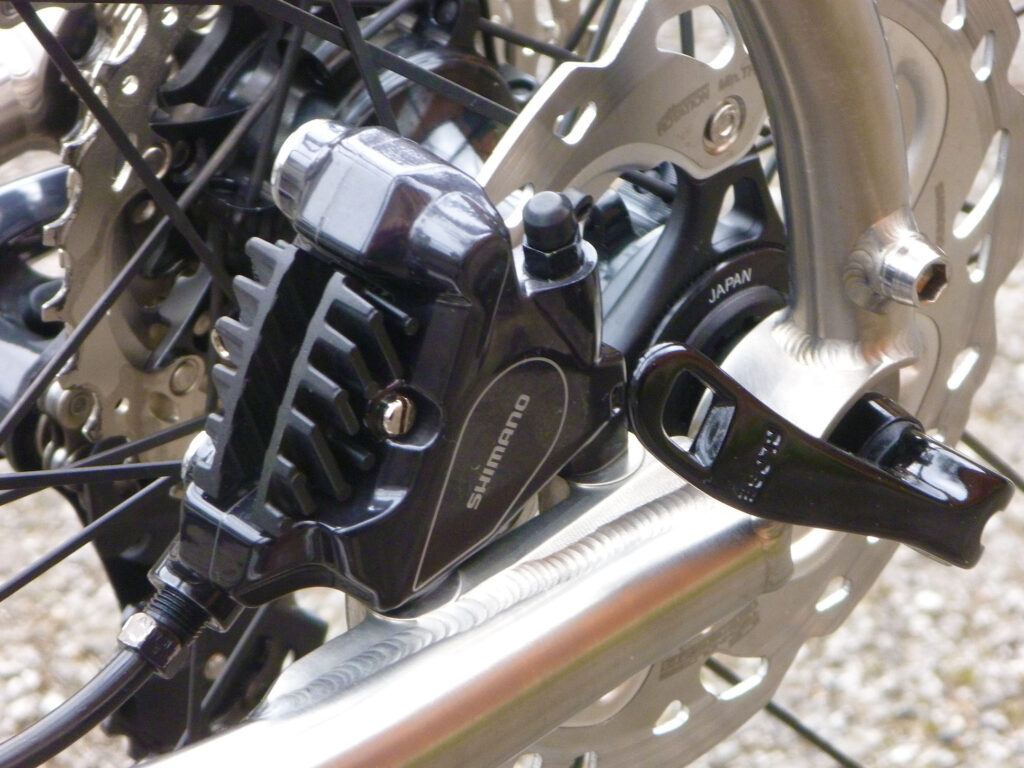

p.s. 2013 called - it wants its seatstay-mounted calipers back  1

Avatar
124g replied to KiwiMike | 8 years ago
1 like
KiwiMike wrote:
124g wrote:

Well I'm with GeradR on this having just bought an on one pick and flick titanium, total cost for the bike £1400 not jus the frame everything I note total cost for this bad boy is £3500 so where Kiwi gets his £800 difference I have no idea as thats £2100 in my math.

RRP for the GF_Ti Disc frameset is £1800. RRP for the Pickenflick frameset is £1000.

£1800-£1000 = £800. What you decide to glue to the frame is up to you, in this case it was nice stuff.



124g wrote:

I appreciate the Kinesis is a wonderful bike and the on one doesn't have any rack or mudguard mounts but so what, I just used this Zefal Swan Road Rear Mudguard. Ive used it on a few routes locally and the difference between it and my old Boardman CX is a revelation. It climbs like a billy goat and is so quick it feels like cheating. The riding has been off road and on road so it's had a good outing to gauge how it copes.

So what? I'd say a bike contenting to be N+1 killer (as is the premise here) bloody well does need mudguard and rack mounts. Plastic floppy afterthoughts that are likely to get broken/nicked in daily use are of no use.



124g wrote:

I appreciate there are some out there who will dismiss Planet X as not being quite there, trust me I bloody love this bike and when you consider what I paid I could have bought two and still had change of £700 over the kinesis as reviewed. To me thats a complete no brainer, the oney saved will pay for trips away on this bad boy.

I have no beef with Planet X - more power to them. But in this comparison, no, you couldn't 'buy two and have change' - you'd have £800 spare from buying *one*, but also have to forever after live with flappy fragile afterthoughts for mudguards and no ability to carry more than a decent jacket and sandwich.



p.s. 2013 called - it wants its seatstay-mounted calipers back  1



Where do you get the figures you are quoting did you not read the total cost of this bike it states quite clearly as tested £3500 my complete build set me back £1400 I'm comparing what is on this test, Im guessing you've never used those rear mudguards ? I have and they have surived all I have thrown at them on my previous bike which was,  C2C off road route SDW twice and various trips to the peaks and wolds. As for having them nicked never had that issue either where do you live and leave your bike Moss side?



The other point raised is a little off the mark, I have a handlebar bag Carradice fitted which holds far more than you allude to, added to which should I need it the rear Super C SQR Tour, which again holds ample amount of kit. Check out the guys who bike pack you can carry kit needed other than on a conventional rack.



At the end of the day you pays your money and takes your choice and I'm more than happy with what i chose.

Avatar
KiwiMike replied to 124g | 8 years ago
1 like
124g wrote:



Where do you get the figures you are quoting did you not read the total cost of this bike it states quite clearly as tested £3500 my complete build set me back £1400 I'm comparing what is on this test, Im guessing you've never used those rear mudguards ? I have and they have surived all I have thrown at them on my previous bike which was,  C2C off road route SDW twice and various trips to the peaks and wolds. As for having them nicked never had that issue either where do you live and leave your bike Moss side?

Dude, I'm quoting each manufacturer's RRP for the FRAMESET. You could put exactly the same kit on this as on your On-One. The fact it was reviewed with hydro Ultegra at £3500 all-up is totally irrelevant. I could put Di2 D-A on a Pickenflick and claim the Kinesis is a much cheaper bike.



124g wrote:

The other point raised is a little off the mark, I have a handlebar bag Carradice fitted which holds far more than you allude to, added to which should I need it the rear Super C SQR Tour, which again holds ample amount of kit. Check out the guys who bike pack you can carry kit needed other than on a conventional rack.

Super. Some people like massive bar bags, others don't. The Kinesis gives you the option. If you want to do proper touring, the Pickenflick wouldn't be a great option. I acknowledge that if you can fit everything you want into a barbag and post-mount  bag then that's wonderful. Good luck getting a tent/sleeping bag in there though.

The Pickenflick is a cheaper bike, with commensurately fewer features. That's OK, and if you're happy with that, that's OK too.

Avatar
StuAff | 8 years ago
0 likes

Not long got a Litespeed T5 Gravel- equivalent to the Tripster ATR rather than the GF Ti Disc (there's also a T5 Disc, which is more like this frame though somewhat cheaper at the moment). Fantastic bike, and £1500 for a frameset at the moment. Not finding much difference in ride and handling to my carbon Viner, an excellent benchmark to be fair,  but the tyres are 35mm wired, I have a feeling more supple & possibly tubeless tyres will really show what it can do. Even now, it's very, very impressive. Smooth, stiff, and a very easy bike to do a century on. And (unlike the Viner) it'll take fat tyres, mudguards (creative solutions needed on the fork as no eyelets), and a rack. Great to see a number of excellent titanium bikes at this price range.





Avatar
robthehungrymonkey | 8 years ago
0 likes

I've recently built up a Ti winter/rain/town/everything else bike, pretty impressed with it as a do-it-all material. My bike is surprisingly light (Van Nic Yukon from ebay, built up with 105 and hunt dura wheels), and is nice to ride. The bonus with Ti is you don't have to worry so much about scratchign it when locking it up and rust etc. It seams to be much easier to keep clean.

My Trek Madone is still my bike of choice when it's sunny though, the Ti bike doesn't have the racy geometry and and just isn't as stiff. Going up and downhill it is just more fun. On my 50 minute "lunch" route, i'm about 2mph faster on it too (not that it matters, just interesting).

I'd love to try this kinesis though, for one bike to do it all, i'd definitley pick titanium.

Avatar
macrophotofly | 8 years ago
0 likes

Yes it is the new Lynskey model with the riveted badge. I was staggered when I found out it was 1900g. The person weighing it for me assured me it was just the raw disc frame in medium with nothing else added. I was prepared for 500g over a carbon frame but a full kg seemed wrong.

Hoping this Genesis is more like 1500g and if so I will be queueing up to buy it

I really wish titanium frame manufacturers would publish weights. It annoys me so much that a manufacturer will publish the weight of their carbon frame and their steel frame, but not the titanium. I know it will be heavier than carbon, I just want to make sure it is lighter than steel, otherwise I may as well get a steel frame. Helping a customer to be informed allows them to make the right decision !

Avatar
couldgetacarforthat | 8 years ago
0 likes

Probably the one bike that has caught my attention recently. The review just makes me want to buy one immediately.

I'm still confused by a comment from a friend who described Titanium as a problematic material that is subject to micro cracks. Is this true?



Avatar
BikeJon replied to couldgetacarforthat | 8 years ago
0 likes
couldgetacarforthat wrote:

Probably the one bike that has caught my attention recently. The review just makes me want to buy one immediately.

I'm still confused by a comment from a friend who described Titanium as a problematic material that is subject to micro cracks. Is this true?



Only if it were poorly manufactured. It isn't the easiest material to weld as the presence of any oxygen during a weld can give rise to cracking later. But there are a couple of techniques that avoid this issue. But this is one of the reasons Ti frames are quite expensive. But I suppose you could have manufacturing issues with any material so i don't think this is a specific reason not to get Ti (I'd also expect cracking issues to present within a warranty period).

I actually had such a crack in my original frame, which is how I ended up with two. But I had the crack repaired (£50). It's fairly unsightly but I got to keep the frame for no extra cost and it's fine for my winter bike. Happily my second frame is perfect.

Avatar
CXR94Di2 | 8 years ago
0 likes

Ti frames generally weigh a few hundred grams more than an average carbon frame.  If its ultimate low weight you will need to stick with carbon.  Ti  will last a whole lifetime- excluding seroius damage in crash.



 I am seriously thinking of building a Ti frame and using my groupset off my Boardman when it fails, given my proclivity to crashing recently it wont take long  1

Avatar
BikeJon replied to CXR94Di2 | 8 years ago
0 likes
CXR94Di2 wrote:

Ti frames generally weigh a few hundred grams more than an average carbon frame.  If its ultimate low weight you will need to stick with carbon.  Ti  will last a whole lifetime- excluding seroius damage in crash.



 I am seriously thinking of building a Ti frame and using my groupset off my Boardman when it fails, given my proclivity to crashing recently it wont take long  1

I see Boardman is another brand that is bringing out some titanium models. They looks pretty nice too.

Avatar
700c | 8 years ago
2 likes

I've ridden the original GF TI for several years, though currently waiting for a warranty replacement (don't let that put you off, I'm pretty hard on bikes!). Beware the lead time is quite long ATM for the rim brake version..

They're a lot racier than people give them credit for and I guess would be very comfortable with 30mm tyres at 45psi!!

I'm impressed the weight is kept so low despite the added material required for discs.. - my fairly high spec build is only 200g lighter with rim brakes on a 57 cm frame.

I would question the notion that this is a 'bike for life' though. ..For this to be a genuine contender, you'd need a longer warranty, surely? (I note that Kinesis have reduced theirs from 5 to 3 years recently. .?).

Otherwise I can highly recommend the brand. I don't think you'd be dissapointed and there's something about the metal that makes owners very proud - you'll want to clean it after every ride if you're anything like me. .

Pages

Latest Comments
