TECH NEWS

Onix launch Rob Hayles Signature bikes

Former world champ lends his name to new carbon road frames

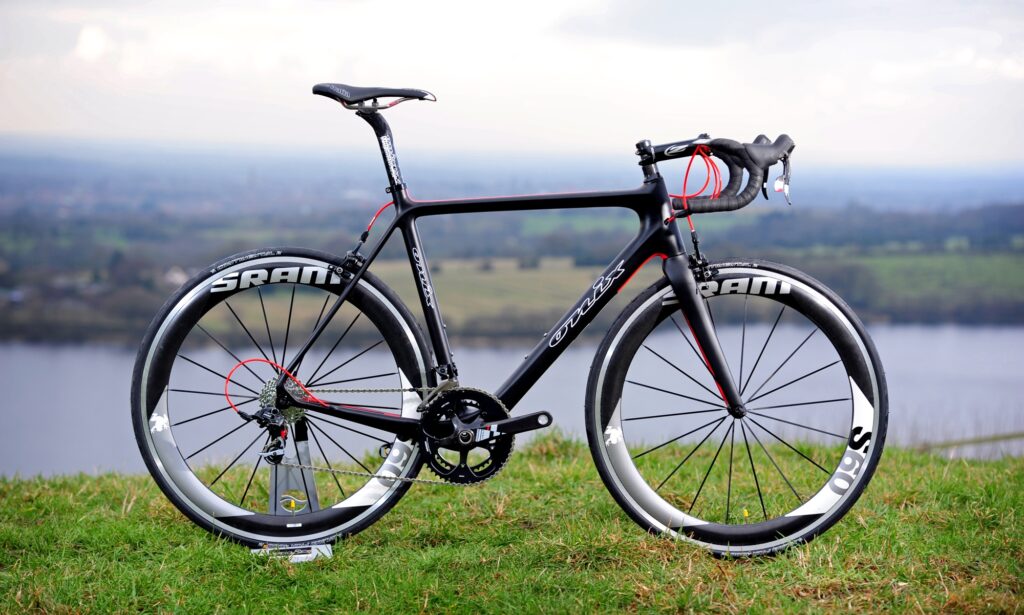

Onix are releasing two new carbon-framed road bikes in the spring: the racy Onix Black RH Pro and the sportive-friendly Onix Black RH. The RH refers to Rob Hayles, the former track world champion and British road race champion who is now the development tester for the Preston-based brand.

As you might have guessed, the Pro version has the higher spec. It’s made from Toray T800 unidirectional carbon while the straight Black RH is T700 in a 3k weave. The Pro version also has a more aggressive geometry.

The Pro model comes with what Onix are calling a ‘Flow’ chainstay design. They say the wide chainstays flow outside the seat tube and into the down tube to provide a stiff surround for the BB30 bottom bracket. The rear dropouts are carbon and the cables run internally.

Onix give an unpainted frame weight for the 48.5cm model (the smallest one in the line-up) of 960g. Anything under a kilo falls into the ‘pretty darn light’ category.

The Onix F01 straight-bladed fork is full carbon – that includes the steerer and dropouts. It weighs in at 380g, again unpainted.

The Onix Black RH Pro will be available in four sizes from 48.5cm to 57cm. The 54cm model comes with a 550mm top tube and a 145mm head tube. If you work in reach, it’s 394mm while the stack height is 545mm – so it’s a racy setup.

Onix are one of those brands that allow you to choose the spec yourself from a wide range of options. The frame and fork, which come with a two-year warranty, will set you back £1,399.99. Then you pick from Shimano, SRAM or Campag groupsets, then the wheels and finishing kit you want.

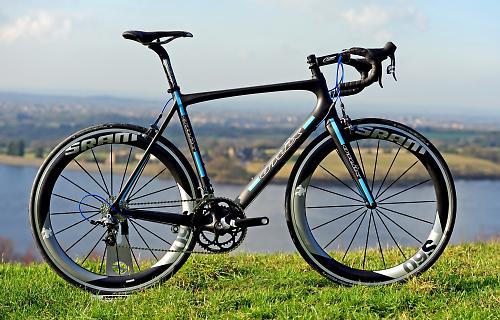

The Black RH is built to a less aggressive, more sportive-friendly geometry. Again, it comes in four sizes, but they range from 52cm to 59cm. The 54cm model has a 155mm head tube, a 391mm reach and a 553mm stack height so, as sportive bikes go, it’s towards the racier end of the spectrum. That’s still a pretty performance-orientated setup.

Like the Pro version, this one has a BB30 bottom bracket and it gets the same fork too. It’s just the rear brake cable that runs internally, though, not the gear cables, and the smallest frame size weighs in at 1,030g.

The frame and fork cost £1,199.99 and, again, you get a two-year warranty. You have the same build options as with the Pro.

For more info go to www.onixbikes.co.uk.

Mat has been in cycling media since 1996, on titles including BikeRadar, Total Bike, Total Mountain Bike, What Mountain Bike and Mountain Biking UK, and he has been editor of 220 Triathlon and Cycling Plus. Mat has been road.cc technical editor for over a decade, testing bikes, fettling the latest kit, and trying out the most up-to-the-minute clothing. We send him off around the world to get all the news from launches and shows too. He has won his category in Ironman UK 70.3 and finished on the podium in both marathons he has run. Mat is a Cambridge graduate who did a post-grad in magazine journalism, and he is a winner of the Cycling Media Award for Specialist Online Writer. Now over 50, he's riding road and gravel bikes most days for fun and fitness rather than training for competitions.

Add new comment

9 comments

Avatar
Onix Bikes | 12 years ago
0 likes

I can confirm the images were shot on the scenic Anglezarke climb  4

On the Bottom Bracket

Both bikes have a BB30 bracket.

Sram who wanted to have there kit on the show bikes also wanted to show off there Top GXP groupsets so BB30 adaptors were used to fit the said groupsets.

You can of course fit either BB30 or standard chainsets on the builds when the bikes become available in the coming weeks.

Regards
Craig
Owner
Onix Bikes

Avatar
cat1commuter replied to Onix Bikes | 12 years ago
0 likes
Onix Bikes wrote:

On the Bottom Bracket

Both bikes have a BB30 bracket.

Sram who wanted to have there kit on the show bikes also wanted to show off there Top GXP groupsets so BB30 adaptors were used to fit the said groupsets.

You can of course fit either BB30 or standard chainsets on the builds when the bikes become available in the coming weeks.

Do you mean "GXP chainsets" rather than "GXP groupsets"? Do you mean "show off their" rather than "show off there"?

Sounds weird. I could understand if they didn't have any BB30 chainsets available, so they had to supply GXP, but don't understand in what way fitting a chainset which is a bit heavier with a longer axle that is more likely to interfere with the rider's ankles would be "showing them off".

Avatar
Onix Bikes replied to cat1commuter | 12 years ago
0 likes

[/quote]

Do you mean "GXP chainsets" rather than "GXP groupsets"? Do you mean "show off their" rather than "show off there"?
.[/quote]

Yes wrote in a hurry !

Avatar
The _Kaner | 12 years ago
0 likes

Look nice!

Avatar
thegibdog | 12 years ago
0 likes

Wait... surely not... Are those pictures using Chorley as a backdrop to promote £1,000+ frames?

Avatar
WolfieSmith replied to thegibdog | 12 years ago
0 likes
thegibdog wrote:

Wait... surely not... Are those pictures using Chorley as a backdrop to promote £1,000+ frames?

What's your point? McClaren are based in glamorous Woking - and Colnago aren't based in London, Paris or Rome.  37

Avatar
thegibdog replied to WolfieSmith | 12 years ago
0 likes
MercuryOne wrote:
thegibdog wrote:

Wait... surely not... Are those pictures using Chorley as a backdrop to promote £1,000+ frames?

What's your point? McClaren are based in glamorous Woking - and Colnago aren't based in London, Paris or Rome.  37

It's just something I never thought I'd see! Anglezarke is actually one of my favourite places to ride; it's beautiful on a sunny day and Moor Road (which I think is where the photo's were taken, although I stand to be corrected) is a brilliant climb.

Avatar
cat1commuter | 12 years ago
0 likes

If they've got BB30 bottom brackets, why do they have GXP chainsets?

Avatar
ratherbeintobago replied to cat1commuter | 12 years ago
0 likes

Don't most SRAM chainsets come in a BB30 version?  39
