First look: Canyon Aerocockpit CF integrated handlebar

We take a closer look at Canyon’s latest weapon in the aero arms race

Have you ever thought about how much drag your handlebars are creating? Probably not. Canyon have though, and developed the new Aerocockpit CF integrated handlebar. They claim it is good for an aero advantage of 5.5 W at 45 km/h, compared to a conventional bar.

Aerodynamics is informing bicycle product design to an increasing extent. Bicycle and equipment manufacturers have turned to the mysterious art of making bicycles, parts and even clothing more aerodynamic to reduce drag so you slip through the air more cleanly and ride faster. And aero handlebars are the latest trend.

Not that it's a new trend as such. Canyon aren't the first to produce an integrated bar and stem. Far from it. Deda, Cinelli, PRO and FSA have offered one for some time, but this year there are a few new contenders on the market. As well as Canyon's new bar, Cervelo, Bontrager and Specialized have released aero bars. With the rise in popularity of aero framesets, aero clothing and aero helmets, the handlebar is also a prime candidate for an aero upgrade.

The new Aerocockpit CF isn't actually available to buy yet, but Canyon let us have a first look at the only sample to arrive in the UK when they popped into the road.cc office the other day.

When Canyon developed the new Aeroad, they decided that the handlebar is an integral part of the bicycle in the battle to best manage the airflow over the bike. Reducing the frontal surface area is one key aspect, which is why head tubes and fork blades are typically very narrow on aero and time trial bikes. The handlebar is a large part of the frontal surface that the bike presents to the air, so it makes sense to also design a handlebar that is more aerodynamic.

But how much more aero is it compared to a regular handlebar? Well, in their tests, Canyon reckon the Aerocockpit CF provides an “aero advantage that adds up to approximately 5.5 W at 45 km/h against a conventional bar and stem, thanks to the minimal frontal surface area.”

Their claims, not ours. Now 5.5 W isn’t a great deal, but try adding 5.5 W onto your threshold through training. It’s a small gain but they all add up. And the smallest gain can be the difference between winning and losing in some very close races.

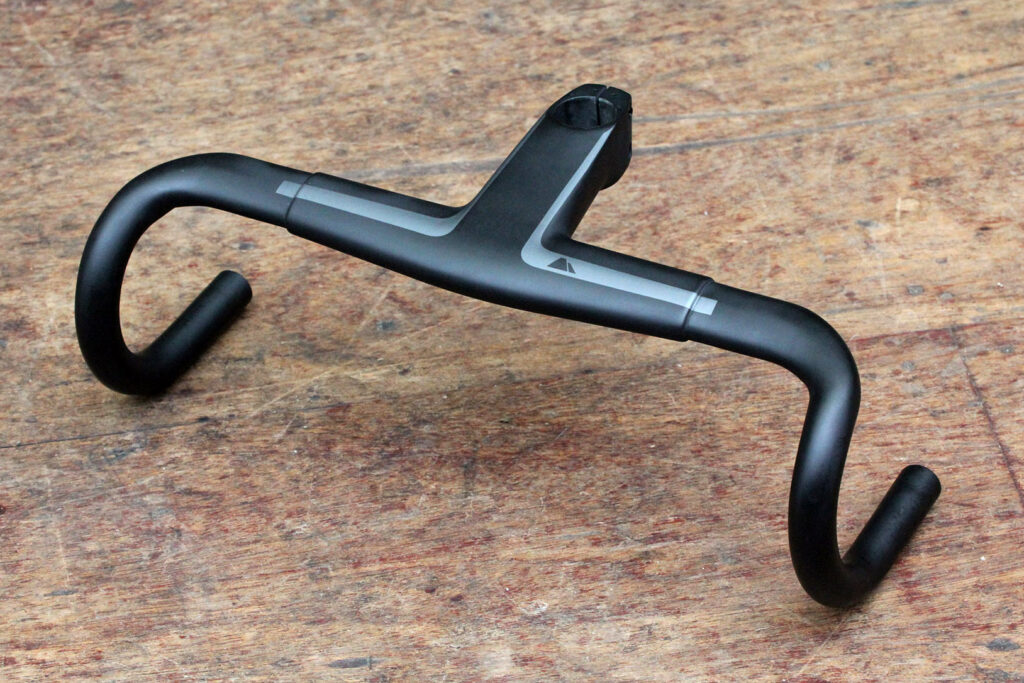

The handlebar has a style reminiscent of the bike it’s intended to be bolted to. The top surface is strikingly flat, and it’s very low profile when viewed from the front. There's a recess for the bar tape so the transition from tape to bar is smooth, maintaining the slender profile.

One neat feature is the full integration for a Di2 groupset. The junction box, normally slung below the stem by a rubber band, instead sits flush in a small cavity under the stem. The wires, as are the brake cables, are all internally routed. Not only does it create a very clean looking handlebar, it also reduces the frontal surface area. There are fewer bumps and ripples to cause drag, basically.

As well as making the handlebar shape aerodynamic, Canyon have studied the impact of bar width. Their tests suggest that simply tucking the arms in for a narrower stance on the bike can net aerodynamic improvements. We've seen a trend for professional racers to use as narrow a handlebar as they can get away with (Adam Hansen, anyone?).

As  a result they recommend a bar that's 10mm narrower than you would normally use - so if you normally ride a 42cm, you’ll be put onto a 41cm bar instead. Make sense? There will be three widths - 39cm, 41cm and 43cm - and five stem lengths - 90mm to 130mm - but there will only be certain width and length combinations (so you can’t have a 90mm stem with a 43cm wide bar, for example).,

The handlebar is made from carbon fibre, and it’s light, this 41cm example just 375g on the road.cc scales. We’ve not word on pricing or availability at the moment, as soon as we get that info, we’ll let you know. More at www.canyon.com

David worked on the road.cc tech team from 2012-2020. Previously he was editor of Bikemagic.com and before that staff writer at RCUK. He's a seasoned cyclist of all disciplines, from road to mountain biking, touring to cyclo-cross, he only wishes he had time to ride them all. He's mildly competitive, though he'll never admit it, and is a frequent road racer but is too lazy to do really well. He currently resides in the Cotswolds, and you can now find him over on his own YouTube channel David Arthur - Just Ride Bikes

Add new comment

14 comments

Avatar
martybsays | 3 years ago
0 likes

You mount your Garmin ( or Wahoo, as we call them in the future) on an aero mount that bolts on underneath this cockpit. You can choose a mount that has go-pro style  elbow to swing a light off. No problem.

Avatar
dnmvisser | 9 years ago
0 likes

My new bike has this integrated handlebar, and while it certainly looks nice, I find that being in the drops is not very comfortable because they are round, and I can't get my hands into a solid position. I'm basically resting on the edge of my palms.
Many other bars have a 10cm straight-ish section, so you can fully grip on that.
The Canyon bar has the straight bit at the end, but that's not very comfy because the angle of you wrist isn't right, and also you can't get to the breaks.
As mentioned before there is no GPS mount or aero bars option, so I'm tempted to replace it with something else...

Avatar
jc777 | 9 years ago
0 likes

Not only a garmin, where the hell would you mount a front light?
I'm tempted to buy the aeroad but do a lot of early morning training to avoid the heat in the UAE and it goes with out saying a front light is paramount. It would be annoying to get it and then have to fit another set or bars and stem!

Avatar
HulaBoy | 9 years ago
0 likes

Looks lovely.
And aero.
Mounting a Garmin to the top of the stem will nullify any benefits though...
Also, with all these aero bikes and components hasn't anyone stopped to consider the wind slamming human shaped lump atop of those beautifully razored tubes...?
Sort of makes it all a bit pointless I think...

Avatar
Broady. | 9 years ago
0 likes

Just got in touch with Canyon re: these, apparently they don't even know if they'll be for sale aftermarket. Damn you for getting my hopes up Road.cc!

Avatar
Timsen | 9 years ago
0 likes

Can someone tell me why an integrated set up will generally weigh more than a traditional bar/stem set up ? I realise weight isn't everything but just curious as it seems counter intuitive to me !

Avatar
fukawitribe replied to Timsen | 9 years ago
0 likes
Timsen wrote:

Can someone tell me why an integrated set up will generally weigh more than a traditional bar/stem set up ? I realise weight isn't everything but just curious as it seems counter intuitive to me !

What makes you think that ?

Avatar
The _Kaner | 9 years ago
0 likes

aero bar/stem + aero bike + weeble shaped body = pointless expense....
hey ho, back to the Raleigh Budgie for me....

Avatar
mikesean mcc | 9 years ago
0 likes

id say canyon stuf is more afordabl than most other bike firms

Avatar
alexn | 9 years ago
0 likes

Garmin goes old fashion style on top of stem with rubber bands. Not ideal, but works just fine!

Avatar
Notsofast replied to alexn | 9 years ago
0 likes
alexn wrote:

Garmin goes old fashion style on top of stem with rubber bands. Not ideal, but works just fine!

right where your sweat drips off your nose, no thanks, I like mine out front.

Avatar
Liaman | 9 years ago
0 likes

Lovely handlebars, but where do I mount my Garmin?

I also think they've missed a trick by not integrating some bolt holes for proprietary clip ons.
The Aeroad would make a good tri bike, and some integratable clip ons would make it a really convenient dual purpose steed.

Avatar
nowasps | 9 years ago
0 likes

Was thinking just the same...

Avatar
fukawitribe | 9 years ago
0 likes

Don't really care about the aerodynamics of it, but I think it's a cracking looking stem and bar with some nice touches in it - can't see it being exactly what one might call 'affordable' however....
