Cannondale 2015: Synapse Disc range expands and CAAD10 Track and Disc bikes launched

Here are seven highlights from Cannondale’s latest range, including more disc brakes on both carbon and aluminium bikes

by David Arthur   August 6, 2014

Disc brakes are a key theme of Cannondale’s 2015 range with seven Synapse Disc bikes to choose from. They’ve also launched the CAAD10 with disc brakes and there is a track version too. For women there is a new top-spec SuperSix Evo added to the line-up.

We gave you a little teaser of the latest Cannondale bikes a while ago, but we’ve just been down to Cannondale’s UK distributor CSG UK (Cycling Sports Group) in sunny Poole to get a close look at the actual bikes. So here are seven highlights from the Cannondale 2015 range.

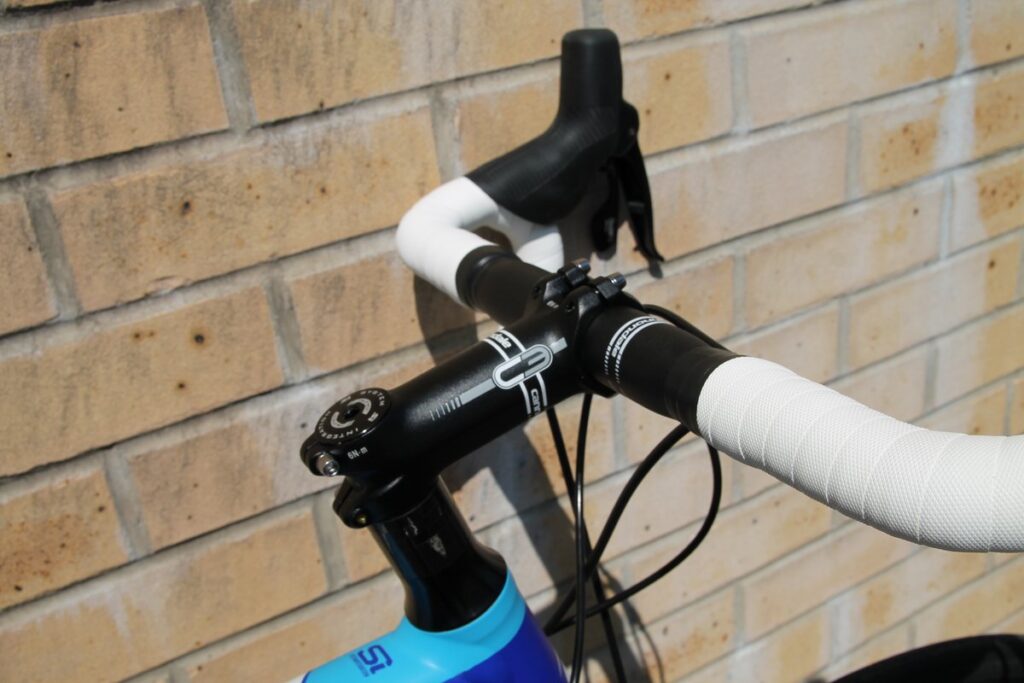

CAAD10 SRAM Rival Disc £1,799

We’ve been hearing rumours all year of a disc-equipped CAAD10 bike, and it really is a thing, here it is in all its glory.

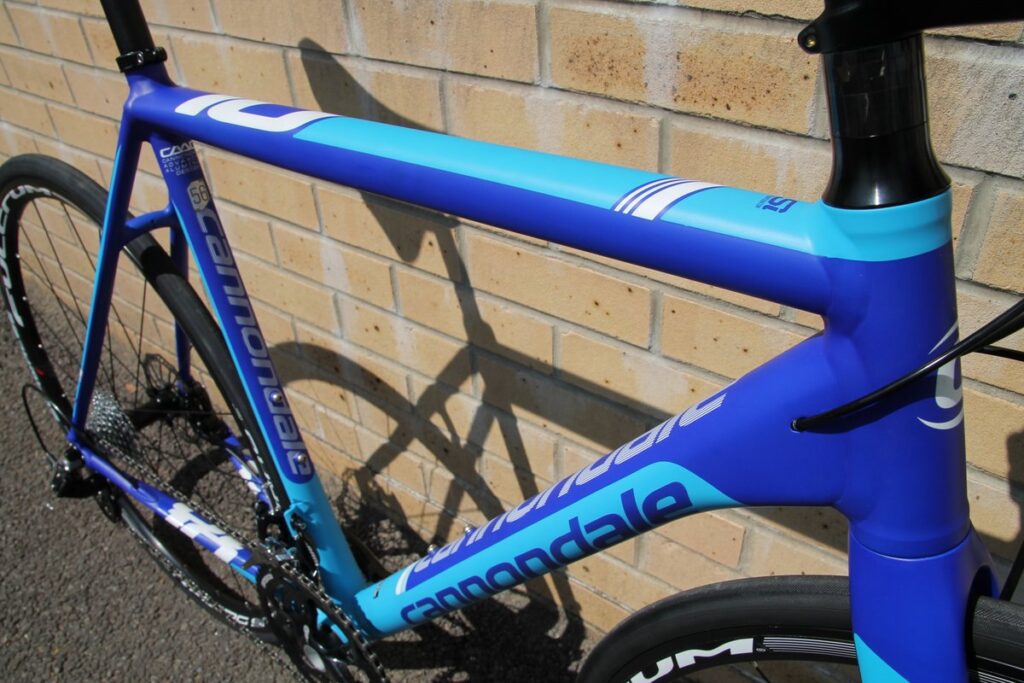

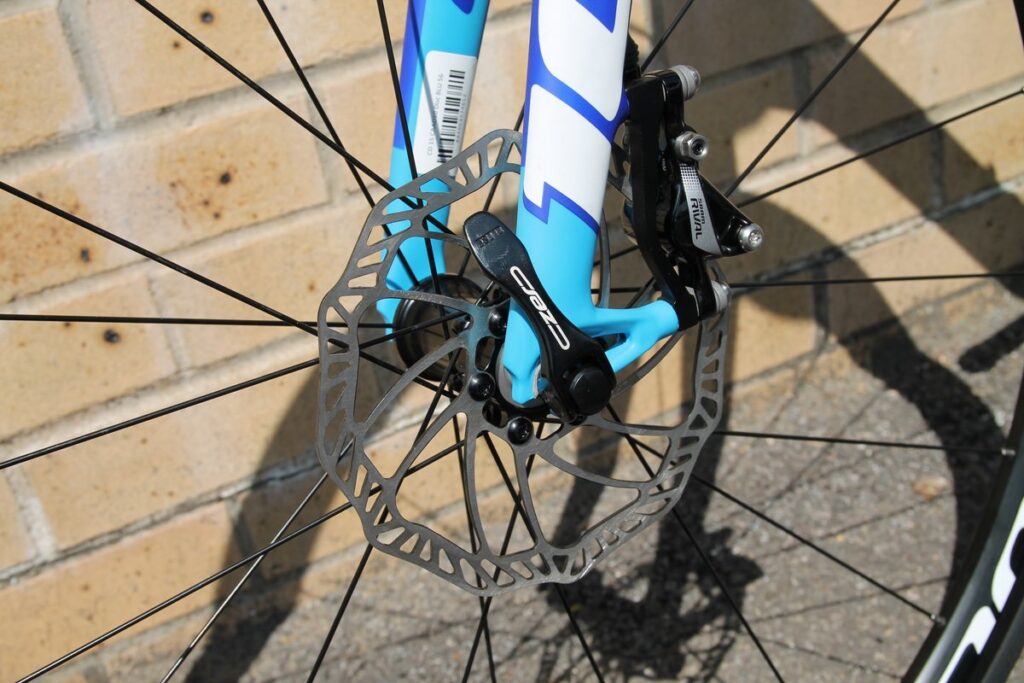

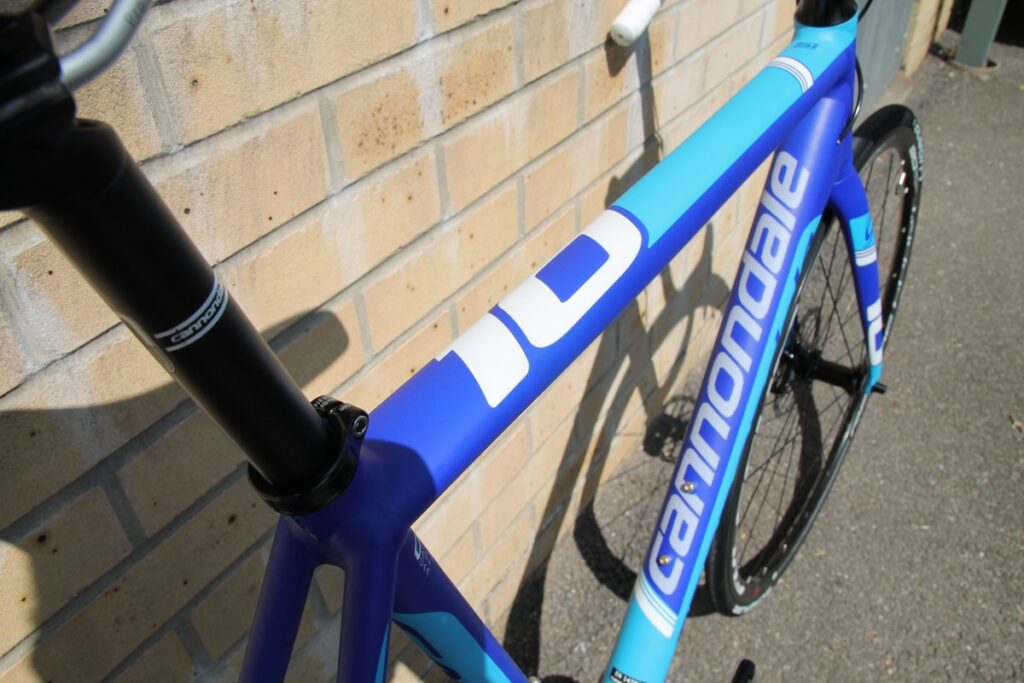

The CAAD10 Disc is based on the same recognisable frame as the regular bikes but there are a few vital differences. The most notable is that Cannondale have internally routed the hydraulic hoses and gear cables (the regular CAAD10 features only internal rear brake cable routing).

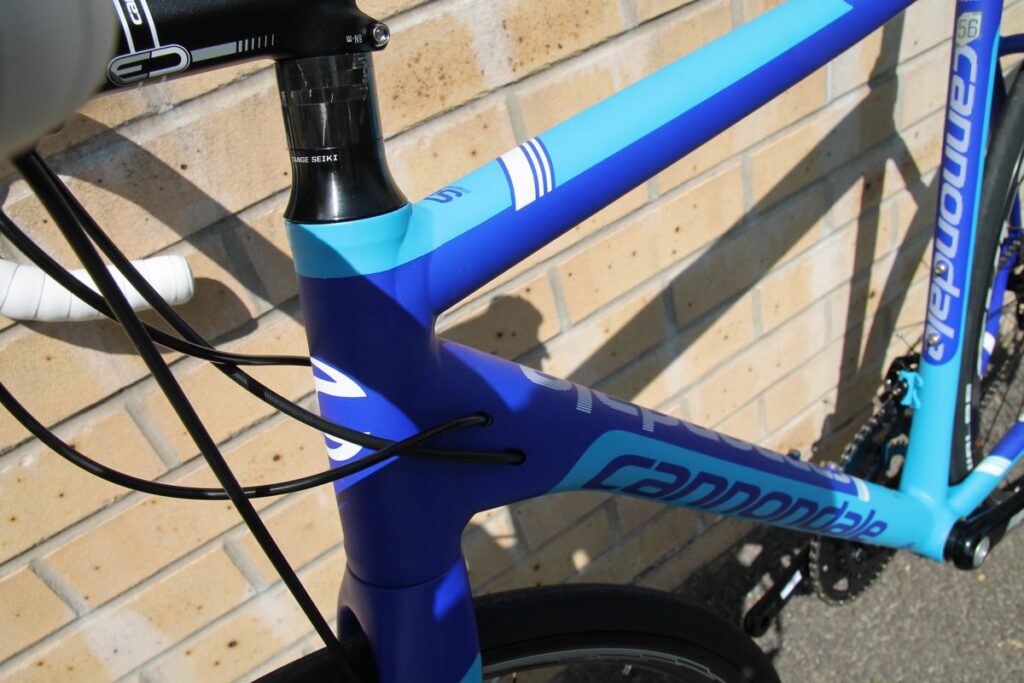

Entering the head tube junction on the non-driveside, the internal routing is cleanly finished.

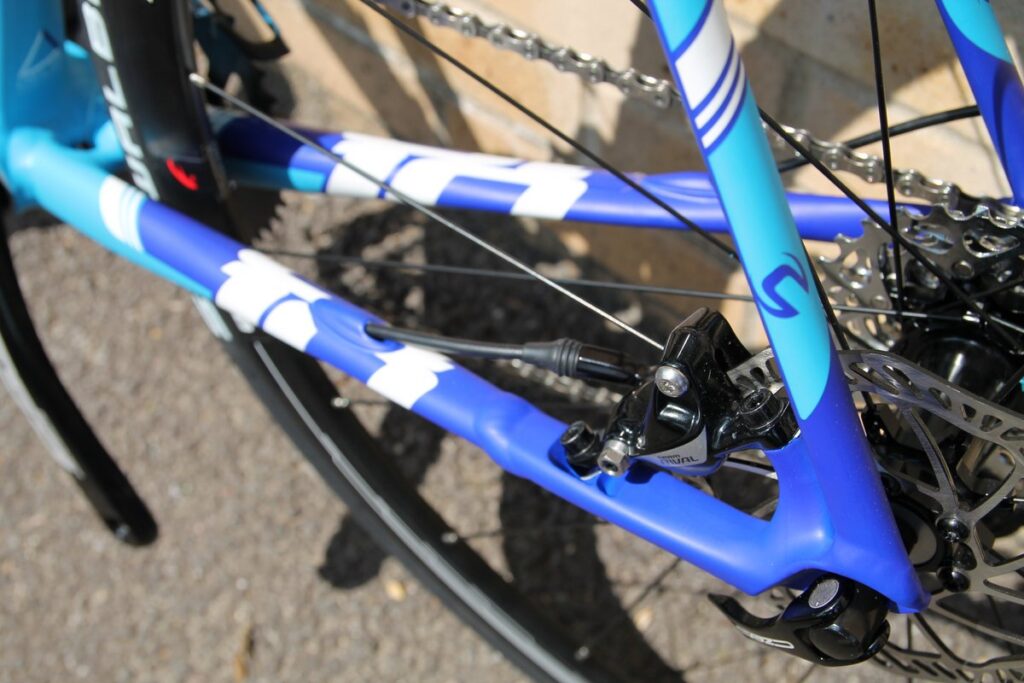

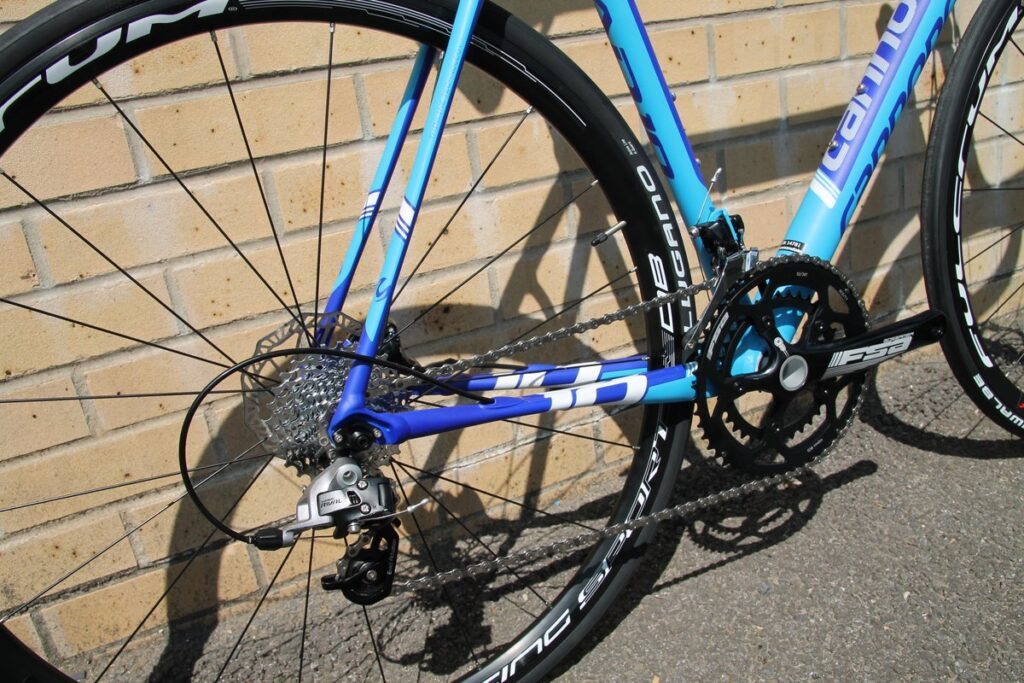

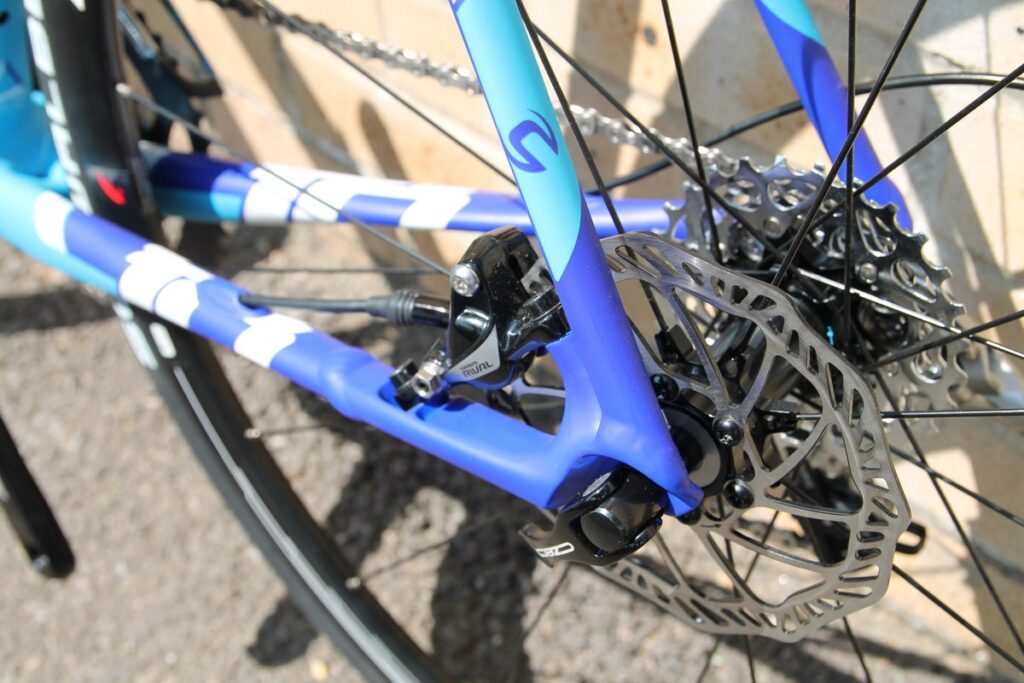

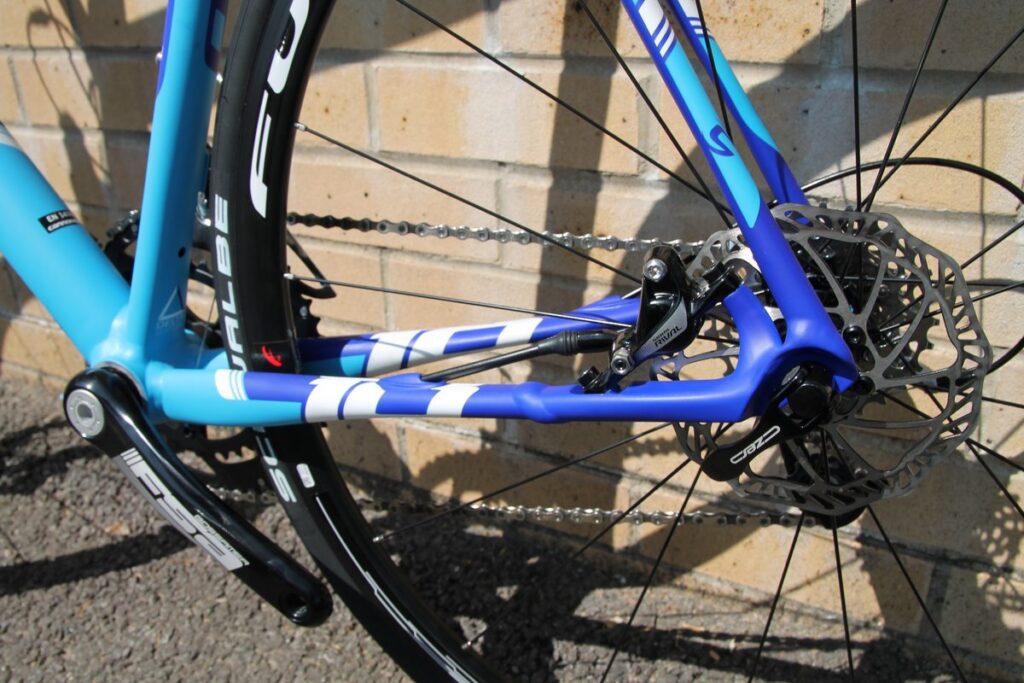

The chainstays have been redesigned to both ensure they cope with the disc brake forces, and to accommodate the brake caliper and internal hose routing.

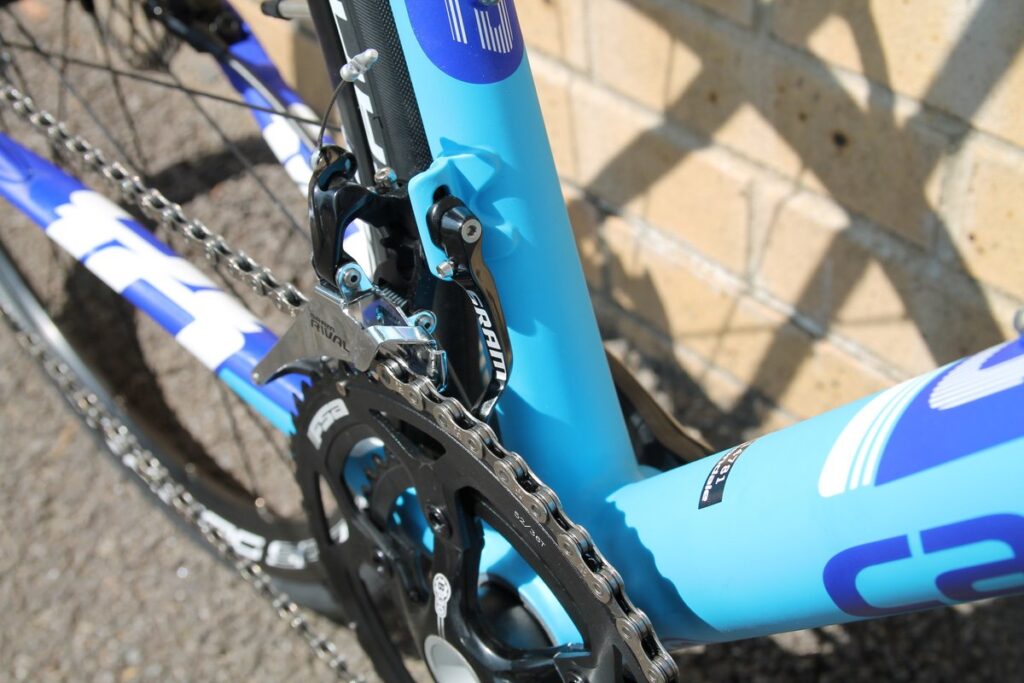

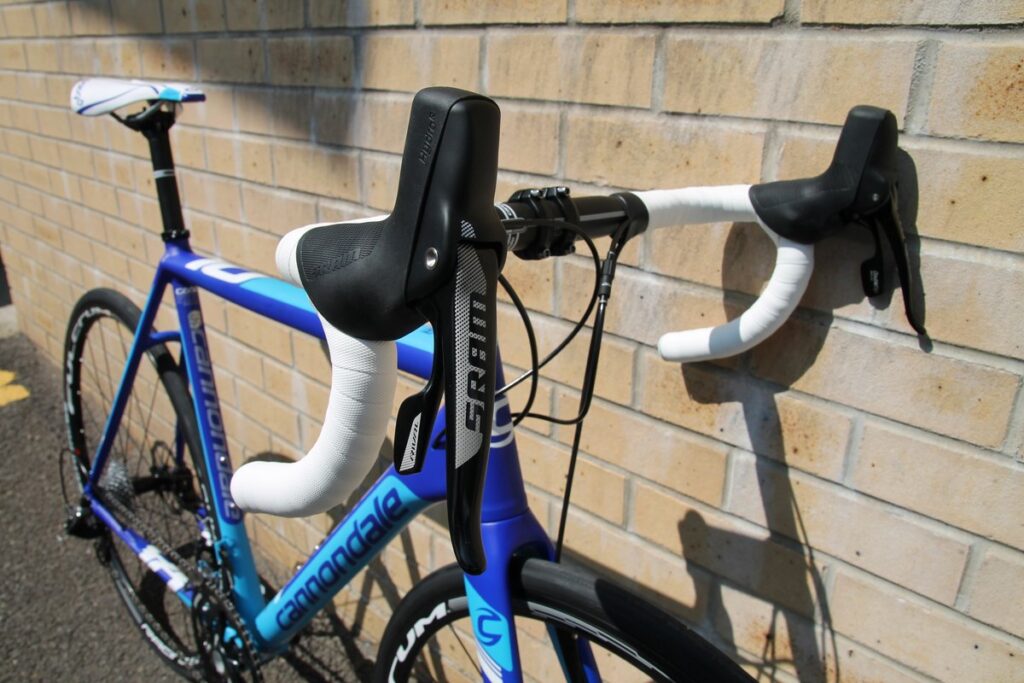

Cannondale offer the bike with a SRAM Rival 22  groupset, featuring the revised hydraulic disc brakes following their much publicised recall. Rather than use SRAM’s disc rotors, Cannondale have opted for Centreline T1 rotors, with a 160mm front and 140mm rear combination.

Schwalbe Lugano 25mm tyres are fitted to Fulcrum Racing Sport disc wheels. Cannondale’s own C2 bars, stem and handlebar, all in aluminium, are used along with a Prologo Kappa Evo saddle. Eight frame sizes from 48 to 63cm will be available.

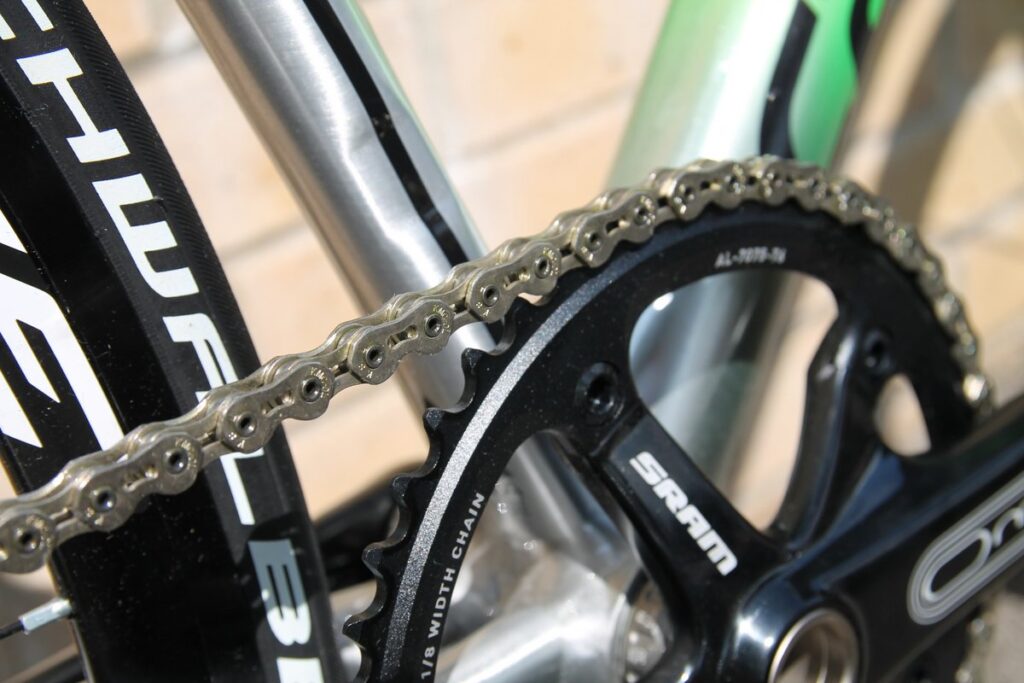

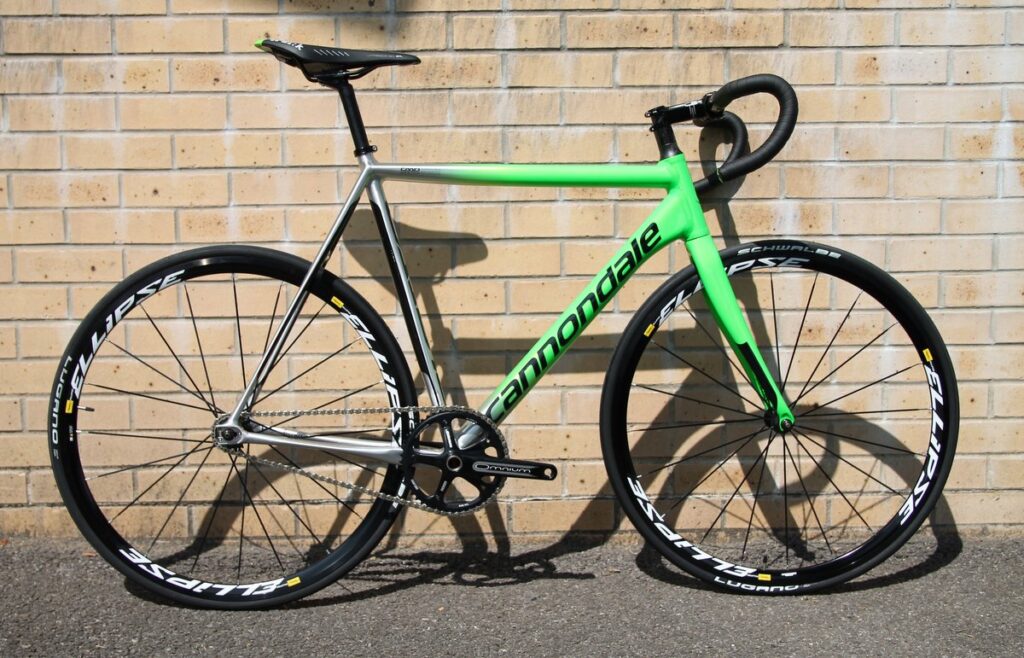

CAAD10 Track £1,499

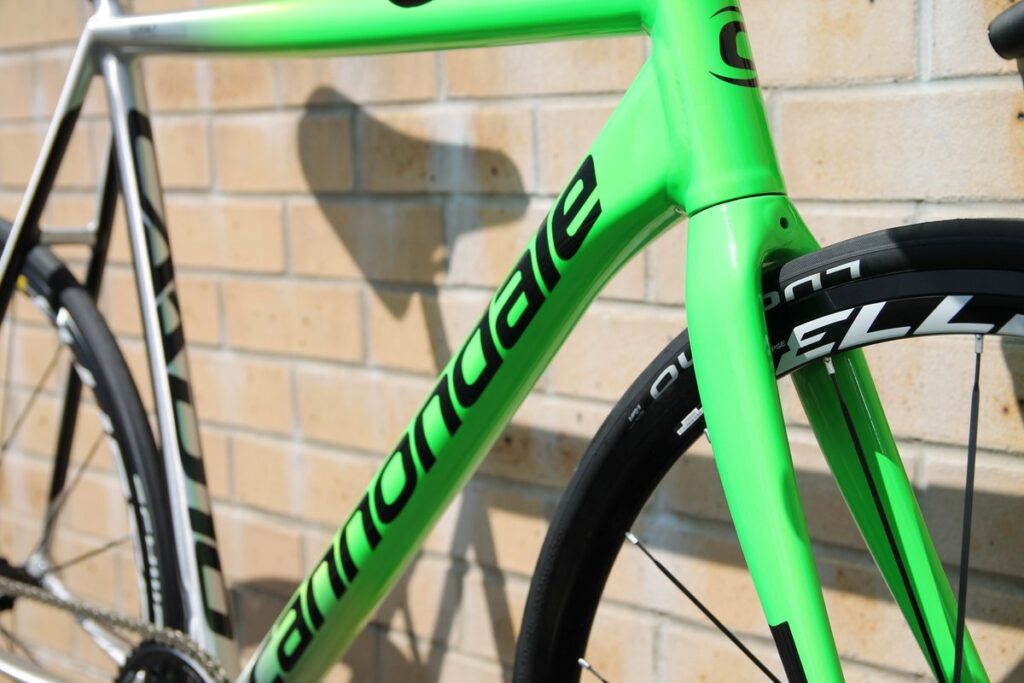

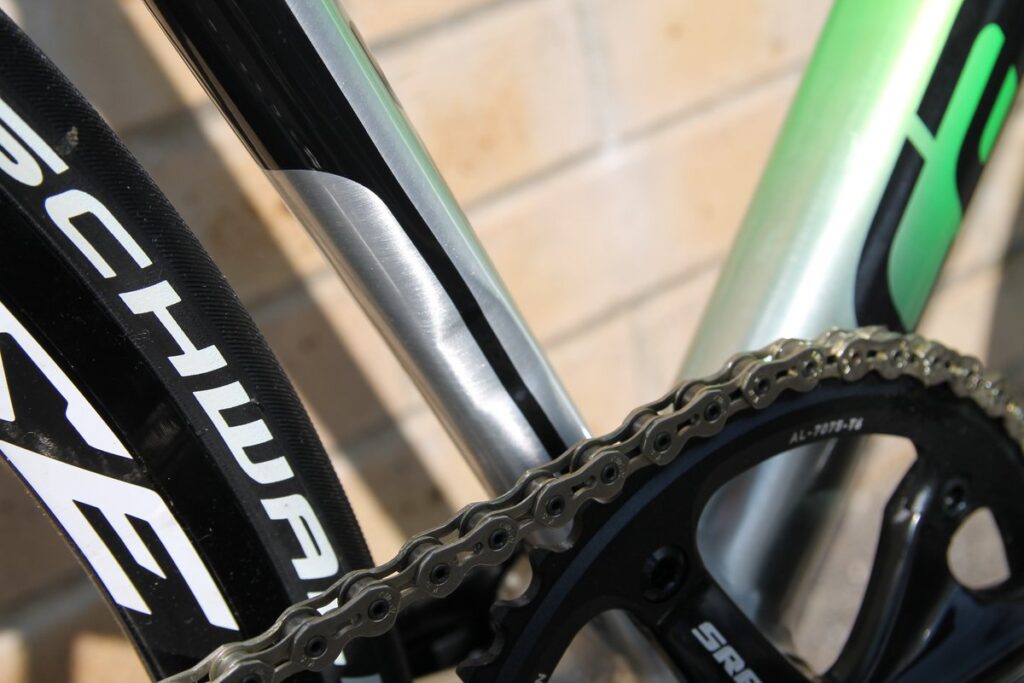

Well here it is, the new CAAD10 Track bike that we first caught a glimpse of with some carefully ‘leaked’ photos on Facebook earlier this year.

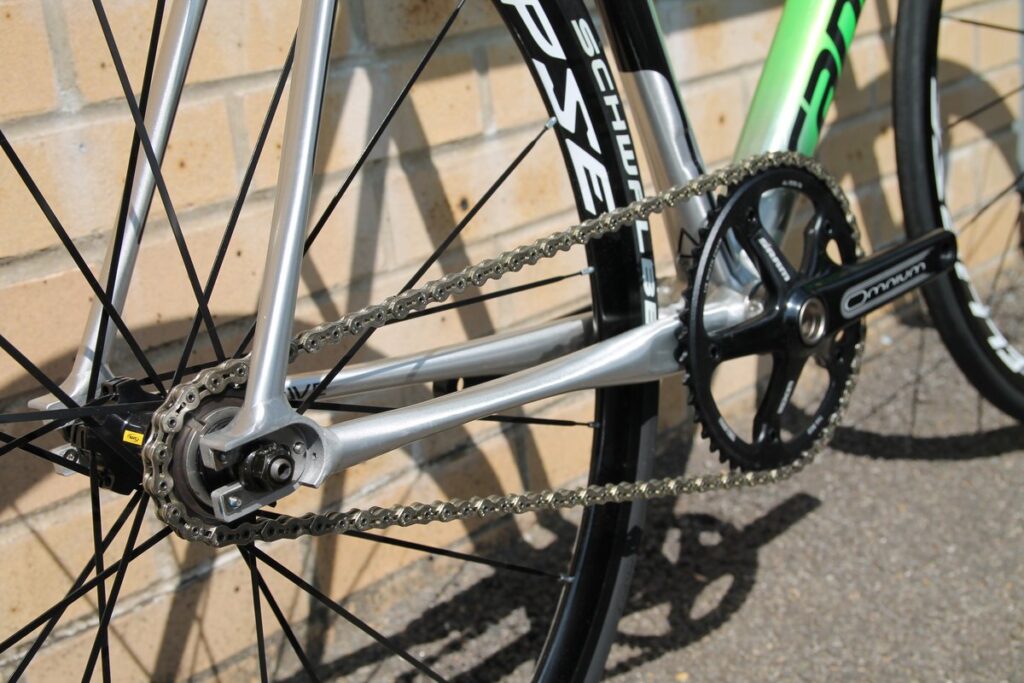

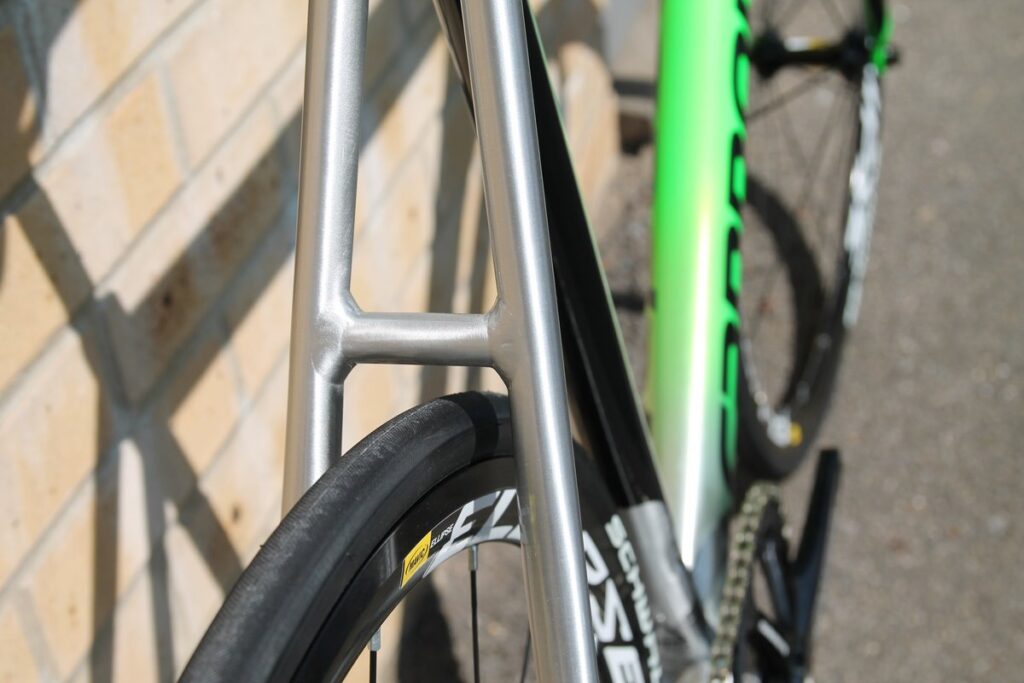

Cannondale have joined a brand new rear triangle, with horizontal dropouts, to the same front triangle as used on the regular geared CAAD10. There’s a new carbon fibre fork with alloy dropouts and tapered steerer tube too.

Cannondale tell us the geometry of the new bike has been designed for racing. This is a track racing bike, developed so Elia Viviani could race it in the track world championships back in March.

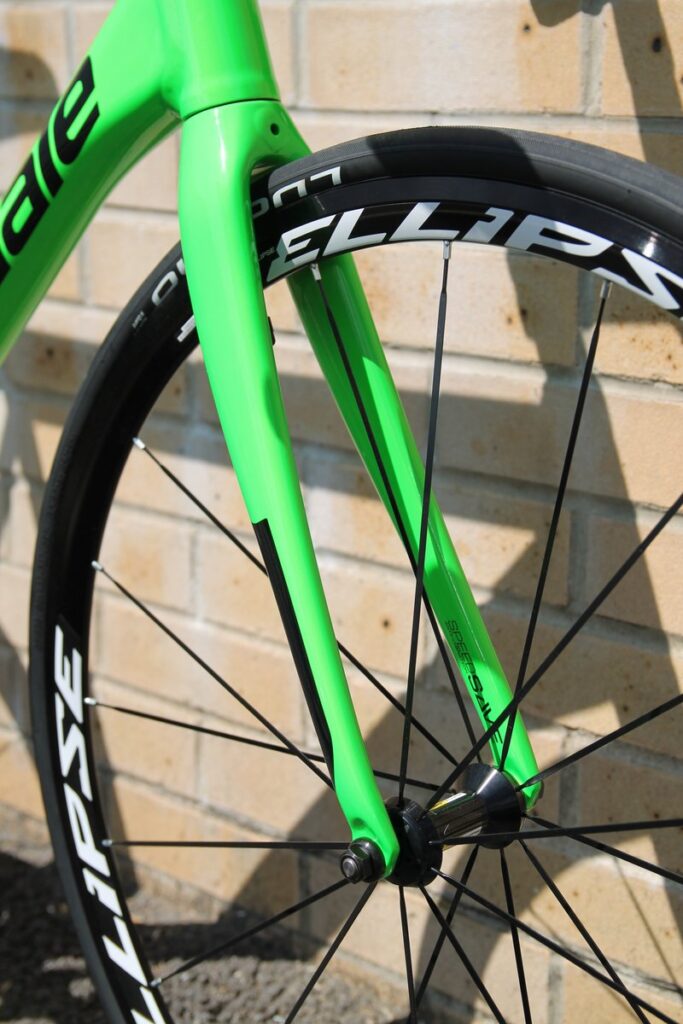

That said, the fork does feature a drilling for a brake caliper, but there are no cable routing stops on the frame anywhere, so fitting a brake might be tricky, but not impossible for the determined hipster.

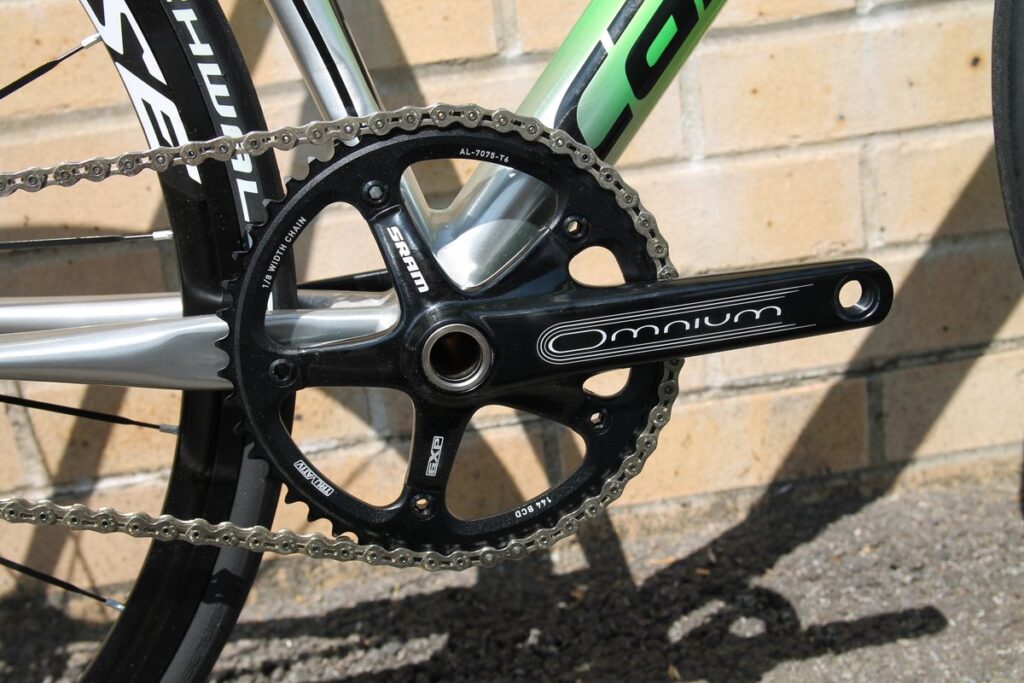

The CAAD10 Track is specced with Mavic Ellipse Track wheels with 25mm Schwalbe Lugano tyres, a 48t SRAM Omnium chainset and Cannondale C2 handlebars and stem. The frame is available in seven sizes from 48 to 60cm.

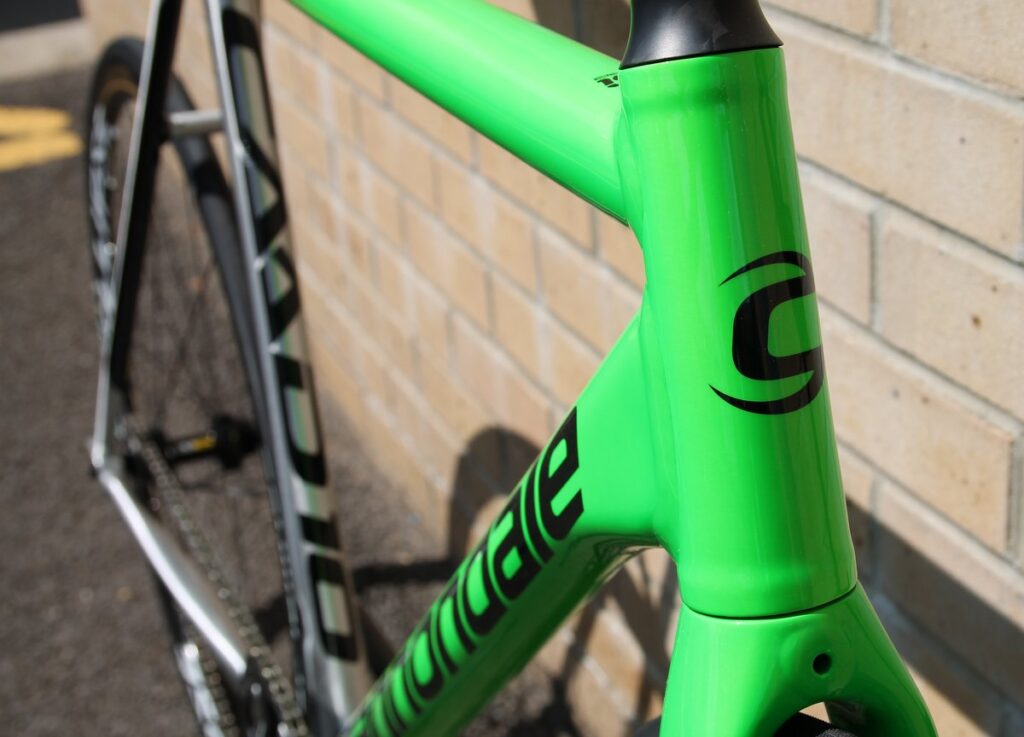

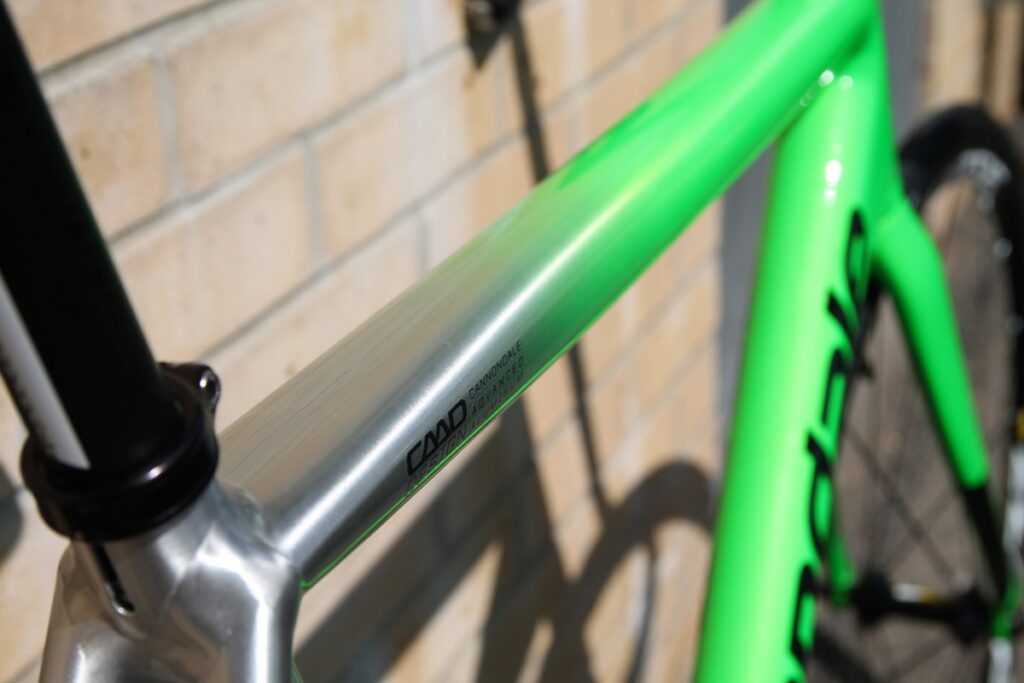

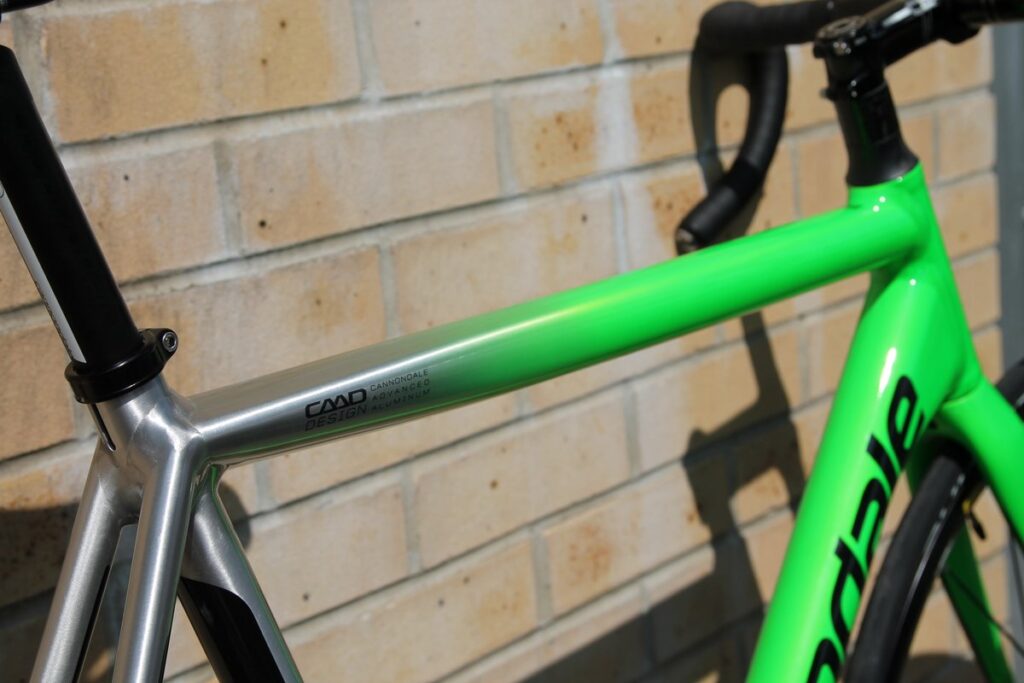

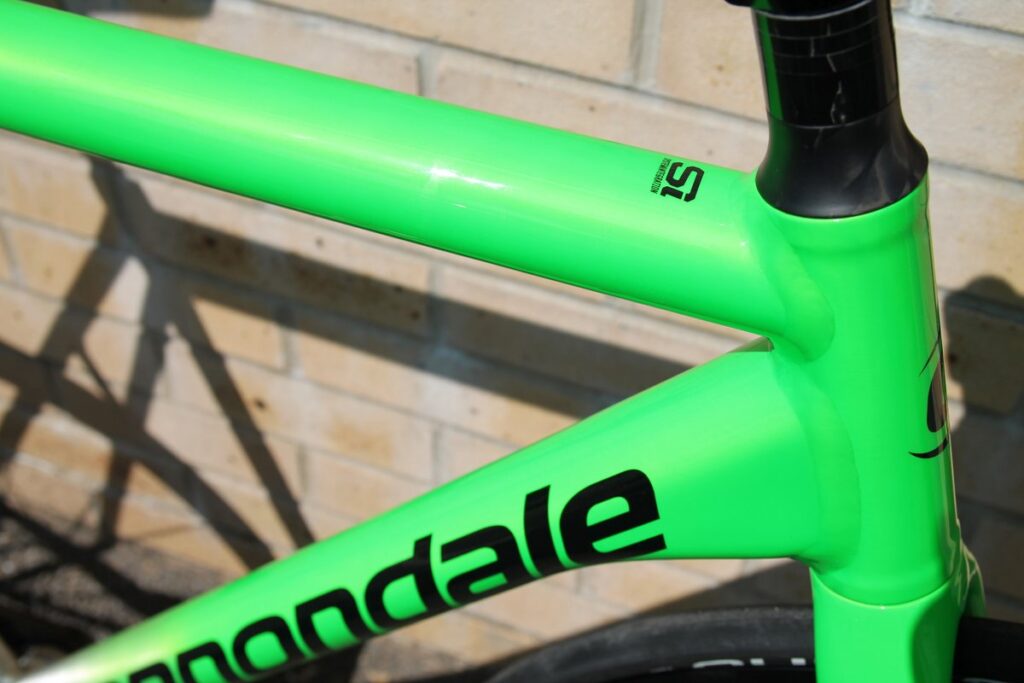

You won’t have failed to notice the paint job. It’s been causing quite a stir since photos first appeared. Cannondale call it Viserker Green Fade Gloss over Polished Aluminium.

It vaguely reminds us of some of the more entertaining paint jobs that were popular on aluminium mountain bikes during the 90s.

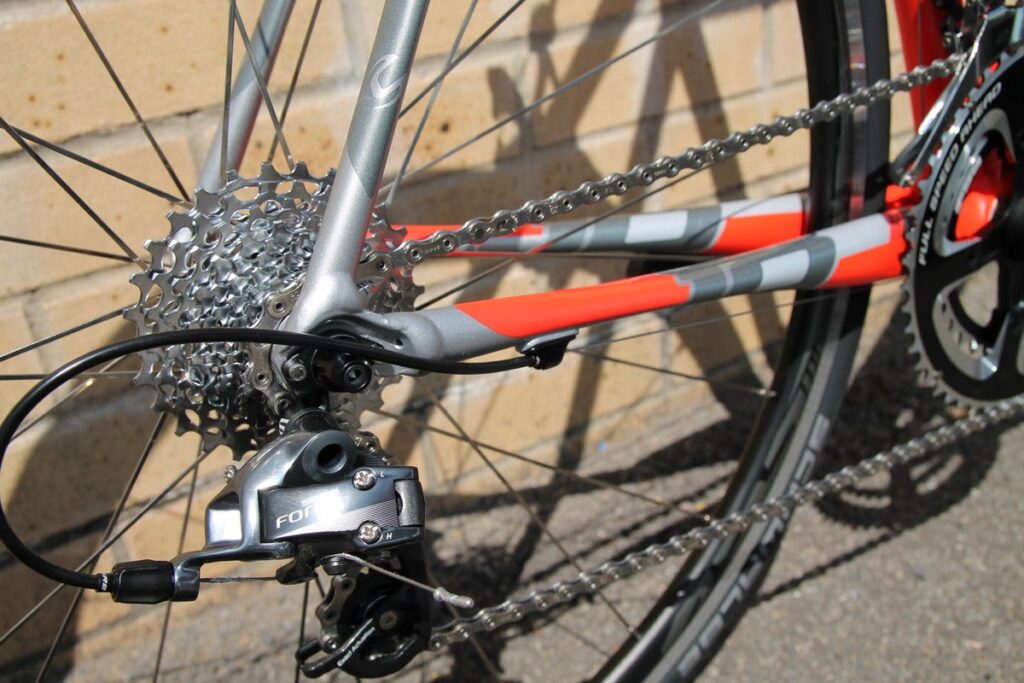

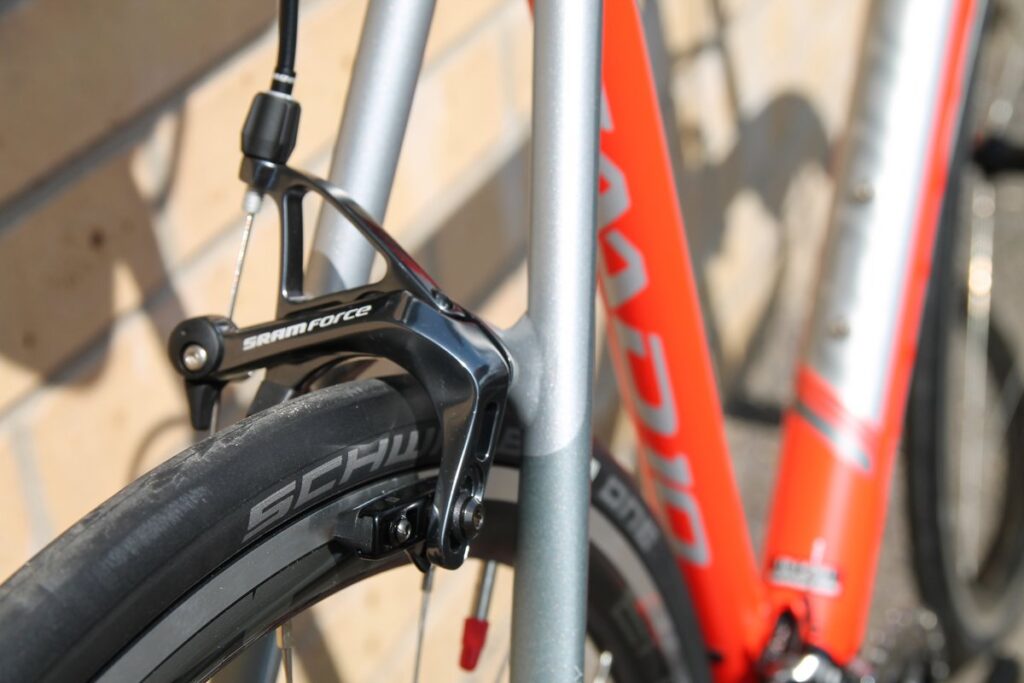

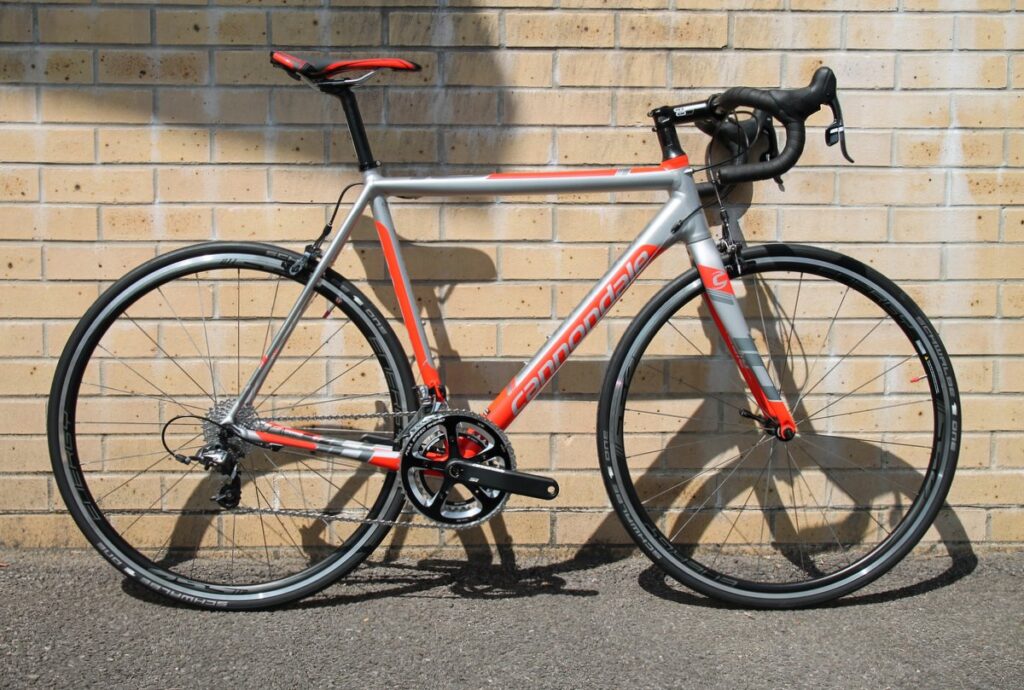

CAAD10 Racing Edition £1,799

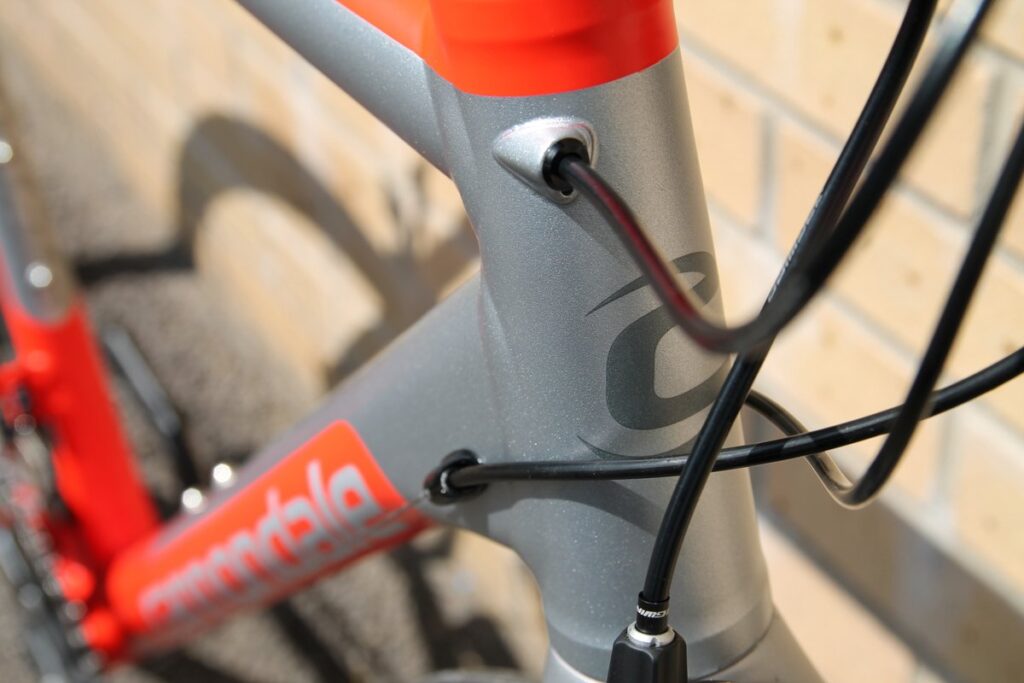

Cannondale have expanded the CAAD10 range with three caliper rim brake models, priced from £1,299 for a 105 specced bike and rising to £1,799 for this Racing Edition. There’s also an Ultegra model at £1,699.

We’re always harping on about the fantastic attributes of good aluminium framesets and the CAAD10 is one of our favourite aluminium frames, so it’s good to see Cannondale now offering more models.

Among other things, it’s an ideal material for racing, especially criterium and circuit racing where its stiffness is ideally suited. It’s also a fair bit cheaper than buying a carbon race bike if you want to get into racing. Cannondale know this too, so they’ve built up this Racing Edition for 2015.

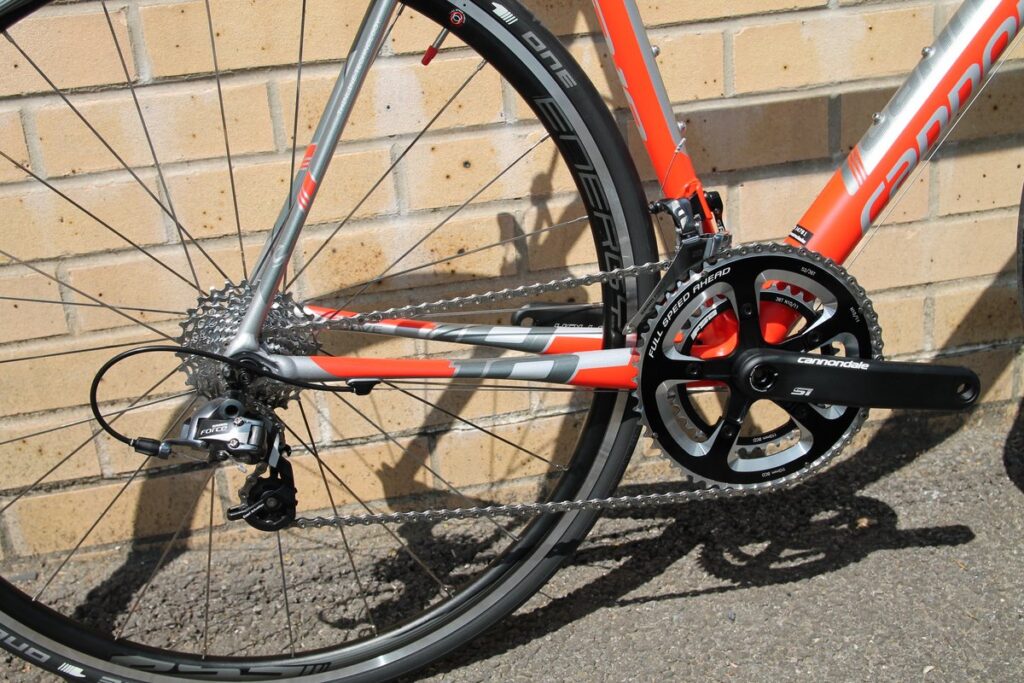

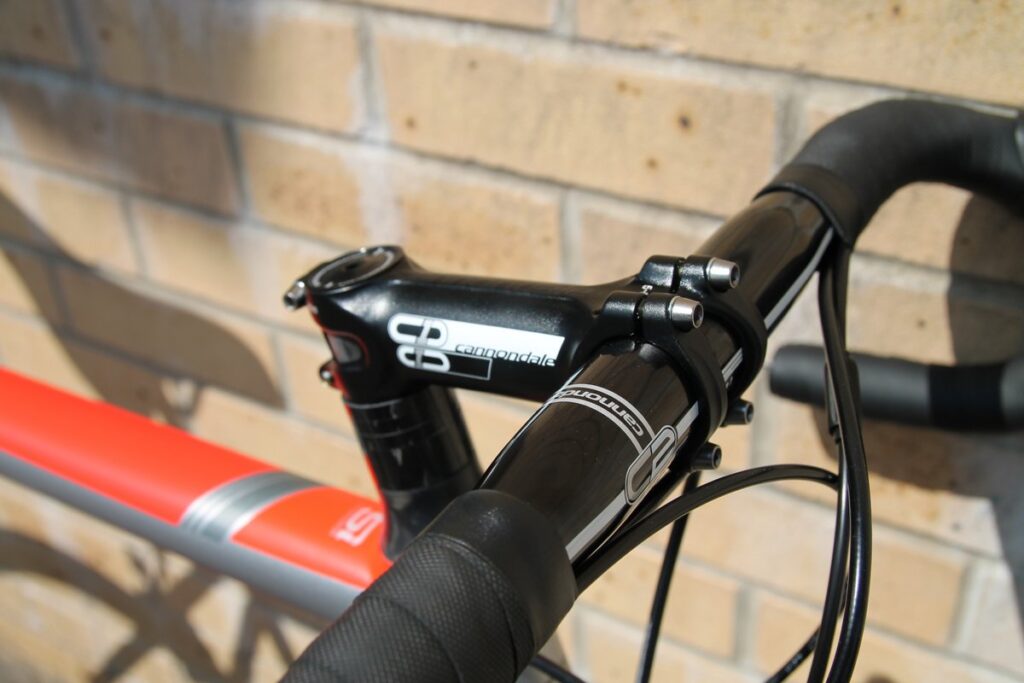

The bike has been built with a SRAM Force 22 groupset with FSA’s new CZero Carbon wheels. We don’t know much about these new wheels, this is actually the first time we’ve seen them, but we’ll be sure to get the full low-down at Eurobike later this month. It’s clear they follow the current trend for a wider profile.

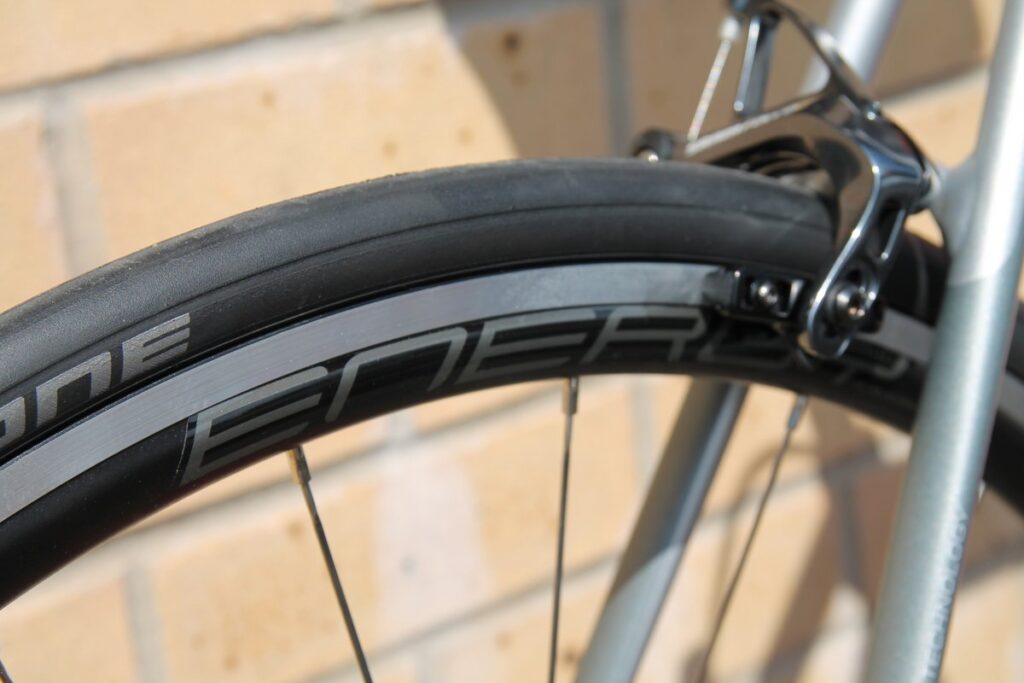

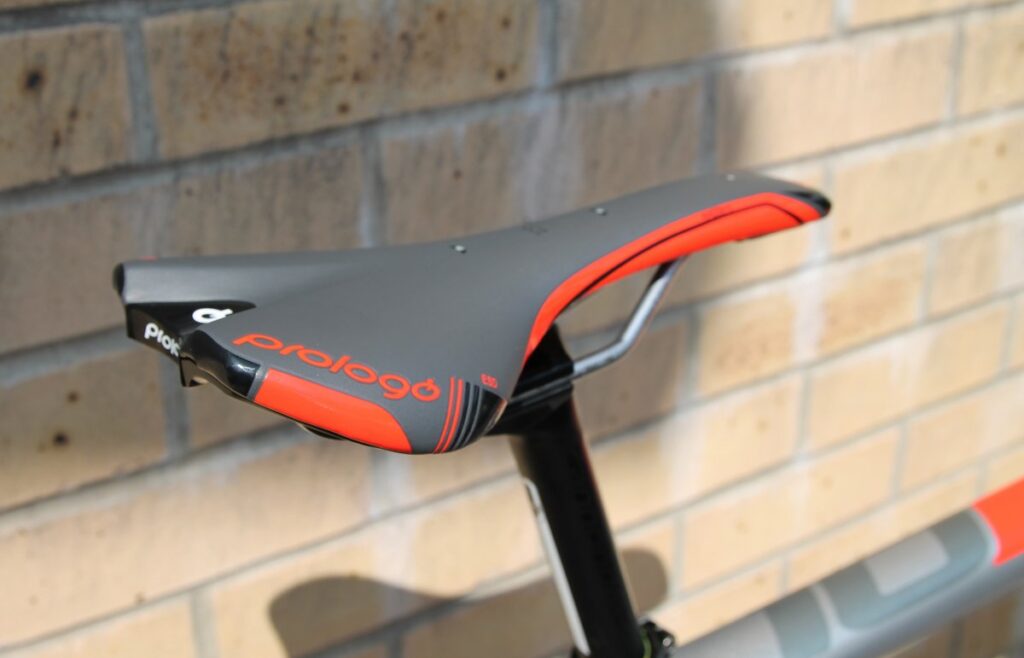

Cannondale have specced the rest of the bike with a Hollowgram Si BB30 chainset with a semi-compact 52/36 chainring setup. Available in six sizes, it’s painted in an Acid Red over Charcoal Grey with Fine Silver details. Quite a looker we reckon you’ll agree.

Synapse disc range expands to seven models

Whether you like it or not, disc brakes are coming, and for 2015 Cannondale will offer seven disc models price from £849 all the way up to £6,499.

The Synapse only launched just over a year ago but Cannondale didn’t take too long to offer a disc version, with two aluminium and one carbon bikes last year. With disc brakes the hot trend in road cycling right now, Cannondale have clearly decided to show their commitment with bikes at a wider range of prices. In fact, the top five bikes in the Synapse range are all equipped with disc brakes.

Don’t fret, there are still five non-disc Synapse bikes, but it’s clear discs are the where Cannondale feels the future is for this mode. That certainly ties in with the vibe we’re getting from the industry for ‘endurance’ bikes like the Synapse. Only last month rival company Giant totally revamped their Defy with disc brakes. Days are numbered for rim brake bikes in this category it would seem.

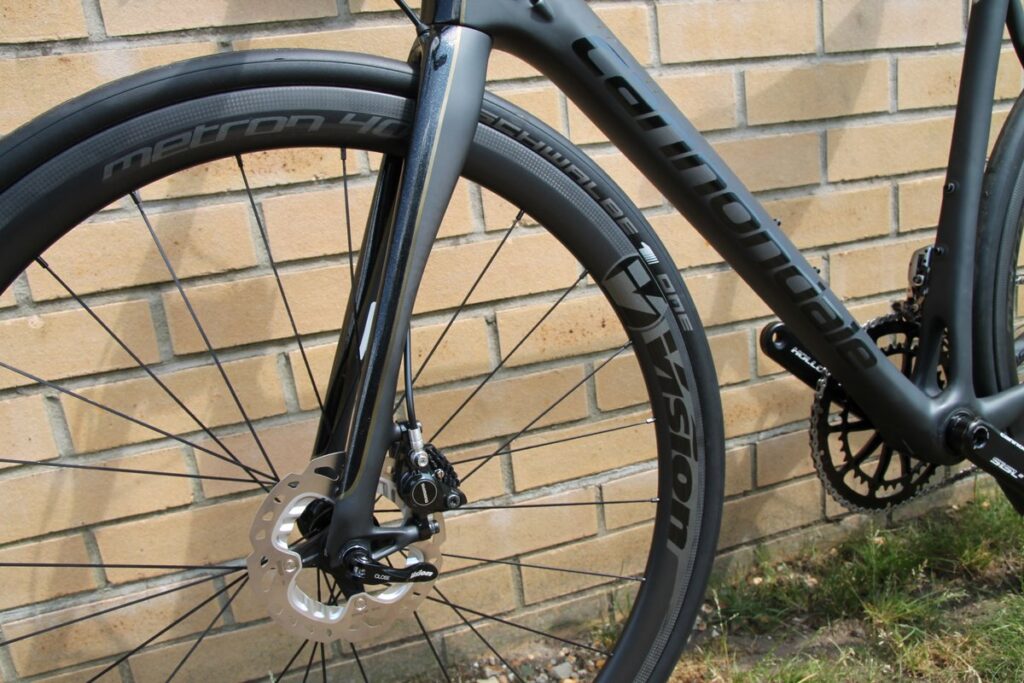

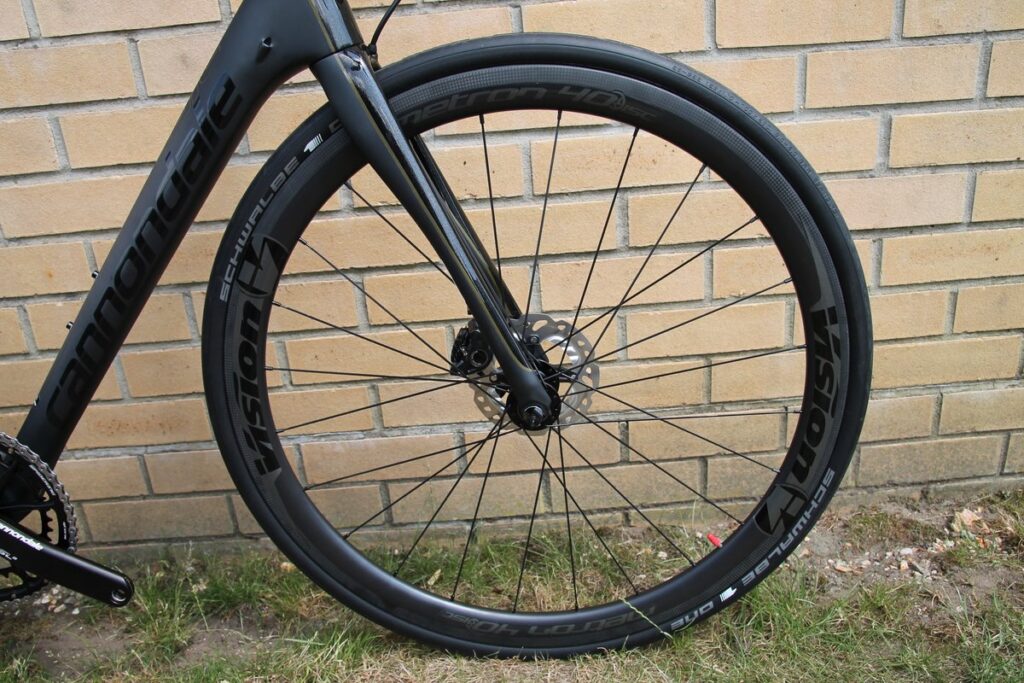

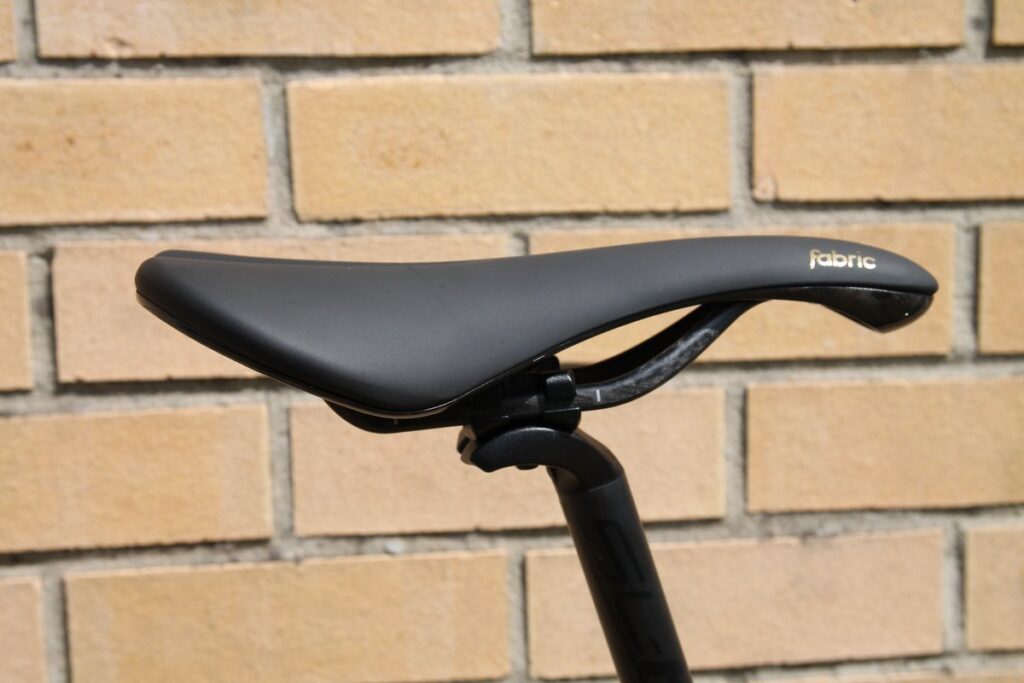

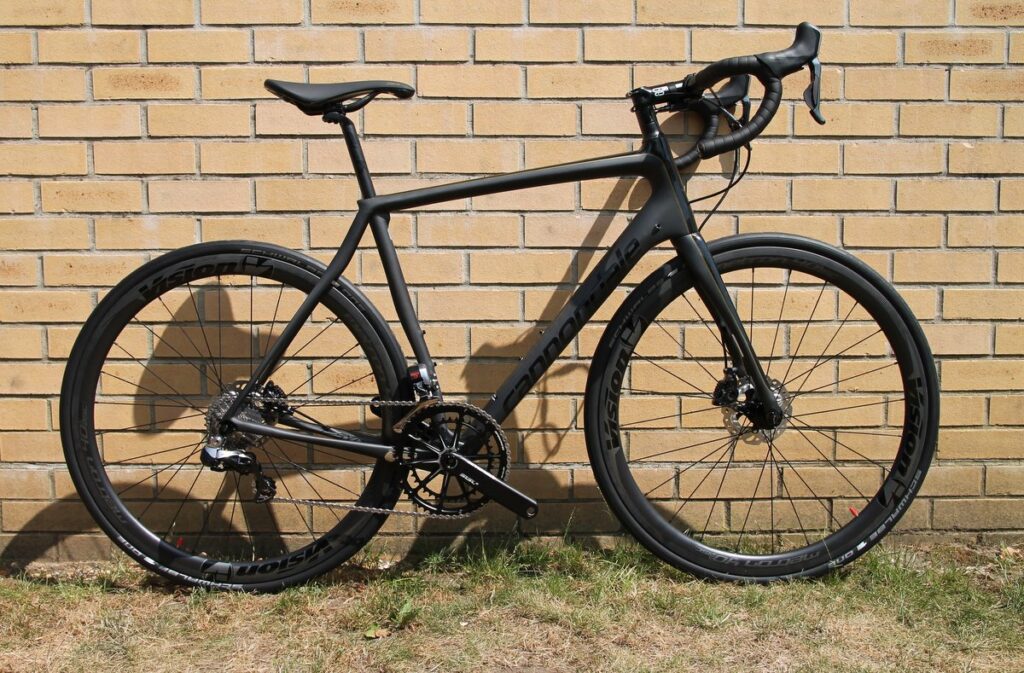

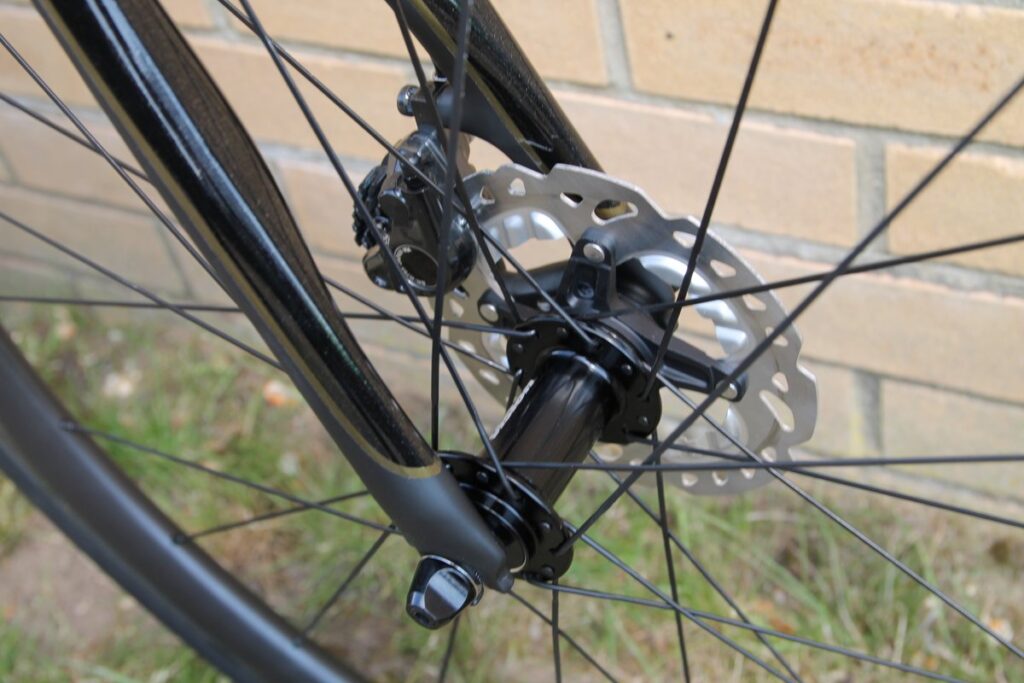

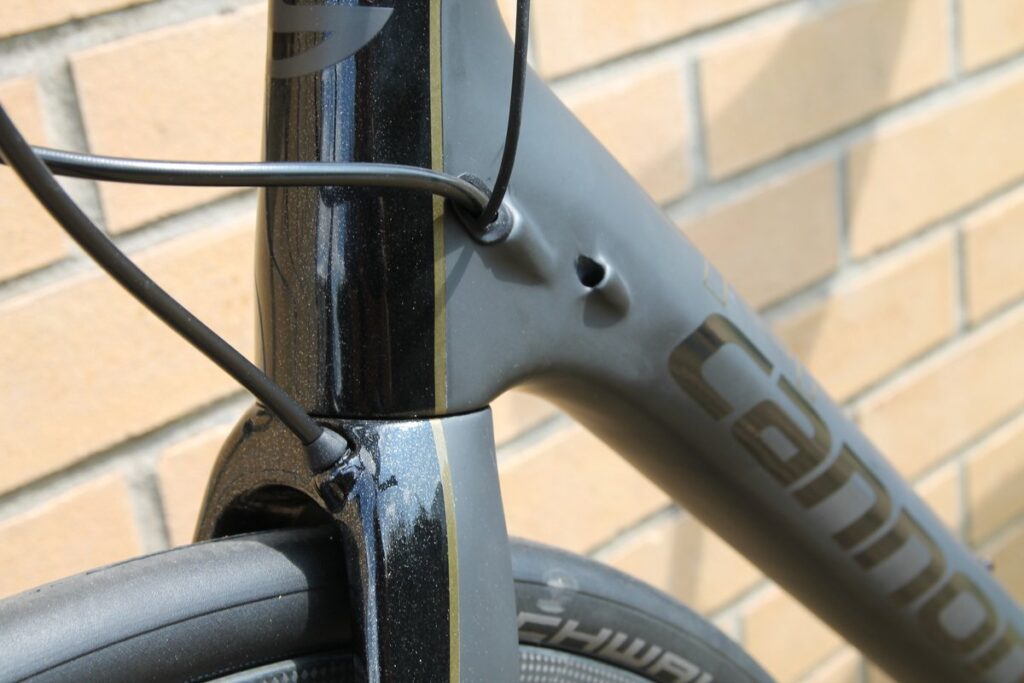

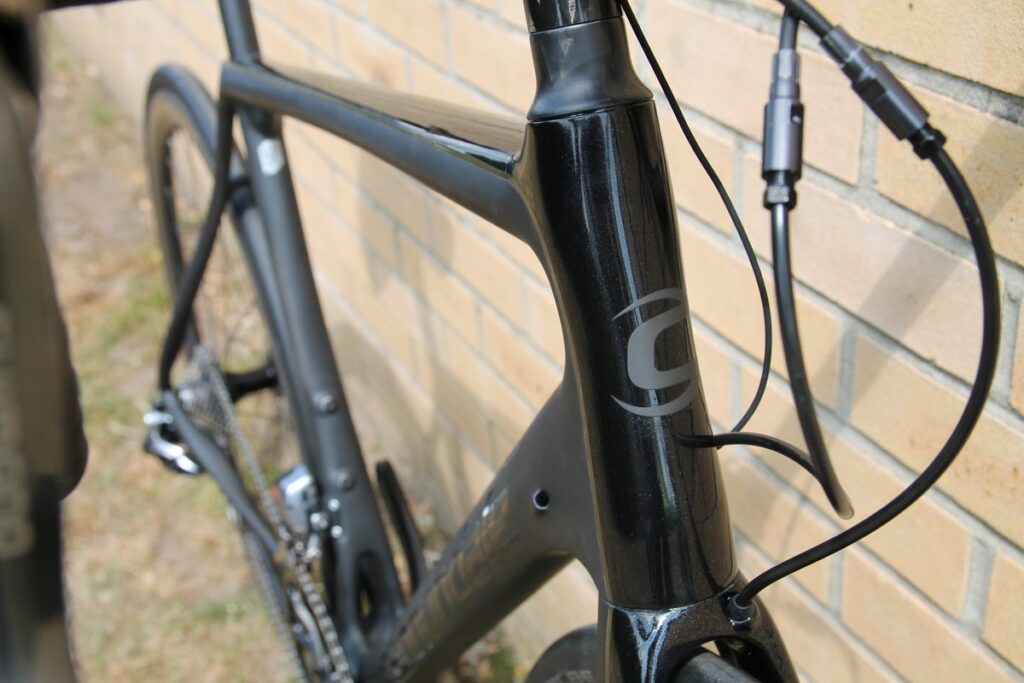

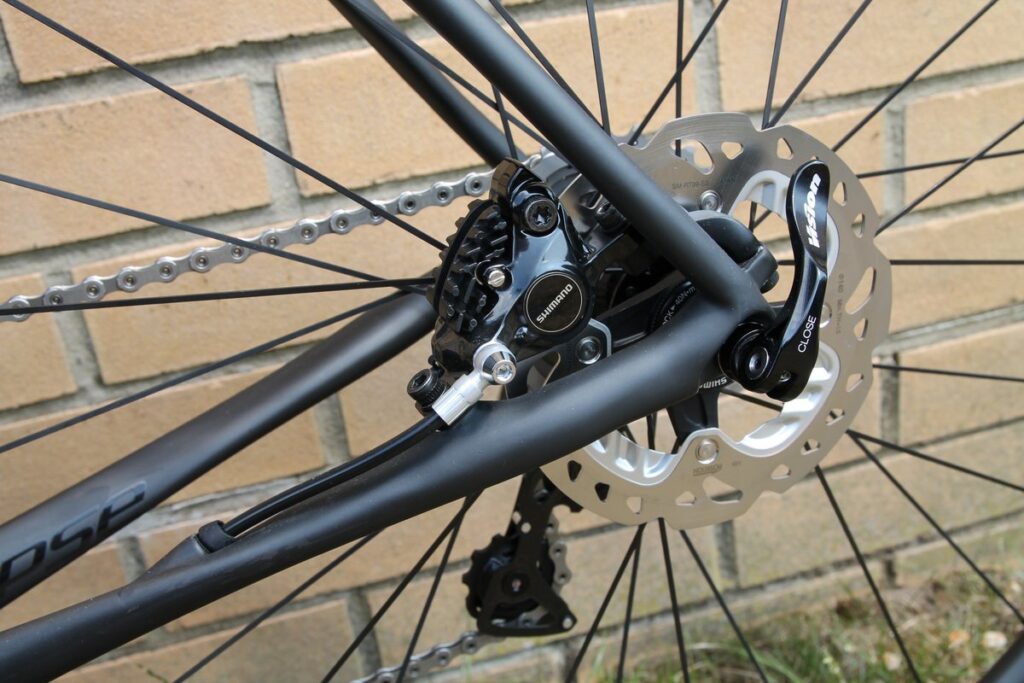

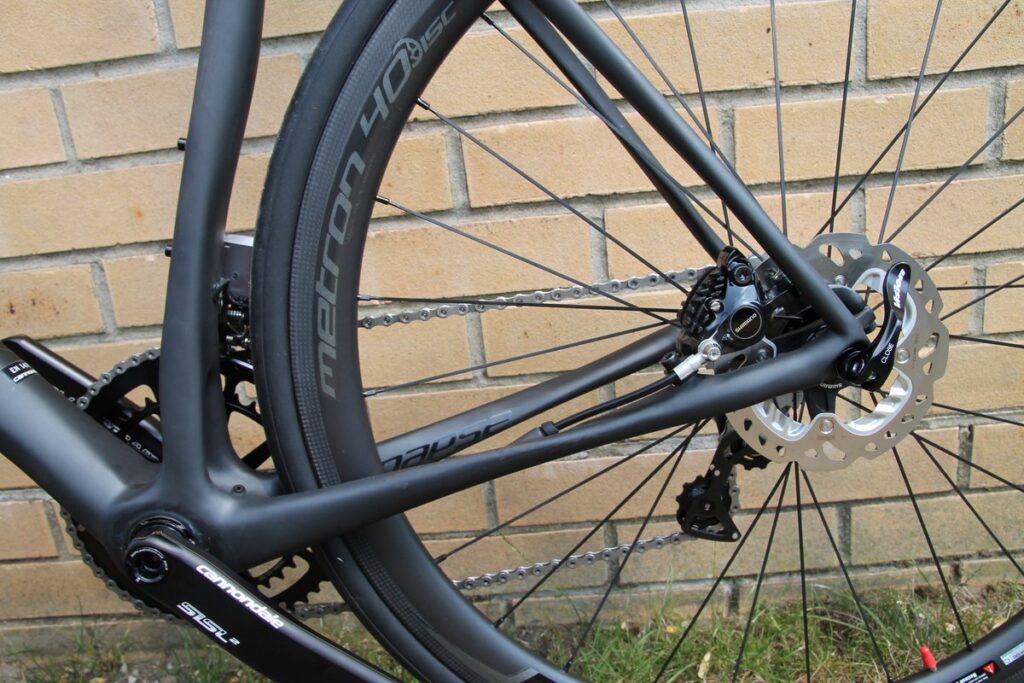

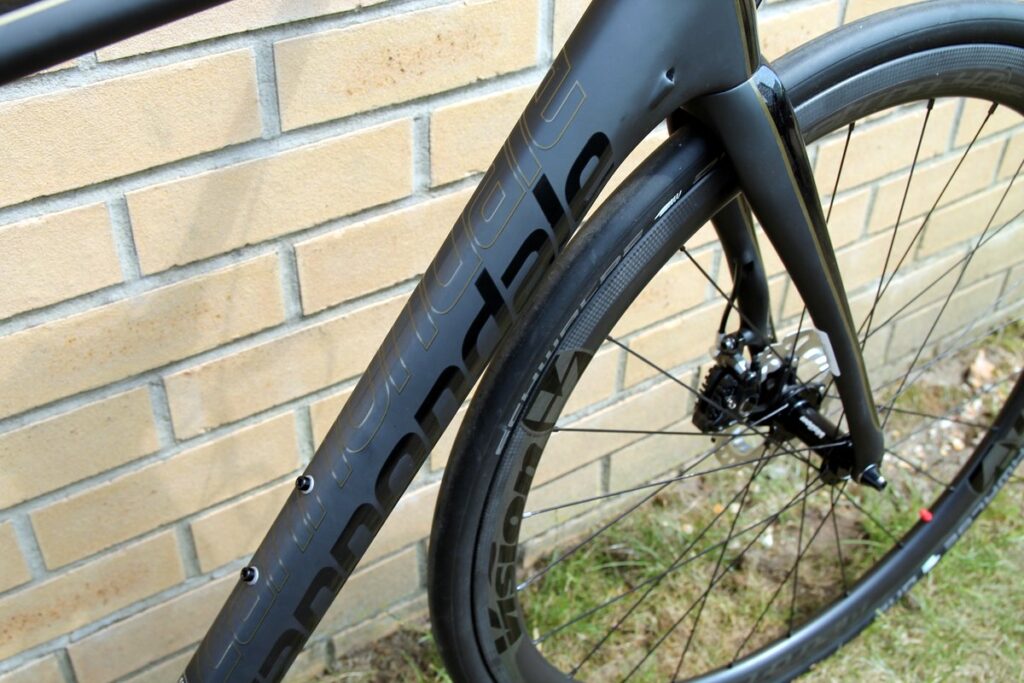

Synapse Hi-Mod Black Inc Di2 Disc £6,499

So last year there was the Synapse Black and it cost a staggering  £6,999. This year it costs a little less staggering £6,499. Superficially it’s mostly unchanged, with a Shimano Dura-Ace Di2 groupset and Vision Metron 40 Disc carbon clincher wheels wrapped with Schwalbe One 28mm tyres.

Cannondale’s super light Hollowgram SiSL2 BB30 chainset is fitted with a compact 50/34 chainring pairing.

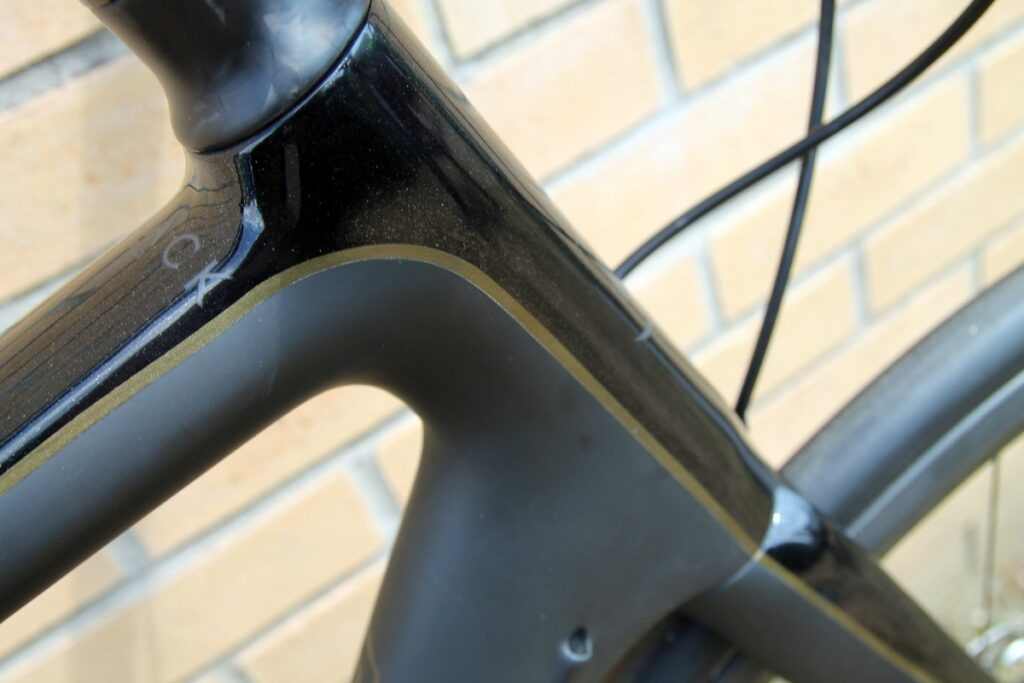

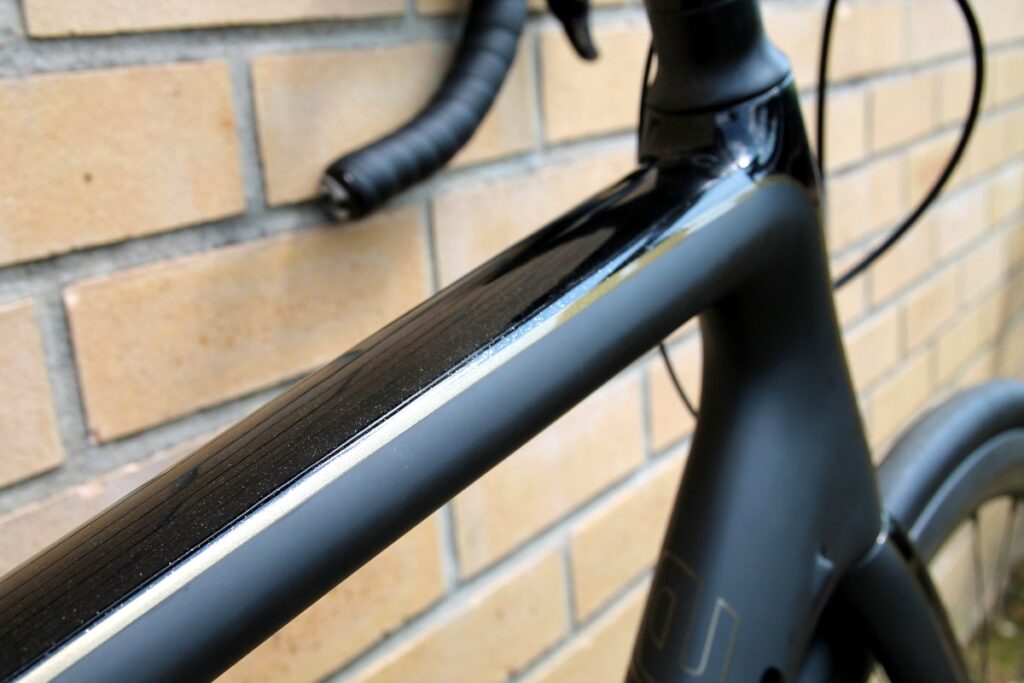

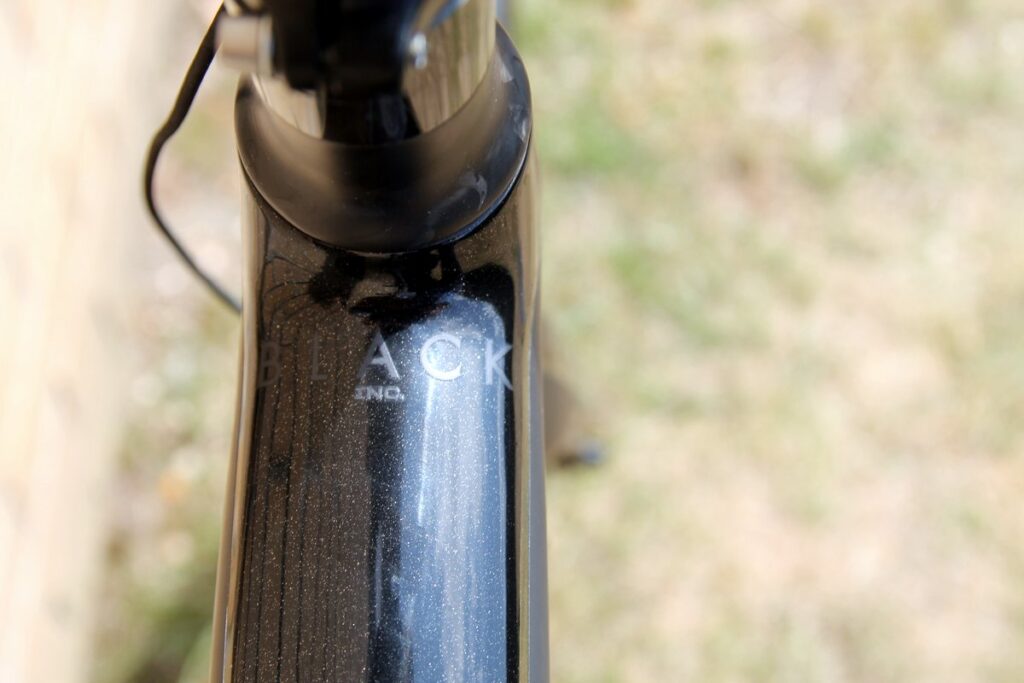

It gets a new snazzy paint job that is really hard to photograph. If you get the chance to see one in the flesh, take the time to have a good close look at the glittery paint and attention to detail in the gold trim.

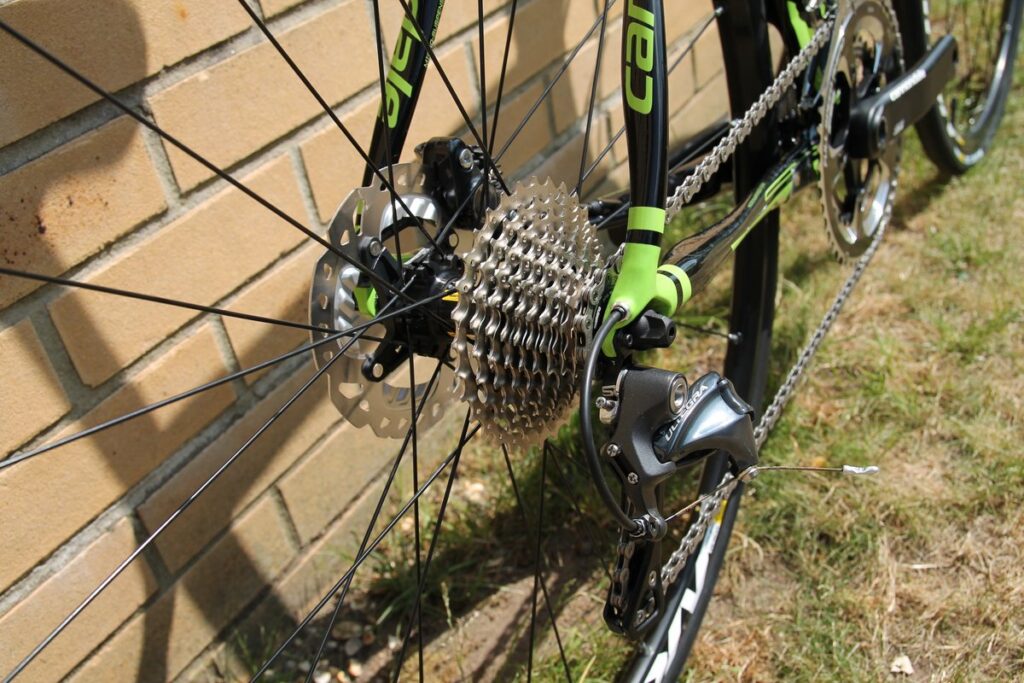

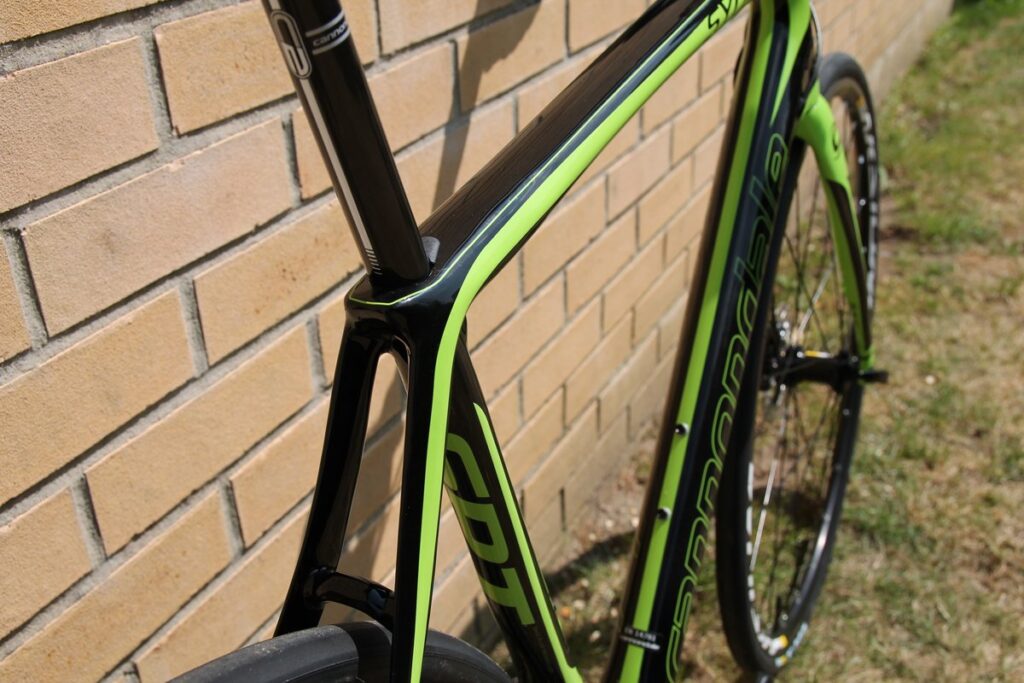

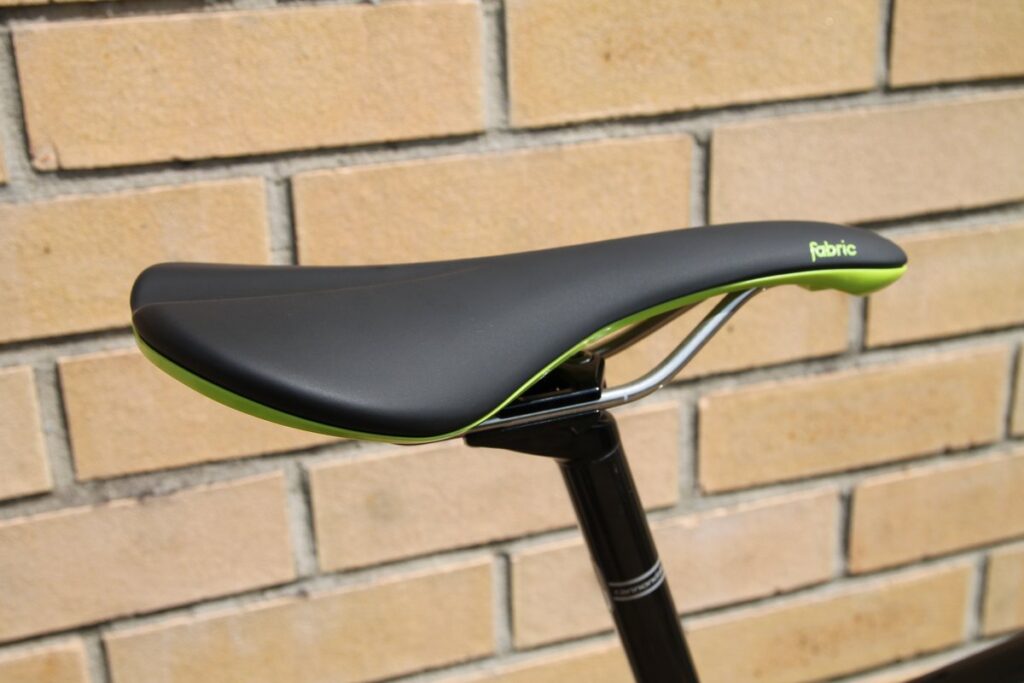

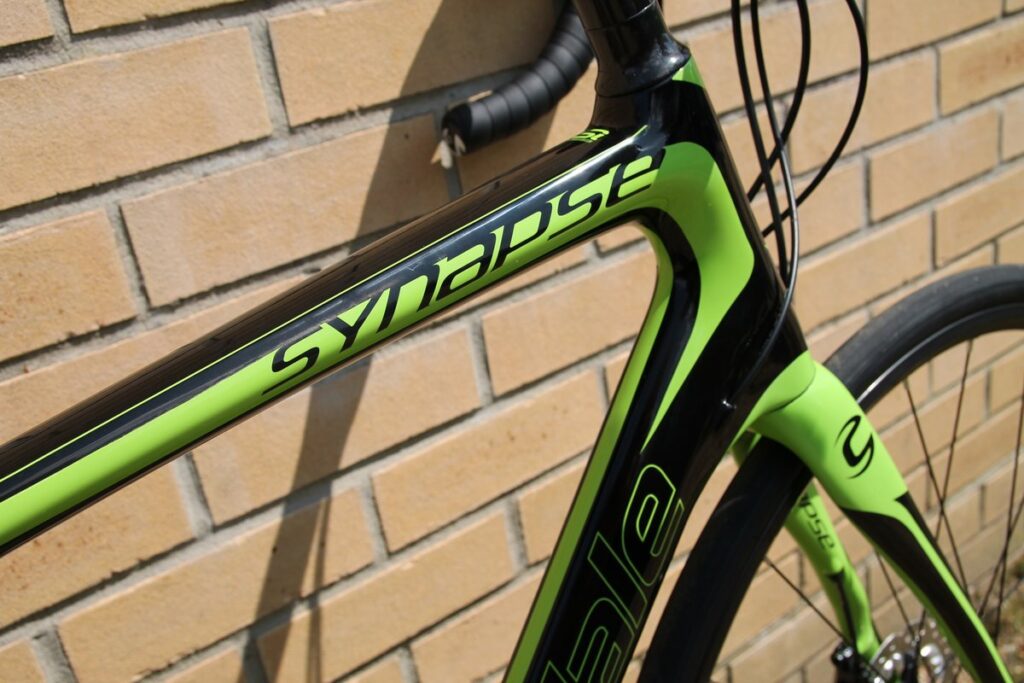

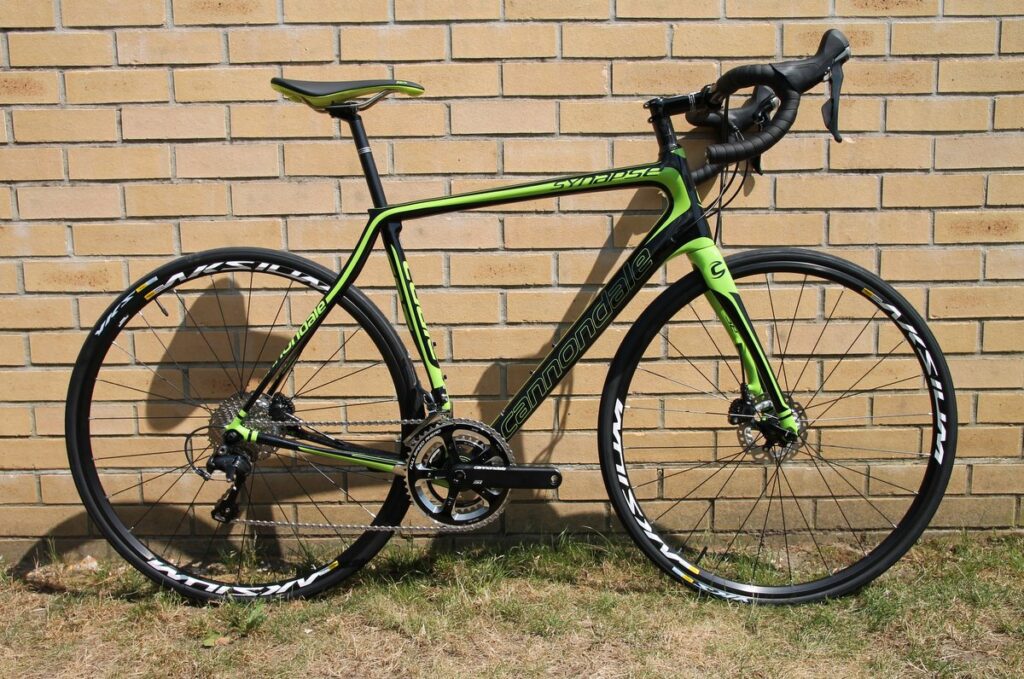

Synapse Carbon Ultegra Disc £2,499

You could buy two of the £2,499 Synapse Carbon Ultegra Disc bikes for the price of the Synapse Black and still have change for a very nice couple of weeks in Italy to enjoy the ride.

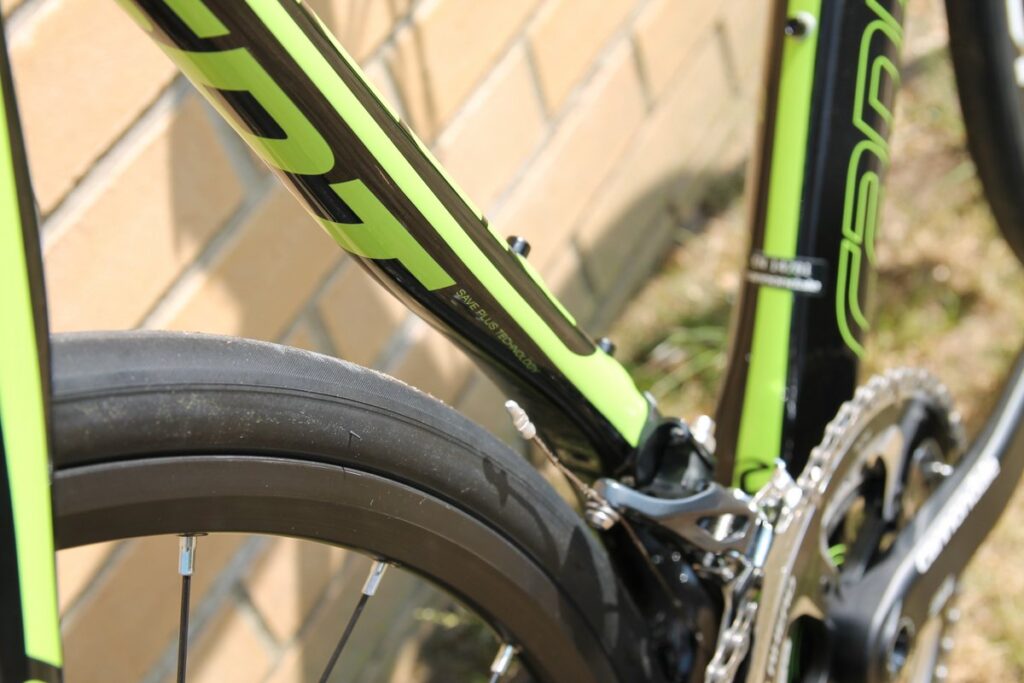

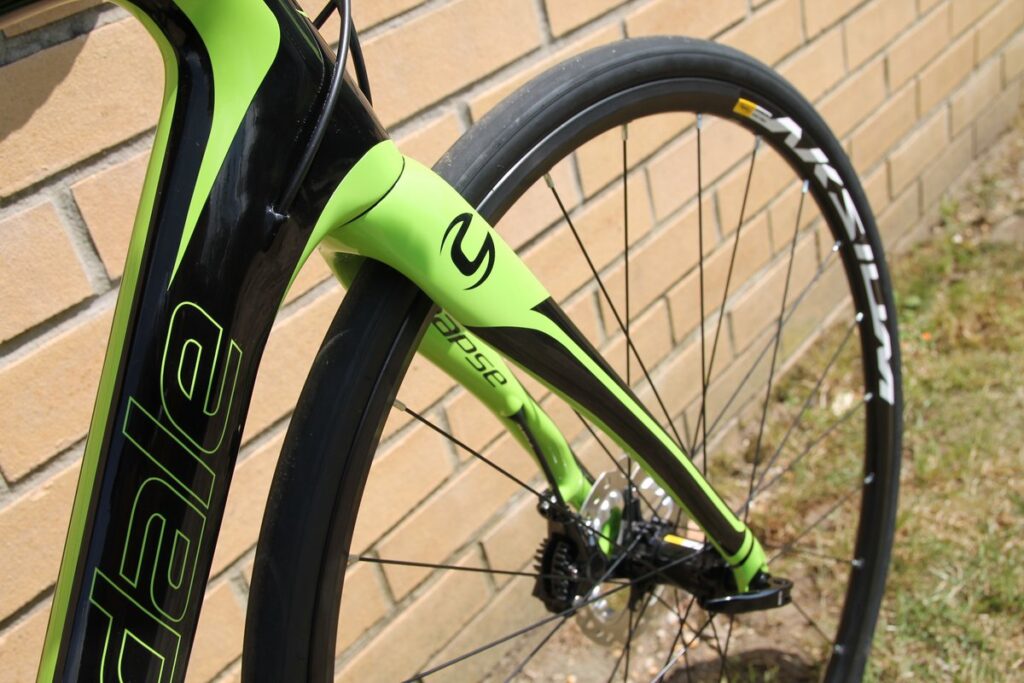

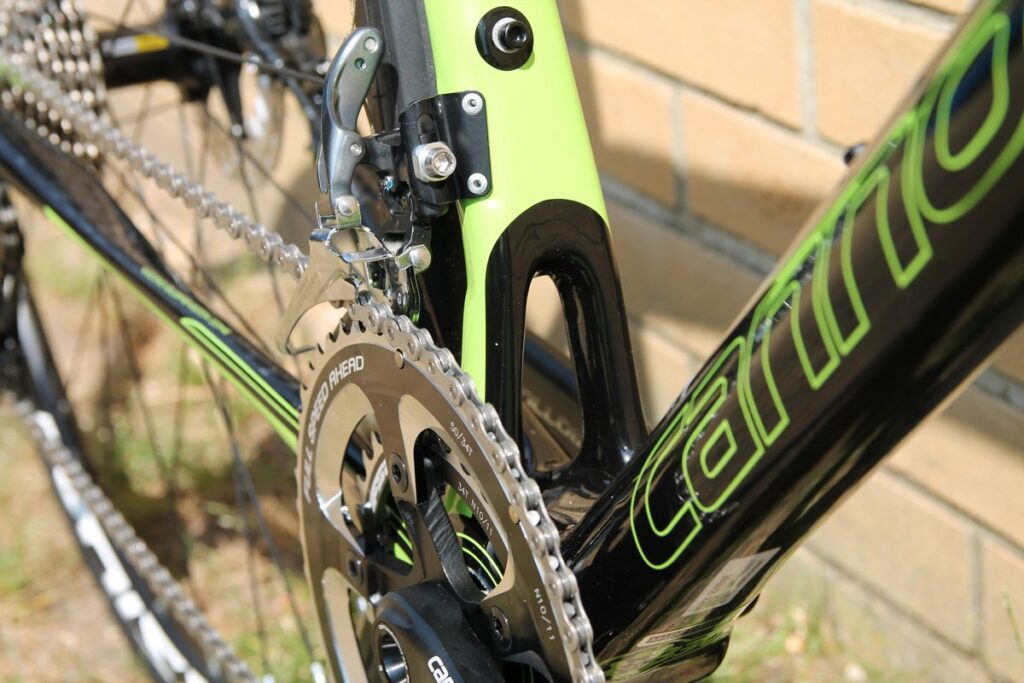

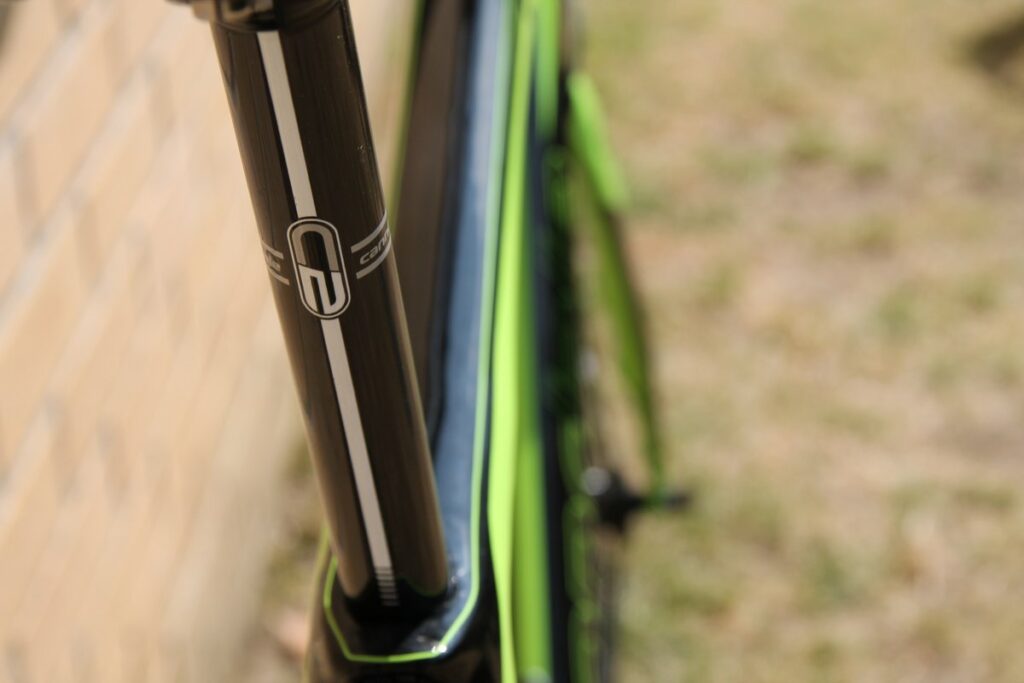

While the frame shares all the essential design features of that top Synapse, the carbon layup drops the Hi-Mod carbon for a lower modulus carbon to save money. That price saving also impacts the weight too, but in reality you’re unlikely to really notice.

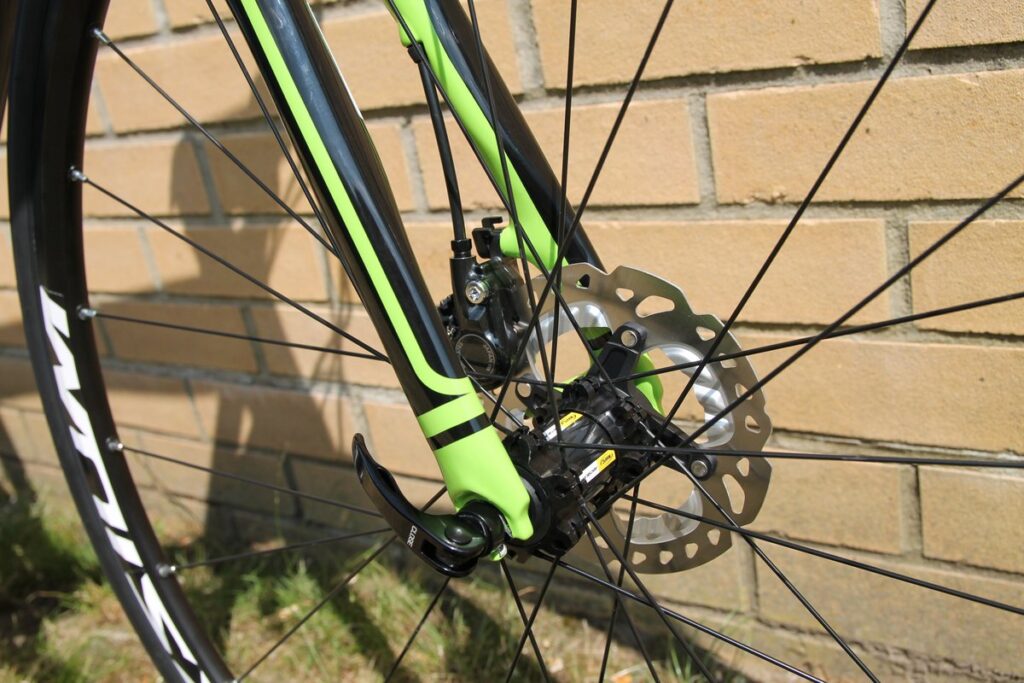

Mavic’s new Aksium One Disc wheels with Mavic Aksion 28mm tyres are fitted, along with a Fabric Spoon saddle with titanium rails. Cannondale’s Hollowgram Si 50/34 compact chainset is used.

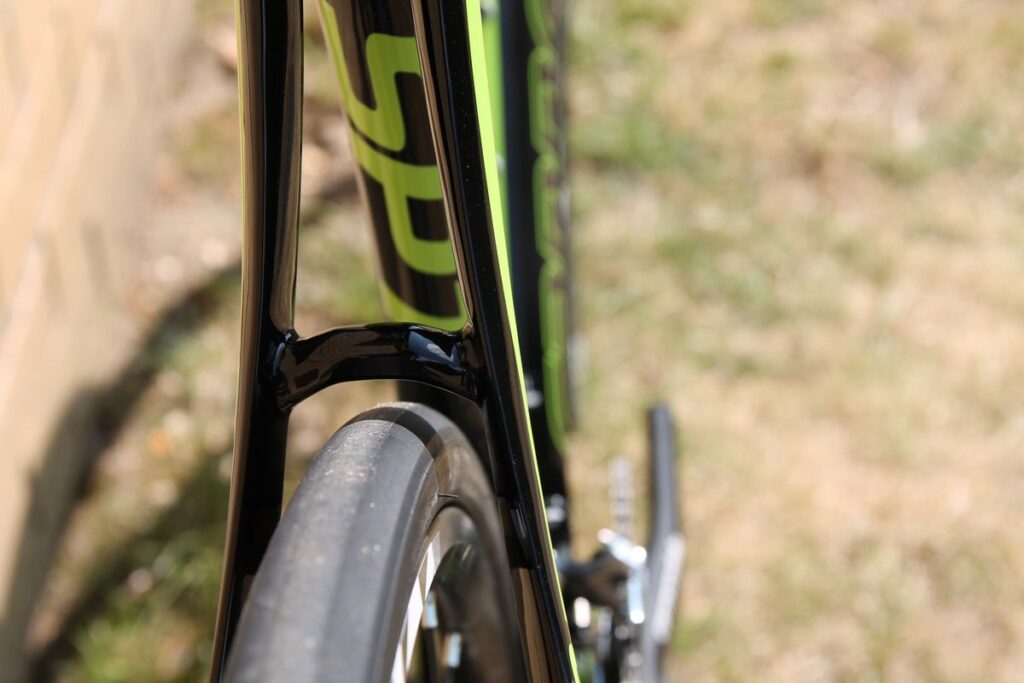

Lots of tyre clearances for fitting big 28mm tyres. You can choose from six sizes, 48 to 61cm.

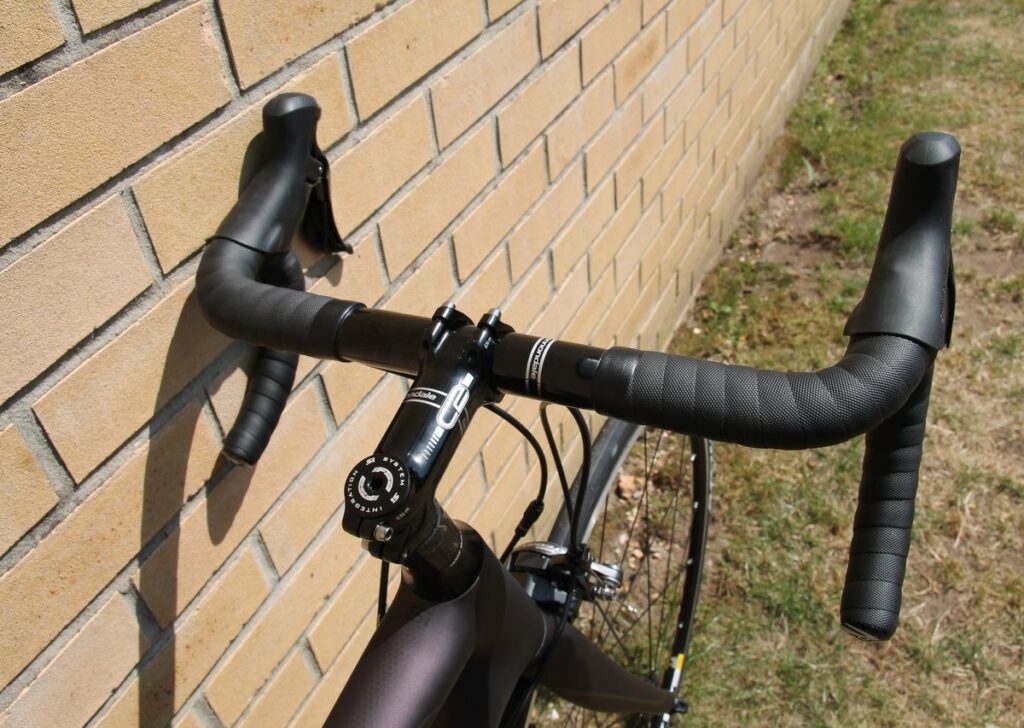

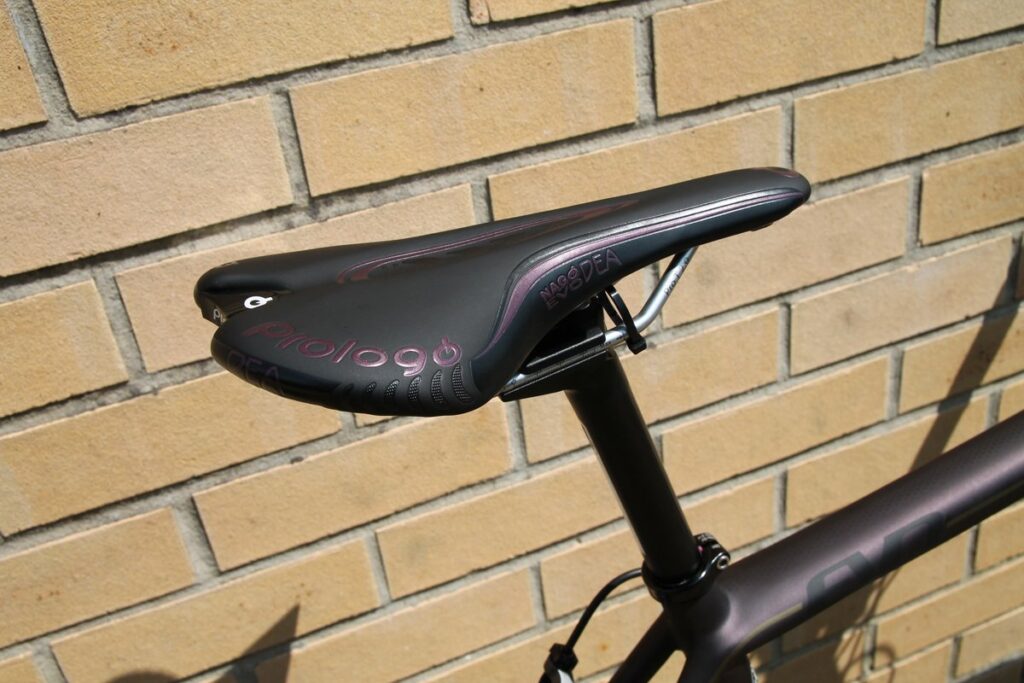

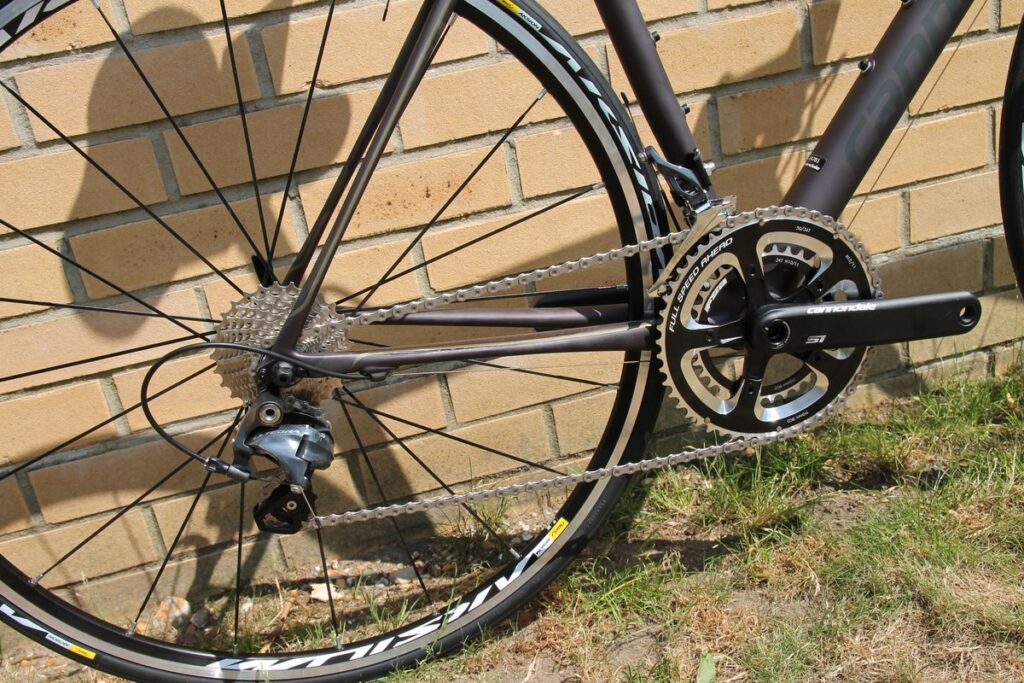

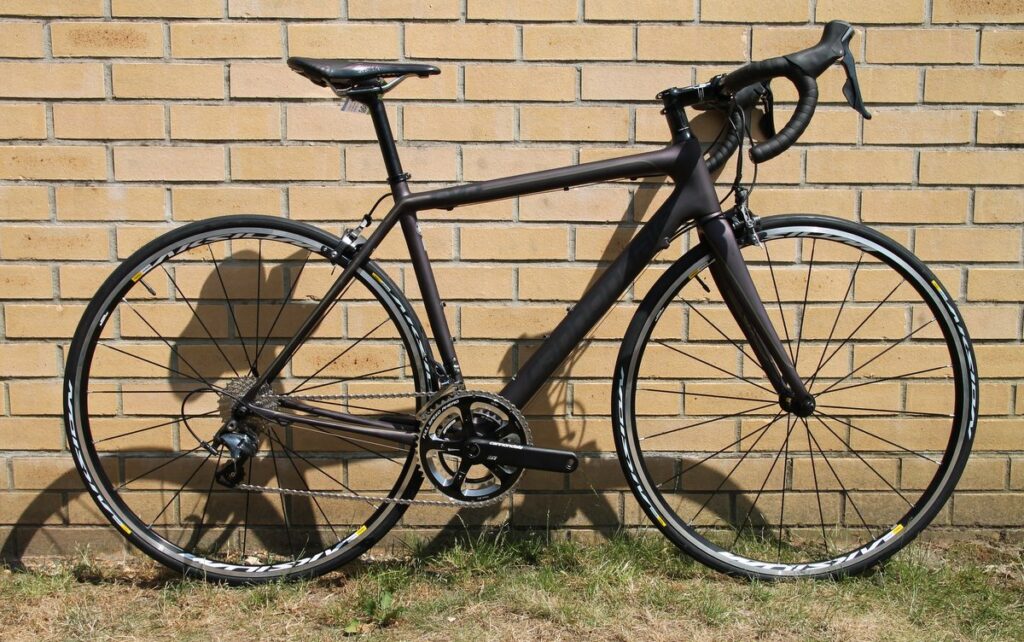

SuperSix Evo Women’s Ultegra 3 £1,999

More choice for women, with Cannondale offering two SuperSix Evo models in 2015, adding this £1999.99 Ultegra-equipped bike at the top of the range.

It’s available in five sizes (44, 48, 51, 54 and 56cm) with each fitted with women’s-specific Prologo Nago saddles, narrower handlebars and shorter stems. The Ultegra brake levers have the optional reach adjust shims fitted.

Mavic Aksium WTS wheels with Mavic Aksion tyres in 25mm width and a Cannondale Hollowgram Si compact 50/34 chainset completes the build.

Cannondale call this sleek finish Plum with Jet Black and Gold. Tidy.

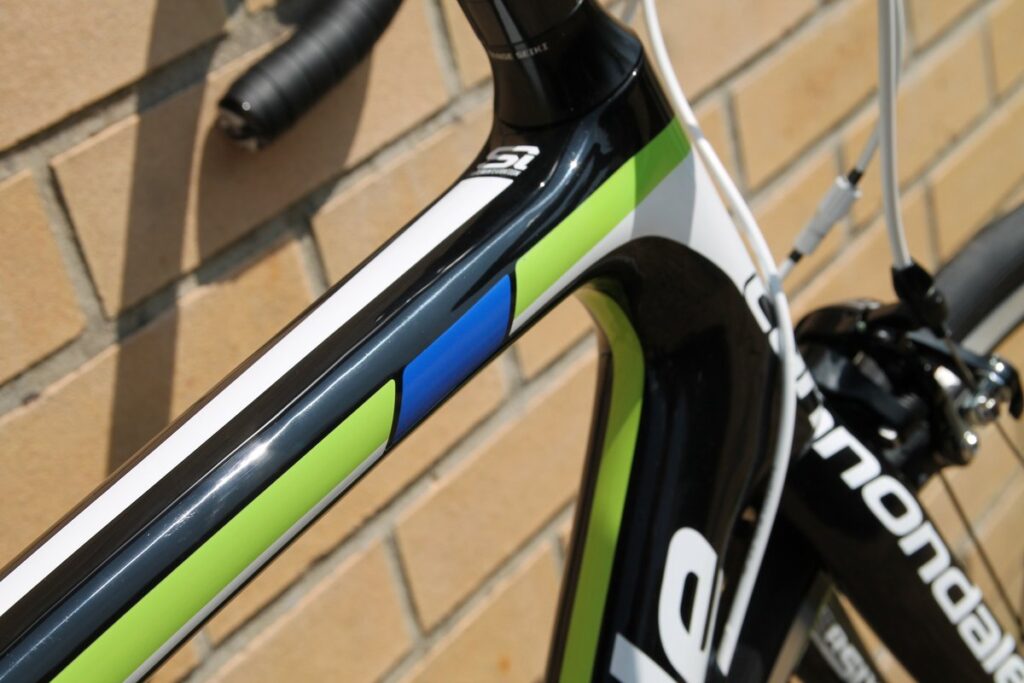

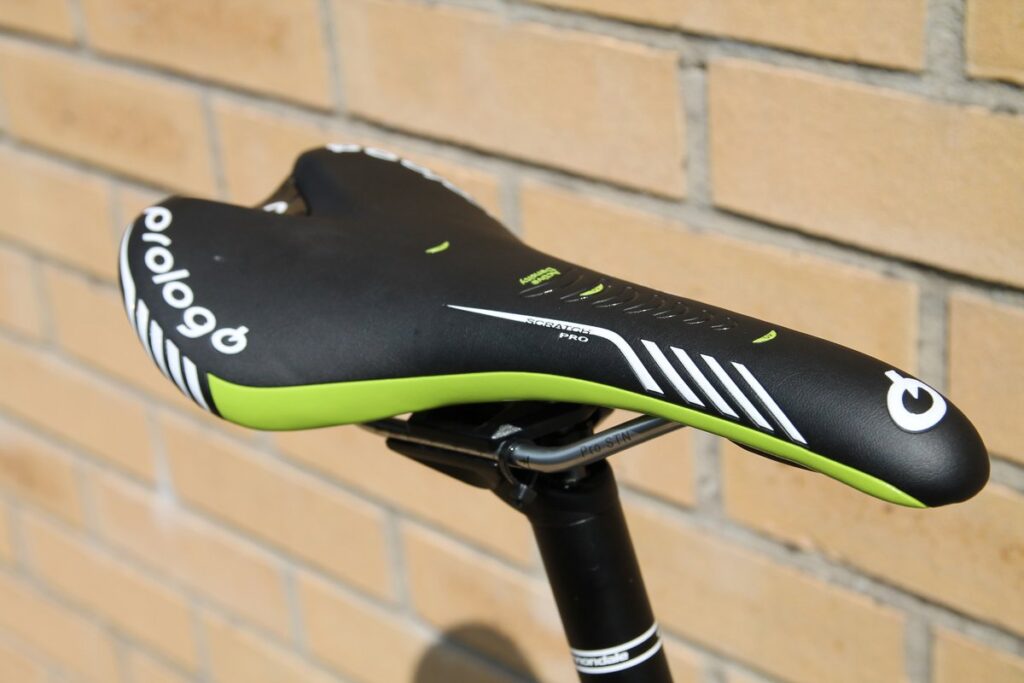

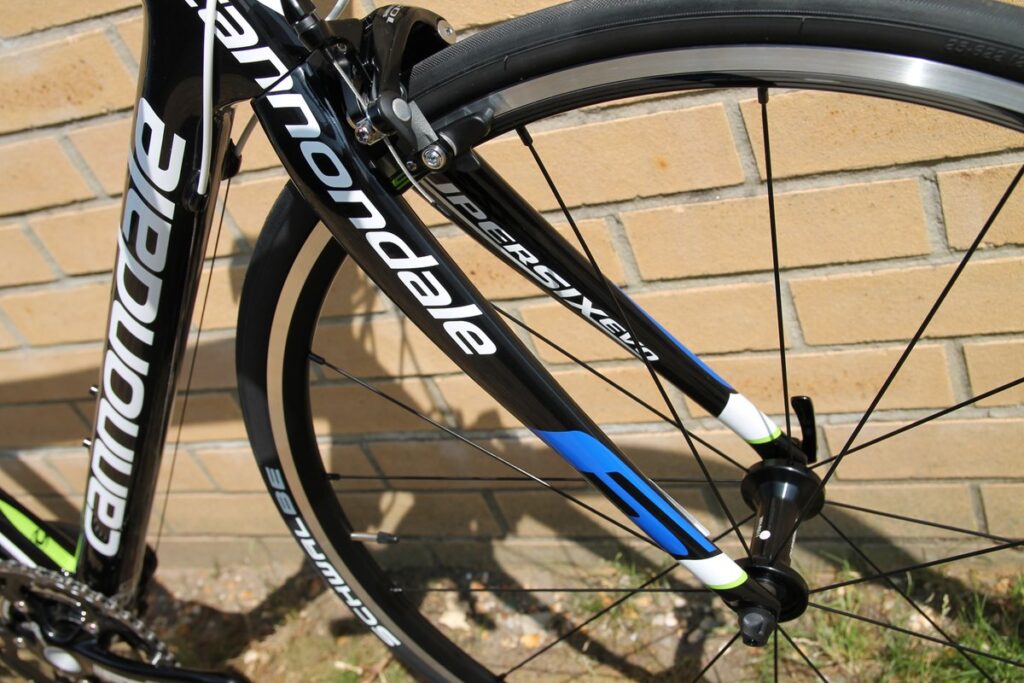

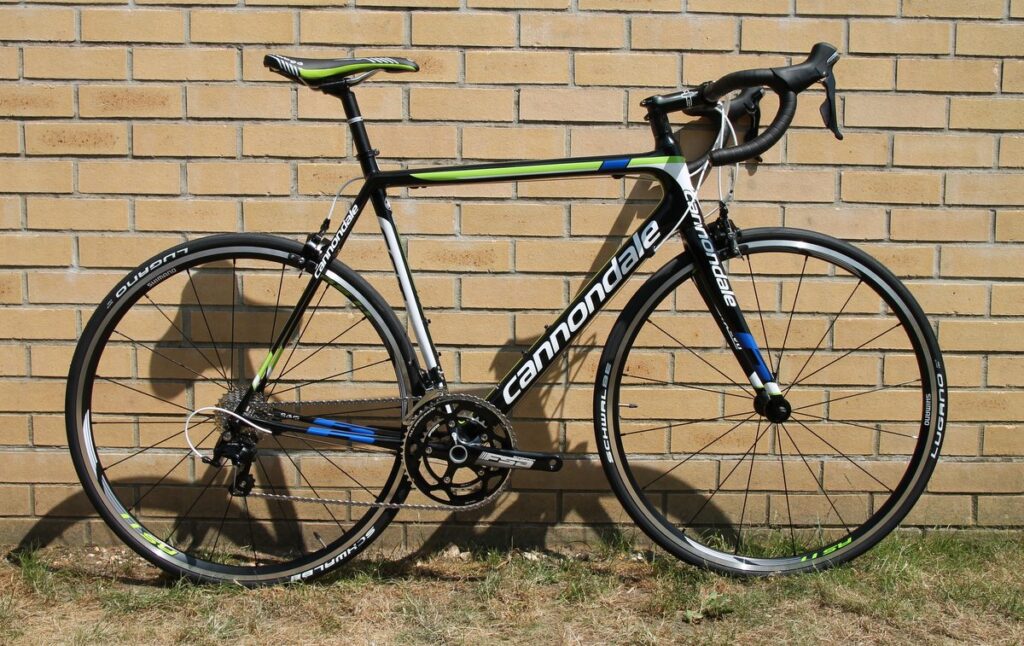

SuperSix Evo 105 5 £1,499  - entry-level Evo now £200 cheaper

Last year Cannondale expanded their SuperSix Evo range down to its lowest ever price, in the process pushing the old SuperSix into the history books. We tested that bike and were massively impressed, finding it to offer much of the performance of the top-end Evos but at a far more affordable price.

This year the opening SuperSix Evo 105 5 is £200 cheaper, with a pricetag of £1,499. So you can buy what is near enough the same frame the Cannondale pro cycling team, and Peter Sagan, race but with a Shimano 105 groupset. That’s pretty appealing.

The main changes from the top-end Evo is the fully external cable routing (that reduces build times) and a different grade of carbon fibre. It’s still uses the same Ballistec Carbon that Cannondale uses across the Evo line, just pairs it not with a lower modulus carbon.The geometry however is identical.

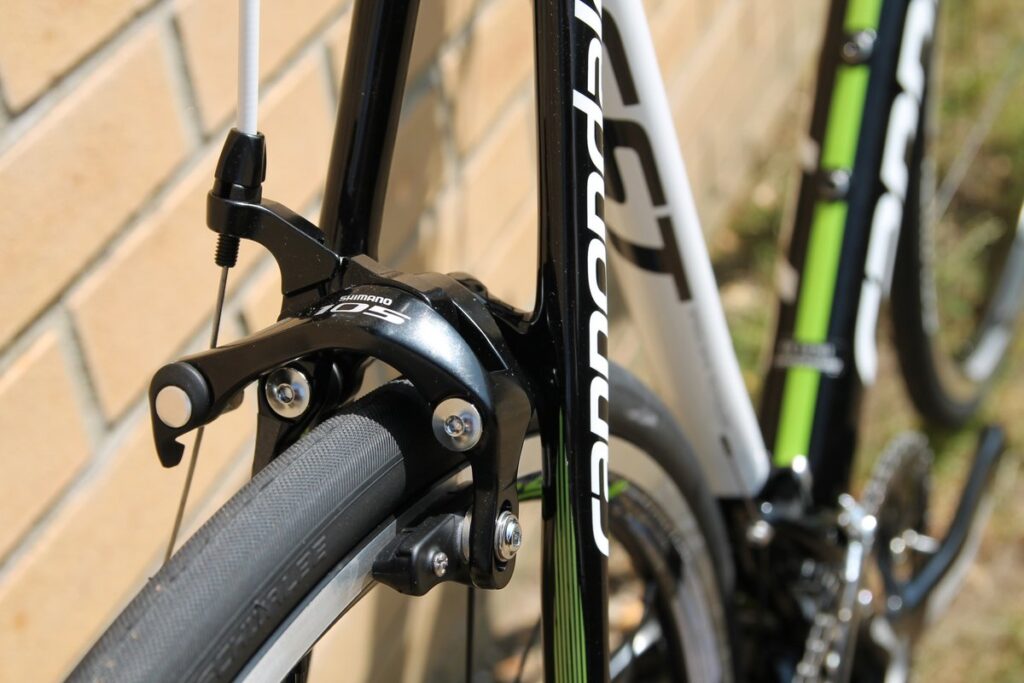

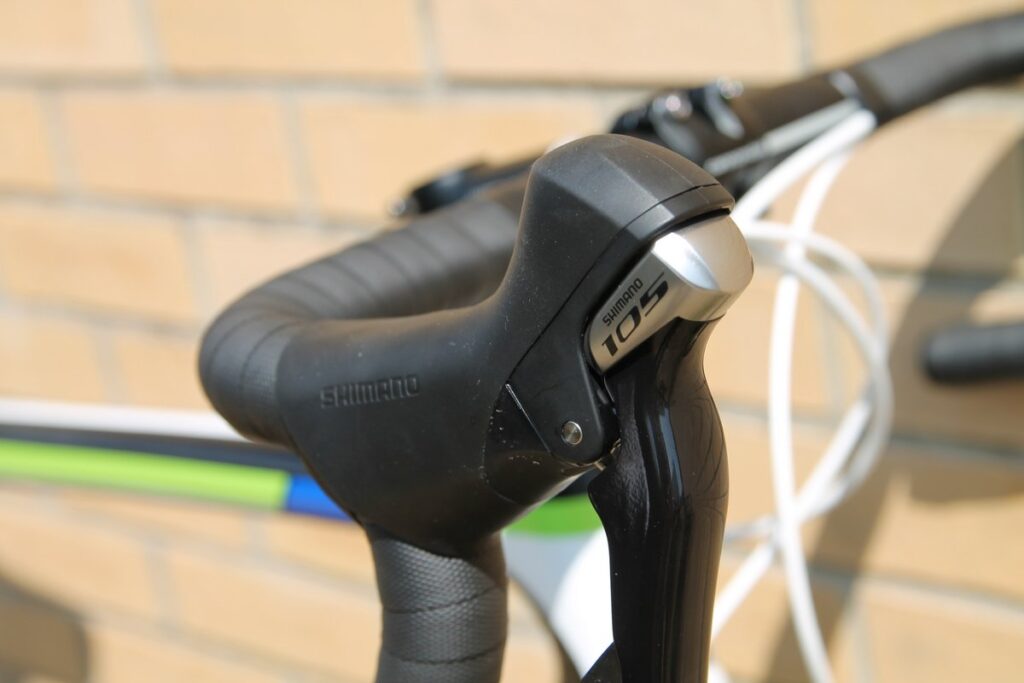

This bike features a Shimano 105 groupset, and it’s a full set including the brakes, only the FSA Gossamer 52/36 chainset deviates from the Shimano catalogue. That’s because the frame uses a BB30 bottom bracket and Shimano don’t offer a compatible chainset without the need for adapters.

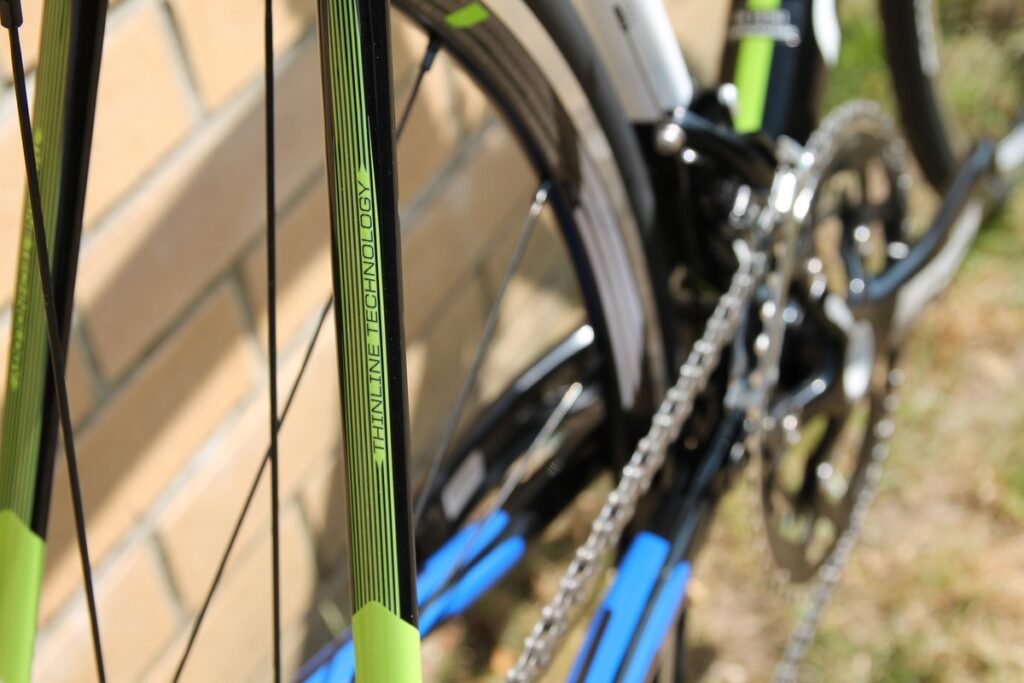

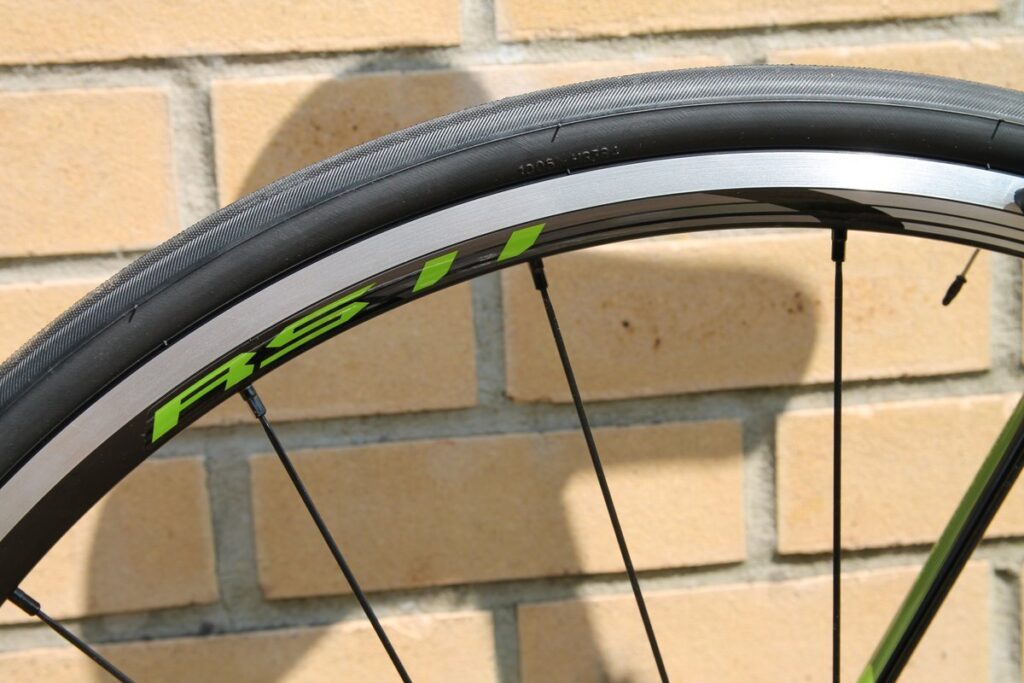

Shimano RS11 wheels, with colour matched decals, are paired with Schwalbe Lugano 25mm tyres. Finishing kit, by which we mean bars, stem and saddle, are Cannondale’s own brand C3 kit.

We'll have full details of availabiliity of these new bikes soon. More at www.cannndale.com
