New Lauf Grit Gravel fork provides 30mm suspension travel for gravel and cyclocross bikes

Engineered Bicycles will unveil new Lauf Grit Gravel fork at Bespoked this weekend

Engineered Bicycles, a Bristol-based bespoke frame builder, will launch the unique Lauf Grit Gravel fork in the UK at the Bespoked show this weekend, following its international launch at Sea Otter this week.

The fork is unique in that it uses carbon fibre leaf springs to provide up to 30mm of suspension travel, with only a small weight penalty over a regular fork, and certainly a lot lighter than a conventional suspension fork. It also requires no maintenance and can be fitted to most gravel and cyclocross bikes.

- Review: Engineered Bicycles Gezel


“The Lauf forks are designed to maintain the lightness and reliability of rigid forks while offering absorption and traction in small bumps that conventional suspension forks can’t match,” says the company.

The unique leaf-spring fork first launched as a mountain bike product and the Icelandic company is now hoping to make a dent in the road market. It looks like the sort of product that could be well suited to the growing adventure and gravel bike market, especially following the launch of the Cannondale Slate with its Lefty suspension fork.

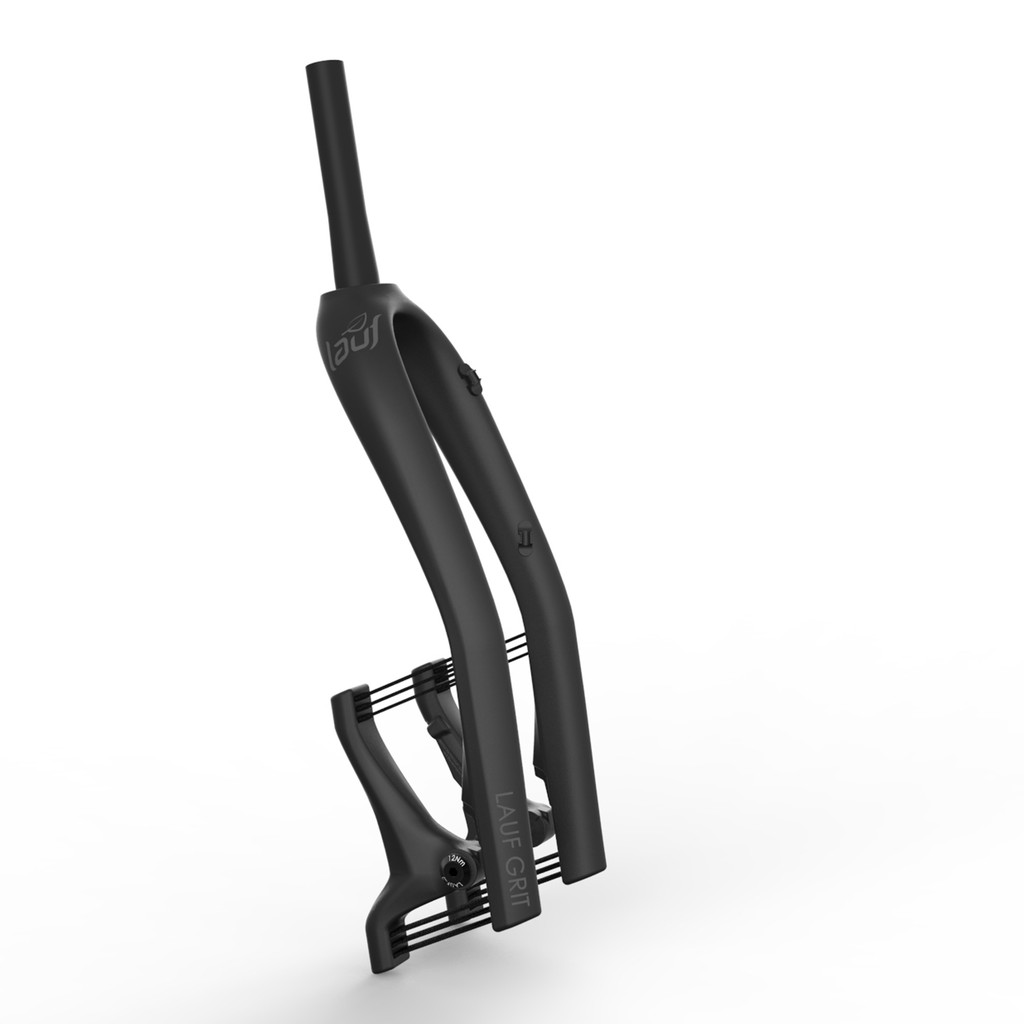

The Lauf Grit Gravel fork combines carbon fibre lower legs with glass fibre leaf springs, and provides a claimed 30mm of travel, the same as the Lefty fork on the Slate. That should certainly be enough to take the sting out of the trail.

lauf fork.jpeg

The carbon construction means that the fork is light, coming in at a claimed 900g. That's heavier than a regular carbon road fork but considerably lighter than most suspension forks. Be warned, it does have a rider weight limit of 110kg.

There's clearance for up to 42mm tyres, or 2.1in tyres if used with 650b wheels. It's compatible with 12 and 15mm thru-axles and uses the latest Flat Mount standard and takes up to a 160mm disc. It uses a regular tapered steerer tube, with adapters available for 1.5in lower bearing headsets.

Lauf has designed the fork to sag a little when you are sat on the bike, and the axle-to-crown measurement is 409mm with the 6mm of sag taken into account.

Engineered Bicycles will be launching the new fork at Bespoked this weekend. Engineered founder David Fong says, “I was expecting them to feel smooth, which they do. And they take the sting out of even the rough stuff very well. But what impressed me the most was when I threw my Zondag ‘ cross bike down the local trails on 28c tyres I found I could attack the corners very hard. The front wheel traction is greatly improved meaning much better braking and more assured cornering. To me, they're a must have on any drop barred adventure bike.”

The Lauf Grit Gravel fork costs $790 and it ships in August and comes with a 5-year warranty. More at www.laufforks.com, and more if you attend the Bepsoked show this weekend and take a closer look at the fork.

David worked on the road.cc tech team from 2012-2020. Previously he was editor of Bikemagic.com and before that staff writer at RCUK. He's a seasoned cyclist of all disciplines, from road to mountain biking, touring to cyclo-cross, he only wishes he had time to ride them all. He's mildly competitive, though he'll never admit it, and is a frequent road racer but is too lazy to do really well. He currently resides in the Cotswolds, and you can now find him over on his own YouTube channel David Arthur - Just Ride Bikes

Add new comment

5 comments

Avatar
Neil @ Bowman | 7 years ago
0 likes

@crashboy - probably the WTB Horizon Road Plus TCS - available in the summer, a 65oB road tyre that will fit in a lot of 700c gravel and cross bikes.

Avatar
Crashboy replied to Neil @ Bowman | 7 years ago
0 likes

Neil @ Bowman wrote:

@crashboy - probably the WTB Horizon Road Plus TCS - available in the summer, a 65oB road tyre that will fit in a lot of 700c gravel and cross bikes.



Many thanks for that!  I think there is something stylish about the tan walls.  I foresee some time searching the web for something similar in a 700c wheel size ahead....



Avatar
Crashboy | 7 years ago
0 likes

Yes please: I'm in for these, except they cost the same as the whole of the rest of my bike, give or take ...Both together are still cheaper than a Slate though, which remains on my lottery win shopping list... hopefully the forks come down in price or a cheaper similar design will come along - unless there are already alternatives out there?

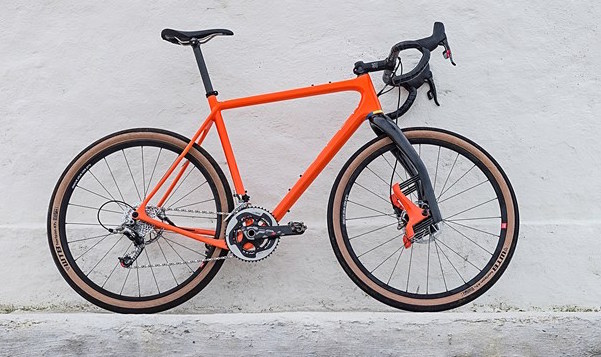

BTW anybody know what those tan wall WTB tyres are on the orange bike in the pix? I love the look of them!





Avatar
DrJDog | 7 years ago
0 likes

No damping?

Avatar
fukawitribe replied to DrJDog | 7 years ago
0 likes

DrJDog wrote:

No damping?

No adjustable rebound damping, but with the travel this has that's probably not going to be an issue. Seems to be garnering favourable comments from bike manufacturers and journos at the moment so seems like it works OK so far. Pricey mind...
