review

Chris King R45 hubs

9
£490.00

VERDICT:

9
10
Superbly engineered road racing hubs that are both lightweight and tough – they'll last an age
Weight:
317g
Contact:
www.evolutionimports.co.uk

At road.cc every product is thoroughly tested for as long as it takes to get a proper insight into how well it works. Our reviewers are experienced cyclists that we trust to be objective. While we strive to ensure that opinions expressed are backed up by facts, reviews are by their nature an informed opinion, not a definitive verdict. We don't intentionally try to break anything (except locks) but we do try to look for weak points in any design. The overall score is not just an average of the other scores: it reflects both a product's function and value – with value determined by how a product compares with items of similar spec, quality, and price.

What the road.cc scores mean

Good scores are more common than bad, because fortunately good products are more common than bad.

  • Exceptional
  • Excellent
  • Very Good
  • Good
  • Quite good
  • Average
  • Not so good
  • Poor
  • Bad
  • Appalling

These hubs – £140 (fr), £350 (rear) – are lovely. Sorry to get all technical on you so early – it’s an engineering term meaning they’re superbly designed and work marvelously.

Chances are you’ve heard of Chris King headsets and you know that they have a reputation for lasting forever. And they do. They’re precision-made and require very little attention to stay running as smooth as you like, and these new R45 lightweight hubs are similar.

What’s so good about them? Well, for a start Chris King manufacture their own stainless steel bearings to a very high standard. They run super-smooth from the off and virtually never need replacing if you look after them.

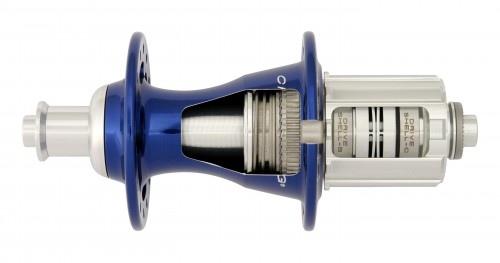

The real action here, though, comes in the shape of the RingDrive engagement mechanism in the rear hub. Rather than a standard pawl-type freehub design (where the spring-loaded pawls engage with teeth when you pedal forward, but are pushed inside when you don’t), Chris King use a pair of toothed rings that engage around the full circumference of the hub. They slide over one another when you’re not pedaling forward, but a spring ensures they engage when you put the power in.

And rather than the standard 24 teeth, you get 45 titanium engagement teeth here. That’s fewer than the mountain bike version which has 72, but it still means that they catch that much faster than usual. With 45 teeth, there’s just 8° of rotation before engagement, so you never get much of a delay between starting to move the pedals and applying the pressure to the rear wheel.

Okay, it might not sound like much – and, to be fair, it isn’t that much – but everything is more immediate when you jump out of the saddle to steal a march on your ride mates. It’s just better. Oh, and it’s quiet when you’re freewheeling too, with just a satisfying whirr to accompany your descents.

The other thing we really like about Chris King hubs is that it's easy to get in there to give them a quick once over. Open them up with Allen keys and give them a clean and re-lube every few months, adjust the bearing preload and you’re good to go again in minutes. It’s simple, even if you’re not mechanically minded, thanks to the instructions on Chris King’s website.

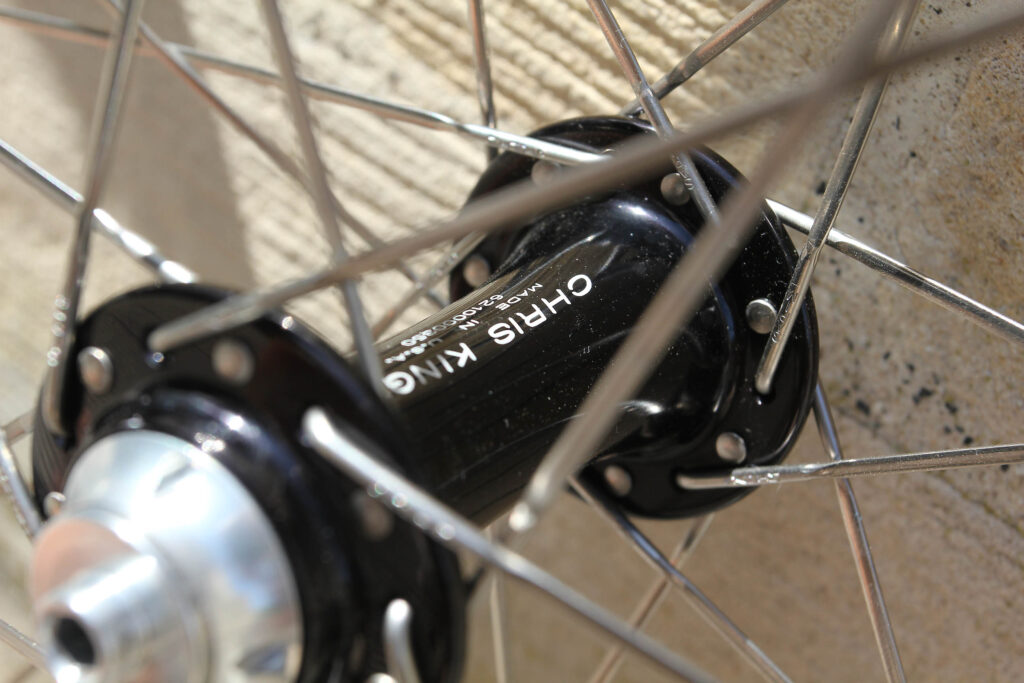

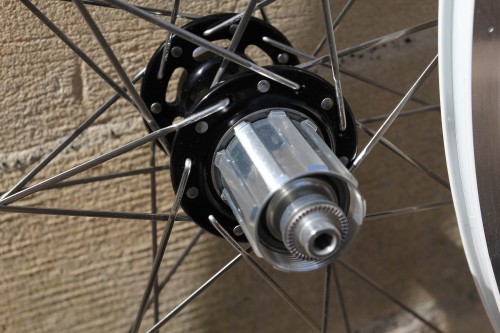

Weighing 102g (front) and 215g (rear) – manufacturer's weights (ours came built up into complete wheels) – the R45 hubs are light. You can get lighter but durability is obviously a key consideration here – these are a long-term investment. They’re available with a Shimano/SRAM freehub body only and in nine different colours. Importers Evolution will be keeping 32-spoke hubs in stock although they can custom order other options if you prefer (24- and 28-spoke at the rear, the same plus 20-spoke at the front).

Clearly, not many people are going to spend the better part of £500 on a couple of hubs, but if you’re a racer and you want some high-quality componentry at the heart of your wheels, these should last you years.

Verdict

Superbly engineered road racing hubs that are both lightweight and tough – they'll last an age

If you're thinking of buying this product using a cashback deal why not use the road.cc Top Cashback page and get some top cashback while helping to support your favourite independent cycling website

road.cc test report

Make and model: Chris King R45 hubs

Size tested: n/a

Rate the product for quality of construction: 9/10

Rate the product for performance: 9/10

Rate the product for durability: 9/10

Rate the product for weight, if applicable: 9/10

Rate the product for value: 7/10

Did you enjoy using the product? Yes

Would you consider buying the product? Hmm, if I had that sort of cash

Would you recommend the product to a friend? Yes

Overall rating: 9/10

About the tester

Age: 39  Height: 190cm  Weight: 74kg

I've been riding for: Over 20 years  I ride: Most days  I would class myself as: Expert

I regularly do the following types of riding: time trialling, commuting, sportives, general fitness riding,



Mat has been in cycling media since 1996, on titles including BikeRadar, Total Bike, Total Mountain Bike, What Mountain Bike and Mountain Biking UK, and he has been editor of 220 Triathlon and Cycling Plus. Mat has been road.cc technical editor for over a decade, testing bikes, fettling the latest kit, and trying out the most up-to-the-minute clothing. We send him off around the world to get all the news from launches and shows too. He has won his category in Ironman UK 70.3 and finished on the podium in both marathons he has run. Mat is a Cambridge graduate who did a post-grad in magazine journalism, and he is a winner of the Cycling Media Award for Specialist Online Writer. Now over 50, he's riding road and gravel bikes most days for fun and fitness rather than training for competitions.

Add new comment

1 comments

Avatar
jthurber80 | 2 months ago
0 likes

I've built multiple wheels with Chris King hubs.  Build quality?  Absolutely top drawer.  Price?  Hey, they're built in the U.S. so they're NOT going to be cheap.

Neither is anything built in Britain, or Germany or even Italy.  Will they last?  I've got several "sets" that have well over 50,000 miles on them and have never needed rebuilding.

Five stars for Chris King hubs.
