Verdict:
Can achieve decent roadside pressures but needs refining all round to make it a good pump
Weight:
240g
Topeak Mini Morph G Pump
6 10

Topeak's Mini Morph G is designed to let you take all of the benefits of a track pump out on the road with you. The 'G' stands for gauge, so with this model you can put a pressure value to the point where your biceps start to scream (there's a non-G model for £24.99).

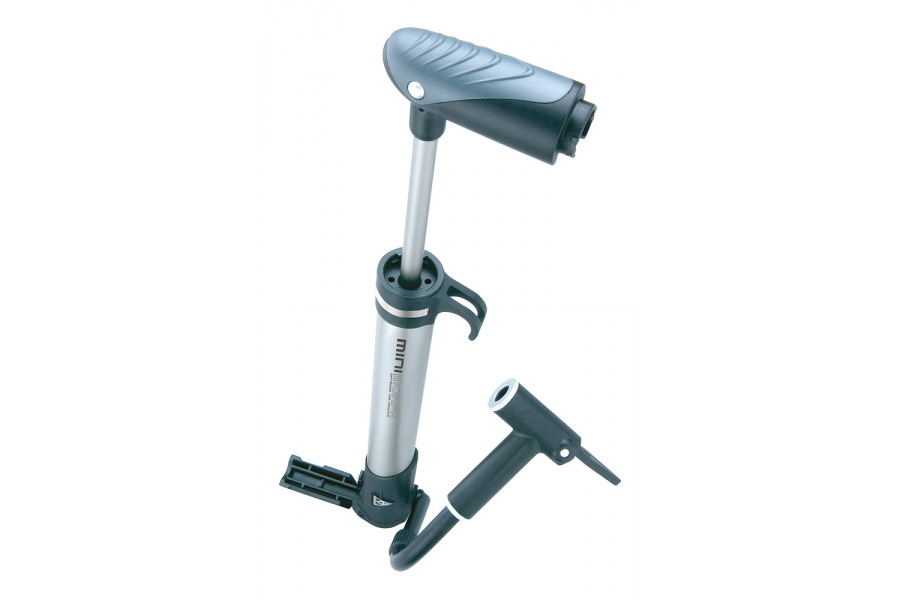

It's not a new idea, but the big difference compared with other more traditional mini pumps is the fold-out handle and foot peg, which certainly makes getting higher pressures of air into your inner tubes or tyres.

> Find your nearest dealer here

As you are effectively pushing the pump down onto the ground rather than holding it in mid-air, you can really get your bodyweight behind it, something you need to do when you're sticking 120psi into a 28mm tyre to test the Morph's capacity. That took about 300 strokes and I wouldn't say the pump would handle a whole lot more, not efficiently anyway.

The first 150 strokes achieved around 70psi on the gauge; I say around as it's not the clearest of gauges to read, so it's best to just use it as a rough guide. Attaching my track pump to the inner tube straight after saw that both gauges were in the same ball park at least.

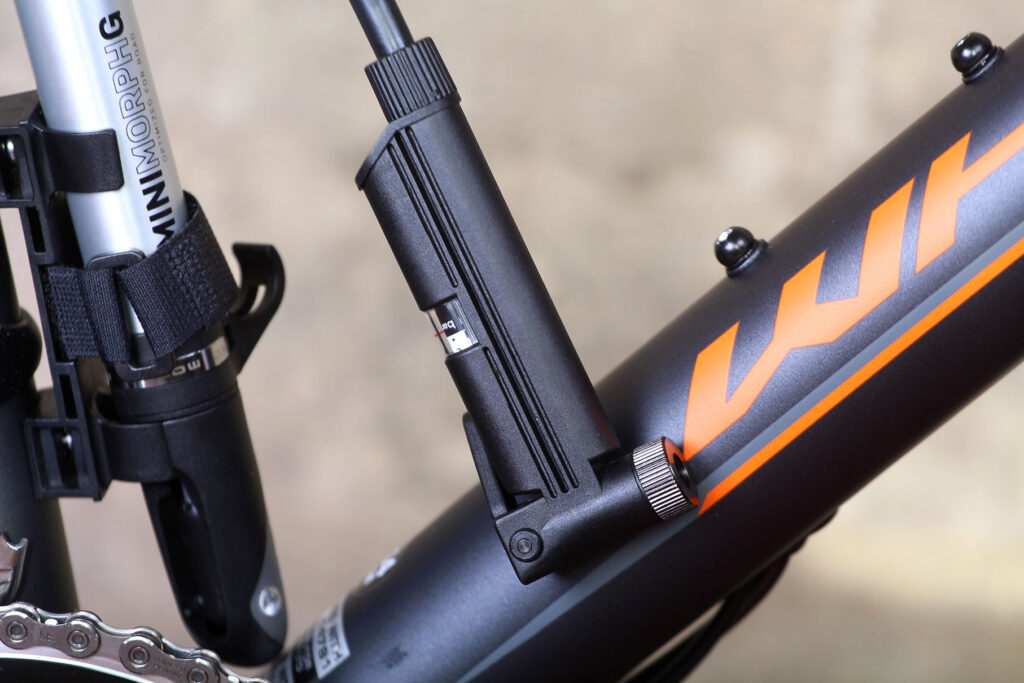

The head itself is a push fit with a locking lever, very similar to a lot of others, and provided a snug fit the majority of the time. On some valves it needed a bit of a tweak to become airtight.

Topeak Mini Morph G pump - valve head.jpg

Topeak Mini Morph G pump - valve head.jpg

This one came set up for Presta valves as default, so I'm guessing that's the standard. Should you need to use the Morph on Schrader valves you need to unscrew the knurled end of the head, remove the rubber bung and then the plastic part which pushes the valve head down. Both the plastic part and rubber bung need to then be spun round to face the other way before tightening the screw head back on. The reason I'm telling you all this is because it is a faff, not something you want to do too often on the side of the road – the rubber bung is tight to get out and I had to poke a screwdriver head in to drag out the plastic part.

There are some other issues too, that plastic handle for starters. In theory it's all good: you twist it to unlock and then once in the extended position it snaps into place ready for you to push down on.

The problem is the cut-out on the bottom – which allows the handle to fold away – has sharp edges, making it uncomfortable to use without gloves, as does the twist-lock locator at the end. When pressures are getting high and your hands are starting to sweat, it's not a nice combination.

> Check out our guide to the best pumps and CO2 inflators here

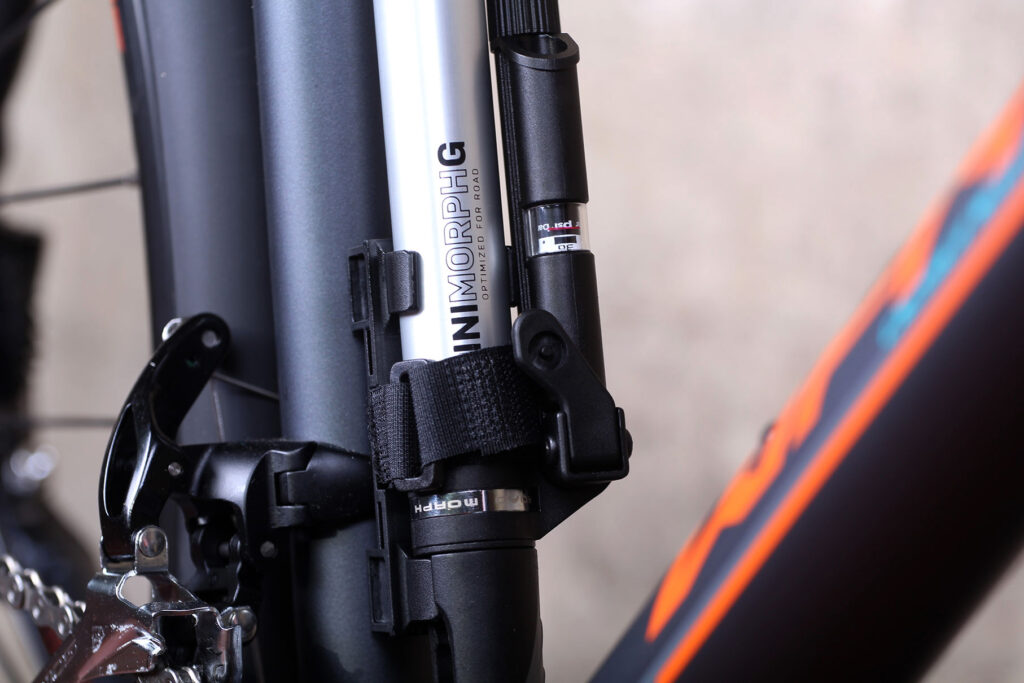

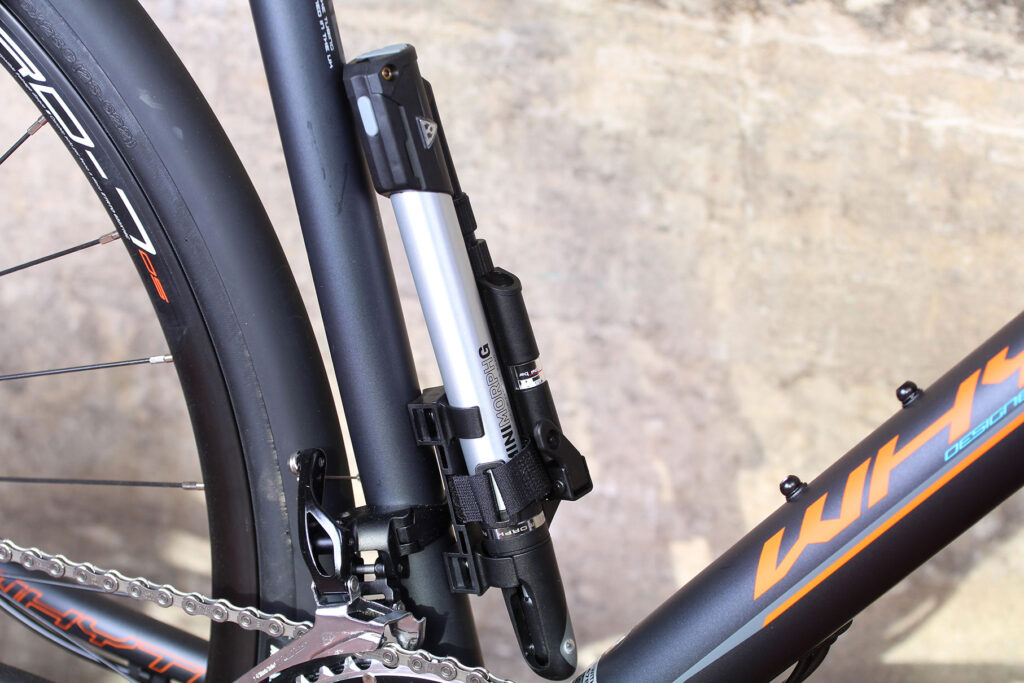

The fitting kit can be mounted to the frame using your cage bolts, but unlike others it sits centreline so there is no option to fit a cage over the top – if you like to carry two bottles, this'll be an issue. It can be fitted to the top tube but for this it uses cable ties – not the prettiest of solutions.

Topeak Mini Morph G pump - mount.jpg

Topeak Mini Morph G pump - mount.jpg

Don't bother trying to stick it in your rear pocket, either. I tried that and the Morph got crushed by a following taxi as it bounced off down the road. A couple of the plastic clips and things broke, but it still works – which is a good nod to the pump's durability if nothing else.

As for price, it's at the upper end of the mini pump scale, though similar to other 'mini track pump' models from Zefal and BBB, but it needs quite a bit of refinement to be considered good value.

Conclusion

A well-thought-out design, but the Mini Morph G just lacks a little in every aspect, meaning that I'd happily keep using my small handheld mini pump and put up with about 20psi less in my tyres until I get home.

Verdict

Can achieve decent roadside pressures but needs refining all round to make it a good pump

road.cc test report

Make and model: Topeak Mini Morph G pump

Size tested: 26x5x2.8cm , Black/Siver

Tell us what the product is for, and who it's aimed at. What do the manufacturers say about it? How does that compare to your own feelings about it?

Topeak says: "Morph™ technology packs floor pump efficiency and ease of use into a compact, portable design you can bring along for the ride."

The Mini Morph G does make it easier to reach higher pressures than a standard mini pump due to the foot peg and handle, but the sacrifice is bulk in its construction.

Tell us some more about the technical aspects of the product?

Head Presta/ Schrader/ Dunlop Valves

Barrel Butted Aluminum

Gauge In-line Gauge, Reads 140 psi/9.6 bar

Thumb Lock Plastic

Handle T-Type Plastic/Kraton

Added Features Fold-out Foot Pad

Flexible Hose

Centerline Mount Bracket

Size (L x W x H) 26.5 x 5 x 2.8 cm / 10.4' x 2.0' x 1.1'

Rate the product for quality of construction:

7/10

A large use of plastic gives it a cheap and fragile feel but in use it is actually quite strong.

Rate the product for performance:

7/10

It's got a few niggles but overall it gets air in your tyres pretty quickly and easily.

Rate the product for durability:

9/10

Mine got run over by a taxi which broke some of the plastic clips but it's still working.

Rate the product for weight (if applicable)

5/10

It's a big old beast for a mini pump.

Rate the product for comfort (if applicable)

5/10

Sharp edges on the small handle dig into your hands at high pressures.

Rate the product for value:

5/10

Tell us how the product performed overall when used for its designed purpose

The handle and footpeg design do make it easier to get air into the tyres at higher pressures but it's all a bit of a compromise.

Tell us what you particularly liked about the product

The gauge seems pretty accurate.

Tell us what you particularly disliked about the product

Sharp edges on the handle.

Did you enjoy using the product? It was okay.

Would you consider buying the product? No, too many little niggles.

Would you recommend the product to a friend? No

Use this box to explain your score

It's a good concept but lacks refinement, which to me is too much of a sacrifice to make over a small pocket-sized pump to gain a few extra psi.

Overall rating: 6/10

About the tester

Age: 37  Height: 180cm  Weight: 76kg

I usually ride: This month's test bike  My best bike is: Mason Definition

I've been riding for: 10-20 years  I ride: Every day  I would class myself as: Expert

I regularly do the following types of riding: time trialling, commuting, club rides, sportives, fixed/singlespeed,

Stu knocked out his first road.cc review back in 2009 and since then he's chucked the best part of seventy test bikes around the West Country, a couple of them quite literally! With three alloy and two steel bikes in his fleet he's definitely a metal man (that'll be the engineering background) but is slowly warming to that modern carbon fibre stuff along with fat tyres & disc brakes.
It's not all nostalgia though, after spending the last few years in product design Stu keeps banging on about how 3D printing is going to be the next big thing and he's a sucker for a beautiful paint job too.
