Obsydian Invictus frameset

8
£600.00

VERDICT:

8
10
Good race-ready frameset for heavier riders that builds up into a fast and direct bike
Weight:
0g

At road.cc every product is thoroughly tested for as long as it takes to get a proper insight into how well it works. Our reviewers are experienced cyclists that we trust to be objective. While we strive to ensure that opinions expressed are backed up by facts, reviews are by their nature an informed opinion, not a definitive verdict. We don't intentionally try to break anything (except locks) but we do try to look for weak points in any design. The overall score is not just an average of the other scores: it reflects both a product's function and value – with value determined by how a product compares with items of similar spec, quality, and price.

What the road.cc scores mean

Good scores are more common than bad, because fortunately good products are more common than bad.

  • Exceptional
  • Excellent
  • Very Good
  • Good
  • Quite good
  • Average
  • Not so good
  • Poor
  • Bad
  • Appalling

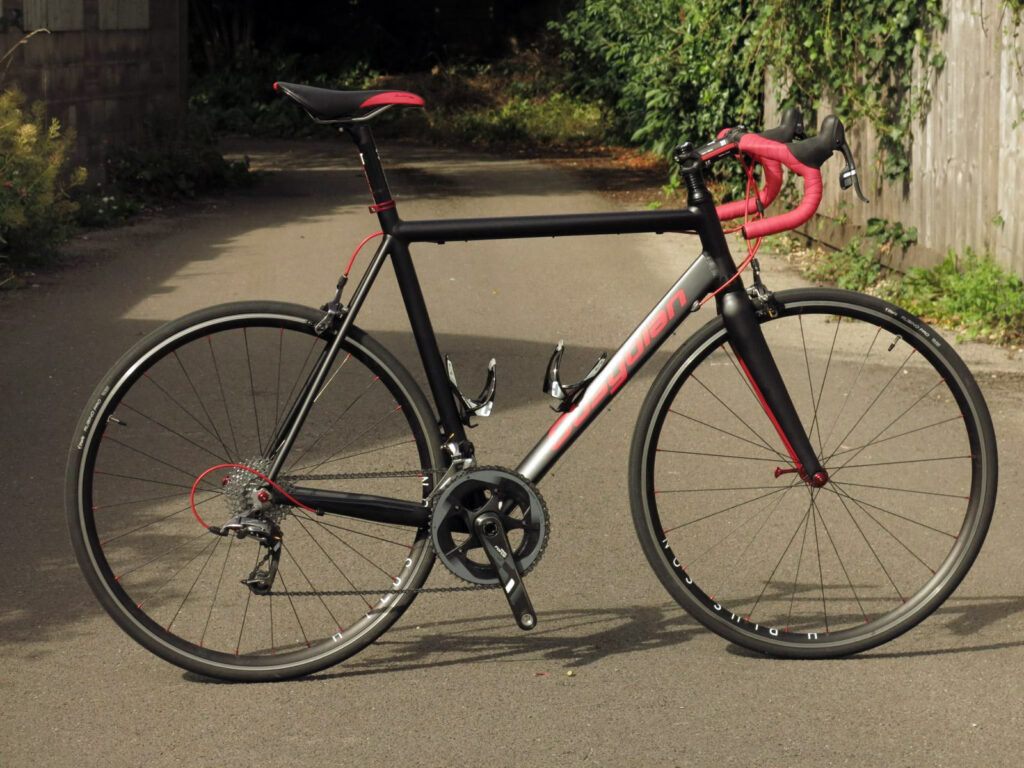

Obsydian's Invictus frameset sets out to be the basis of a stiff, fast bike for heavy riders, and it ticks all those boxes. It's solidly built for racing and responsive over the tarmac, and it's backed up by a lifetime warranty and, should you introduce it to the road too intimately, a crash replacement scheme allowing you to get a new frame for 40% off. It's not the cheapest alloy race frame you can buy, or the lightest, but if you fit in with the use cases it's aimed at it's a good choice.

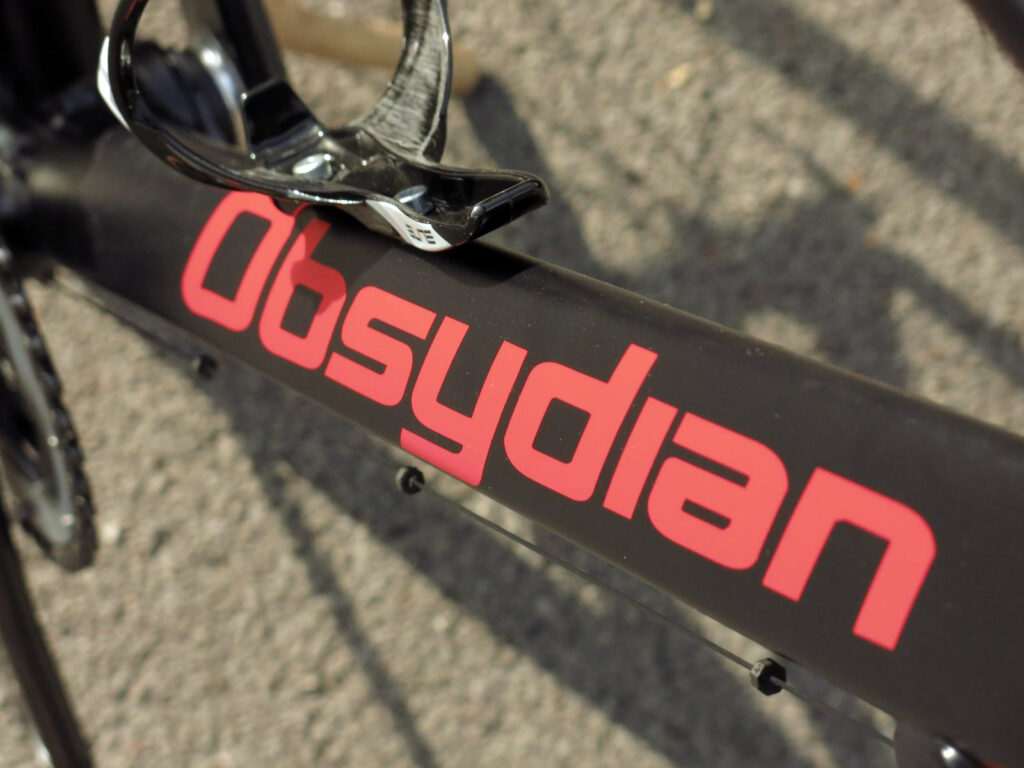

Obsydian are a new brand, and this is their first bike. It's a crit racing frame with no rider weight limit, made from triple butted 7005 alloy tubing. Obsydian have partnered with Velocite and under the skin the Invictus is basically the same as that manufacturer's well-regarded Selene frameset. The down tube is flared as wide as possible across the bottom bracket area and the chainstays are deep to improve stiffness and the ability to cope with high rider loads. The PF30 bottom bracket and tapered head tube (1 1/8in - 1 1/2in) are also designed to get the maximum efficiency from the frame and fork.

It's designed to be perfect for large riders, so at a sylph-like 100kg I'm in the target demographic. Unusually. Unlike the Selene the Obsydian is painted in the UK and it's a good quality matte black finish with painted graphics, not decals. The other main difference is that you can spec whatever build you like and Obsydian will try and accommodate you; they have relationships with the three main groupset manufacturers and plenty of component makers. Ours came with a SRAM Force22 groupset running a standard 53/39 chainset and WiFli 11-32 cassette for a wide range of gears, and handbuilt wheels with H Plus Son Archetype rims and Bitex hubs. Total cost of this build would be somewhere around £2,000.

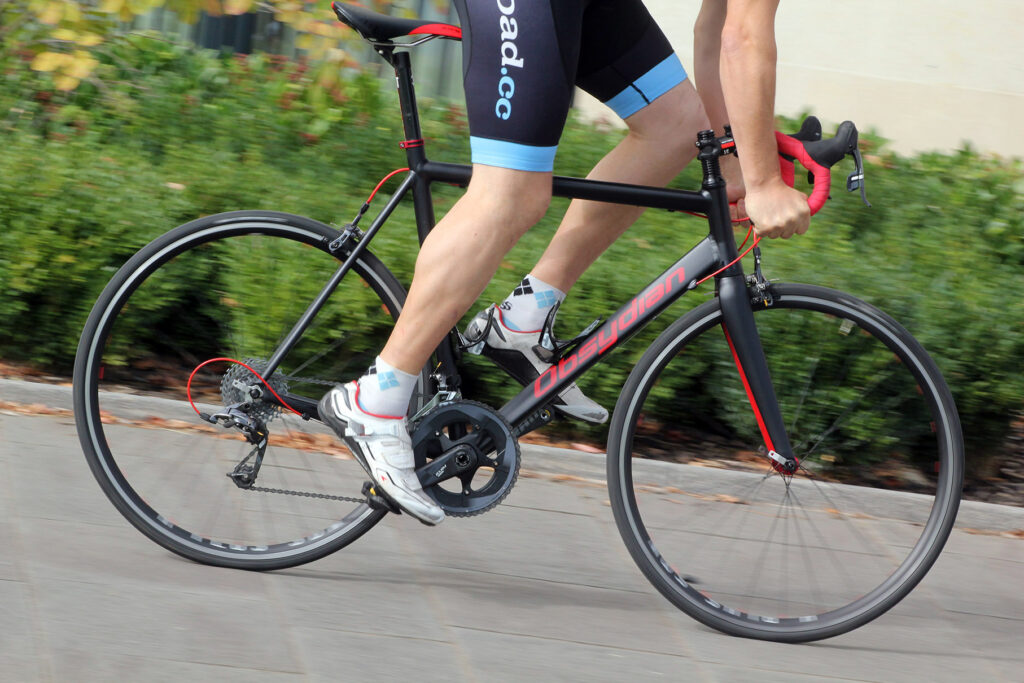

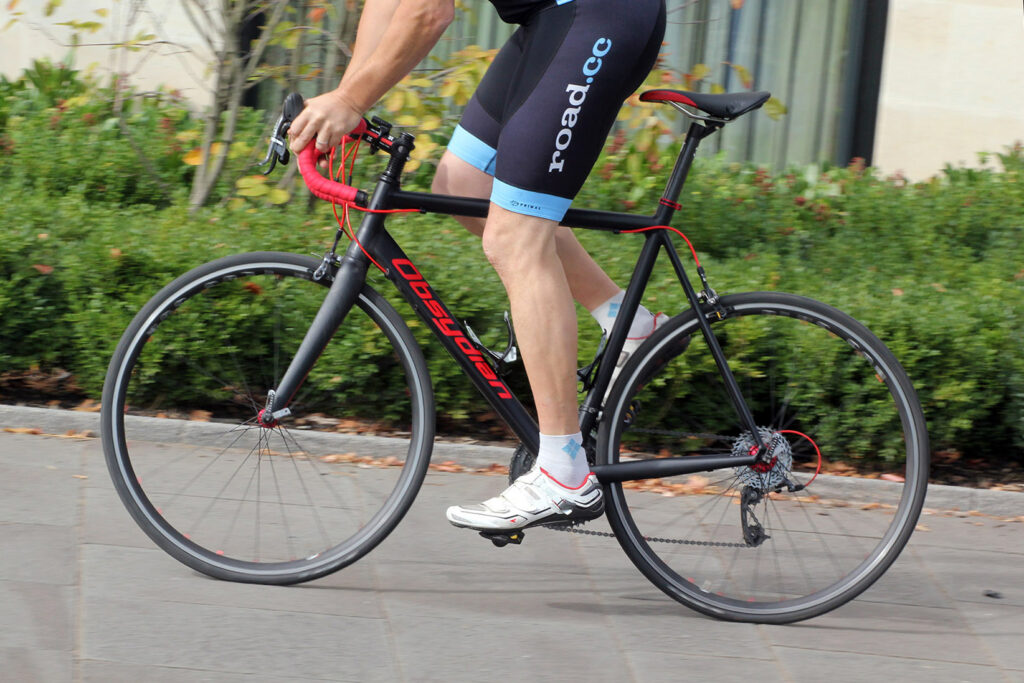

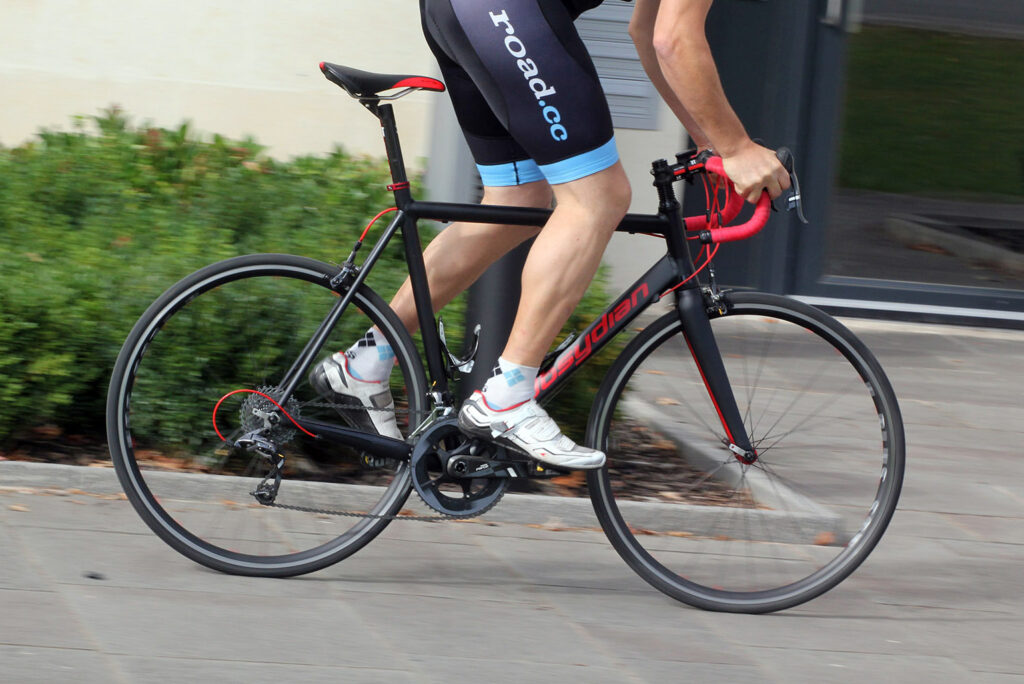

The ride: fast and direct, more comfortable than you might expect

It's certainly a direct bike. The Invictus feels taut and balanced, and rewards an aggressive approach to your riding. There's masses of stiffness down the backbone of the frame, from head tube to rear dropout. No amount of mashing on the pedals would induce any flex in the frame that I could feel.

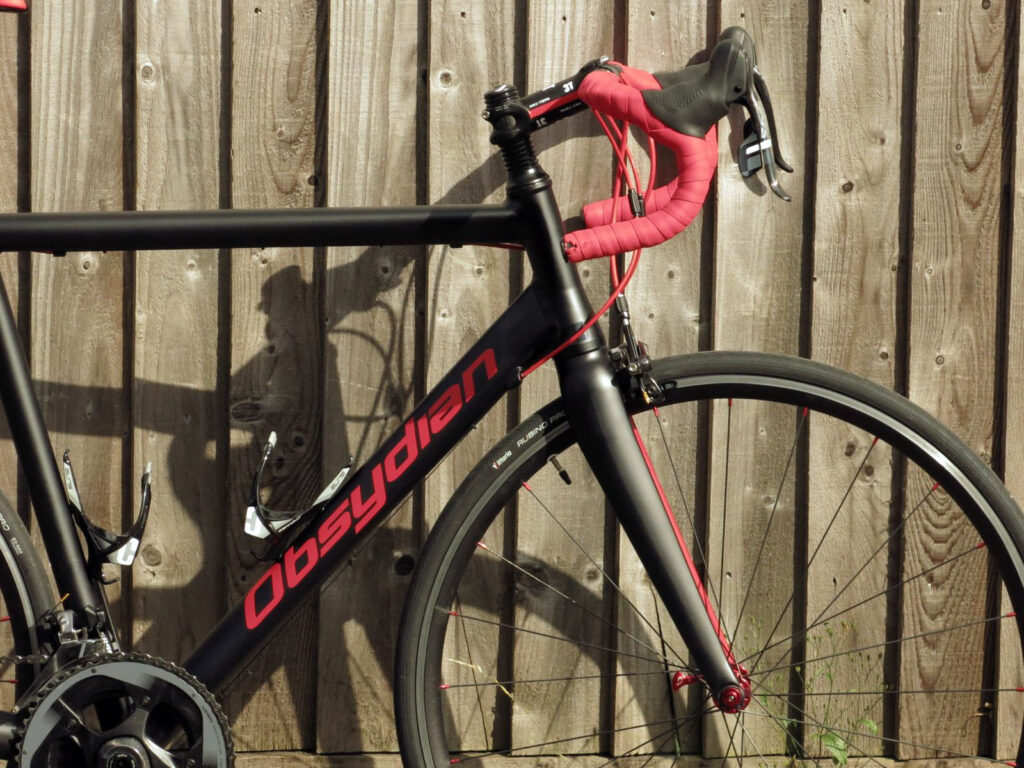

The same is true of the fork: it's firm and resists flex, and gives the bike a very direct feel at the front. In a crit race you want your bike to go precisely where you point it; no problems there.

The bike is quick to accelerate, though it does give away half a yard to a super-light race bike. Once up to speed it's happy to cruise but happier still if you keep the hammer down. When the road rises up it feels lighter than its 8kg weight, skipping around at the back a bit when you stand to force the pace on the steeps. (The bare frame weighs a claimed 1200-1450g depending on size.) Down the other side the steering is lively but not twitchy, and the stiff front end makes finding your line through the corners a simple and enjoyable task.

It's not an uncomfortable bike. That stiffness doesn't translate into an unduly bumpy ride. It's not necessarily the bike you'd choose if your plan is to stay out for five hours at a stretch every time you leave the house, but even then it won't kill you. For two to three hours on the chaingang, or an hour of crits, it's just about perfect. Ours came fitted with 23mm tyres when I'd always fit a 25mm, even to a race bike. That would soften the edges just a touch more on the striated tarmac we're subjected to round here.

The build: good privateer racer kit

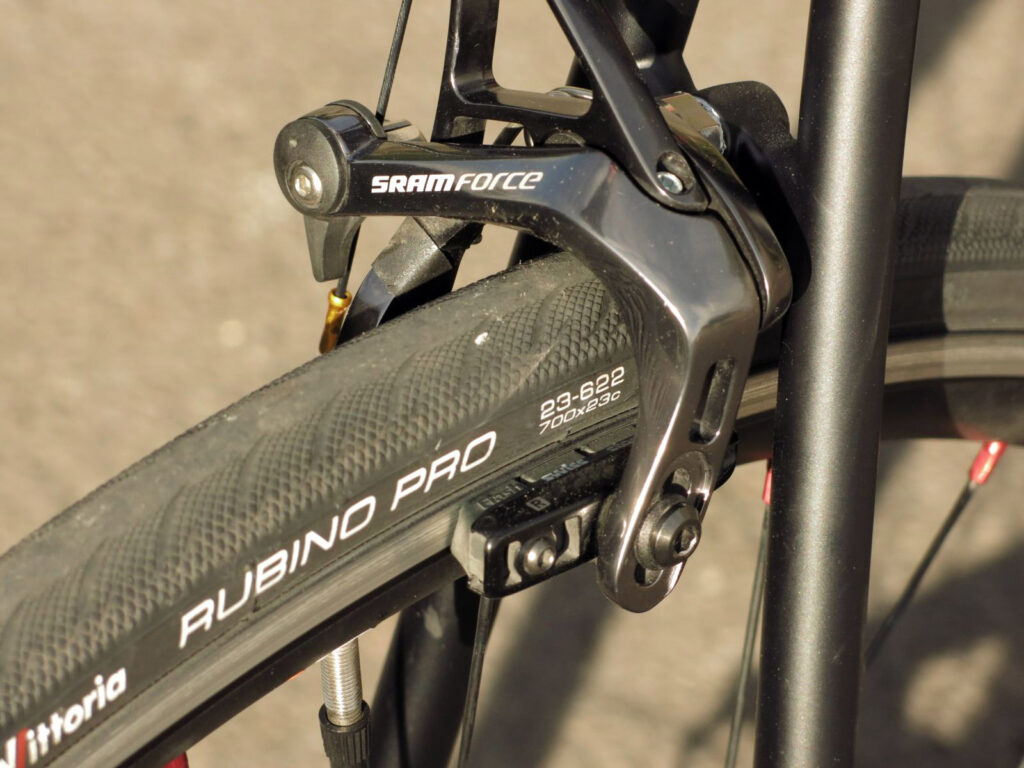

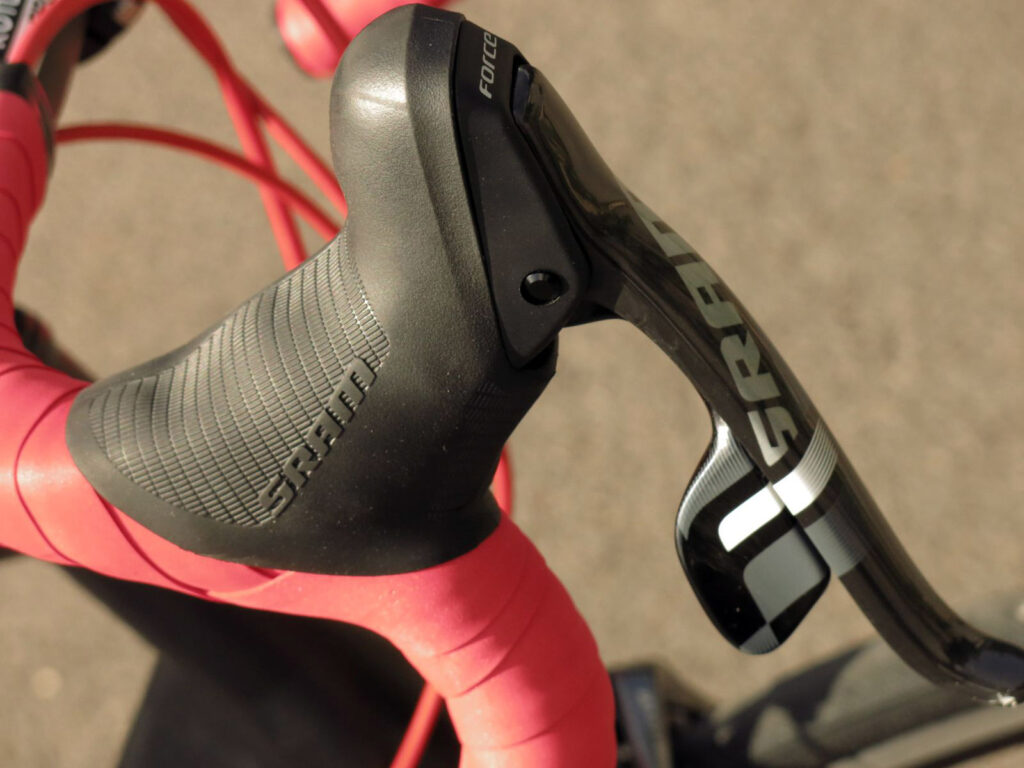

We'll be giving SRAM Force22 its own separate review, so this isn't the place to go into minute detail. Suffice to say that, like Shimano Ultegra, SRAM's second-tier groupset is the one you should choose if it's your own money you're spending. It doesn't give much away in terms of weight over SRAM Red, and even less in terms of functionality. Shifts are crisp and SRAM's DoubleTap levers are easy to use, more so in the drops than either of their competitors.

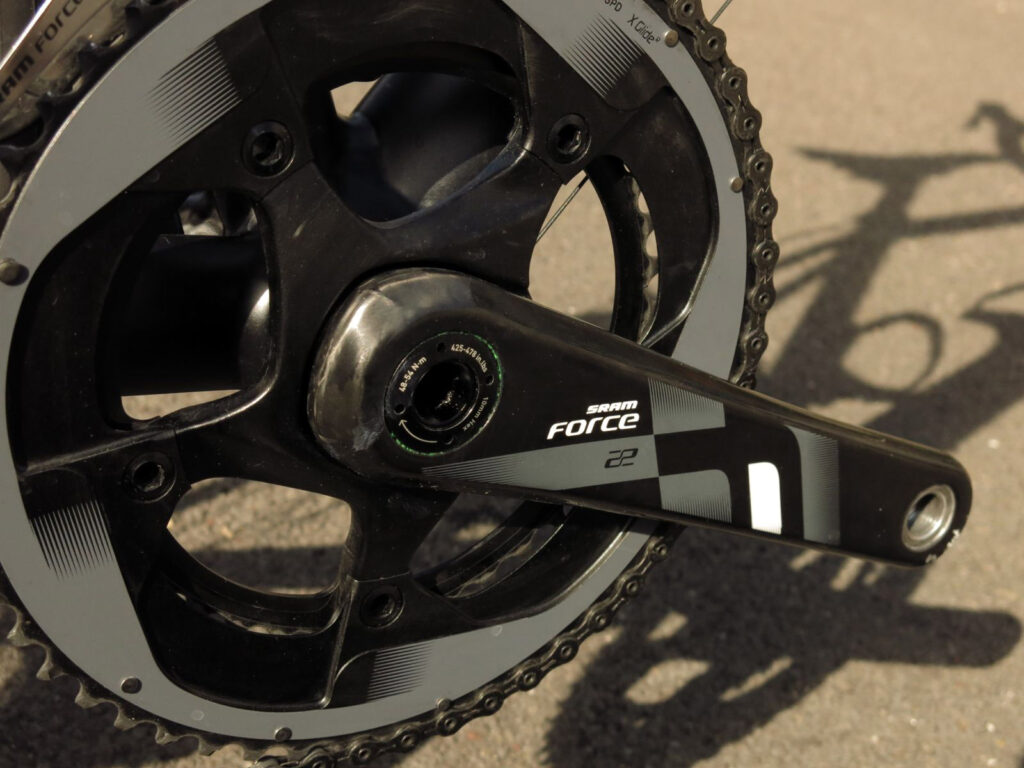

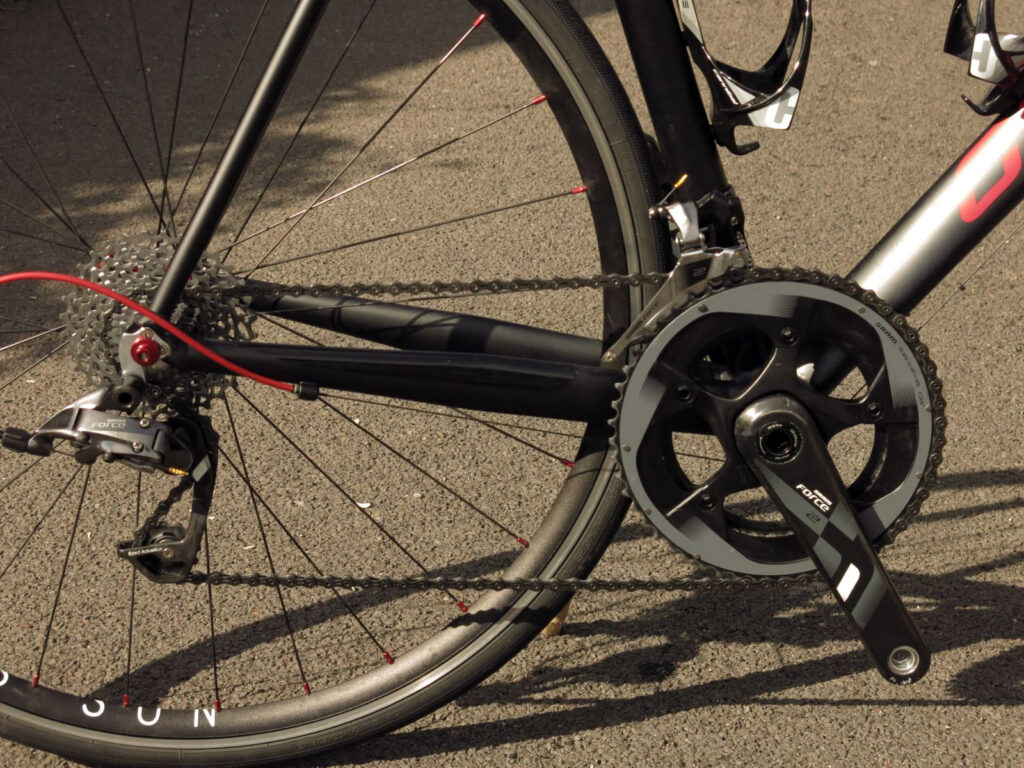

Our standard chainset and WiFli cassette setup worked really well. You get the big gears that are useful when you're racing, and bottom gear is the same as you'd get with a compact chainset and 11-28 cassette. Best of both worlds? Yes, pretty much. Some of the jumps at the big end are larger than ideal but with 11 cogs to spread the load it's an entirely workable compromise.

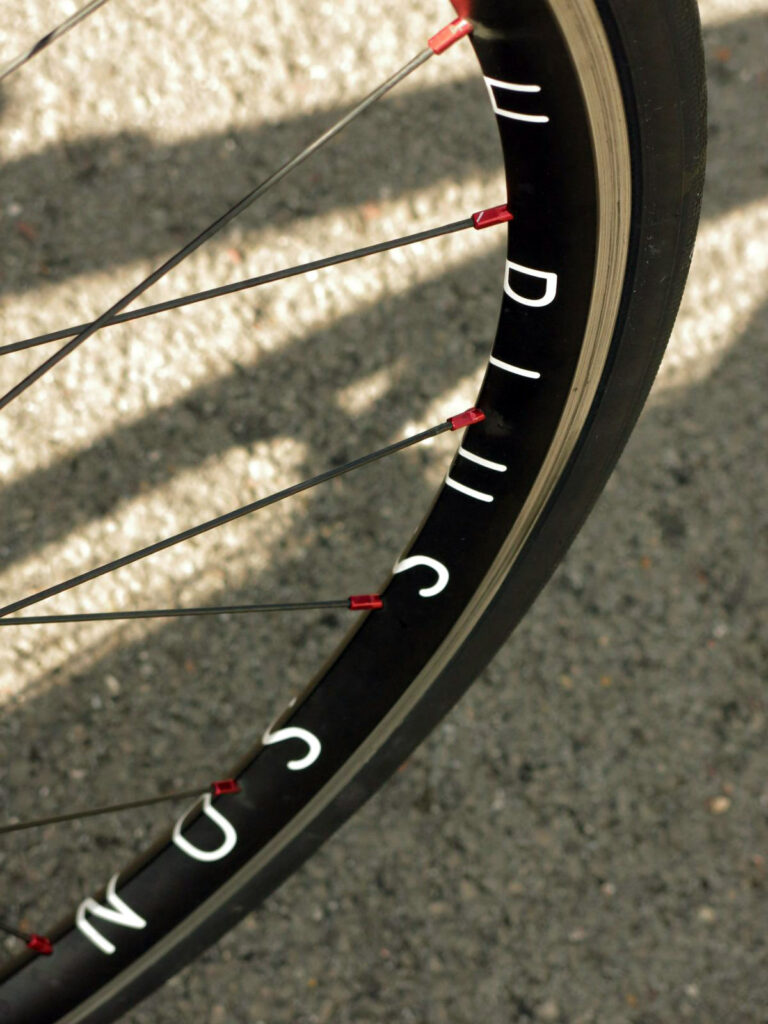

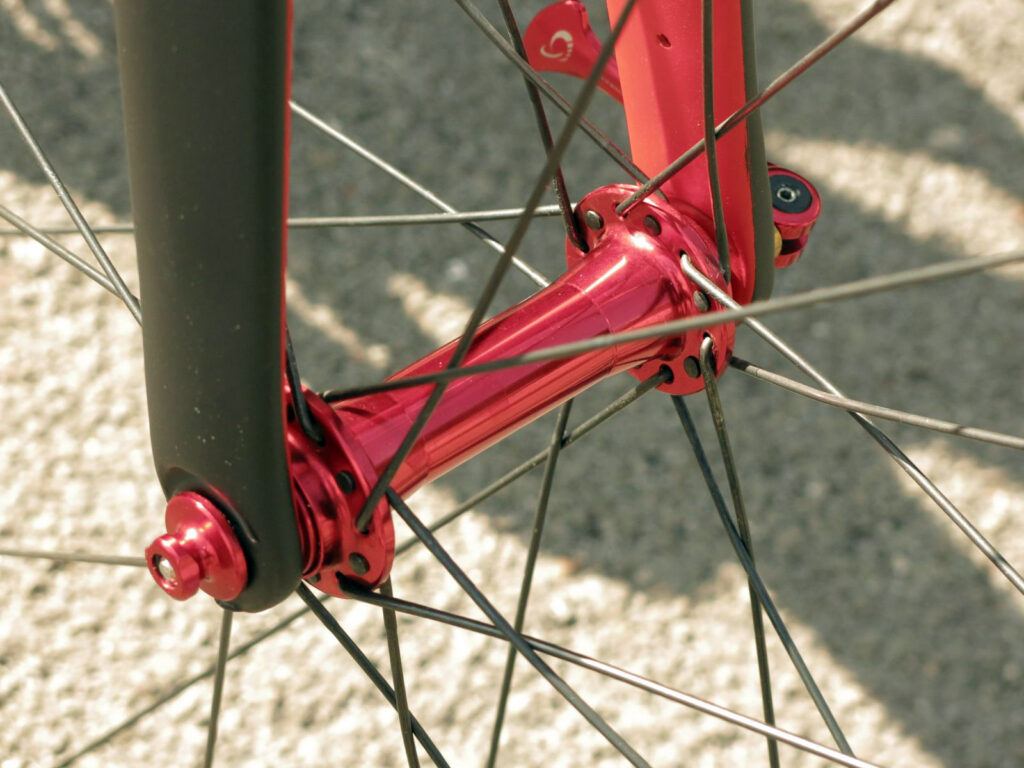

The wheels, like the rest of the bike, are built with heavier riders in mind. As such they're more solid than they are especially light, 100-200g heavier than an off-the-shelf set of alloy race hoops. They're tightly built and nice and stiff, and they stayed true throughout testing. The H Plus Son Archetype rim is cropping up on more than a handful of race-oriented bikes and the wide profile flattens out a 23mm tyre to make it feel a bit wider. It seems to do a good job of absorbing road chatter; it's pretty much impossible to isolate what part of a bike absorbs what, but I've tried these rims on three different bikes and all three scored well in that department. Plus, they look cool and they're reasonably light.

Overall: certainly one to consider for the racer

If you're looking to race on a budget then you can get some cracking deals on alloy and carbon race bikes from some of the bigger online names. An alloy race bike with a SRAM Force22 groupset can be yours for £1,200 so Obsydian's full build options work out pretty expensive; they don't have the buying power of bigger names to get the best deals on components.

If you're looking to build up a race bike for yourself, and you're specifically looking for something that'll take a reasonably heavy rider and still perform, then £600 sounds a lot more reasonable. Back that up with a lifetime warranty and a crash replacement scheme and it's comparable in cost to some of the other options out there. It's certainly a well-balanced and fun bike to ride, and one that likes to go fast. I've very much enjoyed riding and racing it.

There's no getting round the fact that the Obsydian is effectively the same frameset as the Velocite Selene, but that bike is very well regarded, and for good reason. It's an excellent bike. The Obsydian isn't doing anything that a hatful of other manufacturers aren't doing with carbon, and to its credit has done its homework and picked a great racing platform.

The bike does the job it's supposed to with aplomb and it's fun to ride and easy to like. And at £600 for the frame it's competitive with Velocite's own branded frames (and other alloy race frames) with a sleek look and a UK paintjob. You get the assurance of a lifetime warranty and a decent crash replacement scheme too. If you're looking to build your own race bike, it's one to recommend. If you're happy with a manufacturer build, there are much cheaper options out there.

Verdict

Good race-ready frameset for heavier riders that builds up into a fast and direct bike

If you're thinking of buying this product using a cashback deal why not use the road.cc Top Cashback page and get some top cashback while helping to support your favourite independent cycling website

road.cc test report

Make and model: Obsydian Invictus frameset

Size tested: n/a

About the bike

State the frame and fork material and method of construction. List the components used to build up the bike.

7005 triple butted alloy frame, monocoque carbon fork

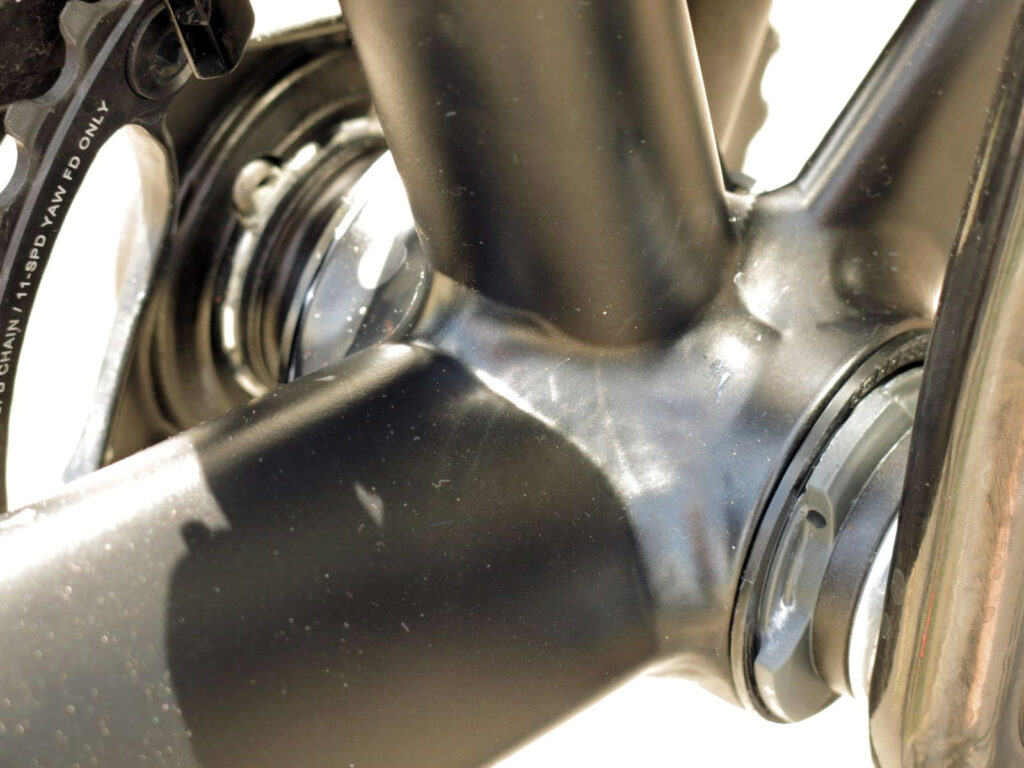

PF30 Bottom Bracket

Asymetric Tapered Headtube

Two Pass Hand Welded

Hand Painted

Triple Butted Tubes

Lifetime Warranty

SRAM Force22 groupset

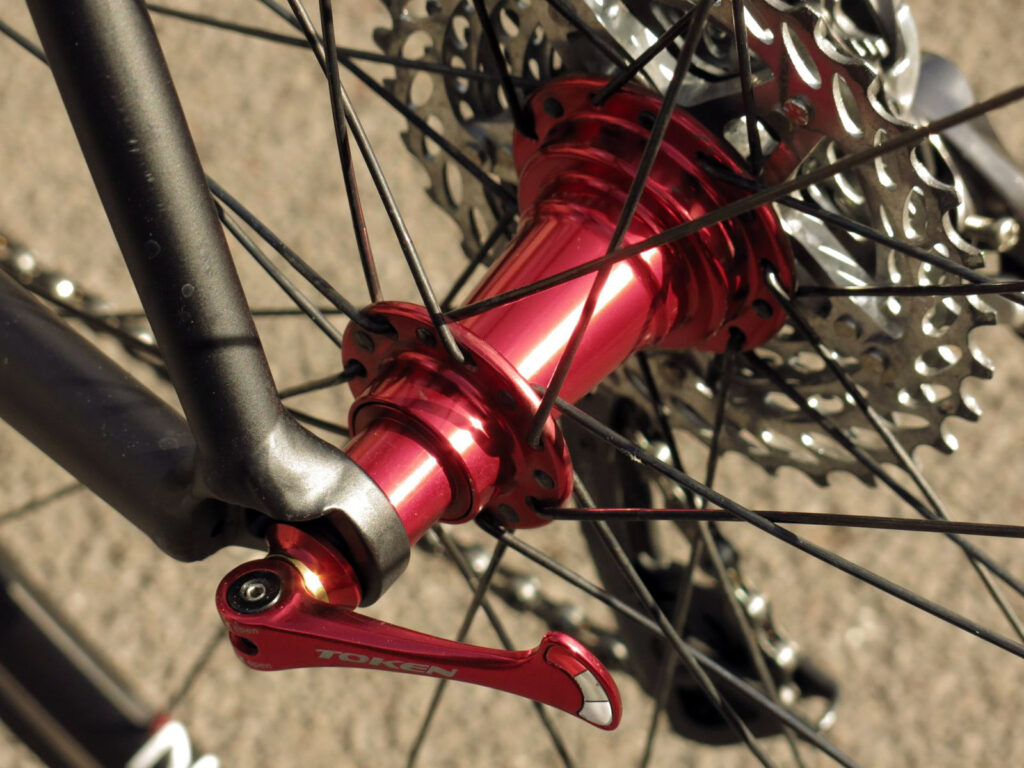

Handbuilt wheels (H Plus Son archetype on Bitex hubs, Sapim race spokes)

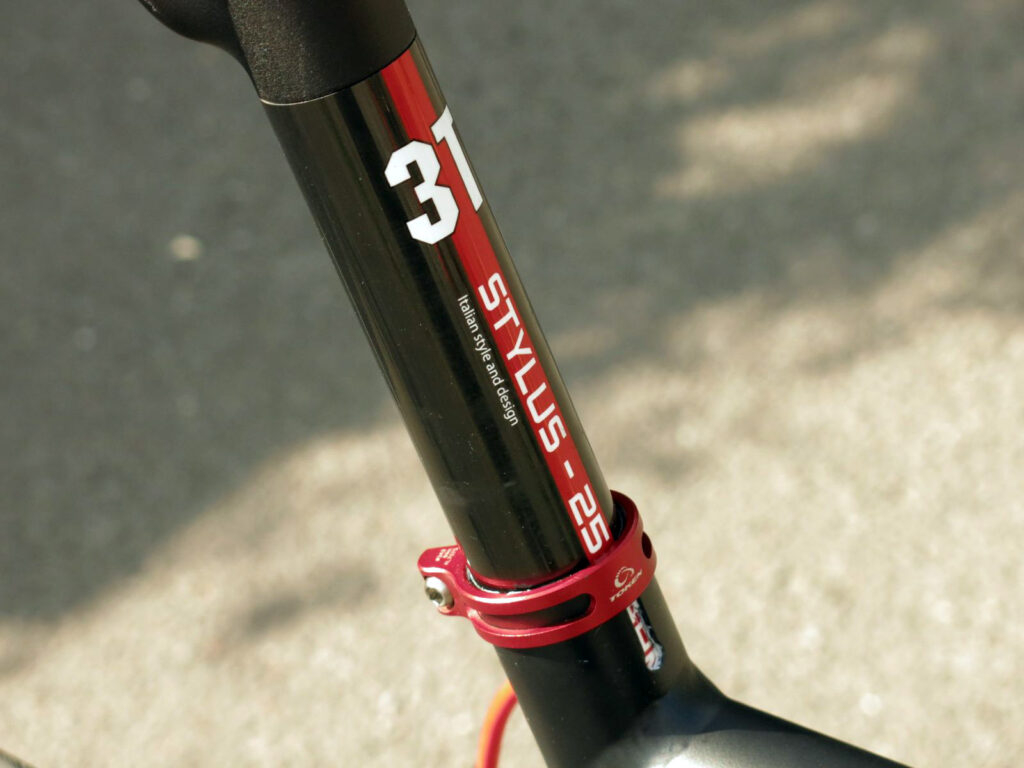

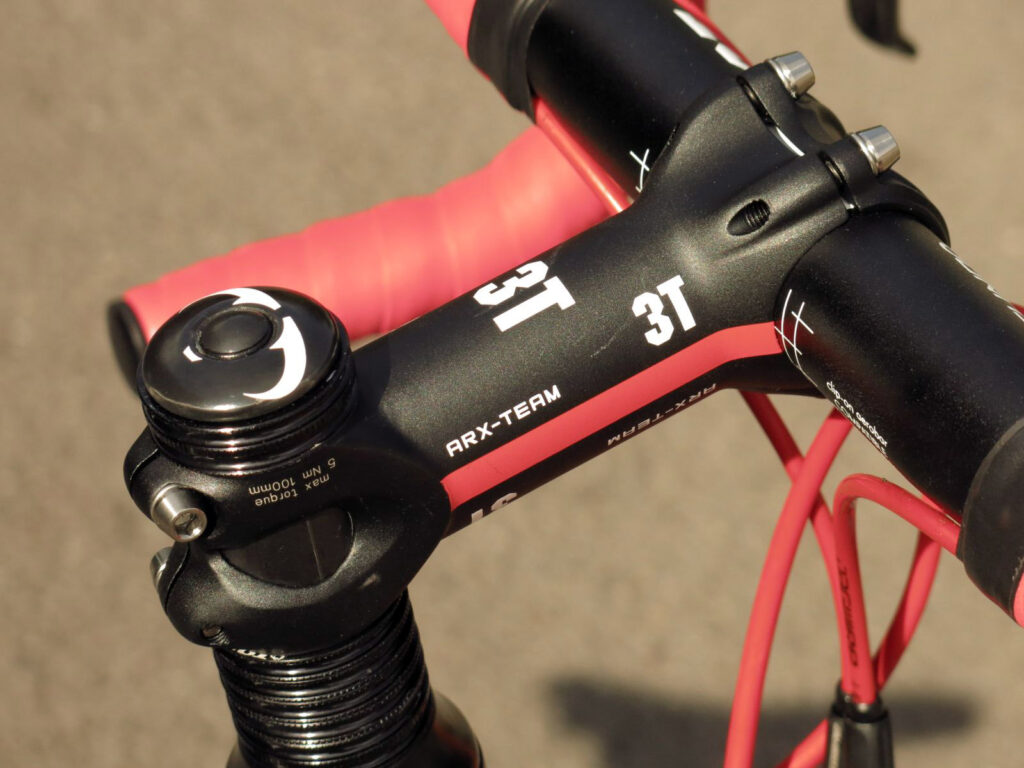

3T finishing kit

Vittoria Rubino 23mm tyres

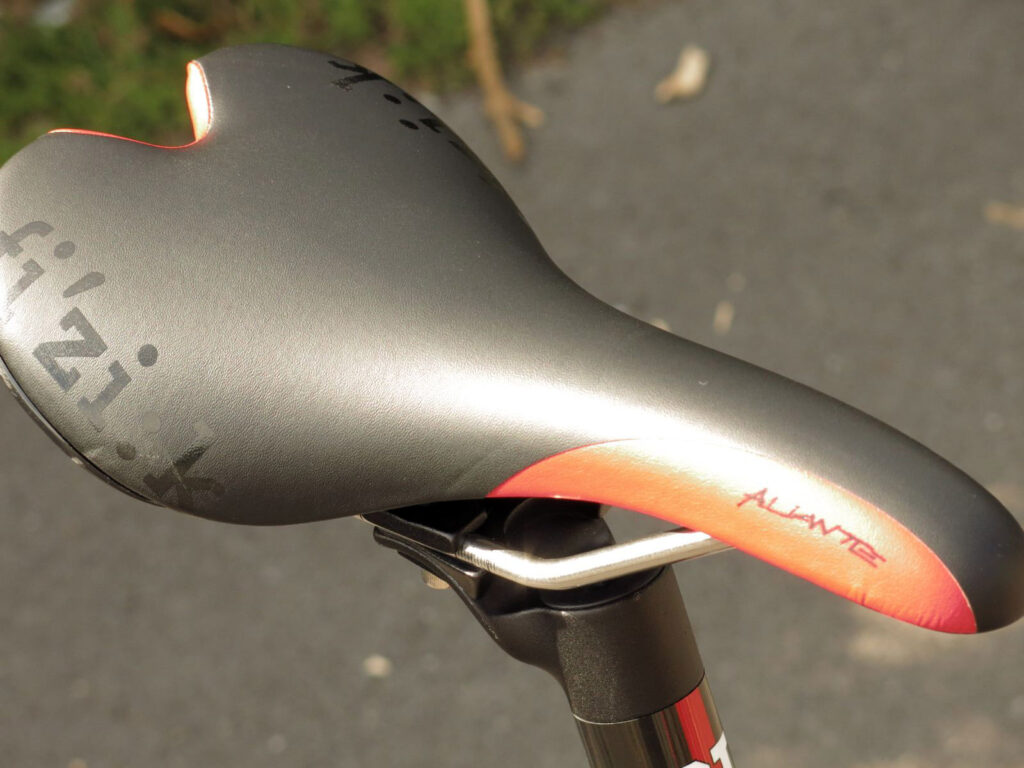

Fizik Aliante saddle

Tell us what the bike is for, and who it's aimed at. What do the manufacturers say about it? How does that compare to your own feelings about the bike?

The Invictus Frameset is built to last and withstand the toughest conditions

The frame is made from custom shaped triple butted tubes. Hand welded and hand painted it has been finished in a way that is understated and clean.

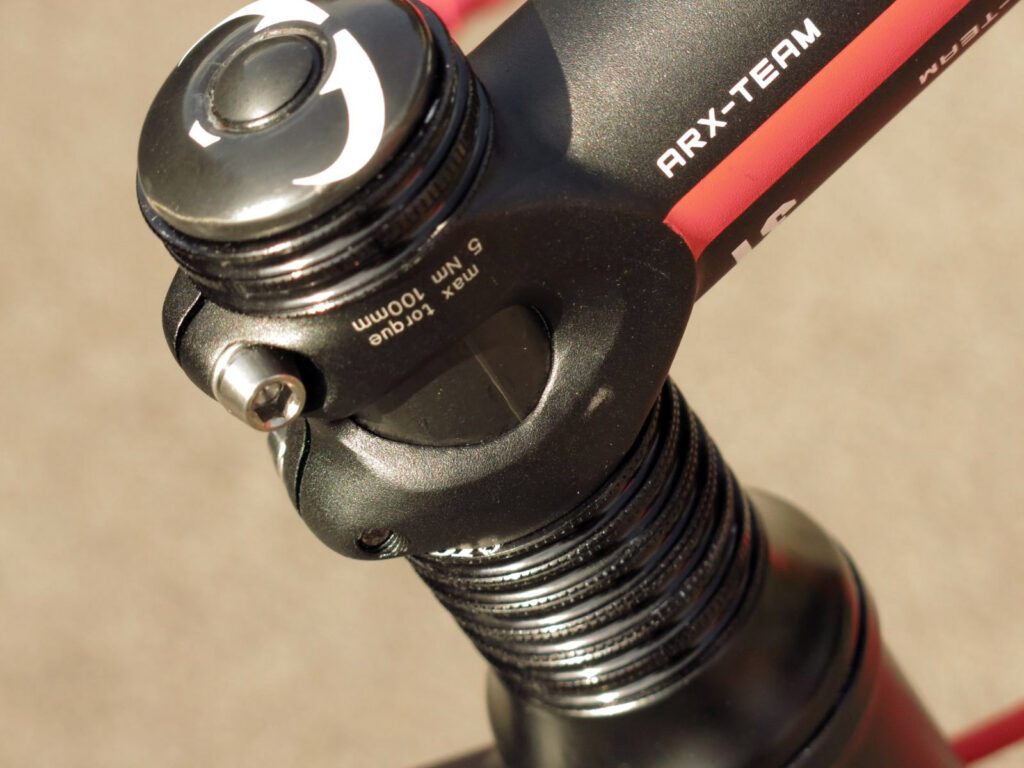

The frameset itself comes with a full carbon monocoque fork that weighs just 360g fully finished. The steerer is tapered to fit the headtube and also comes supplied with a ceramic bearing headset.

The Invictus was designed to be ultra stiff, responsive and built to last. Backed by our lifetime warranty.

More information about our key design features are listed below. You can also find out more here.

Frame and fork

Overall rating for frame and fork

8/10

Tell us about the build quality and finish of the frame and fork?

Neatly made and welded frame, finish on both frame and fork is excellent.

Tell us about the materials used in the frame and fork?

Frame: 7005 triple butted alloy

Fork: monocoque hi-modulus carbon

How was the bike in terms of height and reach? How did it compare to other bikes of the same stated size?

Very good.

Riding the bike

Was the bike comfortable to ride? Tell us how you felt about the ride quality.

The bike feels fast and direct, but it's not uncomfortable to ride.

Did the bike feel stiff in the right places? Did any part of the bike feel too stiff or too flexible?

The bike has excellent stiffness.

How did the bike transfer power? Did it feel efficient?

Power transfer is very good, no discernible flex.

Was there any toe-clip overlap with the front wheel? If so, was it a problem?

No issues with toe overlap; this is an XL frame though.

Tell us some more about the handling. How did the bike feel overall? Did it do particular things well or badly?

The bike feels responsive and handling is very good across all kinds of terrain.

Rate the bike for efficiency of power transfer:

9/10
Rate the bike for cruising speed stability:

7/10
Rate the bike for low speed stability:

7/10
Rate the bike for flat cornering:

8/10
Rate the bike for cornering on descents:

8/10
Rate the bike for climbing:

7/10

The drivetrain

Wheels and tyres

Controls

Your summary

Did you enjoy riding the bike? Yes.

Would you consider buying the bike? Possibly if I was building it myself, there's a lot of good value race bikes out there at the moment though.

Would you recommend the bike to a friend? Yes for a self-build project and if they fitted the profile for this bike.

Rate the bike overall for performance:

8/10
Rate the bike overall for value:

7/10

Anything further to say about the bike in conclusion?

Good option for a self-build, less so as a complete bike.

Rate the bike for acceleration:

8/10
Rate the bike for high speed stability:

8/10

Tell us about the geometry of the frame and fork?

590mm effective top tube 200mm head tube 73° head angle 73.5° seat angle

Rate the bike for sprinting:

8/10

How would you describe the steering? Was it lively, neutral or unresponsive? Lively but not twitchy.

Overall rating: 8/10

About the tester

Age: 42  Height: 190cm  Weight: 100kg

I usually ride: whatever I'm testing...  My best bike is: Kinesis Tripster ATR

I've been riding for: Over 20 years  I ride: Every day  I would class myself as: Experienced

I regularly do the following types of riding: road racing, commuting, club rides, sportives, general fitness riding, fixed/singlespeed, mtb, Mountain Bike Bog Snorkelling, track



Dave is a founding father of road.cc, having previously worked on Cycling Plus and What Mountain Bike magazines back in the day. He also writes about e-bikes for our sister publication ebiketips. He's won three mountain bike bog snorkelling World Championships, and races at the back of the third cats.
