Verdict:
Imaginative design that works well enough with lighter loads but needs a more substantial clamp
Weight:
1,180g
Contact:
Axiom Flip-Flop DLX post rack
5 10

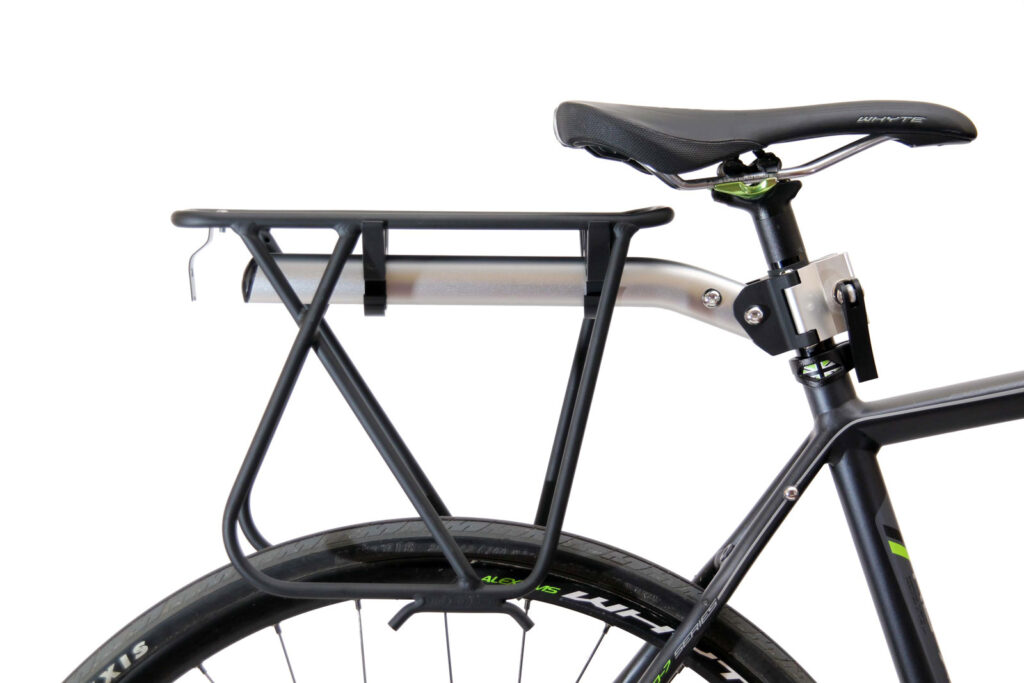

The Axiom Flip Flop DLX is the flagship model in a range of quick release, seatpost mounted racks aimed at commuters and others seeking to lug light to moderate loads without using traditional three/four point racks.

First and foremost, the fifteen kilo load capacity is quite a bit, creeping close to half the capacity of my mono-wheel Yak clone trailer. When it comes to racks, I'm firmly of the opinion that they should be welded together, so I was quite surprised that the Flip Flop DLX is a two piece, detachable design.

This enables the beam to rotate, theoretically accommodating most types of bike, though getting it to sit low proved difficult. The main body is welded from tubular T6 6061 aluminium to Axiom's usual, very high standard, and the satin black powder coat finish is also very good. It comes with a lifetime warrantee against manufacturing defects.

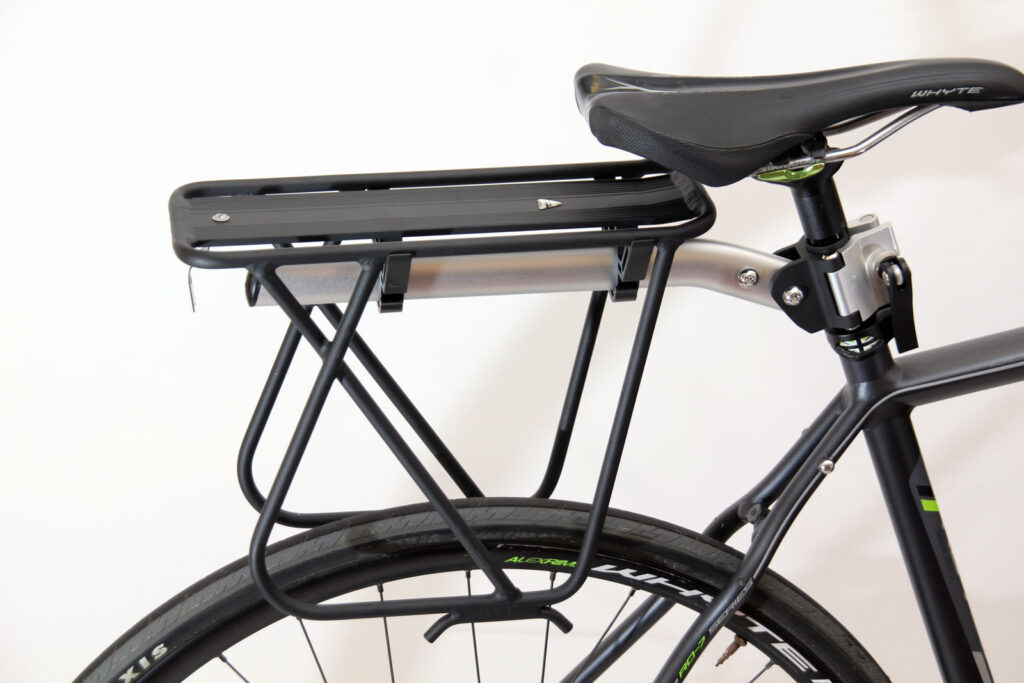

A generous top platform doubles as a reasonably competent splash guard, while offering a solid mount for bigger trunk bags. The pannier frames at the sides comfortably accommodate 16 litre Rixen Kaul bags, though a layer or so of electrical tape where they make contact helps prevent premature wear. However, a two tier rack is more convenient if you combine panniers and trunk bag.

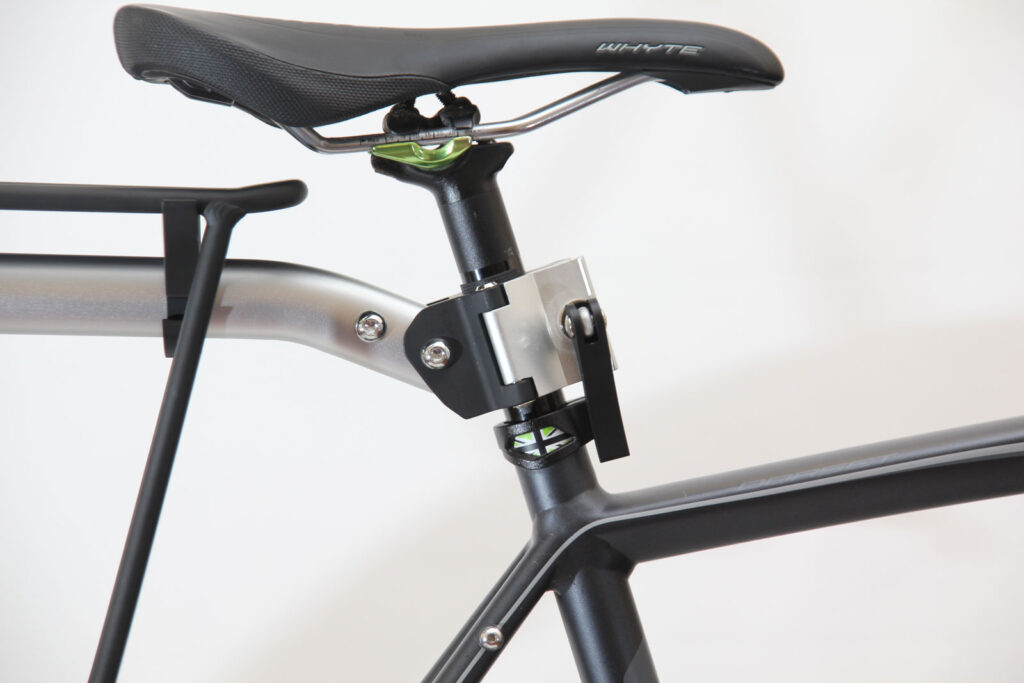

The clamps on racks like this tend to be agricultural and the DLX is no exception, though its quick release cam closure is a reasonably secure fit around most seatpost diameters. Despite the decent rubberised shim supplied, I'm not overly happy heavily loading a carbon fibre seatpost or the prospect of some long suffering A&E nurse extracting shards from my derriere. I've therefore limited my use of the Axiom Flip Flop DLX to sturdy aluminium alloy and titanium posts.

Overall performance has been middling. The Axiom Flip Flop DLX works best on smaller mountain/semi compact geometry framesets with healthy amounts of exposed post. The luggage is still placed relatively high, which can do interesting things to your bike's handling, especially during long, steady canters through exposed areas with strong crosswinds.

While I'm confident the rack's structure will hold the full 15kg claimed load capacity, a four-bolt stem-type clamp would make this more of a practical proposition. In practice, following my usual tentative bedding-in outings with a couple of evenly balanced kilos, I still found myself stopping eight times to realign the rack and nip the clamo tight during a forty mile run with half the maximum payload.

Here's a video from Axiom explaining the DLX and the rest of the Flip Flop range.

Verdict

Imaginative design that works well enough with lighter loads but needs a more substantial clamp

road.cc test report

Make and model: Axiom Flip-Flop DLX post rack

Size tested: n/a

Tell us what the product is for, and who it's aimed at. What do the manufacturers say about it? How does that compare to your own feelings about it?

"One rack fits all sizes of bike frames and wheel sizes

Quick-release bracket fits 25.4- 33mm seatposts

Patent pending flip-flop design allows support bar to be mounted in a high or low position

Quick-release lever system allows trunk bags to be removed while remaining attached to the platform, as well as being able to slide the platform in when not in use

Ideal for rear suspension bicycles".

Felt adequate in some contexts but disappointing by Axiom's usual standards of design.

Tell us some more about the technical aspects of the product?

Hand-welded tubular 6061 T6 aluminium construction

Double-welded for added strength

245mm tall side support stays allow for use of traditional pannier bags

325mm x 125 platform area

Reflector bracket included

Rate the product for quality of construction:

8/10

General quality of materials, welding and finish are to Axiom's usual high standards.

Rate the product for performance:

5/10
Rate the product for durability:

7/10
Rate the product for weight, if applicable:

6/10

Reassuringly sturdy.

Rate the product for comfort, if applicable:

5/10

Convenient to whip on/off in the proverbial trice but places loads quite high, which has an effect on handling/comfort beyond a certain point, especially combining smaller panniers and trunk bag.

Rate the product for value:

6/10

Tell us how the product performed overall when used for its designed purpose

Overall, this has been one of the better post clamping designs and fine for occasional hauling of larger, lighter loads-especially in situations where traditional 3/4point racks aren't compatible with machines or rider taste.

Tell us what you particularly liked about the product

Convenient to fit, nice welds and finish.

Tell us what you particularly disliked about the product

Places weight too high, which can adversely affect handling and I feel a four bolt stem-type clamping system would be a better choice for the loads suggested.

Did you enjoy using the product? Disappointing overall.

Would you consider buying the product? No.

Would you recommend the product to a friend? Not in its present guise.

Overall rating: 5/10

About the tester

Age: 40  Height: 1m 81  Weight: 70 kilos

I usually ride: Rough Stuff Tourer Based around 4130 Univega mtb Frameset  My best bike is: 1955 Holdsworth Road Path and several others including cross & traditional road

I've been riding for: Over 20 years  I ride: Most days  I would class myself as: Experienced

I regularly do the following types of riding: cyclo cross, commuting, touring, fixed/singlespeed, mtb,



Shaun Audane is a freelance writer/product tester with over twenty-eight years riding experience, the last twelve (120,000 miles) spent putting bikes and kit through their paces for a variety of publications. Previous generations of his family worked at manufacturing's sharp end, thus Shaun can weld, has a sound understanding of frame building practice and a preference for steel or titanium framesets.
Citing Richard Ballantine and an Au pair as his earliest cycling influences, he is presently writing a cycling book with particular focus upon women, families and disabled audiences (Having been a registered care manager and coached children at Herne Hill Velodrome in earlier careers)

2 comments

Avatar
Dr_Lex [400 posts] 2 years ago
0 likes

The published pictures would look less odd if you'd rotated the rack 180 degrees around the silver support tube before mounting the entire rack to the seat post. The rack can slide along the tube to avoid catching the seat stays, as the video shows.

I use a Topeak beam rack with a very similar mounting, and the only time it shifts is when I haven't clamped it firmly.

Avatar
KiwiMike [1285 posts] 2 years ago
0 likes

This review sounds like Shaun the reviewer didn't use the main USP - the 'flip-flop' feature.

And I find it hard to believe that they released a product that required frequent stopping over a short ride to re-tighten. Sounds like user error or a faulty item.

Agree with Dr_Lex - the photo looks like it was shot by a competitor out to make the product look unusable.

And no, you should ***NEVER*** clamp carbon - anywhere except using the manufacturer-approved seatclamp, set to the correct torque.

Adding a 'four-bolt stem-type clamp' as suggested would make this a total faff - it's supposed to be a *quick release* rack. The hint's in the product line.

Having watched the video, I'm now likely to buy one for the flip-flop and sliding tray features. This review isn't your proudest moment, Road.CC.
