First ride: Garmin Edge 800 GPS touch screen bicycle computer + video

We take the new touchscreen Garmin Edge 800 out for a ride with the Garmin Transitions team

by Mat Brett   September 23, 2010

As we reported from Eurobike Garmin are about to release their brand new Edge 800 GPS bike computer and this week we’ve been lucky enough to give it a whirl out on the road.

Our ride was in the New Forest with the Team Garmin Transitions boys and lasted an hour – well, 55:59mins, to be precise – so we don’t claim to have explored all of the 800’s possibilities yet. Watch this space for a complete test over the coming weeks and make sure you check out our interview with Andy from Garmin (below) for all the manufacturer’s crucial information. Here are our initial impressions…

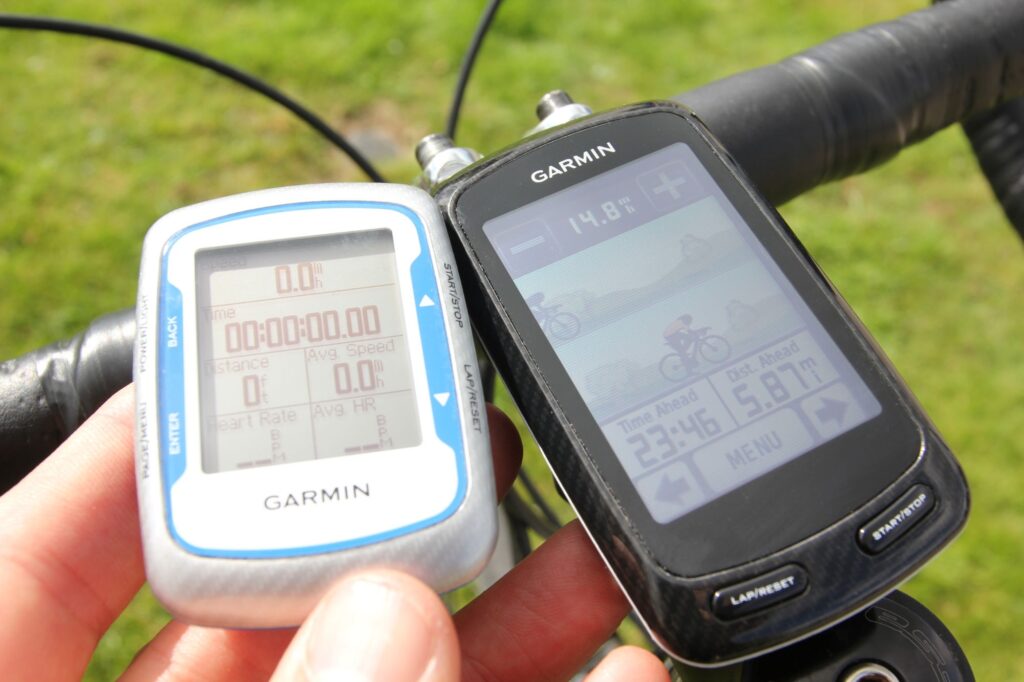

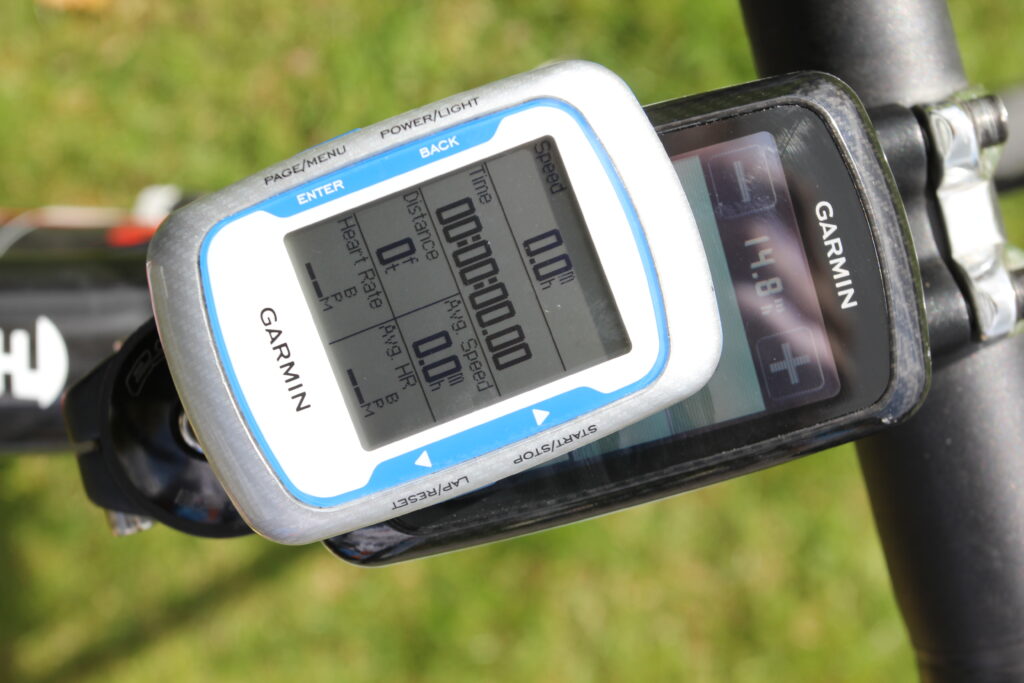

If you’re familiar with Garmin’s existing range, the 800 is most similar to the Edge 500 in looks – although it’s 2D size is about 40% larger (5.1 x 9.3cm versus 4.8 x 6.9cm) – and in terms of function it’s like an upgraded 705 with glitches ironed out.

It’s a touchscreen design (apart from lap/reset and start/stop buttons) that, before you ask, works fine when you’re wearing full-finger gloves, and it fixes to your bar or stem via a twisty mount that’s held in place by two stretchy O-rings. The mount is exactly the same as the one the 500 uses rather than the one the 705 uses which has its detractors. We’ve always found the 500 mount to be perfectly secure and swapping between bikes takes seconds so that should be one worry taken care of.

You can fully customize the data screens to give you exactly the amount and combination of info you want at any one time. You can have up to 10 fields on each screen and up to three screens – so, for example, you can have all your current measurements together on one screen and then scroll to another screen that shows your rolling averages.

Speaking of scrolling, you can either tap the arrows on the sides of the 3.8 x 5.6cm display (for comparison, the 705’s is 3.48 x 4.36cm) or swipe your fingers across the screen in the direction you want to move. We had no trouble at all with reliability here – it worked perfectly every time over the course of our short ride. We’ve no idea if the screen easily scratches with dirty gloves, though. You’ll have to wait for our full test for the answer to that one.

We didn’t have any difficulty reading the screen either and we were out in the sunlight, then under clouds, then in shady woody sections. Again, a longer test might reveal weaknesses there but so far so good.

As for navigation, the Edge 800 comes with an in-built base map showing major roads and cities, and it’s compatible with Garmin’s microSD cards which you slot in underneath a rubber seal at the base. You can choose Garmin GB Discoverer Ordnance Survey mapping for the whole of Britain (1:50,000 scale), or go for 1:25,000 maps of National Parks or National Trails. You can design your own route or select your destination and you’ll get navigation prompts on the screen to get you there.

You can pair up the 800 with an ANT+ heart rate strap and/or power meter for extra performance data and everything is logged for uploading to the Garmin Connect website when you get home – where you can store all you ride information and analyse it at your leisure.

What else can we tell you? Garmin reckon the Edge 800 is waterproof – we’ve not had the chance to test that – and a barometric altimeter gives you climbing data. And you can set yourself a training partner who will ride at a set speed or at your previous pace over the same course. Oh, and the typical battery life is claimed to be 15hrs.

Prices start at £349.99 for the standalone Edge 800, rising to £399.99 for the Performance Bundle which includes a speed/cadence sensor and heart rate monitor strap, and £449.99 for the Performance and Navigation Bundle which includes all the mapping too.

So far everything looks really promising. We’ll let you know as soon as possible if the 800 lives up to expectations once we get to play with one for real.

13 user comments

Oldest firstNewest firstBest rated

Do you know if it's possible to upload maps from, say, Memory Map? Ditto with routes?

Mike
-------__0
--- --- \_ \¬
------ (+) / (+)______ better by bike!

Mike McBeth's picture

posted by Mike McBeth [72 posts]
23rd September 2010 - 18:28

like this
Like (0)

some people get all the good jobs.

As an aside, what glitches does the 705 have...Ive owned one for about 10,000km now and Ive not had a problem....!

not all carbon is the same.

Jon Burrage's picture

posted by Jon Burrage [1076 posts]
23rd September 2010 - 18:54

like this
Like (1)

Check out this pretty comprehensive pre-release review (from the USA):
http://www.dcrainmaker.com/2010/08/garmin-edge-800-in-depth-first-look.html

cavasta's picture

posted by cavasta [191 posts]
23rd September 2010 - 19:10

like this
Like (0)

705: Dodgy mount. No auto shut down. Fiddly toggle. No temperature reading... All sorted on the 800.

posted by Mat Brett [1725 posts]
23rd September 2010 - 19:22

like this
Like (2)

No temperature reading? Don't need a weatherman to know which way the wind's blowin'

cavasta's picture

posted by cavasta [191 posts]
23rd September 2010 - 20:52

like this
Like (1)

Mike McBeth wrote:
Do you know if it's possible to upload maps from, say, Memory Map? Ditto with routes?

routes yes, maps no. as i understand it. the 800 can handle most route formats but it need its own mapping

Dave Atkinson's picture

posted by Dave Atkinson [7044 posts]
23rd September 2010 - 21:03

like this
Like (1)

cheers Mat. I had issues with the 205 mount but the 705 has been fine so far, toggle has been ok for me too but you are right, auto shut down would be useful.

not all carbon is the same.

Jon Burrage's picture

posted by Jon Burrage [1076 posts]
23rd September 2010 - 22:40

like this
Like (0)

You can create custom maps so in theory you could go through a rather tedious process of taking screengrabs from memory map, calibrarte and download them.

It is quite irritating that having spent lots of money on full UK ordnance survey mapping, you're forced to buy the same maps again in a different data format just to use in on a different device.

posted by ribena [118 posts]
24th September 2010 - 11:59

like this
Like (2)

Whether it's worth spending the money to upgrade from a 705... well, I guess that's one of the things we'll be looking at when we test it properly.

posted by Mat Brett [1725 posts]
24th September 2010 - 14:54

like this
Like (2)

Looks great but won't be long before mobiles are on the ball.

Still, I want one!

(Dear Santa...)

I like my bike but it needs a hidden 25cc motor Smile

Fish_n_Chips's picture

posted by Fish_n_Chips [325 posts]
24th September 2010 - 17:50

like this
Like (2)

I love using my phone as a bike computer but it's not as good as a dedicated gps for a couple of reasons:
1) it isn't waterproof
2) battery life

Phones get better every year but those two will continue to be issues for years yet as far as i can see

Dave Atkinson's picture

posted by Dave Atkinson [7044 posts]
25th September 2010 - 14:45

like this
Like (1)

Had a play with one the other day on my bike, was fantastic. I had the navigation bundle which gives maps for EU so handy if you take the bike or car over there. Mapping quality was great too, no mistakes unlike my Navman in the car.

Good review here:
Garmin Edge 800 Performance and Navgation Review

posted by Scott445 [1 posts]
12th November 2010 - 10:42

like this
Like (2)

I was just about to buy this but noticed that as soon as Wiggles 20% off code went live, they removed the Garmin Edge 800 from sale Crying

jobysp's picture

posted by jobysp [145 posts]
27th November 2010 - 10:37

like this
Like (2)
