Just in: Paul Vincent fixed

New protoype frame from new British framebuilder

by Dave Atkinson   April 10, 2010

Anyone that's spent any time reading Cycling Plus magazine over the last 20-odd years will probably have come across the name of Paul Vincent. As a former colleague of both myself and Tony, and the mag's technical editor, Paul's probably ridden a bigger range of road bikes than anyone else in the country over the last two decades. Now he's using that knowledge to set up on his own as a frame builder and this fixed machine is one of his first bikes.

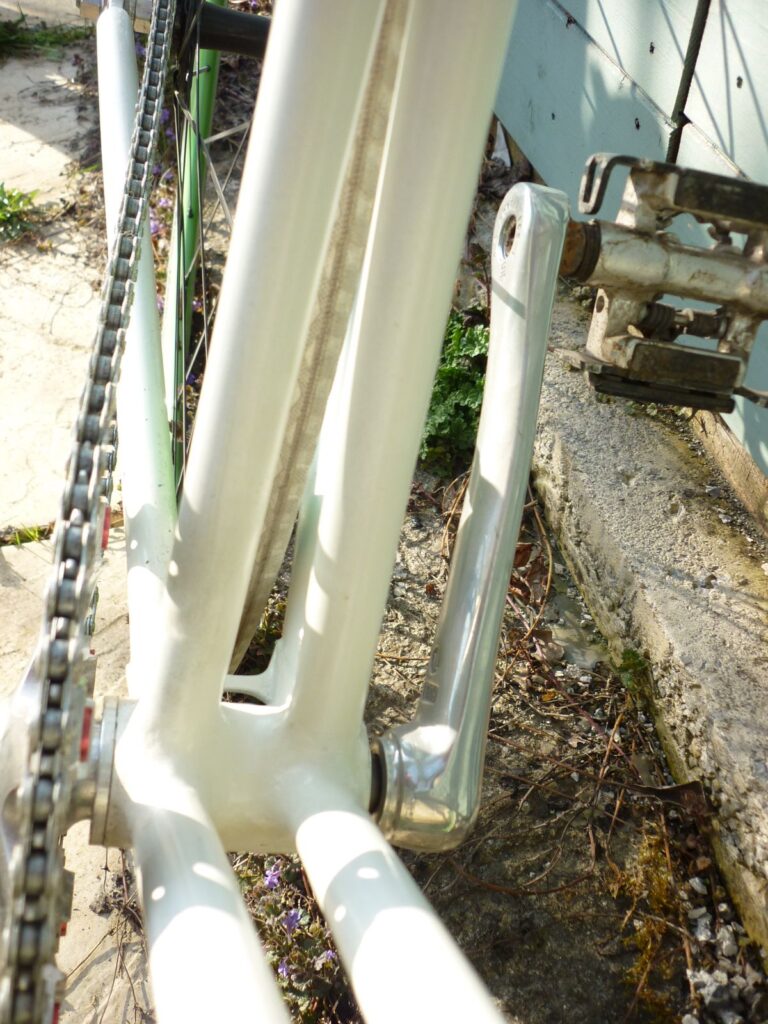

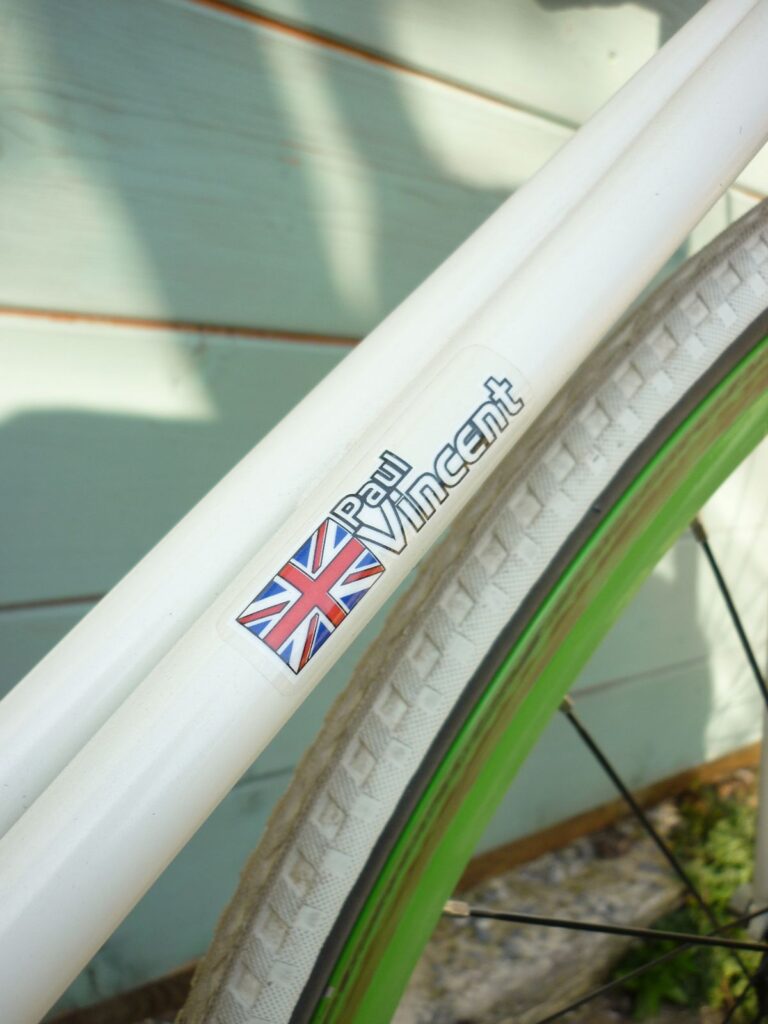

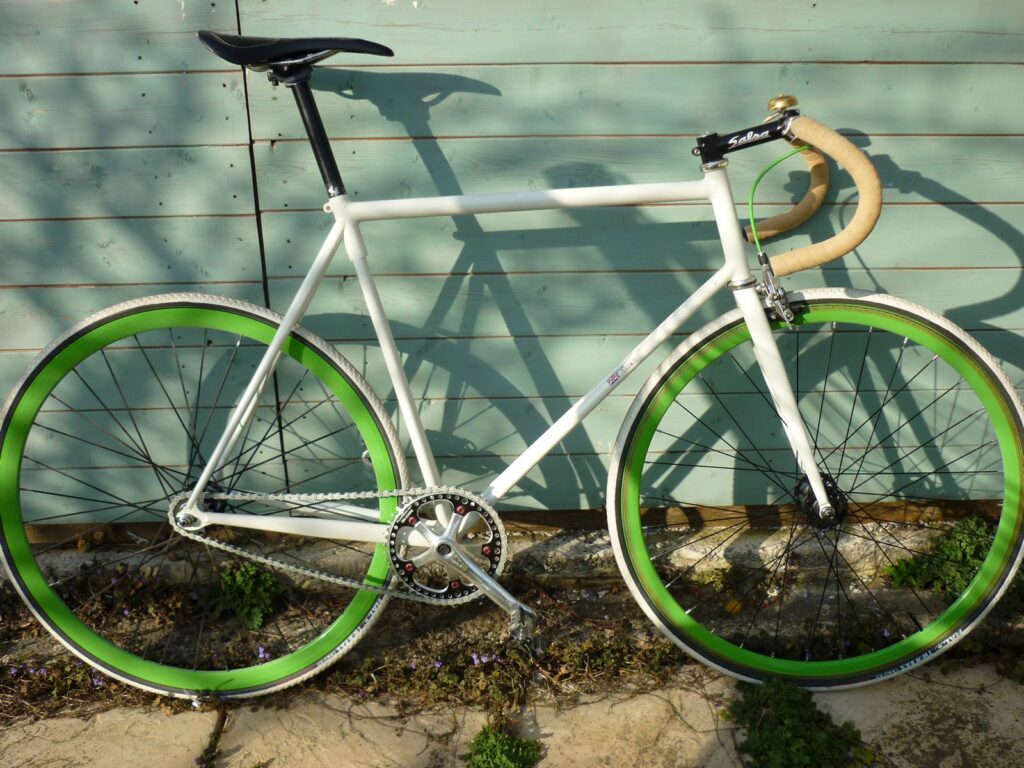

Funnily enough it's currently stabled next to another fixed machine with green wheels – the Marin Dominican which we'll be testing soon – but the similarities pretty much end there. Paul's frame is a fully hand built, fillet brazed affair which features some very unusual touches. Most noticeable is the fact that it has a double down tube and seat tube, joined at the top but splayed to separate tubes where they meet the bottom bracket. The twin seat tubes morph into a single tube at the top of course, so you can fit a standard seatpost; you'll pretty much have to cut it to size though as adjustment is pretty minimal.

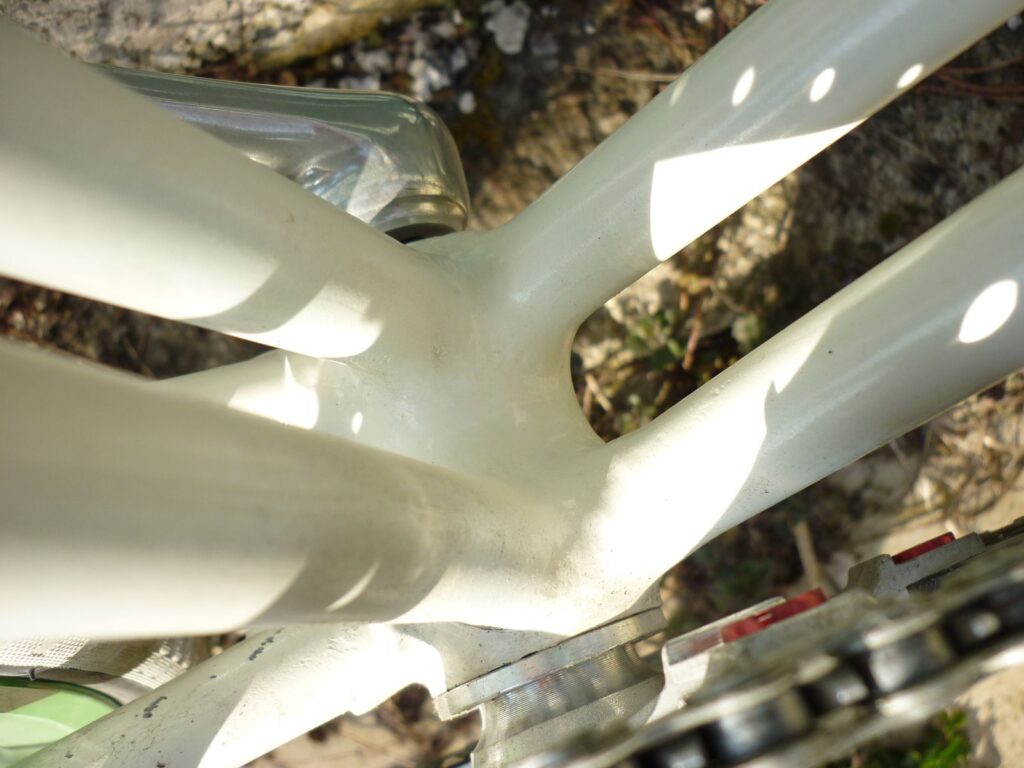

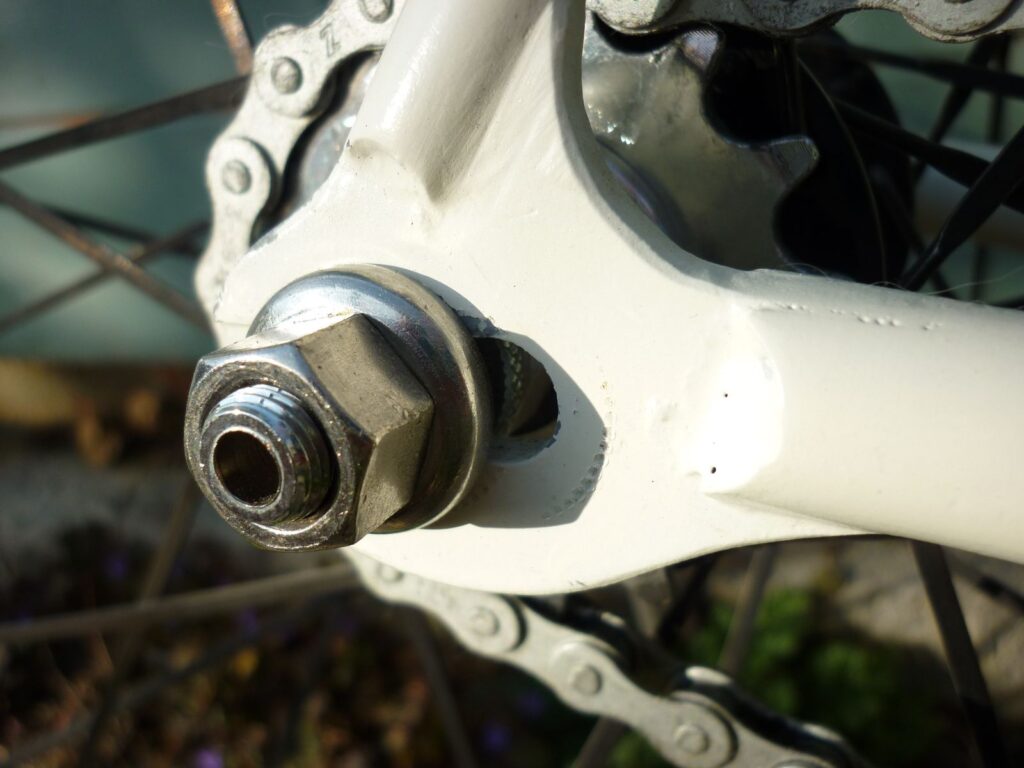

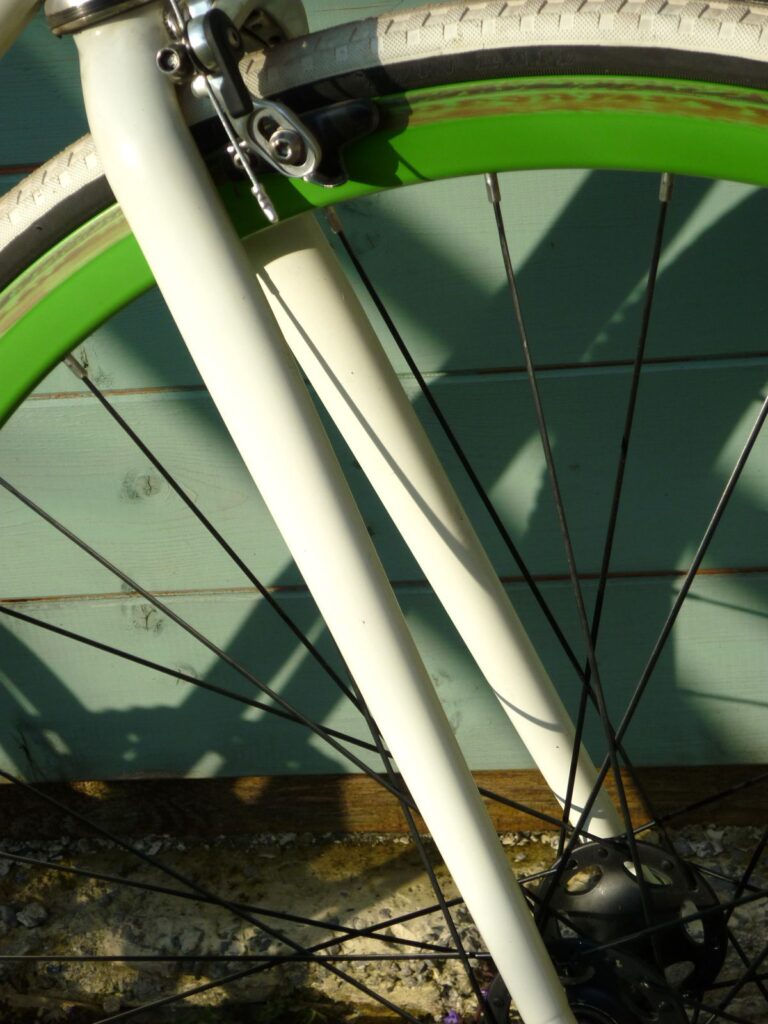

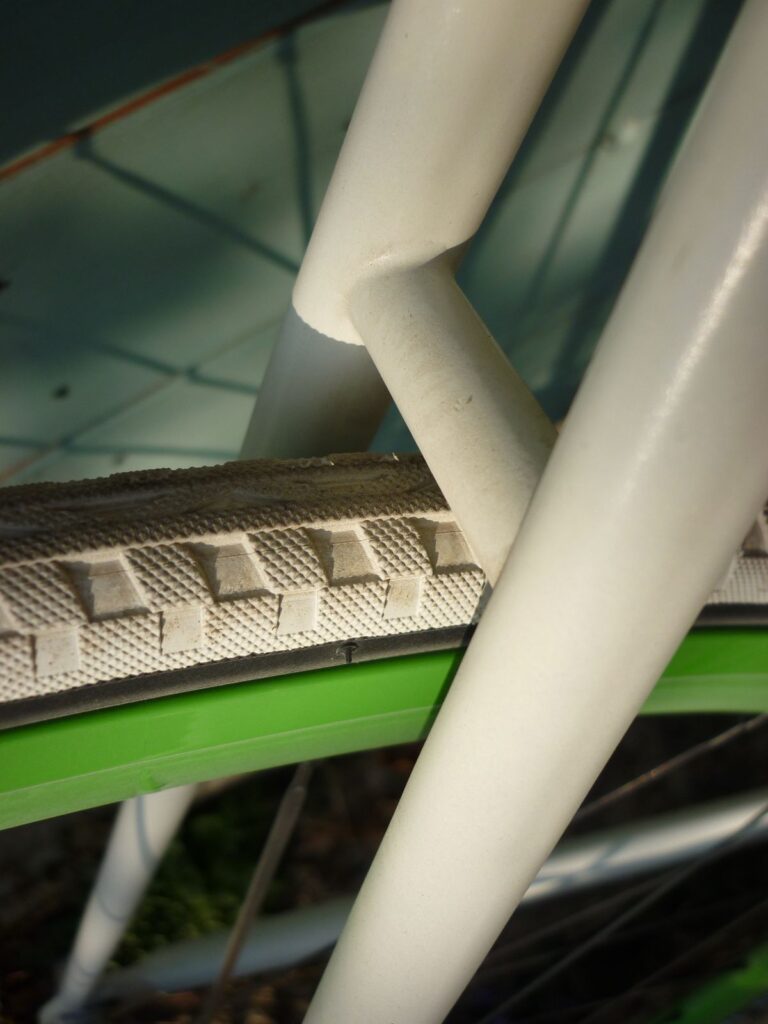

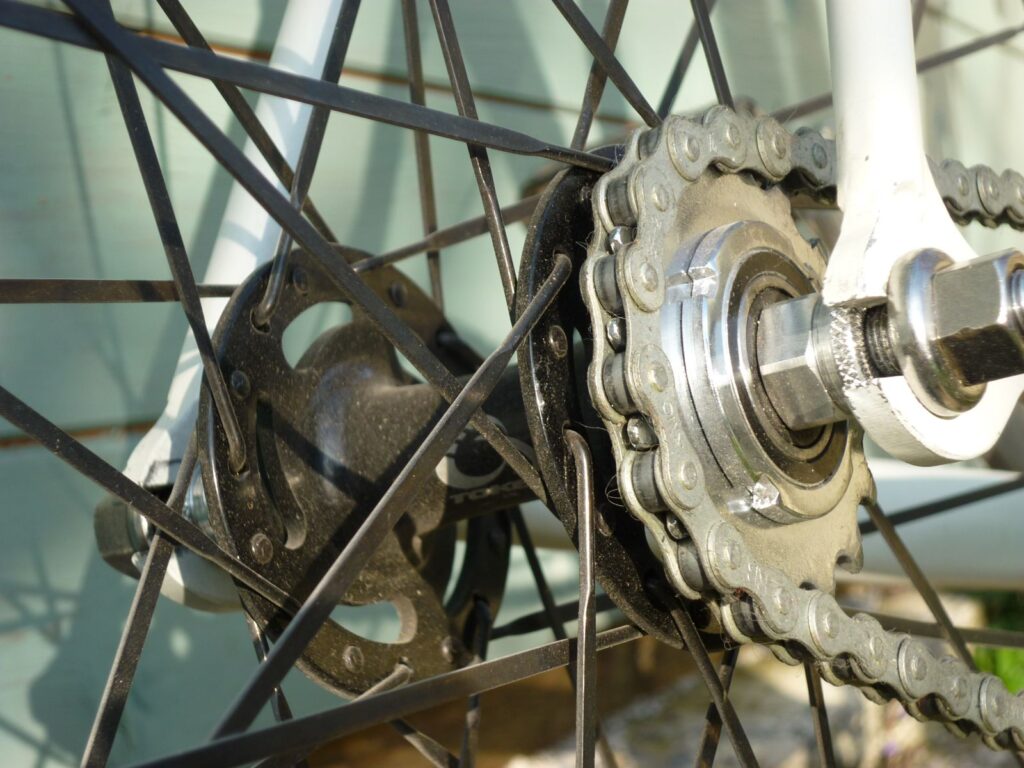

The cutting and shaping of the twin tubes takes a good long time, and they're brazed together along part of their length to add stiffness to the main structure. The bottom bracket is built up with brass filler to quite an extent on our bike but Paul told us that subsequent frames are going to be a bit more minimal. Beefy chainstays and shaped seatstays lead to a track dropout. Our bike sports a flip-flop hub but since the seatstay bridge isn't drilled for a brake we'll be sticking with the fixed cog. Up front there's a straight blade Carbon fork.

Since this is a prototype Paul hasn't gone to great expense to finish the frame, so instead of a natty professional paintjob it's decked out in white spray paint from the pound shop, which gives a surprisingly good finish. Okay it doesn't stand up to close inspection and it chips quite easily, but production frames will be properly sprayed or powder coated depending on the rider's wishes. Obviously every frame is a custom one-off, and Paul is happy to draw on his years of experience to help you get the fit right.

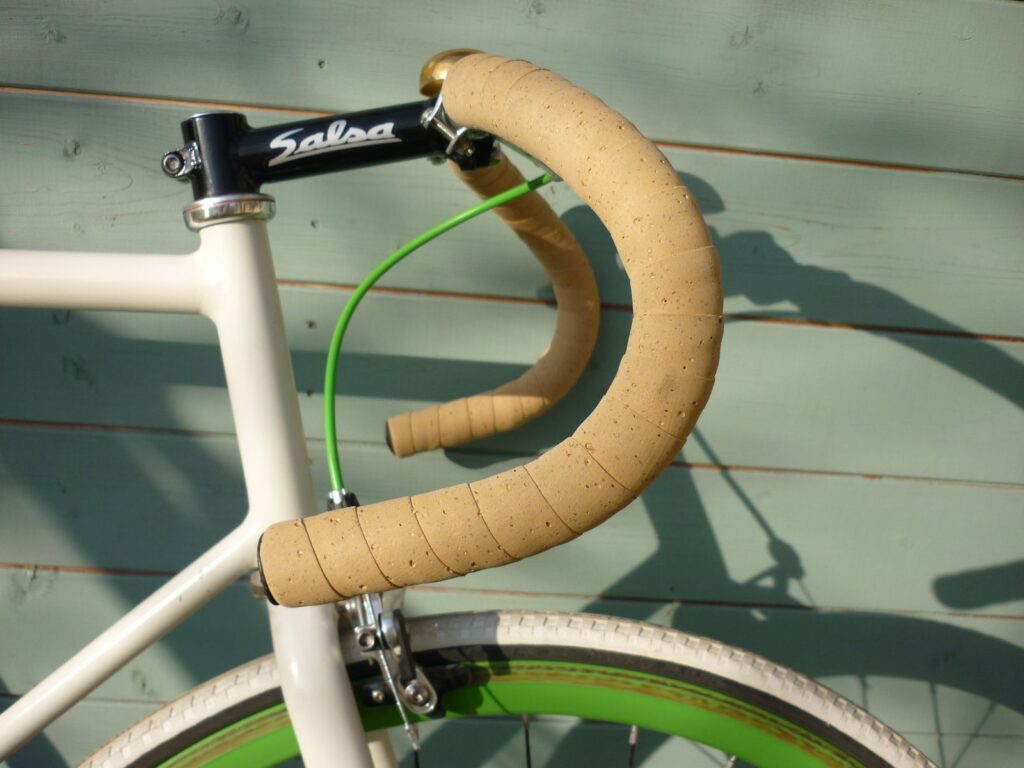

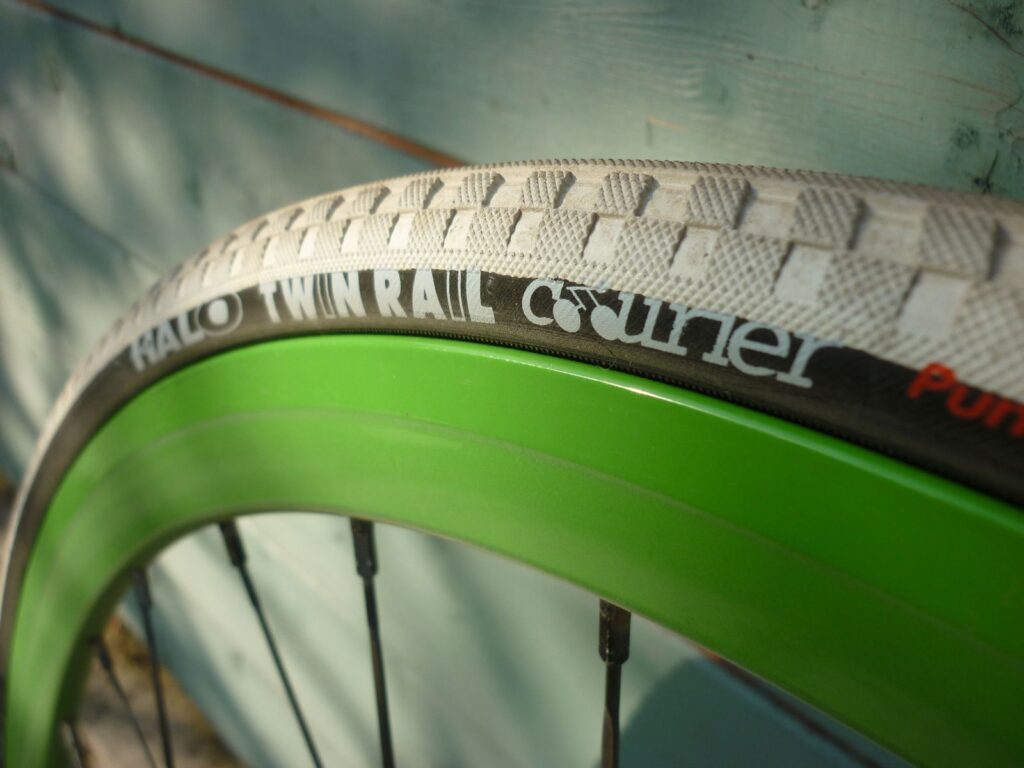

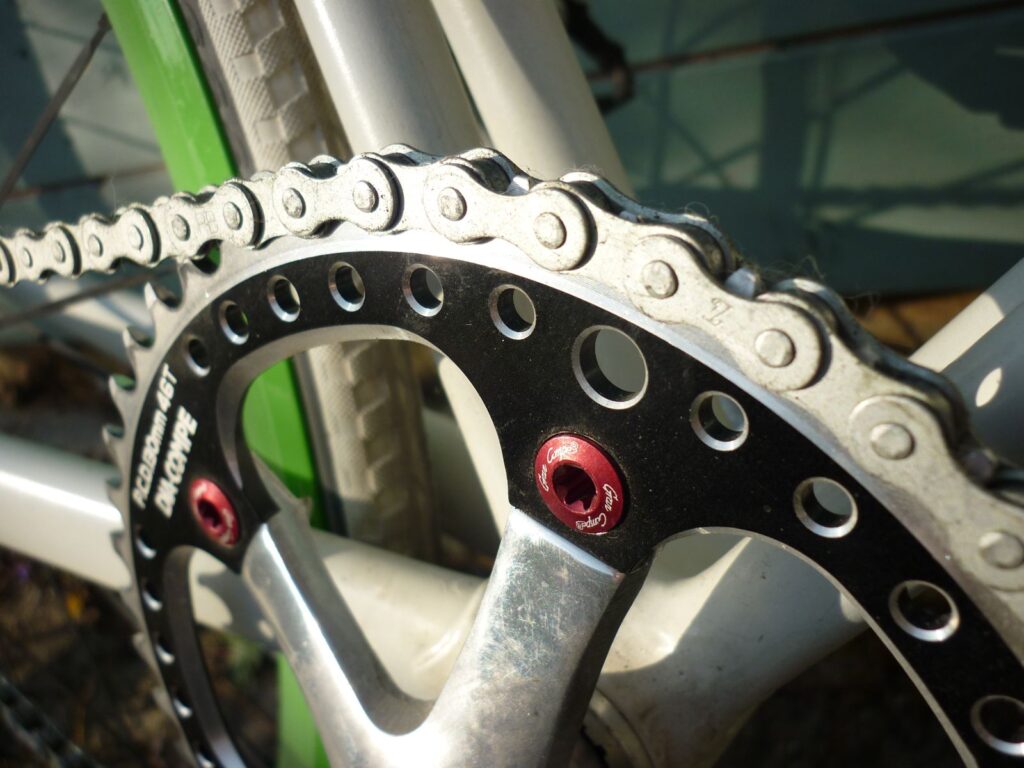

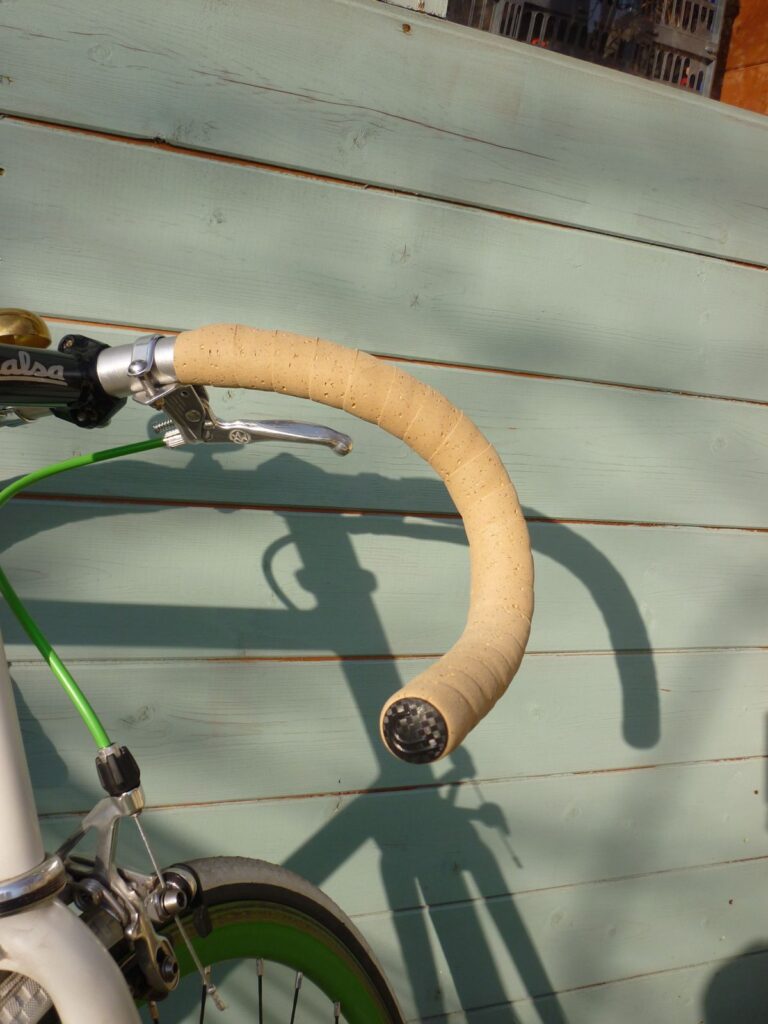

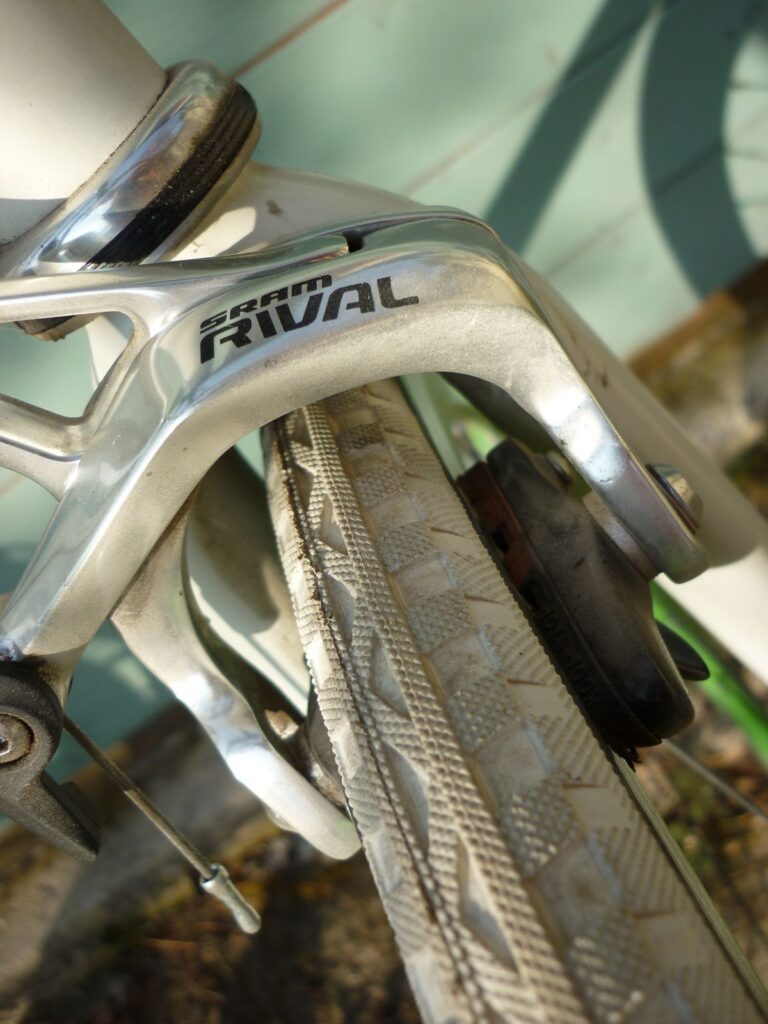

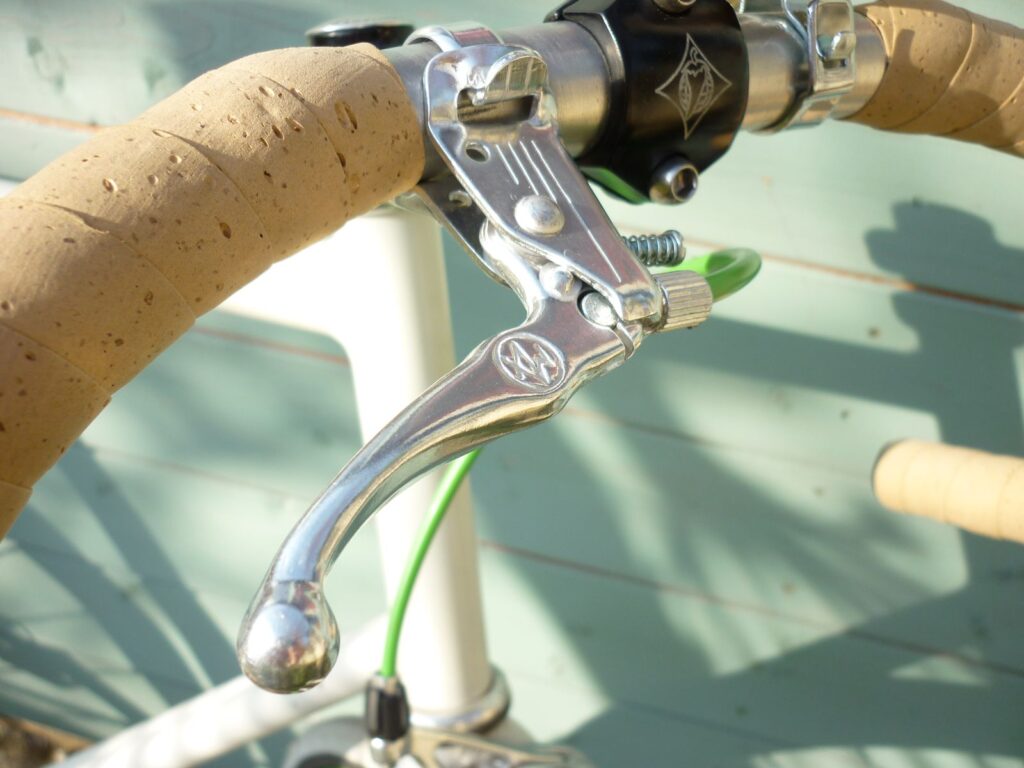

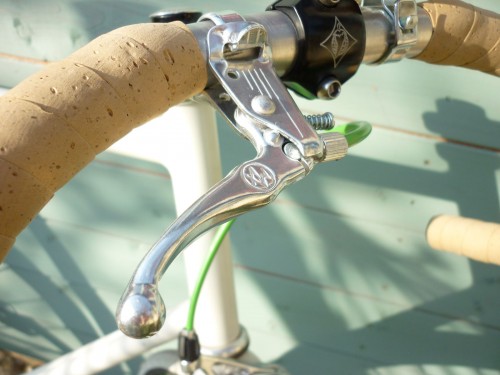

Kit-wise the bike is a prototype and as such a bit of a mish-mash, but there's some interesting bits and bobs. It's running deep section alloy rims laced to track hubs, and the green rims are highlighted by the brake cable on the single front brake, a Rival calliper operated by an esoteric single lever. The bars on this particular beast are a set of deep drop track bars that are about 60 years old – they won't be standard kit – taped with some lovely retro cork. A Gran Compe chainset with a nicely machined 46T ring drives a 16T sprocket to give a 78in gear that's a bit tough for hilly Bath but would be just right for a flatter metropolis. Geometry is more relaxed than a full-on track iron although the deep drops give you an aggressive second position.

Talking of production, Paul will be starting to build custom frames from the summer and you can expect to pay around £900 for a frame like this one, or around £1700 for a full build with similar kit. He doesn't have a website as yet but if you're itching to get your hands on one, drop us a line and we'll put you in touch.

10 user comments

Oldest firstNewest firstBest rated

Obviously Paul was not influenced much by the one time aluminium tig welding guru Greg Fuquet, by the way whatever happened to him? He didn't like it when steel frames from columbus worked out lighter than his. Good luck with the new venture,perhaps we also will have a hand built show like America one day.

antonio

antonio's picture

posted by antonio [923 posts]
10th April 2010 - 19:59

like this
Like (5)

hmm, not sure on the twin downtube.....

A review of a Simoncini Gilco over on bike radar (a steel twin tube'er)

"It’s in its handling though, that the Simoncini displays the most unpredictable characteristics. The frame glides over surfaces that would have any other road bike kicking back through the handlebars, but the fork’s considerable fore and aft movement gave cause for concern under heavy braking. The fork feels like it’s trying to tuck under the front triangle"

Having ridden that very bike I know exactly what they mean, it was the bendiest wavyist flexibly bike I have ever seen. I guess the proof will be in the testing Smile

http://www.bikeradar.com/gear/category/bikes/road/product/gilco-08-31658

Trev Allen's picture

posted by Trev Allen [163 posts]
11th April 2010 - 23:15

like this
Like (2)

i put my considerable weight behind it on the climb up the wellsway and it's not wanting for stiffness on the climbs. haven't pointed it downhill really so far...

Dave Atkinson's picture

posted by Dave Atkinson [7236 posts]
11th April 2010 - 23:22

like this
Like (2)

what is the supposed advantage of twin tubes?

jezzzer's picture

posted by jezzzer [339 posts]
12th April 2010 - 9:05

like this
Like (4)

I don't think Paul is claiming any performance advantage - it's pure aesthetics. The design and method of construction is more about ensuring there are no performance disadvantages from having twin tubes

Tony Farrelly's picture

posted by Tony Farrelly [4131 posts]
12th April 2010 - 9:20

like this
Like (1)

Very pretty, just like some of the old colnagos

solentine

posted by solentine [91 posts]
12th April 2010 - 9:54

like this
Like (3)

It is nice to see something different but I think the Viva Duro beats it on the aesthetic front.
http://road.cc/content/image/10035-viva-duro

It's not just about the size of your cog.

TRs Blurb n Blog's picture

posted by TRs Blurb n Blog [270 posts]
12th April 2010 - 12:20

like this
Like (2)

TRs Blurb n Blog wrote:
It is nice to see something different but I think the Viva Duro beats it on the aesthetic front.

Agreed.

Viva is always one of my favourite Eurobike stands.

Trev Allen's picture

posted by Trev Allen [163 posts]
12th April 2010 - 18:23

like this
Like (4)

I remember him building his first frame in a C+ article a couple of years ago. The lad's come a long way since!

Chuffy's picture

posted by Chuffy [183 posts]
12th April 2010 - 20:54

like this
Like (2)

TRs Blurb n Blog wrote:
It is nice to see something different but I think the Viva Duro beats it on the aesthetic front.
http://road.cc/content/image/10035-viva-duro

Can't help feeling that Paul's bike would kick the Duro's arse on riding grounds though + let's not forget that this is a prototype

Tony Farrelly's picture

posted by Tony Farrelly [4131 posts]
12th April 2010 - 21:44

like this
Like (4)
