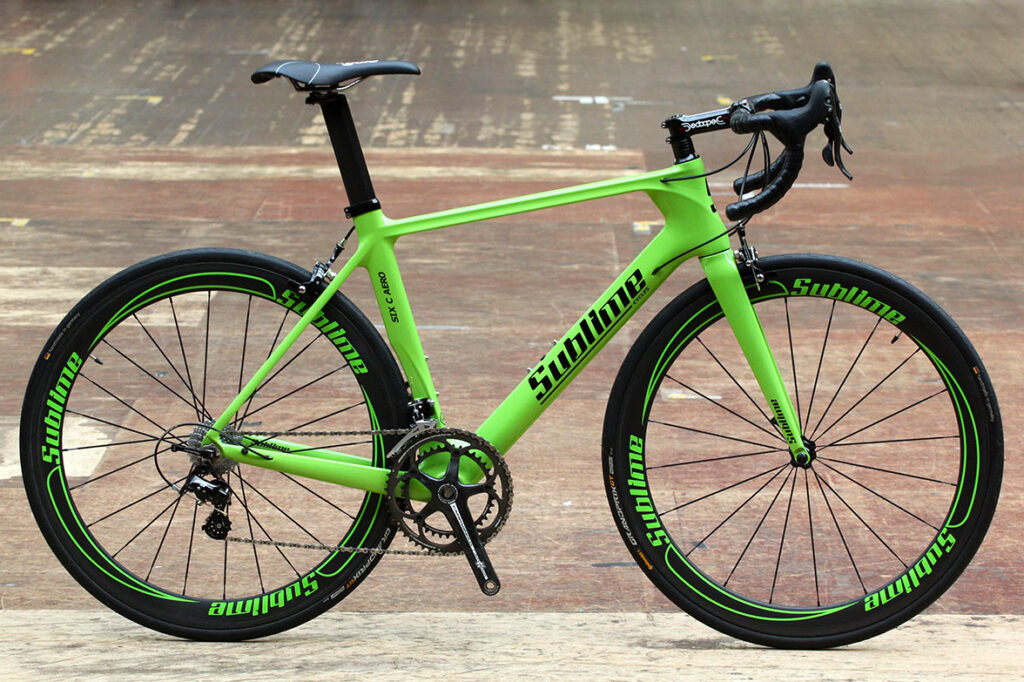

Just In: Sublime Six C Aero

A carbon-fibre aero road bike priced at £2,650 in a Campag Athena build

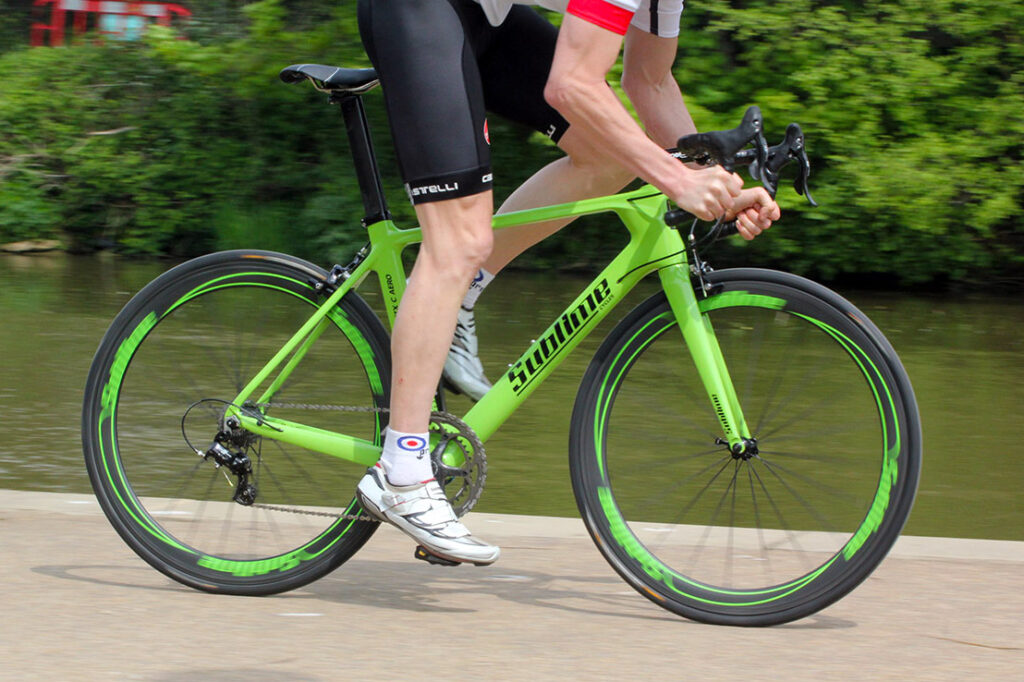

The Six C Aero is a new carbon-fibre offering from Bristol-based Sublime Cycles. You’ve probably not heard of Sublime Cycles before because the brand was only established last year and its website went live very recently. The Six C Aero is the first model, although others, including a TT bike, are on the way.

Sublime is currently using open mould designs. An open mould, for those who don’t know, is essentially a design that anyone can use. So, a brand can go to the manufacturer who owns the mould and ask for a specific number of frames, and have them made up with their own branding. The big, established brands tend to use designs that are exclusive to them, but that’s a more expensive way of doing it because developing new designs and making the moulds costs a lot of money.

The Six C Aero, as I said, is open mould so you might see a frame that looks very similar from another manufacturer. Sublime says that its long-term objective is to get to a stage where it can use its own designs, but that isn’t the case yet. That’s fine, but I just thought I’d explain that so we all know where we are and no one feels the need to point out, “That’s a such and such with a different paint job.” Actually, feel free to do so if you like; it might be interesting.

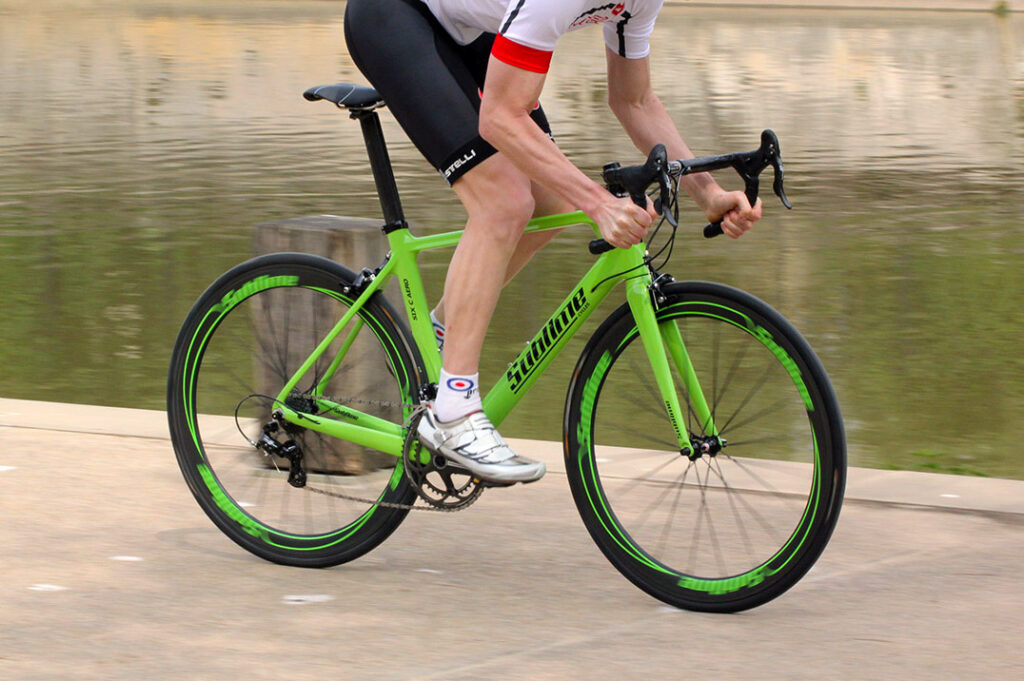

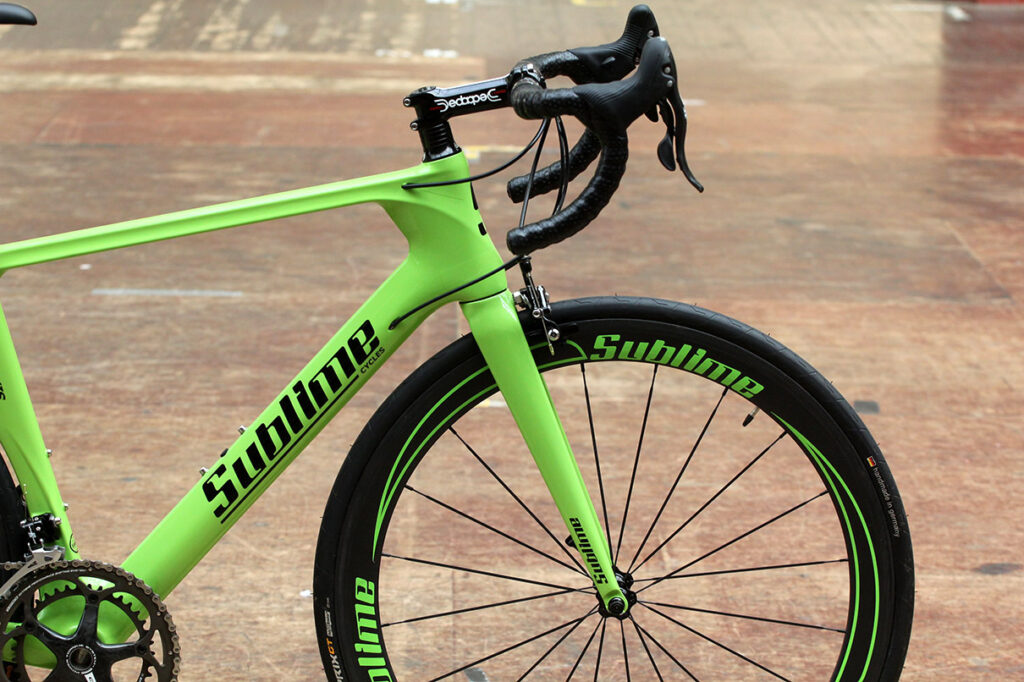

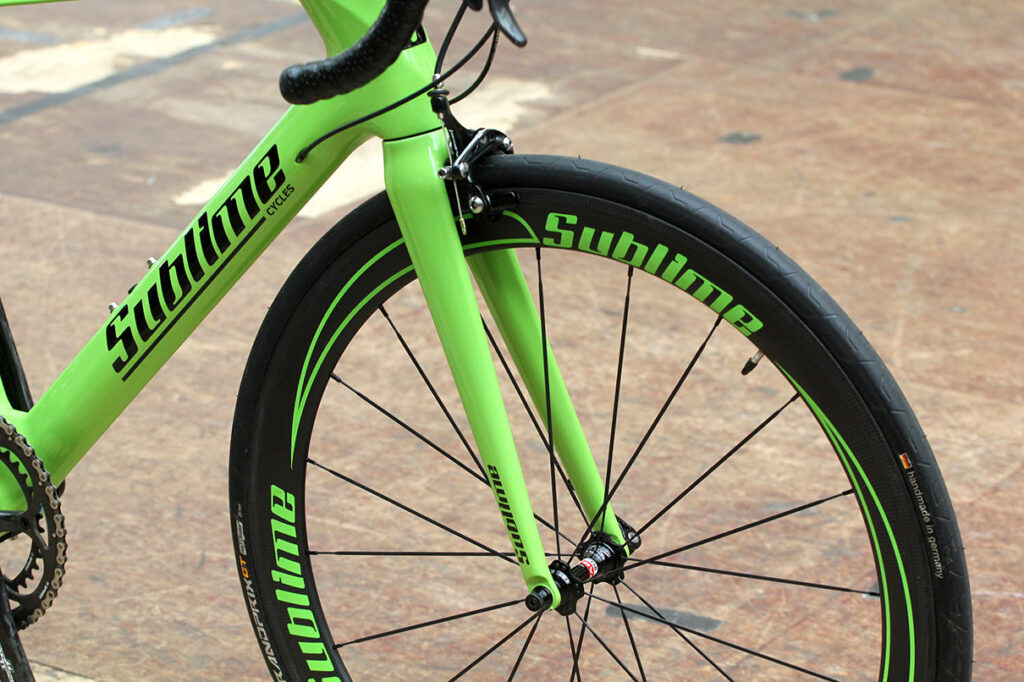

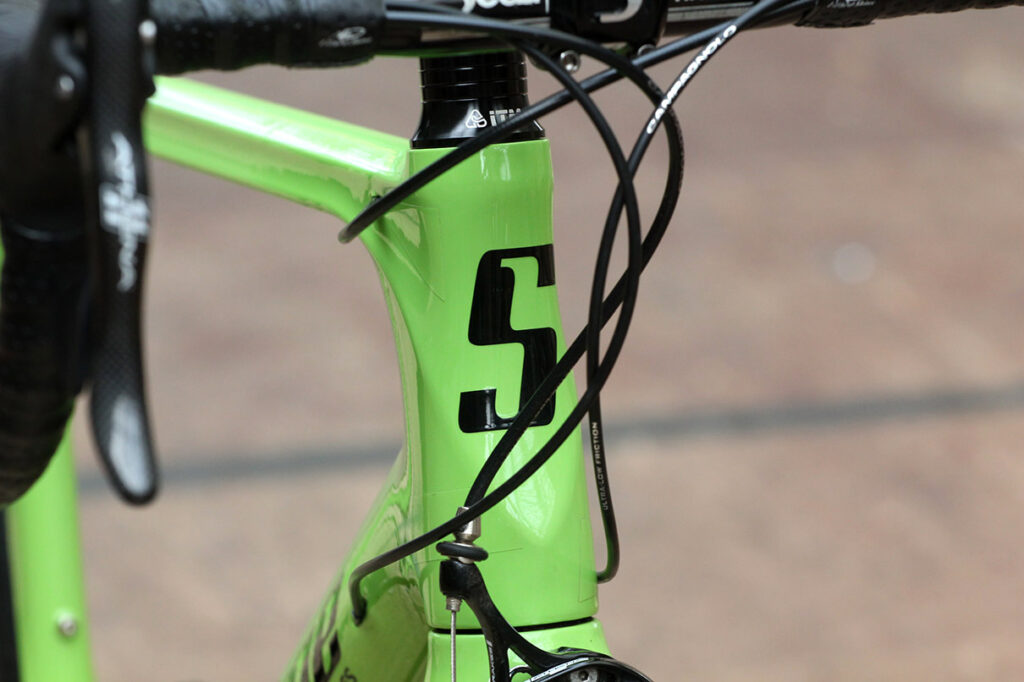

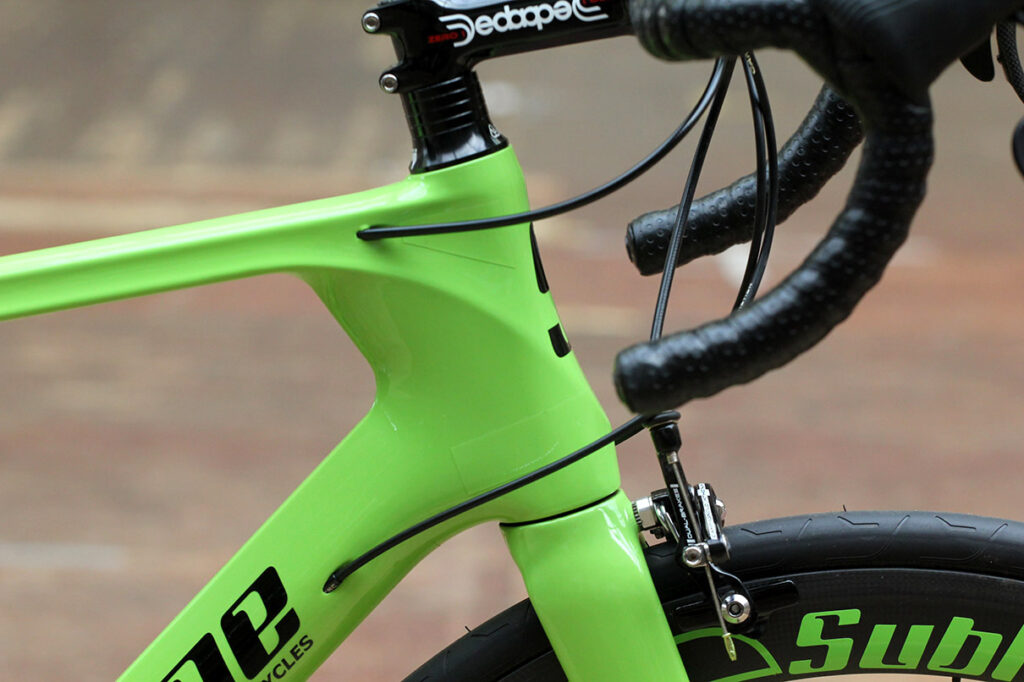

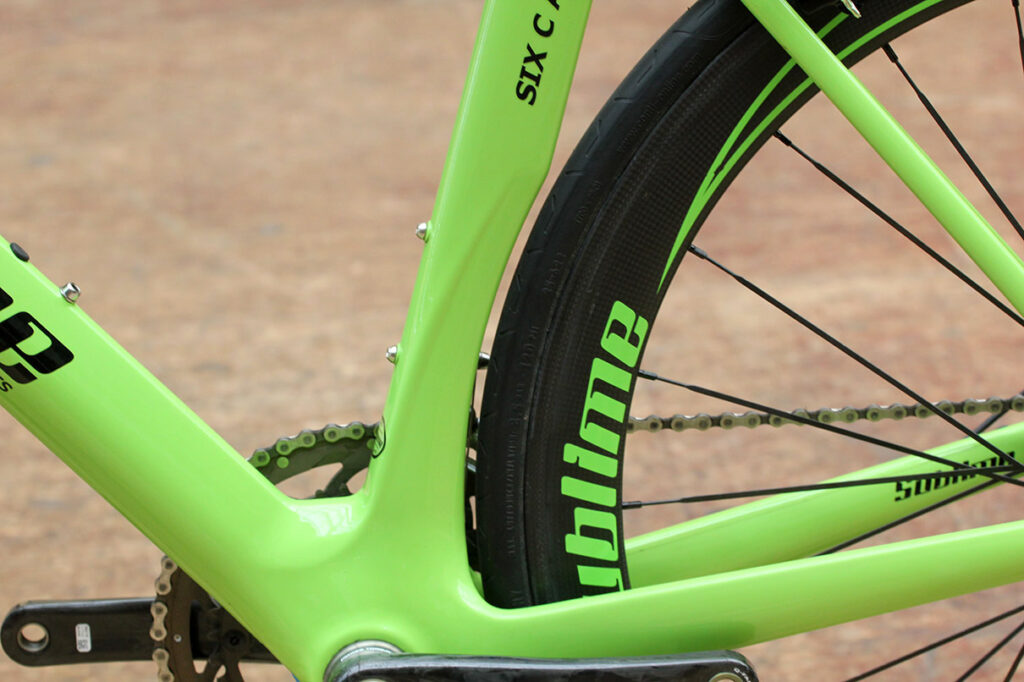

The Six C Aero displays a number of features that we’ve come to associate with aero road bikes in the past few years. The profile of the tapered head tube (1 1/8in to 1 1/2in) is very deep, for example, the down tube is a slim affair, and the seat tube is cutaway around the leading edge of the rear wheel.

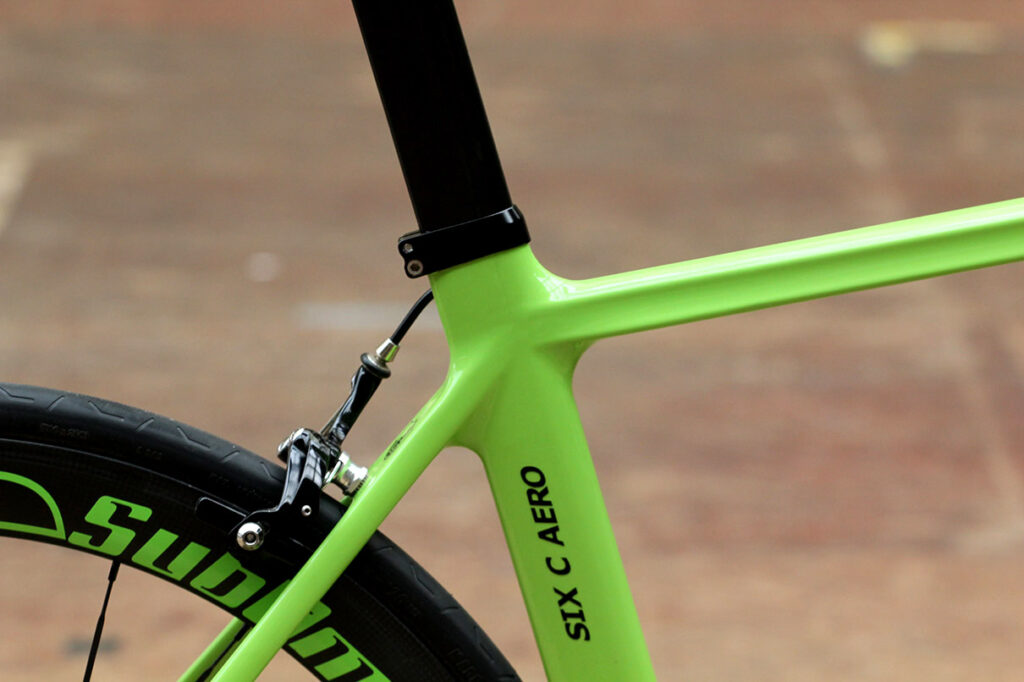

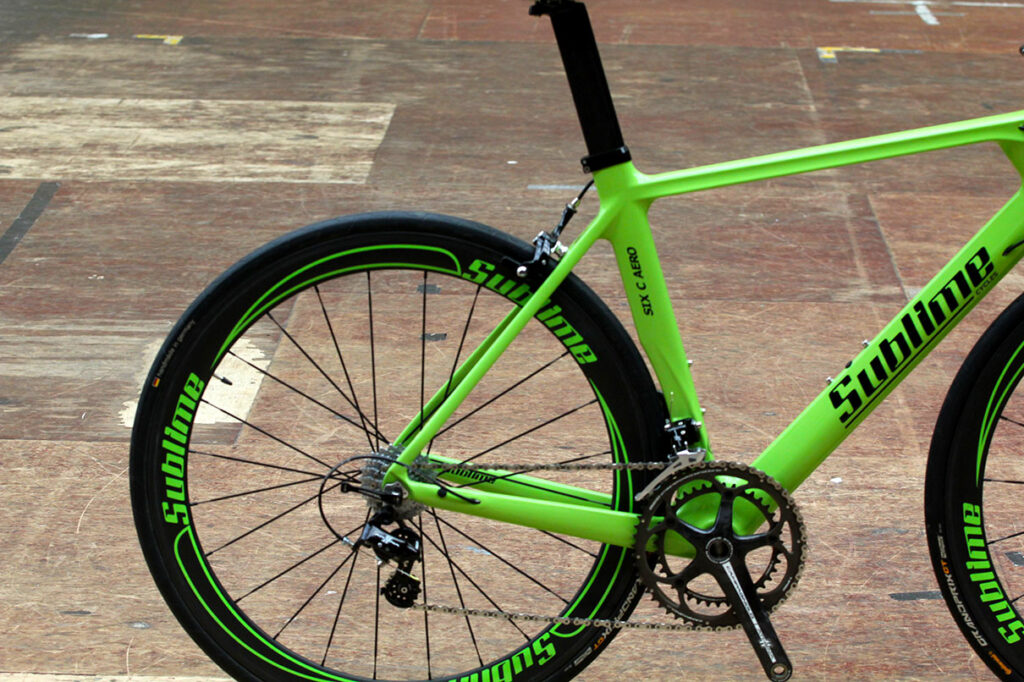

The seat tube and the seatpost are shaped for aerodynamics, with a blunt leading edge to the profile which tapers down before it’s cut off square at the back.

The top tube slopes significantly downwards from the head tube to the seat tube. The fluted tube walls might not serve an aero function but they look pretty neat to us.

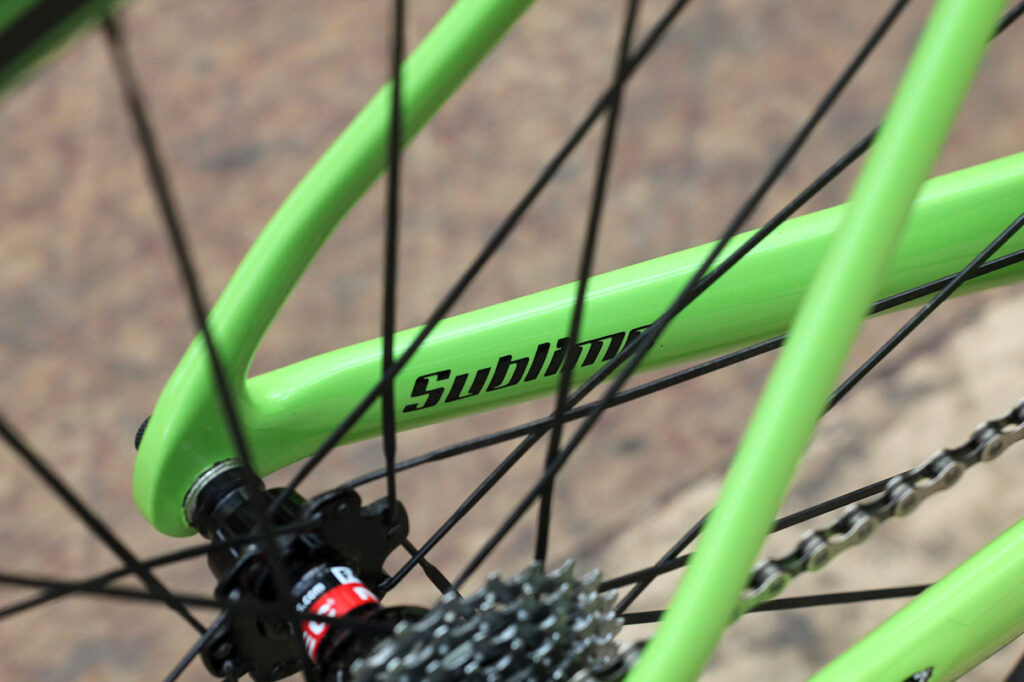

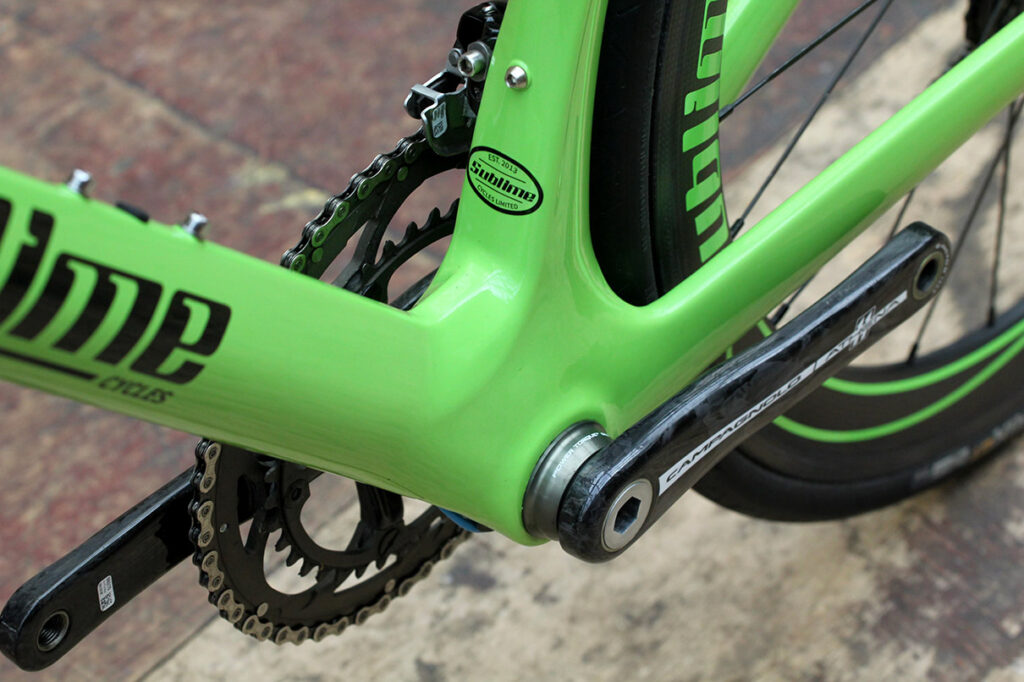

Out back, the chainstays are a chunky size while the slim seatstays are a wishbone design.

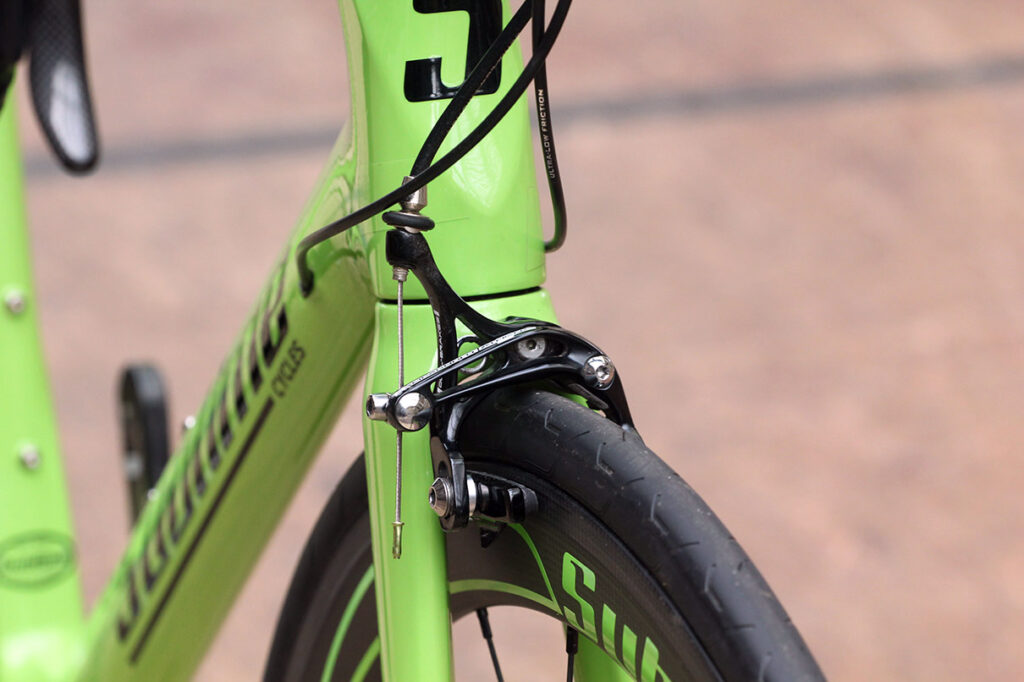

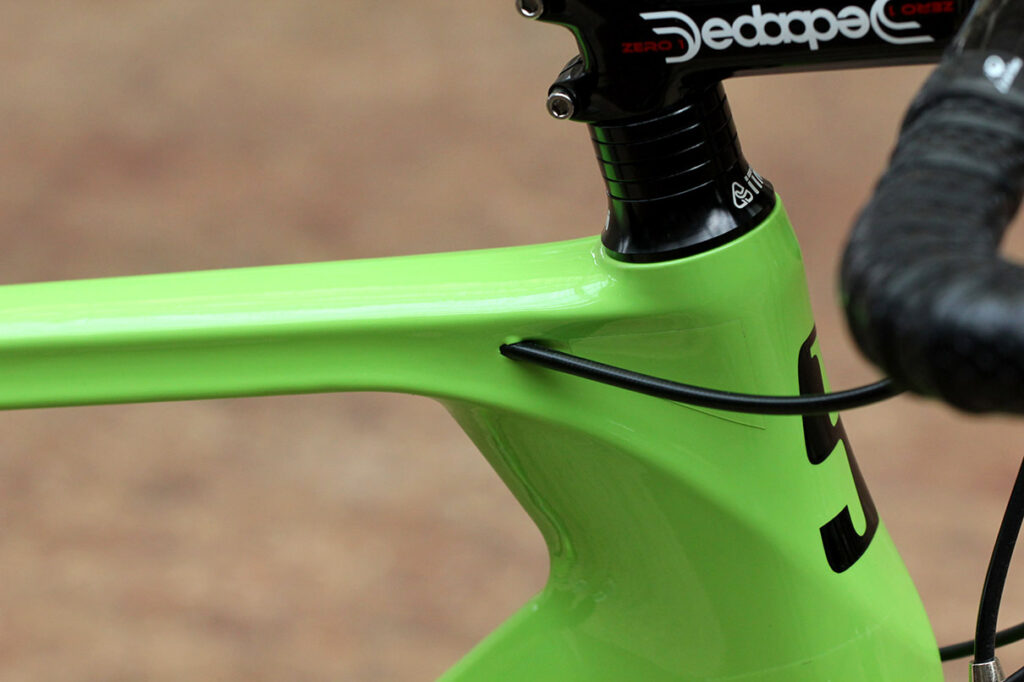

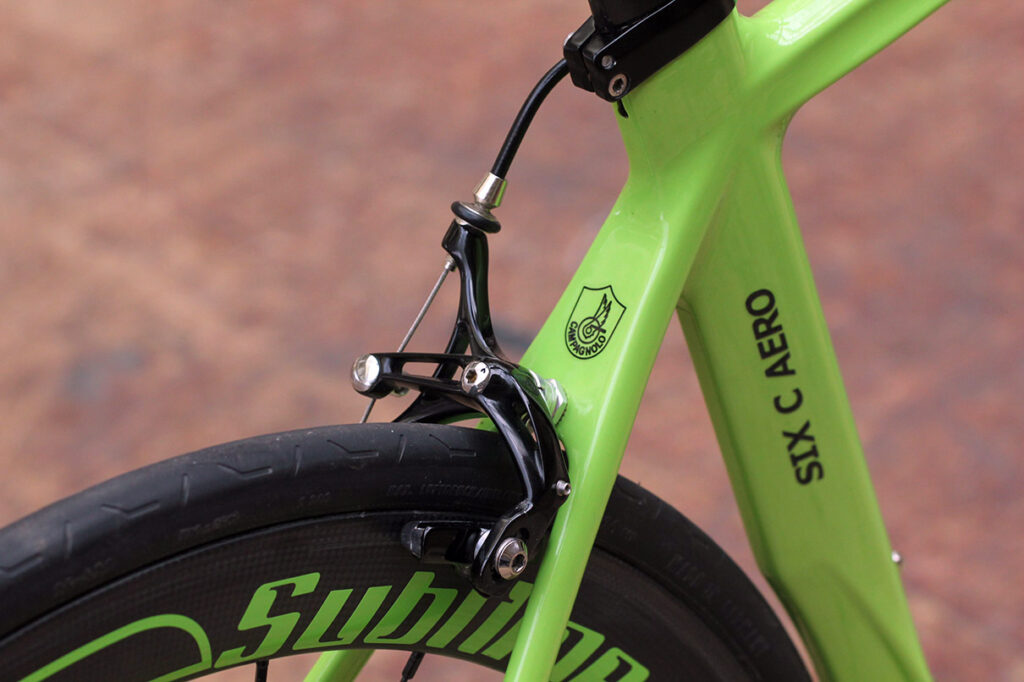

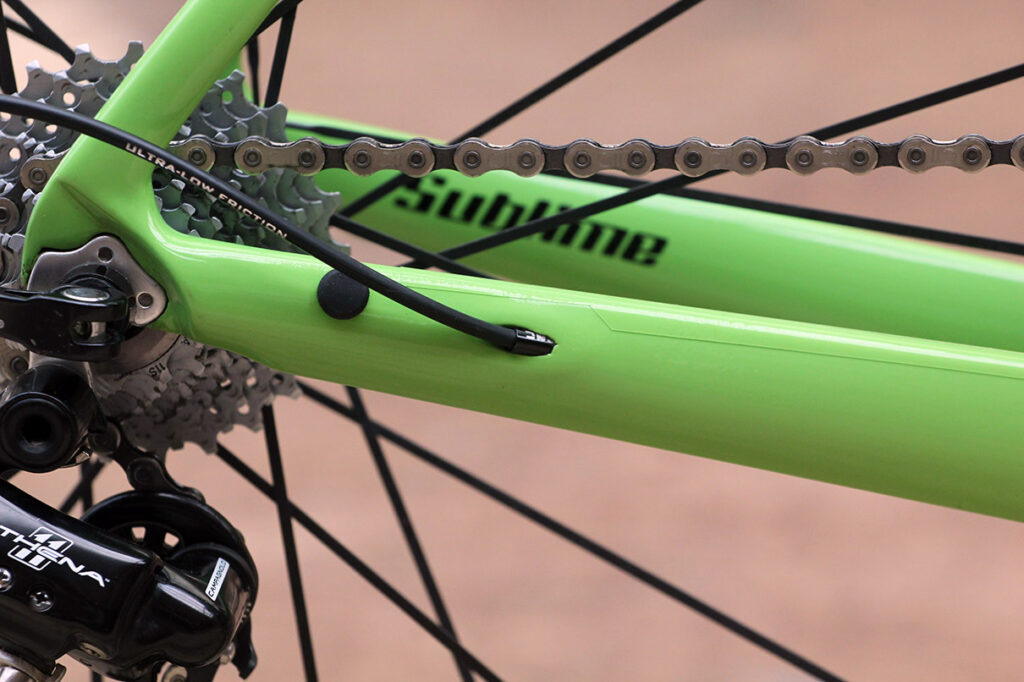

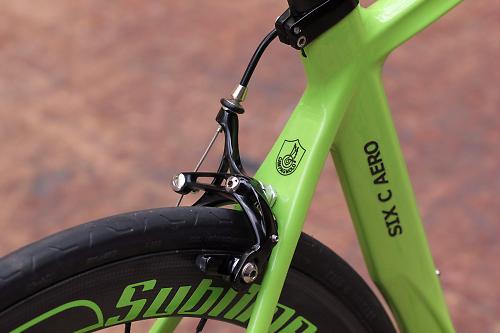

The cable routing is internal, the rear brake cable heading through the top tube and the gear cables entering the frame towards the top of the down tube. Although our bike is built up with a mechanical groupset, the Six C Aero is compatible with an electronic shift system.

We have the 56cm version of the Six C Aero in for review, with a 56.1cm stack (the vertical distance from the centre of the bottom bracket to the top of the head tube) and a 39.7cm reach (the horizontal distance between those two points). That makes for a pretty low front end, but it’s not ridiculously low.

For comparison, a 56cm Trek Madone road bike in an H1 (aggressive) fit comes with reach of 40cm (just a touch longer than that of the Sublime), but with a 54.6cm stack (1.5cm lower than the Sublime’s).

In contrast, Cervélo stick a fairly long head tube on their S5 aero road bike, reasoning that most people want a bit more height and you’re better off, from an aerodynamics and stiffness point of view, achieving that position via a tall head tube rather than a stack of headset spacers. That’s why the 56cm S5 comes with a 58cm stack height (almost 2cm higher than the Sublime’s).

Anyway, that’s just an around-the-houses way of saying that the Six C Aero’s ride position is aggressive but not crazy (of course, you can always adjust it to some extent with headset spacers, stem length and angle, or handlebars with a rise).

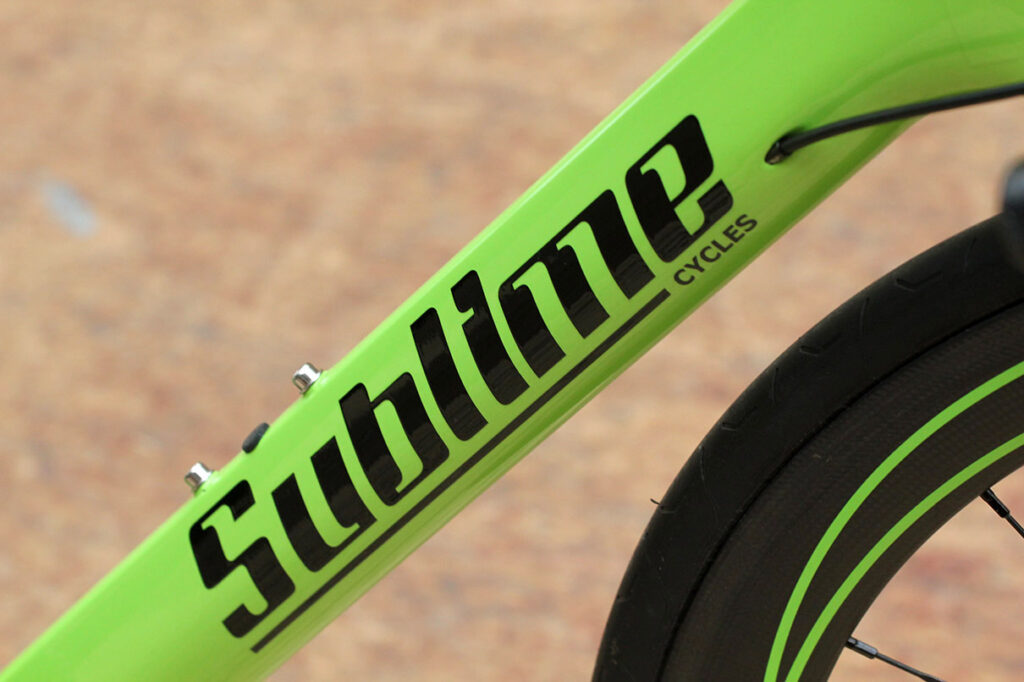

Sublime paint their frames in Bristol. You can go for a single colour of your choice (you don’t have to have this vivid green) or opt for a custom design which will cost extra.

Sublime offer the Six C Aero as a frameset (guaranteed for two years), if that’s what you’re after, for £850. If you want a full custom paint job, the frame will cost from £1,150, the exact price varying according to the design.

If you’d prefer a complete bike, Sublime provide custom builds. You spec the bike according to your budget and they’ll build it up for you. There are a few example builds on the Sublime website.

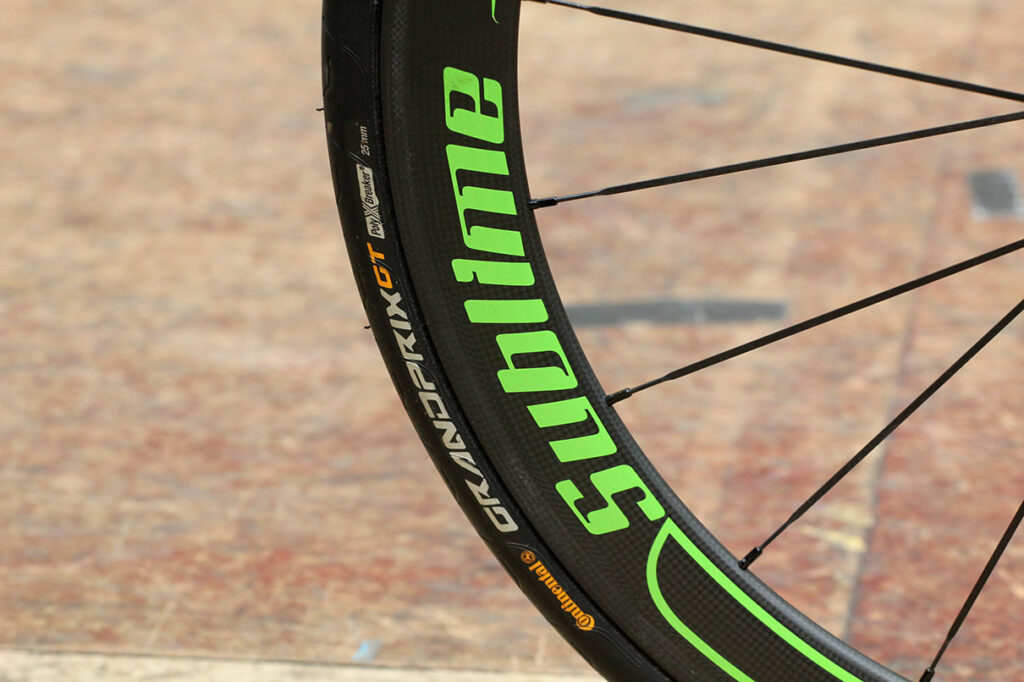

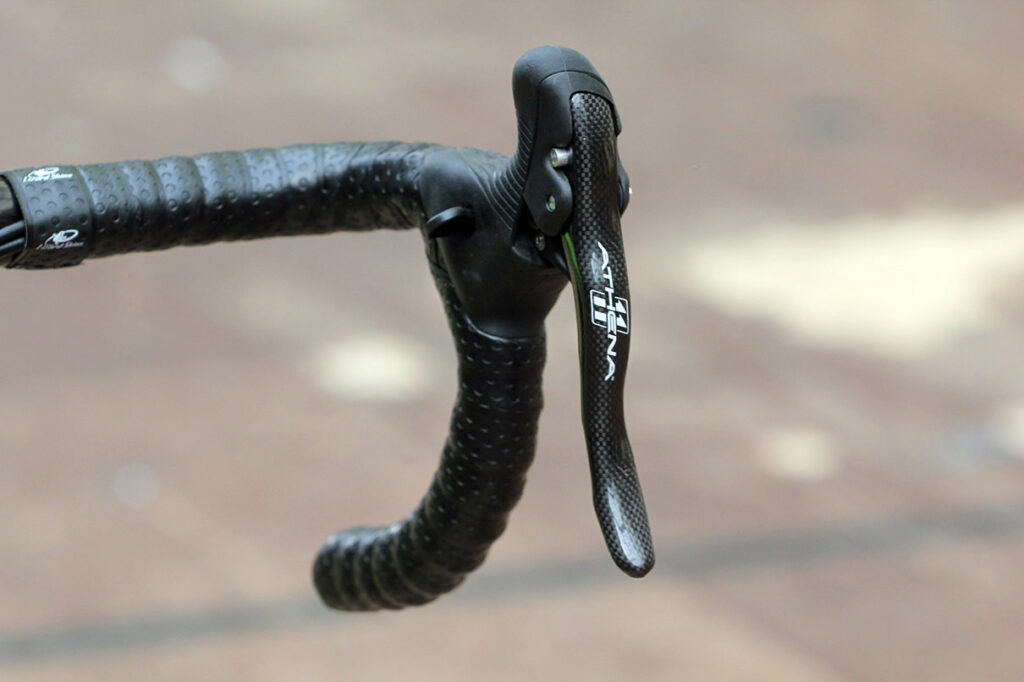

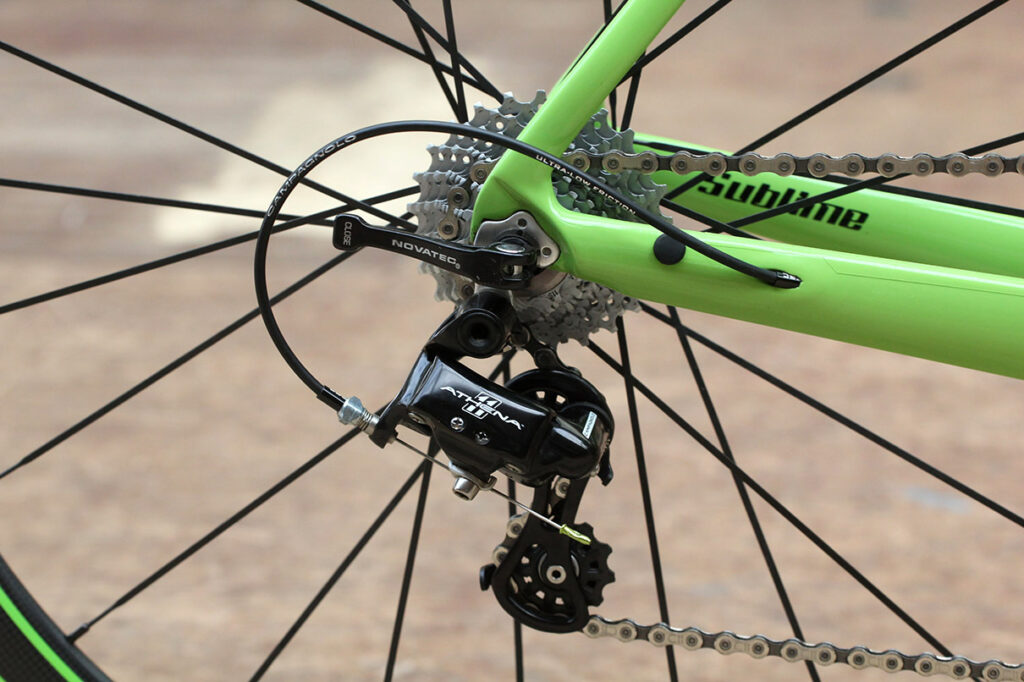

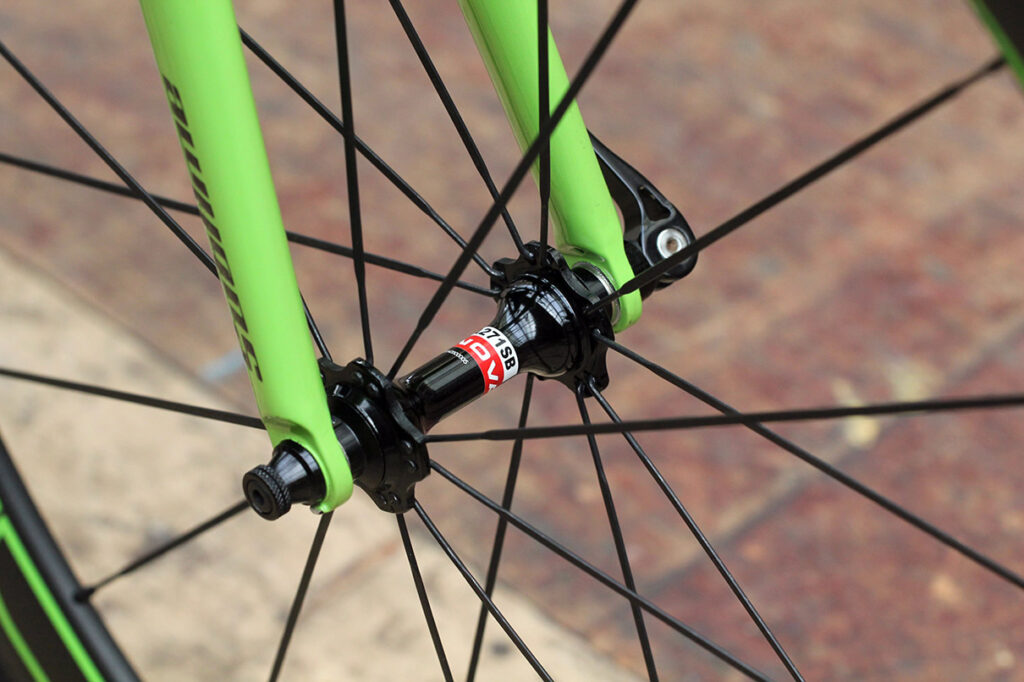

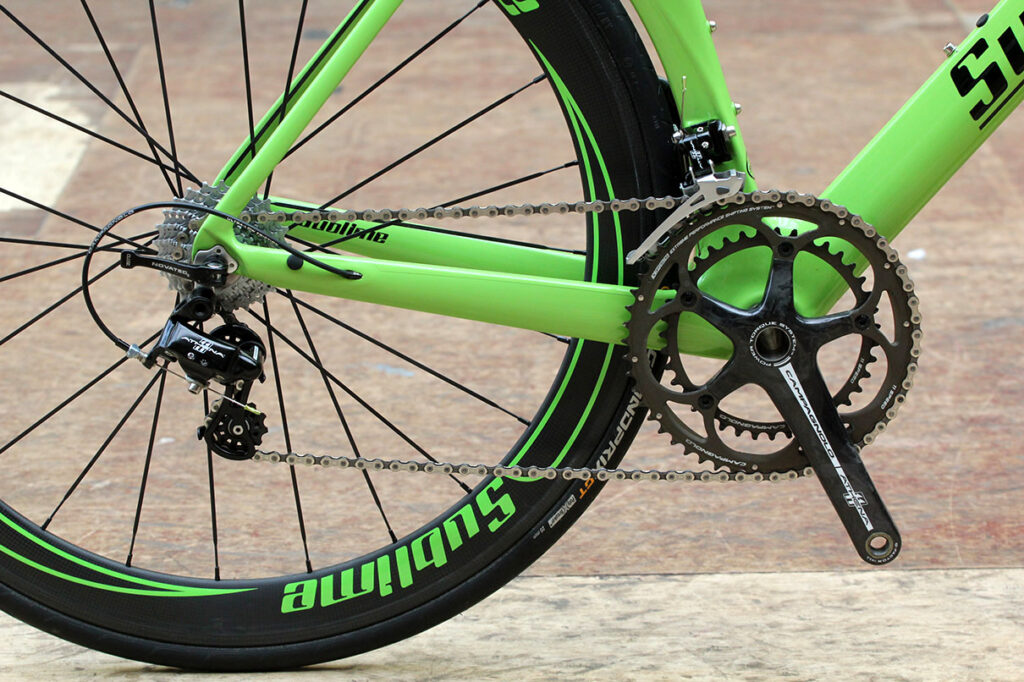

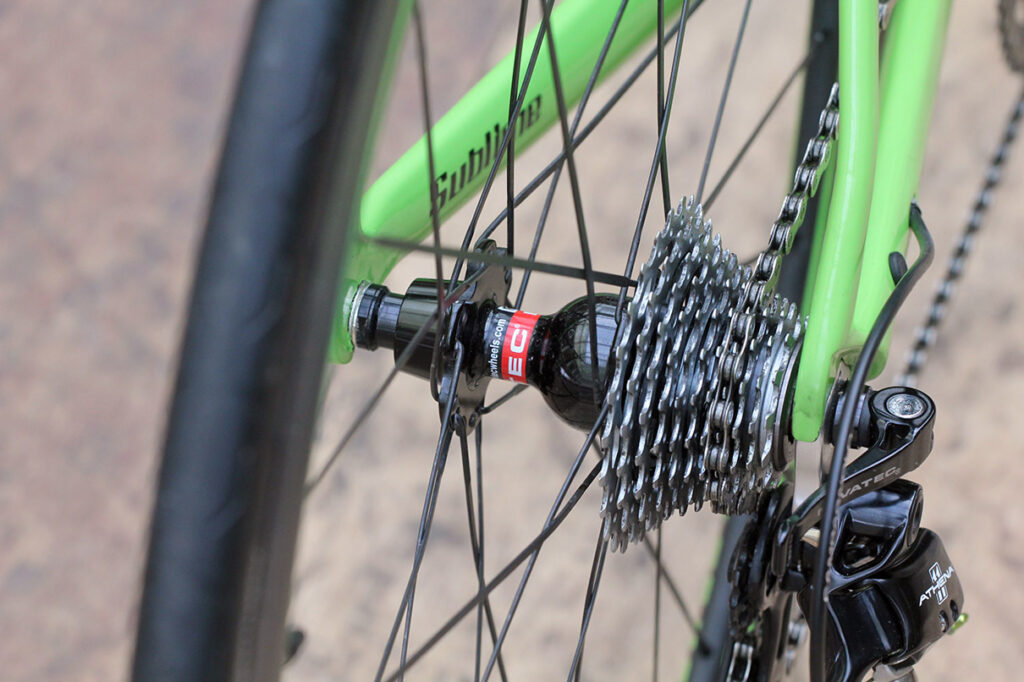

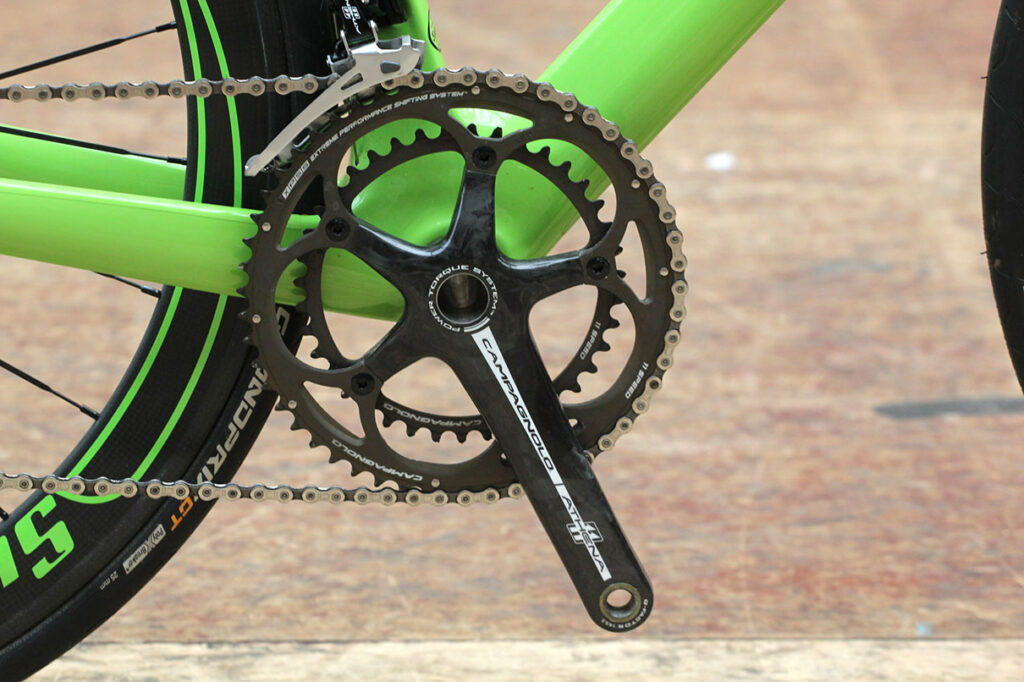

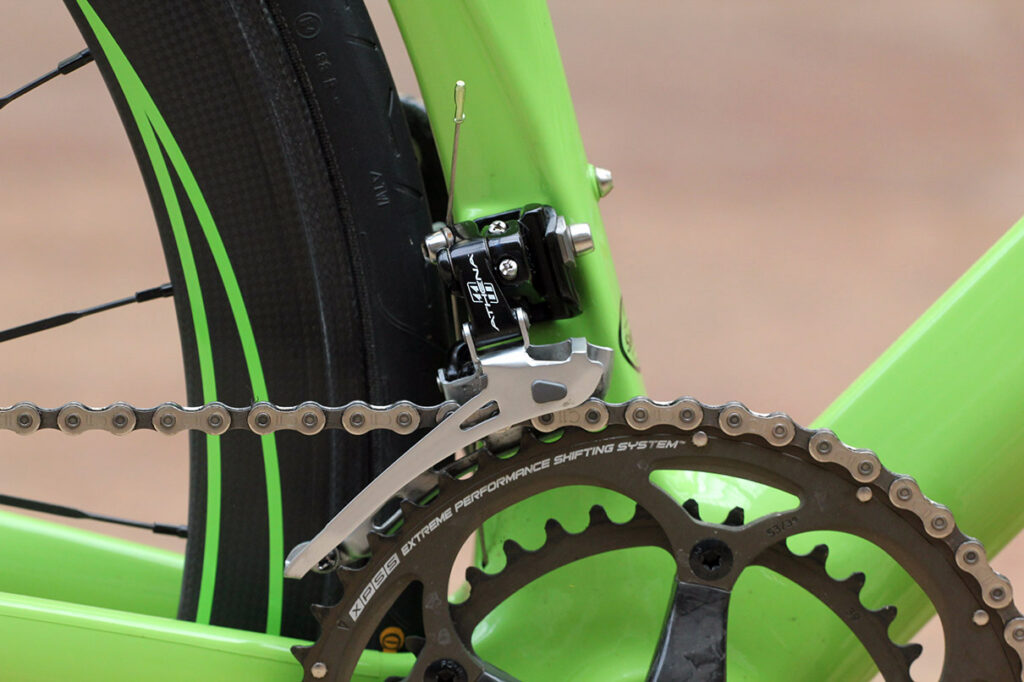

Our test model has arrived decked out with Campagnolo Athena components, Athena being Campag’s fourth tier groupset, and Sublime’s 50mm-deep carbon clincher rims built on Novatec hubs.

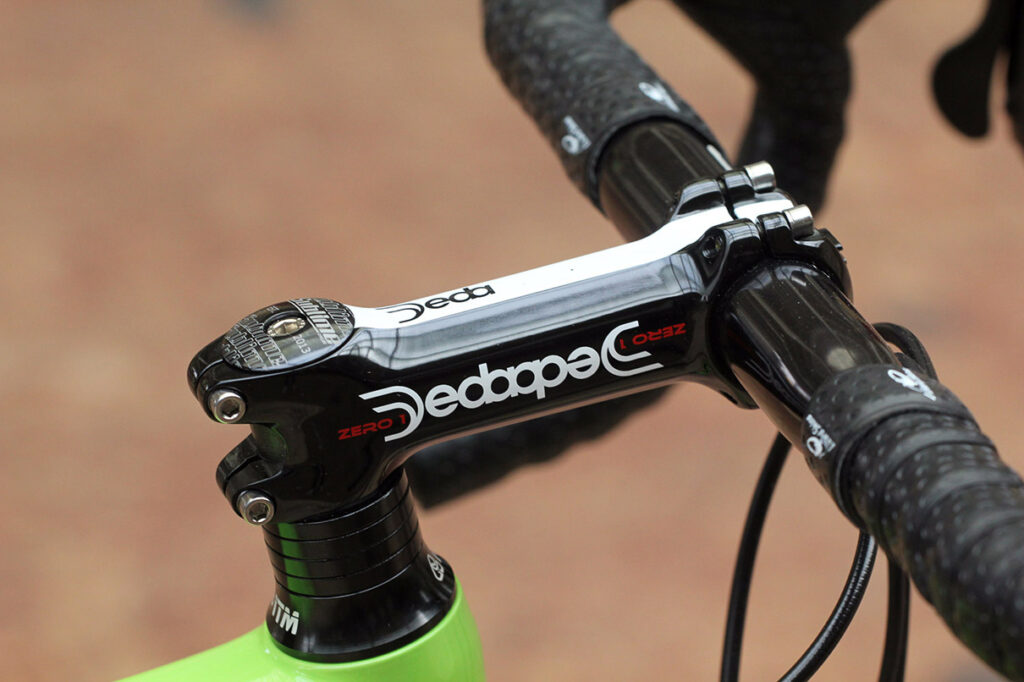

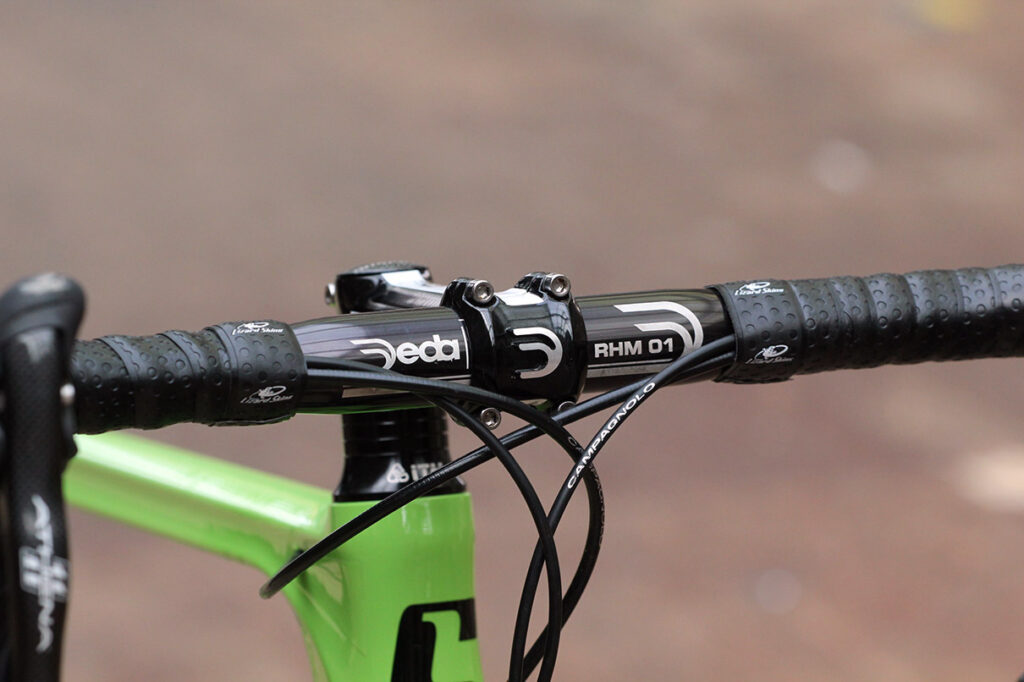

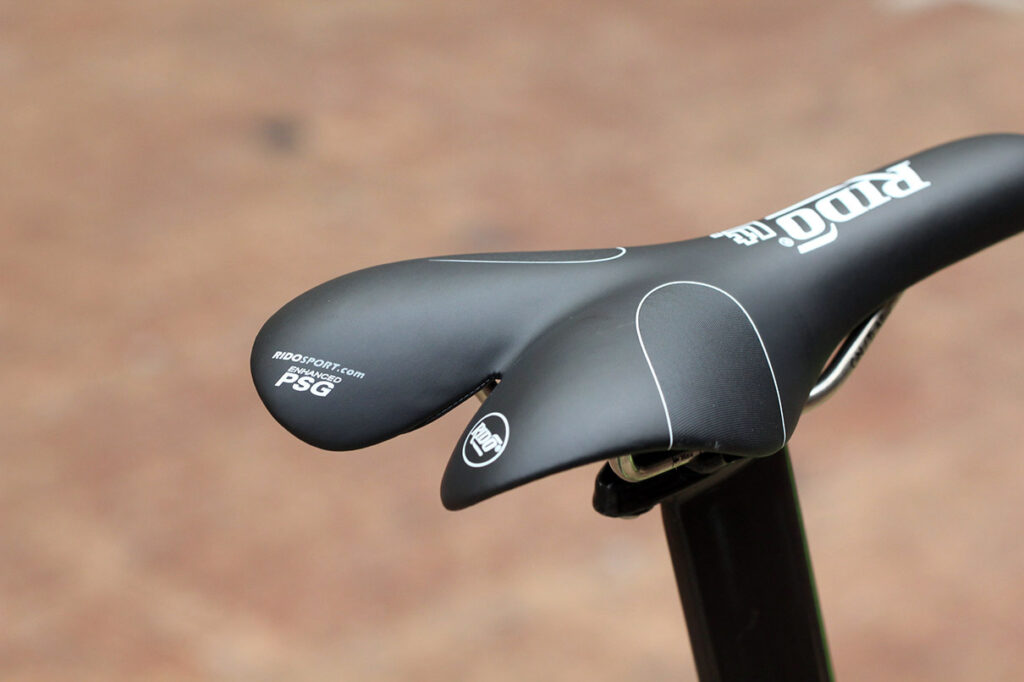

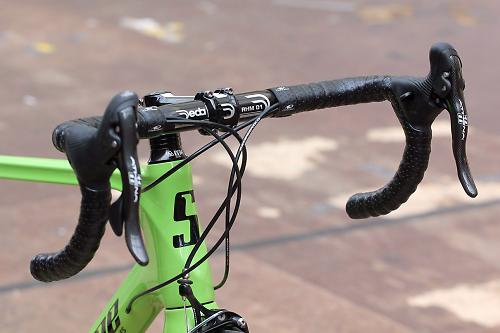

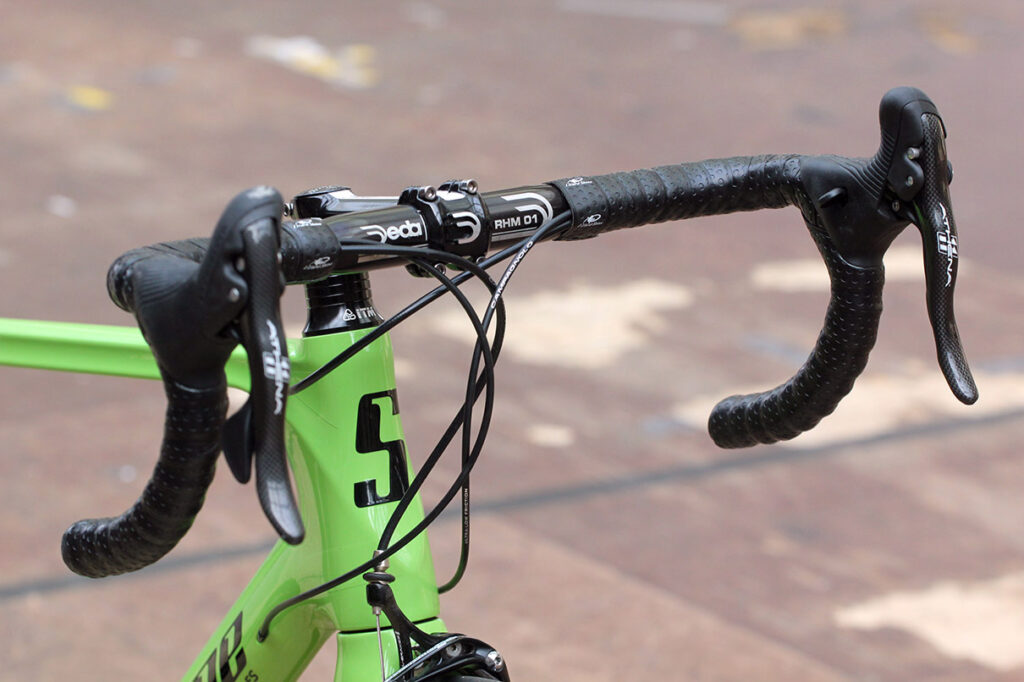

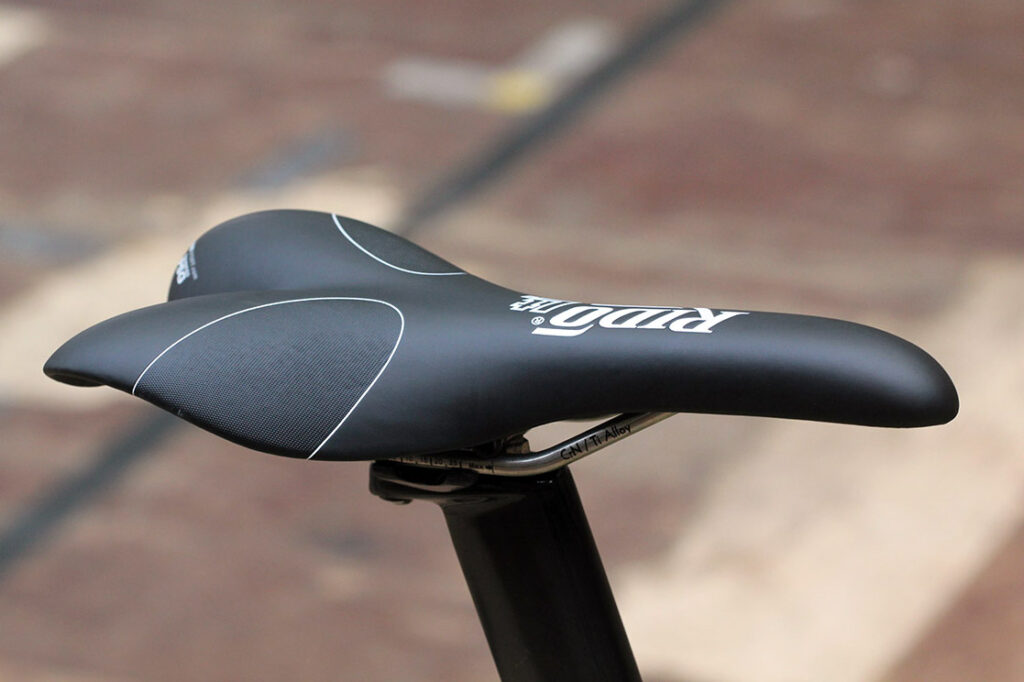

The handlebar is Deda’s RHM-01 alloy model and the stem is from Deda too: a Zero1 with flip flop graphics so it won’t look too weird if you turn it over to adjust your ride position. The saddle is from Rido.

In this build, the Six C Aero weighs 7.67kg (16.87lb), according to the road.cc Scales of Truth, and costs £2,650, according to Sublime.

There aren’t all that many Campagnolo Athena-equipped complete bikes out there – well, not compared to Shimano 105, for example – although you can always spec it on bikes through things like Ribble’s Bikebuilder

To put the Sublime’s price into some context, DeRosa’s R838 in an Athena build with Fulcrum Racing 5 wheels, an FSA handlebar, stem and seatpost, and a Selle Italia SL saddle, costs £2,799 while DeRosa’s Idol, in an Athena build with Fulcrum Racing 5s, is £2,999.

Cinelli’s T700 carbon-fibre Saetta Radical Plus comes with an Athena group, except that the chainset is from Miche, and Campag’s Scirocco 35 wheels. That’s priced at £2,199.



As we mentioned, you don’t have to have the Six C Aero in an Athena build, you can have it equipped with whatever components you like. You just tell Sublime what you want and they’ll get back to you with a price. They say that the turn around time on a bike is 3-6 weeks.

Okay, that’s the basics sorted. We need to get this bike out on the road. We’ll report back with a review shortly. In the meantime, go to Sublime’s website for more details and keep an eye on their Facebook page

Mat has been in cycling media since 1996, on titles including BikeRadar, Total Bike, Total Mountain Bike, What Mountain Bike and Mountain Biking UK, and he has been editor of 220 Triathlon and Cycling Plus. Mat has been road.cc technical editor for over a decade, testing bikes, fettling the latest kit, and trying out the most up-to-the-minute clothing. We send him off around the world to get all the news from launches and shows too. He has won his category in Ironman UK 70.3 and finished on the podium in both marathons he has run. Mat is a Cambridge graduate who did a post-grad in magazine journalism, and he is a winner of the Cycling Media Award for Specialist Online Writer. Now over 50, he's riding road and gravel bikes most days for fun and fitness rather than training for competitions.

Add new comment

14 comments

Avatar
Karbon Kev | 9 years ago
0 likes

the colour is great, just a shame it isn't their own frame ...

Avatar
jellysticks | 9 years ago
0 likes

No

Avatar
The _Kaner | 9 years ago
0 likes

I'd buy that for a dollar!  21

I like the colour...it's (nearly) the same as my DaBomb Da Pukka sussy bike...

...not great VFM when compared to Canyon though...

Avatar
Miles253 | 9 years ago
0 likes

I agree the colour is horrible, but in a different colour it might look quite nice, look at the black and orange on the website
http://www.sublimecycles.co.uk/products/our-bikes/

£2500 with Ultegra

Avatar
mr-andrew | 9 years ago
0 likes

It's the matching paint on the rims that really gives it that 'Tesco' look. It would probably look fantastic in a more muted colour.

Avatar
Matt_S | 9 years ago
0 likes

To put the Sublime’s price into some context..

...you can get a Canyon Aeroad with Force 22 and deep Mavic wheels. Or one with full Ultegra Di2.

The Sublime is an open-mould frame with a fourth-tier gruppo and oem wheels. That's one effin expensive paint job.

Avatar
Jack Osbourne snr replied to Matt_S | 9 years ago
0 likes
Matt_S wrote:

To put the Sublime’s price into some context..

That's one effin expensive paint job.

That's one effin hideously unflattering paint job. It might actually be quite a nice looking bike were it not for that paint job.

Avatar
ajmarshal1 | 9 years ago
0 likes

Never mind QRs, that's one ugly bike. I feel bad for the groupset being placed on that.

Avatar
redthing | 9 years ago
0 likes

 13 This looks exactly like the cheap un-named FR-315 frame made in China and selling on ebay. I am sure Sublime would claim their frames have been tested by a green benny hill, however if it dont cost over 300 smackers than I am all for it!

http://www.pedalroom.com/bike/fr-315--8120

Avatar
d_c_h_w | 9 years ago
0 likes

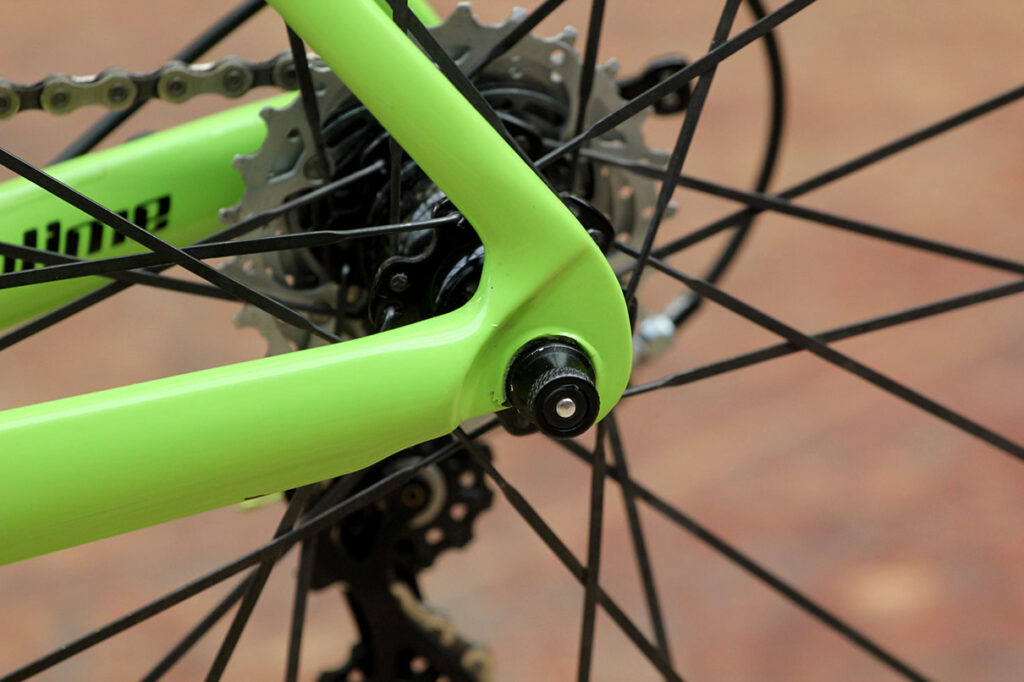

Who put that rear wheel in, the quick release in on the wrong side
